【2219】格洛克G34战术手枪UG设计（ID:1210850）

机械设备 / 非标机械 / 【2219】格洛克G34战术手枪UG设计

©非原创

281

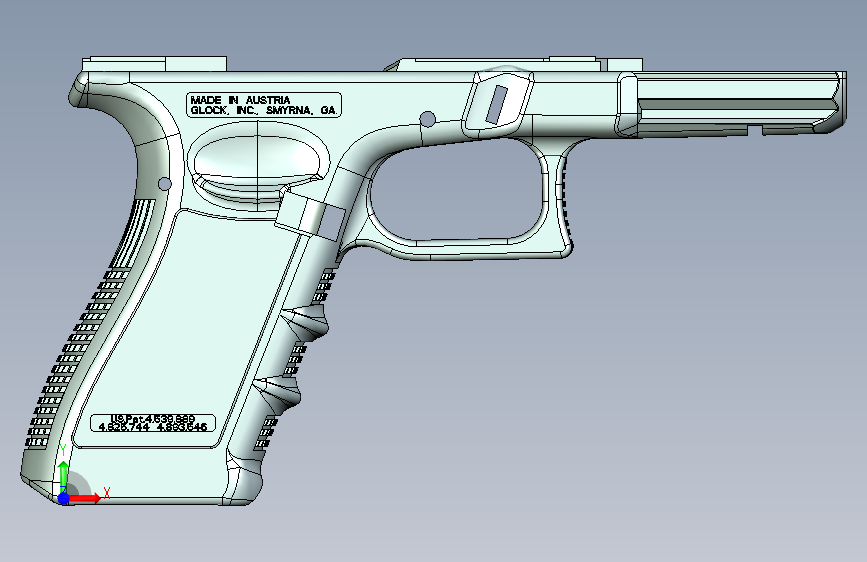

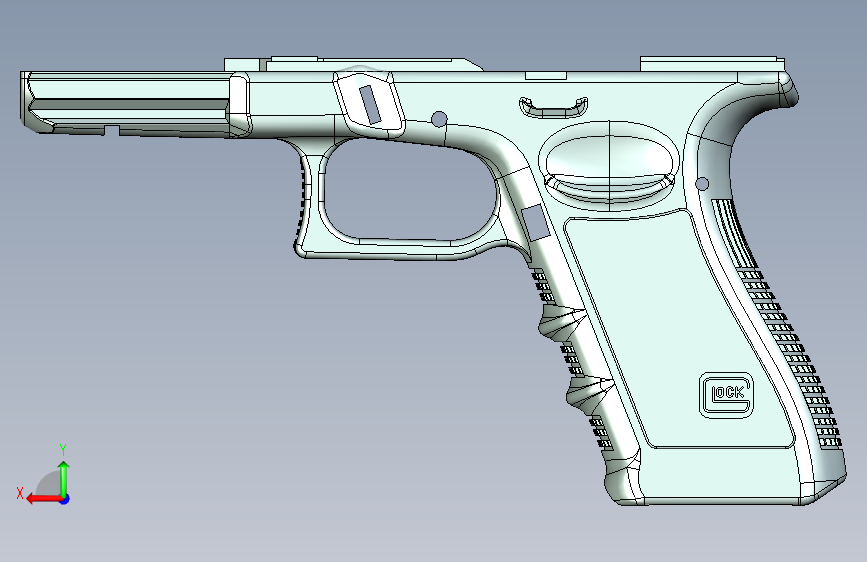

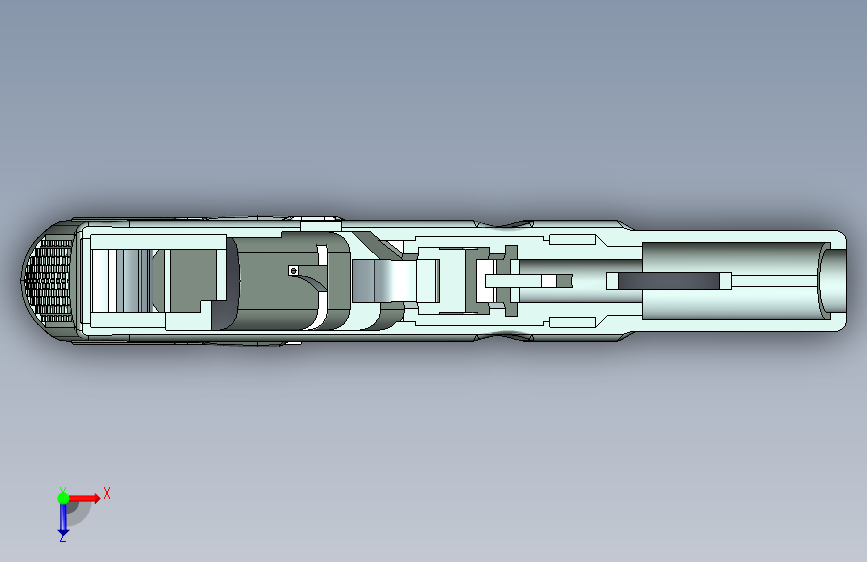

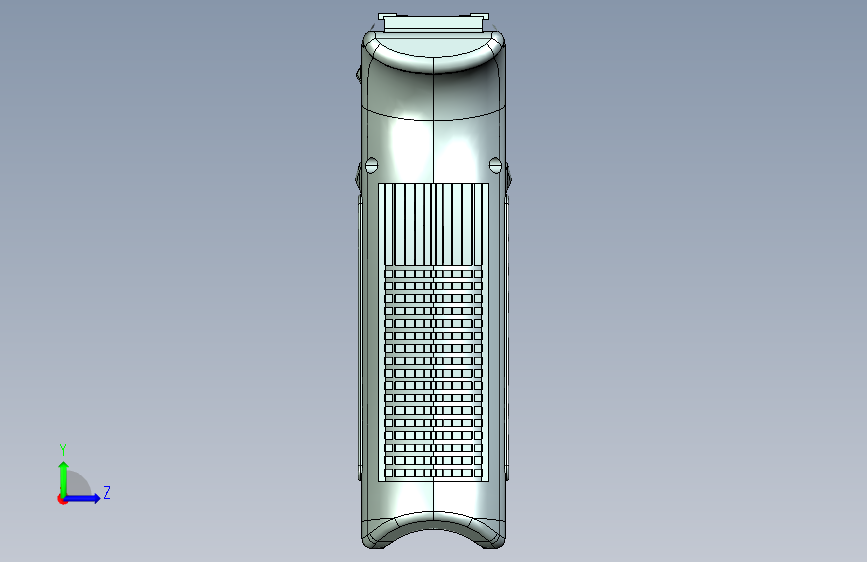

平面图

3D视图

文件列表

#	文件名称	文件大小
1	1711838595613.zip	11.06M

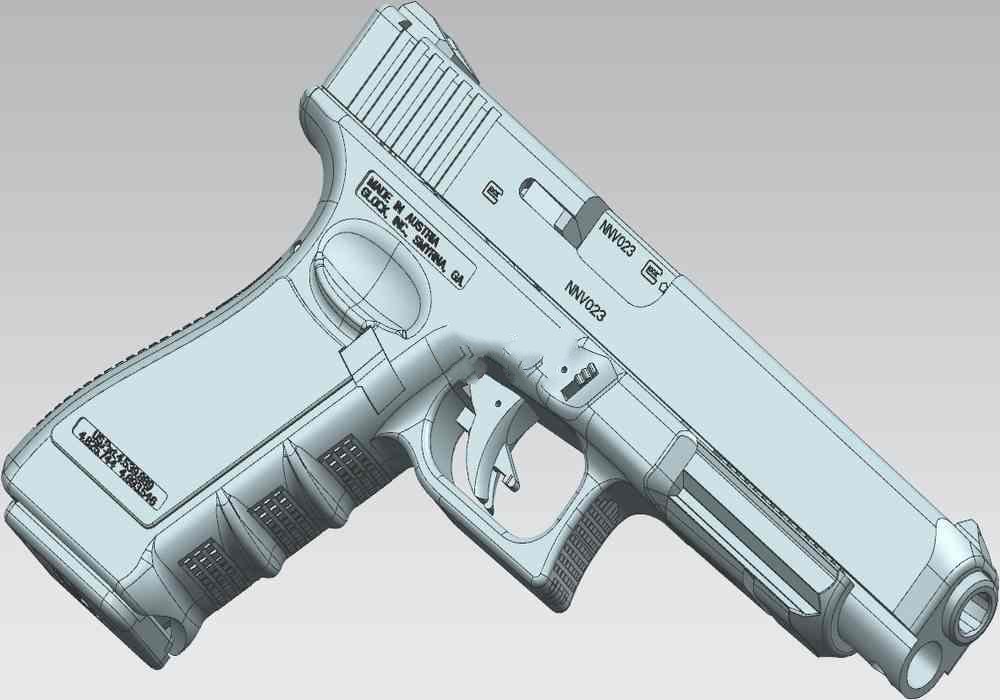

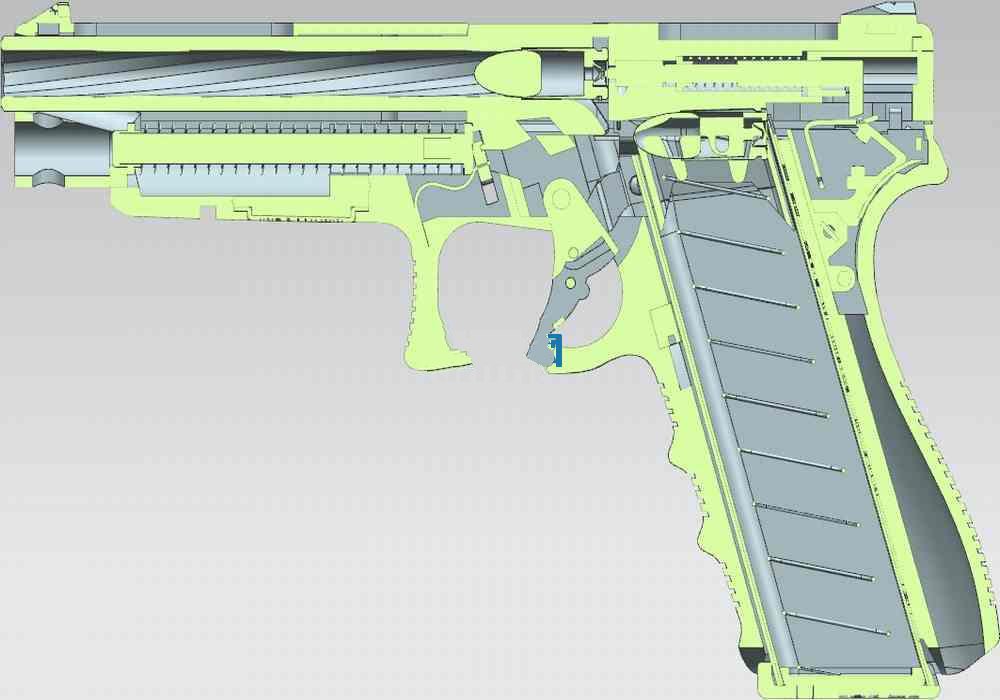

2	564ee48115889.jpg	69.01K
3	564ee48230613.jpg	76.39K
4	03-BOTTOM_PLATE.prt	103.00K
5	03-PIN.prt	84.00K
6	03-RECOIL_SPRING_ASSEM_ASM.prt	83.00K
7	03-SHAFT.prt	107.00K
8	03-SPRING.prt	482.00K
9	03-SPRING_HOLDER.prt	100.00K
10	05-FIRING_PIN.prt	134.00K
11	06-SPACER_SLEEVE.prt	98.50K
12	07-FIRING_PIN_SPRING.prt	253.00K
13	08-SPRING_CUP.prt	92.00K
14	09-FIRING_PIN_SAFETY.prt	109.00K
15	10-FIRING_PIN_SAFETY_SPRING.prt	160.50K
16	11-EXTRACTOR.prt	153.50K
17	12-EXT_DEPRE_PLUNGER.prt	100.50K
18	13-EXT_DEPRESSOR_SPRING.prt	300.00K
19	14-SPRING_LOAD_BEARING.prt	97.00K
20	15-SLIDE_COVER_PLATE.prt	138.00K
21	16-SIGHTS_ASM.prt	82.00K
22	17-RECEIVER.prt	9.91M
23	18-MAG_CATCH_SPRING.prt	83.50K
24	19-MAG-CATCH.prt	154.00K
25	20-SLIDE_LOCK_SPRING.prt	105.50K
26	21-SLIDE_LOCK.prt	290.00K
27	22-LOCKING_BLOCK.prt	133.00K
28	23-EJECTOR.prt	110.00K
29	23-TRG-MECH-HOUSING.prt	235.00K
30	23-TRG_MECH_HOUSING_EJECTOR_ASM.prt	81.50K
31	23-TRG_MECH_HOUSING_EJECTO_SKEL.prt	72.00K
32	24-CONNECTOR.prt	120.00K
33	26-TRIGGER-BAR.prt	458.50K
34	26-TRIGGER-PIN.prt	92.50K
35	26-TRIGGER-SAFETY.prt	124.00K
36	26-TRIGGER.prt	169.00K
37	26-TRIGGER_W_BAR_ASM.prt	82.50K
38	26-TRIGGER_W_BAR_SKEL.prt	72.00K
39	27-SLIDE_STOP_LEVER.prt	340.00K
40	28-TRG_PIN.prt	105.00K
41	29-TRG_HOUSING_PIN.prt	89.50K
42	30-MAG_FOLLOWER.prt	540.00K
43	31-MAG_SPRING.prt	640.00K
44	32A-MAG_INSERT.prt	151.50K
45	9X19MM_PARA_G34_ASM.prt	82.00K
46	A01-NY_TRIGGER.prt	443.50K
47	A02-FRONT_SIGHT_SPEED.prt	137.50K
48	A03-FRONT-SIGHT_SPEED-F_INSERT.prt	89.50K
49	A04-REAR_SIGHT-SPEED.prt	154.50K
50	A05-REAR_SIGHT-SPEED_INSERT.prt	104.50K
51	BARREL-SIM.prt	884.00K
52	G-9MM-MAG-BOTTOM.prt	584.00K
53	G-9MM-MAG-INNER.prt	324.00K
54	G-9MM-MAG-OUTER.prt	3.18M
55	G17-MAG-SIM_ASM.prt	90.50K
56	G17-MAG-SIM_SKEL.prt	72.00K
57	G34-ASSEM-SIM_SKEL.prt	72.00K
58	PRIMER_MIR.prt	100.00K
59	PROJECTILE_MIR.prt	110.50K
60	SHELL_MIR.prt	163.00K
61	SLIDE-SIM-ASSM_ASM.prt	105.00K
62	SLIDE-SIM.prt	1.40M
63	STRIKER_ASSEM_ASM.prt	82.50K
64	STRIKE_PLATE_MIR.prt	124.50K
65	V01-SERIAL_PLATE.prt	390.00K
66	V02-SERIAL_PLATE_FIXER.prt	104.00K
67	zpt.prt	153.50K
