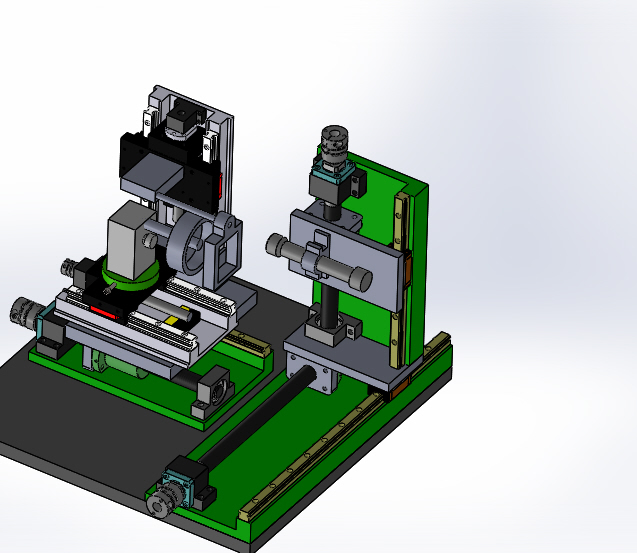

刀具钝化检测系统支撑装置结构设计【三维SolidWorks】（ID:1236804）

机械设备 / 钢结构支架 / 刀具钝化检测系统支撑装置结构设计【三维SolidWorks】

©非原创

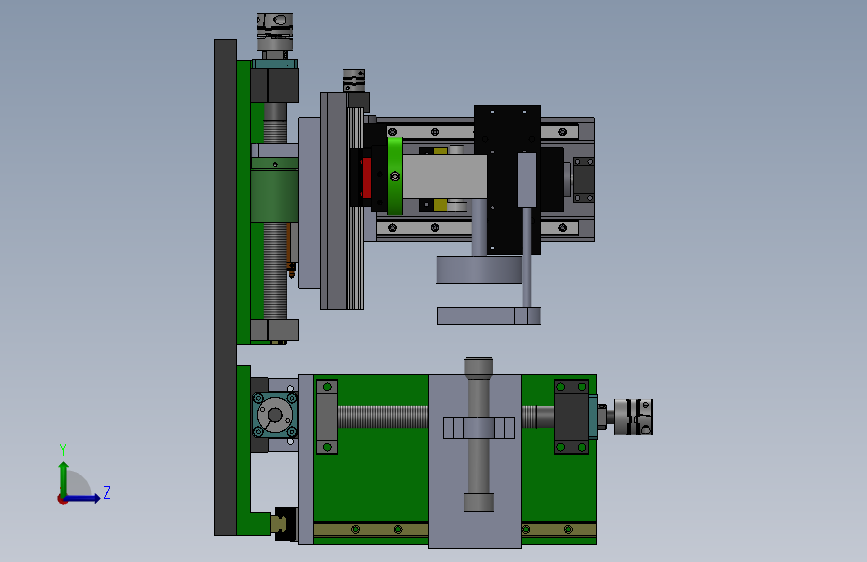

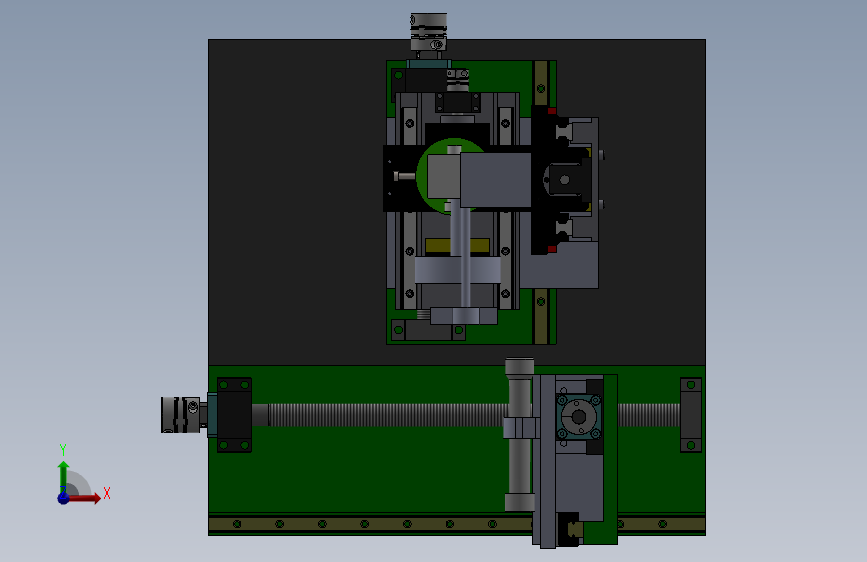

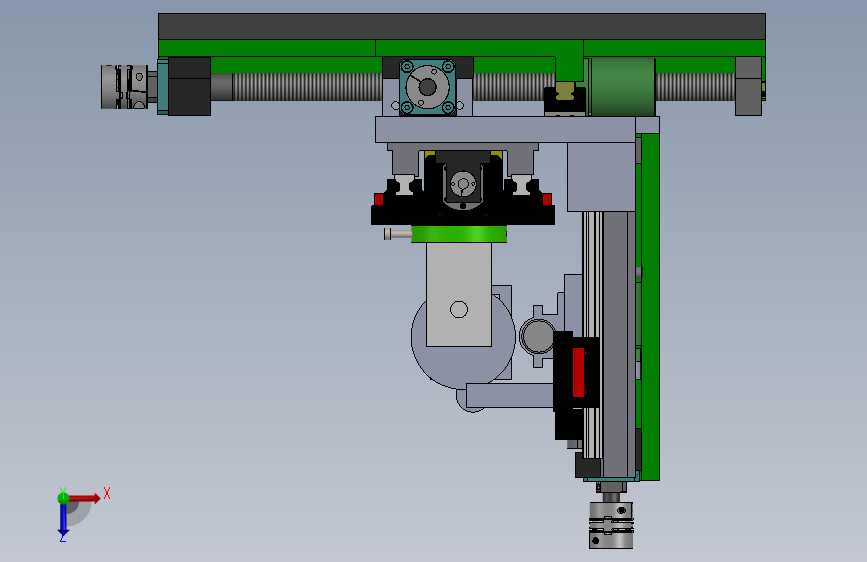

平面图

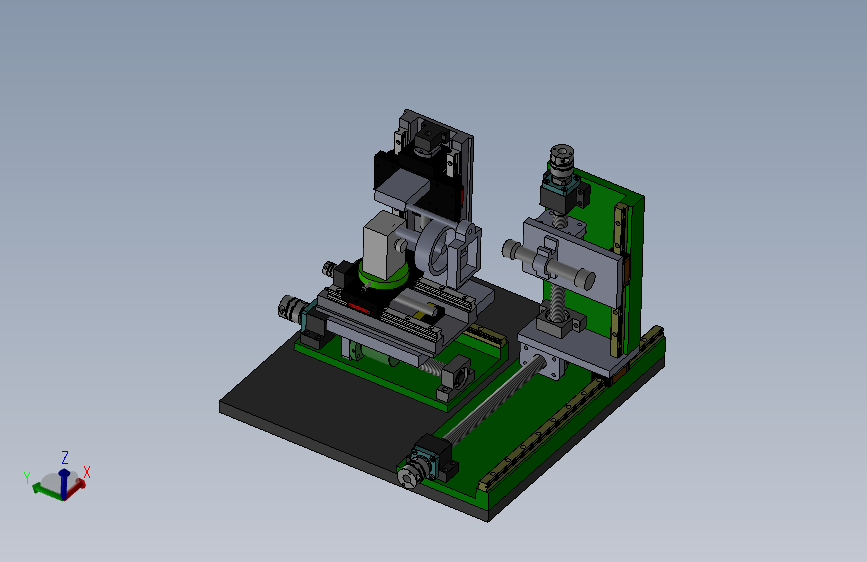

3D视图

文件列表

#	文件名称	文件大小
1	17125783288579.zip	18.03M
2	A0X向进给机构.dwg	191.03K
3	A0Z轴图.dwg	249.06K
4	A0丝杠装配BSSR3210_1100-2.DWG	103.84K
5	A0总装配图.DWG	465.53K
6	A3Z轴滚珠丝杠.dwg	53.56K
7	A3固定板.dwg	53.06K
8	A3大丝杆螺母.DWG	62.28K
9	A3轴承座.dwg	88.53K
10	A3轴承座2.DWG	53.56K
11	A4滚珠丝杠螺母.dwg	48.97K
12	A4滚珠螺母座.dwg	65.66K
13	A4端盖.DWG	92.44K
14	A4调整垫片.dwg	46.47K
15	A4轴承压盖.dwg	82.41K
16	A4连接板9.DWG	54.06K
17	任务书.doc	35.00K
18	刀具刃口钝化技术的探讨.pdf	772.08K
19	固定板.DWG	107.69K
20	底板.dwg	78.22K
21	开题报告.doc	29.50K
22	说明书【改5.17】-终改.doc	1.46M
23	AAA751RD6-C02.sldprt	57.70K
24	AAA751RD7-C01.sldprt	46.38K
25	AAA751RD8-C01.sldprt	31.29K
26	B7205_DF.sldprt	233.98K
27	bearingB6205ZZ.sldprt	146.07K
28	BSSR3210c.sldprt	109.33K
29	BSSR3210n.SLDDRW	108.68K
30	BSSR3210n.sldprt	122.77K
31	BSSR3210_1100a-2.SLDPRT	119.78K
32	BSSR3210_1100a.sldprt	110.67K
33	BSW25.sldasm	287.58K
34	BSW25cover.SLDDRW	110.70K
35	BSW25cover.sldprt	161.75K
36	BSW25housing-1.SLDPRT	101.20K
37	BSW25housing.sldprt	104.29K
38	BSW25nut.sldprt	148.75K
39	BSW25spacer.sldprt	80.80K
40	BUN25.sldasm	137.07K
41	BUN25housing.sldprt	99.83K
42	dagan.SLDPRT	68.75K
43	gudingban.DWG	42.34K
44	gudingban.SLDDRW	69.94K
45	gudingban.SLDPRT	36.99K
46	gudingzuo.SLDPRT	57.51K
47	jiance.SLDPRT	77.54K
48	lianjieban11.SLDPRT	34.24K
49	lianjieban12.SLDPRT	37.27K
50	M6x25.sldprt	61.89K
51	MCSLC50_20_20.sldasm	169.07K
52	MCSLC50_20_20_b-1.SLDPRT	317.01K
53	MCSLC50_20_20_b.sldprt	285.32K
54	NMK2551.sldprt	441.12K
55	SSHRB40.sldprt	351.46K
56	SSHRLZ40_1000-2.SLDASM	139.38K
57	SSHRLZ40_1000.sldasm	140.72K
58	SSHZLF40_1000-2.SLDPRT	104.87K
59	SSHZLF40_1000.sldprt	113.42K
60	STWN25.sldprt	80.16K
61	TGR25283_1.sldprt	38.45K
62	TGRW253.sldprt	51.21K
63	Thumbs.db	14.00K
64	xiaosigan.SLDPRT	58.73K
65	yuanpan.SLDPRT	55.35K
66	Z.SLDASM	642.15K
67	zhuanpan.SLDPRT	49.55K
68	ZW3025-01.sldprt	25.80K
69	ZW3025.sldprt	25.53K
70	_X2_87BA9489_X0_GB_T70.1-2000M6x20.sldprt	30.11K
71	_X2_87BA9489_X0_GB_T70.1-2000M8x16.sldprt	30.56K
72	_X2_87BA9489_X0_GB_T70.1-2000M8x20.sldprt	30.52K
73	丝杠装配BSSR3210_1100-2.SLDASM	379.81K
74	丝杠装配BSSR3210_1100-2.SLDDRW	232.15K
75	丝杠装配BSSR3210_1100.sldasm	367.12K
76	基板1.SLDPRT	61.86K
77	基板2.SLDPRT	63.64K
78	工作台装配.SLDASM	1.36M
79	工作台装配.SLDDRW	429.02K
80	工作台装配2.SLDASM	453.26K
81	工作台装配3.SLDASM	430.03K
82	总图-爆炸图.SLDASM	1.37M
83	总图.DWG	365.06K
84	总图.JPG	157.33K
85	总图.SLDASM	1.39M
86	总图.SLDDRW	429.07K
87	总图.STEP	4.98M
88	总图.STP	4.98M
89	轴承座.SLDDRW	95.87K
90	轴承座.SLDPRT	88.87K
91	连接板31.SLDPRT	53.18K
92	连接板9.SLDDRW	83.18K
93	连接板9.SLDPRT	107.69K
