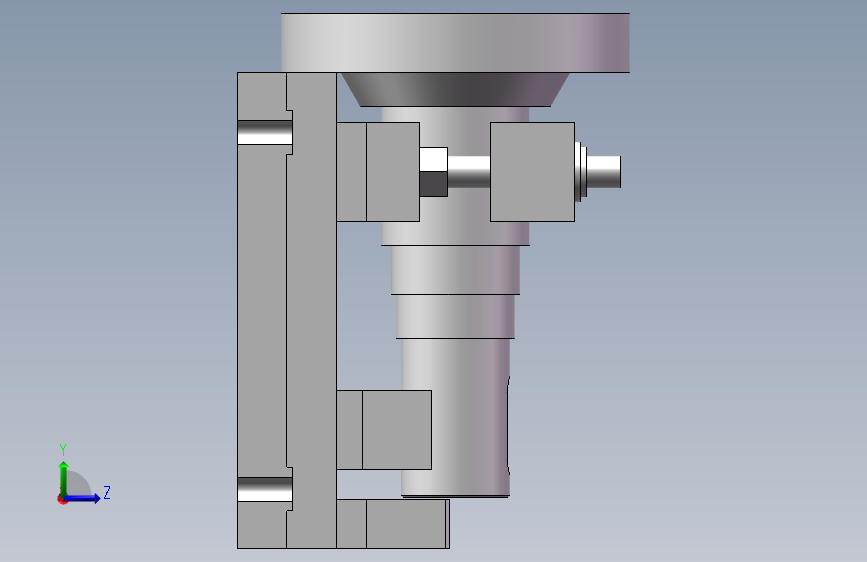

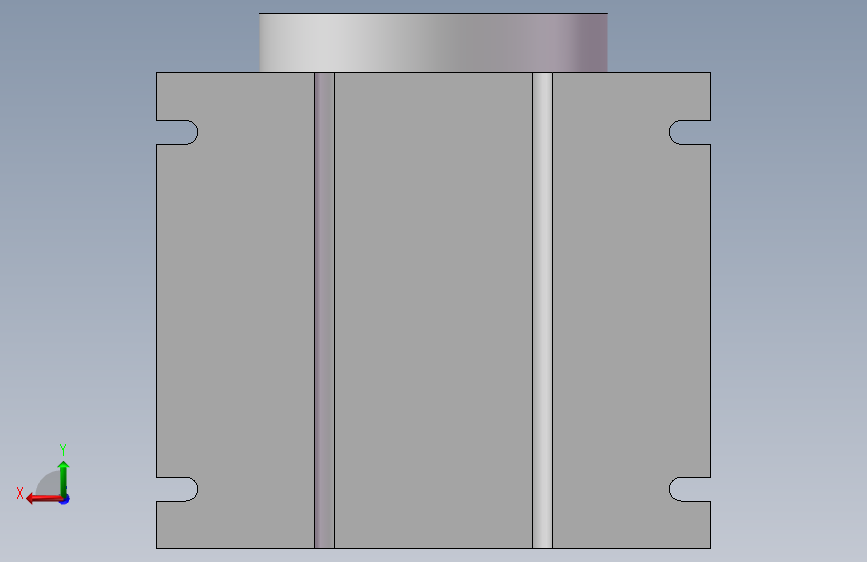

输出轴加工工艺及铣键槽夹具设计【含三维】（ID:1242573）

设备部件 / 工器具 / 输出轴加工工艺及铣键槽夹具设计【含三维】

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17128083864497.zip	4.28M

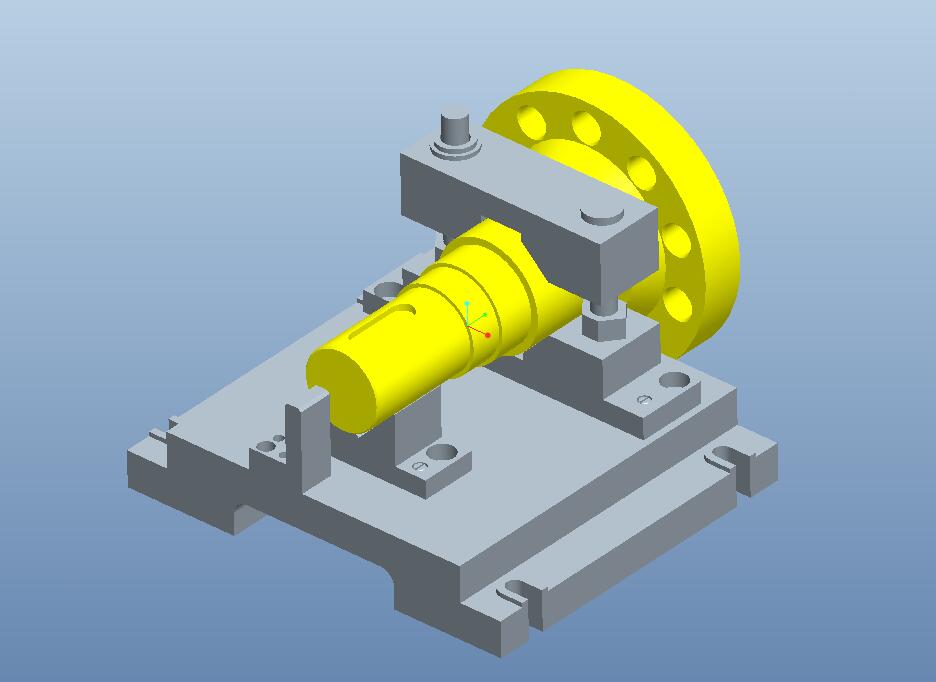

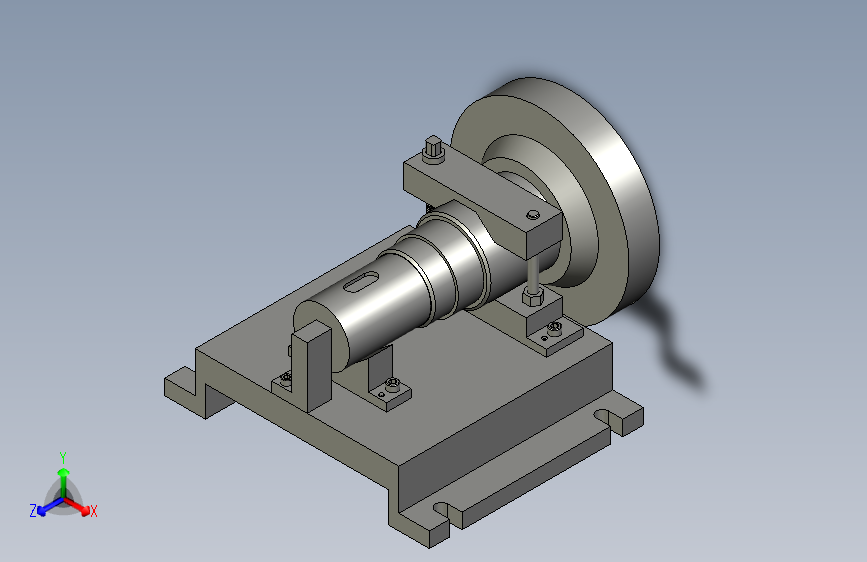

2	9-铣键槽夹具【三维】.jpg	30.36K
3	asm0010.asm.1	73.62K
4	asm0010.asm.2	81.35K
5	asm0010.asm.3	82.46K
6	asm0010.asm.4	80.93K
7	asm0010.asm.5	87.81K
8	asm0010.asm.6	96.62K
9	asm0010.asm.7	103.64K
10	asm0010.asm.8	63.19K
11	asm0010_asm.stp	406.02K
12	duidaokuai.prt.1	134.43K
13	jiajuti.prt.1	202.18K
14	jiajuti.prt.2	175.21K
15	liujiaoluomu.prt.1	80.94K
16	pingdianquan.prt.1	68.67K
17	shangvxingkuai.prt.1	87.47K
18	shuangtouluozhu.prt.1	57.07K
19	shuchuzhou.prt.1	465.26K
20	shuchuzhou.prt.2	517.82K
21	shuchuzhou.prt.3	521.98K
22	tanhuangdianquan.prt.1	69.55K
23	trail.txt.1	15.64K
24	trail.txt.2	2.59K
25	vxingkuai.prt.1	179.13K
26	xiaovxingkuai.prt.1	146.17K
27	yajinluoding.prt.1	72.13K
28	yuanzhuxiao.prt.1	106.13K
29	夹具体.dwg	302.66K
30	工序卡10.doc	45.00K
31	工序卡20.doc	49.50K
32	工序卡30.doc	57.00K
33	工序卡40.doc	53.00K
34	工序卡50.doc	52.50K
35	工序卡60.doc	54.00K
36	工序卡70.doc	49.50K
37	工序卡80.doc	61.00K
38	工艺过程卡.doc	41.50K
39	装配图.dwg	358.02K
40	设计说明书.doc	301.00K

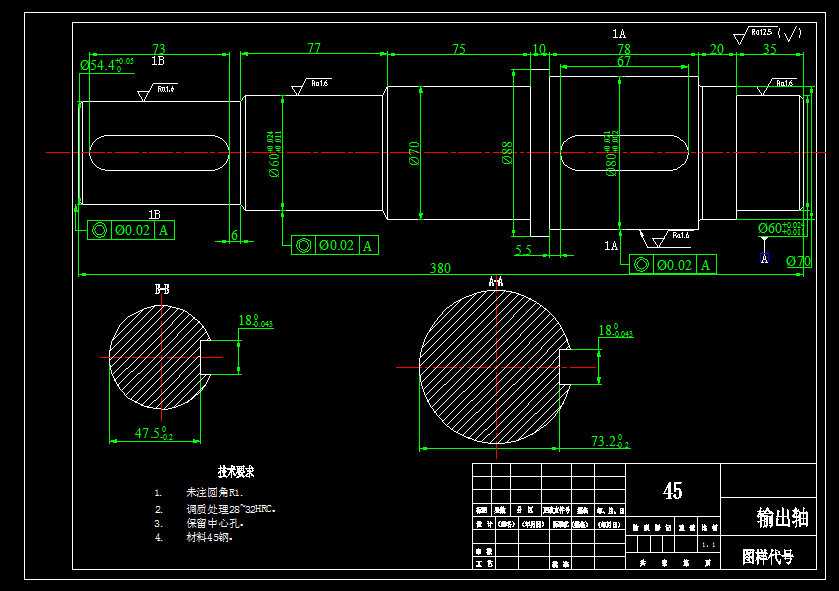

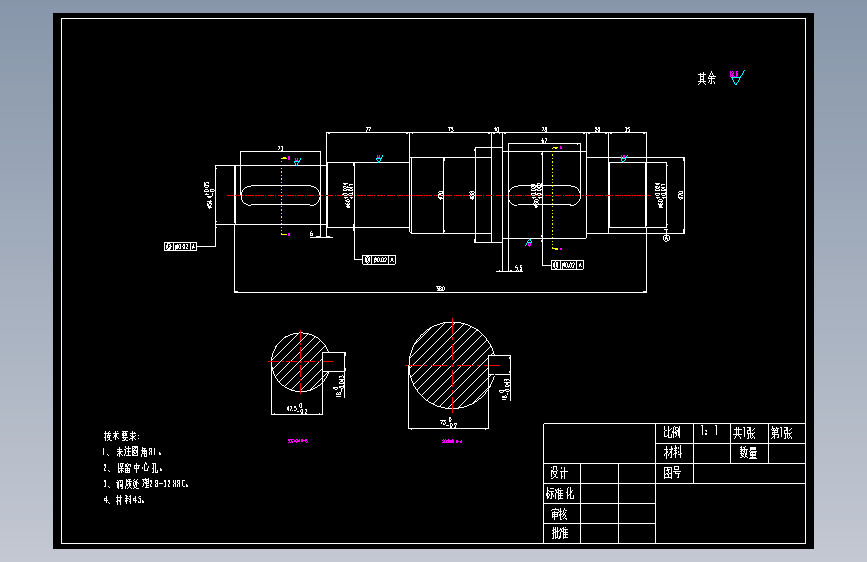

41	输出轴零件图.dwg	336.51K
42	输出轴零件毛坯图.dwg	64.66K
43	asm0010_asm.err	825B

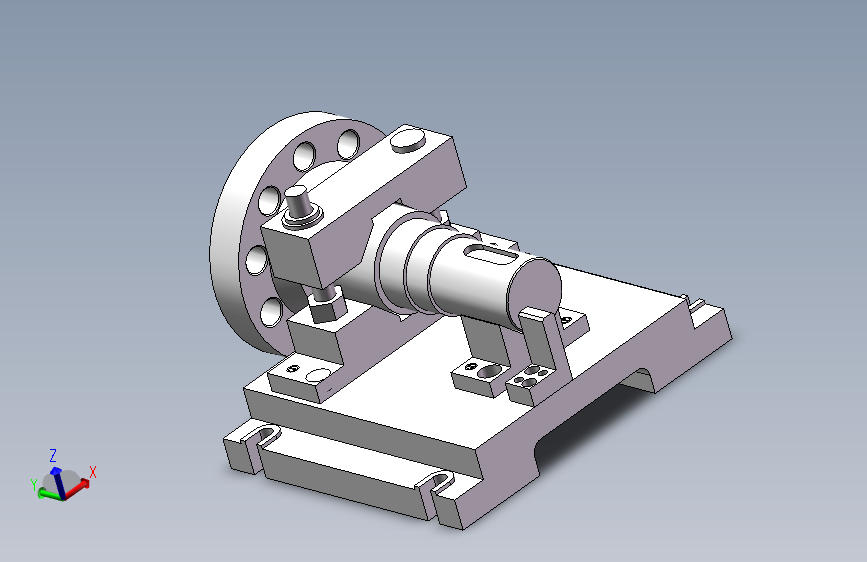

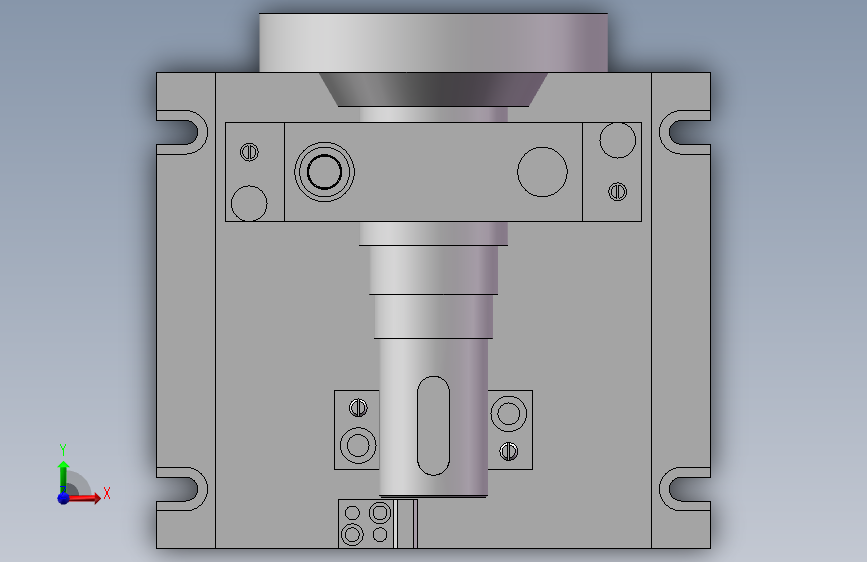

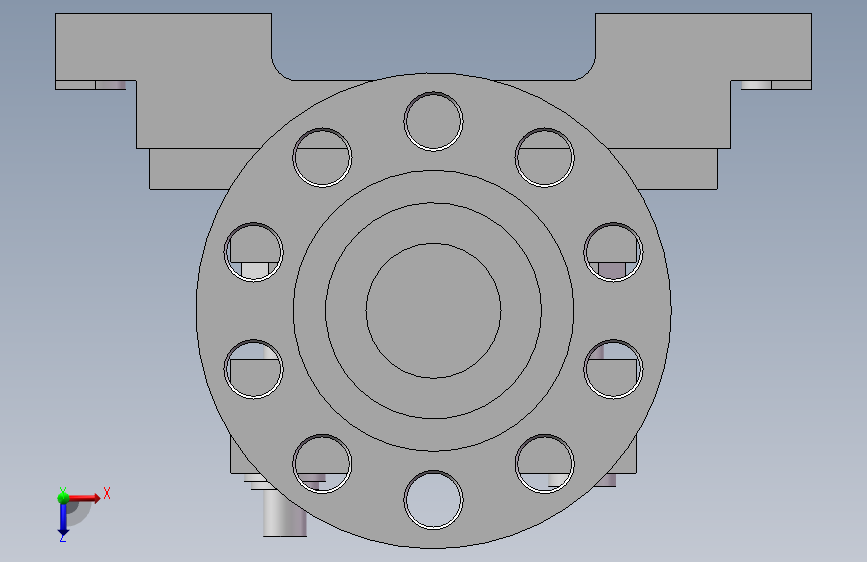

44	asm0010_asm.SLDASM	139.30K
45	asm0010_asm.stp	406.02K
46	DUIDAOKUAI.sldprt	58.00K
47	JIAJUTI.sldprt	74.50K
48	LIUJIAOLUOMU.sldprt	59.50K
49	PINGDIANQUAN.sldprt	54.00K
50	SHANGVXINGKUAI.sldprt	57.00K
51	SHUANGTOULUOZHU.sldprt	53.50K
52	SHUCHUZHOU.sldprt	66.50K
53	sw.zip	395.39K
54	TANHUANGDIANQUAN.sldprt	54.00K
55	VXINGKUAI.sldprt	63.00K
56	XIAOVXINGKUAI.sldprt	59.00K
57	YAJINLUODING.sldprt	54.00K
58	YUANZHUXIAO.sldprt	56.50K
59	asm0010_asm.err	825B
60	asm0010_asm.SLDASM	139.30K
61	asm0010_asm.stp	406.02K
62	DUIDAOKUAI.sldprt	58.00K
