5040CNC数控雕刻机（ID:1401950）

机械设备 / 机加工设备 / 5040CNC数控雕刻机

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	1716363668274.zip	23.83M
2	5040X防护罩.dwg	84.49K
3	5040X防护罩.exb	21.40K
4	5040Y不锈钢防护罩.dwg	91.84K
5	5040Y不锈钢防护罩.exb	32.50K
6	sgmph.dwg	100.44K
7	sgmph.exb	23.27K
8	T型螺母.dwg	191.38K
9	T型螺母.exb	21.22K
10	ZXDK5040-雕刻机.dwg	296.27K

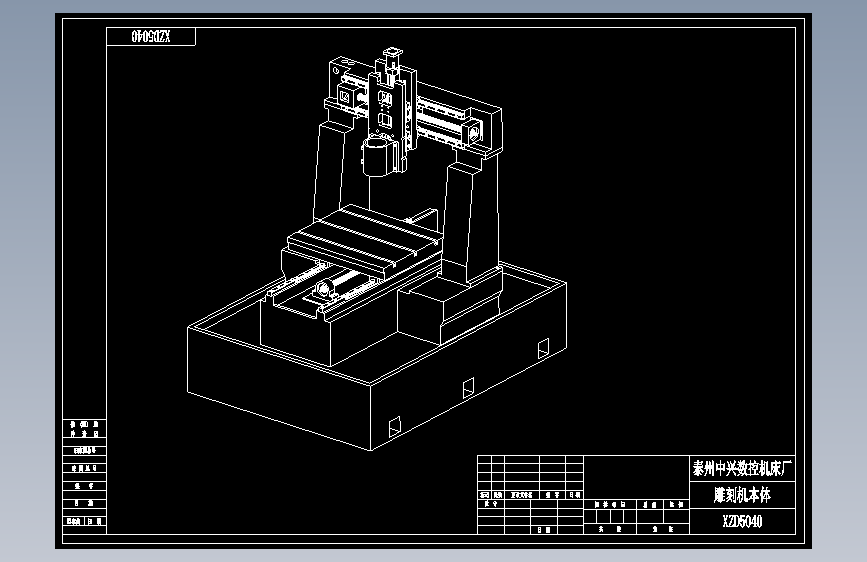

11	ZXDK5040-雕刻机.exb	423.08K
12	ZXK5040-(Z轴电机座).dwg	113.78K
13	ZXK5040-00机床本体总装.dwg	115.95K
14	ZXK5040-00机床本体总装.exb	46.17K
15	ZXK5040-X向拖板I.dwg	199.43K
16	ZXK5040-X向拖板I.exb	124.01K
17	ZXK5040-x向驱动组合.dwg	120.04K
18	ZXK5040-x向驱动组合.exb	66.51K
19	ZXK5040-x轴丝杠.dwg	141.03K
20	ZXK5040-x轴丝杠.exb	81.75K
21	ZXK5040-x轴丝杠（双螺母）.dwg	128.40K
22	ZXK5040-x轴丝杠（双螺母）.exb	80.37K
23	ZXK5040-X轴丝母座.dwg	99.53K
24	ZXK5040-X轴丝母座.exb	35.21K
25	ZXK5040-Y向接轨.dwg	101.69K
26	ZXK5040-Y向接轨.exb	24.10K
27	ZXK5040-Y向驱动组合.dwg	96.74K
28	ZXK5040-Y向驱动组合.exb	45.36K
29	ZXK5040-Y轴丝杠.dwg	134.33K
30	ZXK5040-Y轴丝杠.exb	80.37K
31	ZXK5040-Y轴丝杠（双螺母）.dwg	134.73K
32	ZXK5040-Y轴丝杠（双螺母）.exb	82.22K
33	ZXK5040-Y轴丝母座.dwg	113.16K
34	ZXK5040-Y轴丝母座.exb	38.45K
35	ZXK5040-Z向拖板.dwg	115.56K
36	ZXK5040-Z向拖板.exb	69.05K
37	ZXK5040-Z轴丝杠.dwg	118.17K
38	ZXK5040-Z轴丝杠.exb	67.32K
39	ZXK5040-Z轴丝杠（双螺母）.dwg	118.07K
40	ZXK5040-Z轴丝杠（双螺母）.exb	67.09K
41	ZXK5040-Z轴丝母座.dwg	91.78K
42	ZXK5040-Z轴丝母座.exb	26.28K
43	ZXK5040-Z轴电机座.dwg	113.78K
44	ZXK5040-Z轴电机座.exb	60.65K
45	ZXK5040-主轴电机座.dwg	96.59K
46	ZXK5040-主轴电机座.exb	37.40K
47	ZXK5040-前轴承座.dwg	114.44K
48	ZXK5040-前轴承座.exb	45.47K
49	ZXK5040-前轴承座盖.dwg	88.00K
50	ZXK5040-前轴承座盖.exb	25.74K
51	ZXK5040-副工作台.dwg	104.41K
52	ZXK5040-副工作台.exb	35.67K
53	ZXK5040-右轴承座I.dwg	114.25K
54	ZXK5040-右轴承座I.exb	54.57K

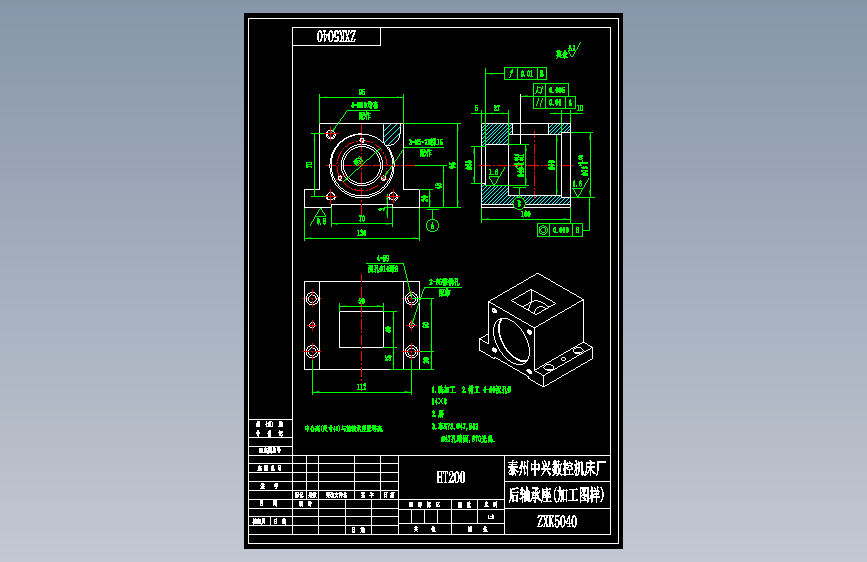

55	ZXK5040-后轴承座.dwg	118.00K
56	ZXK5040-后轴承座.exb	64.50K
57	ZXK5040-后轴承座盖.dwg	87.40K
58	ZXK5040-后轴承座盖.exb	24.81K
59	ZXK5040-导轨垫块.dwg	108.91K
60	ZXK5040-导轨垫块.exb	35.90K

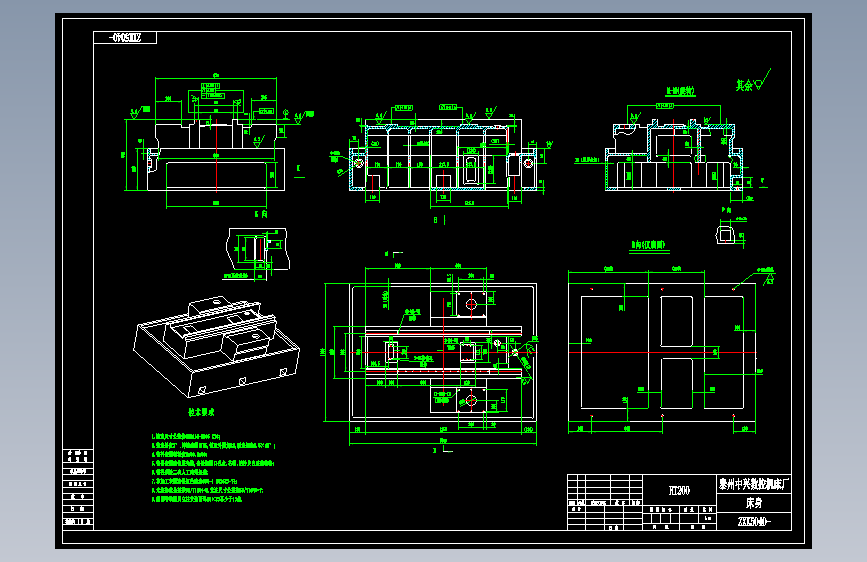

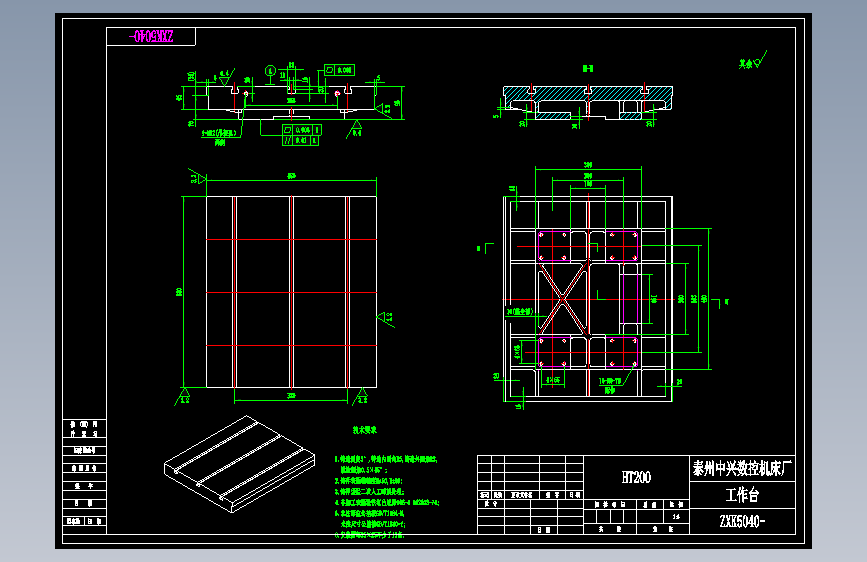

61	ZXK5040-工作台I.dwg	414.16K
62	ZXK5040-工作台I.exb	85.05K
63	ZXK5040-左轴承座.dwg	238.54K
64	ZXK5040-左轴承座.exb	50.51K
65	ZXK5040-左轴承座盖.dwg	88.90K
66	ZXK5040-左轴承座盖.exb	27.88K
67	ZXK5040-床身.dwg	280.91K
68	ZXK5040-床身.exb	226.41K
69	ZXK5040-横梁.dwg	198.13K
70	ZXK5040-横梁.exb	117.01K
71	ZXK5040-电机过渡板.dwg	204.13K
72	ZXK5040-电机过渡板.exb	30.07K

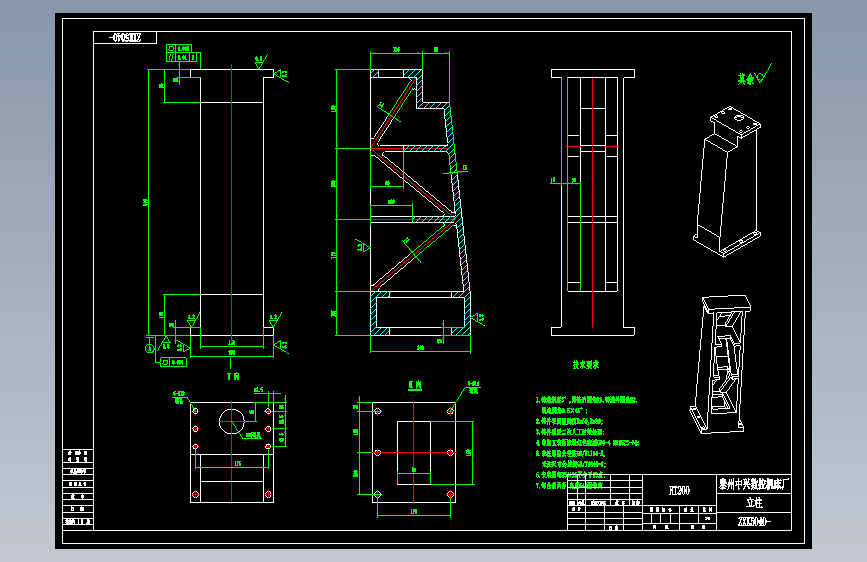

73	ZXK5040-立柱.dwg	269.95K
74	ZXK5040-立柱.exb	77.53K
75	ZXK5040-雕刻机铸件.dwg	221.75K
76	ZXK5040-雕刻机铸件.exb	182.23K
77	ZXK5040外形图.pdf	27.87K
78	内外隔圈.bak	13.47K
79	内外隔圈.dwg	79.60K
80	内外隔圈.exb	94.00K
81	内外隔圈8.dwg	199.25K
82	内外隔圈8.exb	22.26K
83	厂牌.dwg	76.89K
84	厂牌.exb	10.32K
85	后轴承座.dwg	251.99K
86	后轴承座.exb	63.49K
87	外形图.dwg	132.27K
88	外形图.exb	81.90K
89	整体横梁.bak	148.78K
90	整体横梁.dwg	205.63K
91	整体横梁.exb	143.00K
92	无名文件.bak	24.89K
93	无名文件.dwg	88.46K
94	无名文件.exb	98.50K
95	机床电气清单E5040.xls	60.50K
96	维护.pdf	20.36M
97	节节高.dwg	193.55K
98	节节高.exb	22.94K
99	锁紧螺母16.bak	33.20K
100	锁紧螺母16.dwg	95.15K
101	锁紧螺母16.exb	102.00K
102	锁紧螺母22.dwg	94.06K
