鱼鹰的双旋翼机（ID:1435643）

机械设备 / 非标机械 / 鱼鹰的双旋翼机

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17174295427644.zip	72.14M
2	AxeWasher.STL	265.80K
3	Axe_D俧aut.par	189.50K
4	Basedustator_D俧aut.par	543.50K
5	Bobine_D俧aut.par	828.00K
6	Cable_1-RD-MOTEURD28301000kv_D俧aut.asm	153.50K
7	Cable_4-RD-MOTEURD28301000kv_D俧aut.asm	153.50K
8	Cble^Cable_1-RD-MOTEURD28301000kv_D俧aut.par	253.00K
9	Cble^Cable_4-RD-MOTEURD28301000kv_D俧aut.par	247.50K
10	Cble^Electrical_2-RD-MOTEURD28301000kv_D俧aut.par	244.00K
11	Circlip_D俧aut.par	338.50K
12	ConnecteurO3.5_D俧aut.par	454.00K
13	Corpssup閞ieur_D俧aut.par	906.00K
14	countersunkflatheadcrossrecessscrew_iso_ISO7046-1-M2.5x6-Z---6C.par	227.50K
15	C鈈le_D俧aut.par	198.50K
16	D2830-Rotor_D俧aut.asm	171.50K
17	D2830-Stator_D俧aut.asm	173.00K
18	Electrical_2-RD-MOTEURD28301000kv_D俧aut.asm	153.50K
19	ESCFlyduinoSimonK35A.par	1.08M
20	FAB_PROPELLER-9x4.5CCW_D俧aut.par	577.50K
21	fi8_Carbon_Tube.par	163.00K
22	Goupille_M2_D俧aut.par	171.50K
23	HitecHS-225MG.par	1.31M
24	hornroundservo.par	342.00K
25	LamellesduStator_D俧aut.par	7.74M
26	LGear_1_V1.STL	689.24K
27	LGear_1_V1a.STL	25.67K
28	LGear_2_V1.STL	803.89K
29	LGear_2_V1a.STL	22.25K
30	MotorBaseShimPlate.STL	898.52K
31	MotorCrossBase_D俧aut.par	317.50K
32	MyGear_38_teethV2.par	388.00K
33	MyGear_38_teethV2.STL	195.30K
34	MyGear_38_teethV32.STL	173.23K
35	MyGear_38_teeth_V2.STL	147.45K
36	MyServoBase_L.par	577.50K
37	MyServoBase_L.STL	972.74K
38	MyServoBase_L_V2.STL	645.88K
39	MyServo_42_teethGear.par	392.00K
40	MyServo_42_teethGear.STL	143.73K
41	NeedleBearing_OD16_ID12x10mm.par	300.00K
42	Piece4^TURNIGY-D28301000kv_D俧aut.par	208.50K
43	Plaquemagn閠ique_D俧aut.par	201.50K
44	Roulementabilles_D俧aut.par	455.50K
45	Spinner-Part1_D俧aut.par	1.71M
46	Spinner-Part2_D俧aut.par	185.50K
47	Spinner-Part3_D俧aut.par	1.30M
48	StopperV2.par	337.50K
49	StopperV2.STL	209.85K
50	Sunnysky_Motor_X2212-13-980kW.par	38.62M
51	TiltAsby.asm	201.50K
52	TiltAsby.cfg	8.50K
53	TiltAsby.jpg	22.34K
54	TiltAsby.log	10.66K
55	TiltAsby.STEP	81.22M

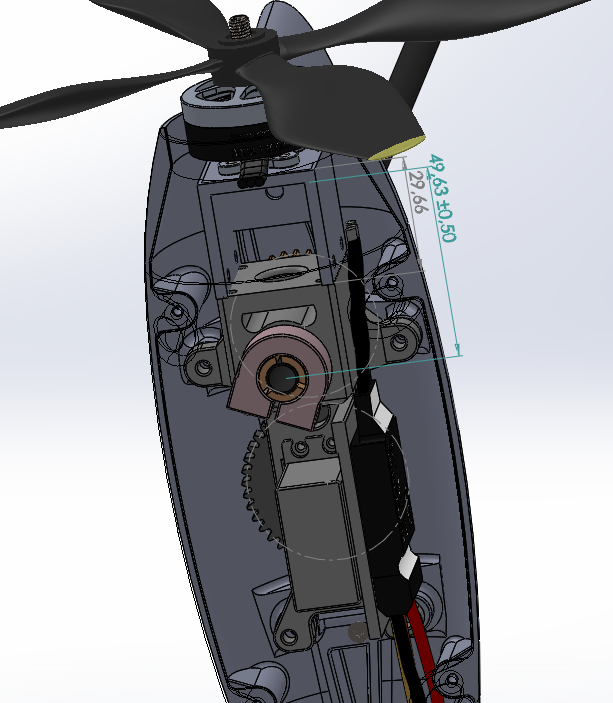

56	TiltAsby_36motor.png	163.15K

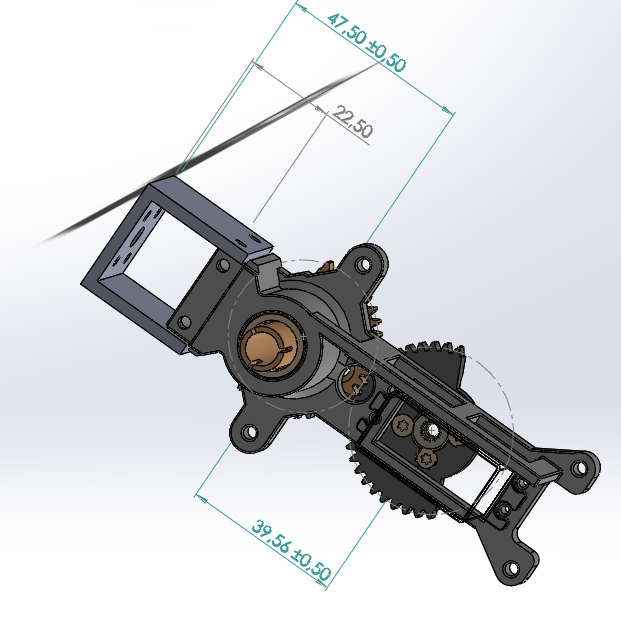

57	TiltAsby_36motorA.png	127.47K
58	torxcountersunkhead-iso14581-2011_M3-L30.par	194.50K

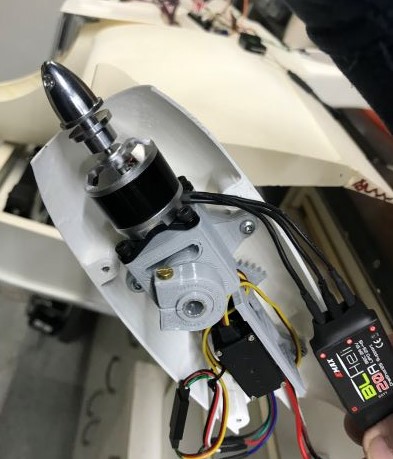

59	Trim_mech.jpg	47.00K
60	TURNIGY-D28301000kv_D俧aut.asm	203.00K
61	TURNIGY-D28301000kv_D俧aut.cfg	5.00K
62	U_30x30mm_Alu.SLDPRT	88.65K
63	U_30x30mm_Alu.STL	69.61K

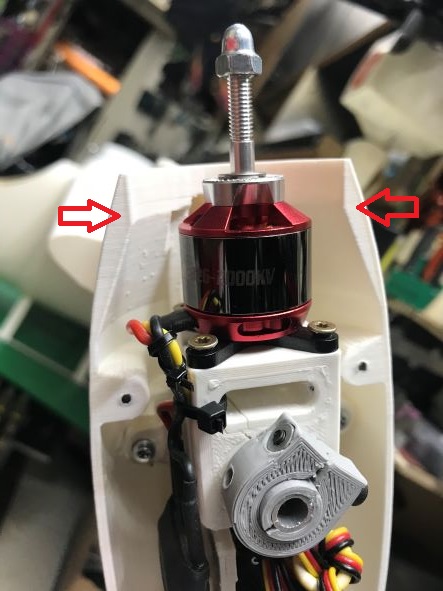

64	V2_Housiong.jpg	74.98K
65	wingBushingEnd.par	195.00K
66	WingMotorCover_L.par	396.00K
67	WingMotorCover_L.STL	378.70K
68	WingMotorCover_L_V2.STL	958.58K
69	WingMotorCover_L_V3.STL	1.09M
70	WingMotorCover_R_V2.STL	960.92K
71	WingMotorCover_R_V3.STL	1.09M
72	WingMotor_L.par	879.00K
73	WingMotor_L.STL	1.11M
74	WingMotor_L_V2.STL	1.55M
75	WingMotor_R_V2.STL	1.55M
76	Wing_3A_L_V1.par	4.68M

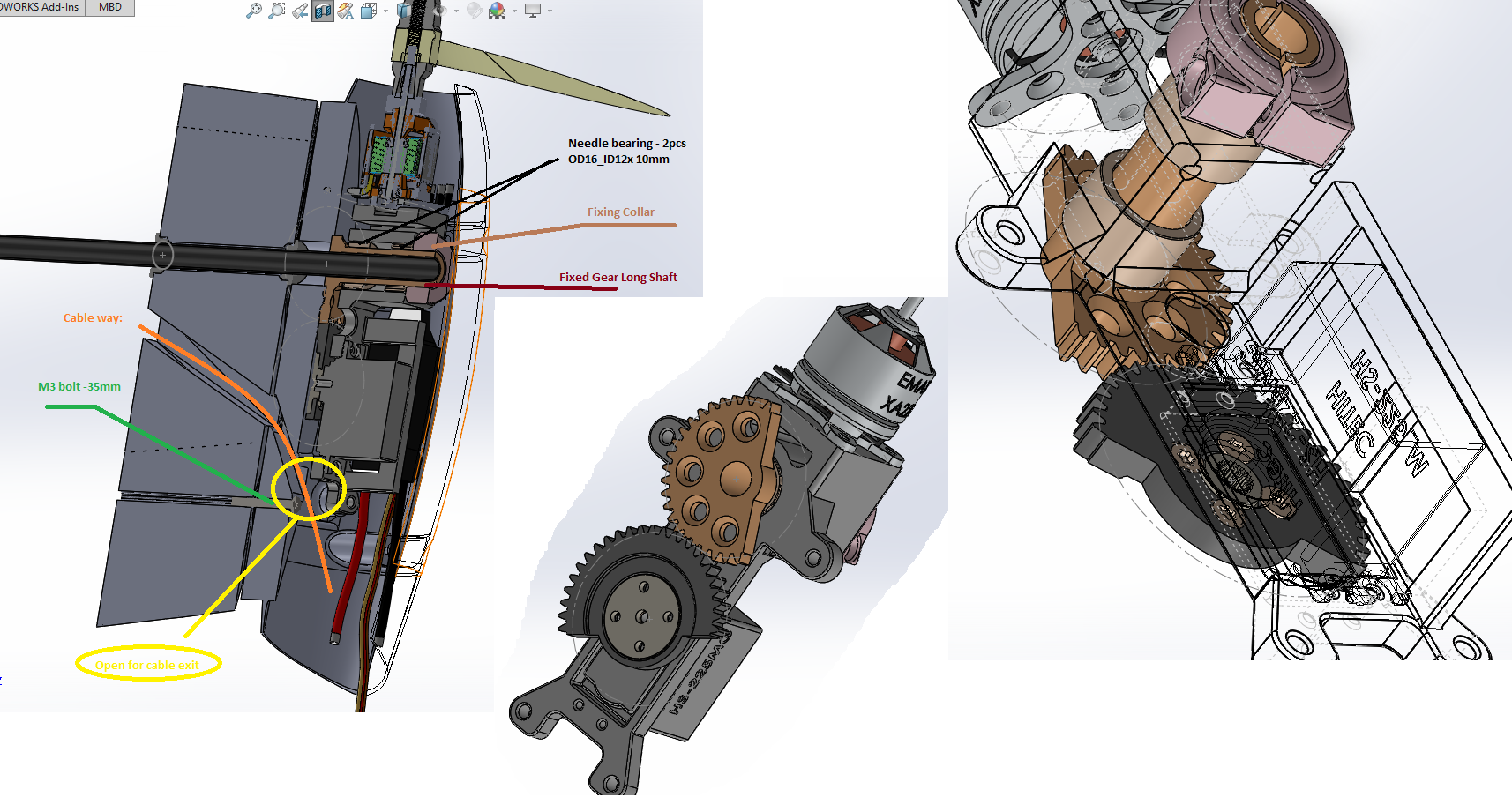

77	Wing_Tilt_Asby.png	761.97K
