13、桥式起重机小车运行机构设计（ID:1463658）

机械设备 / 工程机械 / 13、桥式起重机小车运行机构设计

©非原创

平面图

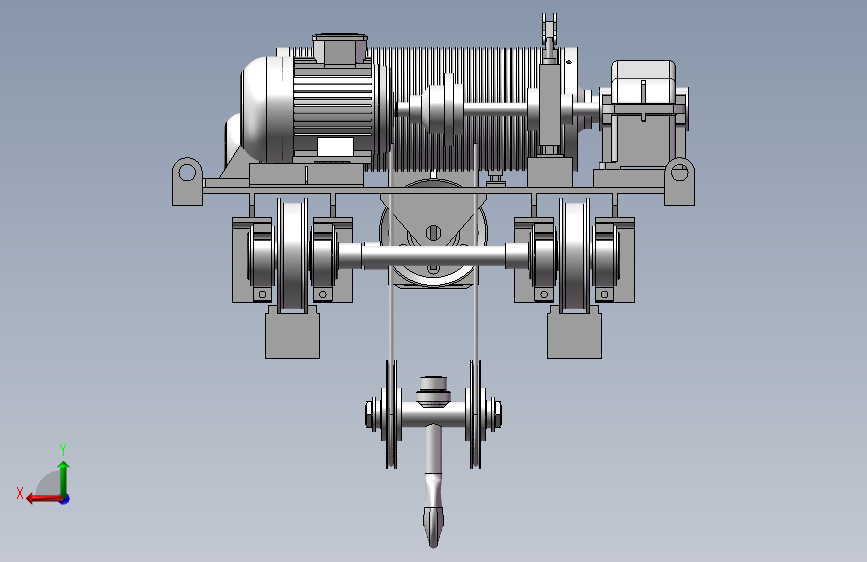

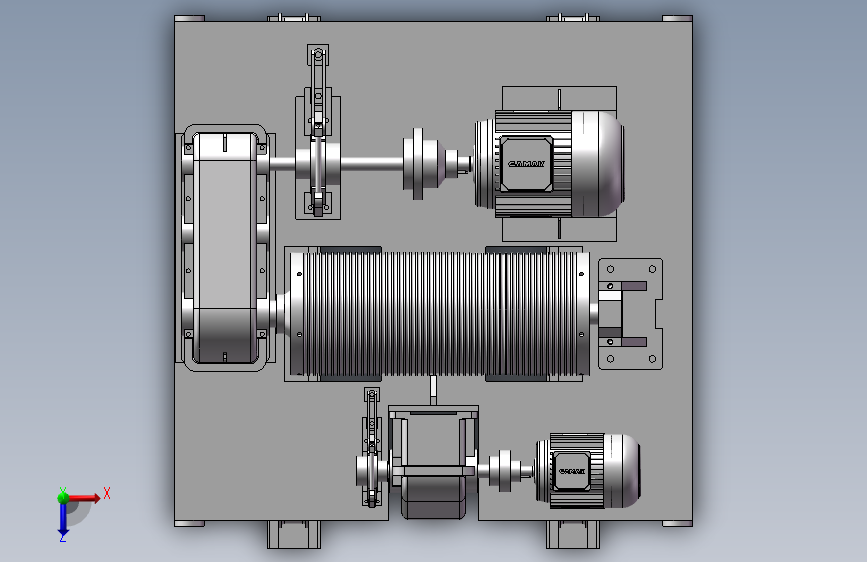

3D视图

文件列表

#	文件名称	文件大小
1	17188530532320.zip	37.51M

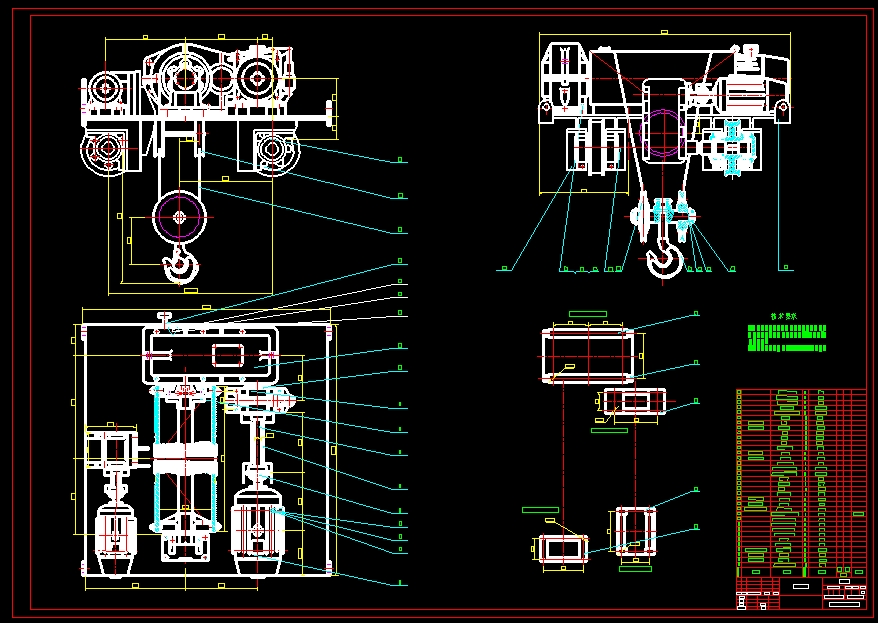

2	A0-小车总体机构装配图.dwg	390.77K
3	A1-卷筒组.dwg	289.04K
4	A2-小车导电架.DWG	125.70K
5	A3-卷筒.dwg	108.98K
6	A3-卷筒毂.dwg	98.25K
7	A3-卷筒轴.dwg	96.44K
8	A3-吊钩滑轮组.dwg	108.35K
9	A3-车轮.dwg	86.22K
10	A3-轴承端盖.dwg	87.22K
11	A3-钢丝绳压板.dwg	85.44K

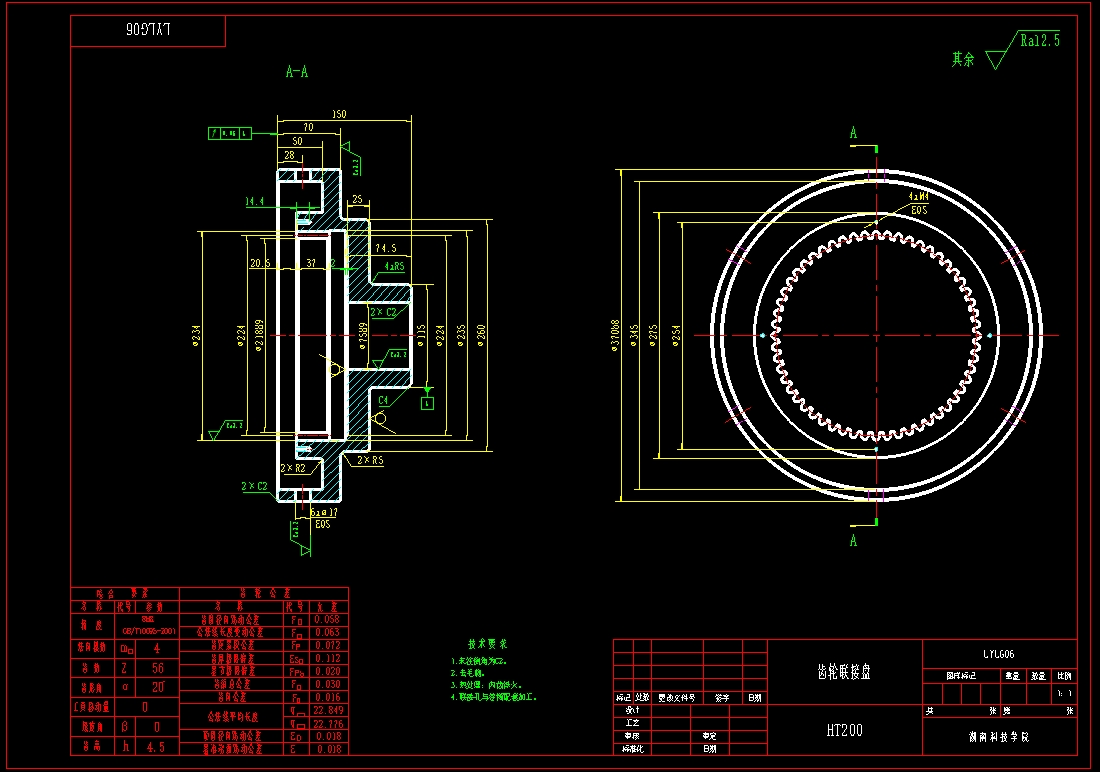

12	A3-齿轮联接盘.dwg	124.86K
13	桥式起重机小车运行机构设计31.docx	1.68M
14	90-ST_PAYAKLIB3.sldprt	413.50K
15	90-ST_PAYAKLIB3_2.sldprt	412.00K
16	90S.sldasm	29.29K
17	Imported.sldprt	59.00K
18	_X2_4F2052A88F74_X0_-1.sldprt	53.50K
19	_X2_51CF901F56685E955EA7_X0_-1.sldprt	54.50K
20	_X2_51CF901F5668_X0_-1.sldprt	178.50K
21	_X2_523652A856685E955EA7_X0_-1.sldprt	56.00K
22	_X2_523652A85668_X0_-1.sldprt	106.50K
23	_X2_53777B52652F64915E955EA7_X0_-1.sldprt	70.50K
24	_X2_53777B526BC2_X0_-1.sldprt	99.50K
25	_X2_53777B528F74_X0_-1.sldprt	62.50K
26	_X2_53777B52_X0_-1.sldprt	91.00K
27	_X2_540A94A98F74_X0_-1.sldprt	57.50K
28	_X2_540A94A9_X0_-1.sldprt	191.00K
29	_X2_57AB677F_X0_-1.sldprt	53.50K
30	_X2_5BC65C0176D6677F_X0_-1.sldprt	56.50K
31	_X2_5BC65C017AEF677F_X0_1-1.sldprt	55.50K
32	_X2_5C0F8F6667B6_X0_-1.sldprt	56.50K
33	_X2_5C0F8F6667B6_X0_-1_2.sldprt	56.50K
34	_X2_5C0F8F6667B6_X0_-1_3.sldprt	56.50K
35	_X2_5C0F8F6667B6_X0_-1_4.sldprt	123.00K
36	_X2_63A8529B74038F74627F_X0_51208-1.sldprt	54.00K
37	_X2_6881_X0_-1.sldprt	57.50K
38	_X2_6ED18F6E8F74627F7EC4_X0_-1.sldprt	59.00K
39	_X2_7535673A5E955EA7_X0_-1.sldprt	57.50K
40	_X2_80548F745668_X0_-1.sldprt	54.50K
41	_X2_80548F745668_X0_2-1.sldprt	54.50K
42	_X2_858487BA6BCD_X0_-1.sldprt	57.00K
43	_X2_87BA6BCD5757_X0_-1.sldprt	56.50K
44	_X2_884C8D70523652A85668_X0_-1.sldprt	107.00K
45	_X2_884C8D70523652A85668_X0_-1_2.sldprt	54.50K
46	_X2_89D2578B8F74627F7BB1_X0_-2.sldprt	66.50K
47	_X2_8C035FC36EDA5B508F74627F_X0_22311-1.sldprt	56.00K
48	_X2_8C035FC374038F74627F_X0_2211-2.sldprt	56.00K
49	_X2_8F668F6E51CF901F5668_X0_-1.sldprt	156.00K
50	_X2_8F668F6E8F74_X0_-1.sldprt	56.00K
51	_X2_8F668F6E_X0_-1.sldprt	60.00K
52	_X2_8F745957_X0_-1.sldprt	54.00K
53	_X2_8F74627F5EA776D6677F_X0_-1.sldprt	58.50K
54	_X2_8F74627F76D6_X0_-2.sldprt	56.50K
55	_X2_8F74627F7AEF76D6_X0_-1.sldprt	61.50K
56	_X2_8F74627F7AEF76D6_X0_1-1.sldprt	56.00K
57	_X2_8F74627F7AEF76D6_X0_2_X2_3001_X0_-2.sldprt	57.00K
58	_X2_94A24E1D7EF37B805316_X0_-1.sldprt	54.00K
59	_X2_9F7F8F6E80548F745668_X0_-1.sldprt	55.00K
60	_X2_9F7F8F6E8FDE63A576D84E3B52A8_X0_-1.sldprt	58.00K
61	_X2_9F7F8F6E8FDE63A576D8_X0_-1.sldprt	67.50K
62	___-8.sldasm	34.11K
63	_____-1.sldasm	34.27K
64	______.sldasm	50.63K
65	小车总装.avi	9.52M
66	小车运行机构总装.ics	22.16M
67	小车运行机构总装.SLDASM	3.05M
68	小车运行机构总装.stp	6.24M
69	电机.ics	3.00M
70	A0-小车总体机构装配图.png	269.19K

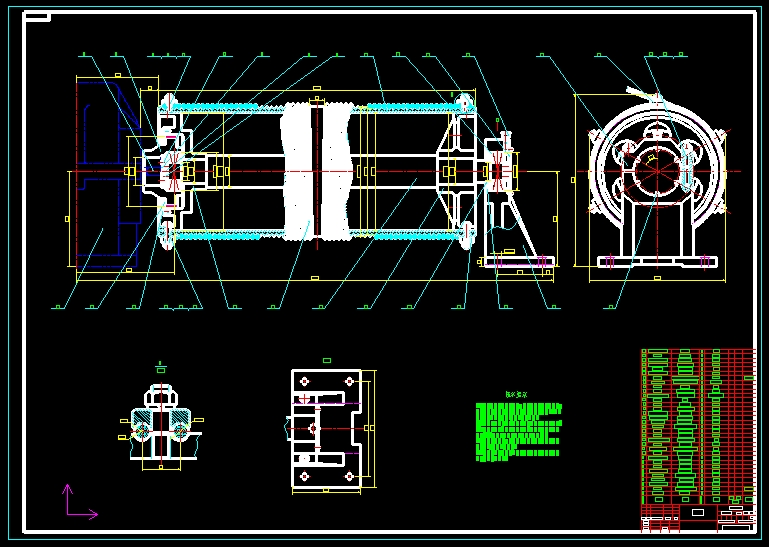

71	A1-卷筒组.png	207.01K

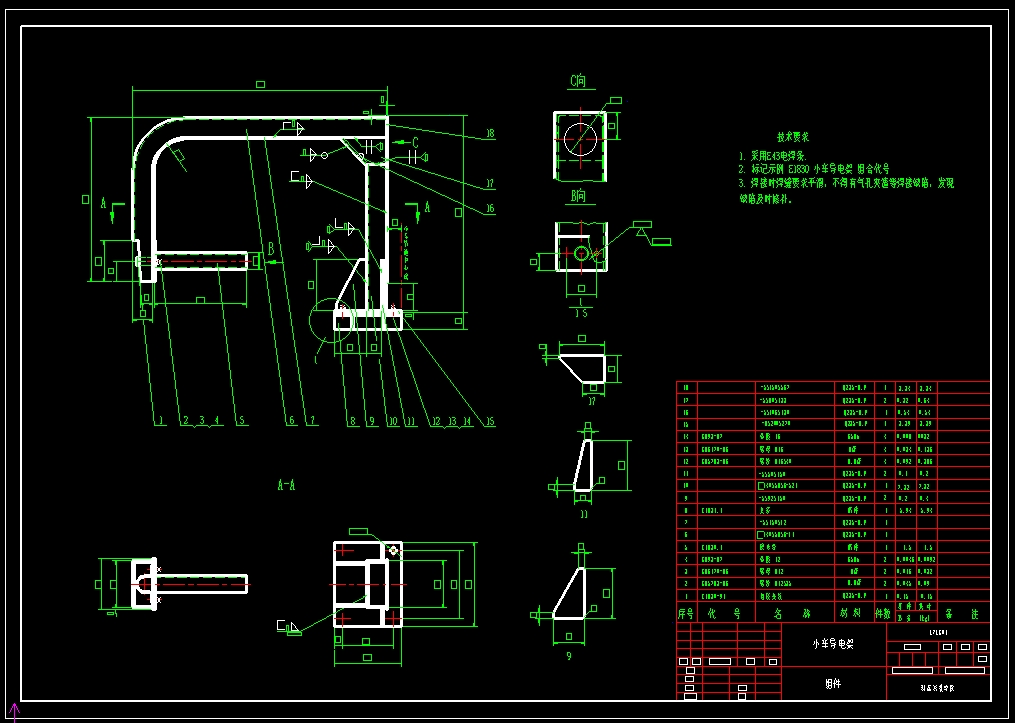

72	A2-小车导电架.png	246.73K

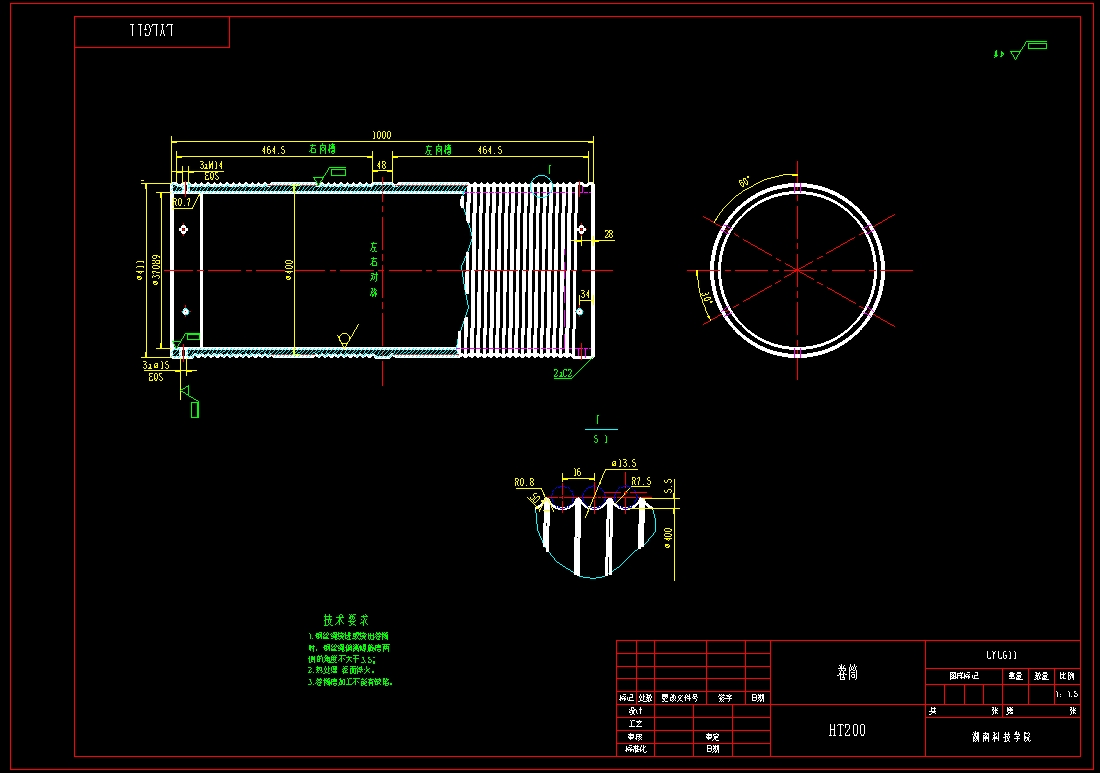

73	A3-卷筒.png	173.53K

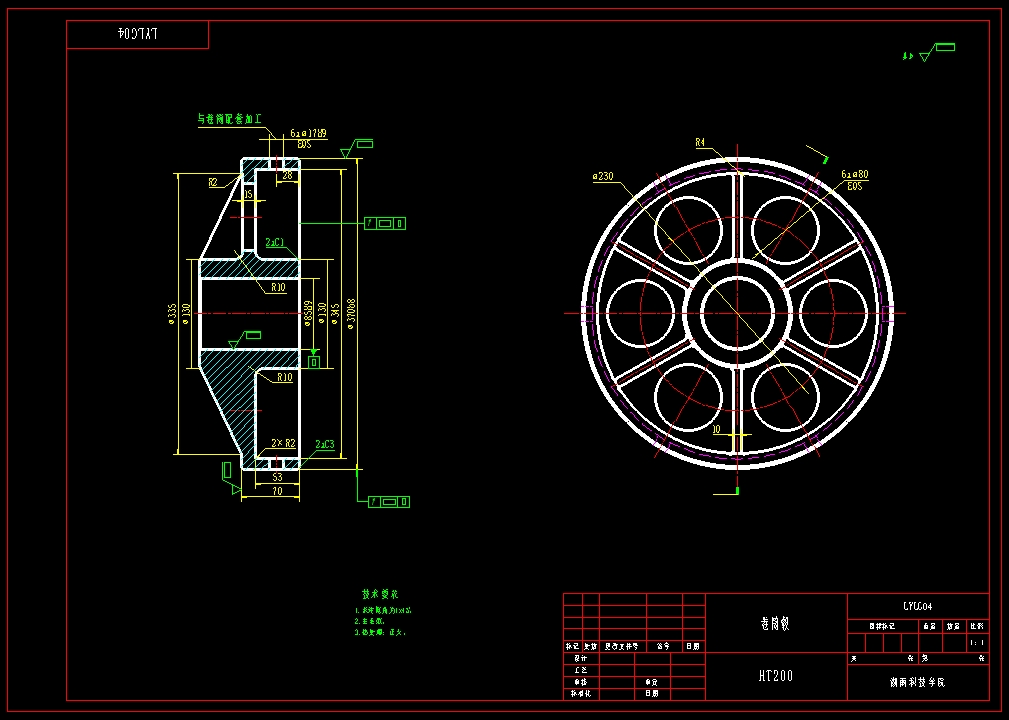

74	A3-卷筒毂.png	197.63K

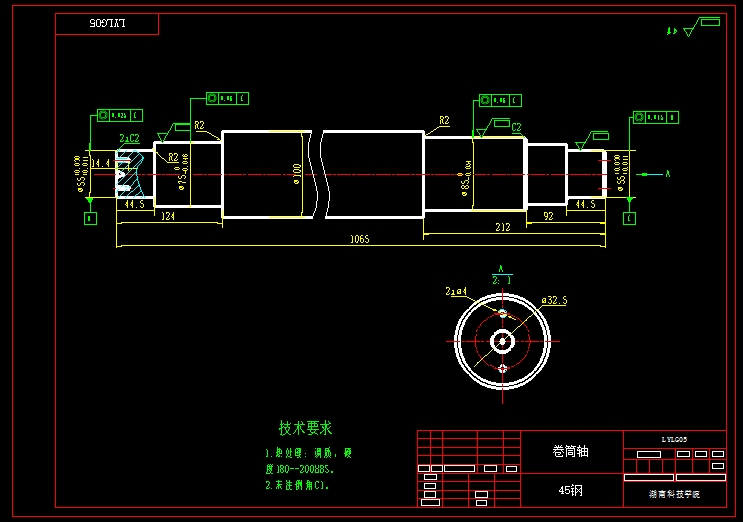

75	A3-卷筒轴.png	103.35K

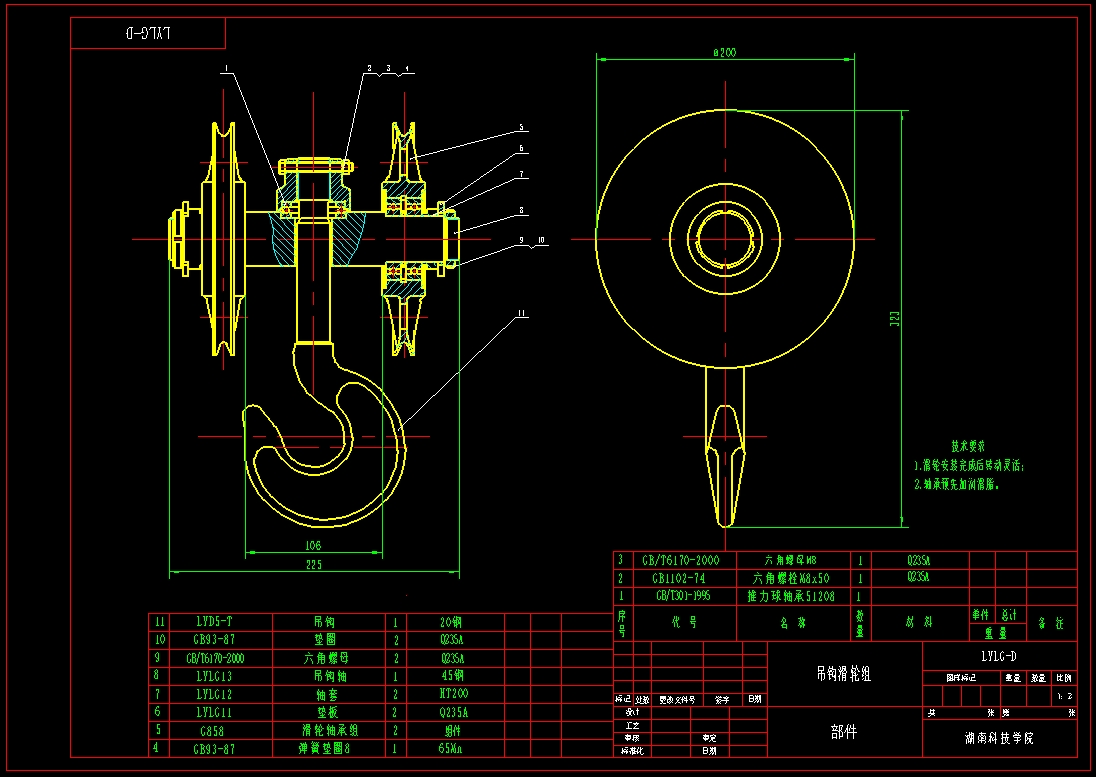

76	A3-吊钩滑轮组.png	264.85K

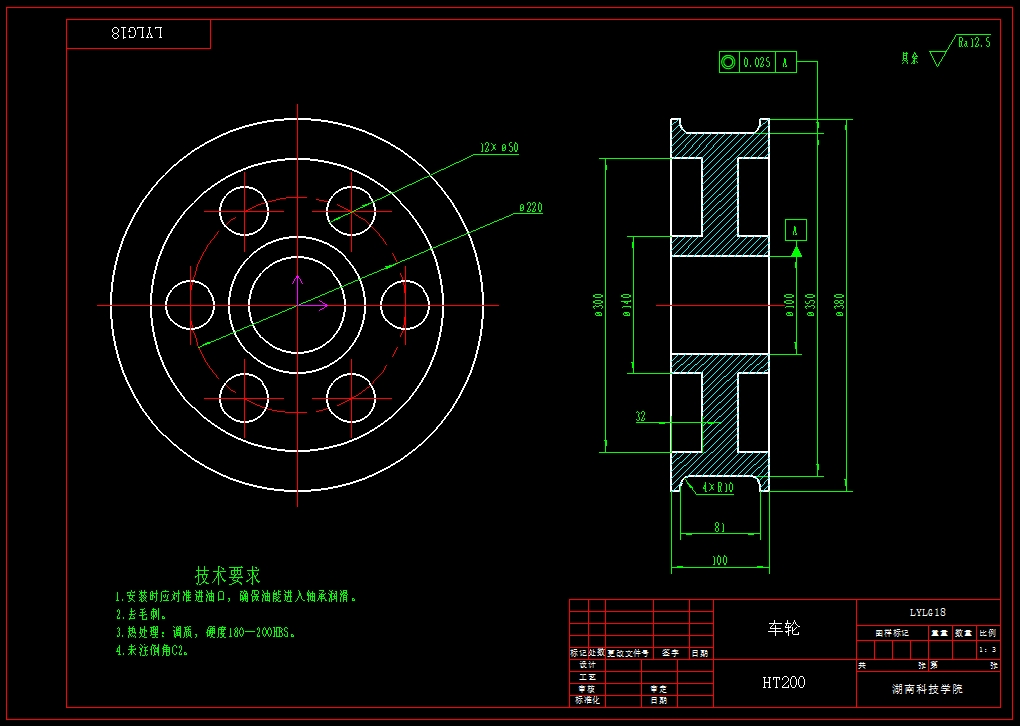

77	A3-车轮.png	196.49K

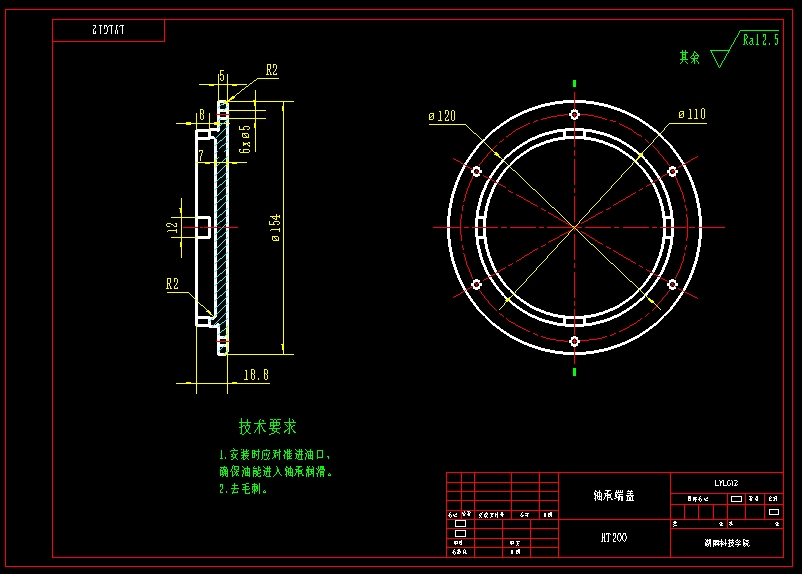

78	A3-轴承端盖.png	129.31K

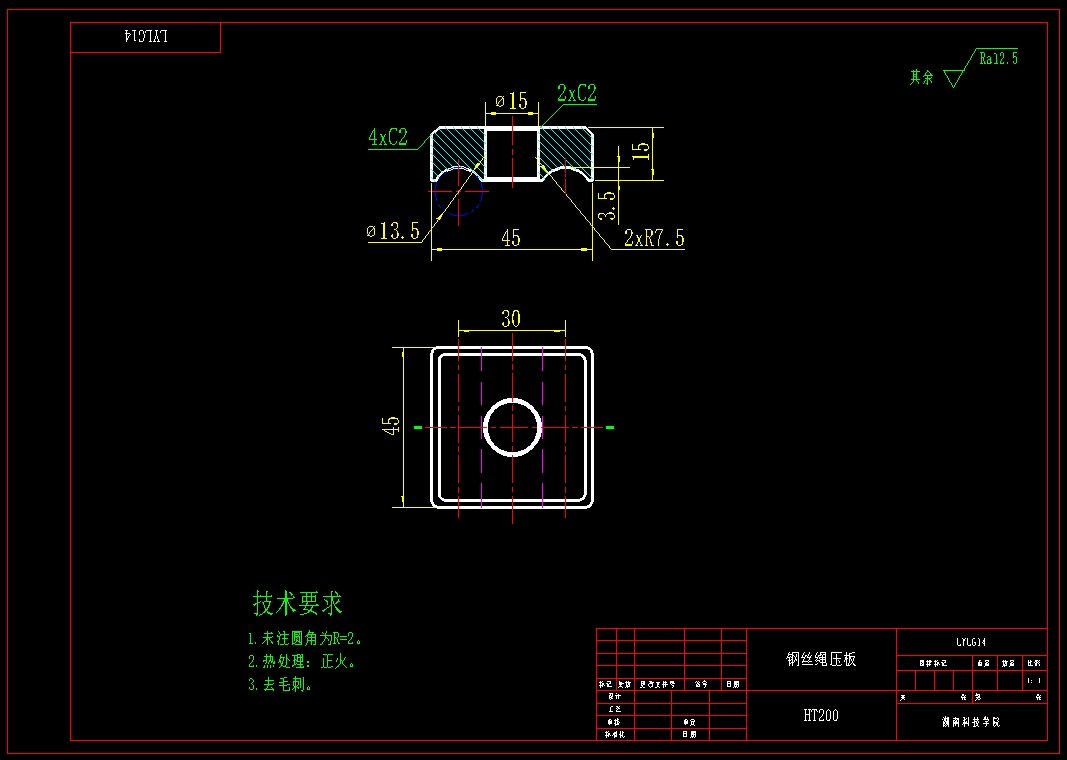

79	A3-钢丝绳压板.png	129.05K
80	A3-齿轮联接盘.png	250.68K

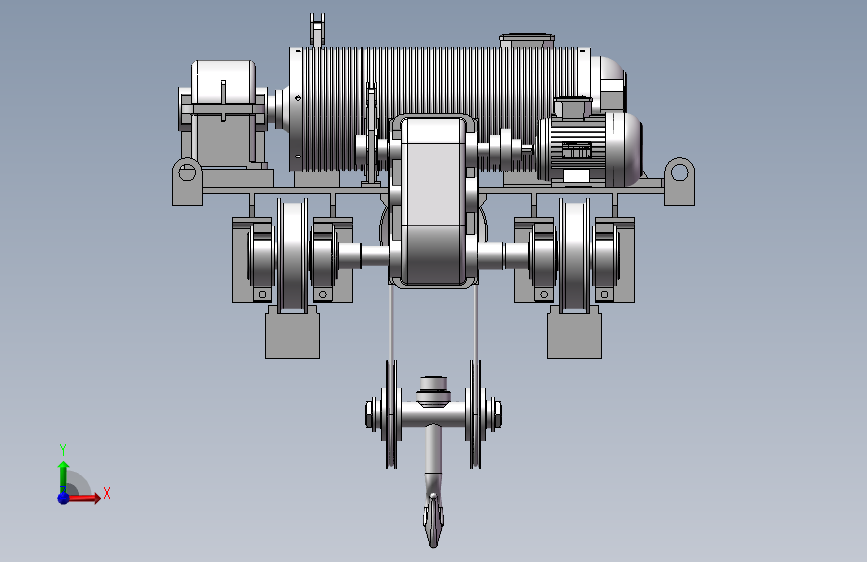

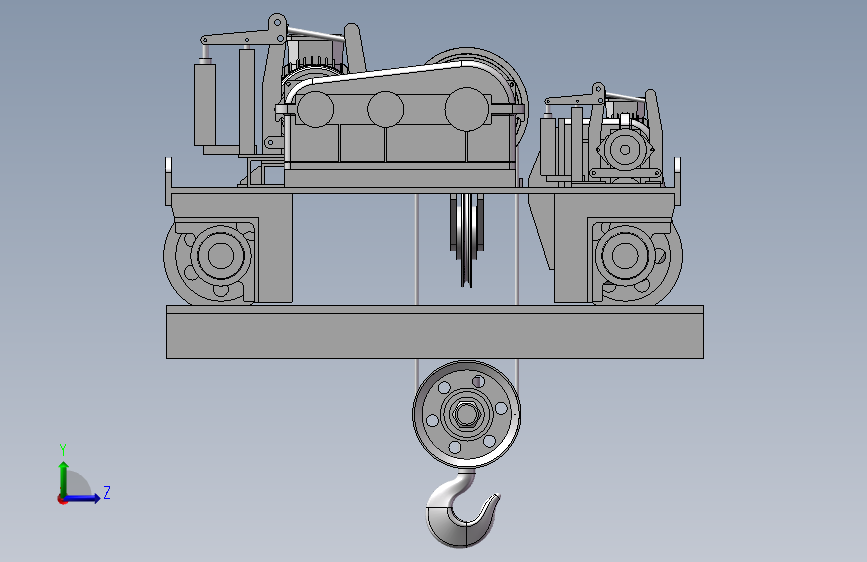

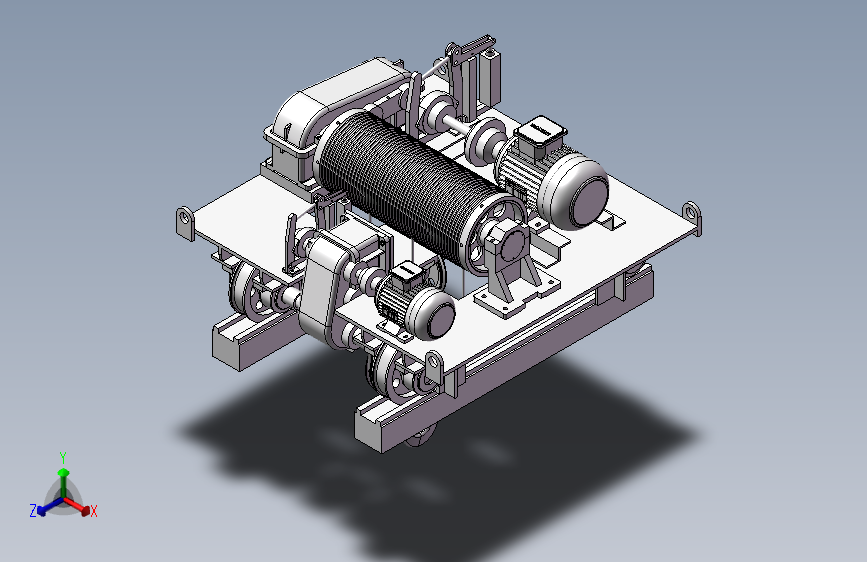

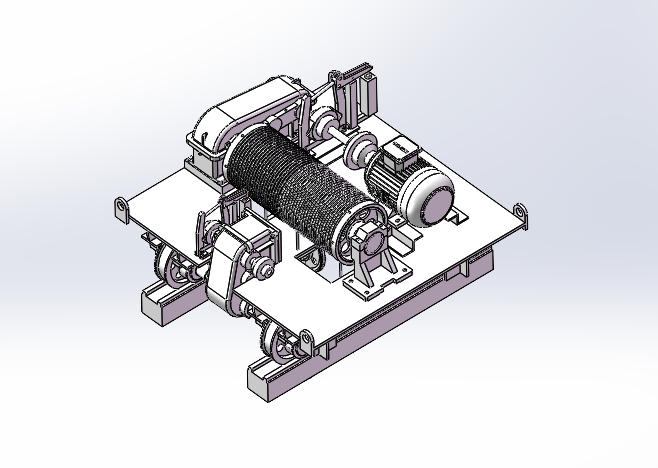

81	三维图.png	101.82K

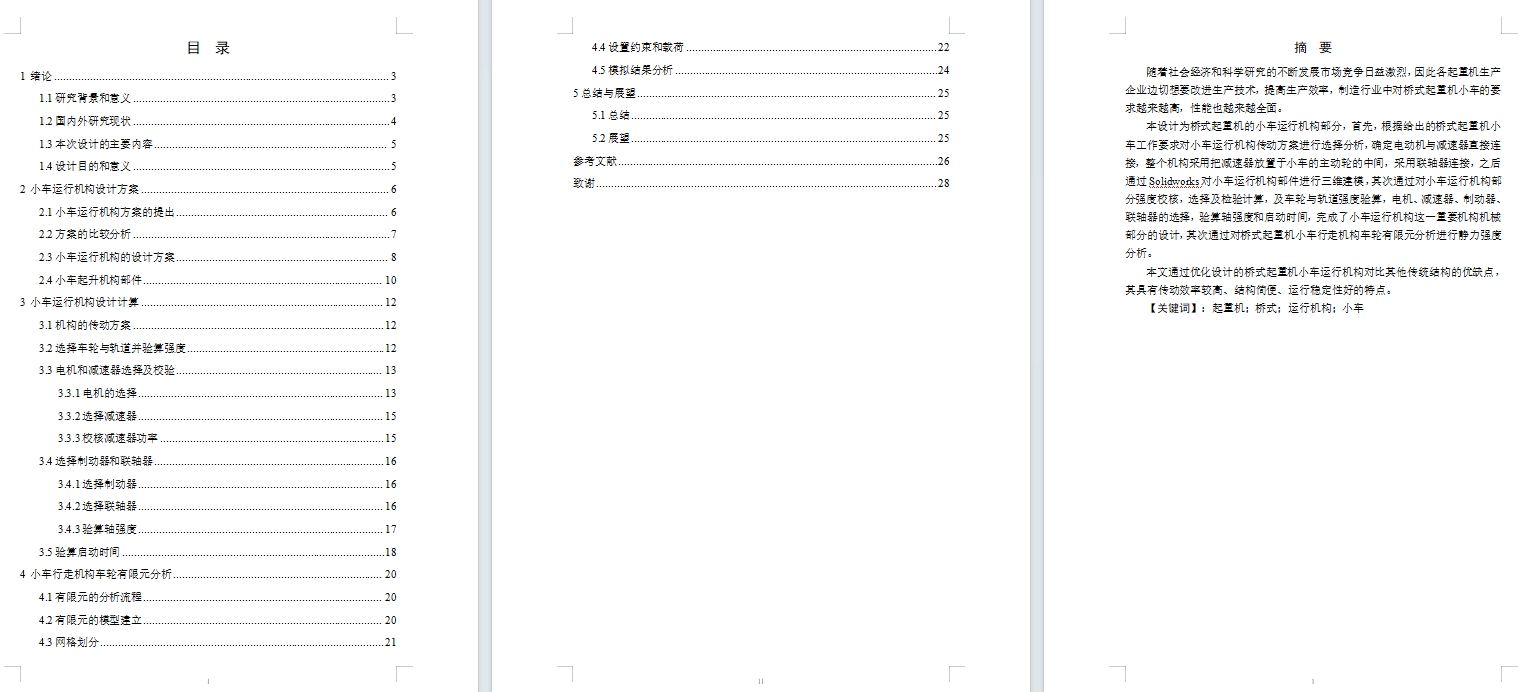

82	目录.png	308.89K
