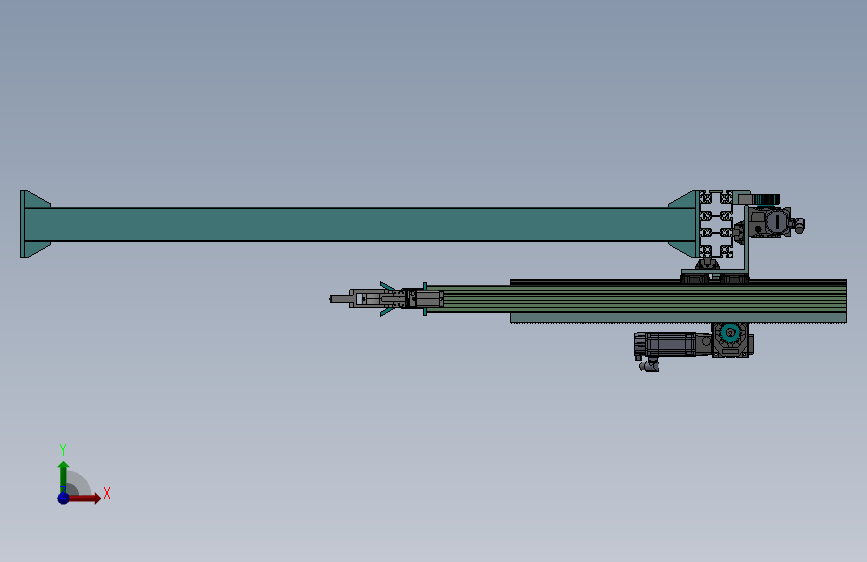

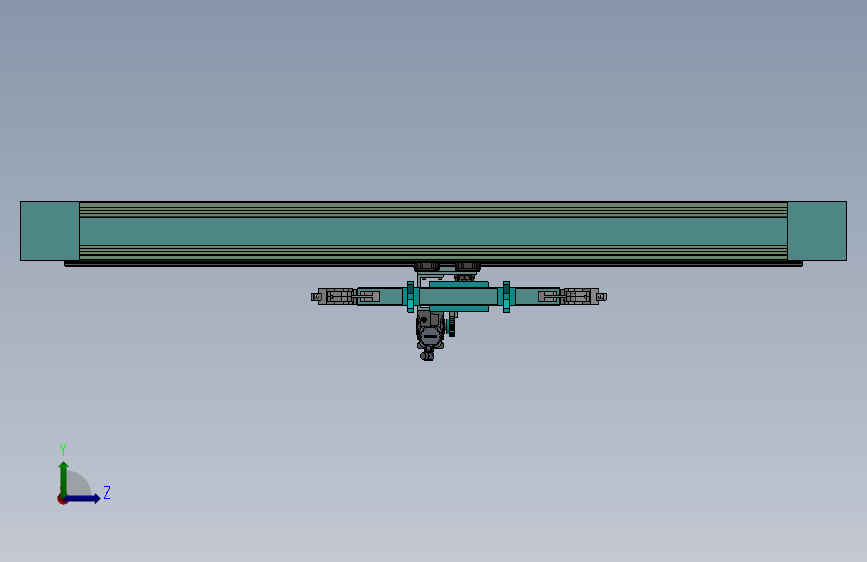

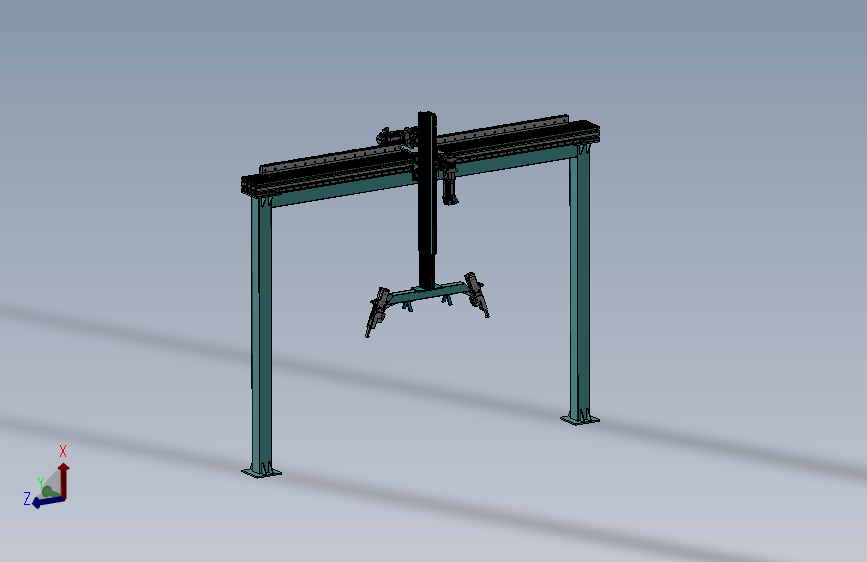

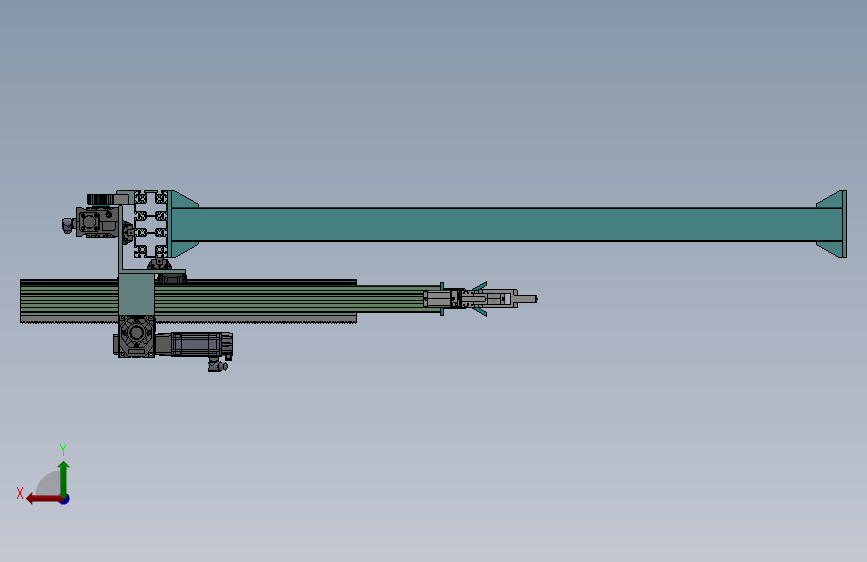

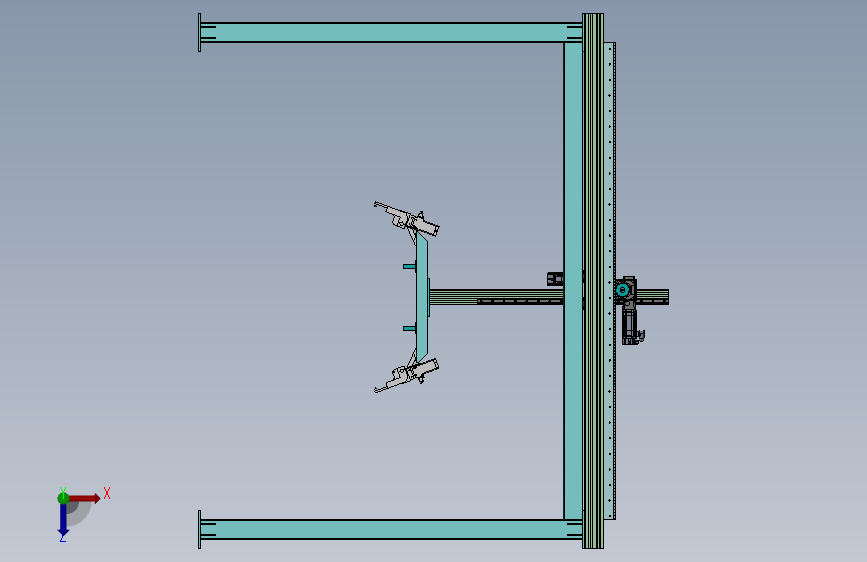

2轴齿轮齿条桁架机械手（ID:1481543）
0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17203582062605.zip | 21.16M |
| 2 | 100x100.SLDPRT | 132.00K |
| 3 | 100x100_plaka.SLDPRT | 109.00K |
| 4 | 100x100_profil.SLDPRT | 386.00K |
| 5 | 60x60_profil.SLDPRT | 304.50K |
| 6 | DIN-Rack-spur-rectangular2.5M20PA20FW20PH1000L---SAll.sldprt | 1.21M |
| 7 | DIN-Rack-spur-rectangular2.5M20PA30FW45PH2500L---SAll.sldprt | 1.24M |
| 8 | DIN-Spurgear2.5M25T20PA20FW---S25B50H30L25.0R1.sldprt | 431.00K |
| 9 | DIN-Spurgear2.5M30T20PA30FW---S30B50H30L25.0R1.sldprt | 430.50K |
| 10 | DIN912M8x20---20N.SLDPRT | 241.00K |
| 11 | DIN912M8x40---28N.SLDPRT | 388.50K |
| 12 | gantry_montage.SLDASM | 7.21M |
| 13 | karkas_montage.SLDASM | 212.00K |
| 14 | klemp_montage.SLDASM | 1015.00K |
| 15 | klemp_plakasi.SLDPRT | 152.50K |
| 16 | klemp_ucu.SLDPRT | 114.50K |
| 17 | kramayer_baglanti_lamasi.SLDPRT | 170.00K |
| 18 | krameyer_lama.SLDPRT | 126.00K |
| 19 | motor_tasiyici.SLDPRT | 164.00K |
| 20 | Part10.SLDPRT | 358.50K |
| 21 | R100435979.sldprt | 42.00K |
| 22 | reduktor_motor_montage.SLDASM | 993.50K |
| 23 | Rexroth-3842993133_200MM.SLDPRT | 591.50K |
| 24 | Rexroth-3842993178_200MM.SLDPRT | 1.66M |
| 25 | Rexroth-3842993201_200MM.SLDPRT | 1.09M |
| 26 | Rexroth.SLDPRT | 307.00K |
| 27 | tasiyici_plaka.SLDPRT | 247.50K |
| 28 | V_V2_40_BR2_A00_T12_TUENKERS.SLDPRT | 1.73M |
| 29 | v_yatak.SLDPRT | 148.00K |
| 30 | X410453902.sldprt | 42.00K |
| 31 | zongzhuangtu.easm | 1.12M |
| 32 | 148379232MOTORWELLE.sldprt | 94.50K |
| 33 | 149581032LS_BS.sldprt | 110.50K |
| 34 | 152753280STECKER_V.sldprt | 99.00K |
| 35 | 153270672FLANSCH_AS.sldprt | 64.50K |
| 36 | 154510280DUMMYROOT.sldprt | 85.50K |
| 37 | 156676728GEBER_GEHA.sldprt | 234.50K |
| 38 | 157115944BLECHPAKET.sldprt | 74.50K |
| 39 | 1FT7034-1AK70-1BG1-ZX03.SLDASM | 364.50K |
| 40 | 1FT7034-1AK70-1BG1-ZX03.x_t | 844.75K |
| 41 | 62229944LS_AS.sldprt | 131.50K |
| 42 | dynabox_35_basic_7_25_p_h1_bm.SLDASM | 1.50M |
| 43 | dynabox_35_basic_7_25_p_h1_bm.txt | 274B |
| 44 | dynabox_35_basic_7_25_p_h1_bm_01.SLDPRT | 182.00K |
| 45 | dynabox_35_basic_7_25_p_h1_bm_02.SLDPRT | 182.00K |
| 46 | dynabox_35_basic_7_25_p_h1_bm_03.SLDPRT | 143.00K |
| 47 | dynabox_35_basic_7_25_p_h1_bm_04.SLDPRT | 169.00K |
| 48 | dynabox_35_basic_7_25_p_h1_bm_05.SLDPRT | 181.50K |
| 49 | dynabox_35_basic_7_25_p_h1_bm_06.SLDPRT | 182.50K |
| 50 | dynabox_35_basic_7_25_p_h1_bm_07.SLDPRT | 181.00K |
| 51 | dynabox_35_basic_7_25_p_h1_bm_08.SLDPRT | 182.00K |
| 52 | dynabox_35_basic_7_25_p_h1_bm_09.SLDPRT | 178.50K |
| 53 | dynabox_35_basic_7_25_p_h1_bm_10.SLDPRT | 177.50K |
| 54 | dynabox_35_basic_7_25_p_h1_bm_11.SLDPRT | 179.50K |
| 55 | dynabox_35_basic_7_25_p_h1_bm_12.SLDPRT | 170.00K |
| 56 | dynabox_35_basic_7_25_p_h1_bm_13.SLDPRT | 170.00K |
| 57 | dynabox_35_basic_7_25_p_h1_bm_14.SLDPRT | 169.00K |
| 58 | dynabox_35_basic_7_25_p_h1_bm_15.SLDPRT | 183.00K |
| 59 | dynabox_35_basic_7_25_p_h1_bm_16.SLDPRT | 182.50K |
| 60 | dynabox_35_basic_7_25_p_h1_bm_17.SLDPRT | 230.00K |
| 61 | dynabox_35_basic_7_25_p_h1_bm_18.SLDPRT | 206.00K |
| 62 | dynabox_35_basic_7_25_p_h1_bm_19.SLDPRT | 142.00K |
| 63 | dynabox_35_basic_7_25_p_h1_bm_20.SLDPRT | 382.50K |
| 64 | dynabox_35_basic_7_25_p_h1_bm_21.SLDPRT | 187.50K |
| 65 | dynabox_35_basic_7_25_p_h1_bm_22.SLDPRT | 2.48M |
| 66 | dynabox_35_basic_7_25_p_h1_bm_23.SLDPRT | 179.00K |
| 67 | dynabox_35_basic_7_25_p_h1_bm_24.SLDPRT | 388.50K |
| 68 | dynabox_35_basic_7_25_p_h1_bm_25.SLDPRT | 235.00K |
| 69 | dynabox_35_basic_7_25_p_h1_bm_26.SLDPRT | 177.50K |
| 70 | dynabox_35_basic_7_25_p_h1_bm_27.SLDPRT | 142.50K |
| 71 | dynabox_35_basic_7_25_p_h1_bm_28.SLDPRT | 178.00K |
| 72 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v.SLDASM | 381.00K |
| 73 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v.txt | 172B |
| 74 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_01.SLDPRT | 191.50K |
| 75 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_02.SLDPRT | 415.50K |
| 76 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_03.SLDPRT | 189.50K |
| 77 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_04.SLDPRT | 145.50K |
| 78 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_05.SLDPRT | 742.50K |
| 79 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_06.SLDPRT | 1.07M |
| 80 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_07.SLDPRT | 189.50K |
| 81 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_08.SLDPRT | 415.50K |
| 82 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_09.SLDPRT | 1.07M |
| 83 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_10.SLDPRT | 627.50K |
| 84 | inafag_kwve25-b-g2-v1_5gnzb7jxqj1bdj724v92odn3v_11.SLDPRT | 191.50K |
| 85 | inafag_tkvd25_1000_6q63ugaw1x74xcbgqlv430cny.SLDPRT | 626.50K |
| 86 | inafag_tkvd25_1000_6q63ugaw1x74xcbgqlv430cny.txt | 167B |
| 87 | inafag_tkvd25_2500_94uyb76srq9wv2pyykt8qjle4.SLDPRT | 782.50K |
| 88 | inafag_tkvd25_2500_94uyb76srq9wv2pyykt8qjle4.txt | 167B |

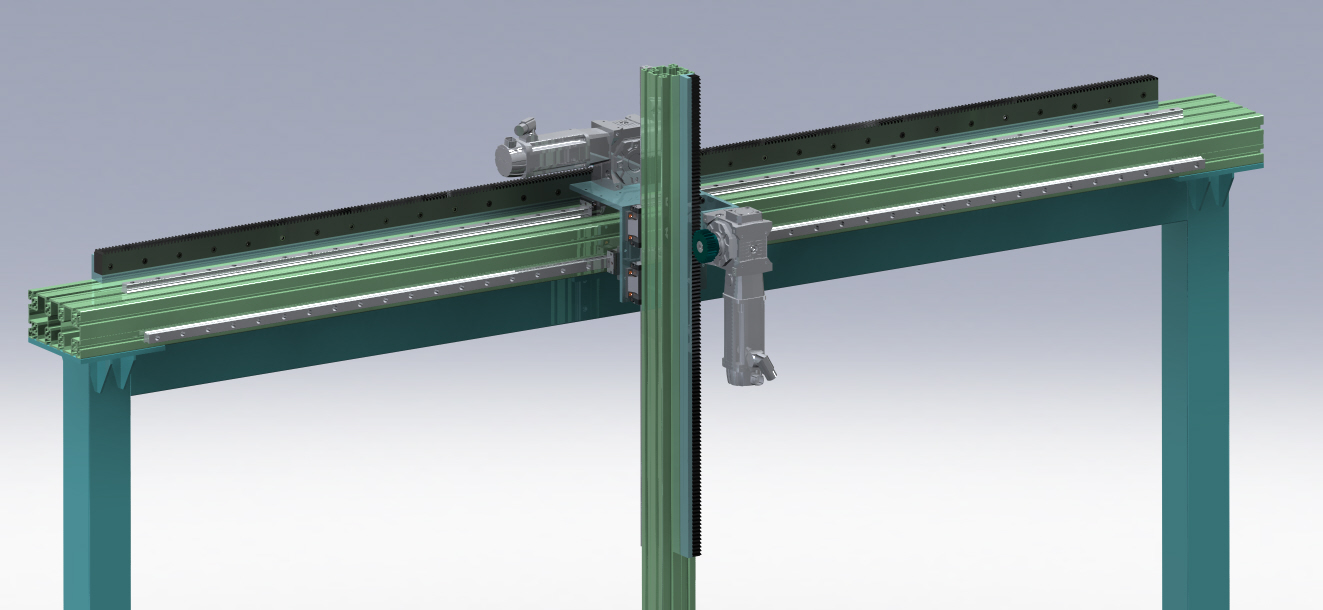

| 89 | gantry_montage20111118-31370-e2apz4.JPG | 212.29K |

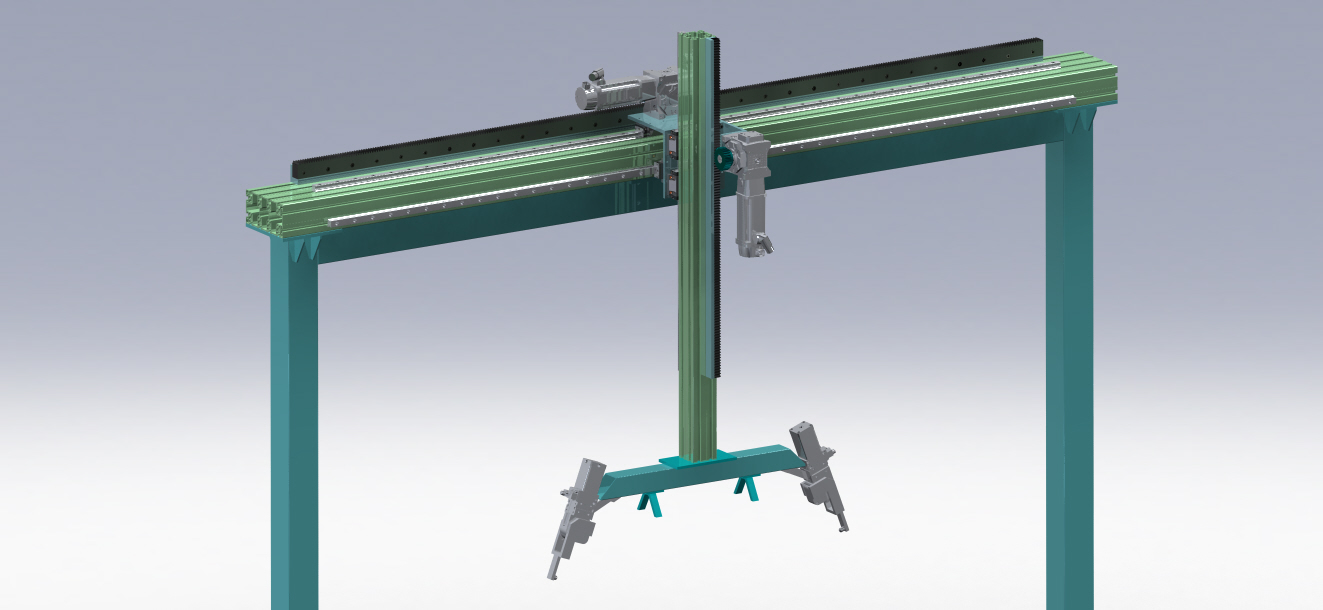

| 90 | gantry_montagex20111118-31370-hi4hrm.JPG | 172.17K |
此图纸下载需要4金币
立即下载
发布者
甜美的橙子
创作: 820
粉丝: 11
加入时间：2024-04-24
模型信息
图纸格式：sldprt,sldasm,easm,x_t
文件大小：21.67M
所需金币：4
上传时间：2024-07-07 21:16:58
是否可编辑：可修改，包括参数
版本：SOLIDWORKS
