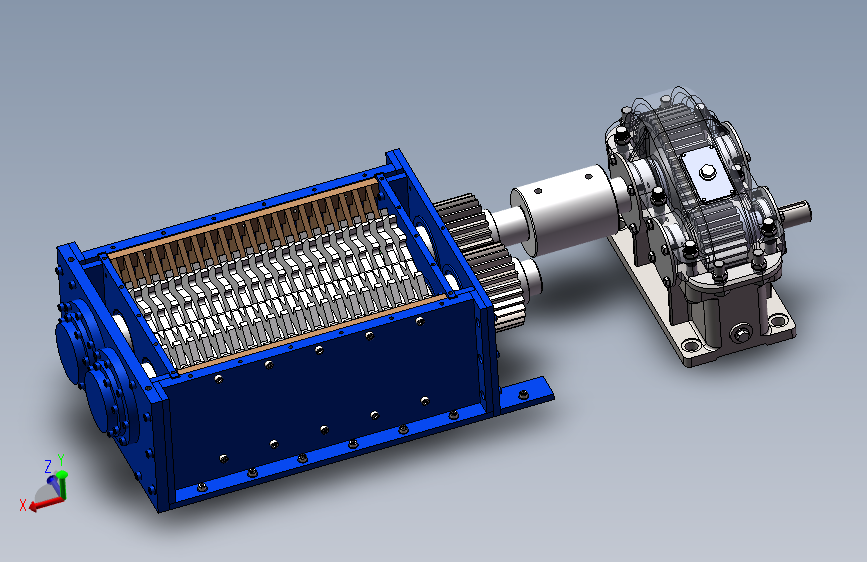

破碎机（ID:1502138）

机械设备 / 工程机械 / 破碎机

©原创

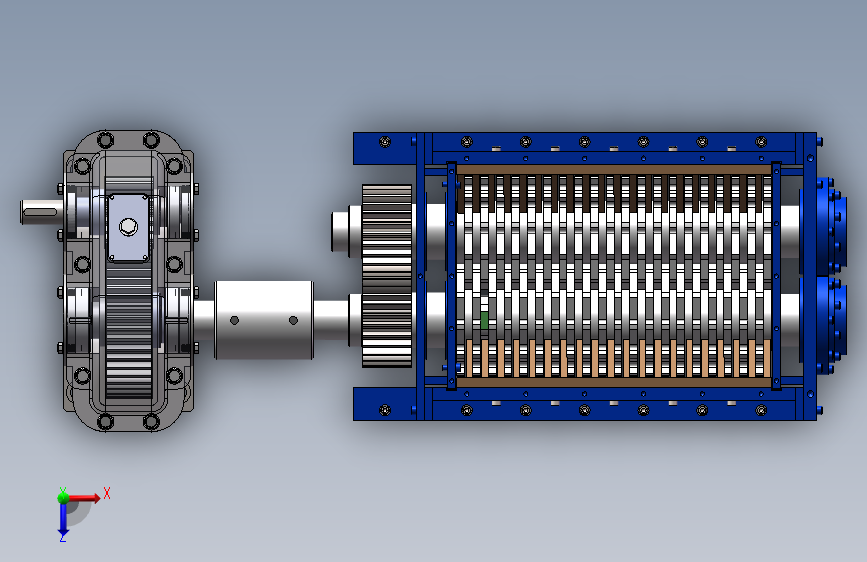

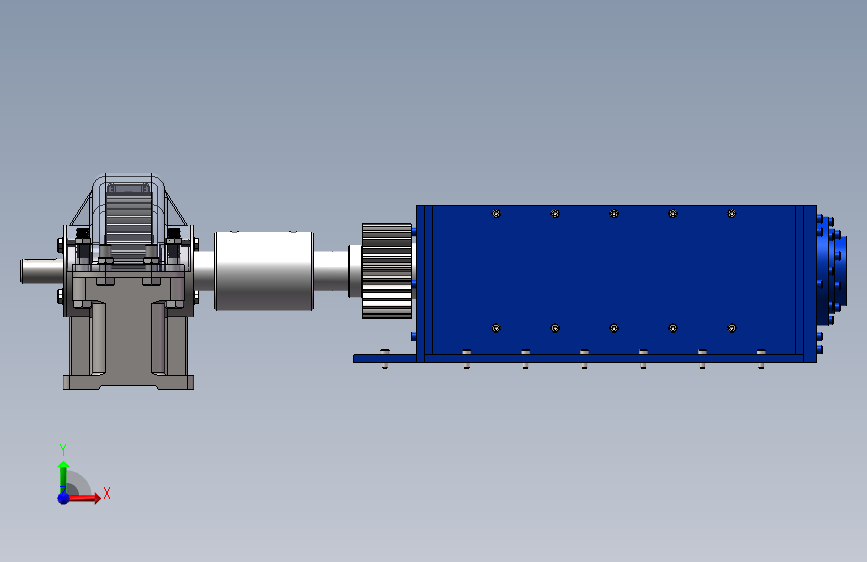

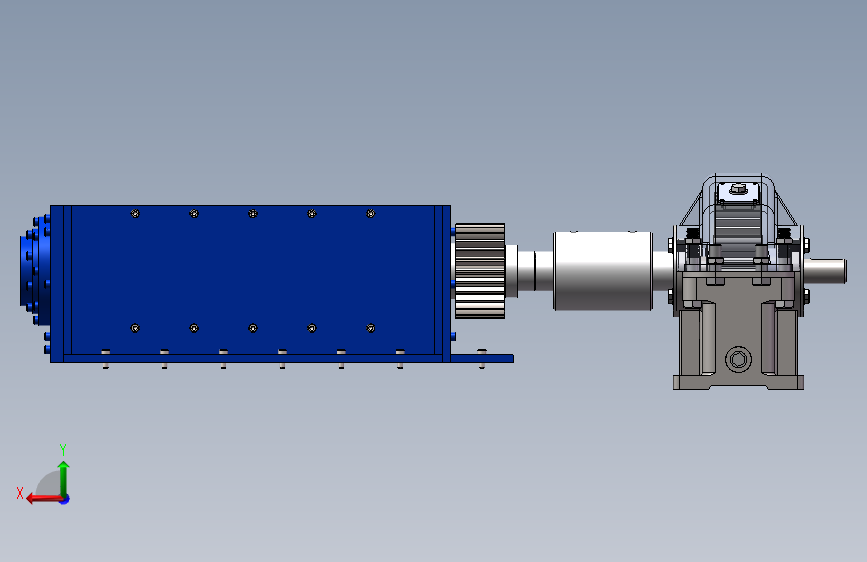

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17217904306650.rar	66.62M
2	hexagonsocketheadcapscrewsgb.sldprt	322.32K
3	MCB-PSJ-B2-01-008圆柱直齿齿轮.SLDPRT	208.27K
4	MCB-PSJ-B2-01-008直齿圆柱齿轮.SLDDRW	228.93K
5	plainparallelkeys.sldprt	183.64K
6	self-aligningrollerbearingsgb.sldprt	548.41K
7	spurgear_gb.sldprt	1.31M
8	WM001-Y500-04-01-001主动轴.SLDDRW	351.49K
9	WM001-Y500-04-01-001主动轴.SLDPRT	149.05K
10	WM001-Y500-04-01-002轴端压板.SLDDRW	186.73K
11	WM001-Y500-04-01-002轴端压板.SLDPRT	86.22K
12	WM001-Y500-04-01-003隔套.SLDDRW	182.63K
13	WM001-Y500-04-01-003隔套.SLDPRT	75.60K
14	WM001-Y500-04-01-005套筒1.SLDDRW	164.99K
15	WM001-Y500-04-01-005套筒1.SLDPRT	64.98K
16	WM001-Y500-04-01-006套筒2.SLDDRW	159.21K
17	WM001-Y500-04-01-006套筒2.SLDPRT	64.83K
18	WM001-Y500-04-01-007刀片01.SLDDRW	191.80K
19	WM001-Y500-04-01-007刀片01.SLDPRT	130.73K
20	WM001-Y500-04-02-001从动轴.SLDDRW	326.18K
21	WM001-Y500-04-02-001从动轴.SLDPRT	132.06K
22	WM001-Y500-04-03-001箱体端板.SLDDRW	297.04K
23	WM001-Y500-04-03-001箱体端板.SLDPRT	174.86K
24	WM001-Y500-04-03-002箱体密封条.SLDDRW	144.21K
25	WM001-Y500-04-03-002箱体密封条.SLDPRT	44.31K
26	WM001-Y500-04-03-003轴承座.SLDDRW	326.58K
27	WM001-Y500-04-03-003轴承座.SLDPRT	152.34K
28	WM001-Y500-04-03-004轴承闷盖.SLDDRW	193.44K
29	WM001-Y500-04-03-004轴承闷盖.SLDPRT	88.87K
30	WM001-Y500-04-03-006箱体盖板.SLDDRW	154.57K
31	WM001-Y500-04-03-006箱体盖板.SLDPRT	61.79K
32	WM001-Y500-04-03-01-002齿轮箱内侧板.SLDDRW	187.61K
33	WM001-Y500-04-03-01-002齿轮箱内侧板.SLDPRT	117.15K
34	WM001-Y500-04-03-01-003密封圈限位板.SLDDRW	153.82K
35	WM001-Y500-04-03-01-003密封圈限位板.SLDPRT	63.33K
36	WM001-Y500-04-03-01-005齿轮箱底板.SLDDRW	149.14K
37	WM001-Y500-04-03-01-005齿轮箱底板.SLDPRT	60.78K
38	WM001-Y500-04-03-01齿轮箱焊接.SLDASM	117.39K
39	WM001-Y500-04-03-01齿轮箱焊接.SLDDRW	304.23K
40	WM001-Y500-04-03-02-001箱体侧板.SLDDRW	198.55K
41	WM001-Y500-04-03-02-001箱体侧板.SLDPRT	113.45K
42	WM001-Y500-04-03-02-002箱体侧底板.SLDDRW	158.10K
43	WM001-Y500-04-03-02-002箱体侧底板.SLDPRT	82.11K
44	WM001-Y500-04-03-02-003箱体侧端板.SLDDRW	151.91K
45	WM001-Y500-04-03-02-003箱体侧端板.SLDPRT	60.73K
46	WM001-Y500-04-03-02箱体侧板焊接.SLDASM	87.32K
47	WM001-Y500-04-03-02箱体侧板焊接.SLDDRW	209.16K
48	WM001-Y500-04-03-03-001箱体隔板1.SLDDRW	180.31K
49	WM001-Y500-04-03-03-001箱体隔板1.SLDPRT	110.41K
50	WM001-Y500-04-03-03-002箱体隔筋板.SLDDRW	148.02K
51	WM001-Y500-04-03-03-002箱体隔筋板.SLDPRT	44.80K
52	WM001-Y500-04-03-03箱体隔板焊接.SLDASM	77.73K
53	WM001-Y500-04-03-03箱体隔板焊接.SLDDRW	201.62K
54	WM001-Y500-04-03-04-001箱体隔板2.SLDDRW	210.48K
55	WM001-Y500-04-03-04-001箱体隔板2.SLDPRT	117.04K
56	WM001-Y500-04-03-04箱体隔板焊接2.SLDASM	72.14K
57	WM001-Y500-04-03-04箱体隔板焊接2.SLDDRW	184.12K
58	WM001-Y500-04-03箱体装配.SLDDRW	548.98K
59	WM001-Y500-04-04-001排齿.SLDDRW	159.30K
60	WM001-Y500-04-04-001排齿.SLDPRT	58.17K
61	WM001-Y500-04-04-004排齿压条.SLDDRW	164.65K
62	WM001-Y500-04-04-004排齿压条.SLDPRT	73.96K
63	WM001-Y500-04破碎机总装-掉头.SLDASM	18.96M
64	WM001-Y500-04破碎机总装-掉头.SLDDRW	1.39M
65	主动轴装配.SLDASM	1.02M
66	从动轴装配.SLDASM	1.02M
67	减速器.SLDDRW	15.59M
68	减速器.SLDPRT	18.62M
69	密封圈80-100-10.SLDPRT	87.73K
70	密封圈85-110-12.SLDPRT	90.36K
71	排齿装配.SLDASM	76.59K
72	箱体装配.SLDASM	452.07K
73	联轴器.SLDDRW	168.16K
74	联轴器.SLDPRT	127.98K
75	键.SLDDRW	97.51K
