江淮征途皮卡驱动桥优化设计三维CatiaV5R20带参+CAD+说明书_CATIA V5R20_模型图纸下载

首页

图库

工程师

江淮征途皮卡驱动桥优化设计三维CatiaV5R20带参+CAD+说明书（ID:1538581）

交通运输 / 车辆工程 / 江淮征途皮卡驱动桥优化设计三维CatiaV5R20带参+CAD+说明书

©非原创

平面图

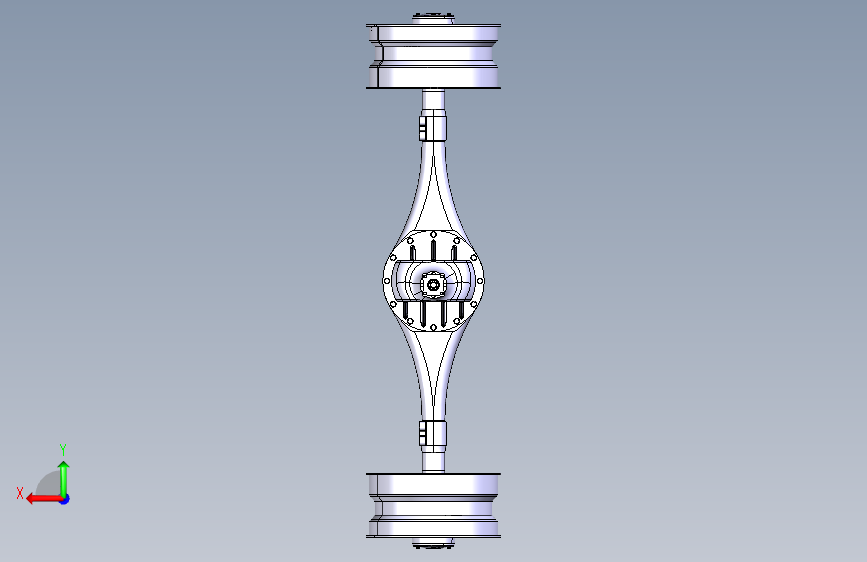

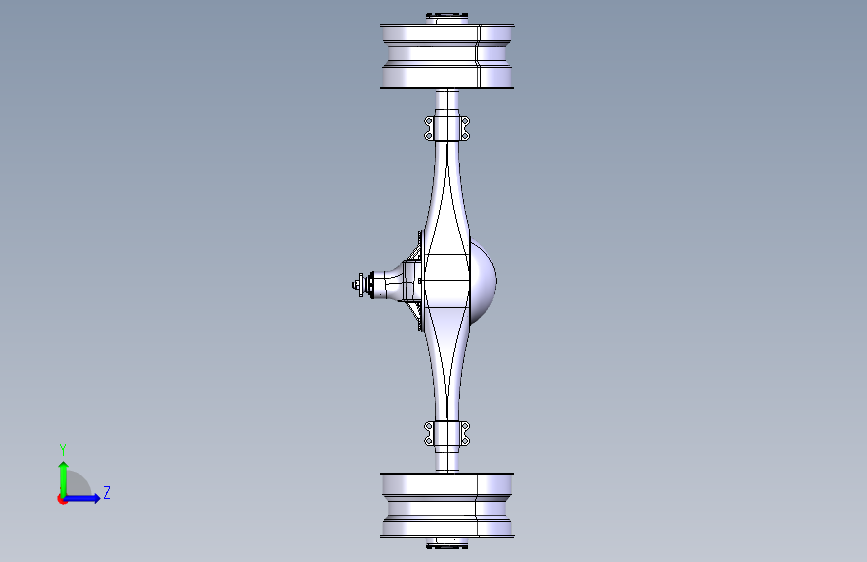

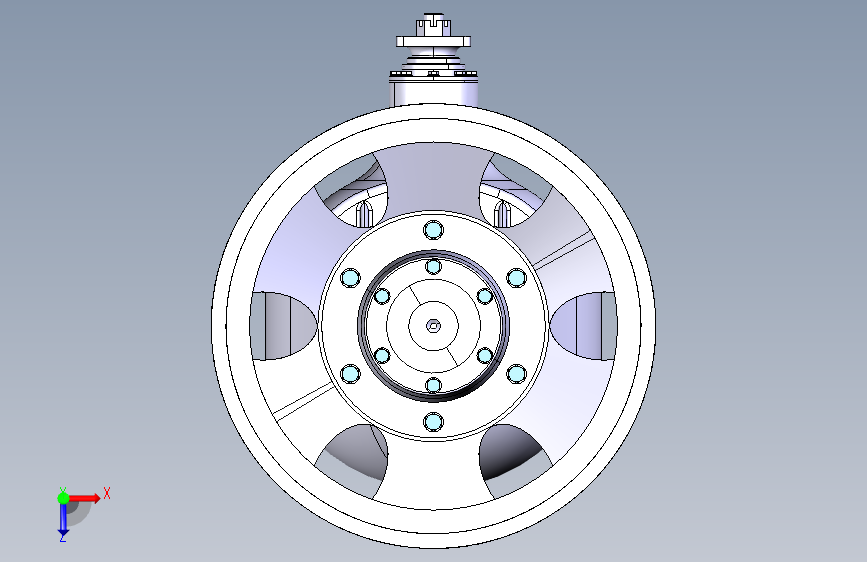

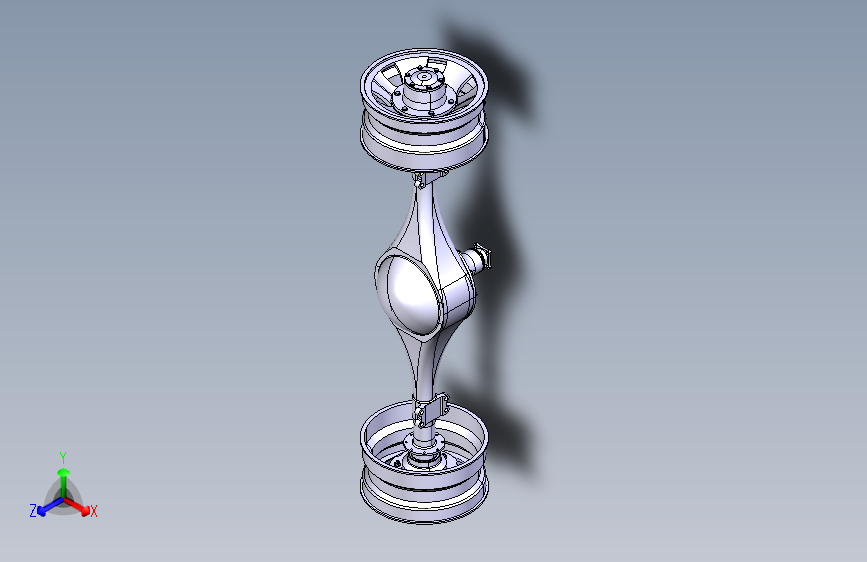

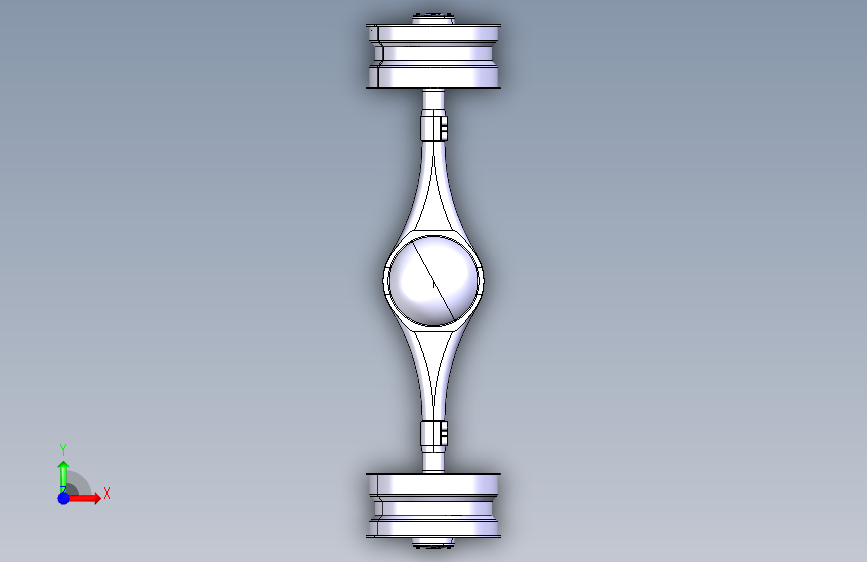

3D视图

文件列表

#	文件名称	文件大小
1	17248877075868.zip	63.50M

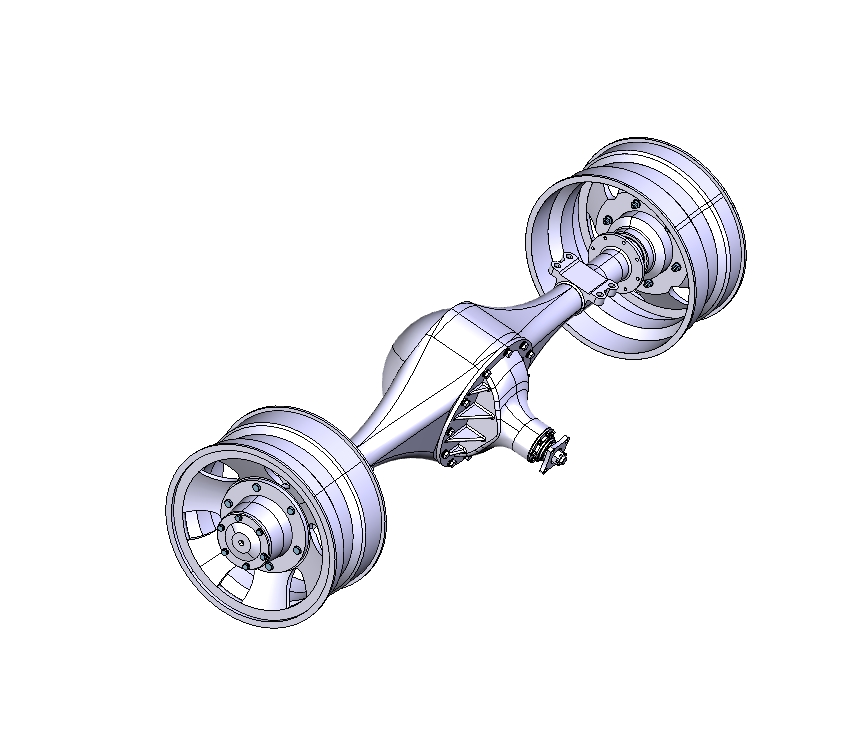

2	0微信截图_20240628175221.png	121.91K
3	0微信截图_20240628175230.png	104.26K

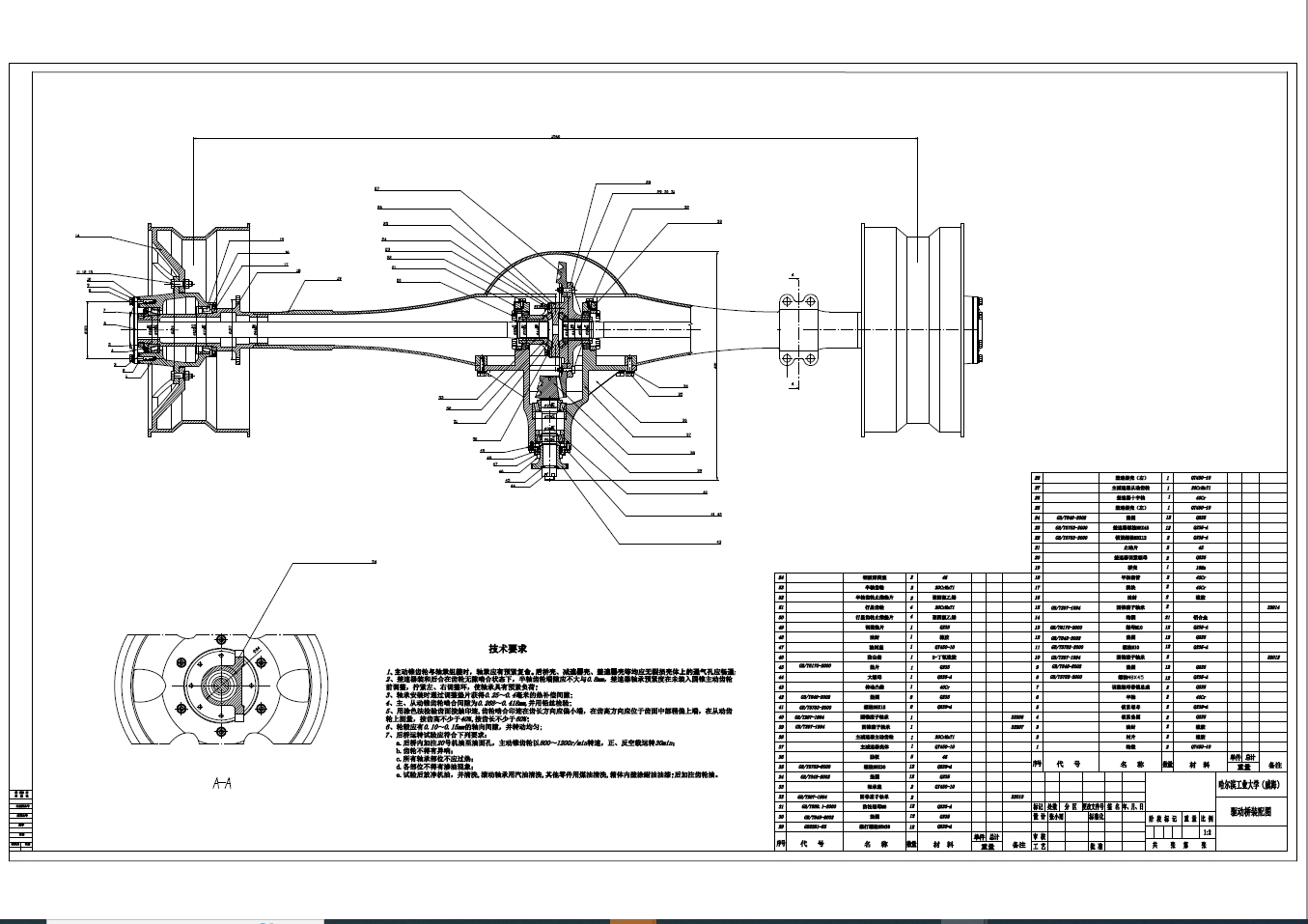

4	0微信截图_20240703012341.png	302.34K

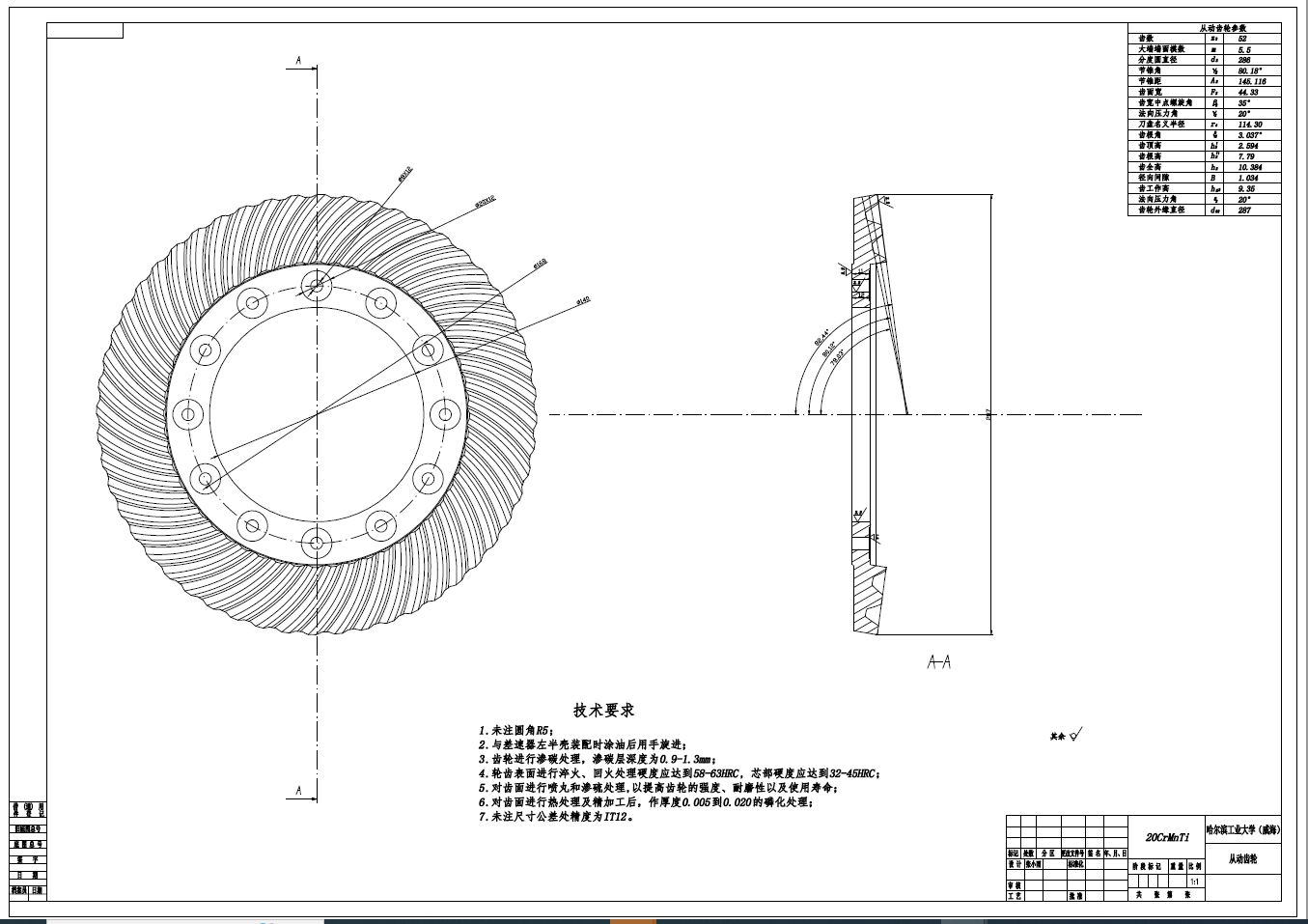

5	0微信截图_20240703012350.png	269.70K
6	0微信截图_20240703012405.png	153.26K

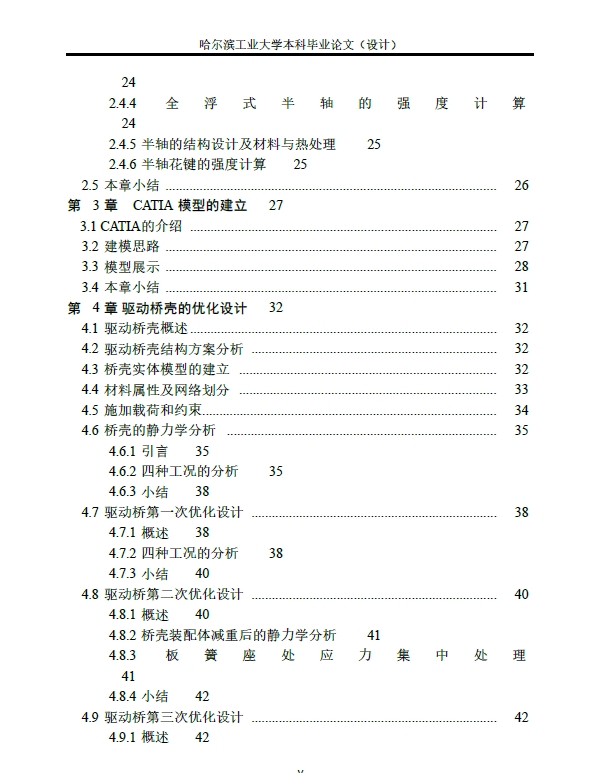

7	0微信截图_20240703012412.png	180.58K
8	110120323-张小雨-中期报告.doc	2.20M
9	110120323-张小雨-开题答辩.doc	43.00K

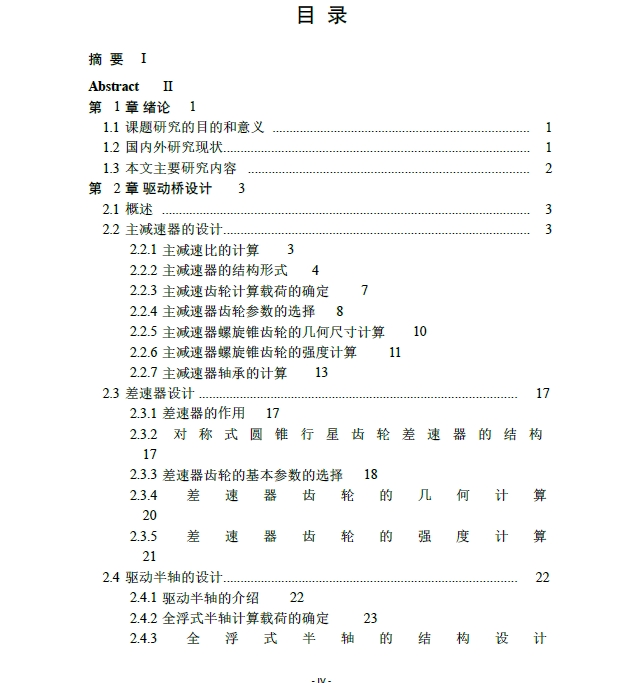

10	110120323-张小雨-毕业论文.pdf	2.28M
11	110120323-张小雨-翻译资料.doc	84.50K
12	zongzhuangtu.stp	34.90M
13	说明书.doc	20.23M
14	主动齿轮A1.dwg	525.67K
15	从动齿轮A1.dwg	594.17K
16	半轴A1.dwg	467.11K
17	半轴齿轮A2.dwg	431.94K
18	差速器壳右A2.dwg	459.72K
19	差速器壳左A1.dwg	498.05K
20	差速器安装座A0.dwg	510.94K
21	行星齿轮A2.dwg	383.17K
22	驱动桥总装配A0.dwg	958.35K
23	Part70.CATPart	56.12K
24	Part71.CATPart	56.54K
25	Part72.CATPart	402.07K
26	Part73.CATPart	75.66K
27	Part74.CATPart	341.29K
28	Part84.CATPart	57.29K
29	Part85.CATPart	85.51K
30	SymmetryofISO4014BOLTM10.CATPart	83.15K
31	SymmetryofISO4032NUTM10STEELGRADEAHEXAGON_1.CATPart	72.79K
32	zuizhongzongzhuangpei.CATProduct	541.26K
33	halfshaftproduct.CATProduct	173.80K
34	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.1.2.CATPart	176.83K
35	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.1.CATPart	176.94K
36	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.2.CATPart	176.90K
37	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.3.CATPart	176.76K
38	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.4.CATPart	176.84K
39	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.5.CATPart	176.88K
40	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.6.CATPart	176.87K
41	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.7.CATPart	176.85K
42	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.8.CATPart	176.80K
43	ISO_4014_M10x70_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	179.61K
44	ISO_4014_M8x45_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	177.31K
45	Part50.CATPart	607.30K
46	qiaokeluoshuan.CATPart	107.74K
47	qudongqiaoke.CATPart	4.41M
48	zhudongchilunzhou.CATPart	364.21K
49	zhujiansuqi.CATProduct	336.82K
50	zongzhuangpei.CATProduct	301.31K
51	HR32206J.CATProduct	22.85K
52	HR32206JIR.CATPart	432.85K
53	HR32206JOR.CATPart	109.63K
54	HR32207J.CATProduct	25.58K
55	HR32207JIR.CATPart	441.90K
56	HR32207JOR.CATPart	117.26K
57	HR32911J.CATProduct	21.30K
58	HR32911JIR.CATPart	618.57K
59	HR32911JOR.CATPart	113.38K
60	HR32913J.CATProduct	23.33K
61	HR32913JIR.CATPart	620.77K
62	HR32913JOR.CATPart	115.59K
63	NU2206ET.CATProduct	29.71K
64	NU2206ETIR.CATPart	78.69K
65	NU2206ETOR.CATPart	83.83K
66	NU2206ETR.CATPart	61.10K
67	differentialpinioncross.CATPart	146.42K
68	fangsongdianpian.CATPart	189.63K
69	fangsongdianpianluomu.CATPart	105.13K
70	newgear10-1.prt.CATPart	815.02K
71	newgear10-2.prt.CATPart	831.11K
72	newgear10-3.prt.CATPart	819.05K
73	newgear10-4.prt.CATPart	816.22K
74	newgear18left.prt.CATPart	1.82M
75	newgear18right.prt.CATPart	1.82M
76	halfshaftleft.CATPart	453.38K
77	halfshaftright.CATPart	1.54M
78	banzhoufalandianpian.CATPart	55.98K
79	banzhoutaoguanneizhouchengdangkuai.CATPart	68.46K
80	dangkuaiyoufen.CATPart	115.71K
81	dianpian1.CATPart	58.43K
82	dianpian2.CATPart	58.59K
83	gearm5.5z9.CATPart	1.32M
84	gearz9andz52.CATPart	6.08M
85	HR32012XJ.CATProduct	21.22K
86	HR32012XJIR.CATPart	535.40K
87	HR32012XJOR.CATPart	121.86K
88	HR32914J.CATProduct	21.14K
89	HR32914JIR.CATPart	630.11K
90	HR32914JOR.CATPart	117.93K
91	ISO4014BOLTM8x45STEELGRADEAHEXAGONHEAD.1.2.3.CATPart	176.52K
92	ISO_4014_M10.CATPart	204.64K
93	ISO_4014_M8x45.CATPart	174.99K
94	ISO_4014_M8x45_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	176.63K
95	ISO_4032_M10_STEEL_GRADE_A_HEXAGON_NUT.CATPart	154.33K
96	lungu.CATPart	458.78K
97	lungutiaozhengluomu.CATPart	105.72K
98	lunguyoufeng.CATPart	100.01K
99	lunwang.CATPart	511.91K
100	lunwangdianpian.CATPart	59.77K
101	newqiaoke.CATPart	3.97M
102	Part117.CATPart	341.43K
103	Part66.CATPart	532.36K
104	Part72.CATPart	56.27K
105	Part73.CATPart	56.51K
106	Part74.CATPart	68.14K
107	Part75.CATPart	338.64K
108	Part82.CATPart	50.06K
109	Part88.CATPart	57.29K
110	Part89.CATPart	149.43K
111	production1.CATProduct	141.85K
112	Production2.CATProduct	245.59K
113	qiaokedianpian.CATPart	58.43K
114	SymmetryofHR32012XJ.CATProduct	14.05K
115	SymmetryofHR32012XJInnerring.CATPart	256.49K
116	SymmetryofHR32012XJOuterring.CATPart	102.65K
117	SymmetryofHR32914J.CATProduct	13.94K
118	SymmetryofHR32914JInnerring.CATPart	287.85K
119	SymmetryofHR32914JOuterring.CATPart	98.80K
120	SymmetryofISO4014BOLTM10.CATPart	83.35K
121	SymmetryofISO4032NUTM10STEELGRADEAHEXAGON.CATPart	72.74K
122	tiaozhengdianquan.CATPart	65.00K
123	tiaozhengluomudaixiaozongcheng.CATPart	64.84K
124	youfengzuodianpian.CATPart	58.34K
125	zhouchenggaidianpian.CATPart	58.92K
126	zhudongzhuichilunzongcheng.CATProduct	36.73K
127	banzhouchilundianpian.CATPart	63.87K
128	chasuqiketileft.CATPart	1.74M
129	chasuqiketiright.CATPart	1.70M
130	chasuqitiaozhengluomu.CATPart	1.56M
131	chasuqizhouchenggai.CATPart	708.53K
132	chuandongtuyuan.CATPart	412.75K
133	fangchengtao.CATPart	254.67K
134	gearz52m5.5.CATPart	4.54M
135	gearz9m5.5.CATPart	4.93M
136	ISO_4014_M10x60_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	178.20K
137	ISO_4014_M10x60_STEEL_GRADE_A_HEXAGON_HEAD_BOLT_New_42.CATPart	178.71K
138	ISO_4014_M10x60_STEEL_GRADE_A_HEXAGON_HEAD_BOLT_New_43.CATPart	178.24K
139	ISO_4014_M10x60_STEEL_GRADE_A_HEXAGON_HEAD_BOLT_New_44.CATPart	178.23K
140	newchasuqiketi.CATPart	1.22M
141	tiaozhengluomu.CATPart	157.35K
142	xingxingchilundianpian.CATPart	63.56K
143	yapian.CATPart	64.79K
144	youfeng.CATPart	100.63K
145	youfengdianquan.CATPart	113.74K
146	youfengzuoluoshuan.CATPart	107.44K
147	youfenzuo.CATPart	199.55K
148	zhujiansuqike.CATPart	2.21M
149	zhujiansuqiketi.CATPart	885.53K

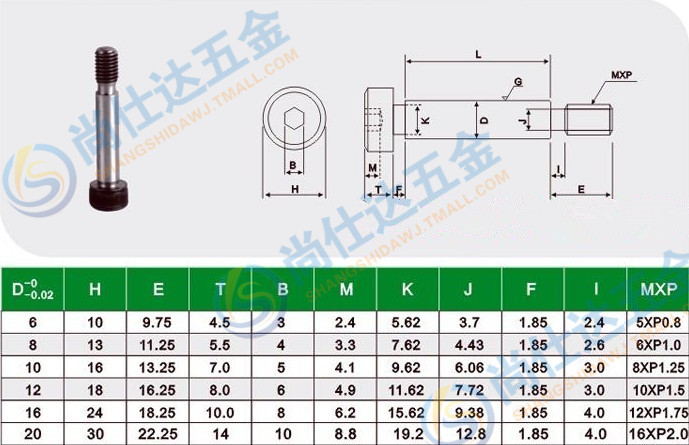

150	0塞打螺栓shoulderbolt.jpg	92.36K

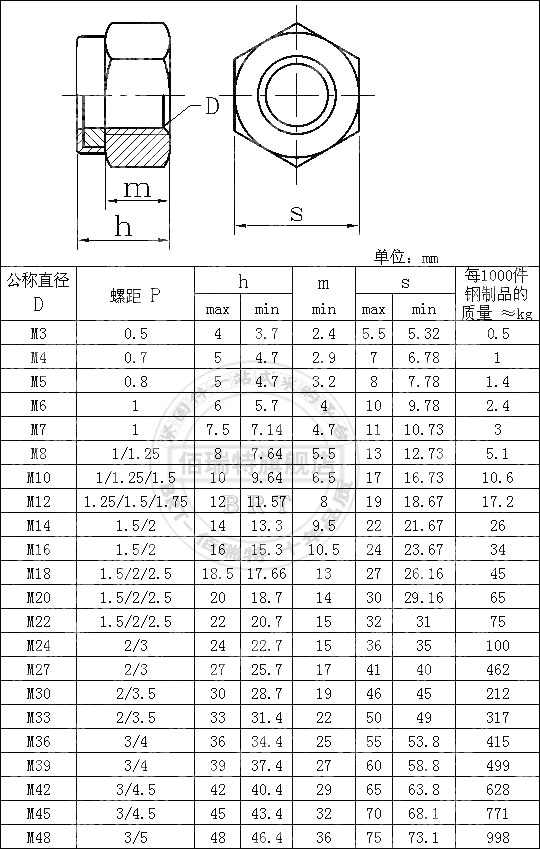

151	0尼龙防松螺母nylonlocknut.jpg	140.53K
152	nylonlocknutM10.CATPart	1.34M
153	nylonlocknutM12.CATPart	1.35M
154	nylonlocknutM4.CATPart	1.90M
155	nylonlocknutM5.CATPart	1.91M
156	nylonlocknutM6.CATPart	1.00M
157	nylonlocknutM8.CATPart	1.33M
158	shoulderboltM10x10.CATPart	1.23M
159	shoulderboltM10x16.CATPart	1.23M
160	shoulderboltM10x20.CATPart	1.23M
161	shoulderboltM10x30.CATPart	1.23M
162	shoulderboltM10x40.CATPart	1.23M
163	shoulderboltM6x10.CATPart	1.24M
164	shoulderboltM6x12.CATPart	1.24M
165	shoulderboltM6x16.CATPart	1.21M
166	shoulderboltM6x20.CATPart	1.21M
167	shoulderboltM6x30.CATPart	1.21M
168	shoulderboltM8x10.CATPart	1.22M
169	shoulderboltM8x12.CATPart	1.22M
170	shoulderboltM8x16.CATPart	1.22M
171	shoulderboltM8x20.CATPart	437.08K
172	shoulderboltM8x30.CATPart	1.23M
173	5mm.CATProduct	28.60K
174	banzhoutaoguan.CATPart	2.78M
175	hanjieqiaoke.CATPart	4.64M
176	hanjieqiaokezongzhuang.CATProduct	28.54K
177	Part13.CATPart	480.27K
