DIY雕刻机（数控裁布机）（ID:1552362）

机械设备 / 机加工设备 / DIY雕刻机（数控裁布机）

©非原创

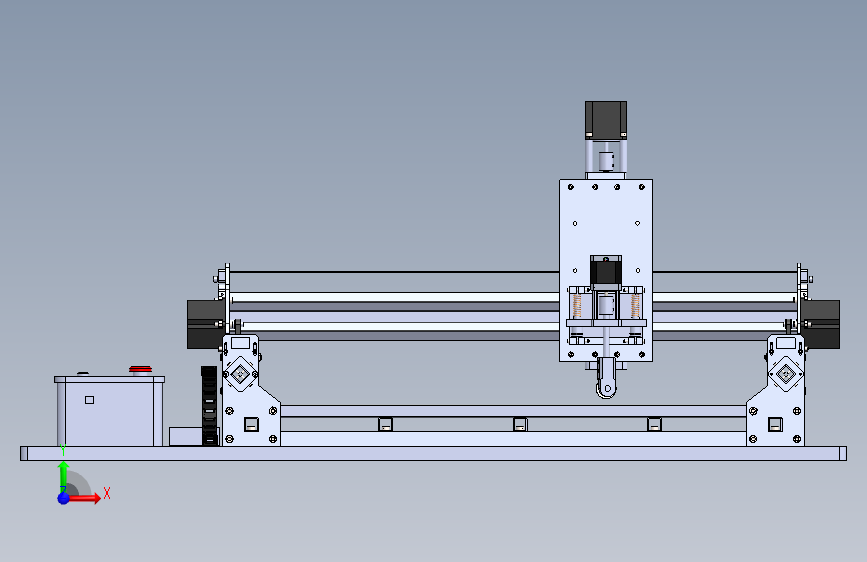

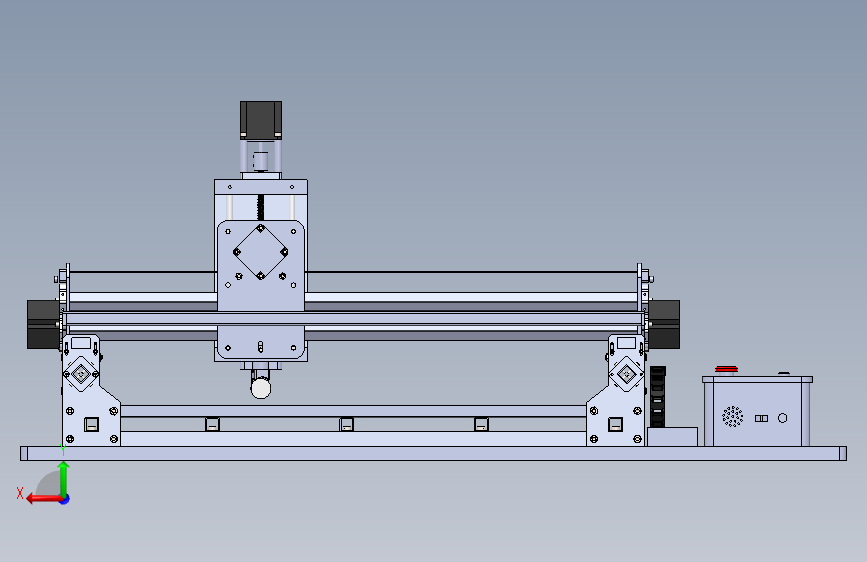

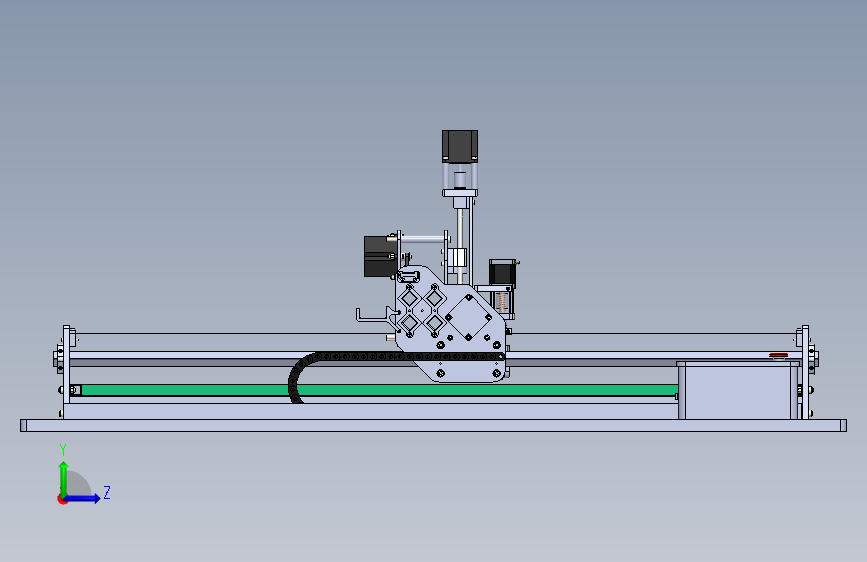

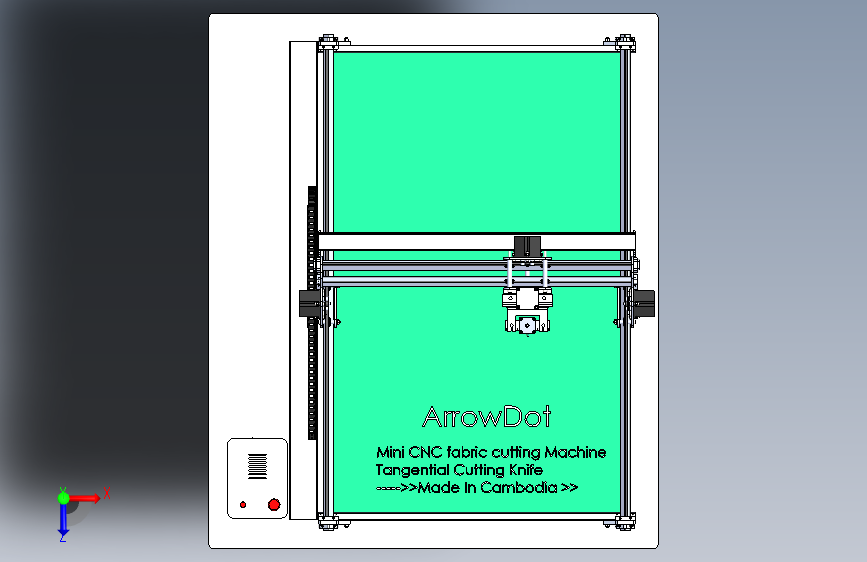

平面图

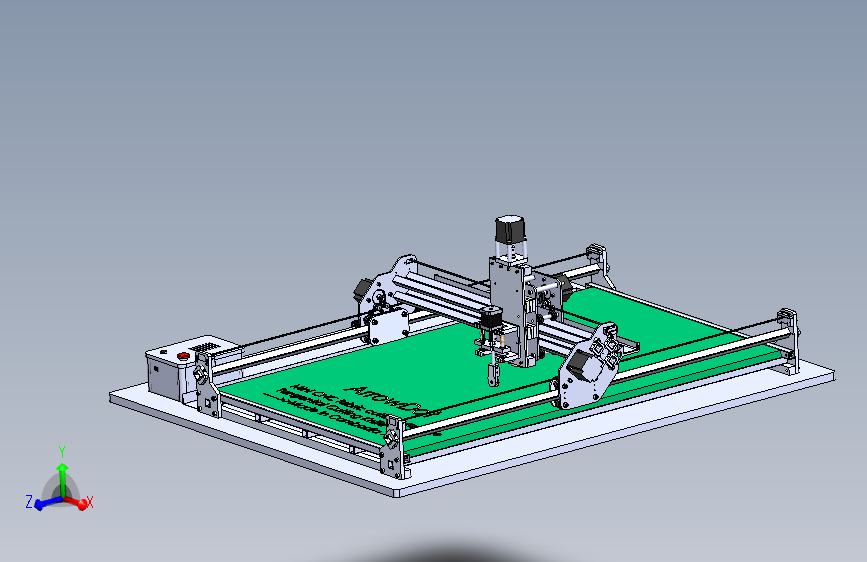

3D视图

文件列表

#	文件名称	文件大小
1	17255902968540.zip	20.51M
2	bitmap1.png	609.45K

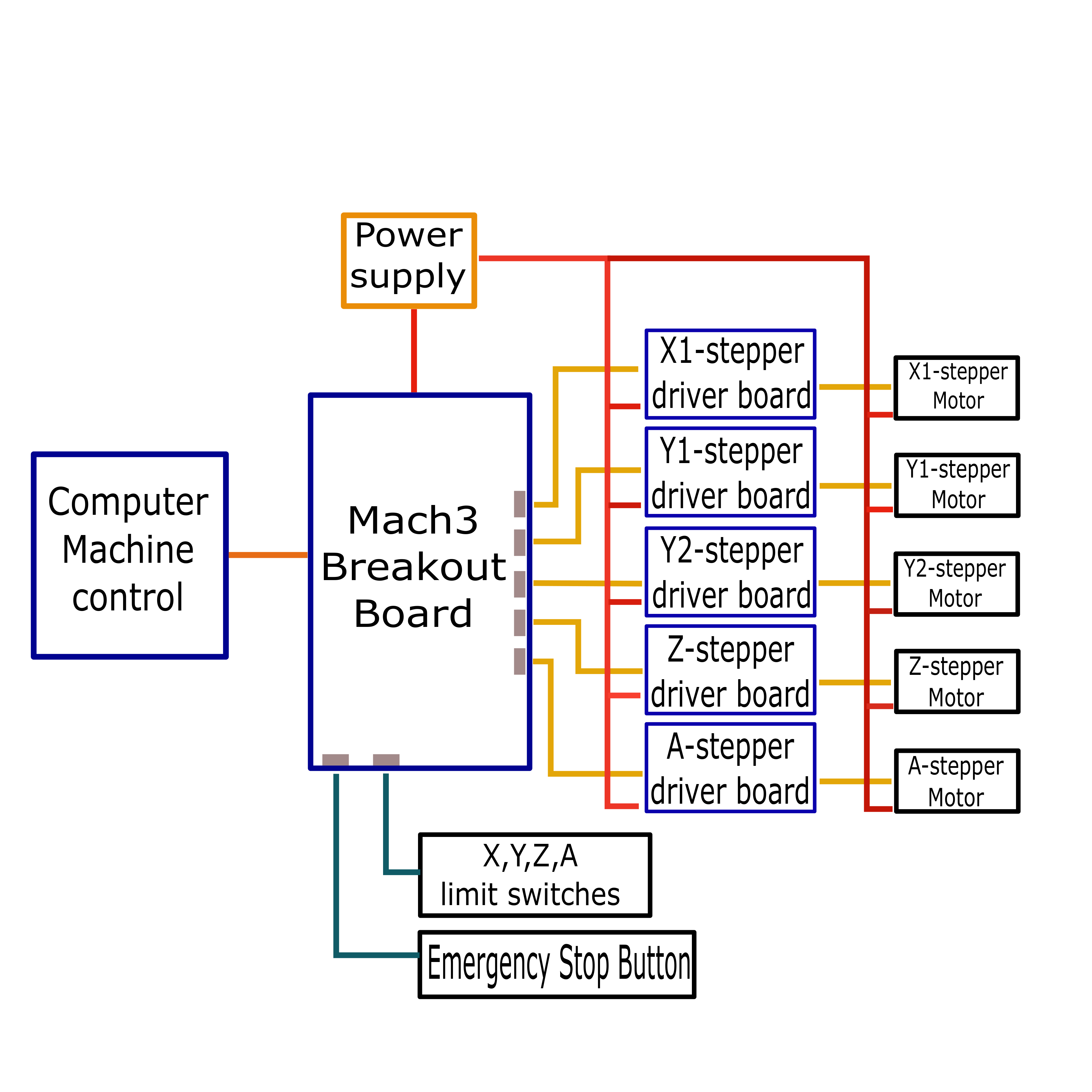

3	drawingcircuitediagrammach3pic.png	376.37K
4	19x191200mmsteelcubesupport.SLDPRT	67.11K
5	19x191260mmyrailaxis.SLDPRT	54.11K
6	19x19800mmrailx.SLDPRT	56.00K
7	19x19800mmsteelcube.SLDPRT	71.76K
8	aaxisrotate2.SLDASM	1.34M
9	aluminiumspacerwasherbore6mmd10mml10mm.SLDPRT	90.48K
10	aluminiumspacerwasherbore6mmd10mml30mm.SLDPRT	100.07K
11	Assemblyofcncfabriccut.x_t	6.13M
12	bearing608nse.SLDPRT	105.32K
13	belttensionadjust1.SLDPRT	69.00K
14	belttensionadjust2top.SLDPRT	48.89K
15	boxcontroller.SLDPRT	276.26K
16	carbonsteel8mm230mmL.SLDPRT	40.33K
17	carbonsteel8mm230mmL1.SLDPRT	39.75K
18	connectplateinXmove.SLDPRT	90.64K
19	coupling1.SLDPRT	93.89K
20	flatxmotor.SLDPRT	502.65K
21	flatxmotor2small.SLDPRT	64.04K
22	framelenght1200mm.SLDPRT	60.43K
23	framewidth800.SLDPRT	79.75K
24	hexnutstyle2_am.sldprt	305.91K
25	hexnutstyle2_amm5.SLDPRT	204.83K
26	idlerpulley20T.SLDPRT	94.47K
27	knifecircledrag.SLDPRT	144.17K
28	knifesupportbearing.SLDPRT	130.42K
29	leadscrew.SLDPRT	82.69K
30	leadscrewdrivennutm8.SLDPRT	82.15K
31	leadscrewm8.SLDPRT	2.12M
32	Limitswitch.SLDPRT	212.55K
33	LinearBearing.SLDPRT	111.32K
34	linearpipeshafesupport.SLDPRT	92.03K
35	linearshaftsupport.SLDPRT	90.41K
36	motorzmountpart.SLDPRT	101.79K
37	Nema17bracketcncfinal.SLDPRT	119.05K
38	nema17cncme.SLDPRT	1.10M
39	Part3cncbig.SLDPRT	62.24K
40	Part9^assemblycnc4idlerspacer.SLDPRT	91.66K
41	pipefixonframeplate10mm.SLDPRT	96.29K
42	shaftmount8mm.SLDPRT	92.92K
43	socketheadcapscrew_am25mm.SLDPRT	325.54K
44	spacer45mmh.SLDPRT	36.31K
45	spring1.SLDPRT	500.00K
46	steppmotor.SLDPRT	88.30K
47	timmingpulley20T.SLDPRT	107.09K
48	V-Wheel_Ø24.4mm.SLDPRT	158.44K
49	washer6mmboreD12t1mm.SLDPRT	56.93K
50	yAxissupportframenew20x20.SLDPRT	293.33K
51	yplatemoveback.SLDPRT	126.97K
52	yplatemoveback1.SLDPRT	77.09K
53	yplatemovefront.SLDPRT	127.57K
54	yplatemovefront1.SLDPRT	63.54K
55	zaxisplatemount.SLDPRT	51.54K
56	zaxisplatemount1.SLDPRT	55.87K
57	zaxisplatemountstepper.SLDPRT	97.07K
58	zongzhuangtu.SLDASM	6.48M
59	esteira15mmmeio.SLDPRT	493.87K
60	esteira15mmponta.SLDPRT	243.23K

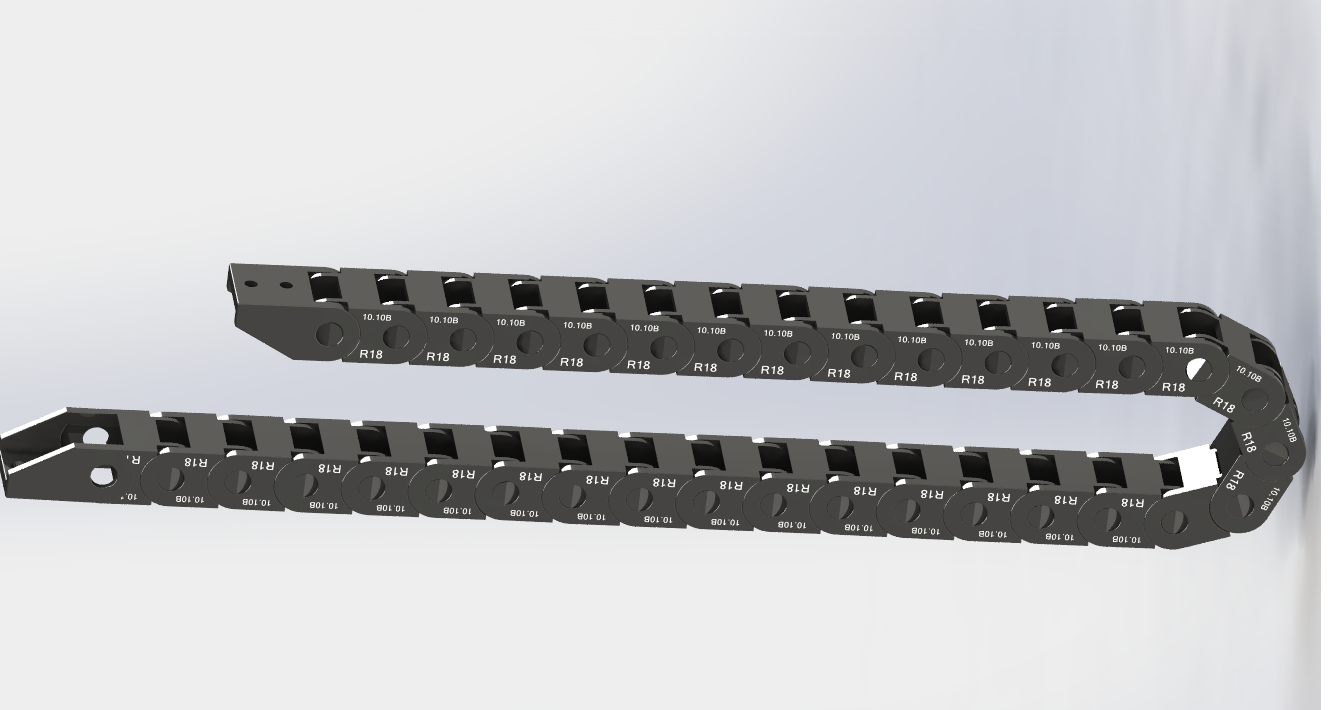

61	ESTEIRAASSEMBLY.fw.png	621.61K
62	esteiraassyeixoy.SLDASM	263.77K
