W2529-L型铁全自动攻丝机电路引脚攻丝（sw22可编辑+工程图）（ID:1580631）

机械设备 / 机加工设备 / W2529-L型铁全自动攻丝机电路引脚攻丝（sw22可编辑+工程图）

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17263181179338.zip	38.75M
2	zongzhuangtu.stp	3.34M

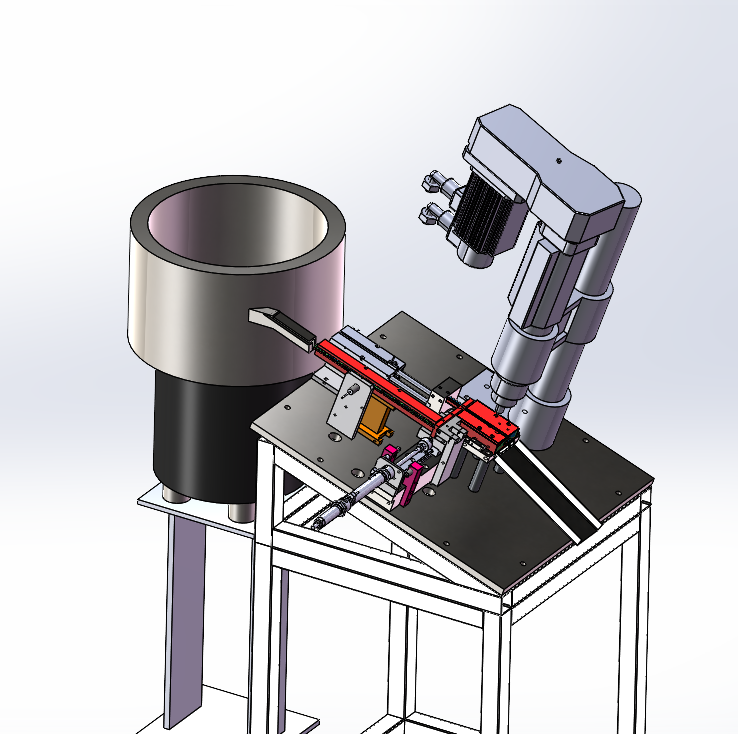

3	1.封面.png	241.18K
4	ACA1007-1.stp	134.19K
5	CGAN75-D.SLDPRT	491.35K
6	D4接近开关.SLDPRT	63.29K
7	EG20导轨.SLDDRW	156.49K
8	EG20导轨.SLDPRT	332.54K
9	EG20滑块1.SLDPRT	243.32K
10	F-M8X125F.stp	118.35K
11	LJT10101-09直线振动检测.SLDASM	78.25K
12	LTJ10101-01-01方管台架下.SLDDRW	175.59K
13	LTJ10101-01-01方管台架下.SLDPRT	264.95K
14	LTJ10101-01-02台架上角度架.SLDDRW	215.24K
15	LTJ10101-01-02台架上角度架.SLDPRT	267.76K
16	LTJ10101-01-03攻丝机台面板.SLDDRW	219.72K
17	LTJ10101-01-03攻丝机台面板.SLDPRT	288.20K
18	LTJ10101-01台架.SLDASM	521.61K
19	LTJ10101-02-01直振流道_产品1.SLDDRW	162.17K
20	LTJ10101-02-01直振流道_产品1.SLDPRT	102.78K
21	LTJ10101-02-02直振流道_产品2.SLDDRW	163.91K
22	LTJ10101-02-02直振流道_产品2.SLDPRT	105.87K
23	LTJ10101-02-03直振流道_产品3.SLDDRW	162.53K
24	LTJ10101-02-03直振流道_产品3.SLDPRT	105.63K

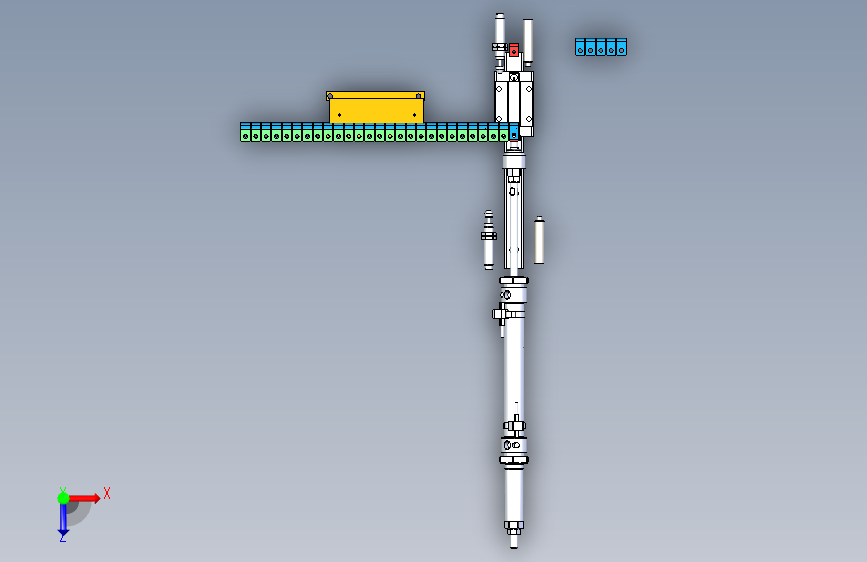

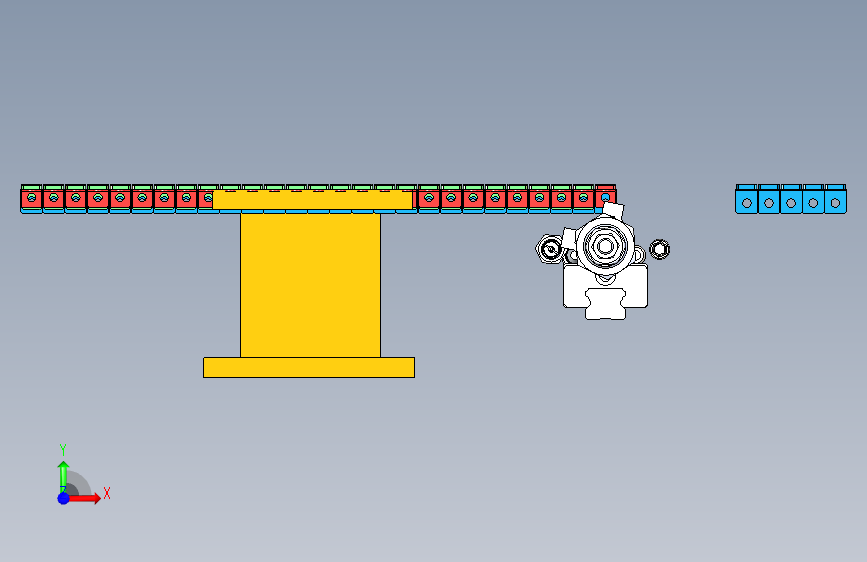

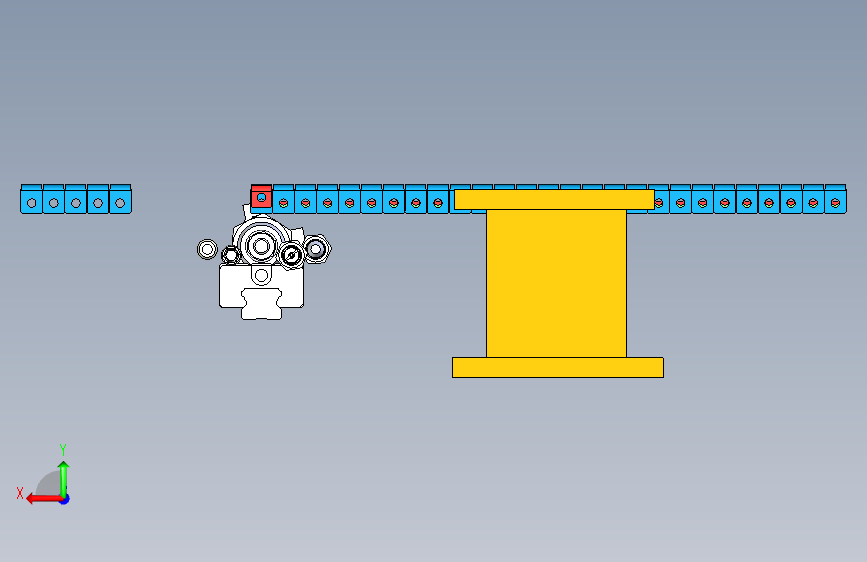

25	LTJ10101-02直线送料部分.SLDASM	163.47K
26	LTJ10101-03-01攻丝动力头支架主体.SLDPRT	132.88K
27	LTJ10101-03-02攻丝动力头支架滑块.SLDPRT	107.76K
28	LTJ10101-03-03攻丝动力头[STV3-L108].step.SLDPRT	1009.33K

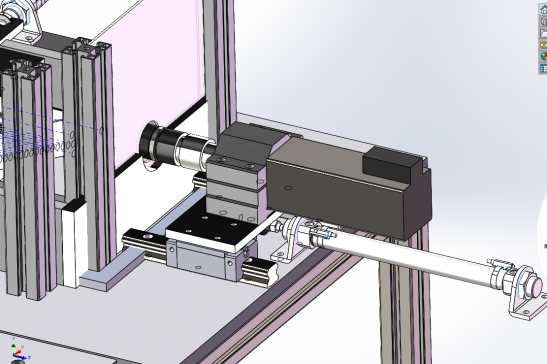

29	LTJ10101-03攻丝机动力部分.SLDASM	508.12K
30	LTJ10101-04-01导轨下垫块.SLDDRW	226.16K
31	LTJ10101-04-01导轨下垫块.SLDPRT	220.84K
32	LTJ10101-04-02推料气缸前进限位板.SLDDRW	176.22K
33	LTJ10101-04-02推料气缸前进限位板.SLDPRT	117.24K
34	LTJ10101-04-03推气缸安装板.SLDPRT	106.85K
35	LTJ10101-04-04推气缸限位板.SLDDRW	166.54K
36	LTJ10101-04-04推气缸限位板.SLDPRT	92.34K
37	LTJ10101-04-05滑块上连接板.SLDDRW	197.69K
38	LTJ10101-04-05滑块上连接板.SLDPRT	142.69K
39	LTJ10101-04-06载料模具_产品01.SLDDRW	166.36K
40	LTJ10101-04-06载料模具_产品01.SLDPRT	111.34K
41	LTJ10101-04-07载料模具_产品02.SLDDRW	166.31K
42	LTJ10101-04-07载料模具_产品02.SLDPRT	111.96K
43	LTJ10101-04-08载料模具_产品03.SLDDRW	166.72K
44	LTJ10101-04-08载料模具_产品03.SLDPRT	117.46K
45	LTJ10101-04分离物料机构.SLDASM	1.29M
46	LTJ10101-04分离物料机构.SLDDRW	577.35K
47	LTJ10101-05-01攻丝流道底板.SLDDRW	199.80K
48	LTJ10101-05-01攻丝流道底板.SLDPRT	173.33K
49	LTJ10101-05-02攻丝流道.SLDDRW	174.68K
50	LTJ10101-05-02攻丝流道.SLDPRT	124.46K
51	LTJ10101-05-03攻丝流道_产品1.SLDDRW	198.11K
52	LTJ10101-05-03攻丝流道_产品1.SLDPRT	147.56K
53	LTJ10101-05-04攻丝流道_产品2.SLDDRW	176.45K
54	LTJ10101-05-05攻丝流道_产品3.SLDDRW	194.87K
55	LTJ10101-05-06攻丝流道支柱.SLDDRW	166.50K
56	LTJ10101-05-06攻丝流道支柱.SLDPRT	84.92K
57	LTJ10101-05-07下料板.SLDDRW	182.80K
58	LTJ10101-05-07下料板.SLDPRT	209.43K
59	LTJ10101-05-08定位挡块.SLDDRW	166.88K
60	LTJ10101-05-08定位挡块.SLDPRT	100.50K
61	LTJ10101-05-09攻丝模具底板_产品1.SLDDRW	198.05K
62	LTJ10101-05-09攻丝模具底板_产品1.SLDPRT	156.53K
63	LTJ10101-05-10上盖板_产品1.SLDDRW	176.54K
64	LTJ10101-05-10上盖板_产品1.SLDPRT	89.30K
65	LTJ10101-05-11攻丝流道_产品1.SLDDRW	183.95K
66	LTJ10101-05-11攻丝流道_产品1.SLDPRT	116.78K
67	LTJ10101-05-12推料h板_产品1.SLDDRW	163.89K
68	LTJ10101-05-12推料h板_产品1.SLDPRT	92.08K
69	LTJ10101-05攻丝夹具机构.SLDASM	371.32K
70	LTJ10101-06-01推进物料底板.SLDDRW	175.90K
71	LTJ10101-06-01推进物料底板.SLDPRT	123.65K
72	LTJ10101-06-02推料气缸支撑板.SLDDRW	165.49K
73	LTJ10101-06-02推料气缸支撑板.SLDPRT	94.34K
74	LTJ10101-06-03推料杆头块.SLDDRW	200.11K
75	LTJ10101-06-03推料杆头块.SLDPRT	149.59K
76	LTJ10101-06推产品机构.SLDASM	1.59M
77	LTJ10101-07-01侧挡料支板.SLDDRW	179.75K
78	LTJ10101-07-01侧挡料支板.SLDPRT	110.75K
79	LTJ10101-07-02侧挡料横板.SLDDRW	193.38K
80	LTJ10101-07-02侧挡料横板.SLDPRT	142.65K
81	LTJ10101-07-03侧挡料小板.SLDDRW	157.61K
82	LTJ10101-07-03侧挡料小板.SLDPRT	84.28K
83	LTJ10101-07-04POM检测头.SLDDRW	176.60K
84	LTJ10101-07-04POM检测头.SLDPRT	225.09K
85	LTJ10101-07-05检测铜丝.SLDDRW	142.92K
86	LTJ10101-07-05检测铜丝.SLDPRT	66.83K
87	LTJ10101-07内侧挡料组件.SLDASM	93.04K
88	LTJ10101-08振动盘300.SLDPRT	136.91K
89	LTJ10101-09-01接近开关支架.SLDDRW	167.36K
90	LTJ10101-09-01接近开关支架.SLDPRT	93.88K
91	LTJ10101攻丝机BOM.xlsx	451.45K
92	LTJ10102-05-09攻丝模具底板_产品2.SLDDRW	194.92K
93	LTJ10102-05-09攻丝模具底板_产品2.SLDPRT	151.68K
94	LTJ10102-05-10上盖板_产品2.SLDDRW	178.05K
95	LTJ10102-05-10上盖板_产品2.SLDPRT	90.36K
96	LTJ10102-05-11攻丝流道_产品2.SLDDRW	183.88K
97	LTJ10102-05-11攻丝流道_产品2.SLDPRT	116.80K
98	LTJ10102-05-12推料h板_产品2.SLDDRW	163.94K
99	LTJ10102-05-12推料h板_产品2.SLDPRT	92.81K
100	LTJ10103-05-09攻丝模具底板_产品3.SLDDRW	194.46K
101	LTJ10103-05-09攻丝模具底板_产品3.SLDPRT	151.57K
102	LTJ10103-05-10上盖板_产品3.SLDDRW	175.70K
103	LTJ10103-05-10上盖板_产品3.SLDPRT	89.49K
104	LTJ10103-05-11攻丝流道_产品3.SLDDRW	184.05K
105	LTJ10103-05-11攻丝流道_产品3.SLDPRT	117.61K
106	LTJ10103-05-12推料h板_产品3.SLDDRW	164.80K
107	LTJ10103-05-12推料h板_产品3.SLDPRT	91.23K
108	L铁攻丝机1.1.SLDASM	4.89M
109	L铁自动攻丝设备.SLDASM	3.03M

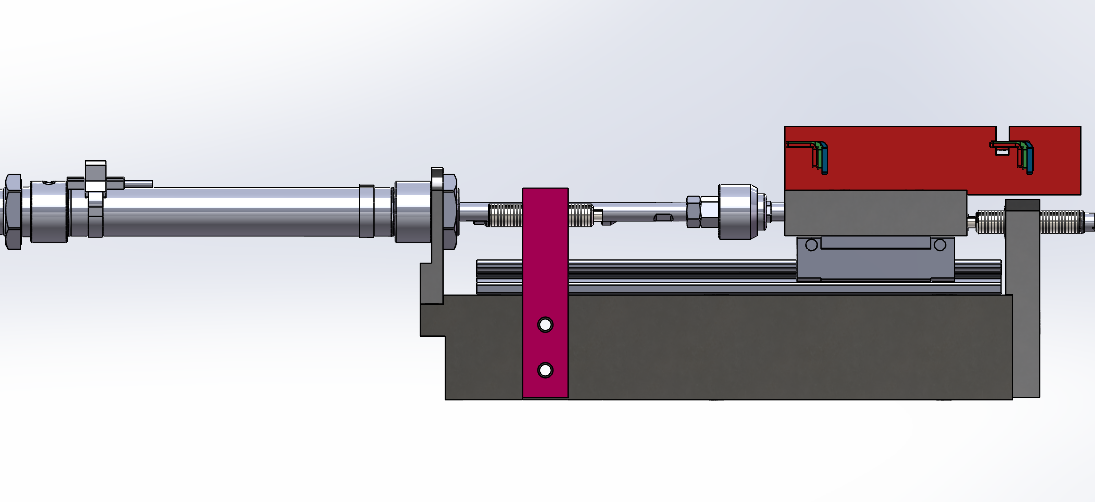

110	L铁自动攻丝设备.STEP	10.33M
111	L铁自动攻丝设备.x_t	8.84M
112	M10-50防撞螺丝.SLDPRT	166.09K
113	M12接近开关.SLDPRT	105.04K
114	MACJ20x100-50S_855015__CMSG-2_.stp	551.82K
115	TN20X80S_80__CMSJ-2_.stp	747.60K

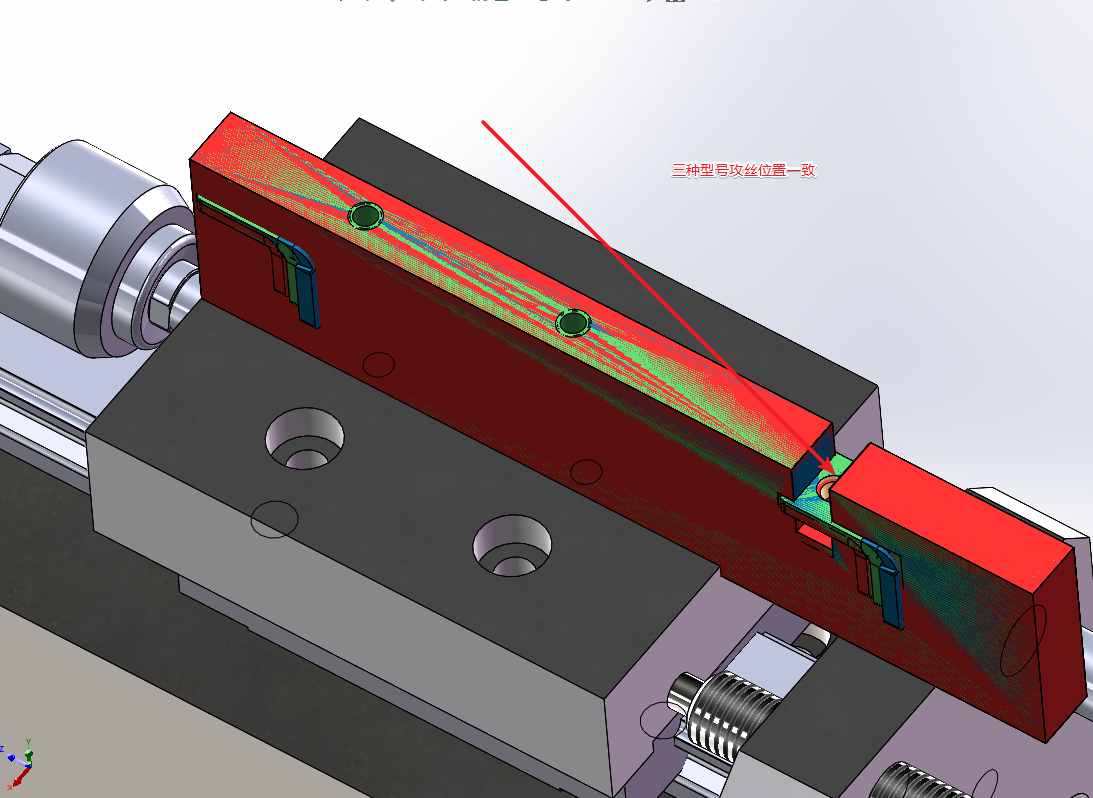

116	三种型号攻丝孔位置一致.png	433.15K
117	上盖板产品3.SLDPRT	91.65K
118	产品123.SLDASM	120.86K
119	产品123.SLDDRW	211.57K

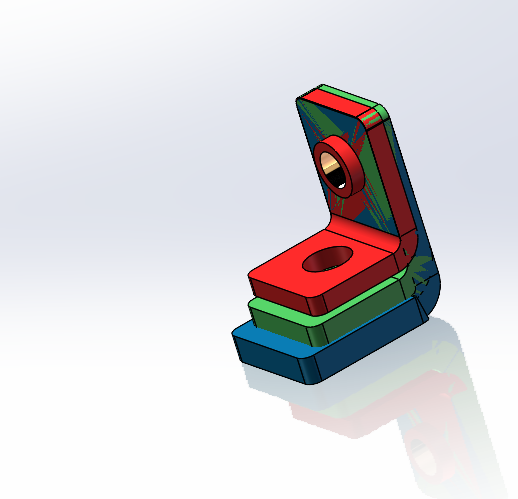

120	产品图通用三种产品.png	59.60K
121	分离部分机构.png	117.71K
122	加工布局.png	664.16K

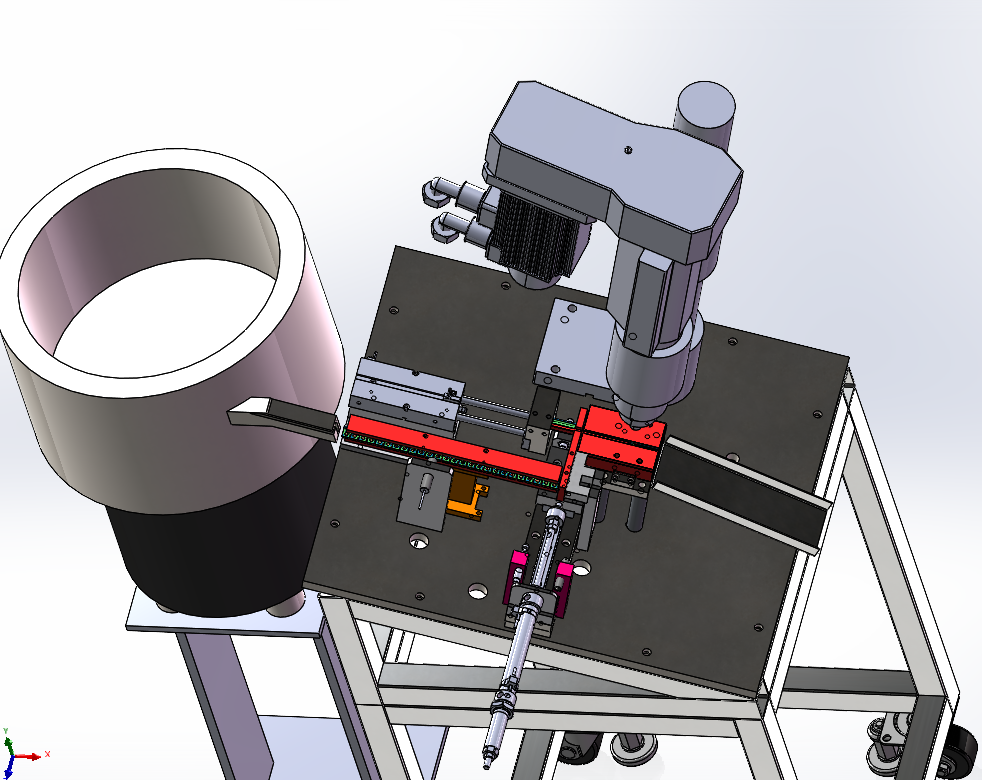

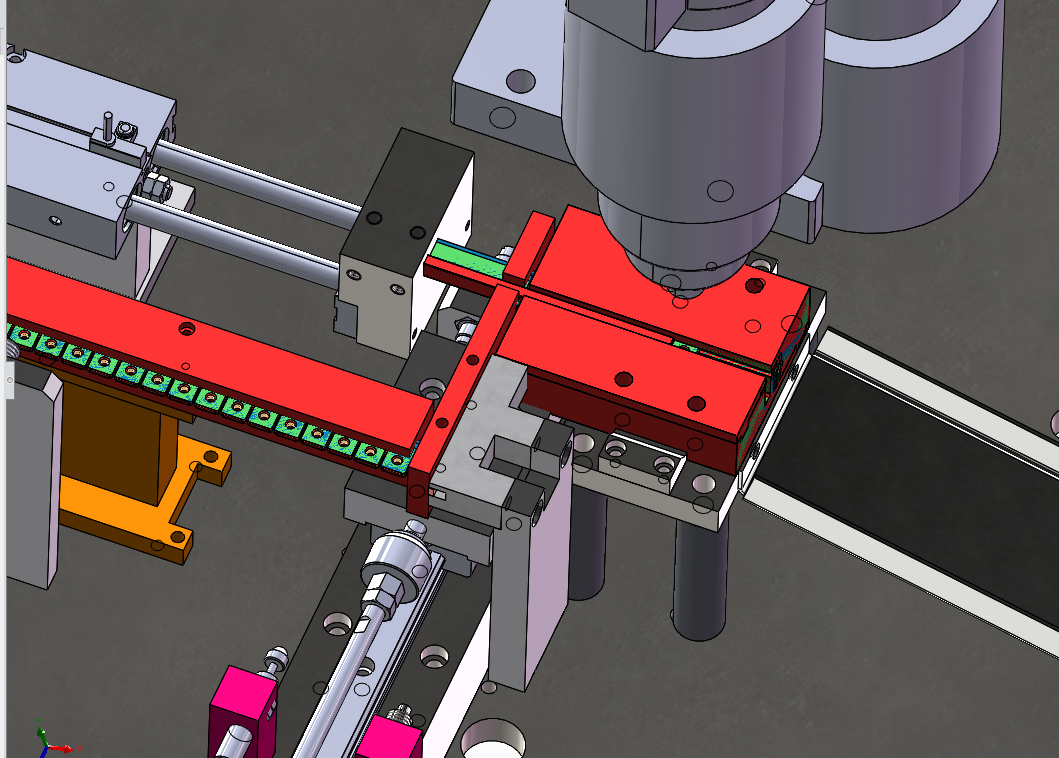

123	客户产品1.SLDDRW	173.75K
124	客户产品1.SLDPRT	219.11K
125	客户产品2.SLDDRW	171.86K
126	客户产品2.SLDPRT	128.83K
127	客户产品3.SLDDRW	174.54K
128	客户产品3.SLDPRT	138.33K
129	振动盘架.SLDPRT	97.69K

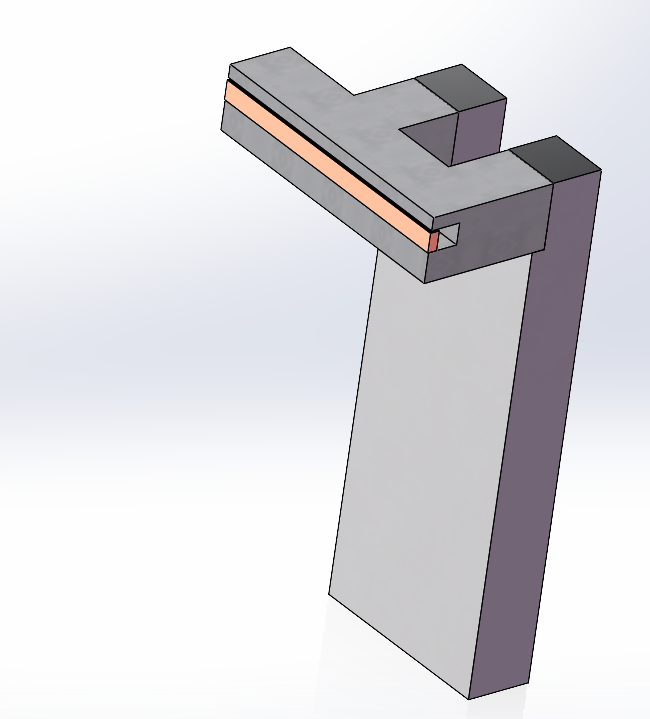

130	改进产品到位检测机构铜片检测.png	123.13K
131	攻丝动力头[STV3-L108].step	1.82M
132	断丝攻检测磨具.SLDDRW	184.06K
133	断丝攻检测磨具.SLDPRT	117.22K
134	机构布局.png	460.43K

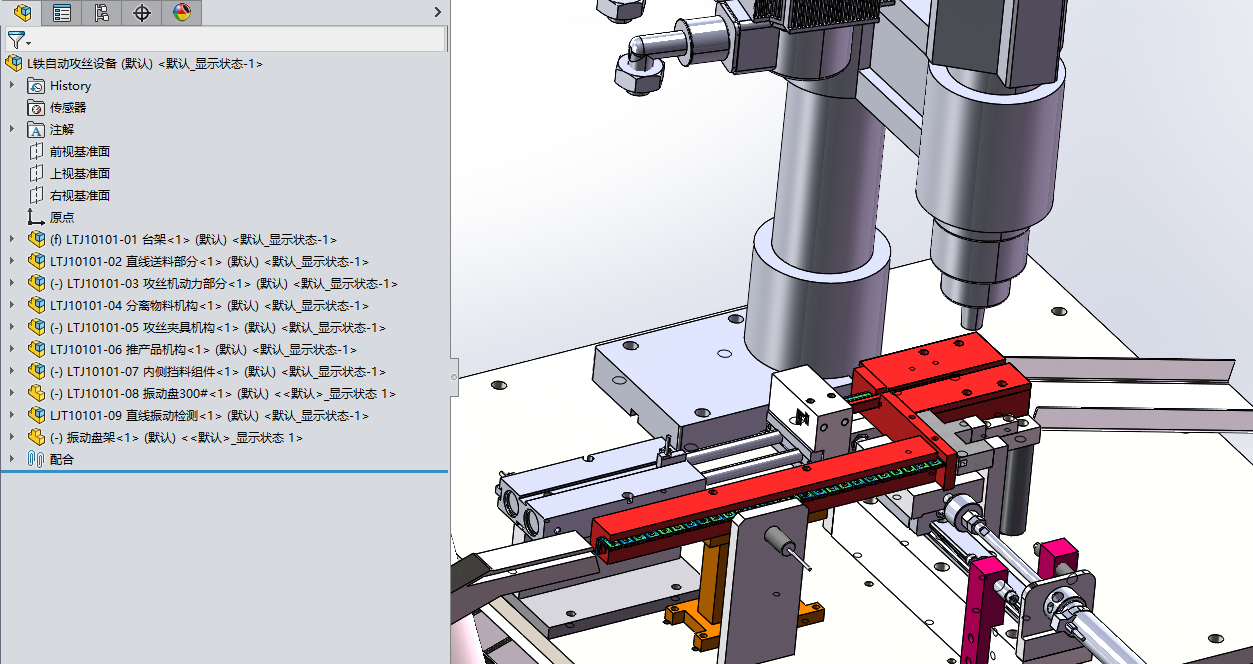

135	现有图号.png	367.43K
