M4527-丰田卡罗拉悬架的结构设计及优化分析三维CatiaV5R20带参+说明（ID:1584418）

交通运输 / 车辆工程 / M4527-丰田卡罗拉悬架的结构设计及优化分析三维CatiaV5R20带参+说明

©非原创

平面图

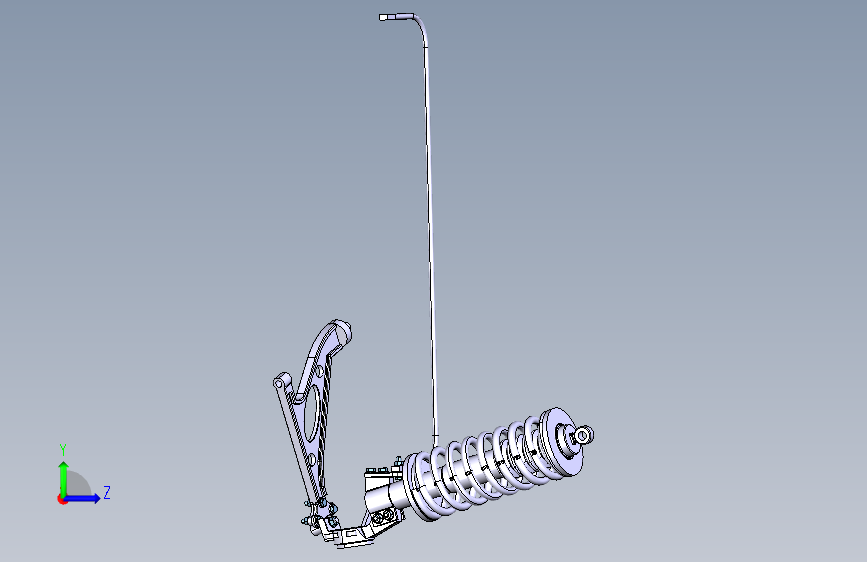

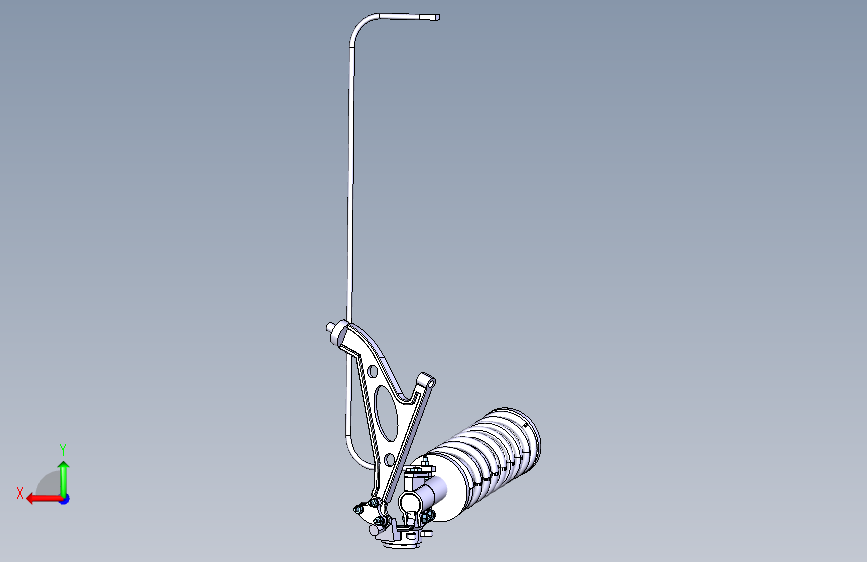

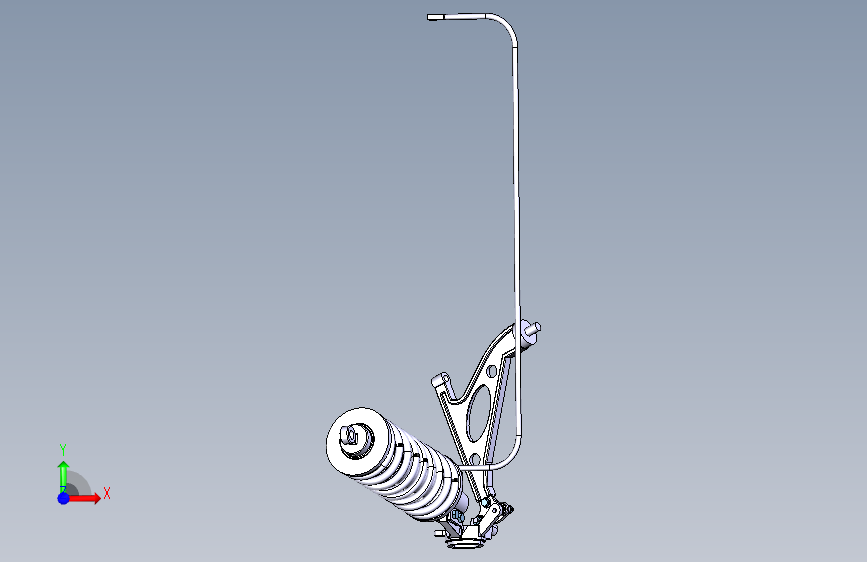

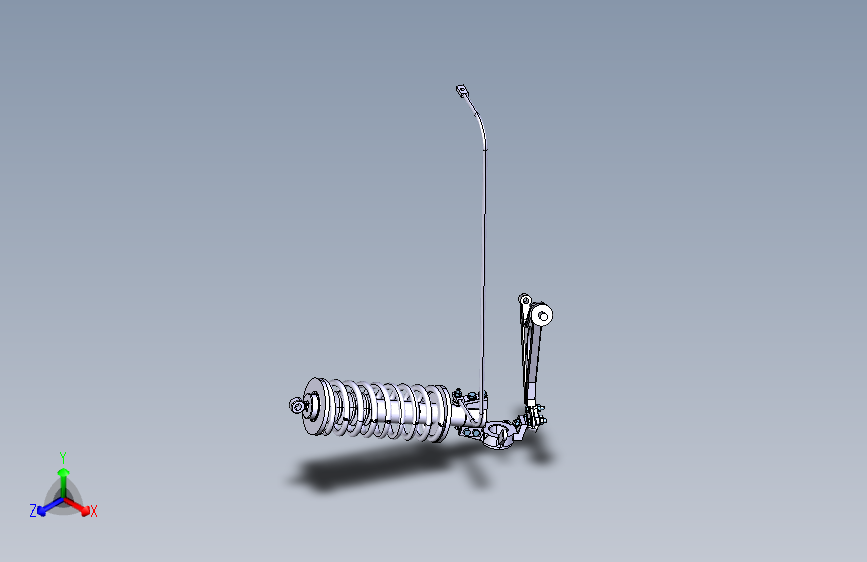

3D视图

文件列表

M4527-丰田卡罗拉悬架的结构设计及优化分析三维CatiaV5R20带参+说明

#	文件名称	文件大小
1	17264826408318.zip	14.80M
2	下三角摆臂零件图.dwg	142.50K
3	中期答辩.doc	364.50K
4	中期答辩.ppt	2.12M
5	前悬架减振器零件图.dwg	177.28K
6	前悬架弹簧零件图.dwg	179.00K
7	前悬架装配图.dwg	636.13K
8	前悬架转向节零件图.dwg	137.03K
9	后悬架装配图.dwg	369.03K
10	开题报告.doc	55.50K
11	开题报告.ppt	1.10M
12	毕业报告.ppt	1.02M
13	英语资料翻译.doc	60.50K
14	说明书.doc	1.67M
15	dagaizi1.CATPart	76.44K
16	dagaizi2.CATPart	75.77K
17	dianpian.CATPart	70.67K
18	dinapian.CATPart	61.88K
19	Drawing1111.CATDrawing	2.06M
20	Drawing1111.dwg	699.99K
21	hengxiangwendinggan1.CATPart	148.26K
22	hengxiangwendoing.CATPart	166.52K
23	huan1.CATPart	57.66K
24	ISO_4014_M10x45_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	177.47K
25	ISO_4014_M10x45_STEEL_GRADE_A_HEXAGON_HEAD_BOLT1.CATPart	177.09K
26	ISO_4014_M10x45_STEEL_GRADE_A_HEXAGON_HEAD_BOLT_New_35.CATPart	176.57K
27	ISO_4014_M10x45_STEEL_GRADE_A_HEXAGON_HEAD_BOLT_New_361.CATPart	177.11K
28	ISO_4014_M12x55_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	176.78K
29	ISO_4014_M12x55_STEEL_GRADE_A_HEXAGON_HEAD_BOLT_New_29.CATPart	177.73K
30	ISO_4017_M12x25_STEEL_GRADE_A_HEX_HEAD_SCREW.CATPart	164.77K
31	ISO_4017_M12x25_STEEL_GRADE_A_HEX_HEAD_SCREW_New_35.CATPart	165.73K
32	ISO_4032_M10_STEEL_GRADE_A_HEXAGON_NUT.CATPart	155.39K
33	ISO_4032_M10_STEEL_GRADE_A_HEXAGON_NUT1.CATPart	155.99K
34	ISO_4032_M10_STEEL_GRADE_A_HEXAGON_NUT_New_381.CATPart	156.01K
35	ISO_4032_M10_STEEL_GRADE_A_HEXAGON_NUT_New_39.CATPart	156.66K
36	ISO_4032_M12_STEEL_GRADE_A_HEXAGON_NUT.CATPart	156.71K
37	ISO_4032_M12_STEEL_GRADE_A_HEXAGON_NUT_New_30.CATPart	155.61K
38	ISO_4032_M12_STEEL_GRADE_A_HEXAGON_NUT_New_31.CATPart	156.73K
39	ISO_7089_10x20_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	71.42K
40	ISO_7089_10x20_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER1.CATPart	71.91K
41	ISO_7089_10x20_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER_New_391.CATPart	71.90K
42	ISO_7089_10x20_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER_New_401.CATPart	71.90K
43	ISO_7089_12x24_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	71.59K
44	ISO_7089_12x24_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER1.CATPart	72.04K
45	ISO_7089_12x24_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER_New_331.CATPart	72.07K
46	ISO_7089_12x24_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER_New_341.CATPart	72.06K
47	ISO_7089_12x24_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER_New_37.CATPart	72.77K
48	jiazi.CATPart	236.58K
49	Part1.CATPart	34.46K
50	Part21.CATPart	262.65K
51	Product2.CATProduct	244.55K
52	qiujiaojie.CATPart	95.33K
53	shiyanyong.CATProduct	142.20K
54	Symmetryofdazhuzi.CATPart	52.95K
55	Symmetryofdinapian.CATPart	47.82K
56	Symmetryofhengxiangwendinggan.CATPart	110.12K
57	Symmetryofhuan1.CATPart	47.37K
58	Symmetryofjiazi.CATPart	105.31K
59	Symmetryoftanhuang.CATPart	158.75K
60	Symmetryofxiasanjiao.CATPart	376.32K
61	Symmetryofxiasanjiaobaibideluosi.CATPart	53.15K
62	Symmetryofxiasanjiaopan.CATPart	106.39K
63	Symmetryofzhizi.CATPart	325.10K
64	tanhuang.CATPart	567.83K
65	xiasanjiao.CATPart	899.51K
66	xiasanjiaopan.CATPart	209.83K
67	zhizi.CATPart	712.17K
68	zhuanxiangjie.CATPart	776.93K
69	zongzhuangtu.stp	2.64M
70	总装图（低版本）.CATProduct	244.55K
71	banban.CATPart	68.81K
72	BANBAN111.CATPart	136.22K
73	dadizuo.CATPart	362.15K
74	fuzhuban.CATPart	73.09K
75	gudingban.CATPart	40.49K
76	hengbi.CATPart	268.23K
77	houxuanjia.CATPart	453.63K
78	ISO_4014_M16x70_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	177.08K
79	ISO_4014_M16x70_STEEL_GRADE_A_HEXAGON_HEAD_BOLT_New_23.CATPart	177.12K
80	ISO_4017_M20x40_STEEL_GRADE_A_HEX_HEAD_SCREW.CATPart	165.22K
81	ISO_4032_M16_STEEL_GRADE_A_HEXAGON_NUT.CATPart	155.87K
82	ISO_4032_M16_STEEL_GRADE_A_HEXAGON_NUT_New_24.CATPart	155.82K
83	ISO_7089_16x30_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	71.72K
84	ISO_7089_16x30_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER_New_25.CATPart	71.71K
85	lungujietou.CATPart	182.85K
86	Product1.CATProduct	148.72K
87	SymmetryofBANBAN.CATPart	66.20K
88	Symmetryofdadizuo.CATPart	154.82K
89	Symmetryofgudingban.CATPart	34.50K
90	Symmetryofhengbi.CATPart	128.66K
91	Symmetryofhouxuanjia.CATPart	329.72K
92	Symmetryoflungujietou.CATPart	88.92K
93	Symmetryofzhuzhu.CATPart	115.35K
94	Symmetryofzonggan.CATPart	96.82K
95	zhubi.CATPart	341.44K
96	zhuzhu.CATPart	213.10K
97	zonggan.CATPart	186.45K

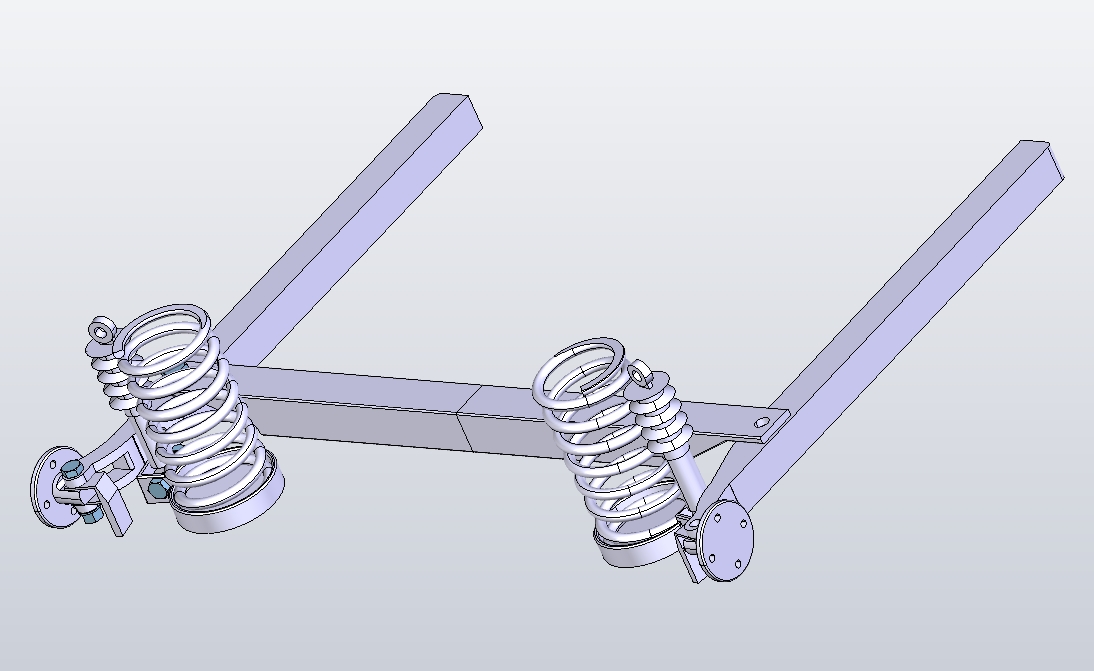

98	00后悬架.png	173.03K

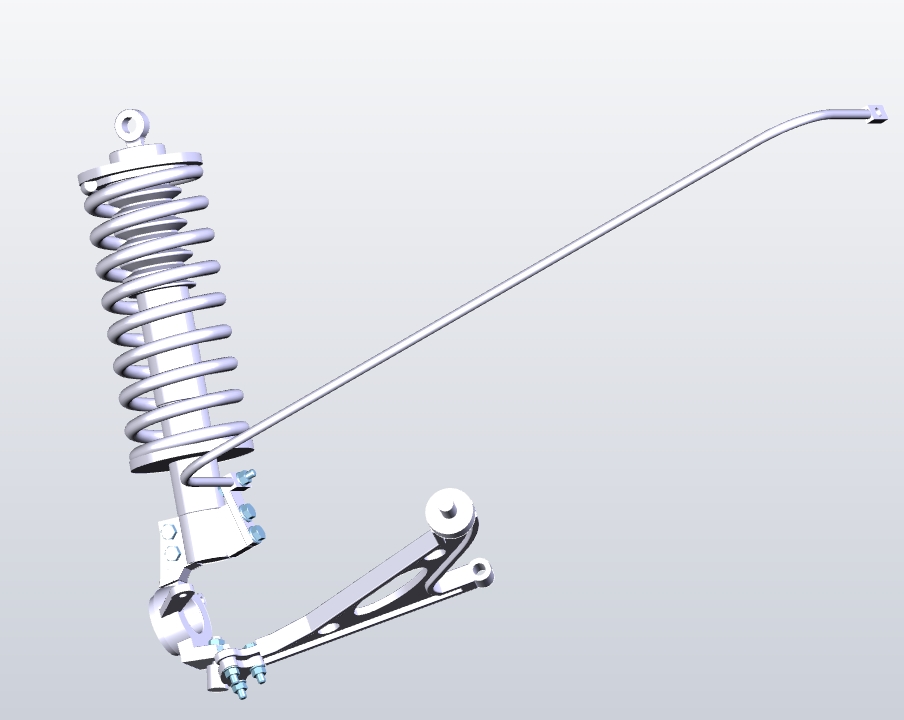

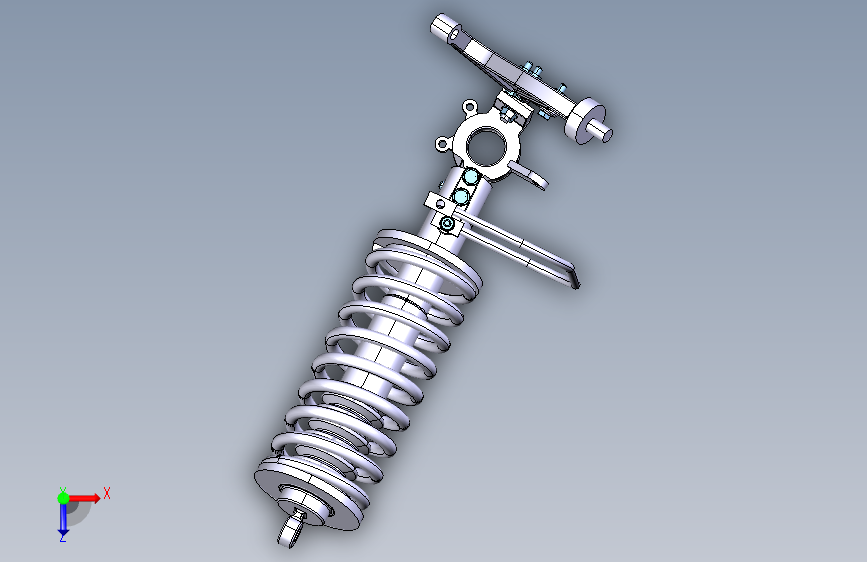

99	0前悬架.png	123.19K

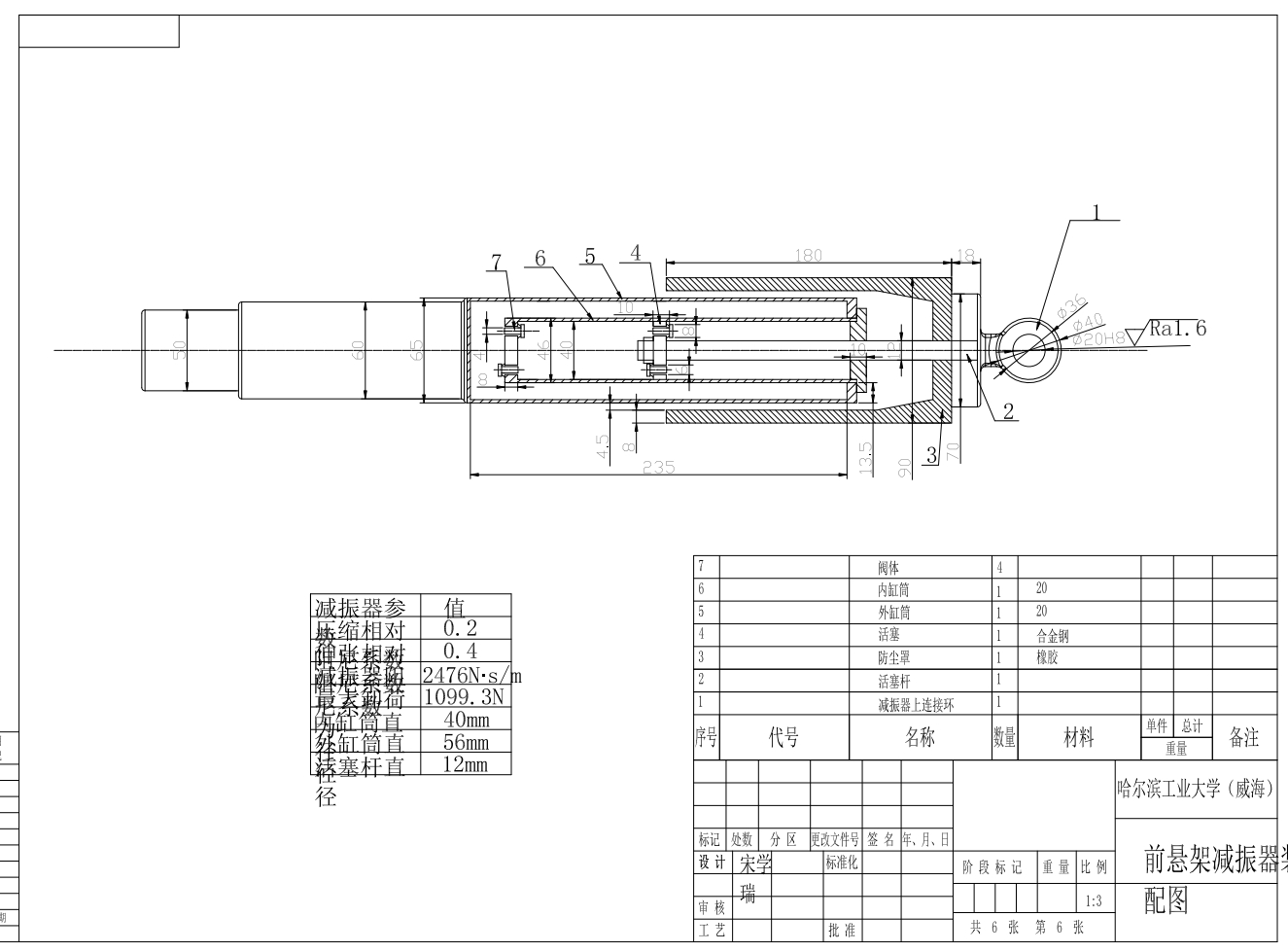

100	0前悬架减振器零件图.png	216.64K

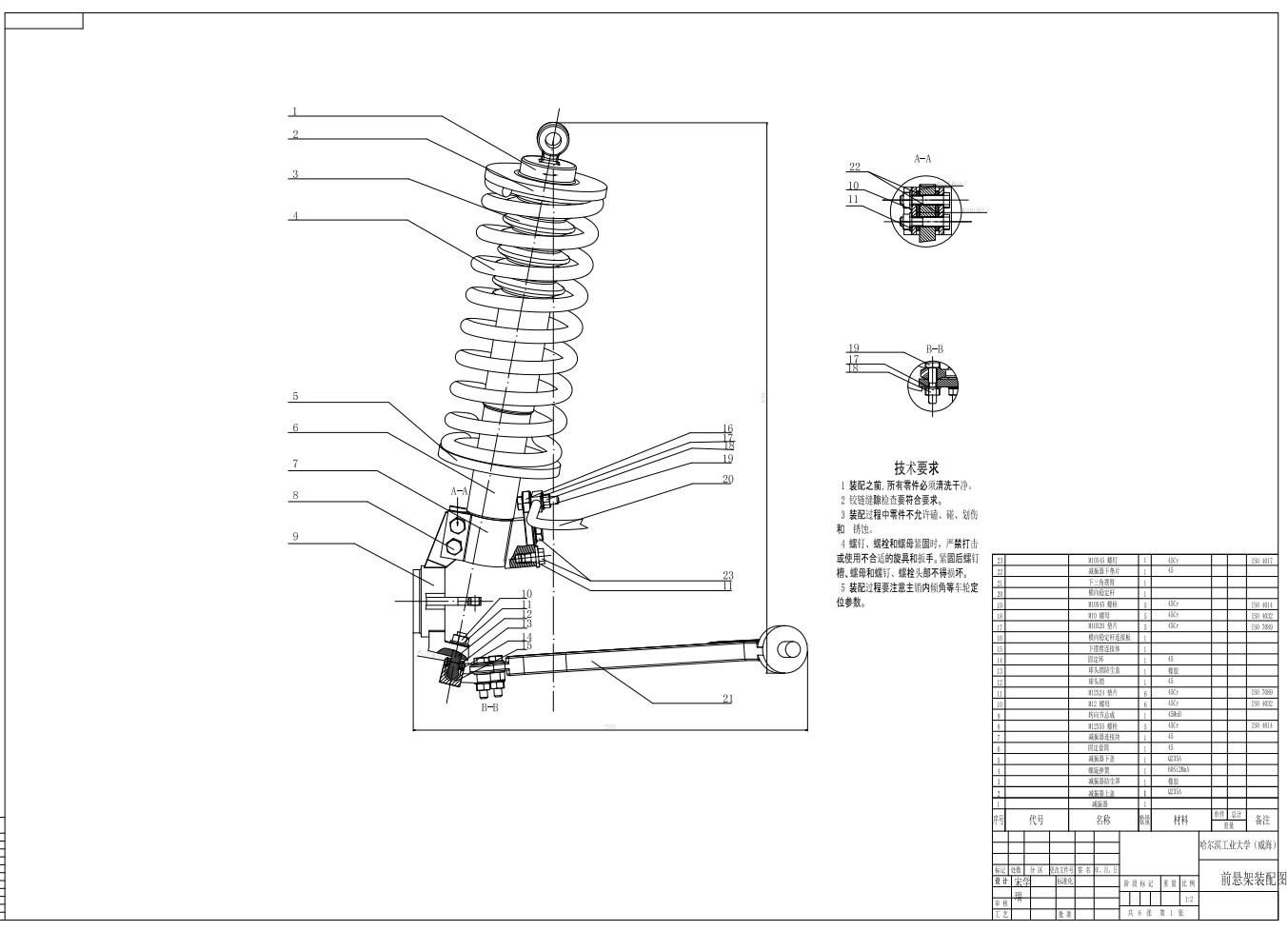

101	0前悬架装配图.png	208.09K

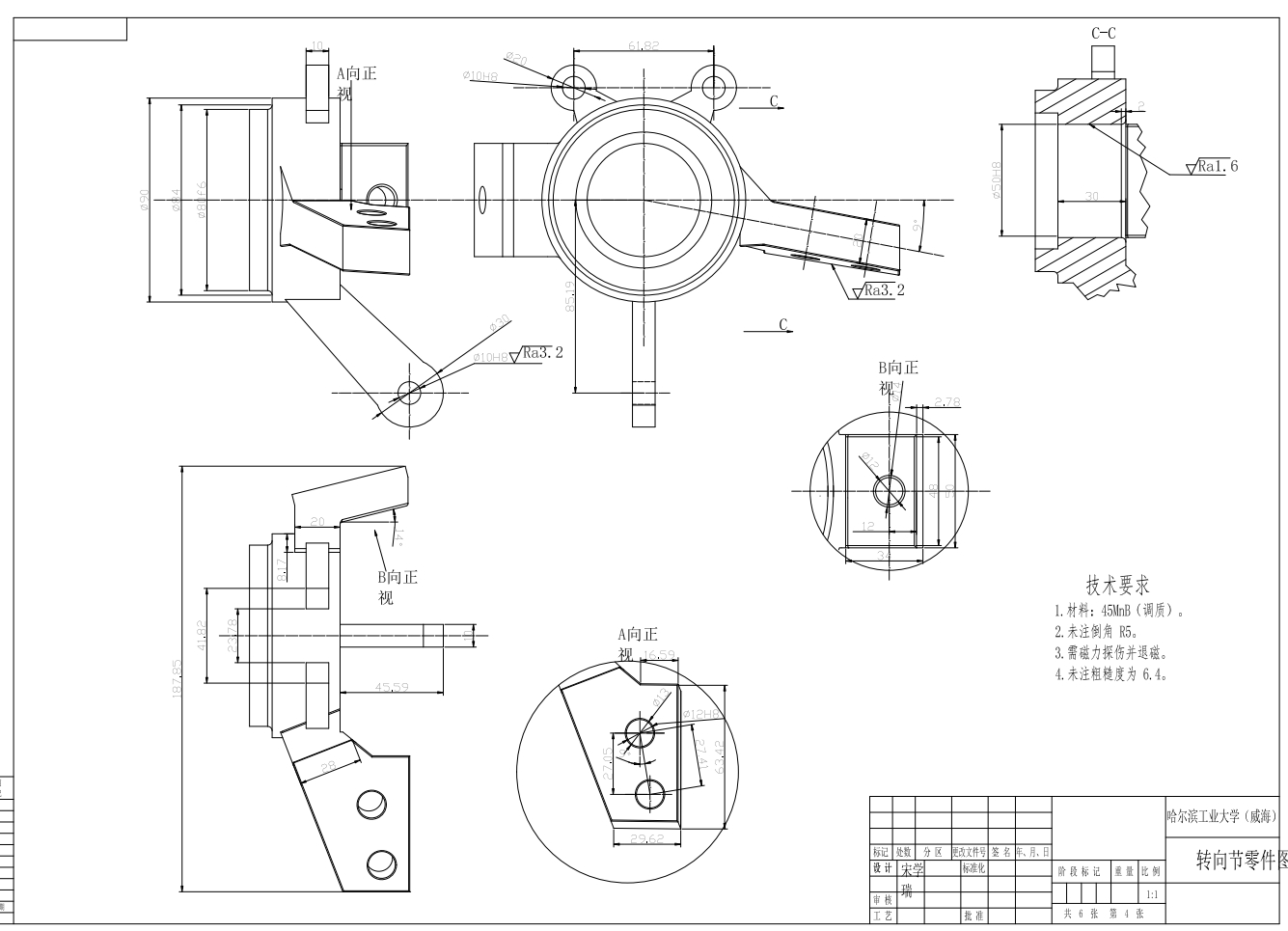

102	0前悬架转向节零件图.png	216.17K

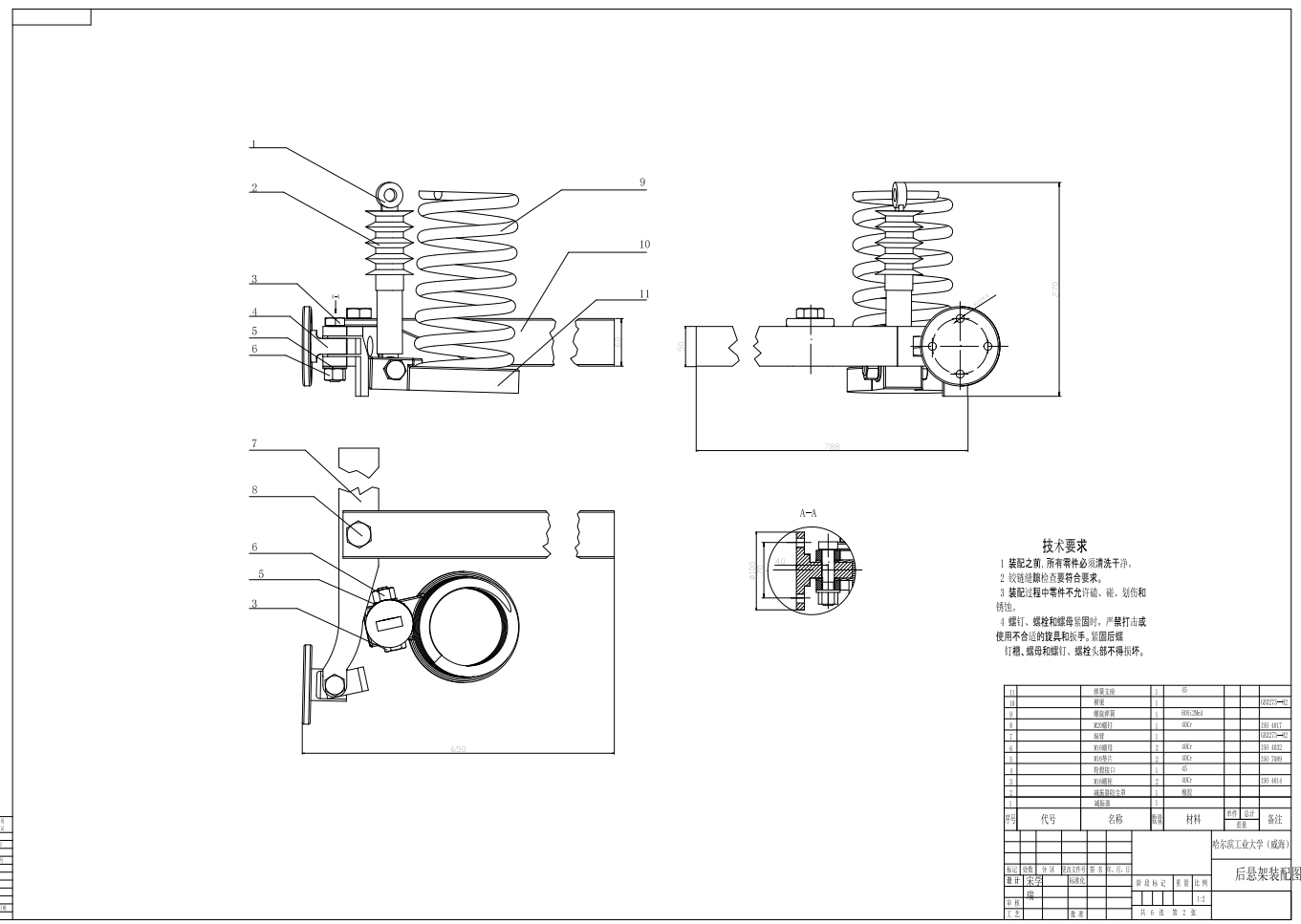

103	0后悬架装配图.png	181.93K

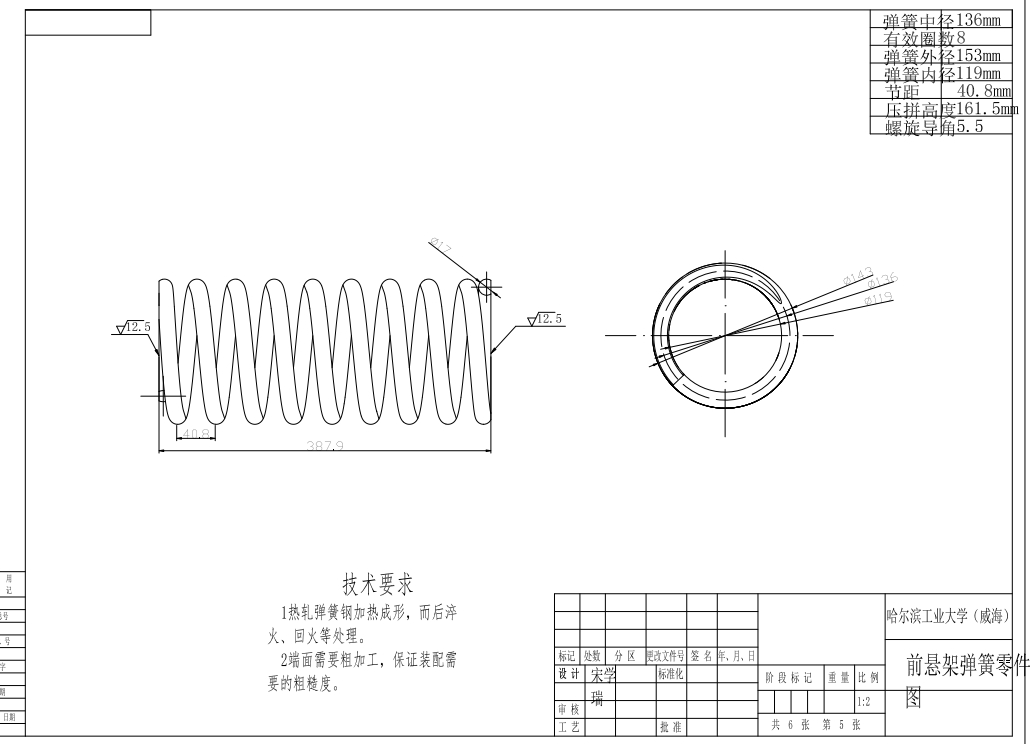

104	0弹簧.png	129.80K

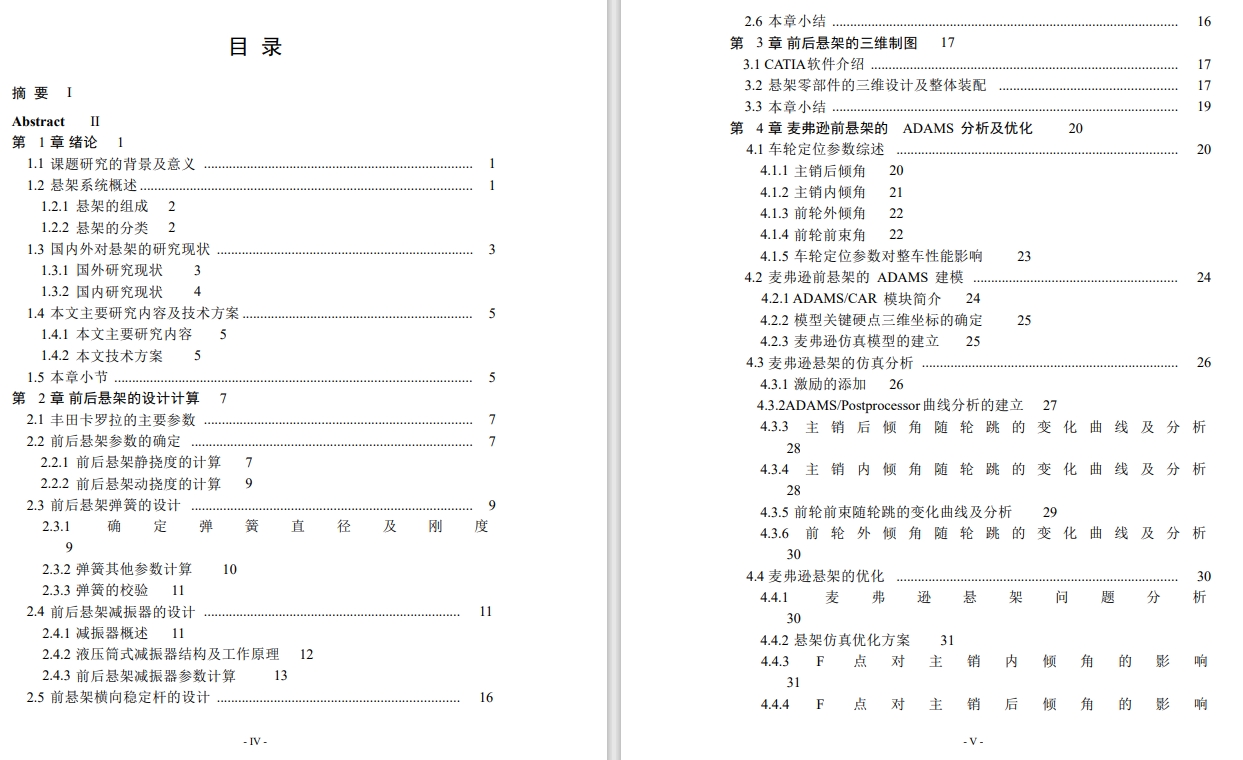

105	0说明书目录.png	351.60K
