基于Prusa型铝框的3D打印机设计（ID:161963）

机械设备 / 3D打印机 / 基于Prusa型铝框的3D打印机设计

©非原创

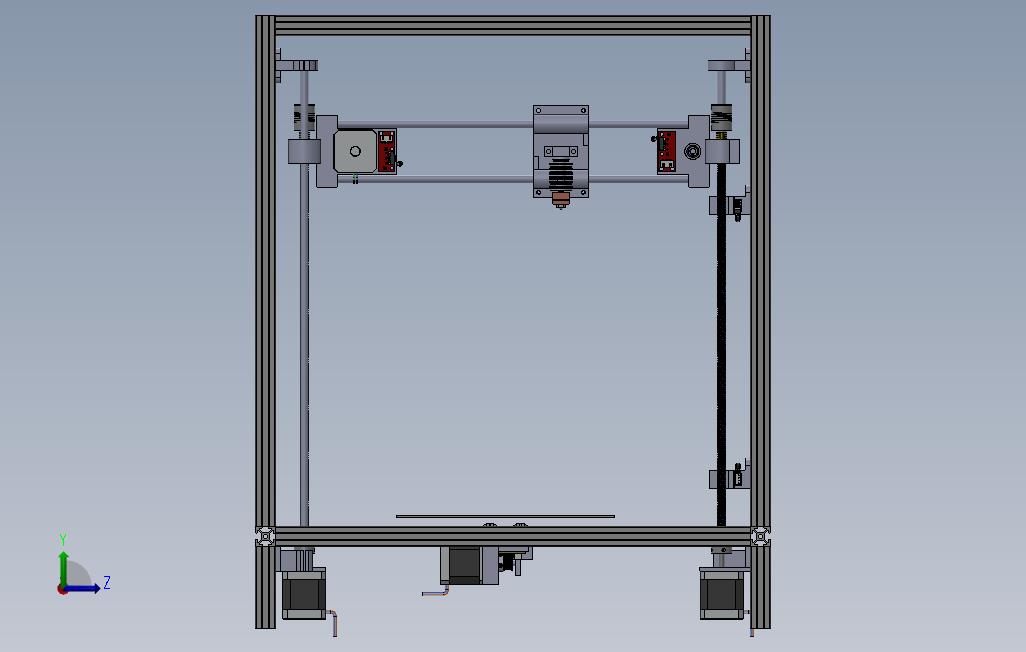

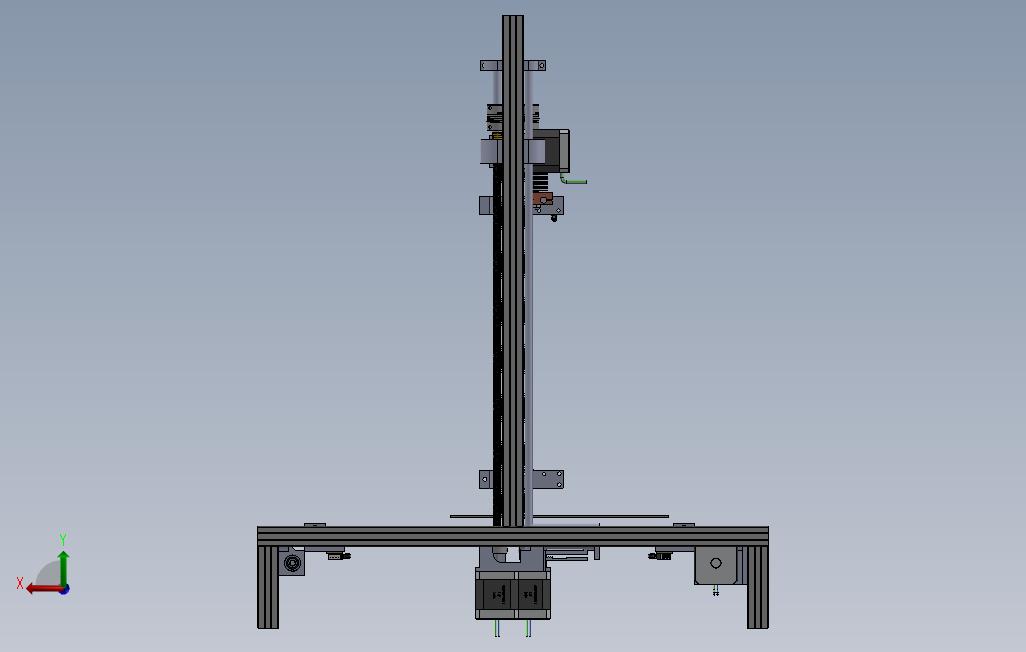

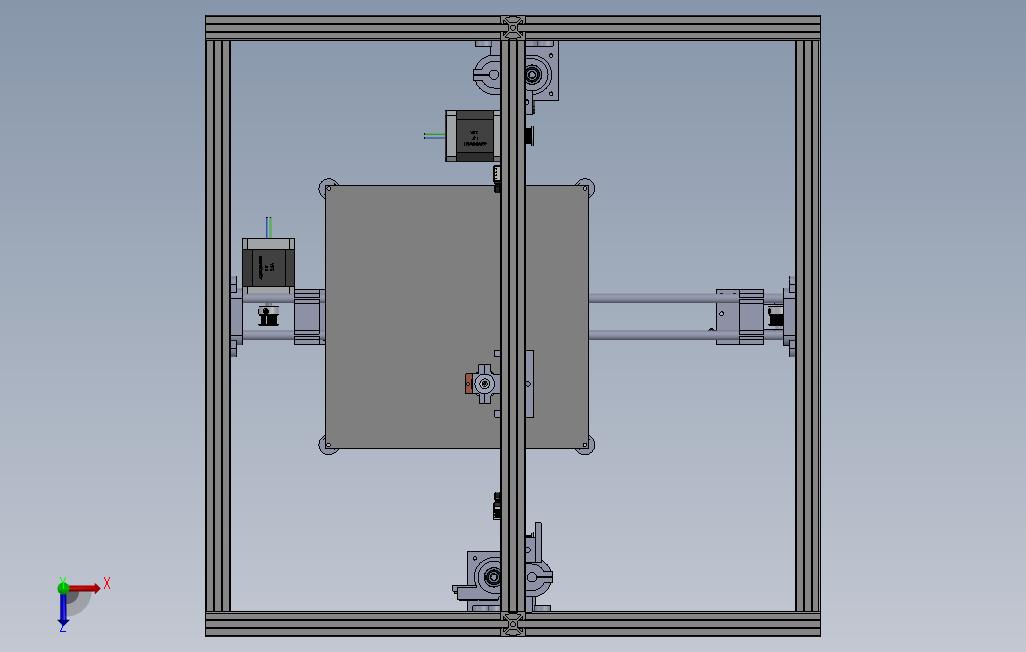

平面图

3D视图

文件列表

#	文件名称	文件大小
1	2020 alu bottom frame-legs.SLDPRT	158.76K
2	2020 alu bottom frame-long side.SLDPRT	146.33K
3	2020 alu bottom frame-short side.SLDPRT	147.35K
4	2020 alu verticle column.SLDPRT	144.82K
5	5 mm dia rod-GT2 Pulley Holder.SLDPRT	35.03K
6	625 bearing.SLDPRT	509.90K
7	8 mm dia rod-X movement.SLDPRT	32.67K
8	8 mm dia rod-Y movement.SLDPRT	32.54K
9	8 mm dia rod-Z movement.SLDPRT	32.70K
10	belt gripper bottom.SLDPRT	71.98K
11	Belt gripper.SLDPRT	214.77K
12	E3D V6 1.75 Uni model.SLDASM	787.40K
13	End-Stop.SLDPRT	561.94K
14	Extruder Assembly.SLDASM	938.21K
15	Final Assembly - Vertical Extruder.SLDASM	4.69M
16	Flexible Coupling 5mmx8mm.SLDPRT	393.99K
17	GT2_Pulley.SLDPRT	343.18K
18	Heat bed 214x214x3.SLDPRT	49.24K
19	Heat bed support-bottom plate.SLDPRT	167.52K
20	Heat bed support-top plate.SLDPRT	174.20K
21	Hot end-Extruder Side.SLDPRT	122.62K
22	Hot end-Opp. Extruder Side.SLDPRT	174.86K
23	LeadScrew 8mm x 2mmPitch.SLDPRT	410.23K
24	LeadScrew Nut 8mm x 2mmPitch.SLDPRT	130.94K
25	LM8UU.SLDPRT	298.49K
26	Lock for Extruder.SLDPRT	70.40K
27	Nema 17 stepper motor.SLDPRT	490.93K
28	V6-175-BREAK.SLDPRT	443.65K
29	V6-175-SINK.SLDPRT	338.61K
30	V6-BLOCK.SLDPRT	323.21K
31	V6-NOZZLE-175-035.SLDPRT	271.20K
32	X axis assembly-Opp. motor side.SLDASM	684.71K
33	X axis holder-motor side.SLDPRT	128.11K
34	X axis holder-Opp. motor side.SLDPRT	118.56K
35	X axis rail holder-motor side.SLDASM	558.69K
36	Y Axis End Stops.SLDPRT	102.13K
37	Y rail rod holder-Motor side.SLDPRT	120.67K
38	Y rail rod holder-Opp. Motor side.SLDPRT	121.94K
39	Z Axis End Stops - Bottom.SLDPRT	96.42K
40	Z Axis End Stops - Top.SLDPRT	90.65K
41	Z axis supports bottom.SLDPRT	180.97K
42	Z axis top end.SLDPRT	90.63K
