2513铝板雕刻机1000_SOLIDWORKS 2023_模型图纸下载

首页

图库

工程师

2513铝板雕刻机1000（ID:1637919）

机械设备 / 机加工设备 / 2513铝板雕刻机1000

©非原创

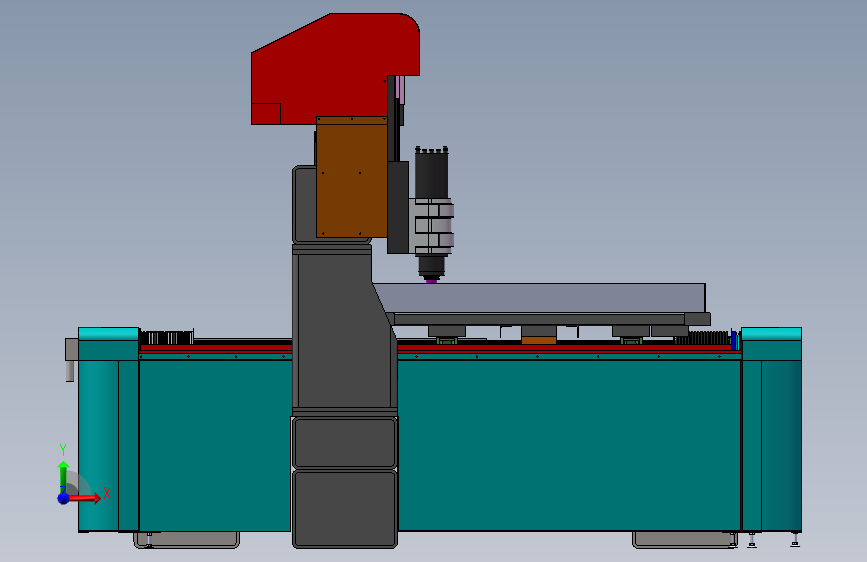

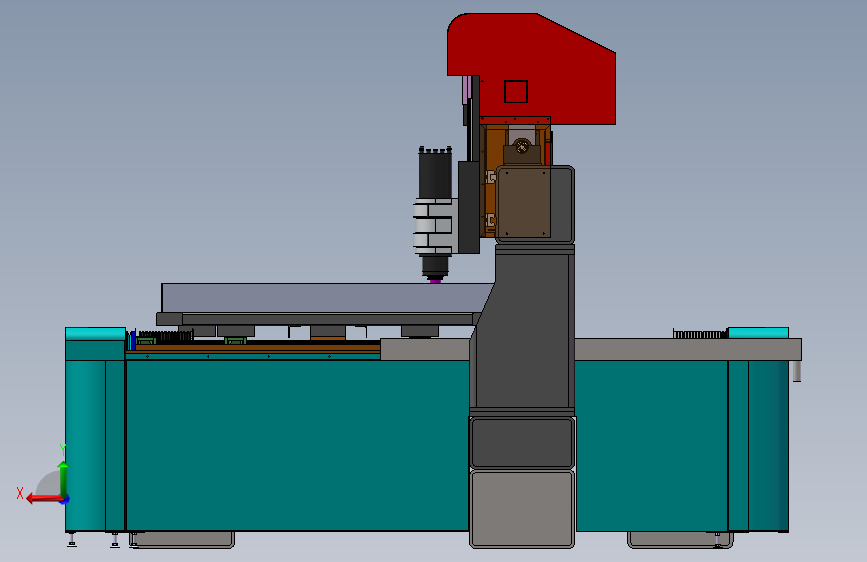

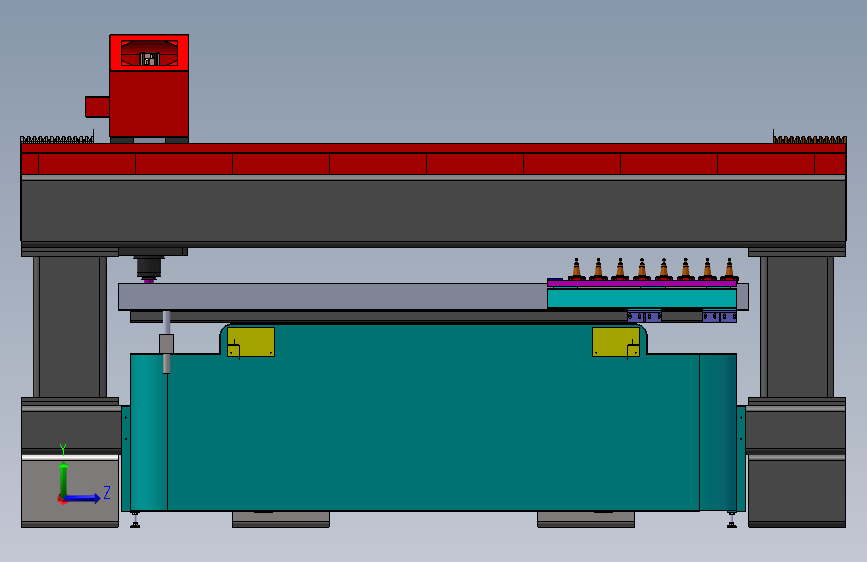

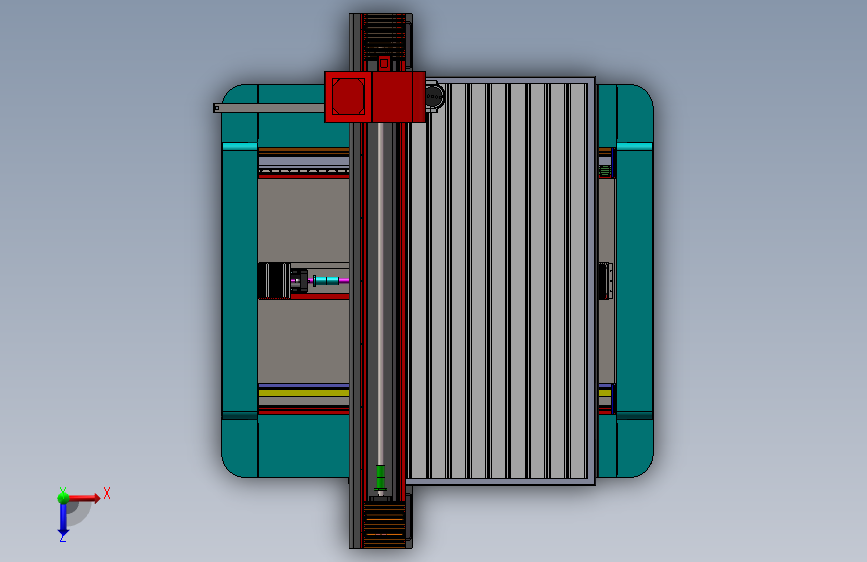

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17292451639578.zip	20.36M
2	MF-2513X轴传动.SLDASM	662.94K
3	MF-2513y轴丝杆防尘钣金.SLDPRT	91.75K
4	MF-2513Y轴传动.SLDASM	662.61K
5	MF-2513台面动-3210丝母座-X轴丝杆.SLDPRT	127.25K
6	MF-2513台面动-3210丝母座-Y轴丝杆.SLDPRT	155.26K
7	MF-2513台面动-850W伺服马达安装座丝杆.SLDPRT	238.55K
8	MF-2513台面动-X上防尘轨丝杆.SLDPRT	271.57K
9	MF-2513台面动-X下防尘轨丝杆.SLDPRT	89.42K
10	MF-2513台面动-X右防尘丝杆.SLDPRT	230.53K
11	MF-2513台面动-X挂板丝杆.SLDPRT	171.86K
12	MF-2513台面动-X轴3210丝杆和丝母丝杆.SLDPRT	131.41K
13	MF-2513台面动-Y轴3210丝杆和丝母丝杆.SLDPRT	131.15K
14	MF-2513台面动-Y防尘-XG丝杆.SLDPRT	319.92K
15	MF-2513台面动-Y防尘轨-XG丝杆.SLDPRT	120.54K
16	MF-2513台面动-Y防尘轨-内侧丝杆.SLDPRT	137.28K
17	MF-2513台面动-Y防尘轨-安装钣金-镜像丝杆.SLDPRT	117.90K
18	MF-2513台面动-Y防尘轨-安装钣金丝杆.SLDPRT	113.02K
19	MF-2513台面动-Z挂板丝杆.SLDPRT	145.40K
20	MF-2513台面动-Z轴2510丝母座丝杆.SLDPRT	132.09K
21	MF-2513台面动-Z轴电机座丝杆.SLDPRT	194.02K
22	MF-2513台面动-台面-底框架-刀库安装板.SLDPRT	87.72K
23	MF-2513台面动-台面-底框架.SLDASM	292.86K
24	MF-2513台面动-后板丝杆.SLDPRT	157.55K
25	MF-2513台面动-机头罩丝杆.SLDPRT	350.81K
26	MF-2513台面动-机架-XG丝杆.SLDASM	163.67K
27	MF-2513台面动-横梁丝杆.SLDPRT	205.08K
28	MF-2513台面动-立柱丝杆.SLDPRT	158.06K
29	MF-2513台面动-轴承座-Z轴下端丝杆.SLDPRT	103.11K
30	MF-2513台面动-轴承支座孔52丝杆.SLDPRT	235.08K
31	MF-2513台面动Y轴丝杆防尘.SLDPRT	260.02K
32	MF-2513总装.SLDASM	3.42M
33	MF-40x60方通.SLDPRT	70.22K
34	MF-45x45角铁.SLDPRT	68.13K
35	MF-7203C角接触球轴承-内径17外径40宽度12丝杆.SLDPRT	622.85K
36	MF-750W安川伺服电机-带抱闸丝杆.SLDPRT	325.66K
37	MF-850W台达伺服电机-不带刹车丝杆.SLDPRT	590.07K
38	MF-8刀直排刀库-安装座丝杆.SLDPRT	146.38K
39	MF-BT30刀夹丝杆.SLDPRT	562.75K
40	MF-HGH25导轨-2513台面动-X轴.SLDPRT	191.20K
41	MF-HGH25滑块丝杆.SLDPRT	188.47K
42	MF-HGW25导轨-2513台面动-Y轴丝杆.SLDPRT	165.40K
43	MF-HGW25导轨-2513台面动-Z轴丝杆.SLDPRT	120.89K
44	MF-HGW25带法兰滑块丝杆.SLDPRT	168.05K
45	MF-ISO30刀夹丝杆.SLDPRT	392.10K
46	MF-TC1313-3Z-工作台-面板连接板.SLDPRT	64.55K
47	MF-TC1313-3Z丝母座安装板-Y轴.SLDPRT	107.76K
48	MF-TC1313-3Z滑块安装板-Y轴工作台.SLDPRT	124.87K
49	MF-TC1313B-台面铝型材1-1313.SLDPRT	75.64K
50	MF-TC1313T-Y电机座垫板-XG丝杆.SLDPRT	69.95K
51	MF-TC1313T-后垫板-XG丝杆.SLDPRT	67.89K
52	MF-TC1313T-方通150100500-XG丝杆.SLDPRT	76.87K
53	MF-TC1313T-方通2501502620-XG丝杆.SLDPRT	121.19K
54	MF-TC1313T-方通4003002100-XG丝杆.SLDPRT	146.52K
55	MF-TC1313T-方通400300860-XG-扁通丝杆.SLDPRT	113.20K
56	MF-TC1313T-方通400300860-XG丝杆.SLDPRT	114.04K
57	MF-TC2513G00-5.5KW自动换刀主轴.SLDASM	293.15K
58	MF-TC2513G00-5.5KW自动换刀主轴水冷台鑫.sldprt	157.19K
59	MF-TC2513G00-主轴安装架C125.SLDPRT	295.29K
60	MF-TC2513G00-刀柄ISO30-GSK16-602560.SLDPRT	164.67K
61	MF-TC2513G00-雕刻刀具.SLDPRT	38.96K
62	MF-TC2513G03-外罩2.SLDPRT	408.26K
63	MF-TC2513G03-外罩3.SLDPRT	387.32K
64	MF-TC2513G03-外罩前后装饰板.SLDPRT	641.18K
65	MF-TC2513G03-总装.SLDASM	454.67K
66	MF-TC2513G03-镜向外罩-4.SLDPRT	499.33K
67	MF-Z轴丝杆2510-总长495丝杆.SLDPRT	122.87K
68	MF-刀头AA-ISO30-50丝杆.SLDPRT	84.04K
69	MF-刀库方通安装架-ISO30TC2660G丝杆.SLDPRT	226.85K
70	MF-对刀仪-安装座丝杆.SLDPRT	134.04K
71	MF-对刀仪GZ-66丝杆.SLDPRT	120.82K
72	MF-对刀仪固定块1TC2660G丝杆.SLDPRT	99.70K
73	MF-底封板.SLDPRT	82.19K
74	MF-承水槽.SLDPRT	75.70K
75	MF-方通100X50X6-长度2500.SLDPRT	102.00K
76	MF-方通100X50X6-长度500.SLDPRT	98.82K
77	MF-方通100X50X6X175-长度350.SLDPRT	106.49K
78	MF-方通100X50X6X200-长度300.SLDPRT	101.89K
79	MF-方通100X50X6X650-长度1100.SLDPRT	90.89K
80	MF-方通100X50X6X850-长度1300.SLDPRT	102.01K
81	MF-方通50X50-长度300.SLDPRT	98.44K
82	MF-方通50X50X5X850-长度1100.SLDPRT	88.66K
83	MF-水槽.SLDPRT	333.99K
84	MF-直排刀库装配AA-ISO30TC2660G丝杆.SLDASM	379.14K
85	MF-脚杯.SLDPRT	64.74K
86	MF-脚杯装配.SLDASM	72.76K
87	MF-铝垫板AA-ISO30TC2660G丝杆.SLDPRT	145.20K
88	MF-镜向2513台面动-X右防尘丝杆.SLDPRT	217.63K
89	MF-镜向2513台面动-Y防尘轨-安装钣金-镜像丝杆.SLDPRT	68.83K
90	MF-镜向TC1313T-方通2501502620-XG丝杆.SLDPRT	91.58K
