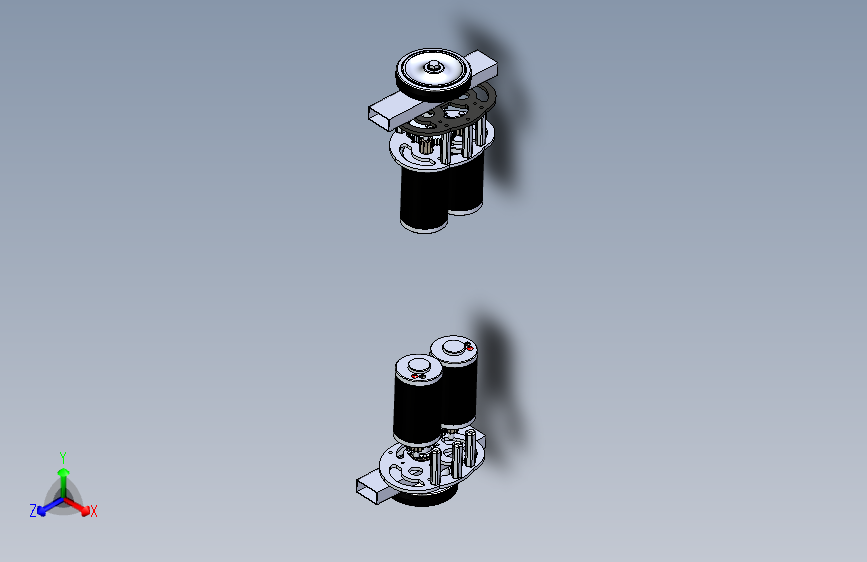

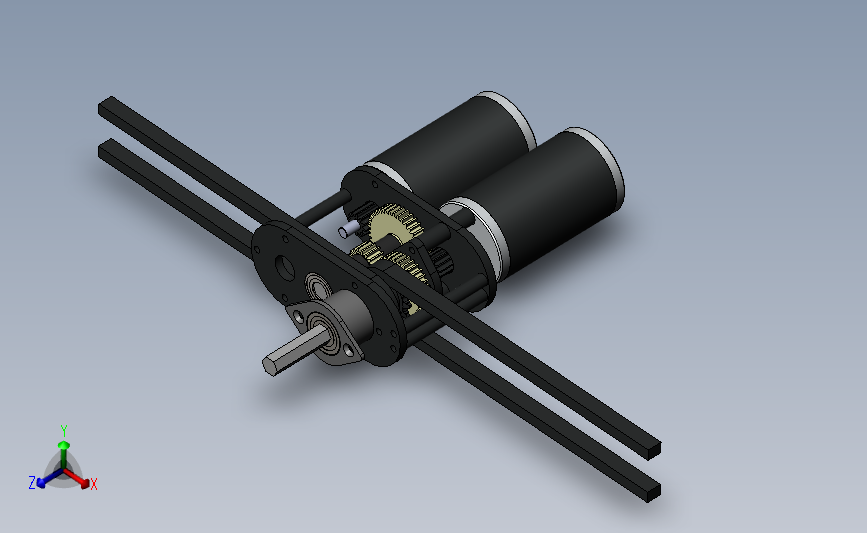

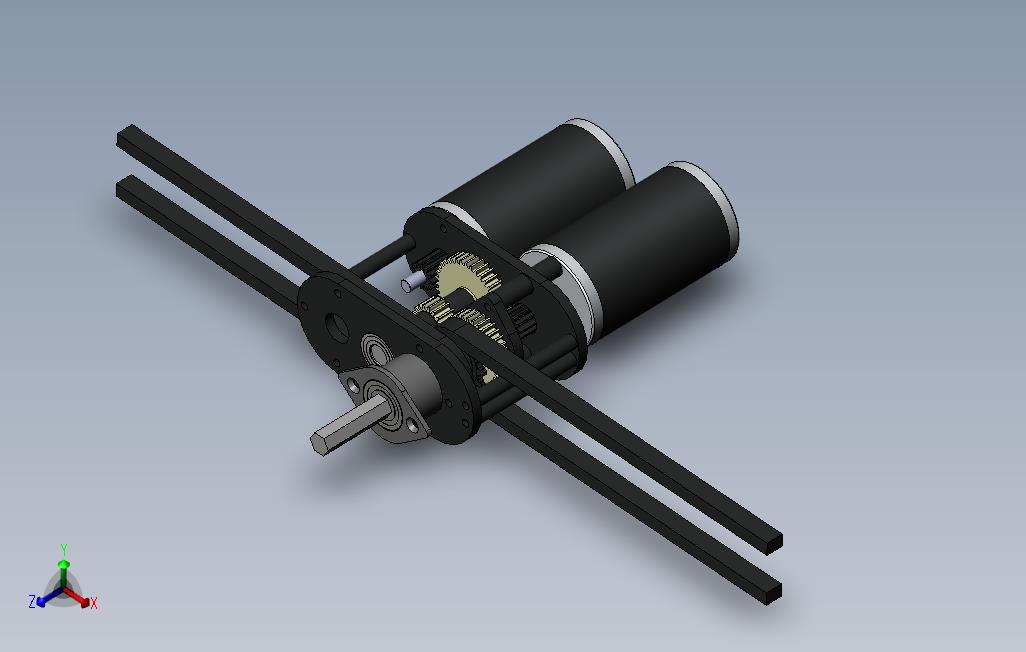

0_2CIM球移位传输（ID:167125）

体育娱乐 / 体育运动 / 0_2CIM球移位传输

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	2 CIM TRANSMISSION.JPG	591.08K
2	2 CIM TRANSMISSION.png	1.41M
3	217-2778-NCQ8A075-050M_1032_Nut_90545A111.sldprt	312.79K
4	217-2778-NCQ8A075-050M_NCQ8 Rod_075M.sldprt	72.23K
5	217-2778-NCQ8A075-050M_NCQ8 Tube_075A.sldprt	179.74K
6	217-2778-NCQ8A075-050M_Snap Ring_075.sldprt	78.06K
7	217-4098-002 Rev3.sldprt	86.27K
8	217-4098-003 Rev2.sldprt	167.66K
9	217-4098-004 Rev1.sldprt	139.90K
10	217-4098-005 Rev1_91612A226.sldprt	31.22K
11	217-4098-STEP-20140807.SLDASM	220.85K
12	217-4098-STEP-20140807.STEP	499.25K
13	2CIM TRANSMISSION.SLDASM	5.32M
14	2CIM TRANSMISSION.STEP	16.58M
15	CIM WITH PINION.SLDASM	141.12K
16	CTRE 15-697867 (SRX MAG ENCODER).SLDPRT	427.78K
17	ENCODER MOUNTING BRACKET.SLDPRT	107.55K
18	MCMASTER 57155K376 (BEARING, 0.25IN ID, 0.5IN OD, 0.188IN THK).SLDPRT	336.36K
19	MCMASTER 60355K507 (BEARING, 0.75IN ID, 1.625 OD, 0.313 THK).SLDPRT	332.89K
20	MCMASTER 6383K160 (BEARING, BALL, 0.375IN ID, 0.875 OD, 0.25 THK).SLDPRT	876.27K
21	MCMASTER 6384K361 (BEARING, FLANGED, 0.5IN ID, 1.125IN OD, 0.5IN THK).SLDPRT	1.31M
22	MCMASTER 90128A942 (SHCS, BLK-OX ALY STL, 10-32 X 0.5IN LG).SLDPRT	184.58K
23	MCMASTER 90631A005 (LOCKNUT, LOW STRENGTH STL, 4-40).SLDPRT	227.82K
24	MCMASTER 90631A411 (LOCKNUT, LOW STRENGTH STL, 10-32).SLDPRT	232.26K
25	MCMASTER 91124A080 (SHIM, SPRING STL, 0.375IN ID, 0.57IN OD, 0.063IN THK).SLDPRT	75.02K
26	MCMASTER 91124A111 (SHIM. SPRING STL, 0.75IN ID, 1IN OD, 0.062IN THK).SLDPRT	74.29K
27	MCMASTER 91251A110 (SHCS, BLK-OX ALY STL, 4-40 X 0.5IN LG).SLDPRT	224.27K
28	MCMASTER 91251A146 (SHCS, BLK-OX ALY STL, 6-32 X 0.375IN LONG).SLDPRT	206.84K
29	MCMASTER 91251A359 (SHCS, BLK-OX ALY STL, 10-32 X 2.75IN LG).SLDPRT	142.87K
30	MCMASTER 91612A226 (SPRING PIN, 3MM WD, 18MM LG).SLDPRT	140.33K
31	MCMASTER 92196A277 (SHCS, 18-8 SS, 10-32 X 1.5IN LG).SLDPRT	267.45K
32	MCMASTER 92196A285 (SHCS, 18-8 SS, 10-32 X 3.25IN LG).SLDPRT	289.28K
33	MCMASTER 92510A673 (SPACER, ALUMINUM, #10 ID, 0.375IN OD, 1.875IN LG).SLDPRT	158.44K
34	MCMASTER 92511A060 (SPACER, ALUMINUM, #10 ID, 0.5IN OD, 1.125IN LG).SLDPRT	203.10K
35	MCMASTER 92949A261 (BHCS, 18-8 SS, 10-32 X 0.25IN LG).SLDPRT	252.08K
36	MCMASTER 97414A630 (C CLIP, BLK PHOSPHATE STL, 0.25IN EXTERNAL DIA).SLDPRT	94.54K
37	MCMASTER 97633A250 (RETAINING RING, BLK-PHOS STL, 0.75IN EXTERNAL DIA).SLDPRT	229.92K
38	OUTPUT REAR BEARING MOUNT.SLDPRT	93.42K
39	PLATE, TRANSMISSION, 2CIM.SLDPRT	842.25K
40	PNEUMATIC SHIFTER ASSEMBLY.SLDASM	516.82K
41	PNEUMATIC SHIFTER MOUTING PLATE.SLDPRT	86.94K
42	SHAFT, MOTOR INPUT.SLDPRT	94.87K
43	SHAFT, OUTPUT ASSEMBLY.SLDASM	3.15M
44	SHAFT, OUTPUT.SLDPRT	103.74K
45	SHAFT, TRANSMISSION ASSEMBLY.SLDASM	1010.37K
46	SRX ENCODER MAGNET.SLDPRT	78.45K
47	TRANMISSION SHAFT SPACER.SLDPRT	58.64K
48	TRANSMISSION PLUNGER COUPLER.SLDPRT	135.09K
49	VEX 217-2000 (CIM MOTOR).SLDPRT	119.98K
50	VEX 217-2699 (GEAR, 14T, 0.375IN HEX).SLDPRT	152.03K
51	VEX 217-2709 (GEAR, BALL SHIFTING, 44T).SLDPRT	291.72K
52	VEX 217-2713 (GEAR, BALL SHIFTING, 60T).SLDPRT	342.22K
53	VEX 217-2778 (PANCAKE PNEUMATIC CYLINDER).SLDASM	364.22K
54	VEX 217-2778 (PANCAKE PNEUMATIC CYLINDER).STEP	630.45K
55	VEX 217-3099 (12T CIM PINION).SLDPRT	271.23K
56	VEX 217-3210 (GEAR, 30T, 0.375IN HEX).SLDPRT	212.69K
57	VEX 217-3215 (GEAR, 42T, 0.375IN HEX).SLDPRT	248.66K
58	VEX 217-4098 (BALL SHIFTER LONG OUTPUT SHAFT KIT).SLDASM	204.29K
59	VEX 217-5485 (DOUBLE SPROCKET, #35, 12T).SLDPRT	253.02K
