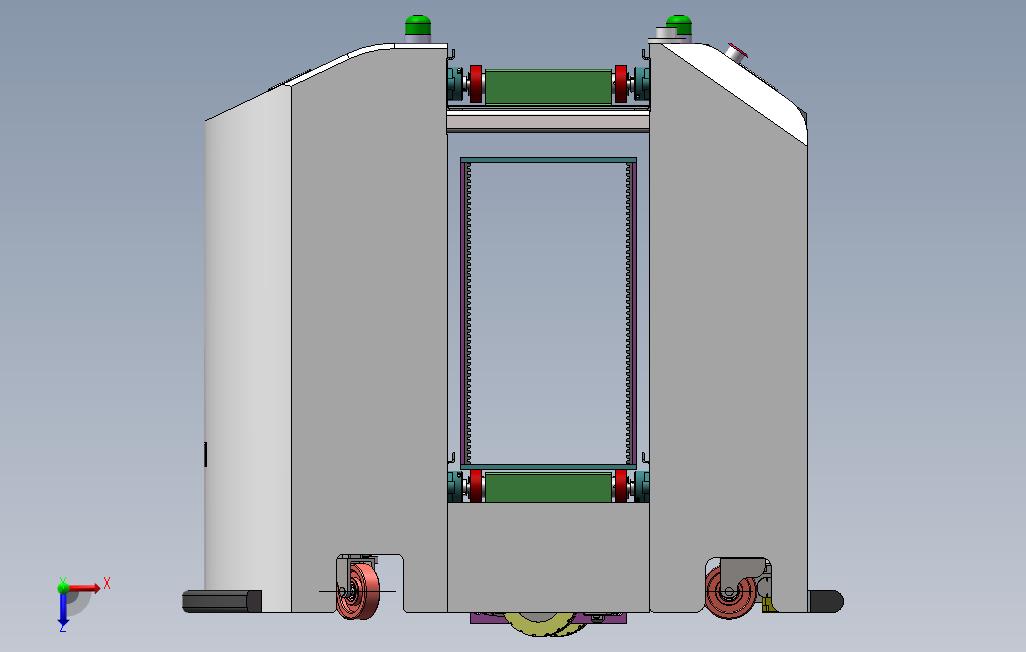

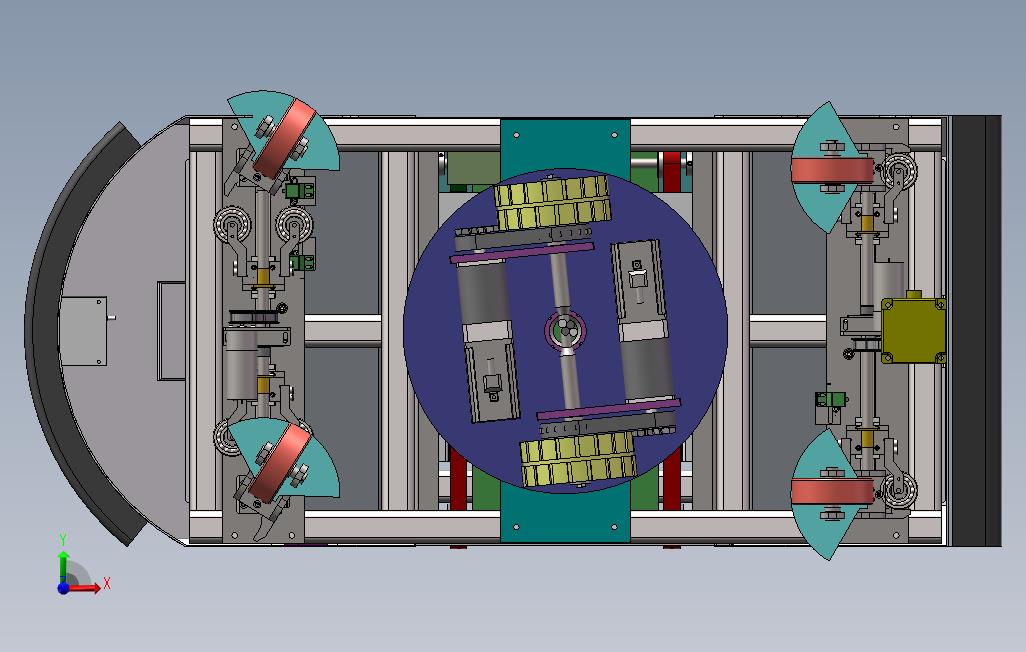

SMT双层-AGV小车（ID:168159）

交通运输 / 车辆工程 / SMT双层-AGV小车

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	AY-SMT-00-AGV小车总装.SLDASM	5.83M
2	AY-SMT-01-AGV小车车架.SLDASM	1.40M
3	AY-SMT-02-Z1406-20-00(换向模组).SLDASM	2.58M
4	AY-SMT-02-Z1406-21-00大底板（角接触）（TEMP）.sldasm	590.04K
5	AY-SMT-03-Z1406-22-00动力模组.sldasm	772.63K
6	AY-SMT-03-Z1502-30-00(驱动模组).SLDASM	2.18M
7	AY-SMT-03-Z1502-31-00（旋转机构）.SLDASM	206.10K
8	AY-SMT-04-Z1502-40-00搬运机构.SLDASM	1.51M
9	AY-SMT-04-Z1502-41-00减速电机.SLDASM	360.50K
10	AY-SMT-04c链条.SLDPRT	170.50K
11	AY-SMT-05-Z1502-30-00（驱动轮）.sldasm	838.50K
12	AY-SMT-07-Z1406-24-00推杆机构（TEMP）.SLDASM	596.22K
13	AY-SMT-07-Z1502-30-00（减速电机）.SLDASM	1.65M
14	AY-SMT-08-Z1502-30-00（线缆）.sldasm	215.50K
15	AY-SMT-08B链条.SLDPRT	170.50K
16	AY-SMT-120AH铅酸电池.SLDPRT	719.50K
17	AY-SMT-1_1_2.sldprt	134.50K
18	AY-SMT-4055B防撞条.SLDPRT	185.00K
19	AY-SMT-4055B防撞条铝板.SLDPRT	146.00K
20	AY-SMT-40x40线槽2.SLDPRT	160.50K
21	AY-SMT-40x40线槽300.SLDPRT	158.50K
22	AY-SMT-57步进电机.SLDPRT	312.00K
23	AY-SMT-6202ZZ.sldprt	56.00K
24	AY-SMT-7008（角接触轴承）.SLDPRT	223.00K
25	AY-SMT-C_TTBN210T5_100_info_1_18_22.sldprt	196.50K
26	AY-SMT-GB27-88六角头铰制孔用螺栓M6×28.SLDPRT	276.50K
27	AY-SMT-GB／T276-94深沟球轴承6004.SLDPRT	876.00K
28	AY-SMT-GB／T41-20001型六角螺母C级M6.SLDPRT	218.50K
29	AY-SMT-HDH12.sldasm	297.00K
30	AY-SMT-HDH12_part.sldprt	458.00K
31	AY-SMT-KDQ35.sldprt	51.00K
32	AY-SMT-MGW09H-滑块.SLDPRT	160.00K
33	AY-SMT-MGW9C226导轨.SLDPRT	210.00K
34	AY-SMT-MGW9H.SLDASM	63.94K
35	AY-SMT-PCB料框.SLDASM	365.50K
36	AY-SMT-PCB料框侧板1.SLDPRT	474.50K
37	AY-SMT-PDR12_set_screw.sldprt	281.00K
38	AY-SMT-PL60-6倍减速机.SLDPRT	341.50K
39	AY-SMT-PRF060-L2-20B减速机.SLDPRT	426.50K
40	AY-SMT-PX-22传感器.SLDPRT	436.00K
41	AY-SMT-RFID地标传感器.SLDPRT	379.50K
42	AY-SMT-RS40NP-SC.sldasm	185.00K
43	AY-SMT-RS40NP.SLDPRT	170.50K
44	AY-SMT-SAND94F7H8YC_ASM.sldasm	26.25K
45	AY-SMT-SP40B20_N_40.sldprt	474.50K
46	AY-SMT-ST4C-22-N12.SLDPRT	408.00K
47	AY-SMT-ST4C-22-N121.SLDPRT	407.00K
48	AY-SMT-ST8B-14-N12.SLDPRT	474.50K
49	AY-SMT-ST8B-15_Default.sldprt	136.50K
50	AY-SMT-STLA-08B-15.sldasm	364.50K
51	AY-SMT-TTPA18T5100_A_H6_a.sldprt	545.00K
52	AY-SMT-TTPA22T5100_A_H19_a（同步带轮）.sldprt	622.50K
53	AY-SMT-Z1406-20-01.SLDPRT	702.00K
54	AY-SMT-Z1406-20-02.SLDPRT	235.50K
55	AY-SMT-Z1406-20-03.SLDPRT	514.50K
56	AY-SMT-Z1406-20-04.SLDPRT	233.00K
57	AY-SMT-Z1406-20-05.SLDPRT	375.50K
58	AY-SMT-Z1406-20-06.SLDPRT	505.00K
59	AY-SMT-Z1406-20-07.SLDPRT	239.50K
60	AY-SMT-Z1406-20-08.SLDPRT	218.00K
61	AY-SMT-Z1406-20-09.SLDPRT	171.50K
62	AY-SMT-Z1406-20-10.SLDPRT	546.00K
63	AY-SMT-Z1406-20-11.SLDPRT	222.50K
64	AY-SMT-Z1406-20-12.SLDPRT	359.50K
65	AY-SMT-Z1406-20-13.SLDPRT	265.00K
66	AY-SMT-Z1406-20-14.SLDPRT	599.50K
67	AY-SMT-Z1406-20-15.SLDPRT	289.50K
68	AY-SMT-Z1406-20-16.SLDPRT	286.50K
69	AY-SMT-Z1406-20-17.SLDPRT	295.00K
70	AY-SMT-Z1406-20-18.SLDPRT	332.00K
71	AY-SMT-Z1406-30-07优力胶挡点.SLDPRT	177.50K
72	AY-SMT-Z1502-30-02.轴承限位片SLDPRT.SLDPRT	225.50K
73	AY-SMT-Z1502-30-04驱动轮轴承挡块.SLDPRT	169.50K
74	AY-SMT-Z1502-30-06法兰转盘.SLDPRT	335.50K
75	AY-SMT-Z1502-30-08锁紧环（米思米）.SLDPRT	315.00K
76	AY-SMT-Z1502-30-09驱动轮安装轴.SLDPRT	317.50K
77	AY-SMT-Z1502-30-10中空转盘.SLDPRT	352.00K
78	AY-SMT-Z1502-30-12电机安装板.SLDPRT	670.50K
79	AY-SMT-Z1502-30-14驱动轮安装轴限位环.SLDPRT	224.00K
80	AY-SMT-Z1502-35-00（减速电机）.SLDASM	273.95K
81	AY-SMT-Z1502-35-01.SLDPRT	269.50K
82	AY-SMT-Z1502-35-02.SLDPRT	626.00K
83	AY-SMT-Z1502-35-03.SLDPRT	491.50K
84	AY-SMT-Z1502-35-04.SLDPRT	240.50K
85	AY-SMT-Z1502-35-05.SLDPRT	186.50K
86	AY-SMT-Z1502-35-06.SLDPRT	286.50K
87	AY-SMT-Z1502-35-07.SLDPRT	221.00K
88	AY-SMT-万向轮.SLDPRT	497.50K
89	AY-SMT-万向轮活动范围.SLDPRT	286.00K
90	AY-SMT-主动链轮SP40B13_N_18.sldprt	400.50K
91	AY-SMT-伺服电机.SLDPRT	534.00K
92	AY-SMT-侧板1.SLDPRT	454.50K
93	AY-SMT-侧板2.SLDPRT	438.50K
94	AY-SMT-偏心轴小电机.SLDPRT	419.00K
95	AY-SMT-充电插头.SLDPRT	442.00K
96	AY-SMT-光电开关安装板.SLDPRT	190.50K
97	AY-SMT-北洋激光传感器.SLDPRT	237.00K
98	AY-SMT-固定钣金.SLDPRT	295.50K
99	AY-SMT-圆管连接件.SLDPRT	175.50K
100	AY-SMT-套筒2.SLDPRT	288.00K
101	AY-SMT-安德森插头安装座.SLDPRT	289.00K
102	AY-SMT-对称基准（不是零件）.SLDPRT	229.00K
103	AY-SMT-小车外护罩.SLDPRT	382.50K
104	AY-SMT-张紧轴.SLDPRT	269.50K
105	AY-SMT-弹簧03.SLDPRT	493.00K
106	AY-SMT-急停开关.SLDPRT	243.00K
107	AY-SMT-扫描仪安装支架.SLDPRT	155.00K
108	AY-SMT-接近开关.SLDPRT	291.00K
109	AY-SMT-接近开关安装板.SLDPRT	235.50K
110	AY-SMT-支撑条.SLDPRT	146.50K
111	AY-SMT-支撑钣金.SLDPRT	320.00K
112	AY-SMT-料框立柱.SLDPRT	136.50K
113	AY-SMT-料框顶板.SLDPRT	327.50K
114	AY-SMT-方通机架.SLDPRT	875.00K
115	AY-SMT-明电舍缓冲机构.SLDASM	2.07M
116	AY-SMT-模拟旋转范围.SLDPRT	155.50K
117	AY-SMT-欧姆龙E3Z-D61（反射性光电开关）.SLDPRT	259.50K
118	AY-SMT-激光扫描仪安装架.SLDPRT	167.50K
119	AY-SMT-电器板.SLDPRT	395.00K
120	AY-SMT-电机安装板.SLDPRT	266.00K
121	AY-SMT-电机线缆.SLDPRT	150.00K
122	AY-SMT-电池托盘.SLDPRT	336.50K
123	AY-SMT-直流小电机（稍短）.SLDPRT	584.50K
124	AY-SMT-空开.SLDPRT	468.00K
125	AY-SMT-红外传感器钣金.SLDPRT	180.50K
126	AY-SMT-继电器.SLDPRT	604.50K
127	AY-SMT-缓冲机构.SLDASM	472.36K
128	AY-SMT-编码器线缆.SLDPRT	165.50K
129	AY-SMT-补充钣金.SLDPRT	157.50K
130	AY-SMT-触摸屏(显控).SLDPRT	229.00K
131	AY-SMT-警示灯（LTE5002TJ）.SLDPRT	288.00K
132	AY-SMT-连接板.SLDPRT	231.50K
133	AY-SMT-连接轴.SLDPRT	371.50K
134	AY-SMT-钣金罩01.SLDPRT	363.00K
135	AY-SMT-钣金罩3.SLDPRT	387.00K
136	AY-SMT-钣金罩4.SLDPRT	392.00K
137	AY-SMT-铝制导轨（电控）.SLDPRT	238.50K
138	AY-SMT-链轮轴.SLDPRT	216.00K
139	AY-SMT-锁紧螺母（米思米）.SLDPRT	253.00K
140	AY-SMT-防撞条.SLDPRT	186.50K
141	AY-SMT-零件17.SLDPRT	154.00K
142	AY-SMT-驱动轮内圈.SLDPRT	234.50K
143	AY-SMT-驱动轮外圈.SLDPRT	407.00K
