3 轴 5 按钮 LCD 操纵杆（ID:1687312）

机械设备 / 非标机械 / 3 轴 5 按钮 LCD 操纵杆

©非原创

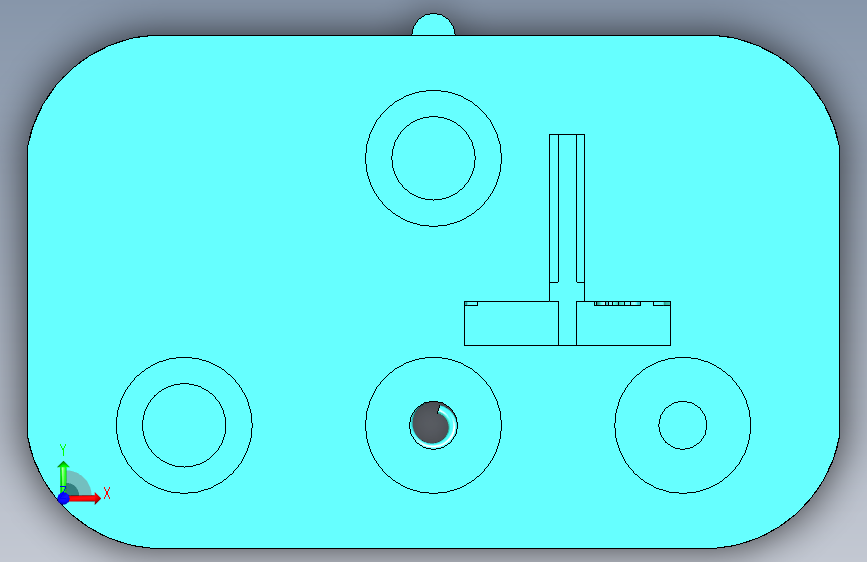

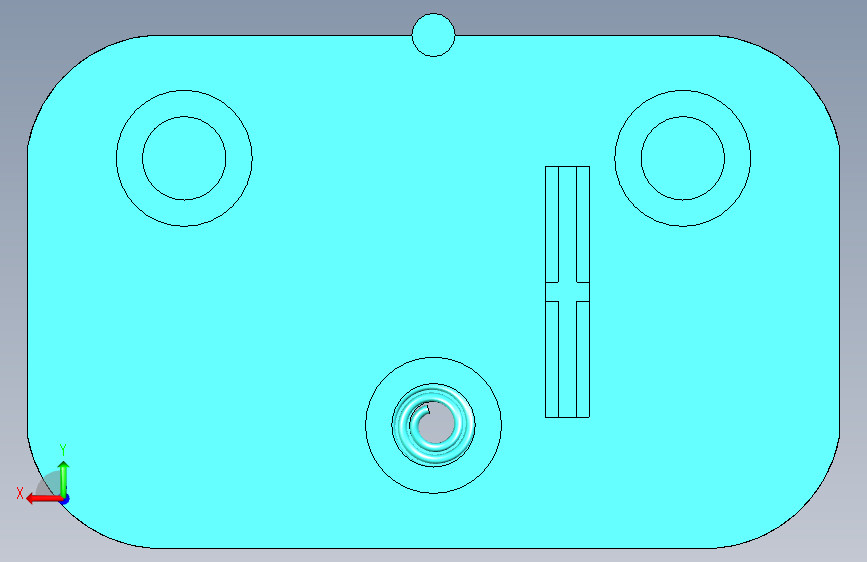

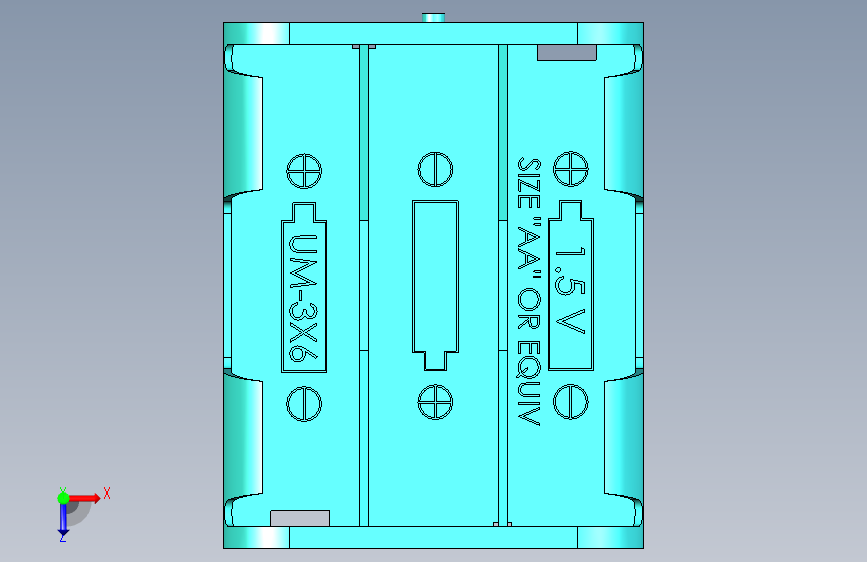

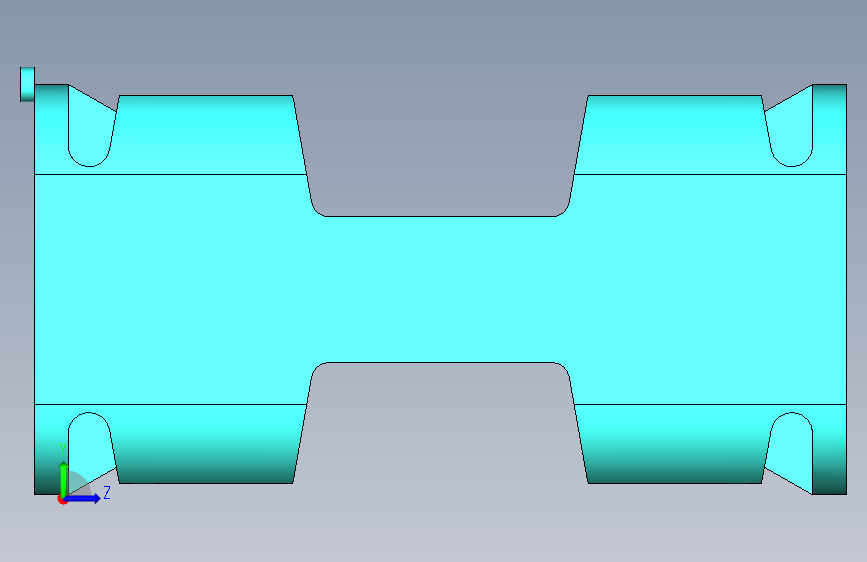

平面图

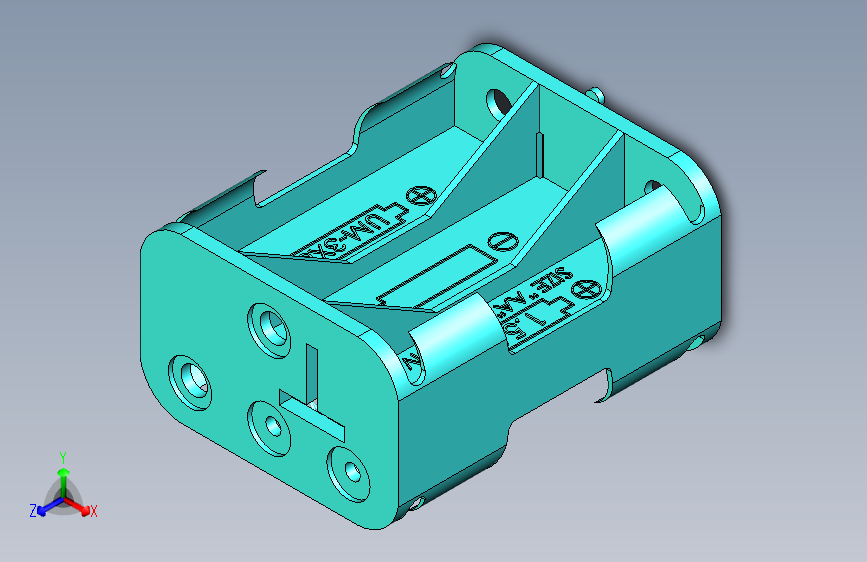

3D视图

文件列表

#	文件名称	文件大小
1	17322877546226.zip	49.16M
2	3541h-1.par	485.50K
3	91290A110_AlloySteelSocketHeadScrew.par	919.50K
4	Base_Wifi_3Gates_LCD.asm	178.00K
5	Base_Wifi_3Gates_LCD.cfg	5.50K
6	Base_Wifi_3Gates_LCD.jpg	49.71K
7	Base_Wifi_3Gates_LCD.log	10.07K
8	Base_Wifi_3Gates_LCD.step	82.04M
9	BroachedHexagonSocketHeadCapScrewASMEB18.3.1M-M3x0.5x16SteelGrade2Plainv1.par	195.50K
10	CELECESPIRAL_A..stp_Predeterminado.par	632.00K
11	CELECESPIRAL_CONESTRELLA.stp_Predeterminado.par	663.50K
12	CELECESTRELLA_A.stp_Predeterminado.par	250.00K
13	CELECPORTABATERIAS._MAQUINADA.stp_Predeterminado.par	1.96M
14	CELECTAPAPORTABATERIAS_MAQUINADA.stp_Predeterminado.par	173.50K
15	CELECTAPAPORTABATERIAS_Superior_MAQUINADA.stp_Predeterminado.par	138.50K
16	DrilledForgedHexagonSocketHeadCapScrew2HolesANSIB18.3.1M-M3x0.5x10SteelGrade2Plainv1.par	200.50K
17	ESP32_DevKitV1.par	42.82M
18	expansionboardesp32shieldCAD.asm	156.50K
19	expansionboardesp32shieldCAD.par	20.61M
20	HW504_A.asm	159.00K
21	HW504_A.par	2.51M
22	HW504_A_1.asm	165.50K
23	HW504_A_1.par	2.71M
24	JYbASE_FrontShort.asm	163.50K
25	JYbASE_FrontShort.par	492.50K
26	JYbASE_Side.asm	166.50K
27	JYbASE_Side.par	2.72M
28	LCD2.asm	161.00K
29	LCDAydnlatma.par	167.50K
30	LCDCam.par	161.00K
31	LCDPanel.par	347.00K
32	LCDPCB.par	748.00K
33	PilaAA_Predeterminado.par	182.00K
34	PortabateriasAA.asm	180.00K
35	RotaryKnob10.par	879.00K
36	sfericalLeg6mm.par	197.50K
37	sfericalLeg_largehole.par	211.50K
