龙门机械手（ID:1698034）

机械设备 / 智能装置 / 龙门机械手

©非原创

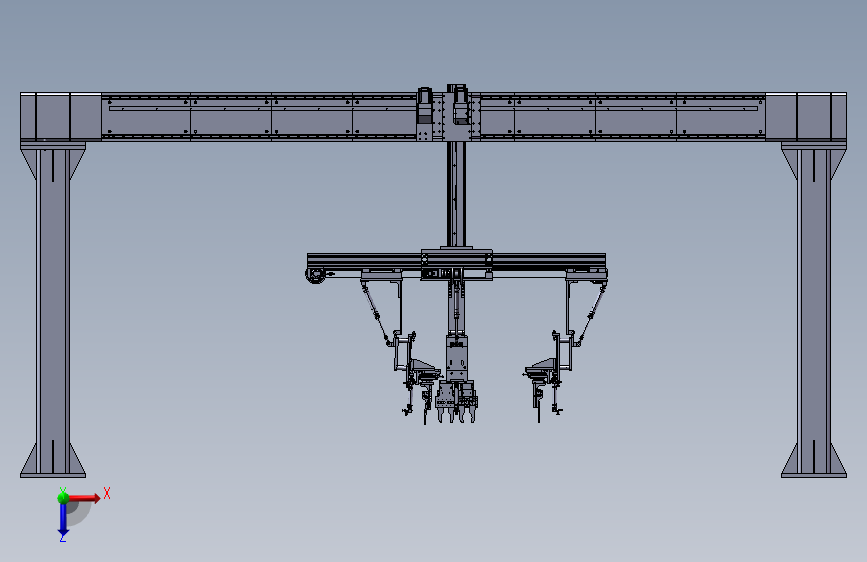

平面图

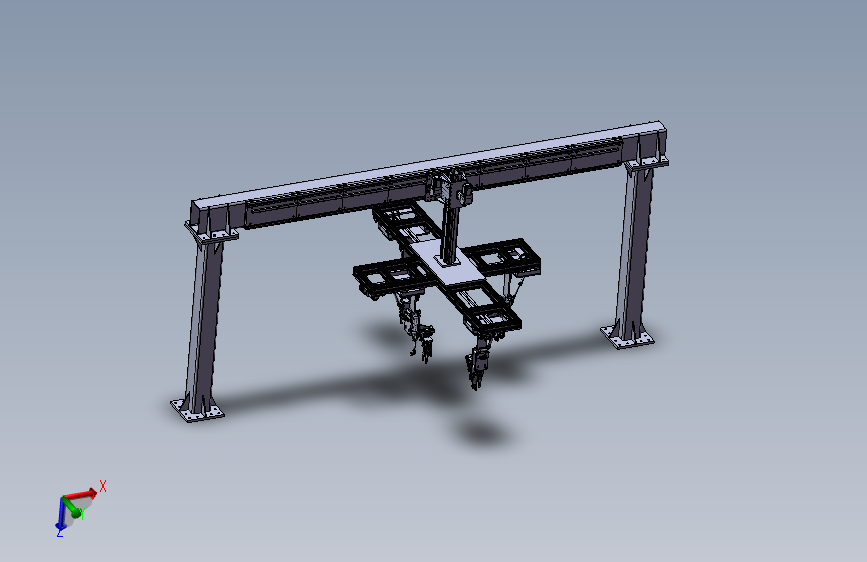

3D视图

文件列表

#	文件名称	文件大小
1	173338974239.zip	20.01M
2	dqw.SLDASM	6.16M
3	dsadas200X200X10方管_默认_按加工_.SLDPRT	119.73K
4	dsadas25MA115Rod.SLDPRT	52.31K
5	dsadas25MANut.SLDPRT	61.84K
6	dsadas25MANut1.SLDPRT	62.55K
7	dsadas25MASDB115Body.SLDPRT	88.17K
8	dsadas300X200X10横梁方管_默认_按加工_.SLDPRT	373.82K
9	dsadas30倍减速电机固定板2.SLDPRT	93.99K
10	dsadas400电机安装板1.SLDPRT	58.17K
11	dsadas400电机安装板2.SLDPRT	57.28K
12	dsadas6-6-25_1.SLDPRT	44.02K
13	dsadasACA1007-01.SLDPRT	84.53K
14	dsadasACA1007-02.SLDPRT	62.20K
15	dsadasACA1007-03.SLDPRT	62.02K
16	dsadasACA1007-cc.SLDASM	35.79K
17	dsadasdeepgrooveballbearingsgb_Rollingbearings16016GB276-94.SLDPRT	263.43K
18	dsadasDEG11_D39_d12_e14_DC_DD.SLDPRT	198.55K
19	dsadasdqw2.SLDASM	70.49K
20	dsadasEBJ41_S5M250_30_A_N_d18.SLDPRT	250.15K
21	dsadasF-M10X125U.SLDPRT	71.06K
22	dsadasF-M8X125F.SLDPRT	94.68K
23	dsadasF-MA20SDB25.SLDPRT	100.08K
24	dsadasGB╱T70.1-2008[内六角圆柱头螺钉M16×55]_M16×55.SLDPRT	53.45K
25	dsadasHFT10X30S_0_.SLDASM	35.93K
26	dsadasHGH15_2.SLDPRT	106.68K
27	dsadasHGH20_3_AF0_1.SLDPRT	132.87K
28	dsadasHGR15_1-2.SLDPRT	106.43K
29	dsadasHGR15_1.SLDPRT	93.08K
30	dsadasHGR20_1000.SLDPRT	120.77K
31	dsadasHGR20_2050.SLDPRT	167.85K
32	dsadasHRQ30_A-.SLDASM	36.41K
33	dsadasHRQ30_A-1.SLDPRT	74.22K
34	dsadasHRQ30_A.SLDPRT	429.31K
35	dsadasMA25x115SCASDB0.SLDASM	37.70K
36	dsadasMGN15H-215.SLDPRT	84.01K
37	dsadasMGN15H滑块.SLDPRT	203.99K
38	dsadasMHMF082L1U2M-750W松下.SLDASM	38.92K
39	dsadasMI20x125SU-01-cc.SLDPRT	120.57K
40	dsadasMI20x125SU-02-cc.SLDPRT	79.25K
41	dsadasMI20x125SU-04-cc.SLDPRT	58.18K
42	dsadasMI20x125SU-cc.SLDASM	39.34K
43	dsadasMSMF042L1U2M.SLDASM	39.29K
44	dsadasPF85______.STEP.SLDPRT	107.42K
45	dsadasPF85________.STEP.SLDPRT	45.39K
46	dsadasPF90-______1.SLDPRT	49.20K
47	dsadasPF90___.SLDPRT	78.18K
48	dsadasPSL801A.SLDPRT	647.84K
49	dsadasRS-Y3-011.SLDPRT	89.91K
50	dsadasRS-Y3-017.SLDPRT	89.54K
51	dsadasRS-Y4-004.SLDPRT	57.78K
52	dsadasRS-Y6-016.SLDPRT	86.34K
53	dsadasRS-Y6-017.SLDPRT	72.86K
54	dsadasRS-Y6-018.SLDPRT	59.35K
55	dsadasRS-Y6-019.SLDPRT	81.06K
56	dsadasRS-Y6-020.SLDPRT	106.22K
57	dsadasRS-Y6-040.SLDPRT	58.20K
58	dsadasRS-Y6-041.SLDPRT	86.42K
59	dsadasRS-Y6-042.SLDPRT	57.30K
60	dsadasRS-Y6-043.SLDPRT	48.29K
61	dsadasRS-Y6-044.SLDPRT	56.72K
62	dsadasRS-Y6-045.SLDPRT	58.21K
63	dsadasRS-Y6-046.SLDPRT	57.10K
64	dsadasRS-Y6-047.SLDPRT	85.86K
65	dsadasRS-Y6-049.SLDPRT	94.30K
66	dsadasVNL31-2_0-30-B20-B-P20N.SLDPRT	276.70K
67	dsadasVNL31-2_0-40-B20-B-P20N.SLDPRT	293.67K
68	dsadasVNU32-2_0-ZD-L1000-K5-B210.SLDPRT	460.32K
69	dsadasXMGN12C-110.SLDPRT	63.67K
70	dsadasXMGN12C.SLDPRT	105.18K
71	dsadasZJU61-90-1-10-P2-T.SLDASM	37.12K
72	dsadasZJU62-90-2-30-P2-T.SLDASM	37.68K
73	dsadasZPF85____.STEP.SLDPRT	78.00K
74	dsadasZPF85______.STEP.SLDPRT	76.47K
75	dsadasZPF90-L1-M6.STEP.SLDASM	38.91K
76	dsadasZPF90-L2_1_AF0_ASM.SLDASM	39.47K
77	dsadasZPF90-L2_ASM.SLDPRT	62.50K
78	dsadasZPF90__.SLDPRT	93.46K
79	dsadasZPF90___-10490.SLDPRT	89.96K
80	dsadasZPF90___-5934_AF0.SLDPRT	124.85K
81	dsadasZPF90_____.SLDPRT	44.10K
82	dsadas_CableBrakeBottom05.SLDPRT	69.00K
83	dsadas_CableBrakeTop04_CE01_MSMF.SLDPRT	56.46K
84	dsadas_CableBrakeTop04_CE02_MSMF.SLDPRT	64.57K
85	dsadas_CableBrakeTop05.SLDPRT	55.16K
86	dsadas_CableMotorBottom04_CM2_MSMF.SLDPRT	74.89K
87	dsadas_CableMotorBottom05.SLDPRT	99.23K
88	dsadas_CableMotorTop04_MSMF.SLDPRT	51.99K
89	dsadas_CableMotorTop05.SLDPRT	51.47K
90	dsadas_CS1-M-S20_2.SLDPRT	85.91K
91	dsadas_HFT10X30S_body.SLDPRT	95.00K
92	dsadas_HFT10X30S_rod.SLDPRT	74.17K
93	dsadas_MHMF082L1U2.SLDPRT	265.99K
94	dsadas_MHMFConnector9Pin_A6.SLDPRT	143.64K
95	dsadas_MHMFConnector9Pin_A6_1.SLDPRT	147.10K
96	dsadas_MotorConnector_2.SLDPRT	193.99K
97	dsadas_MotorConnector_2_1.SLDPRT	193.13K
98	dsadas_MSMF04NoWithkey_b.SLDPRT	332.85K
99	dsadas下部同步带结构装配体.SLDASM	70.11K
100	dsadas减速电机固定板.SLDPRT	133.80K
101	dsadas升降模组盖板.SLDPRT	69.10K
102	dsadas同步带1.SLDPRT	48.01K
103	dsadas同步带2.SLDPRT	47.57K
104	dsadas外径75夹爪-右.SLDPRT	81.97K
105	dsadas外径75夹爪-左.SLDPRT	81.13K
106	dsadas导轨安装板1-2.SLDPRT	76.96K
107	dsadas导轨安装板1.SLDPRT	78.12K
108	dsadas导轨安装板2-2.SLDPRT	65.66K
109	dsadas导轨安装板2.SLDPRT	67.74K
110	dsadas导轨滑块垫块2.SLDPRT	58.83K
111	dsadas平移旋转夹取机构.SLDASM	52.73K
112	dsadas支撑板加强筋2.SLDPRT	63.21K
113	dsadas旋转定位支座1.SLDPRT	58.48K
114	dsadas旋转板1.SLDPRT	43.86K
115	dsadas旋转气缸固定板1.SLDPRT	55.78K
116	dsadas旋转轴1.SLDPRT	65.90K
117	dsadas滑块定位板2.SLDPRT	92.61K
118	dsadas电机从动轴.SLDPRT	46.15K
119	dsadas电机轴承安装板1.SLDPRT	55.44K
120	dsadas电机轴承安装板2.SLDPRT	56.32K
