自动锁螺丝装配设备（ID:1758800）

机械设备 / 非标机械 / 自动锁螺丝装配设备

©原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17365586975433.zip	43.24M
2	86HS120安装座.0.sldprt	28.20K
3	86HS120安装座1.0.sldprt	21.85K
4	86HS120安装座2.0.sldprt	24.17K
5	A015马达安装座_焊缝.0.sldprt	22.70K
6	EGH15-120.SLDPRT	88.79K
7	EGH15.SLDPRT	230.91K
8	HGW15CC（020）.sldasm	128.93K
9	MGN12C导轨滑块装配（024）.SLDASM	83.50K
10	MGN12C滑块导轨（025）.SLDPRT	93.55K
11	MGN12C滑块（026）.SLDPRT	102.49K
12	MGN9C-HK.SLDPRT	219.09K
13	MGN9C.SLDPRT	85.20K
14	MGN9C滑块.SLDPRT	152.80K
15	MGN9C滑块导轨-100.SLDPRT	78.14K
16	MGN9C滑块导轨-60.SLDPRT	73.92K
17	Rollingbearings618-8GB276-94.sldprt	354.17K
18	ZPSLSJ-001.SLDPRT	325.07K
19	ZPSLSJ-002.SLDPRT	459.81K
20	ZPSLSJ-003.SLDPRT	521.60K
21	ZPSLSJ-004.SLDASM	294.65K
22	ZPSLSJ-004.SLDPRT	154.23K
23	ZPSLSJ-005.SLDPRT	216.27K
24	ZPSLSJ-006.SLDPRT	127.17K
25	ZPSLSJ-007.SLDPRT	1.31M
26	ZPSLSJ-008.SLDPRT	95.69K
27	ZPSLSJ-009.SLDPRT	70.68K
28	ZPSLSJ-010.sldasm	237.38K
29	ZPSLSJ-011.SLDPRT	115.81K
30	ZPSLSJ-012.SLDPRT	88.61K
31	ZPSLSJ-013.SLDPRT	74.88K
32	ZPSLSJ-014（8M24齿）.SLDPRT	1.30M
33	ZPSLSJ-015.SLDPRT	121.45K
34	ZPSLSJ-016.SLDASM	2.10M
35	ZPSLSJ-017.SLDPRT	176.99K
36	ZPSLSJ-018.SLDPRT	173.34K
37	ZPSLSJ-019.SLDPRT	99.75K
38	ZPSLSJ-021.SLDPRT	251.97K
39	ZPSLSJ-022.SLDPRT	78.54K
40	ZPSLSJ-023.SLDPRT	267.17K
41	ZPSLSJ-024.SLDPRT	146.71K
42	ZPSLSJ-025.SLDPRT	253.05K
43	ZPSLSJ-026.SLDPRT	94.80K
44	ZPSLSJ-027.SLDPRT	83.49K
45	ZPSLSJ-028.SLDPRT	76.94K
46	ZPSLSJ-029.SLDPRT	117.59K
47	ZPSLSJ-030.SLDPRT	190.47K
48	ZPSLSJ-031.SLDPRT	97.02K
49	ZPSLSJ-032.SLDPRT	80.18K
50	ZPSLSJ-033.SLDPRT	104.62K
51	ZPSLSJ-034.SLDPRT	105.98K
52	ZPSLSJ-035.SLDPRT	90.04K
53	ZPSLSJ-036.SLDASM	114.57K
54	ZPSLSJ-036.SLDPRT	146.64K
55	ZPSLSJ-037.SLDPRT	143.66K
56	ZPSLSJ-038.SLDPRT	137.15K
57	ZPSLSJ-039.SLDPRT	144.76K
58	ZPSLSJ-040.SLDPRT	143.14K
59	ZPSLSJ-041.SLDPRT	142.76K
60	ZPSLSJ-042.SLDPRT	100.09K
61	ZPSLSJ-043.SLDPRT	122.48K
62	ZPSLSJ-044.SLDPRT	125.61K
63	ZPSLSJ-045.SLDPRT	71.74K
64	ZPSLSJ-046.SLDPRT	152.45K
65	ZPSLSJ-047.SLDPRT	175.66K
66	ZPSLSJ-048.SLDPRT	95.24K
67	ZPSLSJ-049.SLDPRT	90.04K
68	ZPSLSJ-050.SLDPRT	137.12K
69	ZPSLSJ-051.sldprt	101.61K
70	ZPSLSJ-052.SLDPRT	110.75K
71	ZPSLSJ-053.SLDPRT	329.86K
72	ZPSLSJ-054.SLDPRT	91.81K
73	ZPSLSJ-055.SLDPRT	70.73K
74	ZPSLSJ-056.SLDPRT	153.05K
75	ZPSLSJ-057.SLDPRT	60.91K
76	ZPSLSJ-058.SLDPRT	109.36K
77	ZPSLSJ-059.SLDPRT	108.02K
78	ZPSLSJ-060.SLDPRT	130.80K
79	ZPSLSJ-061.SLDPRT	200.32K
80	ZPSLSJ-062.SLDPRT	83.47K
81	ZPSLSJ-063.SLDPRT	116.71K
82	ZPSLSJ-064.SLDPRT	106.08K
83	ZPSLSJ-065.SLDPRT	90.78K
84	ZPSLSJ-066.SLDPRT	87.25K
85	ZPSLSJ-067.SLDPRT	99.96K
86	ZPSLSJ-068.SLDPRT	92.28K
87	ZPSLSJ-069.SLDPRT	196.31K
88	ZPSLSJ-070.SLDASM	294.22K
89	ZPSLSJ-070.SLDPRT	142.04K
90	ZPSLSJ-071.SLDPRT	135.25K
91	ZPSLSJ-072.SLDPRT	68.54K
92	ZPSLSJ-073.SLDPRT	71.27K
93	ZPSLSJ-074.SLDPRT	93.92K
94	ZPSLSJ-075.SLDPRT	70.78K
95	ZPSLSJ-076.SLDPRT	128.12K
96	ZPSLSJ-077.SLDPRT	90.21K
97	ZPSLSJ-078.SLDPRT	133.41K
98	ZPSLSJ-079.SLDPRT	137.46K
99	ZPSLSJ-080.SLDPRT	117.87K
100	ZPSLSJ-081.SLDASM	244.79K
101	ZPSLSJ-081.SLDPRT	123.25K
102	ZPSLSJ-082.SLDPRT	90.51K
103	ZPSLSJ-083.SLDPRT	144.37K
104	ZPSLSJ-084.SLDPRT	123.73K
105	ZPSLSJ-085.SLDPRT	123.16K
106	ZPSLSJ-086.SLDPRT	85.68K
107	ZPSLSJ-087.SLDPRT	125.04K
108	ZPSLSJ-088.SLDPRT	127.88K
109	ZPSLSJ-089.SLDPRT	139.68K
110	ZPSLSJ-090.SLDASM	490.00K
111	ZPSLSJ-091.SLDPRT	862.74K
112	ZPSLSJ-092.SLDPRT	58.68K
113	ZPSLSJ-093.SLDPRT	118.54K
114	ZPSLSJ-096.SLDPRT	121.42K
115	ZPSLSJ-105.SLDPRT	194.53K
116	ZPSLSJ-106.SLDPRT	59.11K
117	ZPSLSJ-107.SLDPRT	192.00K
118	ZPSLSJ-108.SLDPRT	48.15K
119	ZPSLSJ-109.SLDPRT	210.71K
120	ZPSLSJ-110.SLDPRT	80.58K
121	ZPSLSJ-111.SLDPRT	101.26K
122	_X2_4E0983F1_X0_200W.sldprt	376.44K
123	减速电机.SLDPRT	142.28K
124	压标签膜连接头.SLDPRT	104.48K
125	皮带3-14.sldprt	80.68K
126	自动取料机械手.SLDASM	1.17M
127	自动锁螺丝装配设备.SLDASM	5.75M
128	-松下伺服电机200w.SLDPRT	338.69K
129	B7001_DF.sldprt	184.90K
130	BSSR1505n.sldprt	117.89K
131	BSW12.sldasm	217.65K
132	BSW12cover.sldprt	145.05K
133	BSW12housing.sldprt	84.49K
134	BSW12nut.sldprt	104.48K
135	BSW12spacer.sldprt	60.87K
136	BUN10.sldasm	289.57K
137	BUN10housing.sldprt	84.55K
138	B_CPCX34_10_14.sldprt	273.95K
139	GBT276_6W-2RZ13.SLDPRT	404.90K
140	Z轴座.SLDPRT	311.36K
141	丝杆.SLDPRT	65.45K
142	吸盘.SLDPRT	95.57K
143	导轨Z.SLDPRT	89.76K
144	滑台安装板.SLDPRT	173.02K
145	滑台组装.SLDASM	768.58K
146	滑块Z.SLDPRT	58.84K
147	电机板z.SLDPRT	308.72K
148	HFZ20_CL__CMSH-1_.sldasm	156.86K
149	_HFZ20CL_body.sldprt	74.08K
150	_HFZ20CL_fl.sldprt	36.42K
151	_HFZ20CL_fr.sldprt	36.60K
152	MA25x25SCASDB_0__CS1-M-2_.SLDASM	184.57K
153	_25MANut.sldprt	26.12K
154	_25MANut1.sldprt	33.10K
155	_25MASDB25Body.sldprt	39.85K
156	_25SDBMA25Rod.sldprt	21.25K
157	_F-MA20SDB25.sldprt	66.76K
158	ASJ-008.1.SLDPRT	235.75K
159	EGH15-280.SLDPRT	117.70K
160	HGW15CC-120.sldasm	121.92K
161	HGW15CC-280.sldasm	132.57K
162	20MA75Rod.sldprt	69.18K
163	20MANut.sldprt	91.18K
164	20MANut1.sldprt	90.11K
165	20MAU75Body.sldprt	168.07K
166	CS1-M-S20-.sldprt	111.88K
167	MA20x75SU0CMSG-1.sldasm	151.33K
168	CS1-M-S10-1.sldprt	105.60K
169	PBR10X200_rod.sldprt	64.51K
170	PBR10X20SU0-M-1_dummy.sldprt	30.63K
171	PBR10X20SU0CMSG-1.sldasm	145.99K
172	PBR10X20U0_dummy.sldprt	27.86K
173	PBR10X20U_body1.sldprt	169.53K
174	PBR10_nut.sldprt	85.30K
175	CMSG_GN.sldprt	100.55K
176	SDA25x50S0CMSG-1.sldasm	128.52K
177	SDAS-25x5050_b.sldprt	295.37K
178	SDAS-25x5050_r.sldprt	79.50K
179	PBR10X20U0.sldasm	133.57K
180	PBR10X20U_body.sldprt	162.25K
181	MA20x75SU.SLDASM	136.15K
182	_20MA-31.sldprt	36.44K
183	_20MA75-2.sldprt	29.73K
184	_20MAU75-1.sldprt	44.24K
185	CS1-ASC40.sldprt	120.27K
186	SC-40-M12x1_25-Nut.sldprt	91.62K
187	SC-40x100-S0_r.sldprt	84.78K
188	SC40x100S000CMSG-1.sldasm	188.05K
189	SC40X100_c.sldprt	223.53K
190	_F-SC40FASC.sldprt	95.83K
191	AWKM-058锁扣主体.1.1.1.sldprt	145.64K
192	AWKM-059卡板.1.1.1.sldprt	102.76K
193	AWKM-060扣臂.1.1.1.sldprt	82.00K
194	AWKM-061STOPPER_SCREW_M6.1.1.1.sldprt	49.08K
195	AWKM-062STOPPER_SCREW_M5.1.1.1.sldprt	49.67K
196	AWKM-063锁扣支架.1.1.1.SLDPRT	119.03K
197	BVGY-015-3-1.1.1.SLDPRT	379.57K
198	BVGY-015-3-2.1.1.SLDPRT	117.06K
199	BVGY-015-3-3.1.1.SLDPRT	367.93K
200	BVGY-015-3-4.1.1.sldasm	658.09K
201	QTYU-007-3.1.SLDASM	844.49K
202	iks-06001-b-a-zuo.sldprt	73.00K
203	iks-06001-b-all.sldasm	1.17M
204	iks-06001-b-dct-all.sldasm	288.00K
205	iks-06001-b-dct-jiao-ke.sldprt	120.50K
206	iks-06001-b-dct-pian.sldprt	113.50K
207	iks-06001-b-dian-pian.sldprt	86.50K
208	iks-06001-b-hu-ban1.sldprt	63.50K
209	iks-06001-b-hu-ban2.sldprt	63.50K
210	iks-06001-b-luo-si.sldprt	741.50K
211	iks-06001-b-tp1.sldprt	69.50K
212	iks-06001-b-tp2.sldprt	69.50K
213	iks-06001-ding-gai.sldprt	256.50K
214	SAFW-028.1.1.1.1.1.1.1.SLDPRT	107.54K
215	ZPSLSJ-002.SLDASM	331.84K
216	定位环.1.1.1.1.1.1.1.SLDPRT	103.50K
217	脚轮.1.1.1.1.1.1.1.SLDPRT	117.59K
218	脚轮支架.1.1.1.1.1.1.1.SLDPRT	161.31K
219	脚轮架.1.1.1.1.1.1.1.SLDPRT	192.93K
220	脚轮法兰.1.1.1.1.1.1.1.SLDPRT	121.17K
221	自动锁螺丝装配设备.docx	11.79K
222	ZPSLSJ-110.SLDASM	329.58K
223	安全罩子PPY.SLDPRT	989.46K
224	封板2.XG1.1.SLDPRT	53.74K
225	封板PPY.SLDPRT	71.89K
226	门框PPY.SLDPRT	158.36K
227	顶部封板PPY.SLDPRT	74.93K

此图纸下载需要700金币

立即下载

发布者

淡笑看过尘世

创作: 2432

粉丝: 32

加入时间：2022-03-31

私信

关注

模型信息

图纸格式：sldprt,sldasm

文件大小：44.28M

所需金币：700

上传时间：2025-01-11 09:25:15

是否可编辑：可修改，包括参数

版本：SOLIDWORKS 2020

标签

自动锁螺丝

装配设备

自动打螺丝

图纸简介

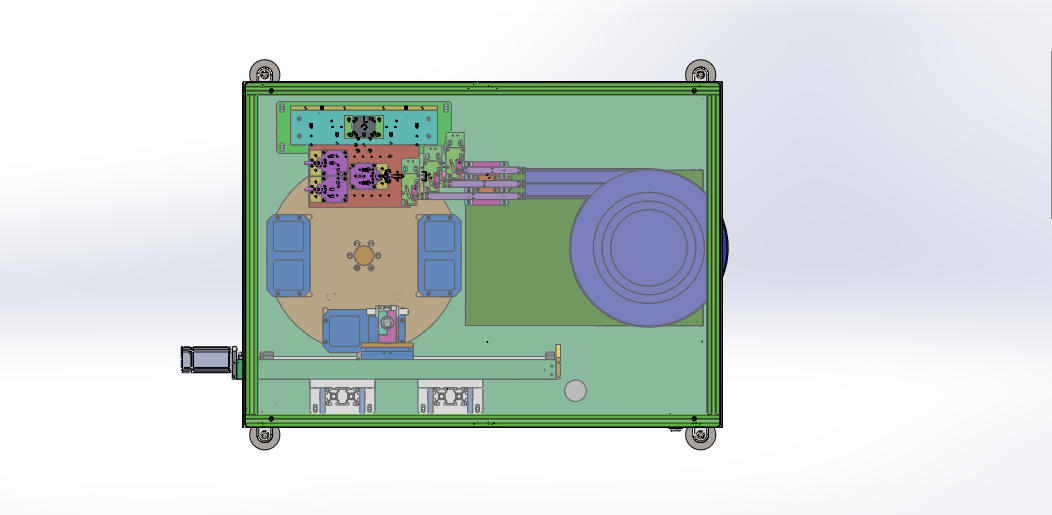

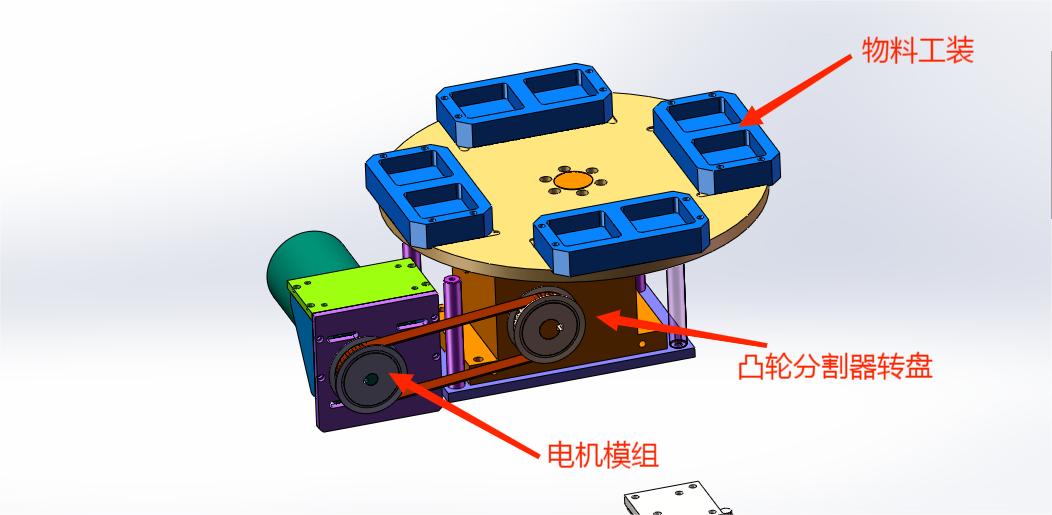

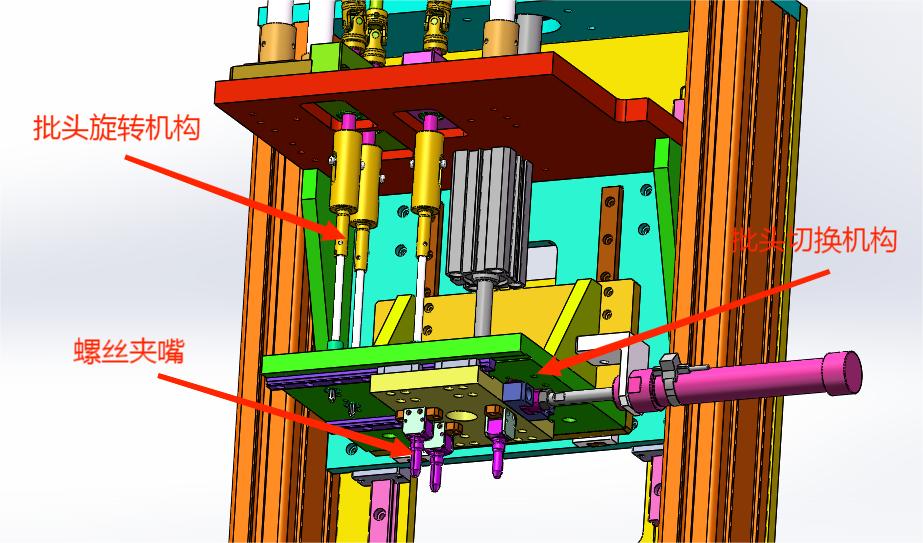

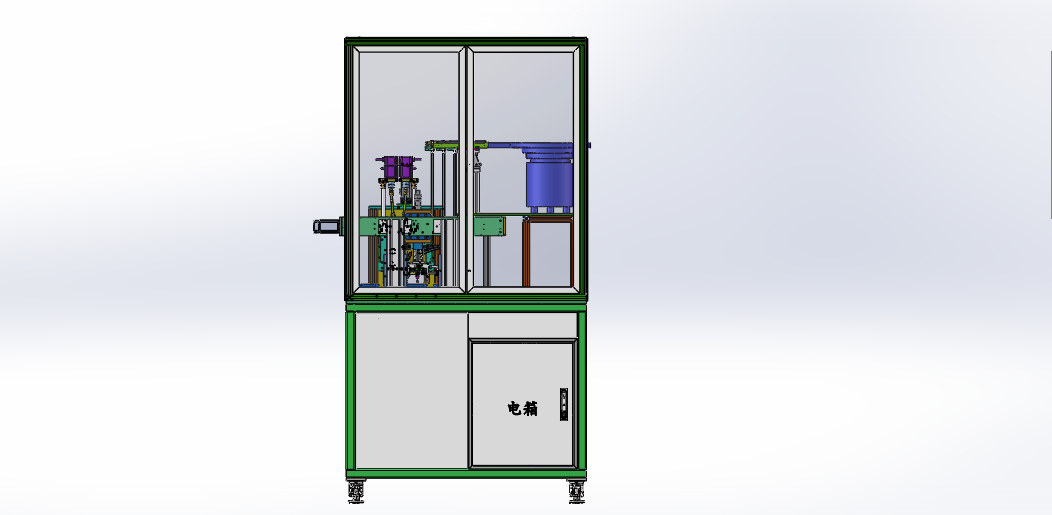

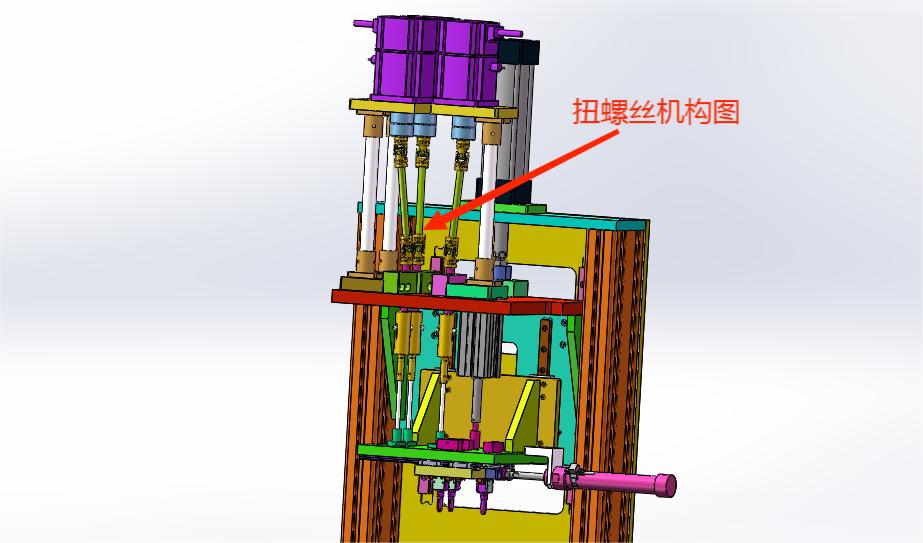

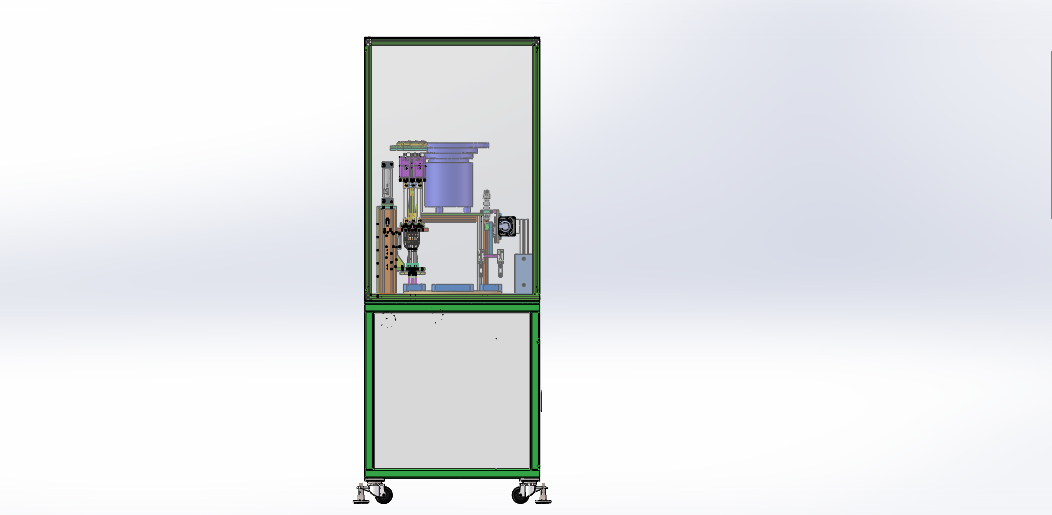

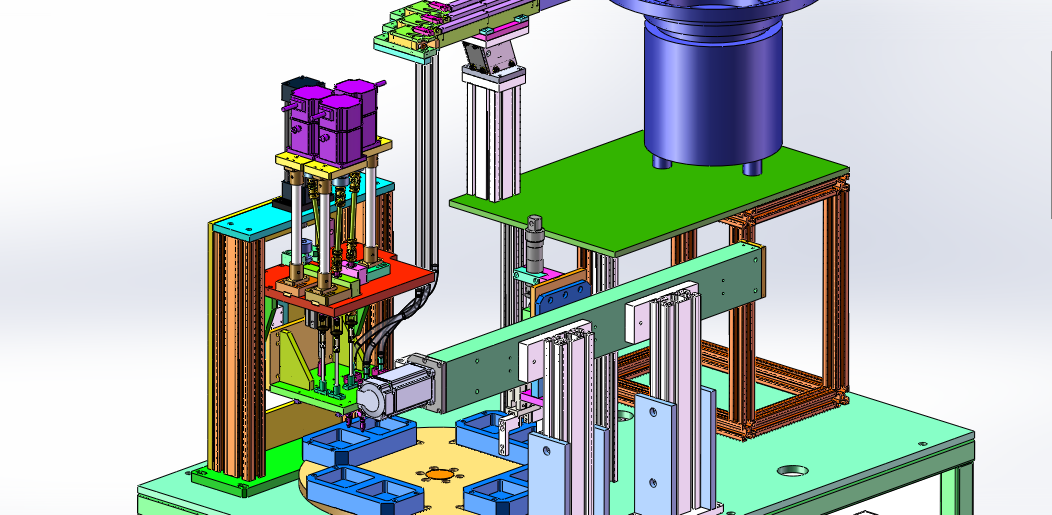

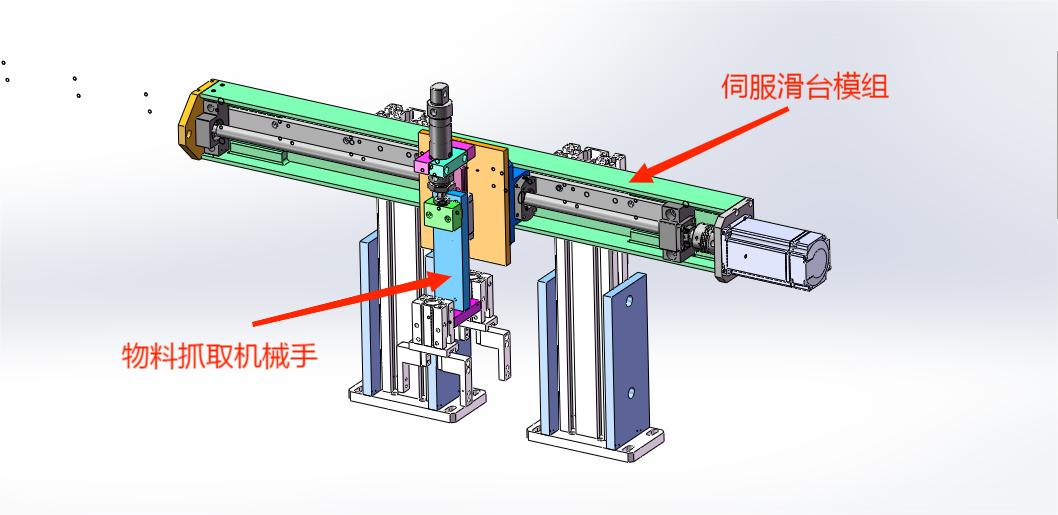

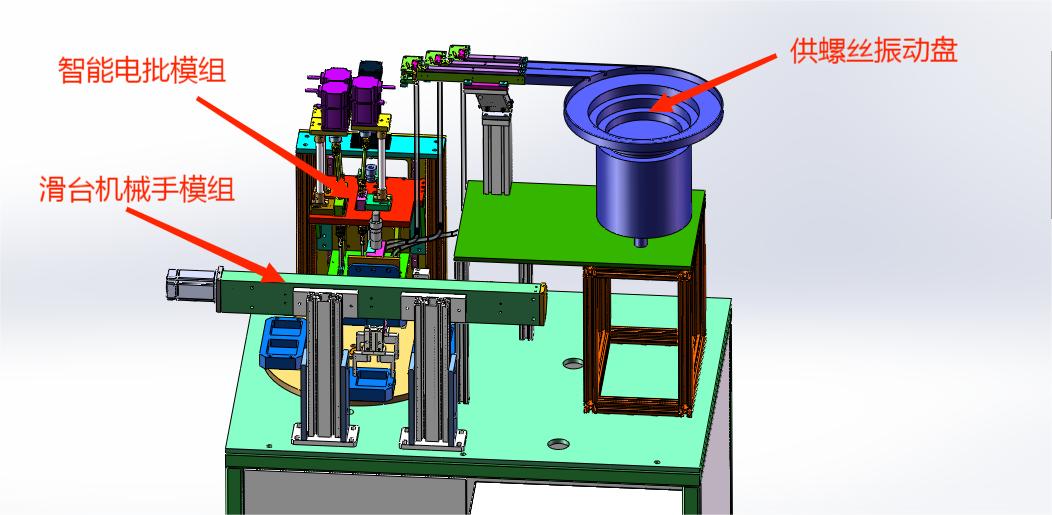

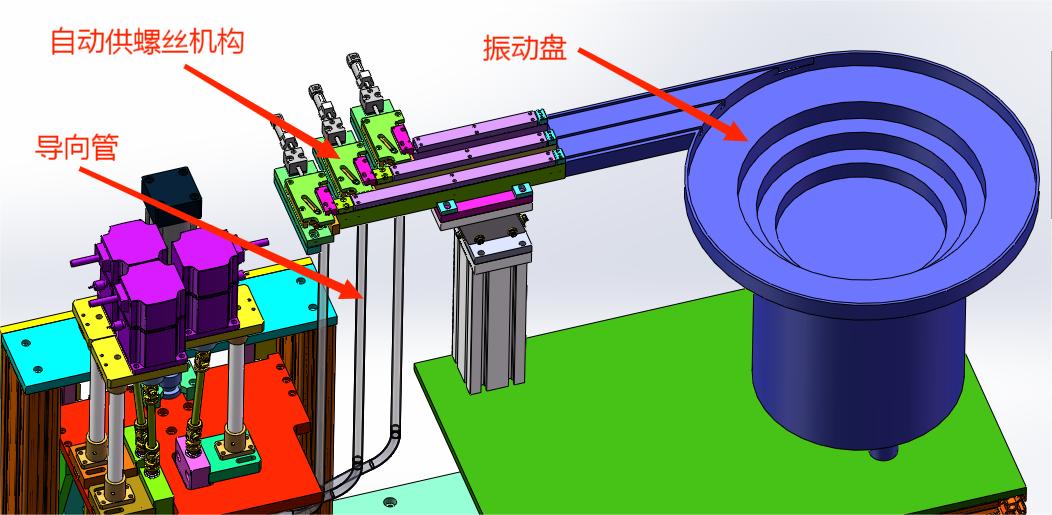

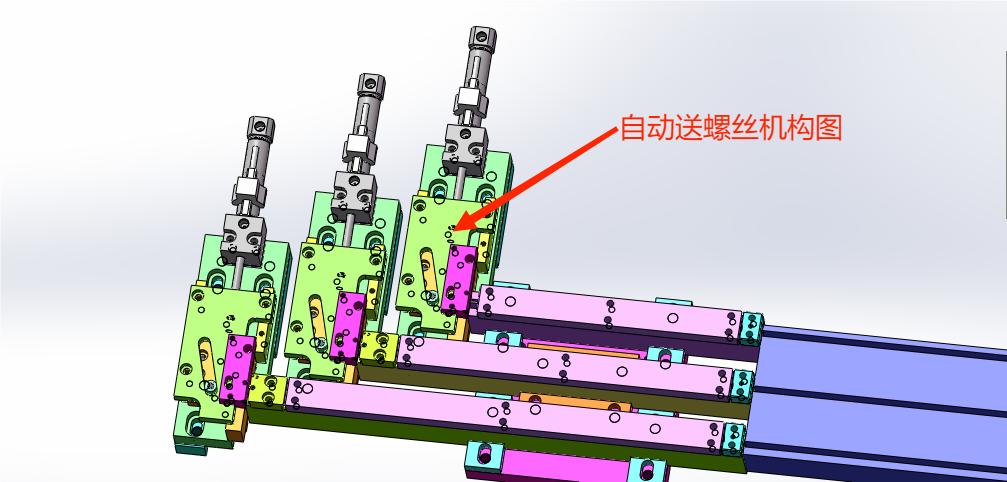

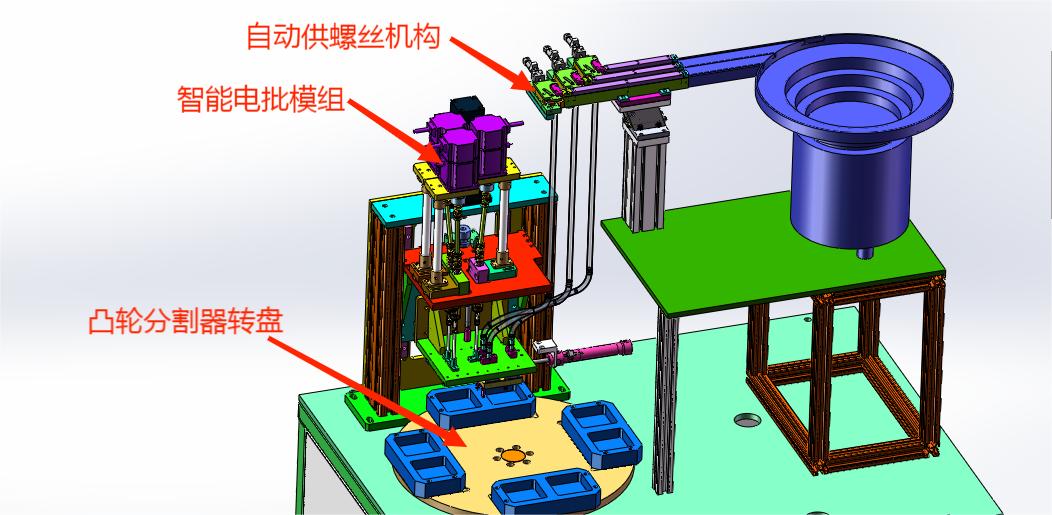

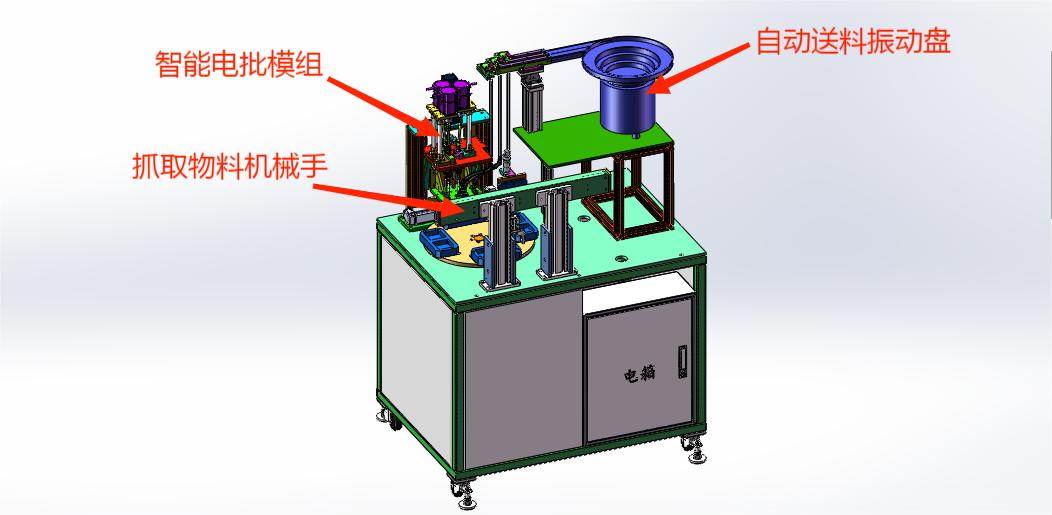

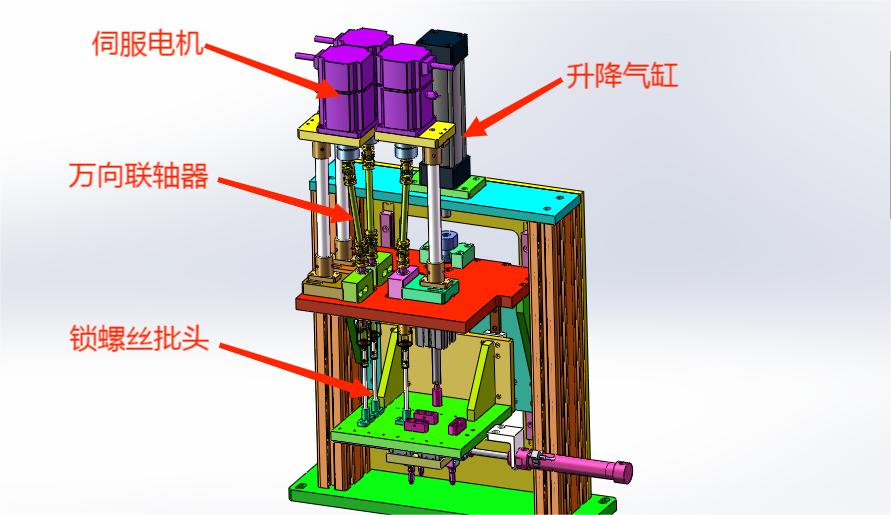

设计思路：根据产品的组装需求，需要设计自动螺丝设备。产品一共需要锁紧三个螺丝，为了满足生产效率，需要三个螺丝同时锁紧，用振动盘自动送螺丝，振动盘结构需要满足同时出三个螺丝，三条轨道出料，通过气管吹气送到螺丝夹嘴。产品组装方式采用四工位旋转方式，每个工位安装一个产品治具，每个治具可以放置两个产品，螺丝夹嘴可以切换，从而满足两个产品的螺丝锁紧。产品上下料是用机械手夹取实现的。自动锁螺丝装配设备结构介绍：设备防护罩、振动盘自动供螺丝结构、智能电批模组以及批头传动连接组件、四工位旋转机构、电批模组升降切换机构、自动上下料夹取机械手和电气配件构成。工作原理：设备是属于全自动工装，送料机械手把产品夹取
