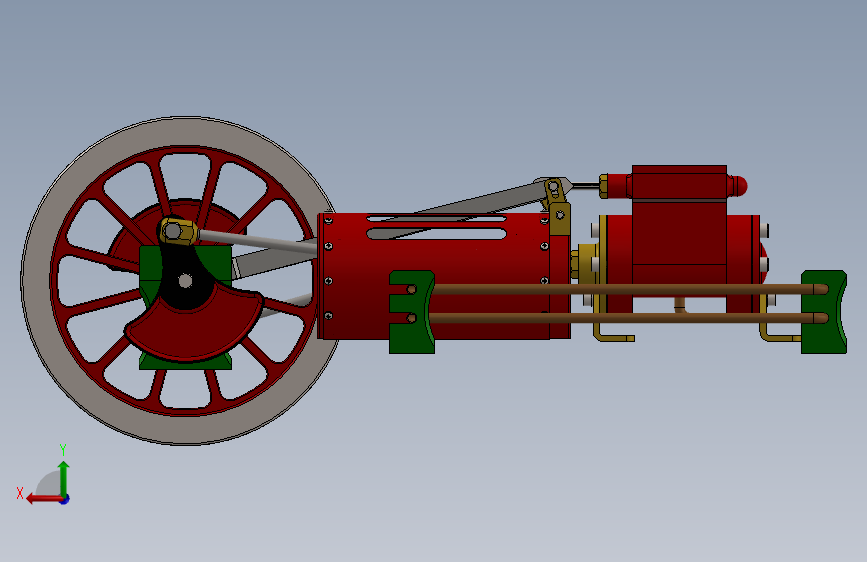

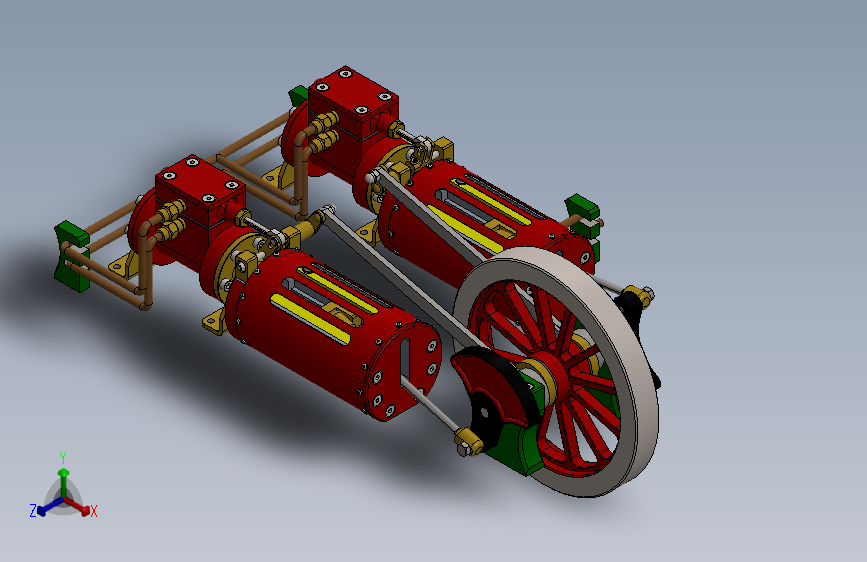

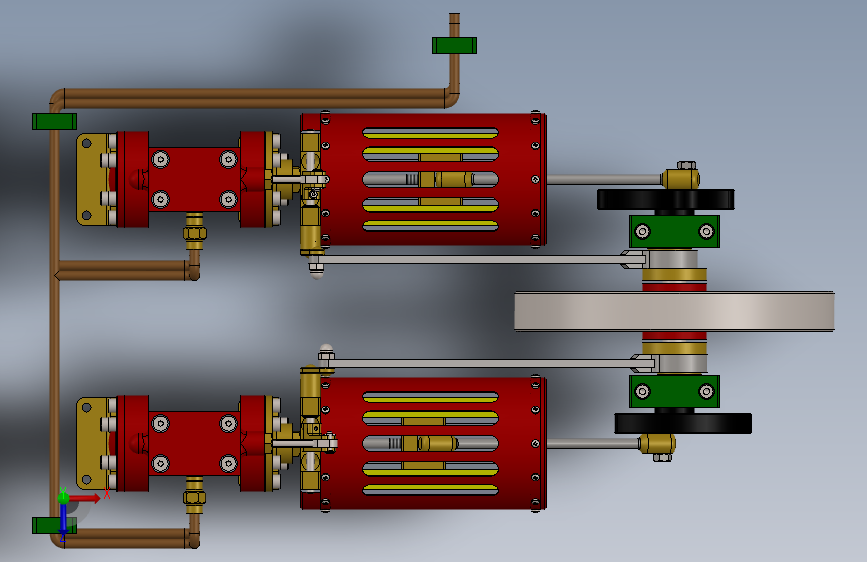

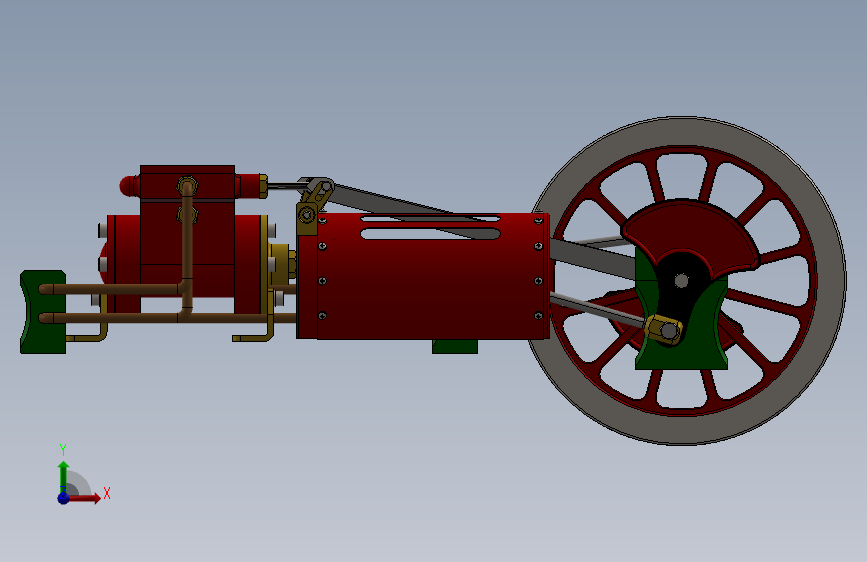

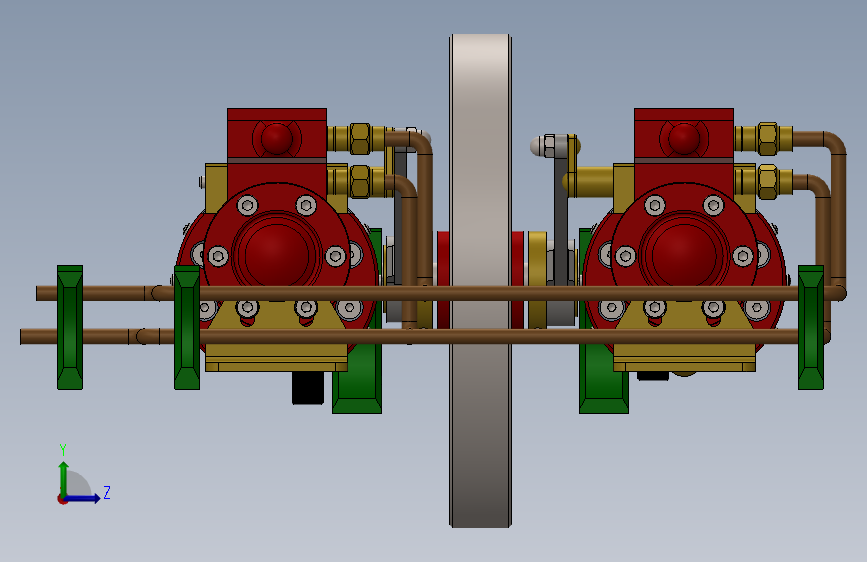

蒸汽机steam-engine-123834-模型格式为 sw（ID:1762099）

机械设备 / 非标机械 / 蒸汽机steam-engine-123834-模型格式为 sw

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17366779065927.zip	8.39M
2	AssemblyConnectingRod.SLDASM	97.65K
3	AssemblyContainer.SLDASM	481.01K
4	AssemblyCylinder.SLDASM	439.57K
5	AssemblyMainBearing.SLDASM	187.71K
6	AssemblyPiston.SLDASM	112.47K
7	AssemblyRockshaft.SLDASM	109.23K
8	AssemblySlideValve.SLDASM	78.50K
9	AssemblySteamEngine.SLDASM	1.79M
10	Part1-ConnectingRodHead.SLDPRT	115.30K
11	Part10-SteamChest.SLDPRT	197.52K
12	Part11-SteamChestCover.SLDPRT	86.77K
13	Part12-CylinderHead.SLDPRT	158.63K
14	Part13-CylinderCover.SLDPRT	140.88K
15	Part14-CylinderFoot.SLDPRT	124.07K
16	Part15-Piston.SLDPRT	111.73K
17	Part16-PistonRing.SLDPRT	68.79K
18	Part17-PistonRod.SLDPRT	68.07K
19	Part18-PacknutValve.SLDPRT	114.87K
20	Part19-PacknutPisoton.SLDPRT	118.64K
21	Part2-ConnectingRod.SLDPRT	67.88K
22	Part20-SlideValveRod.SLDPRT	99.70K
23	Part21-SteamSlideValve.SLDPRT	96.44K
24	Part22-RockshaftArm.SLDPRT	111.70K
25	Part23-RockshaftRivet.SLDPRT	113.88K
26	Part24-RockshaftRod.SLDPRT	77.48K
27	Part25-MainBearingFoot.SLDPRT	124.19K
28	Part26-MainBearingHead.SLDPRT	83.85K
29	Part27-Crankshaft.SLDPRT	188.48K
30	Part28-CrankShaft.SLDPRT	77.48K
31	Part29-CrankScrew.SLDPRT	378.32K
32	Part3-CrossheadContainer.SLDPRT	155.36K
33	Part30-Eccentric.SLDPRT	96.03K
34	Part31-EccentricTrap.SLDPRT	89.81K
35	Part32-Flywheel.SLDPRT	410.91K
36	Part33-Crosshead.SLDPRT	100.15K
37	Part34-RockerBearing.SLDPRT	110.39K
38	Part35-RockerBearingStud.SLDPRT	123.83K
39	Part36-ValveFork.SLDPRT	138.44K
40	Part37-PipingConnector.SLDPRT	160.19K
41	Part38-CylinderConnector.SLDPRT	178.72K
42	Part39-PipeRack.SLDPRT	95.27K
43	Part4-CrossheadGuidePlate.SLDPRT	61.68K
44	Part40-SteamPipeEntry.SLDPRT	117.79K
45	Part5-ContainerFlange.SLDPRT	167.38K
46	Part6-ContainerCylinder.SLDPRT	200.74K
47	Part7-ContainerCover.SLDPRT	361.03K
48	Part8-Cylinder.SLDPRT	205.28K
49	Part9-ValvePlate.SLDPRT	84.56K
