XYZ-FHX-00 货箱_SOLIDWORKS 2024_模型图纸下载

首页

图库

工程师

XYZ-FHX-00 货箱（ID:1909344）

机械设备 / 包装设备 / XYZ-FHX-00 货箱

©原创

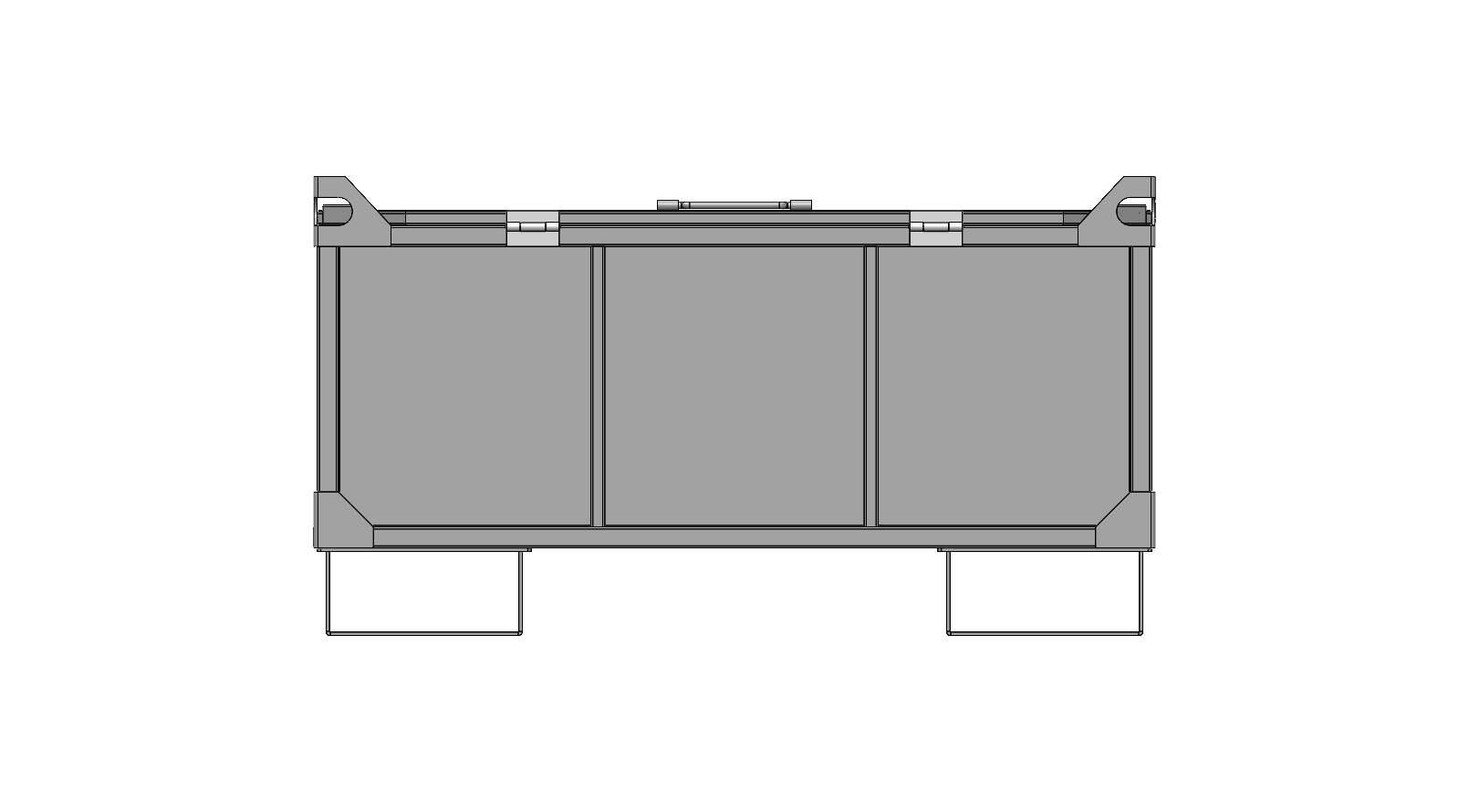

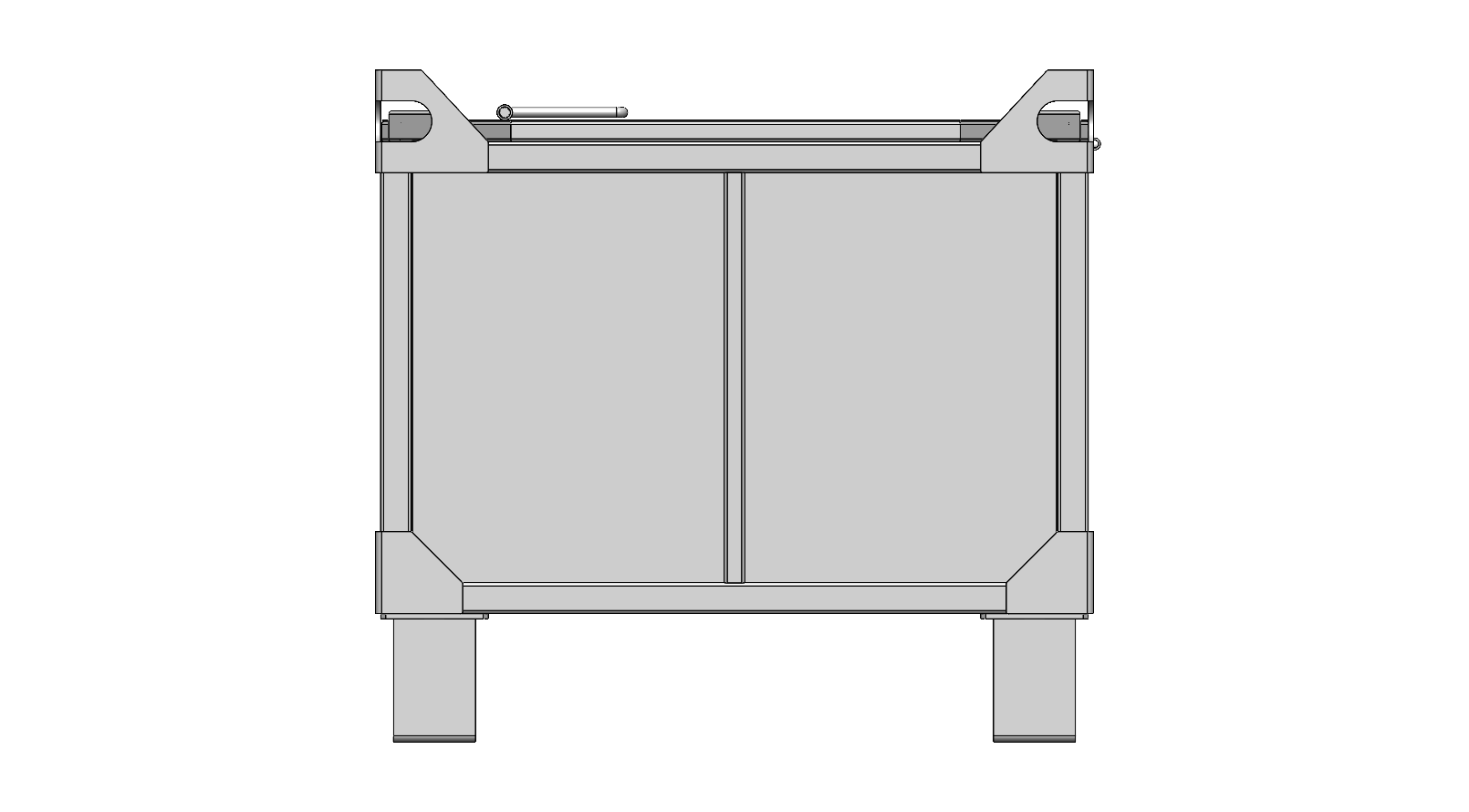

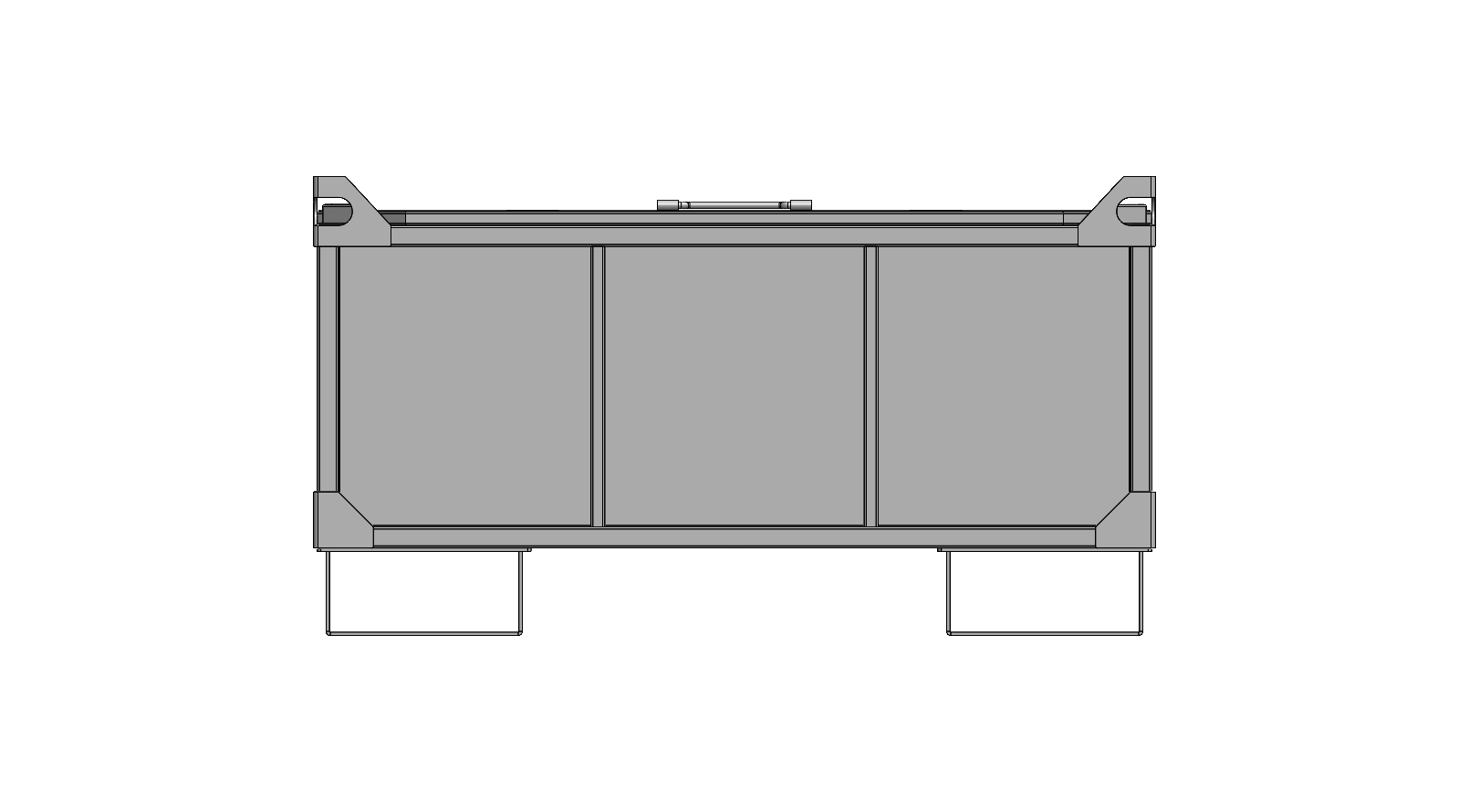

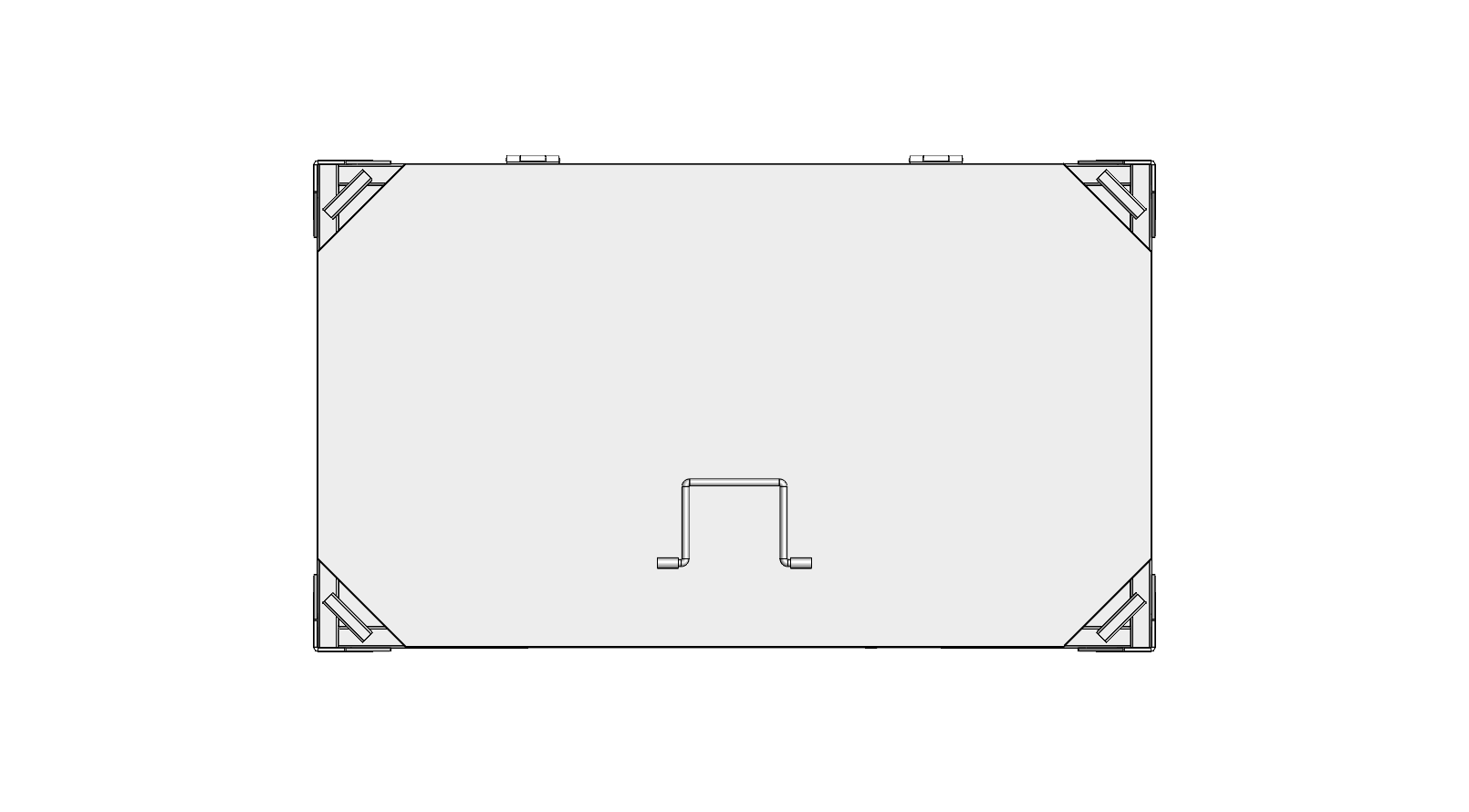

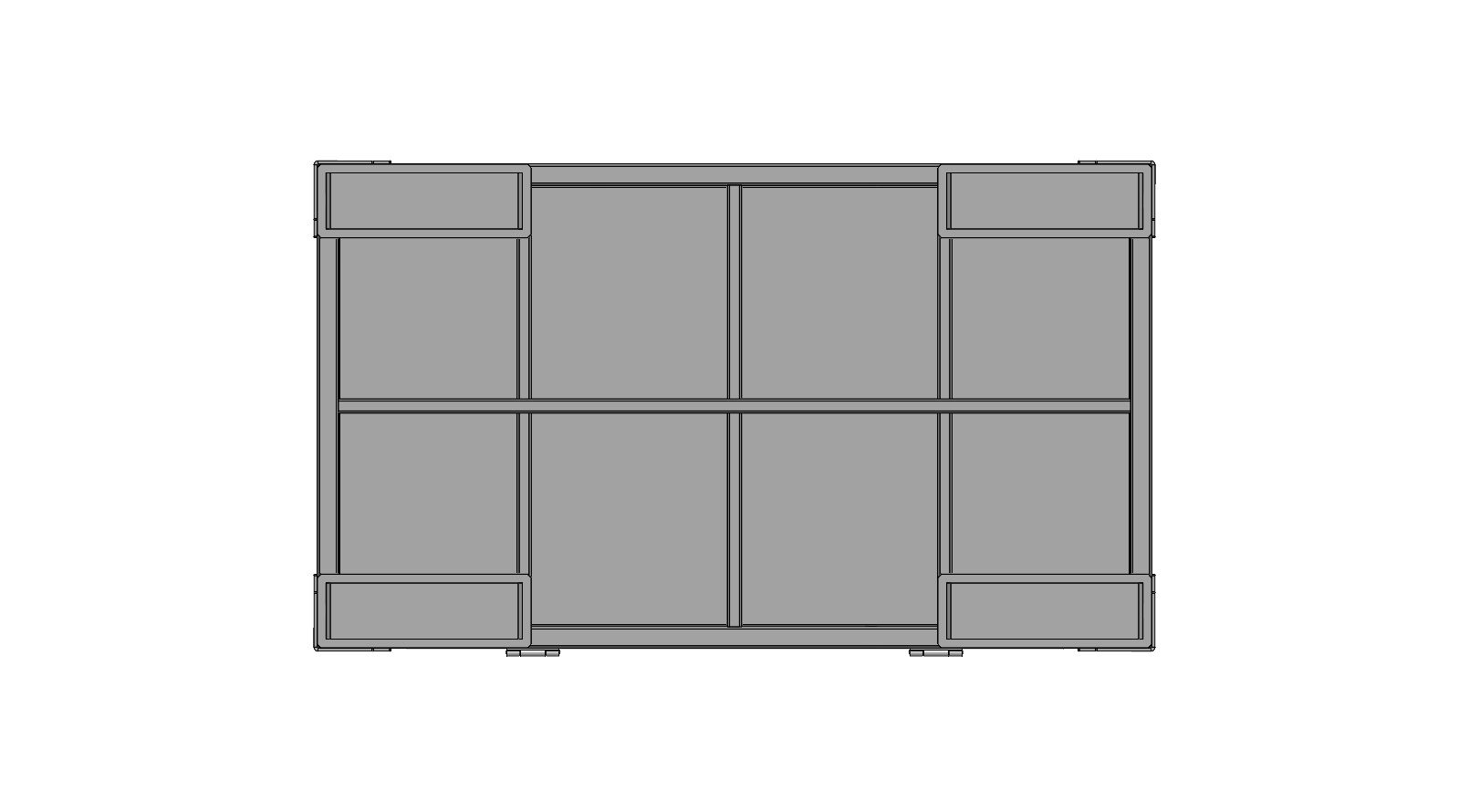

平面图

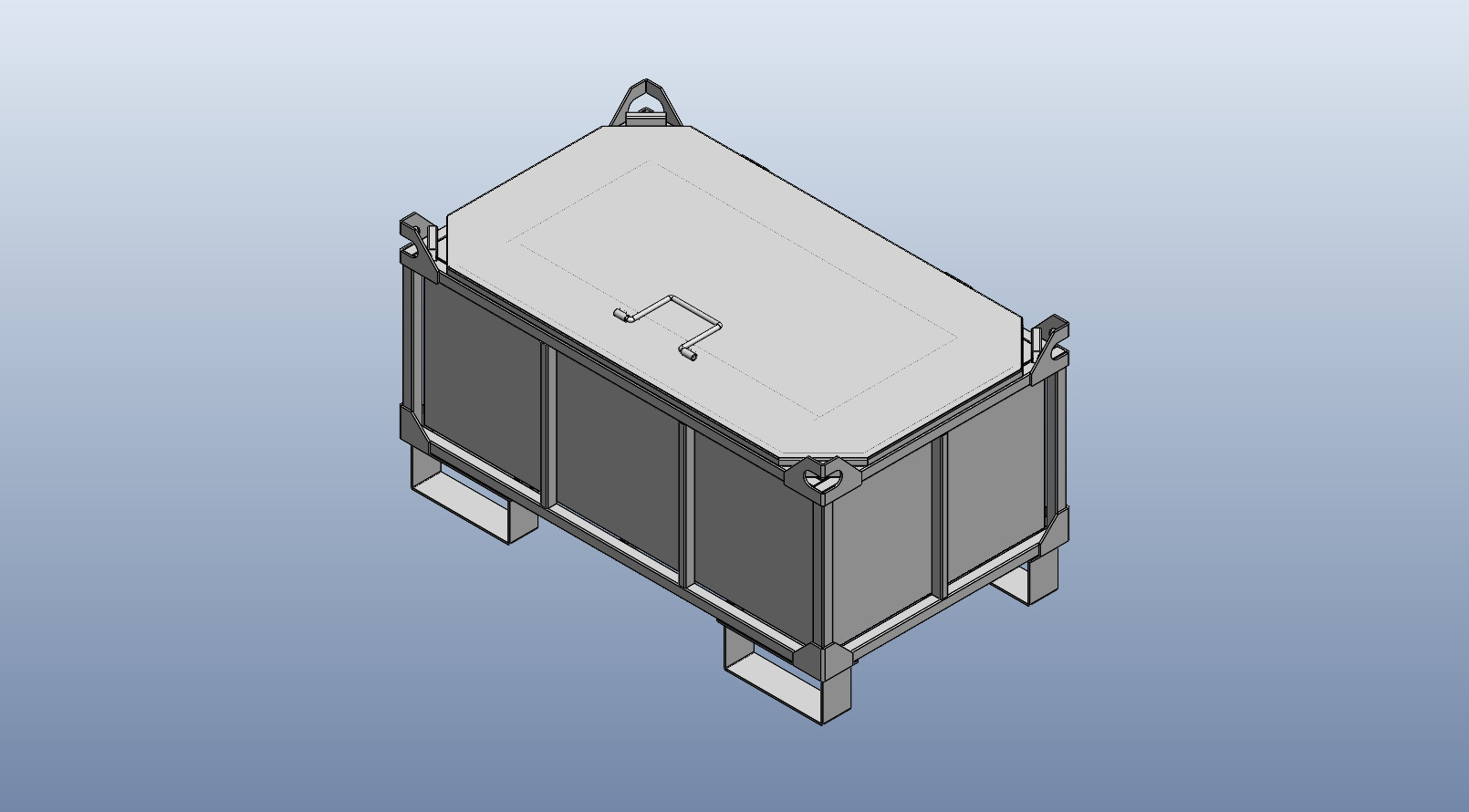

3D视图

文件列表

#	文件名称	文件大小
1	17416795121393.rar	15.79M
2	M8×35十字槽沉头螺钉M8.SLDPRT	162.15K
3	M8锁紧螺母M8.SLDPRT	116.64K
4	XYZ-FHX-00货箱.SLDASM	488.27K
5	XYZ-FHX-00货箱.SLDDRW	1.08M
6	XYZ-FHX-01-1箱体框架.SLDDRW	419.22K
7	XYZ-FHX-01-1箱体框架.SLDPRT	1.06M
8	XYZ-FHX-01-2箱体中侧.SLDDRW	181.62K
9	XYZ-FHX-01-2箱体中侧.SLDPRT	128.82K
10	XYZ-FHX-01-3箱体两侧.SLDDRW	180.10K
11	XYZ-FHX-01-3箱体两侧.SLDPRT	100.27K
12	XYZ-FHX-01-4箱体四角封钣.SLDDRW	206.85K
13	XYZ-FHX-01-4箱体四角封钣.SLDPRT	108.73K
14	XYZ-FHX-01-5箱体底脚垫钣.SLDDRW	188.11K
15	XYZ-FHX-01-5箱体底脚垫钣.SLDPRT	111.36K
16	XYZ-FHX-01-6箱体下包角.SLDDRW	214.73K
17	XYZ-FHX-01-6箱体下包角.SLDPRT	124.70K
18	XYZ-FHX-01-6箱体底脚.SLDDRW	203.91K
19	XYZ-FHX-01-6箱体底脚.SLDPRT	143.85K
20	XYZ-FHX-01-7箱体上包角.SLDDRW	236.07K
21	XYZ-FHX-01-7箱体上包角.SLDPRT	149.86K
22	XYZ-FHX-01货箱箱体.SLDASM	332.38K
23	XYZ-FHX-01货箱箱体.SLDDRW	478.63K
24	XYZ-FHX-02-1箱盖框架.SLDDRW	279.32K
25	XYZ-FHX-02-1箱盖框架.SLDPRT	575.70K
26	XYZ-FHX-02-2箱盖盖钣.SLDDRW	182.00K
27	XYZ-FHX-02-2箱盖盖钣.SLDPRT	88.99K
28	XYZ-FHX-02-3箱盖支架.SLDDRW	210.52K
29	XYZ-FHX-02-3箱盖支架.SLDPRT	135.02K
30	XYZ-FHX-02-4手把固定管.SLDDRW	194.94K
31	XYZ-FHX-02-4手把固定管.SLDPRT	99.54K
32	XYZ-FHX-02-5手把管.SLDDRW	194.37K
33	XYZ-FHX-02-5手把管.SLDPRT	104.94K
34	XYZ-FHX-02货箱箱盖.SLDASM	178.19K
35	XYZ-FHX-02货箱箱盖.SLDDRW	407.22K
36	YQ-18-8-460-200N弹簧液压支杆.SLDPRT	167.87K
37	XYZ-FHX-00货箱BOM表.xls	1.69M
38	XYZ-FHX-00货箱.dwg	270.55K
39	XYZ-FHX-01-1箱体框架.dwg	135.47K
40	XYZ-FHX-01-2箱体中侧.dwg	55.87K
41	XYZ-FHX-01-3箱体两侧.dwg	46.67K
42	XYZ-FHX-01-4箱体四角封钣.dwg	51.66K
43	XYZ-FHX-01-5箱体底脚垫钣.dwg	48.38K
44	XYZ-FHX-01-6箱体下包角.dwg	54.62K
45	XYZ-FHX-01-6箱体底脚.dwg	56.44K
46	XYZ-FHX-01-7箱体上包角.dwg	63.34K
47	XYZ-FHX-01货箱箱体.dwg	135.51K
48	XYZ-FHX-02-1箱盖框架.dwg	82.11K
49	XYZ-FHX-02-2箱盖盖钣.dwg	46.71K
50	XYZ-FHX-02-3箱盖支架.dwg	56.02K
51	XYZ-FHX-02-4手把固定管.dwg	48.27K
52	XYZ-FHX-02-5手把管.dwg	54.86K
53	XYZ-FHX-02货箱箱盖.dwg	144.02K
54	HHSYZ751.SLDPRT	115.49K
55	HHSYZ752.SLDPRT	107.40K
56	HHSYZ753.SLDPRT	109.22K
57	HHSYZ75铰链.SLDASM	94.49K
58	FXYZ-FHX-00货箱PDF.pdf	2.37M
59	XYZ-FHX-00货箱.pdf	233.09K
60	XYZ-FHX-01-1箱体框架.pdf	217.76K
61	XYZ-FHX-01-2箱体中侧.pdf	122.47K
62	XYZ-FHX-01-3箱体两侧.pdf	119.01K
63	XYZ-FHX-01-4箱体四角封钣.pdf	122.35K
64	XYZ-FHX-01-5箱体底脚垫钣.pdf	119.78K
65	XYZ-FHX-01-6箱体下包角.pdf	123.39K
66	XYZ-FHX-01-6箱体底脚.pdf	122.55K
67	XYZ-FHX-01-7箱体上包角.pdf	126.12K
68	XYZ-FHX-01货箱箱体.pdf	222.71K
69	XYZ-FHX-02-1箱盖框架.pdf	205.69K
70	XYZ-FHX-02-2箱盖盖钣.pdf	119.14K
71	XYZ-FHX-02-3箱盖支架.pdf	124.75K
72	XYZ-FHX-02-4手把固定管.pdf	178.19K
73	XYZ-FHX-02-5手把管.pdf	116.95K
74	XYZ-FHX-02货箱箱盖.pdf	235.59K
75	XYZ-FHX-00货箱.IGS	2.72M
76	XYZ-FHX-00货箱.STEP	2.62M
77	XYZ-FHX-00货箱.x_t	1.28M
78	货箱展开图.bak	43.68K
79	货箱展开图.DWG	43.65K
80	货箱排版.bak	127.64K
81	货箱排版.DWG	124.73K
