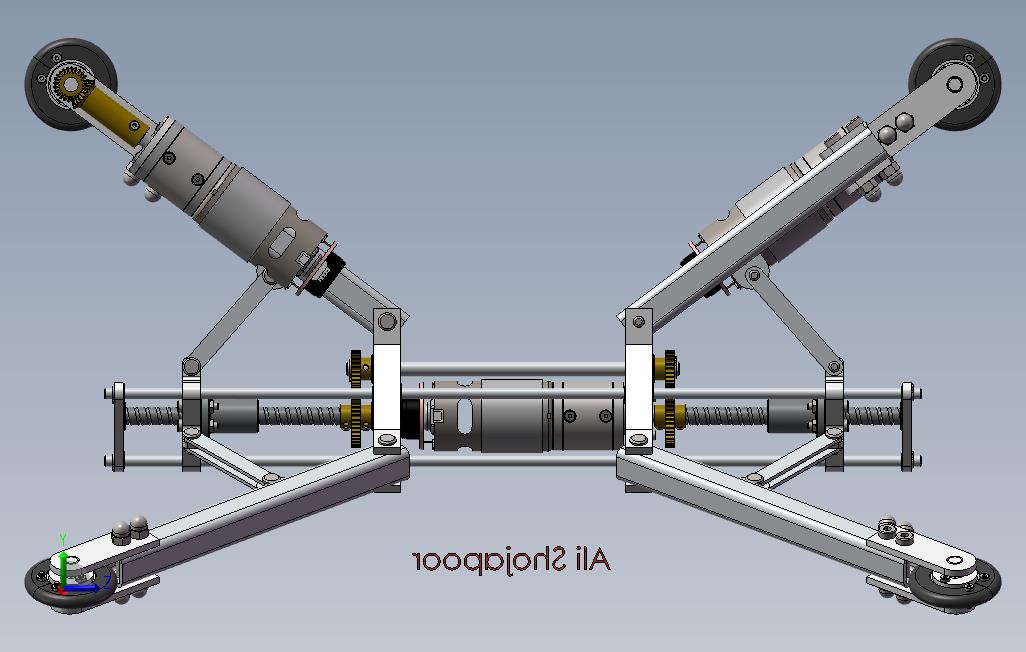

管道机器人设计模型图（ID:197670）

机械设备 / 智能制造 / 管道机器人设计模型图

©非原创

326

平面图

3D视图

文件列表

#	文件名称	文件大小
1	618_8.sldasm	60.50K
2	Arm_Link.sldprt	63.00K
3	Back Assembly.sldasm	112.50K
4	Back Ball Screw.sldprt	129.00K
5	Ball Screw Nut.sldprt	72.00K
6	Bevel Gear Assembly.sldasm	50.50K
7	Bevel01_GearTrax.sldprt	308.50K
8	Bevel02_GearTrax.sldprt	310.00K
9	brush.sldprt	306.50K
10	case.sldprt	62.50K
11	circlip for shafts normal_din_Circlip DIN 471 - 6 x 0.7.sldprt	72.50K
12	circlip for shafts normal_din_Circlip DIN 471 - 8 x 0.8.sldprt	72.50K
13	clevis pin headed_din_DIN EN 22341 - B - 6 x 12 x 1.6 - St.sldprt	73.00K
14	clevis pin headed_din_DIN EN 22341 - B - 6 x 32 x 1.6 - St.sldprt	73.00K
15	DC Motor Gearbox.sldasm	54.00K
16	domed cap nut_din_DIN 1587 - M6 --NNU.sldprt	73.50K
17	Drive Wheel Assembly.sldasm	103.50K
18	Drive_Shaft.sldprt	102.50K
19	Front Assembly.sldasm	152.00K
20	Front Ball Screw.sldprt	129.50K
21	Front Gear Assembly.sldasm	51.00K
22	Front_Ball_Screw_End_Support.sldprt	66.00K
23	Gear_Shaft.sldprt	64.00K
24	hex thin nut chamfered gradeab_din_Hexagon Thin Nut ISO 4035 - M3 - N.sldprt	72.50K
25	hex thin nut chamfered gradeab_din_Hexagon Thin Nut ISO 4035 - M4 - N.sldprt	72.50K
26	i_body.sldprt	95.00K
27	i_gearhead.sldprt	231.50K
28	i_shaft.sldprt	68.00K
29	Motor Mount.sldprt	71.00K
30	Nut_Attach.sldprt	76.50K
31	Pipe_Robot_Assembly.sldasm	41.50K
32	Pipe_Robot_Assembly.STEP	12.35M
33	Rod.sldprt	102.50K
34	socket head thin cap screw_din_DIN 7984 - M3 x 12 --- 10.5S.sldprt	83.50K
35	socket head thin cap screw_din_DIN 7984 - M3 x 14 --- 12.5N.sldprt	72.00K
36	socket head thin cap screw_din_DIN 7984 - M3 x 14 --- 12.5S.sldprt	86.00K
37	socket head thin cap screw_din_DIN 7984 - M3 x 6 --- 4.5N.sldprt	72.00K
38	socket head thin cap screw_din_DIN 7984 - M4 x 20 --- 17.9N.sldprt	72.00K
39	socket head thin cap screw_din_DIN 7984 - M6 x 35 --- 18N.sldprt	72.00K
40	SpurGear_GearTrax.sldprt	166.50K
41	SpurPinion_GearTrax.sldprt	123.50K
42	Support Wheel Assembly.sldasm	82.50K
43	Support_Shaft.sldprt	64.00K
44	Triangle_Support.sldprt	75.50K
45	Water Mark.sldprt	211.50K
46	Wheel_Arm_Profile_Default_As Welded_.sldprt	75.50K
47	Wheel_Print.sldprt	62.50K
48	Wheel_Rubber.sldprt	70.00K
49	Wheel_Support_Print.sldprt	64.00K
50	_618_8_PART1_2.sldprt	78.00K
51	_618_8_PART2_4.sldprt	78.00K
52	_618_8_PART3_6.sldprt	103.00K
53	管道机器人设计模型.SLDASM	3.42M
