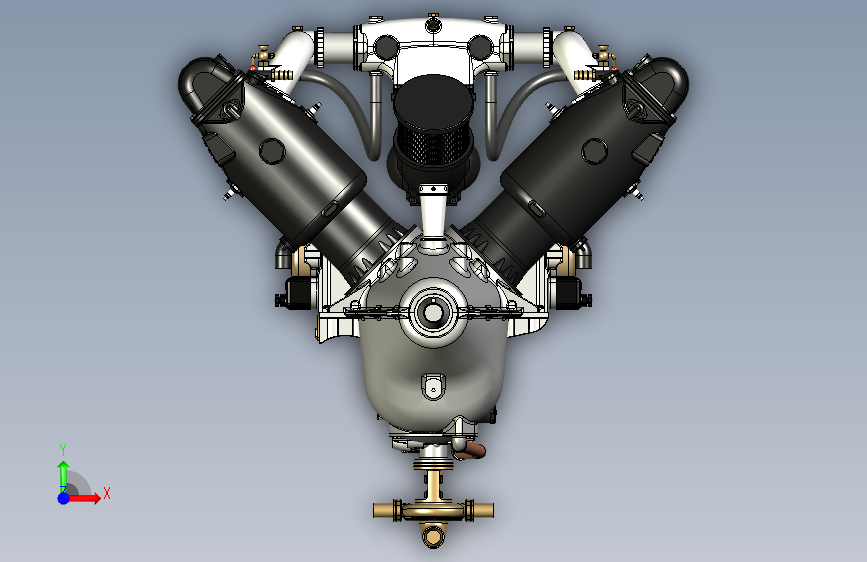

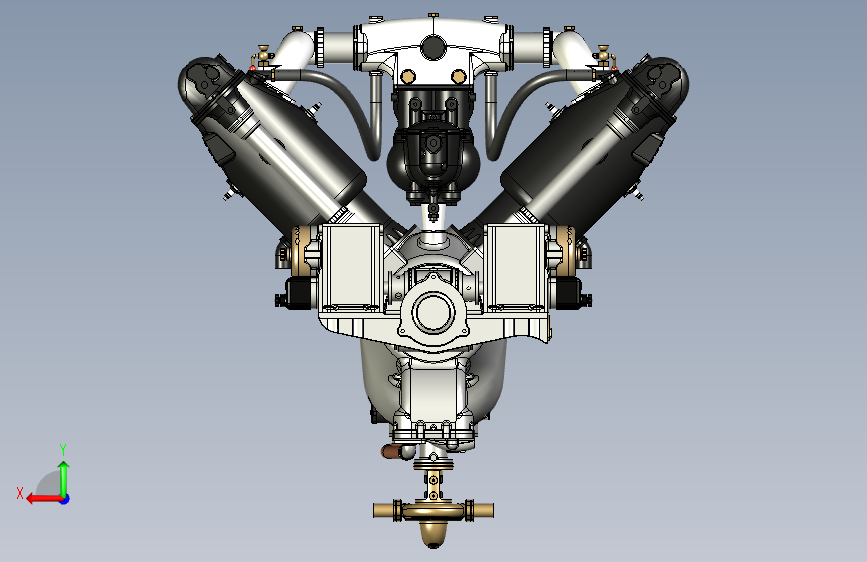

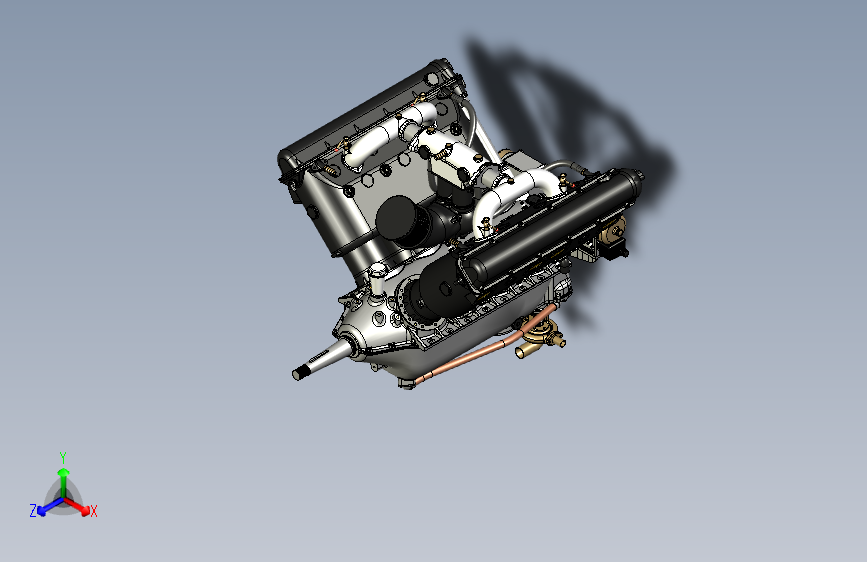

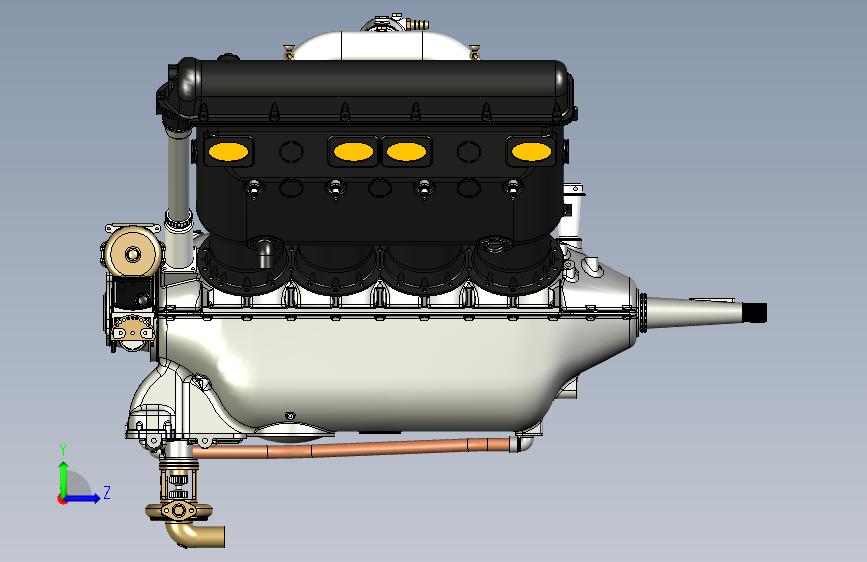

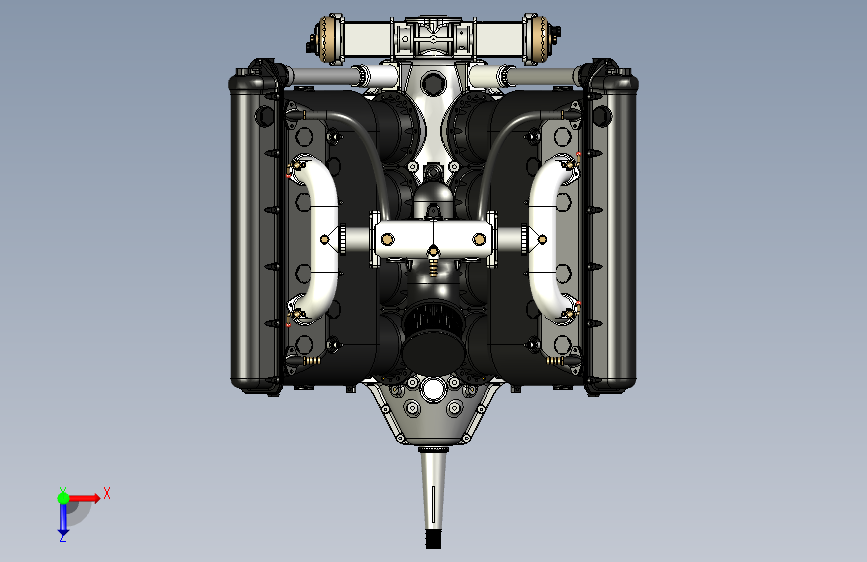

高性能的Hispano-Suiza 8F（ID:2090664）

机械设备 / 非标机械 / 高性能的Hispano-Suiza 8F

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17464432026428.zip	473.24M
2	AirFilterBaseIssue2.stl	1.57M
3	AirFilterCapIssue1.stl	1.61M
4	AirFilterCoreIssue1.stl	250.52M
5	AngleFrontScanvengerPipeIssue1.stl	13.08M
6	AngleRearScavengerPipeIssue1.stl	14.54M
7	CamCoverAIssue1.stl	53.16M
8	CamCoverBIssue1.stl	53.13M
9	CamDriveIssue1.stl	36.45M
10	CrankcaseBreatherIssue1.stl	8.56M
11	CrankshaftJournalBoltIssue1.stl	570.79K
12	CylinderBlockAIssue1.stl	147.09M
13	CylinderBlockBIssue1.stl	147.09M
14	ExhaustIssue1.stl	5.36M
15	Hispano-Suiza-8Fv89.step	73.22M
16	InletManifoldCoolantFittingIssue1.stl	8.25M
17	InletManifoldIssue1.stl	73.58M
18	LowerCrankcaseIssue3.stl	190.34M
19	MagnetoBodyIssue1.stl	19.99M
20	MagnetoClutchIssue1.stl	976.35K
21	MagnetoDistributorCapIssue1.stl	7.66M
22	MagnetoSupportIssue1.stl	100.69M
23	OilPressureReliefValveIssue1.stl	2.78M
24	PrimingCupAIssue1.stl	7.50M
25	PrimingCupBIssue1.stl	7.50M
26	PropshaftIssue1.stl	8.73M
27	ScavengerPipeIssue1.stl	2.26M
28	SparkPlugIssue2.stl	5.94M
29	StrombergNA-D6CarburetorIssue2.stl	5.82M
30	UpperCrankcaseIssue3.stl	201.20M
31	WaterOutletFittingIssue1.stl	11.46M
32	WaterOutletforPipesIssue1.stl	3.85M
33	WaterPumpIssue1.stl	43.61M
