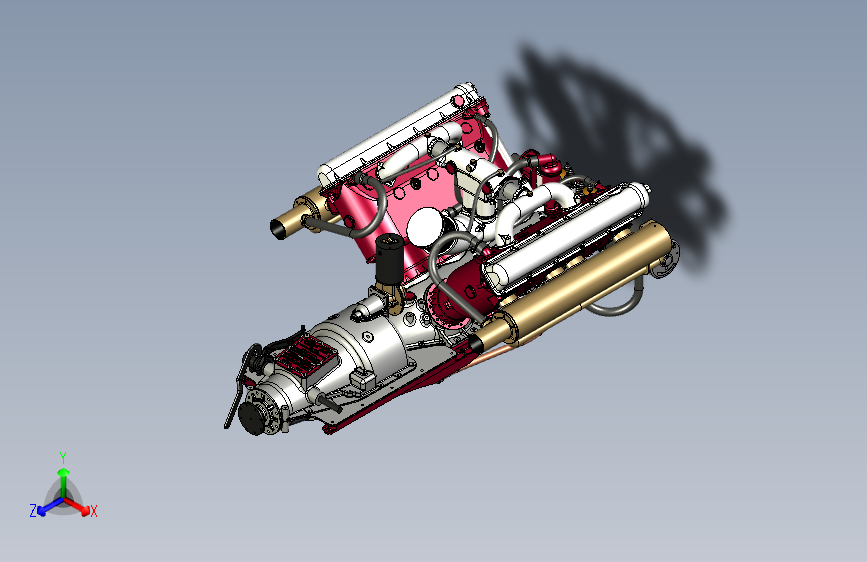

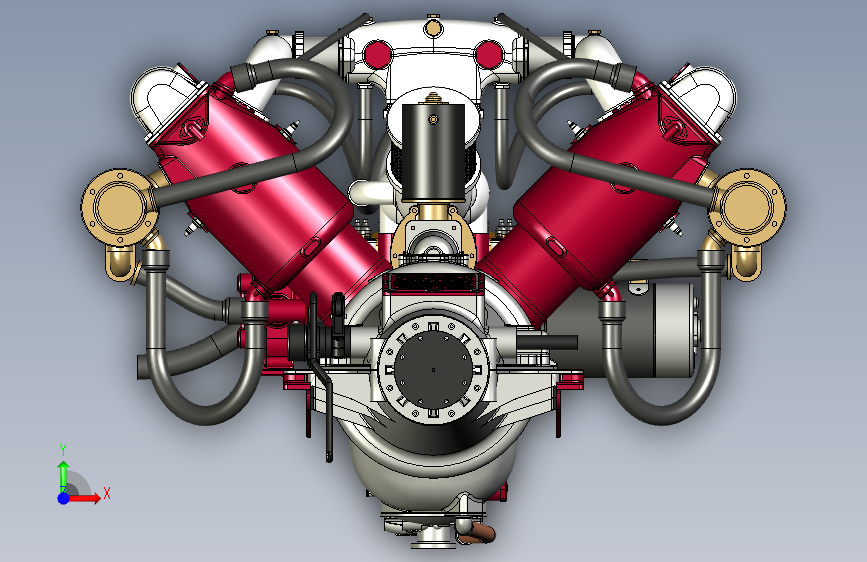

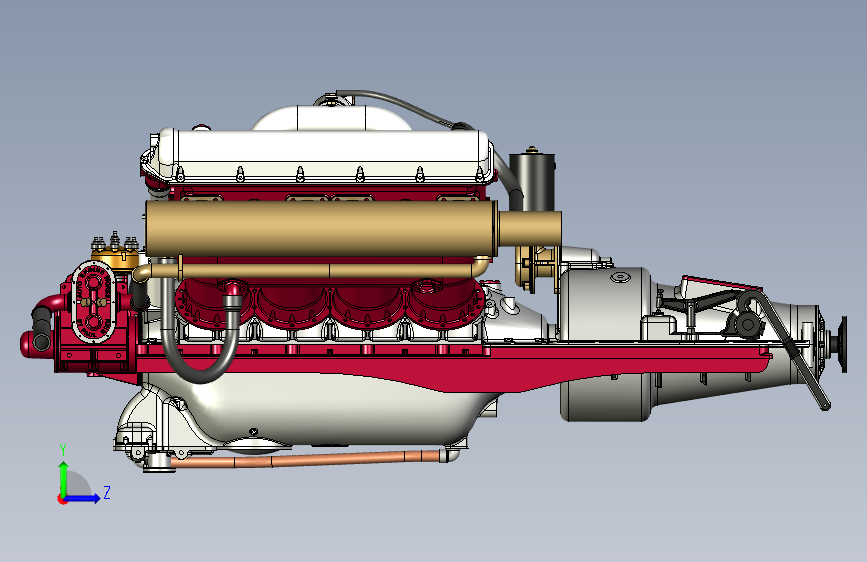

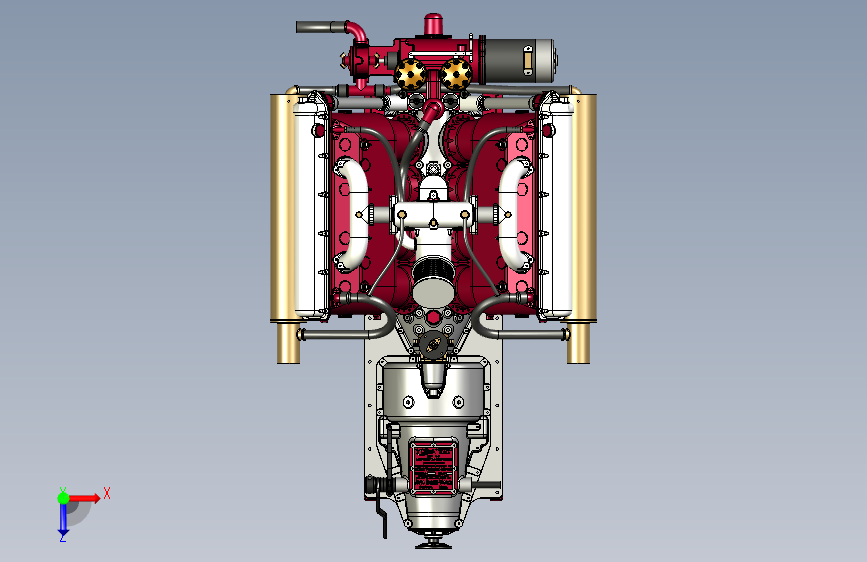

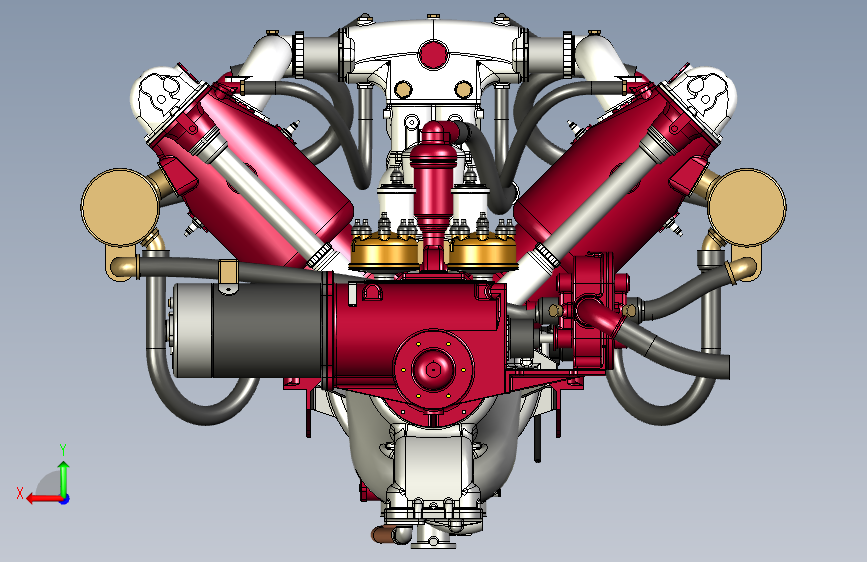

具备舰载预警功能的Wright-Martin H3船载转换（ID:2091244）

机械设备 / 非标机械 / 具备舰载预警功能的Wright-Martin H3船载转换

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17464449077027.zip	748.29M
2	AirFilterBaseIssue2.stl	1.57M
3	AirFilterCapIssue1.stl	1.61M
4	AirFilterCoreIssue1.stl	250.52M
5	AngleFrontScanvengerPipeIssue1.stl	13.08M
6	AngleRearScavengerPipeIssue1.stl	14.54M
7	CamCoverAIssue1.stl	53.16M
8	CamCoverBIssue1.stl	53.13M
9	CamDriveIssue1.stl	36.45M
10	ClutchActuationAssyIssue1.stl	25.24M
11	ClutchInspectionCoverIssue1.stl	3.32M
12	ClutchPivotAssyIssue1.stl	29.28M
13	CoolantOutletPipeA-Issue1.stl	11.04M
14	CoolantOutletPipeB-Issue1.stl	11.11M
15	CrankcaseBreatherandCoilAssyIssue1.stl	33.95M
16	CrankcaseBreatherPipeIssue1.stl	5.32M
17	CrankshaftJournalBoltIssue1.stl	570.79K
18	CylinderBlockAIssue1.stl	147.09M
19	CylinderBlockBIssue1.stl	147.09M
20	DistributorIssue1.stl	24.64M
21	EngineBearerAIssue1.stl	51.31M
22	EngineBearerBIssue1.stl	51.31M
23	ExhaustACoolantInletPipeIssue1.stl	2.83M
24	ExhaustAtoCylBlockPipeIssue1.stl	4.10M
25	ExhaustBCoolantInletPipeIssue1.stl	8.45M
26	ExhaustBtoCylBlockPipeIssue1.stl	4.10M
27	GearboxMainCastingBottomIssue1.stl	79.76M
28	GearboxMainCastingTopIssue1.stl	197.34M
29	GearboxOutputFlangeIssue1.stl	21.56M
30	GearboxRearCoverIssue1.stl	22.61M
31	GeneratorIssue1.stl	27.00M
32	InletManifoldCoolantFittingIssue1.stl	8.25M
33	InletManifoldIssue1.stl	73.58M
34	LowerCrankcaseIssue3.stl	190.34M
35	MarineExhaustAIssue1.stl	67.06M
36	MarineExhaustBIssue1.stl	66.73M
37	OilPressureReliefValveIssue1.stl	2.78M
38	PowerTake-OffGearboxandWaterPumpIssue1.stl	181.28M
39	PrimingCupAIssue1.stl	7.50M
40	PrimingCupBIssue1.stl	7.50M
41	PropshaftIssue1.stl	8.73M
42	ScavengerPipeIssue1.stl	2.26M
43	SparkPlugIssue2.stl	5.94M
44	StarterMotorAngleDriveIssue1.stl	84.77M
45	StarterMotorIssue1.stl	3.88M
46	StrombergNA-D6CarburettorMarineIssue1.stl	121.33M
47	UpperCrankcaseIssue3.stl	201.20M
48	WaterFittingLargeIssue1.stl	12.03M
49	WaterFittingSmallforPipesIssue1.stl	3.85M
50	WaterFittingSmallIssue1.stl	11.46M
51	WaterOutletBlankIssue1.stl	9.19M
52	WaterPick-UpPipeIssue1.stl	1.48M
53	Wright-MartinH3AEWMarineConversionv24.step	93.69M
