750等离子切割机结构_SOLIDWORKS 2016_模型图纸下载

首页

图库

工程师

750等离子切割机结构（ID:2116521）

机械设备 / 机加工设备 / 750等离子切割机结构

©非原创

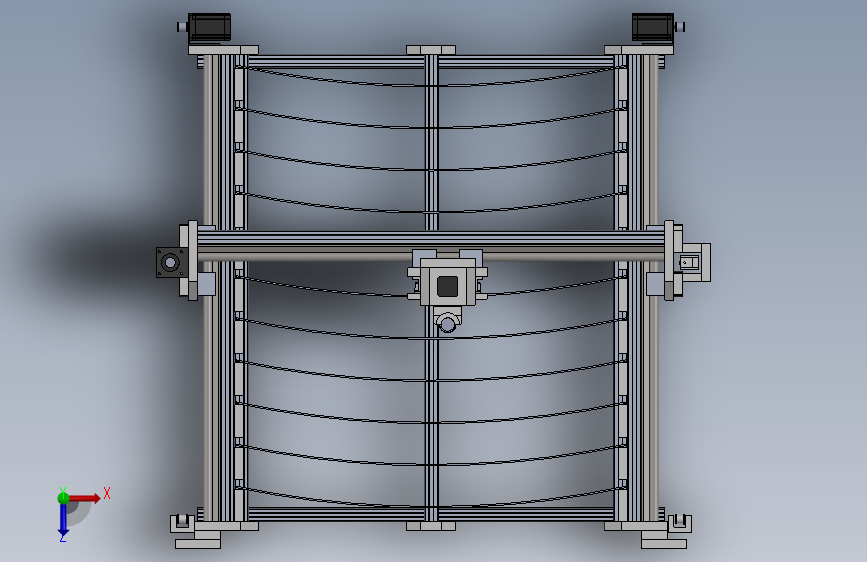

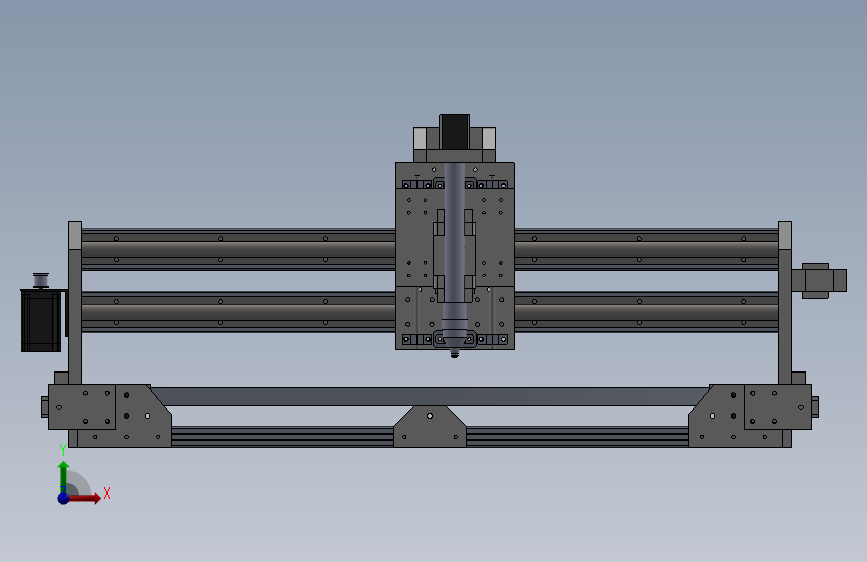

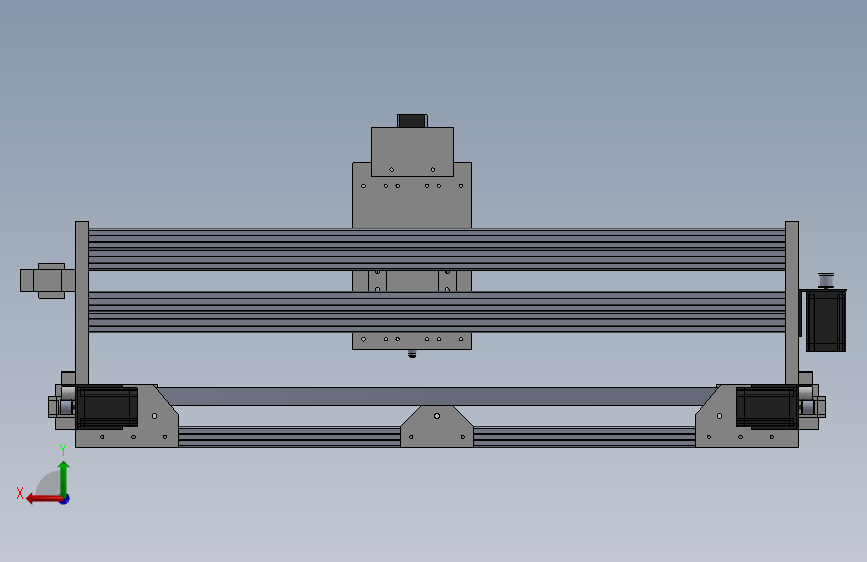

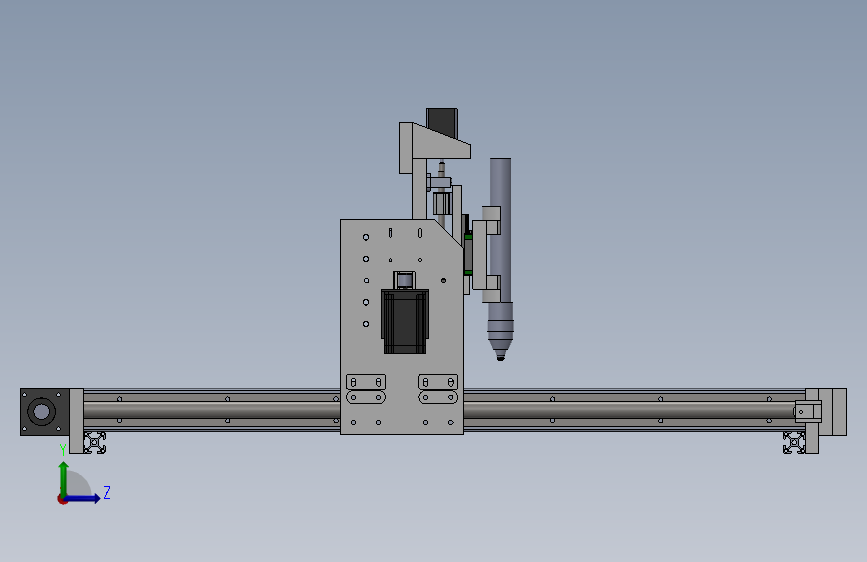

平面图

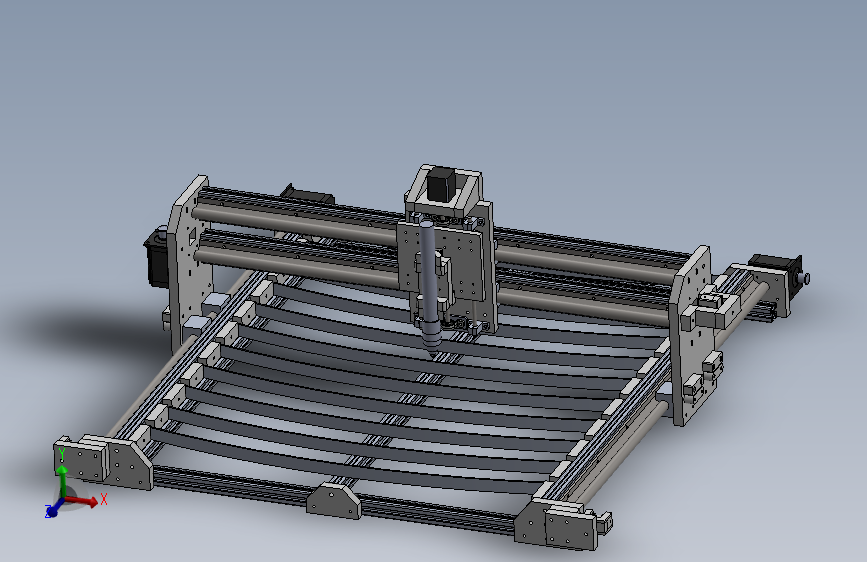

3D视图

文件列表

#	文件名称	文件大小
1	17469230967456.zip	5.75M
2	608RS.SLDPRT	358.67K
3	8mm_shaft_holder.SLDPRT	98.41K
4	8mm_shaft_L250.SLDPRT	50.69K
5	Alum_extru_3030_1m.SLDPRT	183.91K
6	back_plate.SLDPRT	65.85K
7	Belt_end_fixture.SLDPRT	63.67K
8	Belt_tension_slider.SLDASM	90.18K
9	belt_wall_Y_axis.SLDPRT	58.62K
10	belt_wall_Y_axis_spacer.SLDPRT	63.64K
11	Corner_bracket_back_motor_mount.SLDPRT	93.87K
12	Corner_bracket_front.SLDPRT	111.01K
13	grid_slat.SLDPRT	51.38K
14	Grid_spacer_side.SLDPRT	53.01K
15	HTD3M_idler_20T.SLDPRT	76.01K
16	HTD_3M_20T.SLDPRT	76.01K
17	KP08.SLDASM	314.90K
18	KP08.SLDPRT	580.42K
19	MGN15C.SLDPRT	91.51K
20	MGN15H_carriage.SLDPRT	379.83K
21	middle_bar_end_fixture.SLDPRT	76.43K
22	motor_bracket.SLDPRT	89.56K
23	Nema_17_motor_mount_base.SLDPRT	53.69K
24	Nema_17_motor_mount_side_wall.SLDPRT	41.31K
25	nema_17_Stepper_motor_mount.SLDPRT	90.46K
26	Nema_23_StepperMotor.SLDPRT	100.99K
27	P80_torch.SLDPRT	104.90K
28	Plasma_table.SLDASM	1005.86K
29	SBR20UU_bearing.SLDPRT	83.23K
30	SBR20_1000.SLDPRT	61.46K
31	SC8UUBlockbearing.SLDPRT	213.33K
32	SC8UU_spacer.SLDPRT	55.04K
33	Side_plate_M4.SLDPRT	49.02K
34	Stepper_motor_nema17.SLDPRT	73.98K
35	T8_holder_spacer_5mm.SLDPRT	77.25K
36	top_plate.SLDPRT	53.18K
37	Torch_bracket.SLDPRT	76.95K
38	torch_holder_back.SLDPRT	47.33K
39	Torch_stopper_bottom.SLDPRT	61.66K
40	Torch_wrap_tie_ring.SLDPRT	63.98K
41	X_axis_belt_adjust_back_wall.SLDASM	67.43K
42	X_axis_belt_wall_P1.SLDPRT	52.62K
43	X_axis_belt_wall_P2.SLDPRT	46.50K
44	X_axis_belt_wall_P3.SLDPRT	56.81K
45	X_axis_side_plate.SLDPRT	151.37K
46	Y_axis_belt_end_fixutre_P1.SLDPRT	69.39K
47	Y_axis_belt_end_fixutre_P2.SLDPRT	80.57K
48	Z_axis_back.SLDPRT	134.62K
49	Z_axis_gantry_plate.SLDPRT	102.55K
