筋膜美容枪全套开发资料（ID:2172805）

机械设备 / 医疗器械 / 筋膜美容枪全套开发资料

©非原创

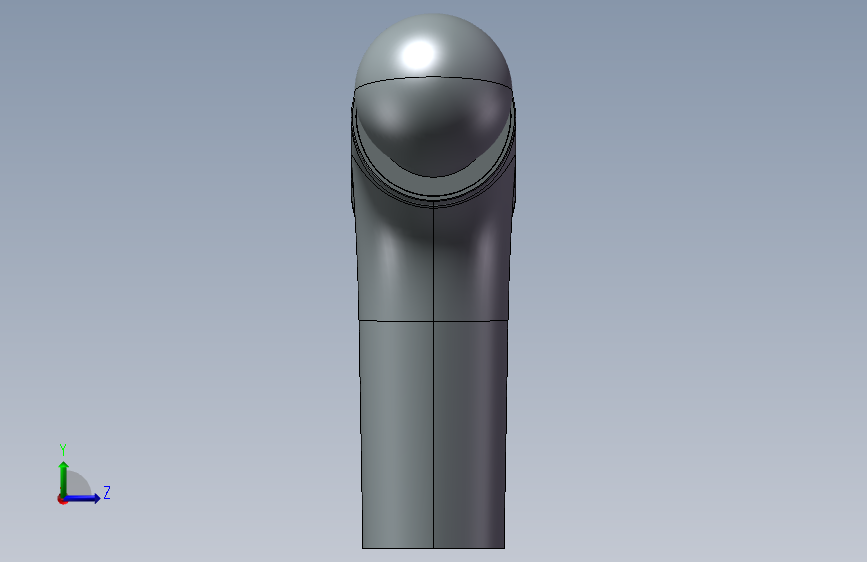

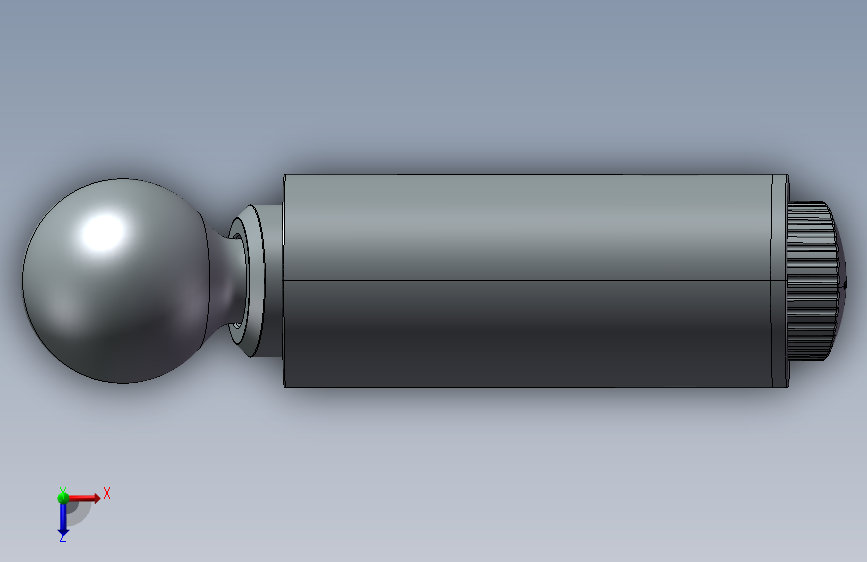

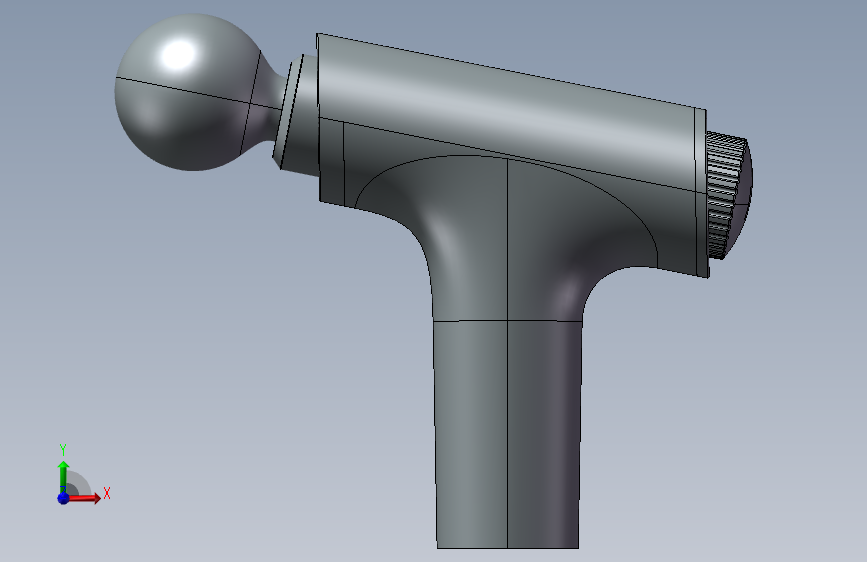

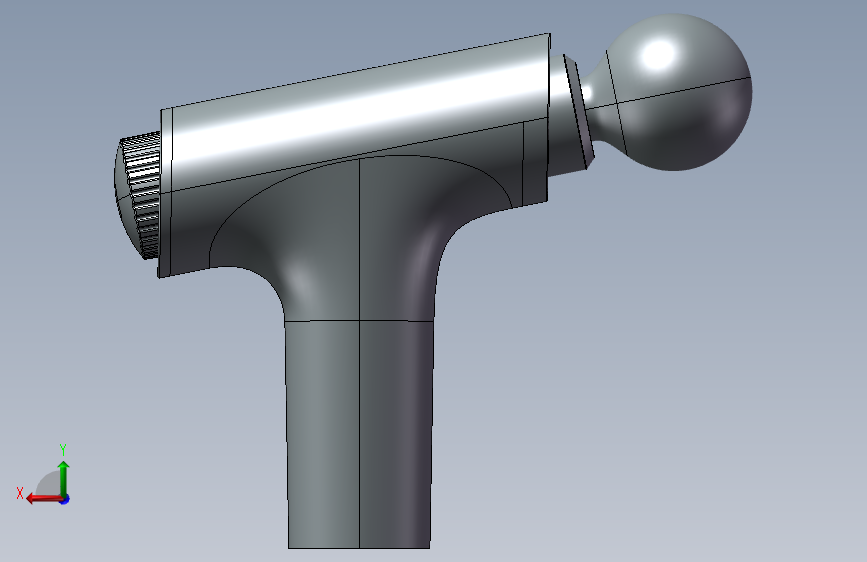

平面图

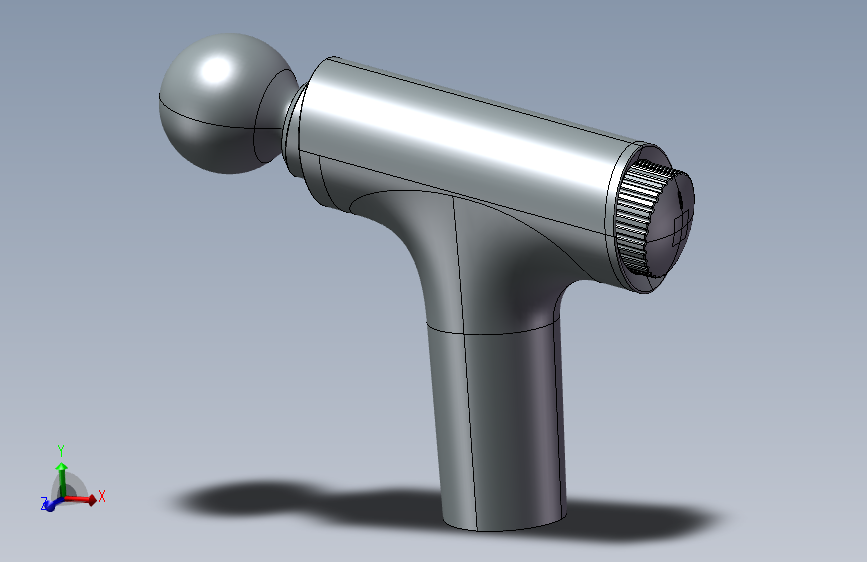

3D视图

文件列表

#	文件名称	文件大小
1	17481255436926.zip	154.30M
2	E101手板打样清单_2021-04-05A.xls	978.00K
3	筋膜枪_开发资料_2021-03-30.pptx	6.00M
4	筋膜枪企业标准2020.pdf	5.15M
5	运弘达_BLDC4817-004电机承认书.pdf	458.19K
6	E101-B-001_铝合金连接件_2021-04-05-模型.pdf	129.94K
7	E101-B-001_铝合金连接件_2021-04-05.dwg	308.77K
8	E101-B-003_凸轮_2021-04-05-模型.pdf	127.79K
9	E101-B-003_凸轮_2021-04-05.dwg	320.16K
10	E101-B-004_旋钮弹簧_2021-04-05-模型.pdf	121.17K
11	E101-B-004_旋钮弹簧_2021-04-05.dwg	287.83K

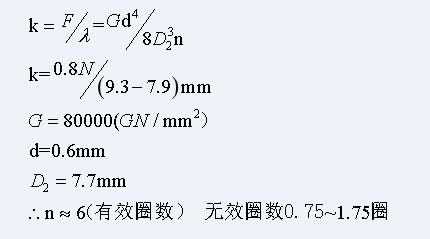

12	弹簧计算.png	7.14K
13	E101-A-101_底壳组件_2021-04-03-模型.pdf	59.87K
14	E101-A-101_底壳组件_2021-04-03.dwg	622.50K
15	E101-A-102_后壳组件_2021-04-03-模型.pdf	98.06K
16	E101-A-102_后壳组件_2021-04-03.dwg	844.96K
17	E101-A-103_电机组件_2021-04-03-模型.pdf	62.48K
18	E101-A-103_电机组件_2021-04-03.dwg	649.52K
19	E101-A-104_头部组件_2021-04-03-模型.pdf	68.00K
20	E101-A-104_头部组件_2021-04-03.dwg	674.49K
21	E101-A-105_曲柄组件_2021-04-03-模型.pdf	81.06K
22	E101-A-105_曲柄组件_2021-04-03.dwg	644.27K
23	E101-A-106_按摩头组件_2021-04-03-模型.pdf	55.91K
24	E101-A-106_按摩头组件_2021-04-03.dwg	594.55K
25	E101-A-107_电池组件_2021-04-03-模型.pdf	55.95K
26	E101-A-107_电池组件_2021-04-03.dwg	602.43K
27	E101_筋膜枪_2021-04-03.dwg	450.71K
28	E101_筋膜枪_2021-04-03.pdf	83.01K
29	E101-W-001_背胶_2021-04-03-模型.pdf	117.61K
30	E101-W-001_背胶_2021-04-03.dwg	254.07K
31	01_上壳.prt.19	3.41M
32	02_下壳.prt.34	4.51M
33	031_底壳.prt.13	935.35K
34	032_pcba-micro充电口.prt.5	327.02K
35	033_底壳软垫.prt.5	217.61K
36	034_背胶.prt.2	193.80K
37	03_底壳.asm.7	368.18K
38	041_后壳装饰件.prt.8	1.20M
39	042_旋钮外壳.prt.20	4.95M
40	043_指示灯.prt.5	385.93K
41	044_指示灯pcba.prt.4	256.99K
42	045_pcba.prt.4	454.61K
43	045_旋钮组件-内壳b.prt.21	2.17M
44	046_pcba安装板.prt.9	2.51M
45	046_旋钮组件-内壳a2.prt.12	1.17M
46	047_弹簧.prt.4	245.39K
47	047_弹簧.prt.5	241.83K
48	047_旋钮组件_内壳a1.prt.12	1.27M
49	047_旋钮组件_内壳a1.prt.13	1.27M
50	04_后壳组件.asm.25	753.82K
51	04_后壳组件_skel.prt.1	304.57K
52	051_电机主体.prt.6	385.38K
53	052_电机主轴.prt.6	402.08K
54	053_电机固定架.prt.11	2.44M
55	054_硅胶塞.prt.8	806.36K
56	055_硅胶塞2.prt.2	189.50K
57	05_电机.asm.17	228.96K
58	061_头部装饰件.prt.22	2.79M
59	062_pom套筒.prt.10	363.40K
60	063_硅胶套筒.prt.9	270.75K
61	064_结构固定环.prt.17	1.24M
62	065_铝盒套筒.prt.3	159.95K
63	06_头部组件.asm.15	135.37K
64	071_凸轮_铝合金.prt.5	401.25K
65	072_轴承-5-16-5.prt.4	106.04K
66	073_轴承-9-4-h4.prt.3	213.47K
67	074_轴承支架.prt.7	1.08M
68	07_传动结构.asm.18	143.34K
69	081_硅胶按摩头.prt.7	233.29K
70	082_钨金轴套筒.prt.5	279.60K
71	083_铝合金连接件.prt.5	422.66K
72	08_按摩头.asm.13	113.61K
73	091_电池.prt.2	95.50K
74	092_电池卡扣.prt.6	882.46K
75	09_电池组件.asm.5	86.98K
76	10_ks00.stp	4.85M
77	10_ks导出.prt.1	2.65M
78	10_ks导出__out.log.1	5.94K
79	2cf7e94d211c563baed269cf2f2e421.drw	39.11K
80	AnalysisDefinition1.pbk	321.98K
81	AnalysisDefinition2.pbk	625.49K
82	AnalysisDefinition3.pbk	322.31K
83	AnalysisDefinition4.pbk	321.98K
84	drw0001.drw.1	154.20K
85	drw0002.drw.1	150.47K
86	drw0003.dxf	257.37K
87	drw0003_dxf__out.log.3	2.68K
88	global_intf.inf.9	208B
89	总装_00_筋膜枪.asm.48	674.76K
90	总装_00_筋膜枪_skel.prt.2	1.69M
91	00_alves筋模枪.asm.1	77.81K
92	00_alves筋模枪_skel.prt.1	1.37M
93	00_alves筋模枪_skel.prt.2	1.31M
94	00_alves筋模枪_skel.prt.3	1.45M

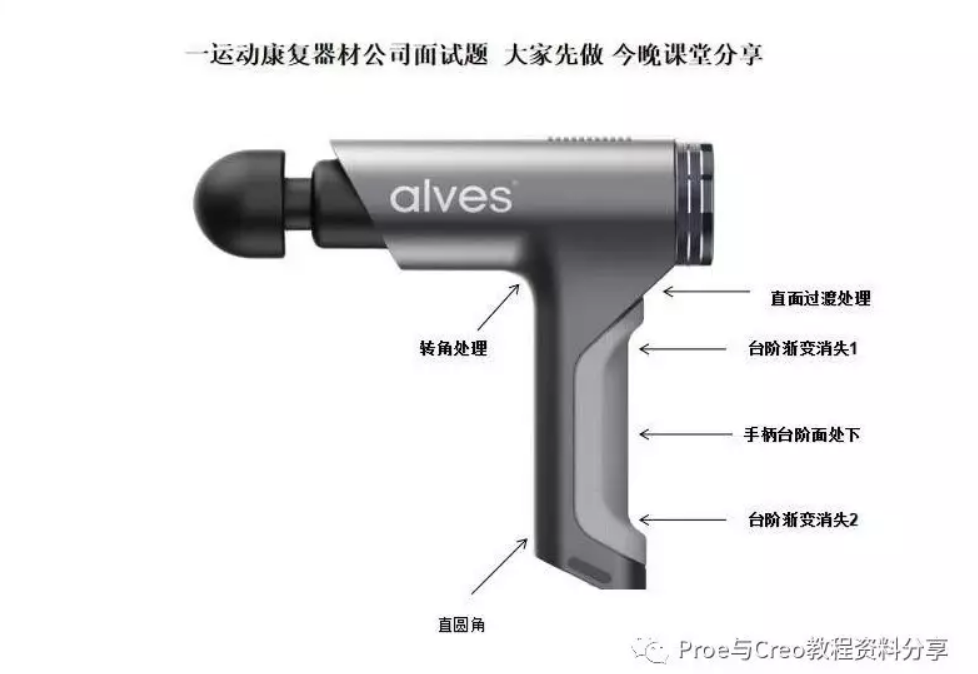

95	alves筋模枪建模设计.jfif	25.26K
96	RIGHT.png	183.61K
97	right.webp	14.11K

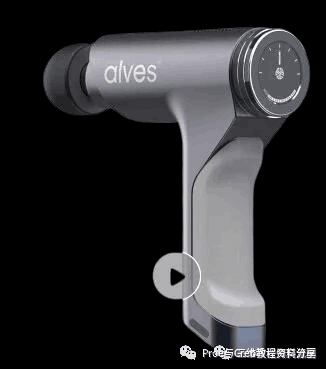

98	SIDE.png	14.59K
99	side.webp	11.41K

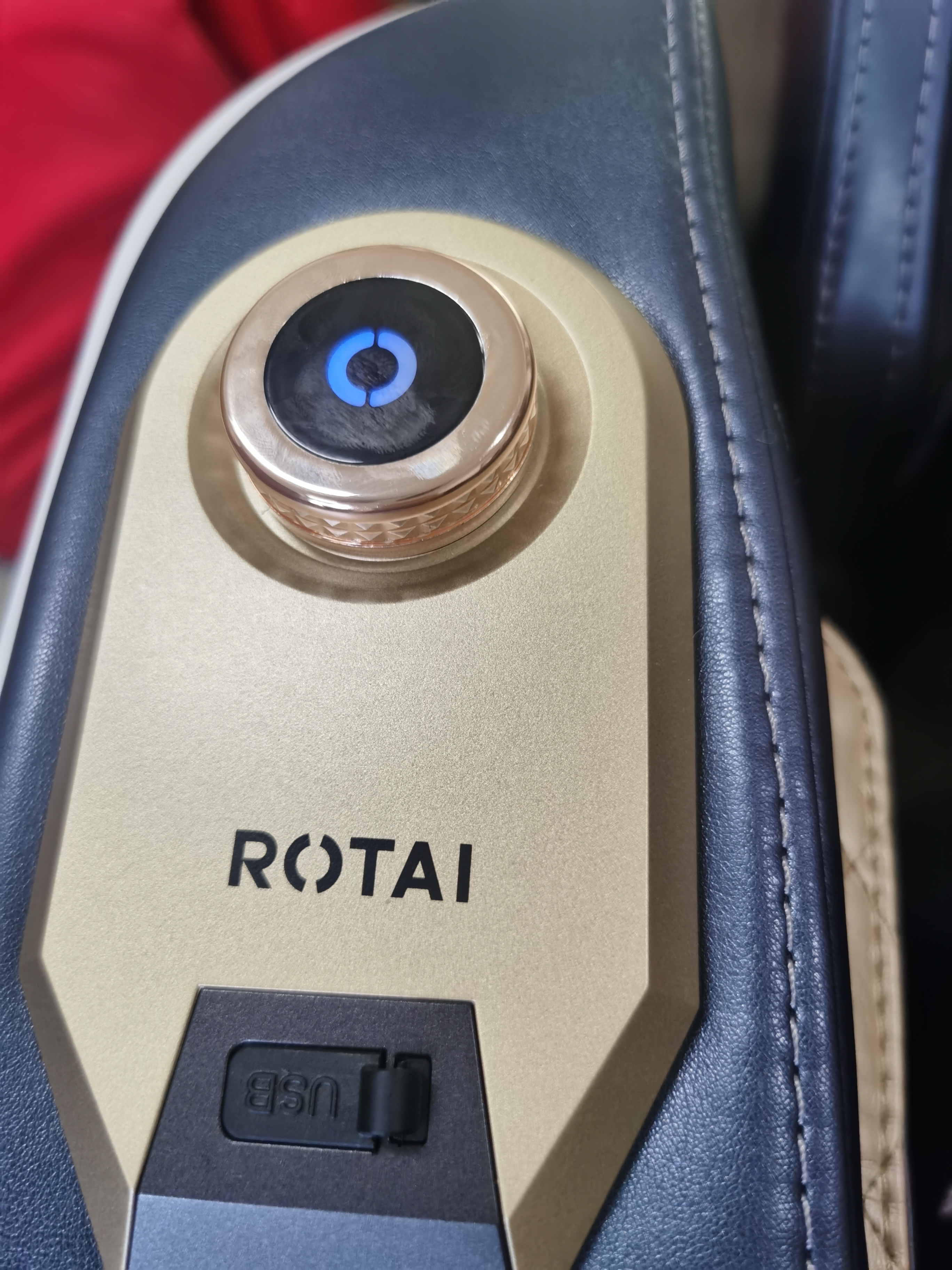

100	荣泰旋钮按键01.jpg	2.60M

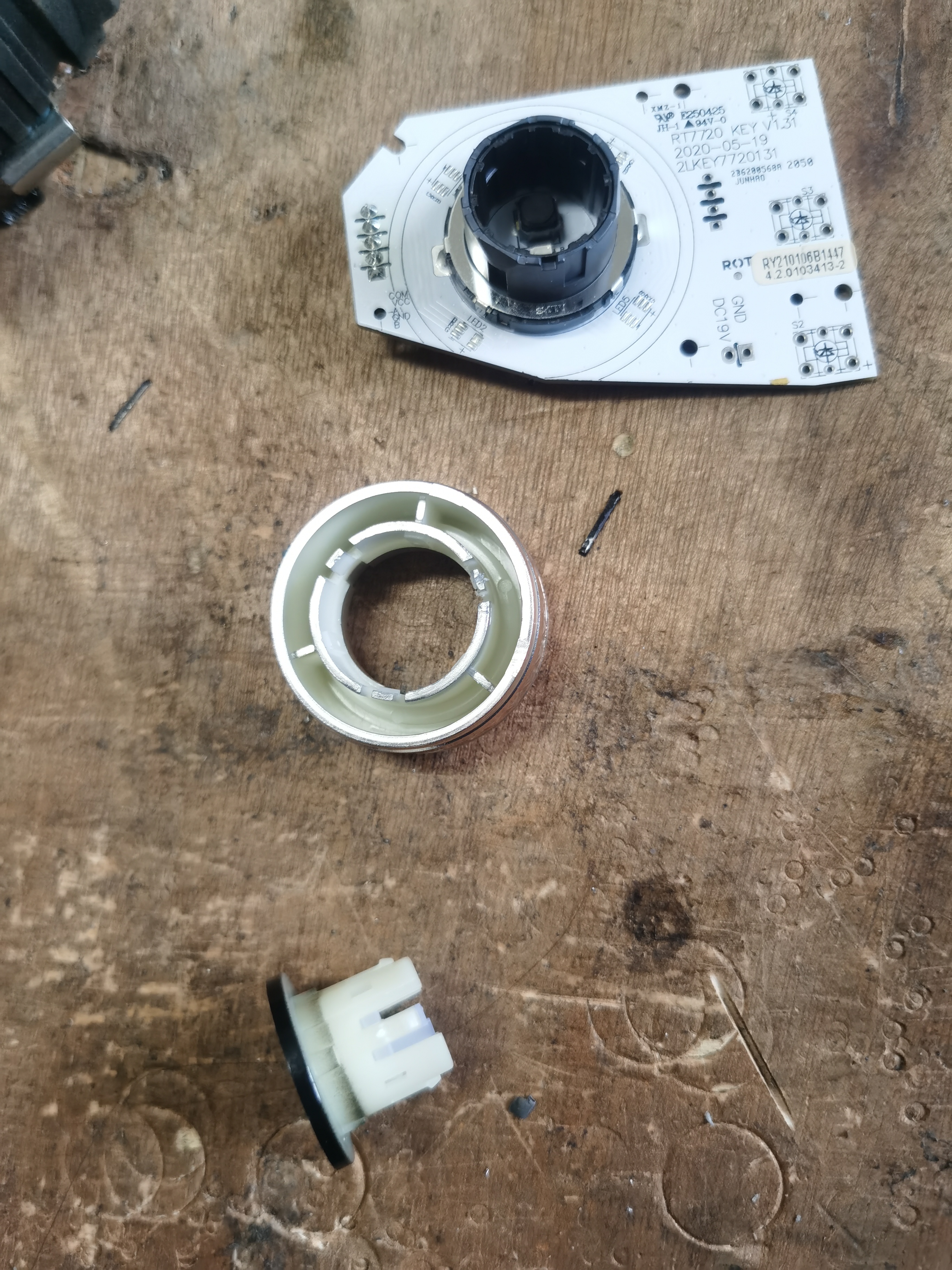

101	荣泰旋钮按键02.jpg	3.30M

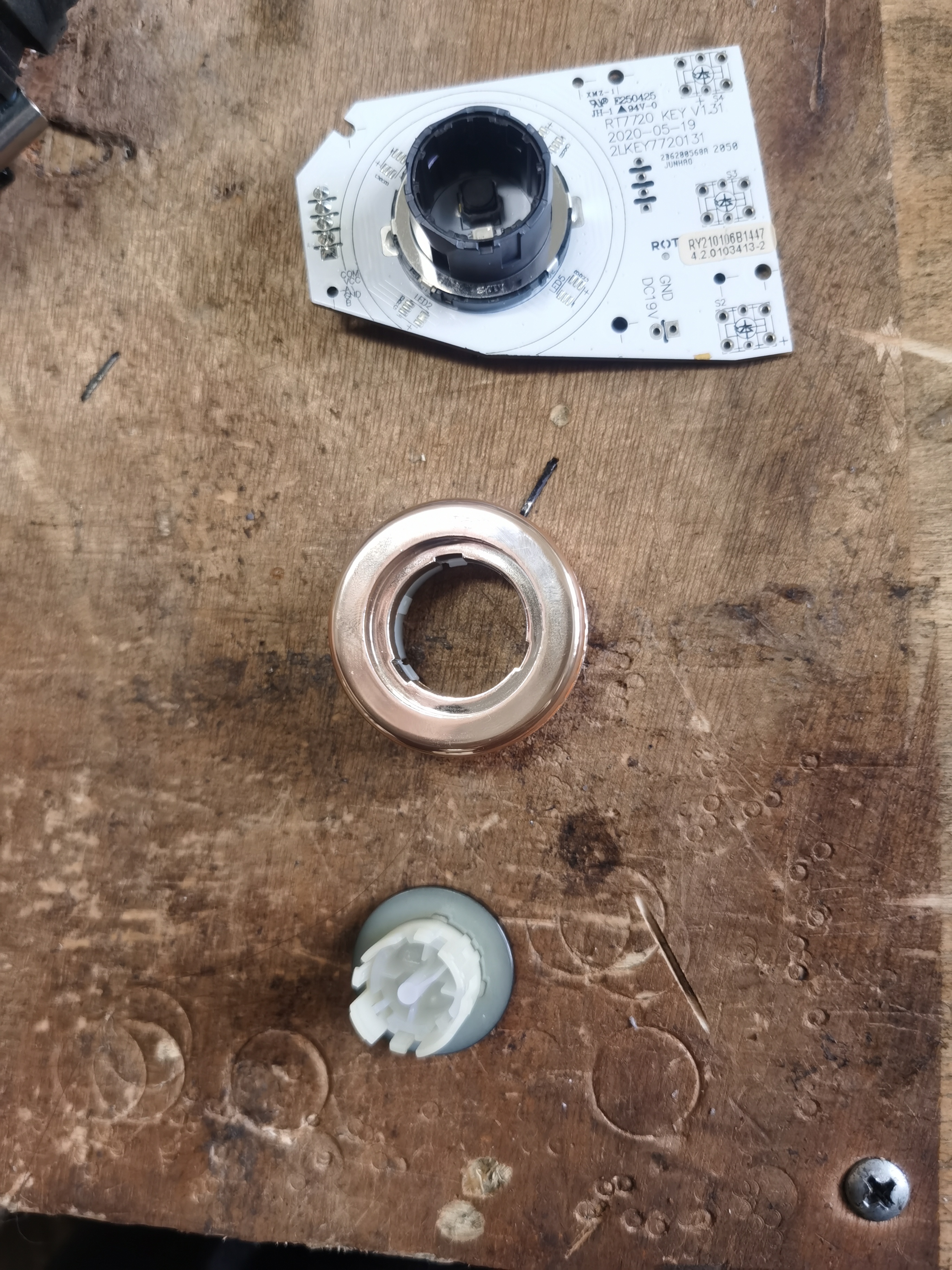

102	荣泰旋钮按键03.jpg	3.37M

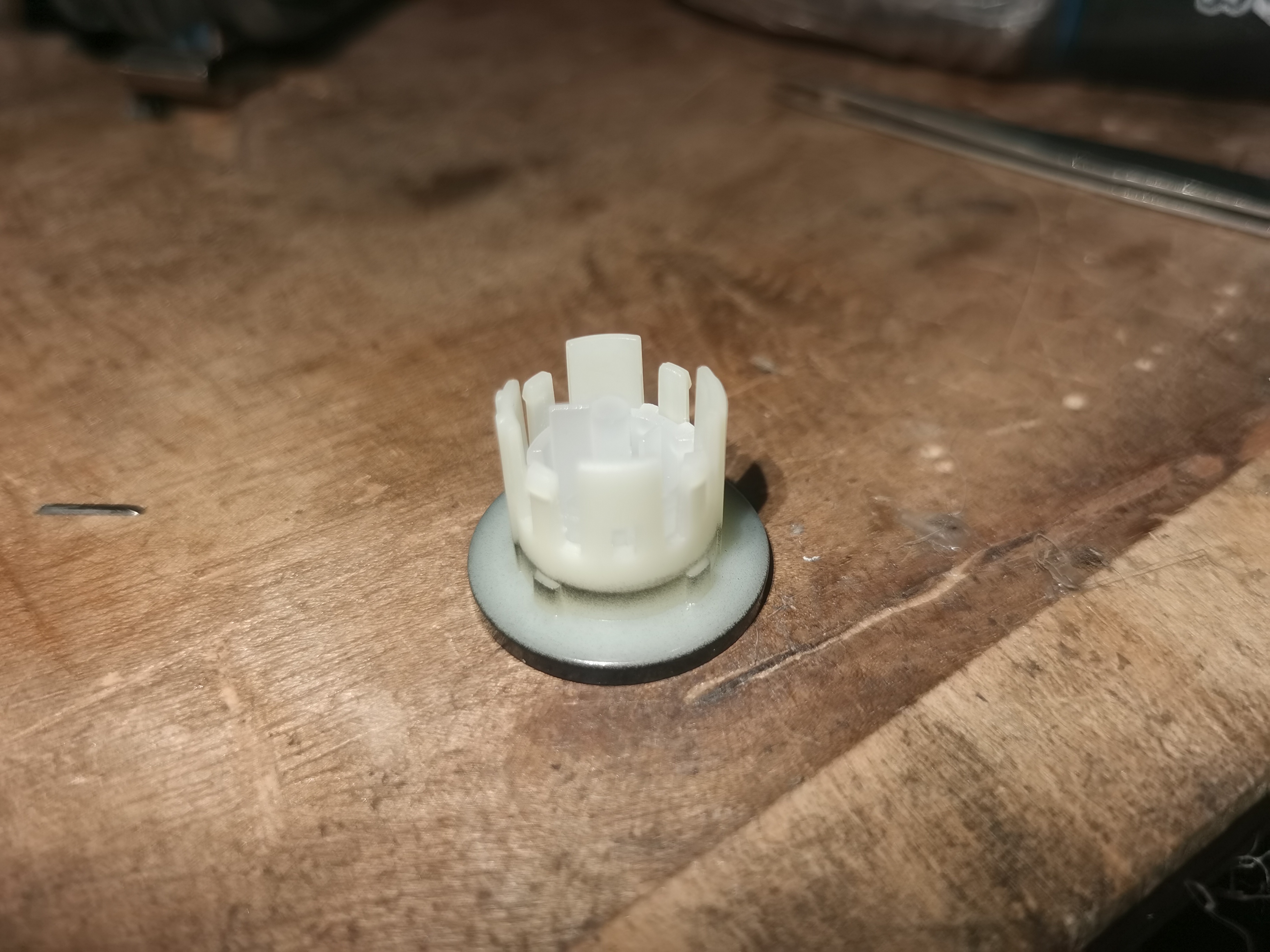

103	荣泰旋钮按键04.jpg	2.04M
104	01_00.prt	1.01M
105	01_00.SLDPRT	609.43K
106	02_00.prt	4.21M
107	02_00.SLDPRT	1.39M
108	031_00.prt	653.03K
109	031_00.SLDPRT	396.85K
110	032_PCBA-MICRO000.prt	266.47K
111	032_PCBA-MICRO000.SLDPRT	164.39K
112	033_0001.prt	102.12K
113	033_0001.SLDPRT	60.83K
114	034_00.prt	79.63K
115	034_00.SLDPRT	46.71K
116	03_00_ASM.prt	71.79K
117	03_00_ASM.SLDASM	38.00K
118	041_0001.prt	498.45K
119	041_0001.SLDPRT	277.28K
120	042_0001.prt	2.11M
121	042_0001.SLDPRT	1.14M
122	043_000.prt	116.50K
123	043_000.SLDPRT	63.67K
124	044_PCBA000.prt	97.94K
125	044_PCBA000.SLDPRT	59.41K
126	045_-B0001.prt	833.97K
127	045_-B0001.SLDPRT	442.91K
128	045_PCBA.prt	147.95K
129	045_PCBA.SLDPRT	89.90K
130	046_-A20001.prt	706.87K
131	046_-A20001.SLDPRT	410.87K
132	046_PCBA000.prt	738.26K
133	046_PCBA000.SLDPRT	425.51K
134	047_00.prt	202.85K
135	047_00.SLDPRT	83.93K
136	047__A10001.prt	836.01K
137	047__A10001.SLDPRT	459.19K
138	04_0001_ASM.prt	84.15K
139	04_0001_ASM.SLDASM	41.28K
140	04__SKEL0001.prt	61.39K
141	051_0001.prt	179.12K
142	051_0001.SLDPRT	80.84K
143	052_0001.prt	112.67K
144	052_0001.SLDPRT	61.22K
145	053_0001.prt	993.94K
146	053_0001.SLDPRT	488.47K
147	054_000.prt	139.71K
148	054_000.SLDPRT	70.34K
149	055_2000.prt	122.38K
150	055_2000.SLDPRT	63.63K
151	05_00_ASM.prt	74.19K
152	05_00_ASM.SLDASM	39.13K
153	061_0001.prt	946.72K
154	061_0001.SLDPRT	505.24K
155	062_POM00.prt	120.05K
156	062_POM00.SLDPRT	65.72K
157	063_0001.prt	89.12K
158	063_0001.SLDPRT	49.85K
159	064_0001.prt	1.50M
160	064_0001.SLDPRT	553.10K
161	065_0001.prt	80.42K
162	065_0001.SLDPRT	47.76K
163	06_0001_ASM.prt	73.19K
164	06_0001_ASM.SLDASM	38.21K
165	071__0001.prt	198.92K
166	071__0001.SLDPRT	91.69K
167	072_-5-16-500.prt	89.97K
168	072_-5-16-500.SLDPRT	53.43K
169	073_-9-4-H400.prt	98.46K
170	073_-9-4-H400.SLDPRT	50.10K
171	074_0001.prt	479.15K
172	074_0001.SLDPRT	129.58K
173	07_0001_ASM.prt	72.62K
174	07_0001_ASM.SLDASM	39.36K
175	081_0001.prt	199.30K
176	081_0001.SLDPRT	57.93K
177	082_0001.prt	119.82K
178	082_0001.SLDPRT	61.07K
179	083_0001.prt	175.41K
180	083_0001.SLDPRT	86.59K
181	08_000_ASM.prt	69.97K
182	08_000_ASM.SLDASM	38.29K
183	091_00.prt	94.05K
184	091_00.SLDPRT	58.25K
185	092_0001.prt	1.15M
186	092_0001.SLDPRT	413.74K
187	09_0001_ASM.prt	68.58K
188	09_0001_ASM.SLDASM	38.06K
189	_00_0001_asm.stp	29.70M
190	_00_0001_asm_stp.prt	612.96K
191	_00_0001_asm_stp.SLDASM	5.58M
192	_00__SKEL0001.prt	61.61K
