混频器（ID:21790）

机械设备 / 非标机械 / 混频器

©非原创

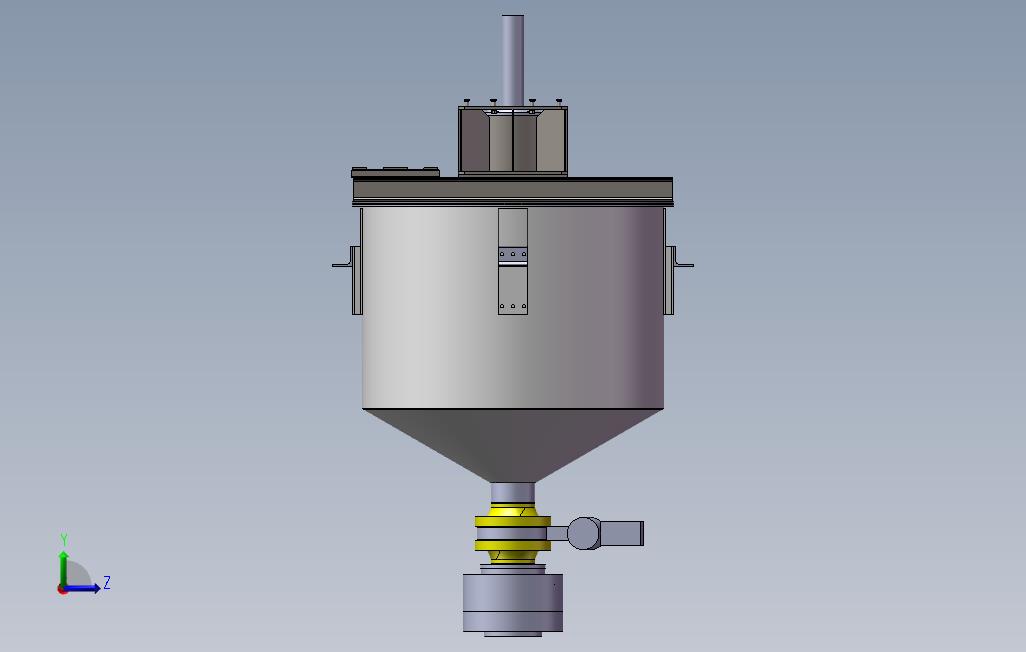

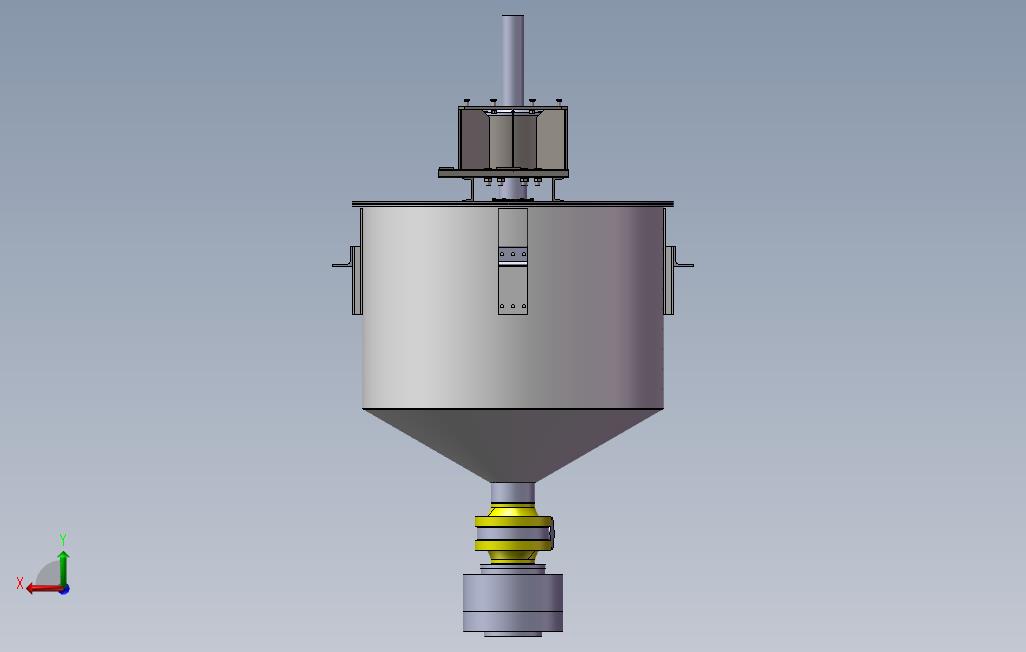

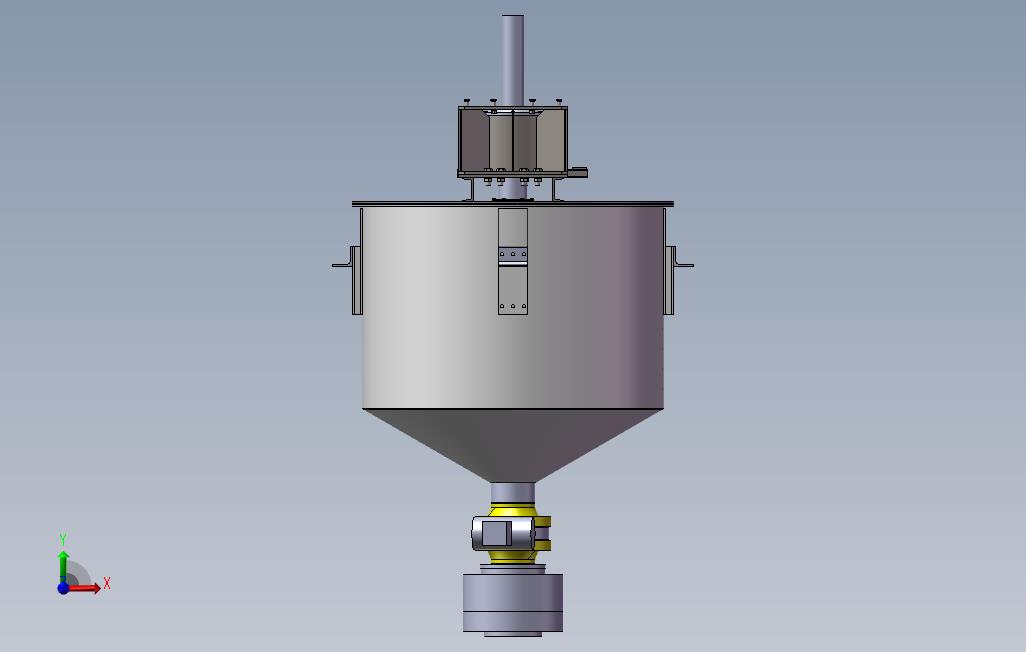

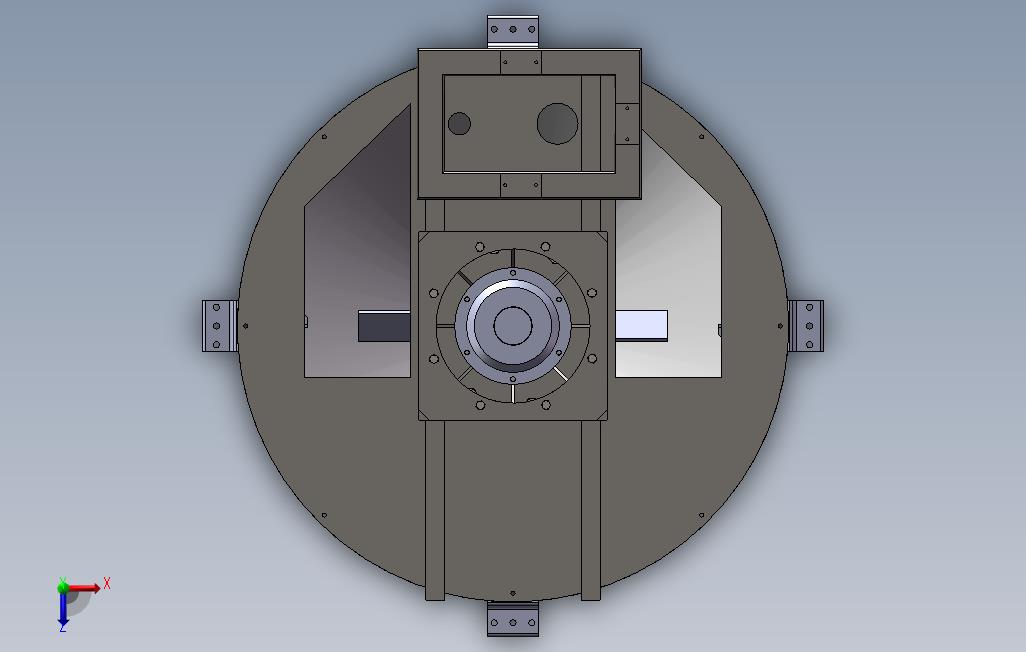

平面图

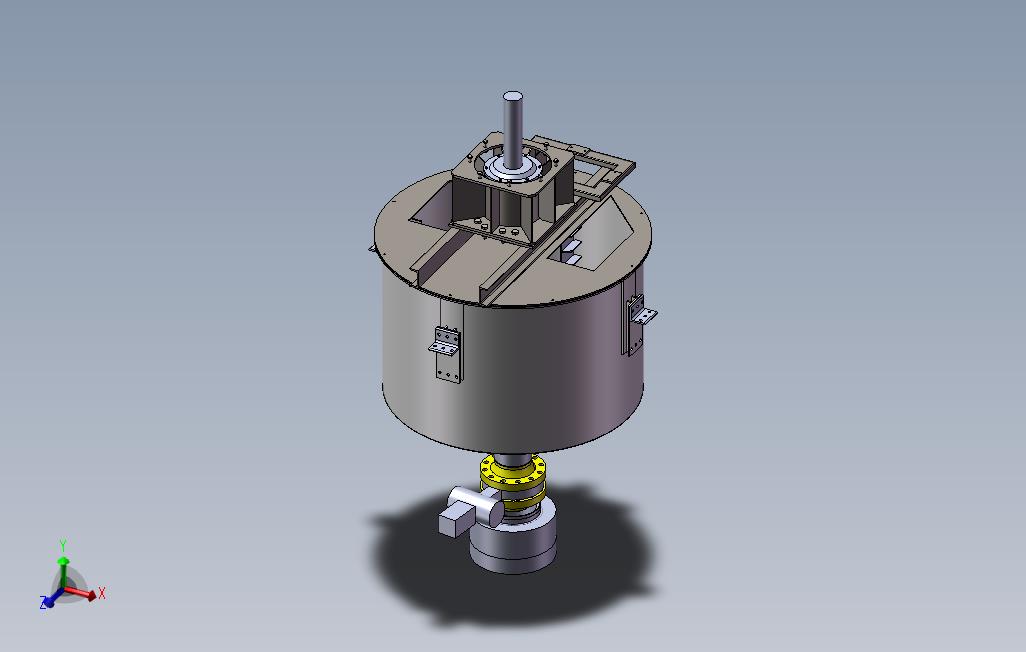

3D视图

文件列表

#	文件名称	文件大小
1	Assem Mixer .SLDASM	1.91M
2	baffle1.sldprt	52.00K
3	baffle2.sldprt	53.00K
4	blade belt1.sldprt	65.50K
5	blde 2.sldprt	57.00K
6	blde1.sldprt	52.50K
7	Curved Spring Lock Washer_DIN_Spring washer DIN 128 - A12.sldprt	58.00K
8	curved spring lock washer_din_Spring washer DIN 128 - A16.sldprt	58.50K
9	curved spring lock washer_din_Spring washer DIN 128 - A22.sldprt	59.00K
10	curved spring lock washer_din_Spring washer DIN 128 - A8.sldprt	58.00K
11	double unp120.sldprt	99.50K
12	down housing.sldprt	54.50K
13	frame-.sldprt	55.50K
14	Hex Bolt GradeAB_DIN_ISO 4014 - M8 x 40 x 40-N.sldprt	59.50K
15	Hex Bolt GradeB_DIN_ISO 4015 - M8 x 30 x 30-N.sldprt	57.50K
16	Hex Head Structural Bolt_DIN_DIN 7990 - M12 x 60-WN.sldprt	57.50K
17	hex head structural bolt_din_DIN 7990 - M16 x 60-WN.sldprt	58.00K
18	Hex Nut GradeC_DIN_Hexagon Nut ISO 4034 - M12 - N.sldprt	60.50K
19	hex nut gradec_din_Hexagon Nut ISO 4034 - M16 - N.sldprt	60.50K
20	hex nut gradec_din_Hexagon Nut ISO 4034 - M8 - N.sldprt	60.50K
21	Hex Nut High Strength_DIN_Hexagon Nut DIN 6915 - M22 - N.sldprt	60.50K
22	High Strength Hex Head Bolt_DIN_DIN 6914 - M22 x 70 x 32-N.sldprt	62.50K
23	housing body.sldprt	98.00K
24	housing cap.sldprt	55.50K
25	inner spacer.sldprt	51.00K
26	inner spacer1.sldprt	51.00K
27	Lock nut HM3060.sldprt	70.50K
28	Lock washer M24.sldprt	52.50K
29	Locl nut KM24.sldprt	60.00K
30	outer spacer.sldprt	69.50K
31	outer spacer1.sldprt	51.00K
32	parallel_din_Parallel key A25 x 14 x 200 DIN 6885.sldprt	60.50K
33	pipe special.sldprt	52.50K
34	pipe12inch.sldprt	51.00K
35	PL stand housing.sldprt	55.00K
36	pnuma wafer valve DN200-PN10 -8INCH.MIRAB.sldprt	60.00K
37	seal ,RDI 011576,HUNGER.sldprt	51.00K
38	seal ,RDI 022760,HUNGER.sldprt	51.00K
39	seal flang.sldprt	52.50K
40	seal housing.sldprt	54.00K
41	seal RDI-011541-Hunger.sldprt	51.00K
42	seal RDI-011550-Hunger.sldprt	51.00K
43	shaft.sldprt	65.50K
44	Spring Lock Washer 2_DIN_DIN 6905-9.3-FSt.sldprt	62.50K
45	Tank body.sldprt	106.50K
46	taper roller bearing_skf_SKF - 32324 - Full,DE,AC,Full.sldprt	163.50K
47	taper roller bearing_skf_SKF - 32960 - Full,DE,AC,Full.sldprt	291.00K
48	up housing.sldprt	55.00K
49	up ring.sldprt	53.00K
50	upper flang seal.sldprt	53.50K
51	upper ring.sldprt	58.00K
52	welding neck flange8inch,sch400_WNeck Flange 400-NPS8.sldprt	58.00K
