G030910-光谱 3847 - 紫外线 2016=机器人机械臂（ID:2229033）

机械设备 / 智能装置 / G030910-光谱 3847 - 紫外线 2016=机器人机械臂

©非原创

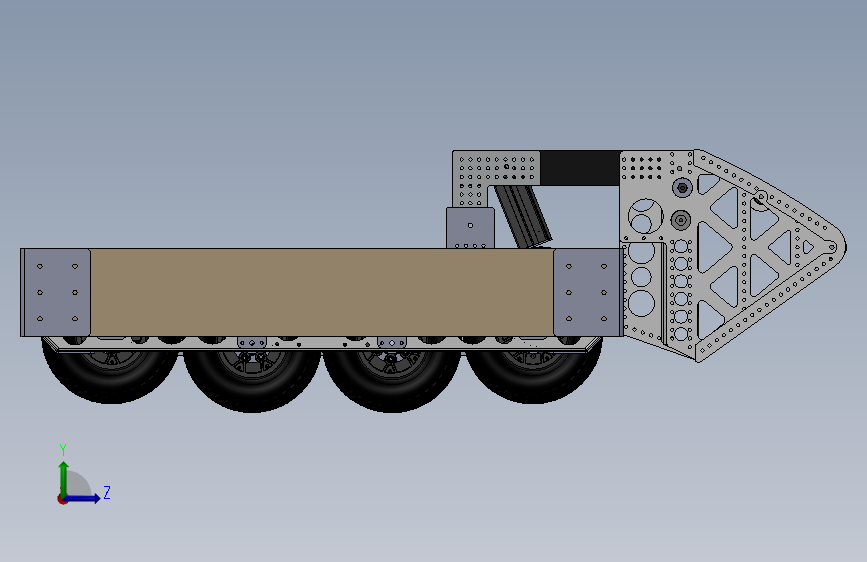

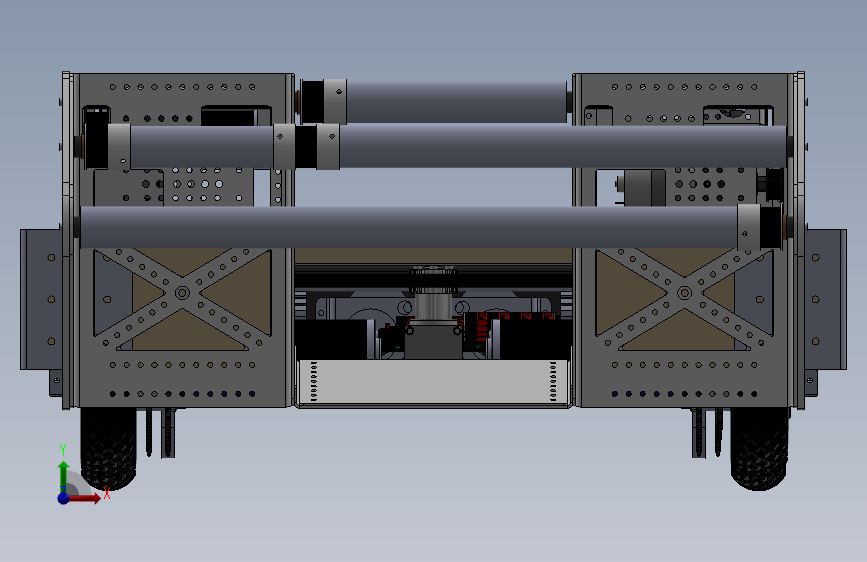

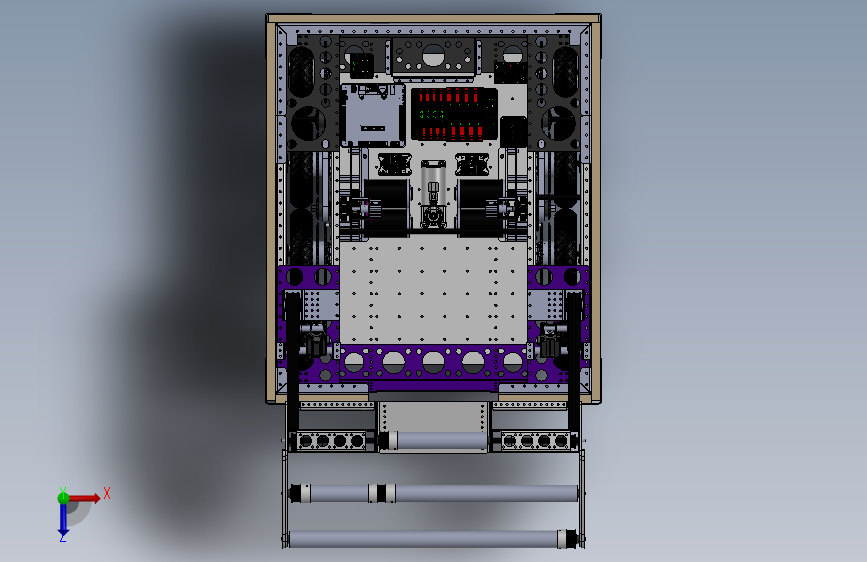

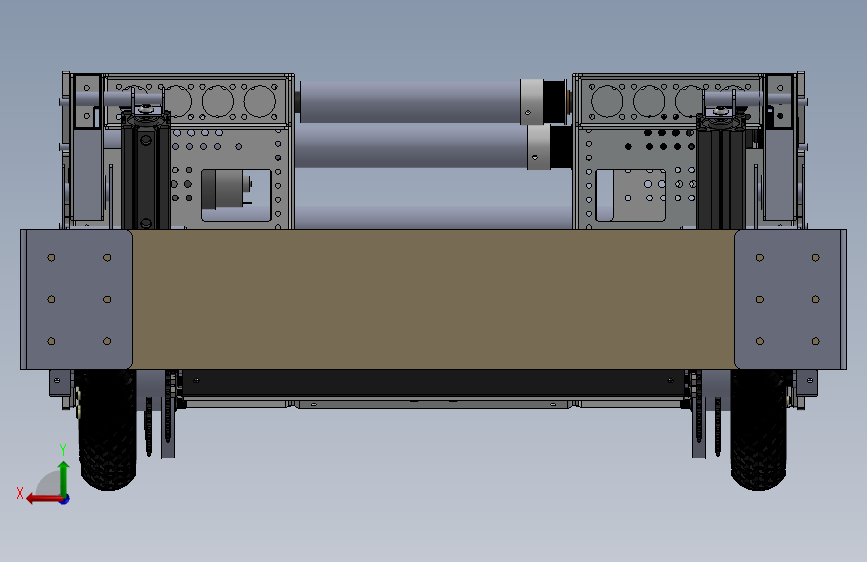

平面图

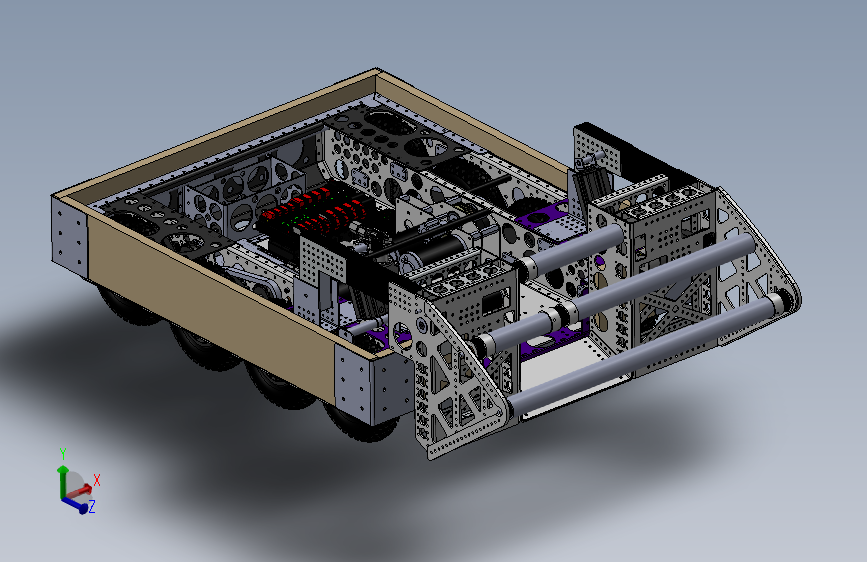

3D视图

文件列表

#	文件名称	文件大小
1	17491542777504.zip	582.63M
2	CADUltraviolet.PNG	111.70K
3	SpectrumUltraviolet2016.STEP	301.34M
4	.5Hex.125Spacer217-2758.SLDPRT	171.00K
5	.5Hex.25Spacer217-3259.SLDPRT	218.00K
6	0.5HexID1.125ODBearingR6VEX-217-2734.SLDPRT	139.50K
7	0.5ID0.625OD0.375inflangedbushingMcMaster6338K417.SLDPRT	132.50K
8	0.5ID1.125ODBearingVEX-217-2731.SLDPRT	137.00K
9	10-24pemnut.09inchthickMcMaster95185A176.SLDPRT	717.00K
10	12-VoltMini-Compressor.SLDPRT	2.01M
11	14.CIM.VP217-3416.SLDPRT	200.00K
12	18tx9mm5mmHTDpulleyvex217-3225.SLDPRT	329.00K
13	2016Radio.SLDPRT	107.50K
14	217-2428-005Rev1.sldprt	47.50K
15	217-2428-007Rev1.sldprt	40.50K
16	217-2428-008Rev1.sldprt	61.50K
17	217-2428-011Rev2.sldprt	128.50K
18	217-2428-016Rev2_Spur01.sldprt	161.50K
19	217-2428-022Rev1.sldprt	42.00K
20	217-2428-028Rev1_97633A250.sldprt	47.00K
21	217-2709-001_44tSteel.sldprt	185.00K
22	217-2709-101Rev1.sldasm	129.50K
23	217-2731.sldprt	58.50K
24	217-2778-NCQ8A075-050M_NCQ8Tube_075A.sldprt	69.50K
25	217-2789.sldprt	541.50K
26	217-2790-001Rev1.sldasm	81.50K
27	217-2790-002Rev1.sldprt	70.00K
28	217-2790-003Rev1.sldprt	64.50K
29	217-2790-004Rev1.sldprt	44.50K
30	217-2792-001-44-34.sldasm	107.50K
31	24t15x9mmpulleyVex217-4101.SLDPRT	409.50K
32	3515TDoubleHubSprocket.5Hex217-2656.SLDPRT	469.50K
33	3544TPlateSprocket217-2647.SLDPRT	592.00K
34	40.hex375.VP217-2707.SLDPRT	470.00K
35	4inDiameter2inWideNeopreneDriveRoller2476K351.SLDPRT	229.50K
36	8inPneumaticWheelam-0970.SLDPRT	6.58M
37	8mm_spring_clip.SLDPRT	212.50K
38	Boulder.SLDPRT	199.50K
39	cylinder_sda-20x25.SLDASM	422.00K
40	cylinder_sda-20x25_01.sldprt	82.00K
41	cylinder_sda-20x25_02.sldprt	47.50K
42	GearboxBearingSpacer.SLDPRT	114.50K
43	M6-1x14mmbuttonheadscrewMcMaster92095A227.SLDPRT	923.00K
44	M8-1.25x14mmbuttonheadscrewMcMaster92095A494.SLDPRT	797.50K
45	MainBreaker.SLDPRT	1.53M
46	McMaster-Carr-91780A915.sldprt	43.50K
47	McMaster-Carr-91780A935.sldprt	44.50K
48	Mirror217-2428-005Rev1.sldprt	108.50K
49	Mirror217-2428-007Rev1.sldprt	90.00K
50	Mirror217-2428-008Rev1.sldprt	91.00K
51	Mirror217-2428-011Rev2.sldprt	100.00K
52	Mirror217-2428-022Rev1.sldprt	94.00K
53	Mirror217-2428-028Rev1_97633A250.sldprt	106.00K
54	Mirror217-2709-001_44tSteel.sldprt	364.00K
55	Mirror217-2709-101Rev1.sldasm	84.50K
56	Mirror217-2731.sldprt	94.50K
57	Mirror217-2778-NCQ8A075-050M_NCQ8Tube_075A.sldprt	161.50K
58	Mirror217-2789.sldprt	169.00K
59	Mirror217-2790-001Rev1.sldasm	87.50K
60	Mirror217-2790-002Rev1.sldprt	116.00K
61	Mirror217-2790-003Rev1.sldprt	151.00K
62	Mirror217-2790-004Rev1.sldprt	101.00K
63	Mirror217-2792-001-44-34.sldasm	106.50K
64	MirrorMcMaster-Carr-91780A915.sldprt	98.00K
65	MirrorMcMaster-Carr-91780A935.sldprt	100.00K
66	MirrorPEMZI10-32x0.091.sldprt	93.50K
67	MirrorS14-DGB-A001_2CIM.sldasm	1.64M
68	MirrorS14-DGB-P002.sldprt	107.00K
69	MirrorS14-DGB-S001.sldprt	126.50K
70	MirrorS14-DGB-S002.sldprt	125.00K
71	MirrorS14-DGB-S003.sldprt	115.00K
72	MirrorS14-DGB-S004.sldprt	103.50K
73	MirrorS14-DGB-S005.sldprt	100.00K
74	MirrorSHCBO10-32x0.500FT.sldprt	99.50K
75	MirrorShooterSidePlateRev1.SLDPRT	130.00K
76	MirrorSP16-IN-11-PIntakeWedge.SLDPRT	342.50K
77	MirrorVEXpro-217-2000.sldprt	131.00K
78	MirrorVEXpro-217-2614.sldprt	167.50K
79	MirrorVEXpro-217-2699.sldprt	185.50K
80	MirrorVEXpro-217-2703.sldprt	254.50K
81	MirrorVEXpro-217-2733.sldprt	95.50K
82	MirrorVEXpro-217-2735.sldprt	100.50K
83	MirrorVEXpro-217-3256.sldprt	98.00K
84	PCM.SLDPRT	9.53M
85	PDP.SLDPRT	19.64M
86	PEMZI10-32x0.091.sldprt	42.00K
87	REVServoREV-41-1097.SLDPRT	1.08M
88	RoboRIO.SLDPRT	20.70M
89	S14-DGB-A001_2CIM.sldasm	2.33M
90	S14-DGB-P002.sldprt	67.50K
91	S14-DGB-S001.sldprt	242.00K
92	S14-DGB-S002.sldprt	168.50K
93	S14-DGB-S003.sldprt	268.50K
94	S14-DGB-S004.sldprt	46.50K
95	S4encoder.SLDPRT	146.50K
96	SDA32x75.SLDASM	237.50K
97	SDA32x75withpivotmountbracket.SLDASM	763.00K
98	SHCBO10-32x0.500FT.sldprt	44.50K
99	Shooter2.SLDASM	429.50K
100	ShooterSidePlateRev1.SLDPRT	390.50K
101	ShooterSketchAssembly.SLDASM	28.76M
102	SP-01-SVersaplaentarySpacerPlateMultipleConfigurations.SLDPRT	428.50K
103	SP16-DT-01-SChassisSideRails.SLDPRT	1.74M
104	SP16-DT-02-SAxleSupport.5inch.SLDPRT	197.50K
105	SP16-DT-03-SAxleSupportBack.5inch.SLDPRT	198.50K
106	SP16-DT-04-SFrontandBackRail.SLDPRT	3.84M
107	SP16-DT-05-S-MBottomReinforcement.SLDPRT	149.00K
108	SP16-DT-05-SBottomReinforcement.SLDPRT	247.50K
109	SP16-DT-06-SBatteryTray.SLDPRT	803.00K
110	SP16-DT-07-SBatteryTrayBack.SLDPRT	333.50K
111	SP16-DT-08-LWheelAxle.SLDPRT	109.00K
112	SP16-DT-09-RBellyPan.SLDPRT	1.11M
113	SP16-DT-10-LChassisBackSupportShaft.SLDPRT	108.00K
114	SP16-DT-11-SBumperFront.SLDPRT	1.40M
115	SP16-DT-12-S-MBumperSide.SLDPRT	249.50K
116	SP16-DT-12-SBumperSide.SLDPRT	1.65M
117	SP16-DT-13-3DWheelHubSpacer.5025inch.SLDPRT	150.00K
118	SP16-DT-14-3DWheelHubSpacer.4945inch.SLDPRT	147.00K
119	SP16-DT-15-3DWheelHubSpacer1.166inch.SLDPRT	149.50K
120	SP16-DT-16-LMiddleSupportAxle.SLDPRT	125.00K
121	SP16-DT-17-SBumperCorners.SLDPRT	286.50K
122	SP16-DT-18-PWheeltoGearboxChainpath56t.SLDPRT	137.50K
123	SP16-DT-19-3DWheelAxleSpacer.1875inch.SLDPRT	113.50K
124	SP16-DT-20-LDrilled15tDoubleSprocket.SLDPRT	607.00K
125	SP16-DT-21-PBumperWood.SLDPRT	263.50K
126	SP16-Dt-22-3DWheelAxleSpacer.859inch.SLDPRT	137.50K
127	SP16-DT-24-LSideSupportAxle.SLDPRT	133.00K
128	SP16-DT-26-COTS.5inchHexSpacer.25inch.SLDPRT	135.50K
129	SP16-DT-27-COTSFlangedBushing0.5ID0.625OD0.375in.SLDPRT	135.50K
130	SP16-DT-28-COTS10-24x2.5insockethead.SLDPRT	1.45M
131	SP16-DT-29-COTS10-24x3.5insockethead.SLDPRT	1.03M
132	SP16-DT-30-COTS10-24LockNut.SLDPRT	759.00K
133	SP16-DT-31-COTS8inPneumaticWheel.SLDPRT	6.49M
134	SP16-DT-32-COTS3544TPlateSprocket.SLDPRT	524.00K
135	SP16-DT-33-COTS0.5ID1.125ODRoundBearing.SLDPRT	130.50K
136	SP16-DT-34-SElectronicsHutSidePanel.SLDPRT	1.01M
137	SP16-DT-35-SElectronicsHutTopPanel.SLDPRT	1.37M
138	SP16-DT-A-01Drivetrain.SLDASM	29.09M
139	SP16-DT-A-02BackPneumaticWheel.SLDASM	3.60M
140	SP16-DT-A-03MiddlePneumaticWheel.SLDASM	2.77M
141	SP16-DT-A-04FrontPneumaticWheel.SLDASM	2.75M
142	SP16-DT-A-0515tDoubleSprocketwith.375inchBushing.SLDASM	258.50K
143	SP16-EL-A-01.SLDASM	20.73M
144	SP16-GB-01-SOuterShifterPlate.SLDPRT	410.50K
145	SP16-GB-02-SMiddleShifterPlate.SLDPRT	263.00K
146	SP16-GB-03-SInnerShifterPlateLeft.SLDPRT	629.50K
147	SP16-GB-03-SInnerShiftPlateLeft.SLDPRT	242.00K
148	SP16-GB-05-S.125thick.875ID.97ODSpacerfor.375Bearing.SLDPRT	111.50K
149	SP16-GB-06-SBearingSpacer-mickeymousespacer.SLDPRT	119.50K
150	SP16-GB-08-R1.375ID1.75OD.0625ThickSpacer-Lexan.SLDPRT	110.50K
151	SP16-GB-09-SPneumaticcylinderplate.09inthick.SLDPRT	235.50K
152	SP16-GB-10-SPneumaticcylinderplate0.09Thick-ChinaVersion.SLDPRT	413.50K
153	SP16-GB-13-L0.375HexClusterShaft.SLDPRT	111.50K
154	SP16-IN-01-SMainIntakeSheetMetalSidePlate.SLDPRT	1.37M
155	SP16-IN-02-SIntakeInnerWallPlate.SLDPRT	797.00K
156	SP16-IN-03-SMainIntakeSupportMotorMount.SLDPRT	1.89M
157	SP16-IN-04-SIntakeSupportToporBottom.SLDPRT	602.50K
158	SP16-IN-05-SIntakeSupportRearArmBrace.SLDPRT	809.50K
159	SP16-IN-06-LIntakeLongTubeAxle.SLDPRT	99.00K
160	SP16-IN-07-LIntakeOuterShortTubeAxle.SLDPRT	116.00K
161	SP16-IN-08-LIntakeInnerShortTubeAxle.SLDPRT	121.50K
162	SP16-IN-09-SIntakeSupportBack.SLDPRT	1.01M
163	SP16-IN-10-SIntakeRamp.SLDPRT	709.00K
164	SP16-IN-11-PIntakeWedge.SLDPRT	141.00K
165	SP16-IN-12-PIntakeArmLong.SLDPRT	362.00K
166	SP16-IN-13-PIntakeArmShort.SLDPRT	225.50K
167	SP16-IN-14-SIntakeArmGuesset.SLDPRT	474.00K
168	SP16-IN-15-SIntakeArmPivotBracket.SLDPRT	463.00K
169	SP16-IN-17-SSDA32x75PivotMountBracket.SLDPRT	319.50K
170	SP16-IN-18-3DSDA32x75FrontMountBracket.SLDPRT	193.00K
171	SP16-IN-19-S-MIntakeActuatorPistonMountingBracket.SLDPRT	95.50K
172	SP16-IN-19-SIntakeActuatorPistonMountingBracket.SLDPRT	326.50K
173	SP16-IN-20-SIntakeArmGuessetINSIDE.SLDPRT	468.00K
174	SP16-IN-21-LPistonActuator.375RodForArm.SLDPRT	153.00K
175	SP16-IN-22-SIntakeArmPivotBracketLONG.SLDPRT	457.50K
176	SP16-IN-23-LIntakeActuatorPistonPivotMountTube.SLDPRT	113.00K
177	SP16-IN-24-3D24tPulleyEndCap.SLDPRT	2.29M
178	SP16-IN-25-PMiddleRollerLeft.SLDPRT	124.00K
179	SP16-IN-26-LintakeArmPivotAxle.SLDPRT	120.50K
180	SP16-IN-27-3DIntakeArmPivotSpacer.SLDPRT	121.50K
181	SP16-IN-28-LIntakeArmPistonPivotSpacerLong.SLDPRT	121.50K
182	SP16-IN-29-LIntakeArmSpacerforinbetweenPistonPlates.SLDPRT	124.00K
183	SP16-IN-30-LIntakeArmPistonPivotSpacerShort.SLDPRT	125.50K
184	SP16-IN-31-LIntakeArmActuatorSpacer.SLDPRT	134.50K
185	SP16-IN-33-PIntakefull-width.25Thread-All.SLDPRT	105.00K
186	SP16-IN-34-PMiddleRollerRight.SLDPRT	110.50K
187	SP16-IN-35-PFrontRoller.SLDPRT	109.50K
188	SP16-IN-36-PBackRoller.SLDPRT	120.50K
189	SP16-IN-37-PFrontRollerLatex.SLDPRT	110.00K
190	SP16-IN-38-PMiddleRollerLeftLatex.SLDPRT	123.00K
191	SP16-IN-39-PMiddleRollerRightLatex.SLDPRT	111.50K
192	SP16-IN-40-PBackRollerLatex.SLDPRT	122.00K
193	SP16-IN-41-SSDA32x75FrontMountBracketSHEET.SLDPRT	361.50K
194	SP16-IN-42-RIntakeSkidPlates.SLDPRT	1.04M
195	SP16-IN-44-RIntakeRampCover.SLDPRT	243.00K
196	SP16-IN-A-01IntakeAssembly.SLDASM	6.74M
197	SPARKREV-11-1200.SLDPRT	6.14M
198	Spectrum2016Ultraviolet.SLDASM	32.75M
199	TalonSRX.SLDPRT	4.73M
200	VersaPlanetary.5HexOutputShaft217-2897.SLDPRT	999.50K
201	VersaPlanetary217-2625withRS775Motor.SLDPRT	3.99M
202	VersaPlanetary2Stage217-2815withBAGCIM.SLDPRT	3.52M
