电移螺杆式空压机 185KW-17公斤（ID:2234609）

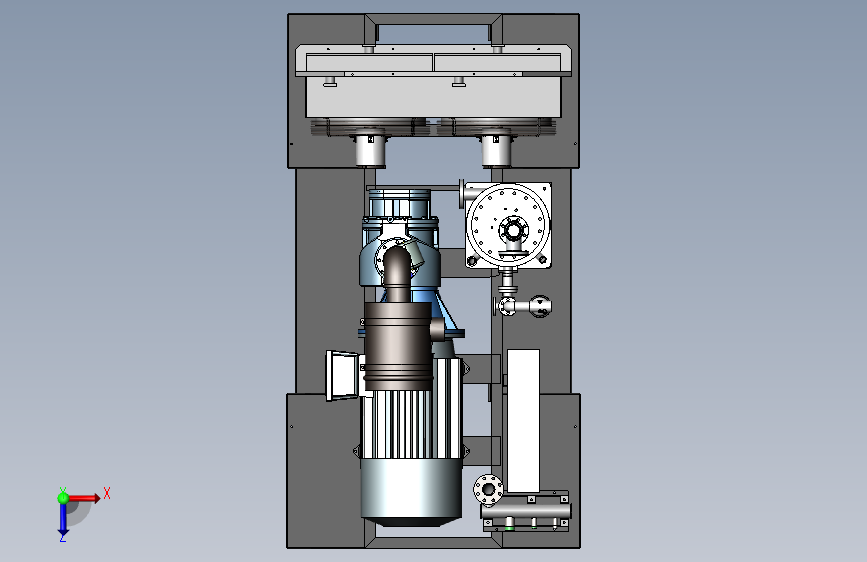

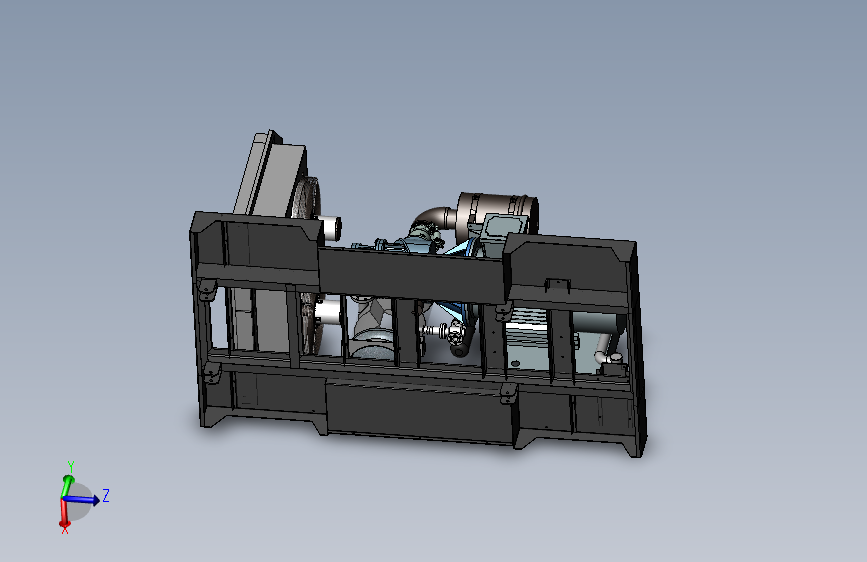

0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17493036667433.rar | 99.38M |
| 2 | BDP185.SLDASM | 4.25M |
| 3 | BDP185.sldasm-Part-17-2.sldprt | 219.50K |
| 4 | BEP185-17-B总装图.SLDASM | 8.94M |
| 5 | BEP185-17-GE260MH-315L物料清单.xls | 111.50K |
| 6 | 右侧挡板.SLDPRT | 492.50K |
| 7 | 左侧挡板.SLDPRT | 498.00K |
| 8 | 新建WPS文字文档.wps | 11.00K |
| 9 | GB／T707槽钢10.SLDPRT | 202.00K |
| 10 | GB／T707槽钢14a.SLDPRT | 229.00K |
| 11 | 冷却器固定加强.SLDPRT | 317.00K |
| 12 | 加强筋.SLDPRT | 221.00K |
| 13 | 叉车梁.SLDPRT | 184.50K |
| 14 | 叉车梁一.SLDPRT | 200.00K |
| 15 | 后部封板.SLDPRT | 332.00K |
| 16 | 底架主梁一.SLDPRT | 205.00K |
| 17 | 底架主梁七.SLDPRT | 188.50K |
| 18 | 底架主梁三.SLDPRT | 222.00K |
| 19 | 底架主梁九.SLDPRT | 226.00K |
| 20 | 底架主梁二.SLDPRT | 217.00K |
| 21 | 底架主梁五.SLDPRT | 190.50K |
| 22 | 底架主梁八.SLDPRT | 216.00K |
| 23 | 底架主梁六.SLDPRT | 172.50K |
| 24 | 底架主梁十.SLDPRT | 215.00K |
| 25 | 底架主梁十一.SLDPRT | 175.50K |
| 26 | 底架主梁四.SLDPRT | 254.50K |
| 27 | 底架侧部封板.SLDPRT | 173.50K |
| 28 | 底架侧部封板二.SLDPRT | 175.50K |
| 29 | 底架后部封板.SLDPRT | 198.50K |
| 30 | 底架封板一.SLDPRT | 219.50K |
| 31 | 底架封板三.SLDPRT | 311.50K |
| 32 | 底架封板二.SLDPRT | 298.50K |
| 33 | 底架封板五.SLDPRT | 297.00K |
| 34 | 底架封板四.SLDPRT | 298.00K |
| 35 | 底架横梁一.SLDPRT | 254.00K |
| 36 | 底架组装.SLDASM | 894.50K |
| 37 | 散热器支撑加强板.SLDPRT | 292.00K |
| 38 | 油气桶支撑加强板.SLDPRT | 305.50K |
| 39 | 油气桶支架.SLDPRT | 213.50K |
| 40 | 电控箱加强筋.SLDPRT | 206.00K |
| 41 | 电控箱支架.SLDPRT | 212.50K |
| 42 | 电机垫板.SLDPRT | 165.50K |
| 43 | 22001-0204002A圆钢.sldprt | 81.50K |
| 44 | 22001-0207000拖杆支架.sldasm | 105.00K |
| 45 | 22001-0207001板.sldprt | 82.50K |
| 46 | 22001-0207002板.sldprt | 79.00K |
| 47 | 22001-0207003板.sldprt | 79.50K |
| 48 | 22001-0208000双头螺栓.sldprt | 80.50K |
| 49 | 22001-0210000拖杆支架销.sldprt | 78.00K |
| 50 | 22001-0214000A带弹簧拖环.sldasm | 111.00K |
| 51 | 22001-0214001拖环.sldprt | 133.00K |
| 52 | 22001-0214003垫块.sldprt | 71.50K |
| 53 | 22001-0214004轴套.sldprt | 114.00K |
| 54 | 22001-0214005螺母M42.sldprt | 87.50K |
| 55 | 22001-0214006弹簧.sldprt | 132.50K |
| 56 | 22006-0100000牵引组立.SLDASM | 509.50K |
| 57 | 22006-0100000牵引组立.x_t | 846.28K |
| 58 | 22006-0101000-01板.sldprt | 79.50K |
| 59 | 22006-0101000-02板.sldprt | 79.50K |
| 60 | 22006-0101000-03板.sldprt | 78.50K |
| 61 | 22006-0101000-04-1板.sldprt | 79.00K |
| 62 | 22006-0101000-04-2板.sldprt | 80.00K |
| 63 | 22006-0101000-04拖杆头.sldasm | 104.00K |
| 64 | 22006-0101000-05板.sldprt | 75.00K |
| 65 | 22006-0101000-06板.sldprt | 74.50K |
| 66 | 22006-0101000-07板.sldprt | 77.00K |
| 67 | 22006-0101000-08A板.sldprt | 80.00K |
| 68 | 22006-0101000-09.sldprt | 75.00K |
| 69 | 22006-0101000A拖杆.sldasm | 118.50K |
| 70 | 22006-0102000板.sldprt | 79.50K |
| 71 | 22006-0103000拖环架.sldasm | 109.50K |
| 72 | 22006-0103001板.sldprt | 82.00K |
| 73 | 22006-0103002板-1.sldprt | 85.00K |
| 74 | 22006-0103002板.sldprt | 85.50K |
| 75 | 22006-0103003管.sldprt | 71.50K |
| 76 | 22006-0103005板.sldprt | 114.00K |
| 77 | 22006-0105000拖杆销.sldprt | 84.50K |
| 78 | 92501-30000M30螺母.sldprt | 87.50K |
| 79 | 92510-30000φ30平垫圈.sldprt | 71.50K |
| 80 | 起吊架总装.SLDASM | 163.50K |
| 81 | 起吊架部件一.SLDPRT | 160.50K |
| 82 | 起吊架部件二.SLDPRT | 151.00K |
| 83 | 部件三.SLDPRT | 405.00K |
| 84 | 侧立柱一.SLDPRT | 218.00K |
| 85 | 前侧挡板.SLDPRT | 466.00K |
| 86 | 右侧板.SLDPRT | 690.50K |
| 87 | 后侧挡板.SLDPRT | 887.00K |
| 88 | 后端板.SLDPRT | 202.50K |
| 89 | 左侧挡板.SLDPRT | 296.50K |
| 90 | 左侧板.SLDPRT | 733.00K |
| 91 | 挡泥板.SLDPRT | 408.50K |
| 92 | 钣金总装.SLDASM | 740.00K |
| 93 | BDP185.sldasm-Part-1-1.sldprt | 6.07M |
| 94 | HDKG120-2进气阀.sldprt | 548.50K |
| 95 | HFKZ410.sldprt | 100.00K |
| 96 | Y2-315L-2-B35-1.sldprt | 572.50K |
| 97 | 机组总装.SLDASM | 2.37M |
| 98 | 空滤抱箍.SLDPRT | 135.50K |
| 99 | 连接罩-1.sldprt | 228.50K |
| 100 | 冷却器-2.sldprt | 223.50K |
| 101 | 161-20001CY外罩总装.SLDASM | 1.02M |
| 102 | 161-20101CY前端板.SLDDRW | 931.00K |
| 103 | 161-20101CY前端板.SLDPRT | 11.92M |
| 104 | 161-20102CY梯子.SLDDRW | 489.50K |
| 105 | 161-20102CY梯子.SLDPRT | 444.00K |
| 106 | 161-20103CY气弹簧支架2.SLDDRW | 476.50K |
| 107 | 161-20103CY气弹簧支架2.SLDPRT | 543.50K |
| 108 | 161-20104CY前端板加强筋.SLDDRW | 404.50K |
| 109 | 161-20104CY前端板加强筋.SLDPRT | 252.50K |
| 110 | 161-20105CY气弹簧支架3.SLDDRW | 493.00K |
| 111 | 161-20105CY气弹簧支架3.SLDPRT | 465.50K |
| 112 | 161-20106CY排污口接头.SLDDRW | 424.00K |
| 113 | 161-20106CY排污口接头.SLDPRT | 220.00K |
| 114 | 161-20107CY梯子把手.SLDDRW | 406.50K |
| 115 | 161-20107CY梯子把手.SLDPRT | 234.00K |
| 116 | 161-201CY前端板总装.SLDASM | 318.50K |
| 117 | 161-201CY前端板总装.SLDDRW | 1.01M |
| 118 | 161-20201CY后端板.SLDDRW | 973.50K |
| 119 | 161-20201CY后端板.SLDPRT | 1.10M |
| 120 | 161-20202CY监控仪支架.SLDDRW | 624.50K |
| 121 | 161-20202CY监控仪支架.SLDPRT | 531.50K |
| 122 | 161-20203CY急停护板.SLDDRW | 409.00K |
| 123 | 161-20203CY急停护板.SLDPRT | 178.50K |
| 124 | 161-20204CY排气口钣金.SLDDRW | 487.50K |
| 125 | 161-20204CY排气口钣金.SLDPRT | 595.00K |
| 126 | 161-20205CY后端板部件二.SLDDRW | 434.00K |
| 127 | 161-20205CY后端板部件二.SLDPRT | 416.00K |
| 128 | 161-20206CY后端板部件.SLDDRW | 434.50K |
| 129 | 161-20206CY后端板部件.SLDPRT | 390.00K |
| 130 | 161-20207CY后端板部件一.SLDDRW | 444.00K |
| 131 | 161-20207CY后端板部件一.SLDPRT | 442.00K |
| 132 | 161-20208CY锁鼻.SLDPRT | 170.00K |
| 133 | 161-202CY后端板总装.SLDASM | 321.00K |
| 134 | 161-202CY后端板总装.SLDDRW | 791.00K |
| 135 | 161-20301CY顶盖.SLDDRW | 541.50K |
| 136 | 161-20301CY顶盖.SLDPRT | 492.50K |
| 137 | 161-20302CY顶盖加强筋.SLDDRW | 445.00K |
| 138 | 161-20302CY顶盖加强筋.SLDPRT | 304.50K |
| 139 | 161-203CY顶盖总装.SLDASM | 321.00K |
| 140 | 161-203CY顶盖总装.SLDDRW | 606.00K |
| 141 | 161-20401CY左门板.SLDDRW | 607.50K |
| 142 | 161-20401CY左门板.SLDPRT | 8.34M |
| 143 | 161-20402CY门板加强筋.SLDDRW | 446.00K |
| 144 | 161-20402CY门板加强筋.SLDPRT | 211.00K |
| 145 | 161-20403CY门板加强筋二.SLDDRW | 444.00K |
| 146 | 161-20403CY门板加强筋二.SLDPRT | 281.50K |
| 147 | 161-20404CY气弹簧支架.SLDDRW | 434.50K |
| 148 | 161-20404CY气弹簧支架.SLDPRT | 301.50K |
| 149 | 161-20405CY风斗.SLDDRW | 468.50K |
| 150 | 161-20405CY风斗.SLDPRT | 469.00K |
| 151 | 161-20406CY门板加强筋四.SLDDRW | 414.00K |
| 152 | 161-20406CY门板加强筋四.SLDPRT | 269.00K |
| 153 | 161-20407CY门板加强筋三.SLDDRW | 438.50K |
| 154 | 161-20407CY门板加强筋三.SLDPRT | 339.00K |
| 155 | 161-20408CY扣锁护板.SLDDRW | 460.50K |
| 156 | 161-20408CY扣锁护板.SLDPRT | 233.50K |
| 157 | 161-20409CY铰链垫板.SLDDRW | 426.50K |
| 158 | 161-20409CY铰链垫板.SLDPRT | 258.00K |
| 159 | 161-204CY门板总装.SLDASM | 414.00K |
| 160 | 161-204CY门板总装.SLDDRW | 1.03M |
| 161 | 161-20501CY空滤支架.SLDDRW | 513.50K |
| 162 | 161-20501CY空滤支架.SLDPRT | 564.00K |
| 163 | 161-20502CY空滤支架座.SLDDRW | 456.00K |
| 164 | 161-20502CY空滤支架座.SLDPRT | 466.50K |
| 165 | 161-205CY前排风口.SLDDRW | 656.00K |
| 166 | 161-205CY前排风口.SLDPRT | 2.85M |
| 167 | 161-206CY后挡板.SLDDRW | 742.50K |
| 168 | 161-206CY后挡板.SLDPRT | 1.08M |
| 169 | 161-207CY起吊架盖板.SLDDRW | 496.00K |
| 170 | 161-207CY起吊架盖板.SLDPRT | 312.50K |
| 171 | 161-208CY油分维修盖板.SLDDRW | 508.50K |
| 172 | 161-208CY油分维修盖板.SLDPRT | 752.00K |
| 173 | 161-208CY油分维修盖板（修正）.SLDPRT | 989.00K |
| 174 | 161-209CY仪表箱门.SLDDRW | 595.00K |
| 175 | 161-209CY仪表箱门.SLDPRT | 1.22M |
| 176 | 161-25503CY排气口封板.SLDDRW | 468.50K |
| 177 | 161-25503CY排气口封板.SLDPRT | 339.00K |
| 178 | 左侧挡板.SLDPRT | 296.50K |
| 179 | 左侧板.SLDPRT | 733.00K |
| 180 | 机头排气管支撑.SLDPRT | 270.00K |
| 181 | 机头支架-2.sldprt | 212.50K |
| 182 | 空滤支架.sldprt | 447.00K |
| 183 | 零件2.sldprt | 87.50K |
| 184 | 散热器.SLDPRT | 283.50K |
| 185 | 导风罩.SLDPRT | 251.00K |
| 186 | 散热器支架部件一.SLDPRT | 436.50K |
| 187 | 风圈.SLDPRT | 135.50K |
| 188 | 185机头排气管.SLDASM | 236.00K |
| 189 | 185机头排气管.SLDPRT | 434.00K |
| 190 | 661-20101CY供气管法兰.SLDPRT | 191.00K |
| 191 | 661-20102CY供气管部件一.SLDPRT | 151.00K |
| 192 | 661-20103CY供气管部件二.SLDPRT | 149.00K |
| 193 | 661-20104CY短半径弯头.SLDPRT | 182.50K |
| 194 | 661-201CY供气管件一.SLDASM | 200.00K |
| 195 | 661-20201CY供气管部件三.SLDPRT | 150.50K |
| 196 | 661-20202CY供气管部件四.SLDPRT | 149.00K |
| 197 | 661-20203CY供气管部件五.SLDPRT | 223.00K |
| 198 | 661-20204CYDN50管节.SLDPRT | 144.00K |
| 199 | 661-20205CYDN25管节.SLDPRT | 160.00K |
| 200 | 661-20206CYDN15管节.SLDPRT | 155.50K |
| 201 | 661-20207CY供气管部件六.SLDPRT | 168.50K |
| 202 | 661-202CY供气管件二.SLDASM | 312.50K |
| 203 | DN20管箍.SLDPRT | 158.00K |
| 204 | 机头排气法兰.SLDPRT | 225.00K |
| 205 | 661-2014CY油箱顶部连接管.SLDDRW | 335.50K |
| 206 | 661-2014CY油箱顶部连接管.SLDPRT | 143.00K |
| 207 | 661-2015CY补水壶连接管.SLDDRW | 384.50K |
| 208 | 661-2015CY补水壶连接管.SLDPRT | 141.00K |
| 209 | 251150100034柴油机进气管.PDF | 37.83K |
| 210 | 251150150037主机进气管.PDF | 35.58K |
| 211 | 32158158067上水管.PDF | 33.36K |
| 212 | 32158158070下水管.PDF | 37.41K |
| 213 | 661-2014CY油箱顶部连接管.PDF | 24.00K |
| 214 | 661-2015CY补水壶连接管.PDF | 23.60K |
| 215 | 661-203CY上水管.PDF | 33.42K |
| 216 | 661-204CY下水管.PDF | 37.56K |
| 217 | 251150100034柴油机进气管.PDF | 37.83K |
| 218 | 251150150037主机进气管.PDF | 35.58K |
| 219 | 3121105202油箱接头.SLDDRW | 408.00K |
| 220 | 3121105202油箱接头.SLDPRT | 234.00K |
| 221 | 3131102712水温传感器接头.SLDDRW | 431.00K |
| 222 | 3131102712水温传感器接头.SLDPRT | 267.50K |
| 223 | 3407606085-01供气管法兰.SLDDRW | 870.00K |
| 224 | 3407606085-03DN25管节.SLDDRW | 412.00K |
| 225 | 3407606085-04DN20管箍.SLDDRW | 396.50K |
| 226 | 3407606085-05压力传感器接头.SLDDRW | 432.50K |
| 227 | 3407606085-05压力传感器接头.SLDPRT | 210.00K |
| 228 | 661-20204CYDN50管节.SLDDRW | 403.00K |
| 229 | 焊接管加工件.rar | 267.32K |
| 230 | 33280280040机头排气管组件.PDF | 60.22K |
| 231 | 3405004164出油管组件.PDF | 37.29K |
| 232 | 3405004169进油管组件.PDF | 33.48K |
| 233 | 3121105202油箱接头.PDF | 24.36K |
| 234 | 3131102712水温传感器接头.PDF | 25.98K |
| 235 | 3407606085-01供气管法兰.PDF | 31.38K |
| 236 | 3407606085-02DN50管节.PDF | 24.44K |
| 237 | 3407606085-03DN25管节.PDF | 23.27K |
| 238 | 3407606085-04DN20管箍.PDF | 23.58K |
| 239 | 3407606085-05压力传感器接头.PDF | 25.18K |
| 240 | 机加工部件清单.xlsx | 9.77K |
| 241 | 32208208055温控阀到进油管.dwg | 88.00K |
| 242 | 32208208060出油管到温控阀.dwg | 88.22K |
| 243 | 32208208060油箱连接管.dwg | 87.50K |
| 244 | 32308308055主机进油管.dwg | 88.47K |
| 245 | 3131307532油过滤接头.SLDPRT | 250.00K |
| 246 | 650FZL-5.sldprt | 1.94M |
| 247 | BDP185.sldasm-Part-17-2.sldprt | 131.50K |
| 248 | YL-10Y油滤座.SLDPRT | 312.00K |
| 249 | ZA-49-601.SLDPRT | 262.50K |
| 250 | 三通法兰接头.SLDPRT | 304.00K |
| 251 | 机头减震器-13.sldprt | 73.50K |
| 252 | 油过滤WD13145.SLDPRT | 160.00K |
| 253 | 温控阀LHFT-32D.SLDPRT | 427.00K |
| 254 | 温控阀连接法兰.SLDPRT | 228.50K |
| 255 | 22009-0401006油气桶盖.SLDPRT | 224.44K |
| 256 | 22009-0401007油气桶衬带.SLDPRT | 115.50K |
| 257 | 22009-0401008油气桶进口补强.SLDPRT | 190.50K |
| 258 | 22009-0401010油气桶进口弯头.SLDPRT | 264.50K |
| 259 | 2221804500B油气桶.SLDASM | 438.25K |
| 260 | 2221804500B油气桶.SLDDRW | 1.05M |
| 261 | 2221804500B油气桶（20131225修正版）.dxf | 992.11K |
| 262 | 22218045100加油接口.SLDPRT | 64.55K |
| 263 | 2221804510油气桶地脚.SLDPRT | 120.69K |
| 264 | 22218045110温控阀支脚.SLDPRT | 204.26K |
| 265 | 22218045120排污口.SLDPRT | 71.91K |
| 266 | 22218045130排污口螺纹管套.SLDPRT | 105.39K |
| 267 | 22218045140旋风板.SLDPRT | 110.91K |
| 268 | 22218045150观油镜法兰.SLDPRT | 118.04K |
| 269 | 22218045160安全阀接口.SLDASM | 107.00K |
| 270 | 22218045161安全阀接口部件一.SLDPRT | 111.66K |
| 271 | 22218045162安全阀接口部件二.SLDPRT | 81.91K |
| 272 | 2221804520油气桶封头.SLDPRT | 222.13K |
| 273 | 2221804530油气桶桶体.SLDPRT | 140.81K |
| 274 | 2221804550油气桶桶口法兰.SLDPRT | 369.27K |
| 275 | 2221804560油气桶进口接管.SLDPRT | 89.32K |
| 276 | 2221804570油气桶进口法兰.SLDPRT | 101.96K |
| 277 | 2221804580油气桶出油口.SLDPRT | 144.35K |
| 278 | 2221804590油气桶出油口管接头.SLDPRT | 75.09K |
| 279 | 油气桶O形圈136×5.3.SLDPRT | 153.50K |
| 280 | 油气桶O形圈325×5.3.SLDPRT | 144.00K |
| 281 | 油气桶O形圈69×3.55.SLDPRT | 177.00K |
| 282 | 222160500-01油气桶盖.bak | 90.42K |
| 283 | 222160500-01油气桶盖.dwg | 75.19K |
| 284 | 222160500油气桶（20131225修正版）.bak | 210.49K |

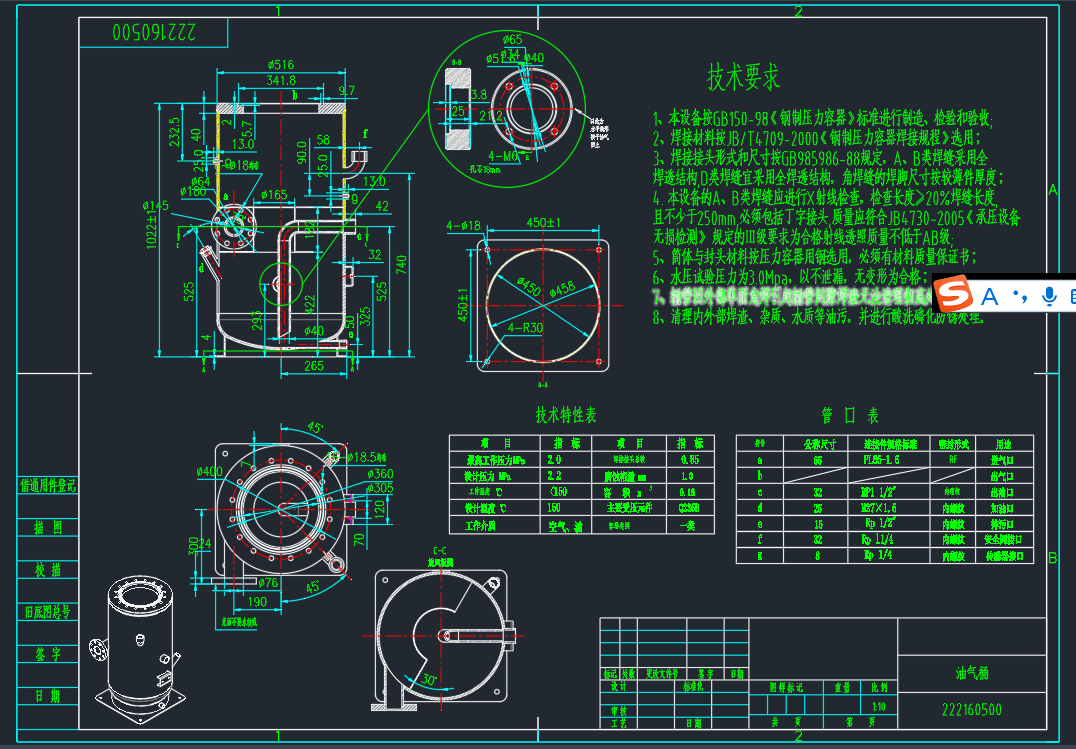

| 285 | 222160500油气桶（20131225修正版）.dwg | 203.14K |

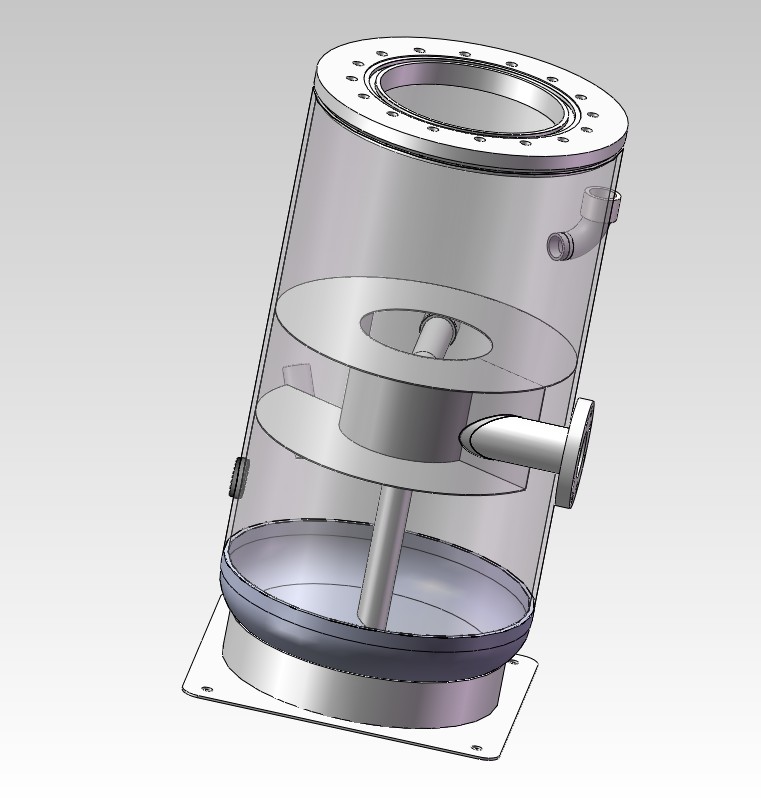

| 286 | 图示一.jpg | 68.70K |

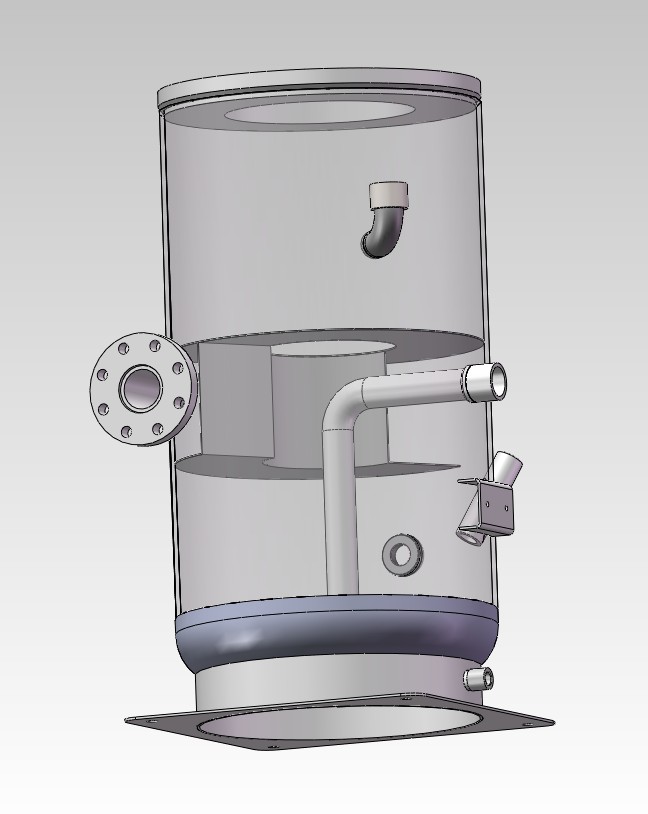

| 287 | 图示三.jpg | 53.16K |

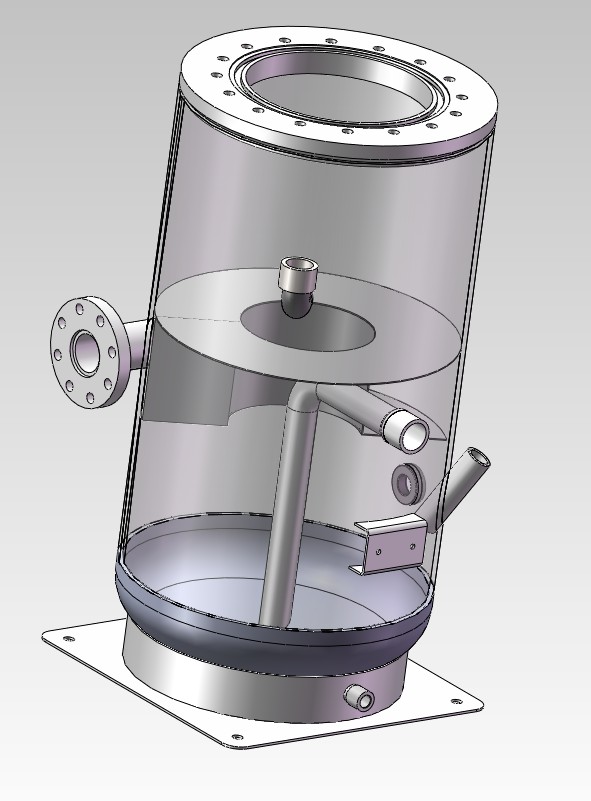

| 288 | 图示二.jpg | 70.68K |
| 289 | 图示四.jpg | 56.43K |
| 290 | 0.xls | 22.50K |
| 291 | GB3452.3-2005液压气动用0形橡胶密封圈沟槽尺寸.pdf | 890.90K |
| 292 | H44X-40LDN65总图10Bar.bak | 911.31K |
| 293 | H44X-40LDN65总图10Bar.dwg | 3.19M |
| 294 | H44X-40LDN65总图10Bar.dxf | 7.05M |
| 295 | H44X-40LDN65总图10Bar.pdf | 333.47K |
| 296 | MPV-40A_X2_96325C18585E_X0_.sldprt | 75.00K |
| 297 | MPV-50A_X2_5F397C275EA7_X0_.sldprt | 75.50K |
| 298 | MPV-50A_X2_7F384F53_X0_.sldprt | 95.00K |
| 299 | MPV-50T-S-H.stp | 554.26K |
| 300 | MPV-50T-S-H_X2_603B88C5_X0_1.sldasm | 601.50K |
| 301 | MPV-50T-S_X2_96004F53_X0__X2_94DD67508D28_X0_.sldprt | 187.50K |
| 302 | O型圈沟槽公差GB-T3452.3-2005.pdf | 4.34M |
| 303 | O型圈沟槽标准尺寸.doc | 119.50K |
| 304 | O型圈规格大全.doc | 394.00K |
| 305 | _X2_87BA9489_X0_GB_T77-2007M6x6.sldprt | 74.50K |
| 306 | 最小压力阀.SLDPRT | 641.00K |
| 307 | 最小压力阀O形圈80×3.55.SLDPRT | 155.50K |
| 308 | 最小压力阀法兰-图纸1.pdf | 56.04K |
| 309 | 最小压力阀法兰.SLDDRW | 599.50K |
| 310 | 最小压力阀法兰.SLDPRT | 271.00K |

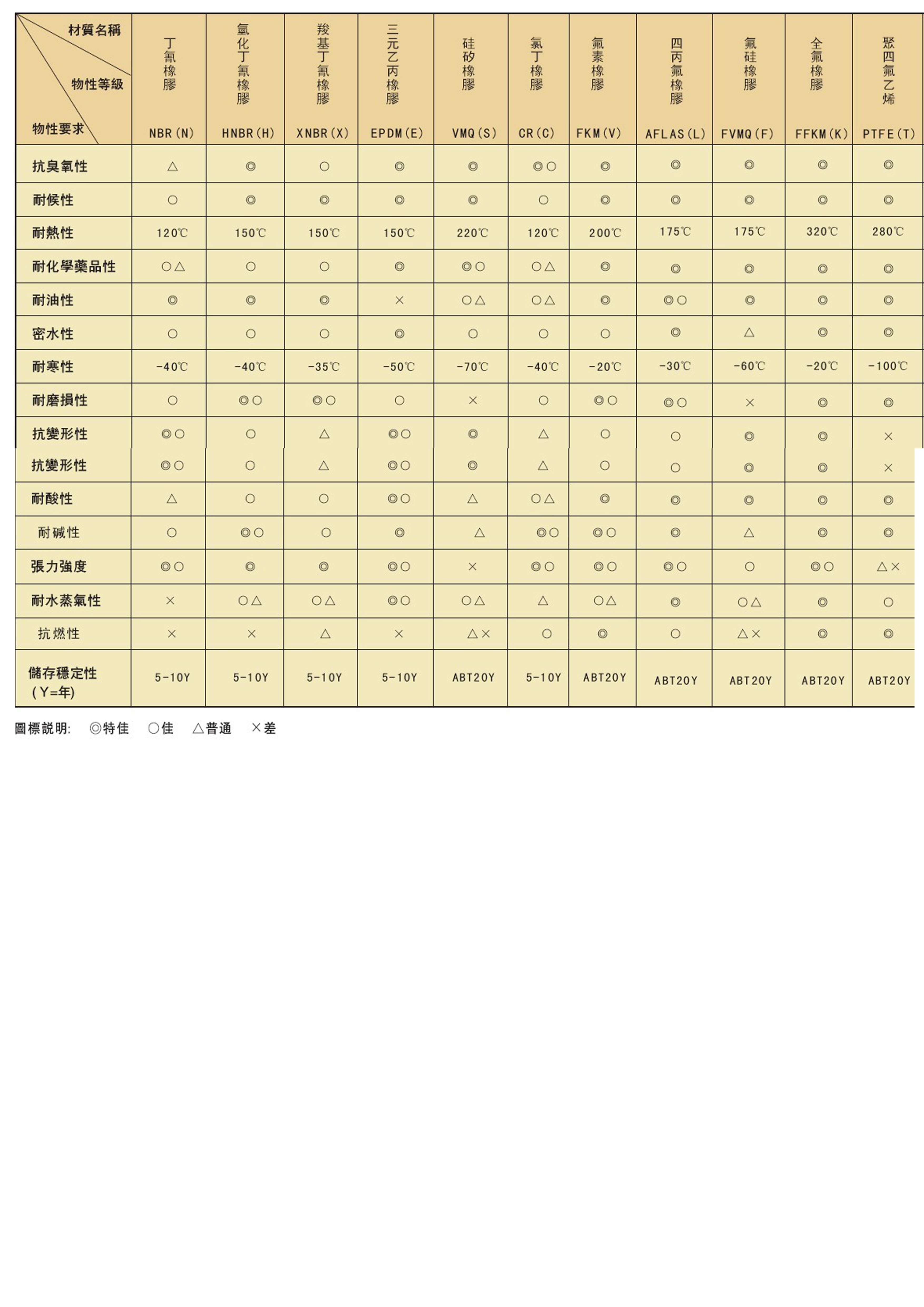

| 311 | 材料.jpg | 2.95M |
| 312 | 000X右后横梁-1.sldprt | 63.00K |
| 313 | 000X右后横梁-10.sldprt | 88.00K |
| 314 | 000X右后横梁-11.sldprt | 88.00K |
| 315 | 000X右后横梁-2.sldprt | 63.00K |
| 316 | 000X右后横梁-3.sldprt | 63.00K |
| 317 | 000X右后横梁-4.sldprt | 63.00K |
| 318 | 000X右后横梁-5.sldprt | 63.00K |
| 319 | 000X右后横梁-6.sldprt | 63.00K |
| 320 | 000X右后横梁-7.sldprt | 63.00K |
| 321 | 000X右后横梁-8.sldprt | 88.00K |
| 322 | 000X右后横梁-9.sldprt | 88.00K |
| 323 | 000X右后横梁.sldprt | 63.00K |
| 324 | 650FZL-1.sldprt | 63.00K |
| 325 | 650FZL-2.sldprt | 63.00K |
| 326 | 650FZL-3.sldprt | 63.00K |
| 327 | 650FZL-4.sldprt | 410.00K |
| 328 | 650FZL-5.sldprt | 1.10M |
| 329 | 650FZL.sldprt | 63.00K |
| 330 | BDP185.sldasm-Part-1-1.sldprt | 6.21M |
| 331 | BDP185.sldasm-Part-1-2.sldprt | 4.35M |
| 332 | BDP185.sldasm-Part-1.sldprt | 63.00K |
| 333 | BDP185.sldasm-Part-10-1.sldprt | 63.00K |
| 334 | BDP185.sldasm-Part-10-2.sldprt | 120.00K |
| 335 | BDP185.sldasm-Part-10.sldprt | 63.00K |
| 336 | BDP185.sldasm-Part-11-1.sldprt | 63.00K |
| 337 | BDP185.sldasm-Part-11-2.sldprt | 99.00K |
| 338 | BDP185.sldasm-Part-11.sldprt | 63.00K |
| 339 | BDP185.sldasm-Part-12-1.sldprt | 63.00K |
| 340 | BDP185.sldasm-Part-12-2.sldprt | 75.00K |
| 341 | BDP185.sldasm-Part-12.sldprt | 63.00K |
| 342 | BDP185.sldasm-Part-13-1.sldprt | 63.00K |
| 343 | BDP185.sldasm-Part-13-2.sldprt | 74.50K |
| 344 | BDP185.sldasm-Part-13.sldprt | 63.00K |
| 345 | BDP185.sldasm-Part-14-1.sldprt | 63.00K |
| 346 | BDP185.sldasm-Part-14-2.sldprt | 74.50K |
| 347 | BDP185.sldasm-Part-14.sldprt | 63.00K |
| 348 | BDP185.sldasm-Part-15-1.sldprt | 63.00K |
| 349 | BDP185.sldasm-Part-15-2.sldprt | 697.50K |
| 350 | BDP185.sldasm-Part-15.sldprt | 63.00K |
| 351 | BDP185.sldasm-Part-16-1.sldprt | 63.00K |
| 352 | BDP185.sldasm-Part-16-2.sldprt | 111.50K |
| 353 | BDP185.sldasm-Part-16.sldprt | 63.00K |
| 354 | BDP185.sldasm-Part-17-1.sldprt | 63.00K |
| 355 | BDP185.sldasm-Part-17-2.sldprt | 140.00K |
| 356 | BDP185.sldasm-Part-17.sldprt | 63.00K |
| 357 | BDP185.sldasm-Part-18-1.sldprt | 63.00K |
| 358 | BDP185.sldasm-Part-18-2.sldprt | 72.00K |
| 359 | BDP185.sldasm-Part-18.sldprt | 63.00K |
| 360 | BDP185.sldasm-Part-19-1.sldprt | 63.00K |
| 361 | BDP185.sldasm-Part-19-2.sldprt | 71.00K |
| 362 | BDP185.sldasm-Part-19.sldprt | 63.00K |
| 363 | BDP185.sldasm-Part-2-1.sldprt | 63.00K |
| 364 | BDP185.sldasm-Part-2-2.sldprt | 74.50K |
| 365 | BDP185.sldasm-Part-2.sldprt | 63.00K |
| 366 | BDP185.sldasm-Part-20-1.sldprt | 63.00K |
| 367 | BDP185.sldasm-Part-20-2.sldprt | 84.50K |
| 368 | BDP185.sldasm-Part-20.sldprt | 63.00K |
| 369 | BDP185.sldasm-Part-21-1.sldprt | 63.00K |
| 370 | BDP185.sldasm-Part-21-2.sldprt | 72.00K |
| 371 | BDP185.sldasm-Part-21.sldprt | 63.00K |
| 372 | BDP185.sldasm-Part-22-1.sldprt | 63.00K |
| 373 | BDP185.sldasm-Part-22-2.sldprt | 72.00K |
| 374 | BDP185.sldasm-Part-22.sldprt | 63.00K |
| 375 | BDP185.sldasm-Part-23-1.sldprt | 63.00K |
| 376 | BDP185.sldasm-Part-23-2.sldprt | 72.00K |
| 377 | BDP185.sldasm-Part-23.sldprt | 63.00K |
| 378 | BDP185.sldasm-Part-24-1.sldprt | 63.00K |
| 379 | BDP185.sldasm-Part-24-2.sldprt | 79.50K |
| 380 | BDP185.sldasm-Part-24.sldprt | 63.00K |
| 381 | BDP185.sldasm-Part-25-1.sldprt | 63.00K |
| 382 | BDP185.sldasm-Part-25-2.sldprt | 79.50K |
| 383 | BDP185.sldasm-Part-25.sldprt | 63.00K |
| 384 | BDP185.sldasm-Part-26-1.sldprt | 63.00K |
| 385 | BDP185.sldasm-Part-26-2.sldprt | 79.50K |
| 386 | BDP185.sldasm-Part-26.sldprt | 63.00K |
| 387 | BDP185.sldasm-Part-27-1.sldprt | 63.00K |
| 388 | BDP185.sldasm-Part-27-2.sldprt | 79.50K |
| 389 | BDP185.sldasm-Part-27.sldprt | 63.00K |
| 390 | BDP185.sldasm-Part-28-1.sldprt | 63.00K |
| 391 | BDP185.sldasm-Part-28-2.sldprt | 74.50K |
| 392 | BDP185.sldasm-Part-28.sldprt | 63.00K |
| 393 | BDP185.sldasm-Part-29-1.sldprt | 63.00K |
| 394 | BDP185.sldasm-Part-29-2.sldprt | 369.50K |
| 395 | BDP185.sldasm-Part-29.sldprt | 63.00K |
| 396 | BDP185.sldasm-Part-3-1.sldprt | 63.00K |
| 397 | BDP185.sldasm-Part-3-2.sldprt | 74.50K |
| 398 | BDP185.sldasm-Part-3.sldprt | 63.00K |
| 399 | BDP185.sldasm-Part-4-1.sldprt | 63.00K |
| 400 | BDP185.sldasm-Part-4-2.sldprt | 74.50K |
| 401 | BDP185.sldasm-Part-4.sldprt | 63.00K |
| 402 | BDP185.sldasm-Part-5-1.sldprt | 63.00K |
| 403 | BDP185.sldasm-Part-5-2.sldprt | 74.50K |
| 404 | BDP185.sldasm-Part-5.sldprt | 63.00K |
| 405 | BDP185.sldasm-Part-6-1.sldprt | 63.00K |
| 406 | BDP185.sldasm-Part-6-2.sldprt | 76.00K |
| 407 | BDP185.sldasm-Part-6.sldprt | 63.00K |
| 408 | BDP185.sldasm-Part-7-1.sldprt | 63.00K |
| 409 | BDP185.sldasm-Part-7-2.sldprt | 81.00K |
| 410 | BDP185.sldasm-Part-7.sldprt | 63.00K |
| 411 | BDP185.sldasm-Part-8-1.sldprt | 63.00K |
| 412 | BDP185.sldasm-Part-8-2.sldprt | 71.00K |
| 413 | BDP185.sldasm-Part-8.sldprt | 63.00K |
| 414 | BDP185.sldasm-Part-9-1.sldprt | 63.00K |
| 415 | BDP185.sldasm-Part-9-2.sldprt | 114.50K |
| 416 | BDP185.sldasm-Part-9.sldprt | 63.00K |
| 417 | BDP185.x_t | 20.62M |
| 418 | DN65最小压力阀-1.sldprt | 63.00K |
| 419 | DN65最小压力阀-2.sldprt | 90.00K |
| 420 | DN65最小压力阀.sldprt | 63.00K |
| 421 | HDKG120-1.sldprt | 63.00K |
| 422 | HDKG120-2.sldprt | 479.00K |
| 423 | HDKG120.sldprt | 63.00K |
| 424 | HFKZ410-1.sldprt | 63.00K |
| 425 | HFKZ410-2.sldprt | 75.50K |
| 426 | HFKZ410.sldprt | 63.00K |
| 427 | HFKZ410支架-1.sldprt | 63.00K |
| 428 | HFKZ410支架-10.sldprt | 63.00K |
| 429 | HFKZ410支架-11.sldprt | 63.00K |
| 430 | HFKZ410支架-12.sldprt | 63.00K |
| 431 | HFKZ410支架-13.sldprt | 63.00K |
| 432 | HFKZ410支架-14.sldprt | 63.00K |
| 433 | HFKZ410支架-15.sldprt | 63.00K |
| 434 | HFKZ410支架-16.sldprt | 63.00K |
| 435 | HFKZ410支架-17.sldprt | 63.00K |
| 436 | HFKZ410支架-18.sldprt | 114.50K |
| 437 | HFKZ410支架-19.sldprt | 114.50K |
| 438 | HFKZ410支架-2.sldprt | 63.00K |
| 439 | HFKZ410支架-20.sldprt | 114.50K |
| 440 | HFKZ410支架-21.sldprt | 76.00K |
| 441 | HFKZ410支架-22.sldprt | 114.50K |
| 442 | HFKZ410支架-23.sldprt | 76.00K |
| 443 | HFKZ410支架-24.sldprt | 114.50K |
| 444 | HFKZ410支架-25.sldprt | 76.00K |
| 445 | HFKZ410支架-26.sldprt | 114.50K |
| 446 | HFKZ410支架-3.sldprt | 63.00K |
| 447 | HFKZ410支架-4.sldprt | 63.00K |
| 448 | HFKZ410支架-5.sldprt | 63.00K |
| 449 | HFKZ410支架-6.sldprt | 63.00K |
| 450 | HFKZ410支架-7.sldprt | 63.00K |
| 451 | HFKZ410支架-8.sldprt | 63.00K |
| 452 | HFKZ410支架-9.sldprt | 63.00K |
| 453 | HFKZ410支架.sldprt | 63.00K |
| 454 | Y2-315L-2-B35-1.sldprt | 63.00K |
| 455 | Y2-315L-2-B35-2.sldprt | 339.50K |
| 456 | Y2-315L-2-B35.sldprt | 582.00K |
| 457 | 冷却器-1.sldprt | 63.00K |
| 458 | 冷却器-2.sldprt | 233.50K |
| 459 | 冷却器.sldprt | 63.00K |
| 460 | 减震器-1.sldprt | 63.00K |
| 461 | 减震器-10.sldprt | 63.00K |
| 462 | 减震器-11.sldprt | 63.00K |
| 463 | 减震器-12.sldprt | 71.00K |
| 464 | 减震器-13.sldprt | 71.00K |
| 465 | 减震器-14.sldprt | 71.00K |
| 466 | 减震器-15.sldprt | 71.00K |
| 467 | 减震器-16.sldprt | 71.00K |
| 468 | 减震器-17.sldprt | 71.00K |
| 469 | 减震器-2.sldprt | 63.00K |
| 470 | 减震器-3.sldprt | 63.00K |
| 471 | 减震器-4.sldprt | 63.00K |
| 472 | 减震器-5.sldprt | 63.00K |
| 473 | 减震器-6.sldprt | 63.00K |
| 474 | 减震器-7.sldprt | 63.00K |
| 475 | 减震器-8.sldprt | 63.00K |
| 476 | 减震器-9.sldprt | 63.00K |
| 477 | 减震器.sldprt | 63.00K |
| 478 | 右前中柱-1.sldprt | 63.00K |
| 479 | 右前中柱-2.sldprt | 63.00K |
| 480 | 右前中柱-3.sldprt | 63.00K |
| 481 | 右前中柱-4.sldprt | 91.50K |
| 482 | 右前中柱-5.sldprt | 91.50K |
| 483 | 右前中柱.sldprt | 63.00K |
| 484 | 导风罩-1.sldprt | 63.00K |
| 485 | 导风罩-2.sldprt | 109.50K |
| 486 | 导风罩.sldprt | 63.00K |
| 487 | 左侧门-1.sldprt | 63.00K |
| 488 | 左侧门-10.sldprt | 63.00K |
| 489 | 左侧门-11.sldprt | 63.00K |
| 490 | 左侧门-12.sldprt | 63.00K |
| 491 | 左侧门-13.sldprt | 63.00K |
| 492 | 左侧门-14.sldprt | 63.00K |
| 493 | 左侧门-15.sldprt | 63.00K |
| 494 | 左侧门-16.sldprt | 63.00K |
| 495 | 左侧门-17.sldprt | 63.00K |
| 496 | 左侧门-18.sldprt | 63.00K |
| 497 | 左侧门-19.sldprt | 63.00K |
| 498 | 左侧门-2.sldprt | 63.00K |
| 499 | 左侧门-20.sldprt | 63.00K |
| 500 | 左侧门-21.sldprt | 63.00K |
| 501 | 左侧门-22.sldprt | 63.00K |
| 502 | 左侧门-23.sldprt | 63.00K |
| 503 | 左侧门-24.sldprt | 675.50K |
| 504 | 左侧门-25.sldprt | 89.00K |
| 505 | 左侧门-26.sldprt | 79.00K |
| 506 | 左侧门-27.sldprt | 79.00K |
| 507 | 左侧门-28.sldprt | 79.00K |
| 508 | 左侧门-29.sldprt | 79.00K |
| 509 | 左侧门-3.sldprt | 63.00K |
| 510 | 左侧门-30.sldprt | 79.00K |
| 511 | 左侧门-31.sldprt | 79.00K |
| 512 | 左侧门-32.sldprt | 79.00K |
| 513 | 左侧门-33.sldprt | 79.00K |
| 514 | 左侧门-34.sldprt | 79.00K |
| 515 | 左侧门-35.sldprt | 79.00K |
| 516 | 左侧门-4.sldprt | 63.00K |
| 517 | 左侧门-5.sldprt | 63.00K |
| 518 | 左侧门-6.sldprt | 63.00K |
| 519 | 左侧门-7.sldprt | 63.00K |
| 520 | 左侧门-8.sldprt | 63.00K |
| 521 | 左侧门-9.sldprt | 63.00K |
| 522 | 左侧门.sldprt | 63.00K |
| 523 | 左后立柱-1.sldprt | 63.00K |
| 524 | 左后立柱-2.sldprt | 63.00K |
| 525 | 左后立柱-3.sldprt | 63.00K |
| 526 | 左后立柱-4.sldprt | 63.00K |
| 527 | 左后立柱-5.sldprt | 63.00K |
| 528 | 左后立柱-6.sldprt | 92.50K |
| 529 | 左后立柱-7.sldprt | 92.50K |
| 530 | 左后立柱-8.sldprt | 105.50K |
| 531 | 左后立柱.sldprt | 63.00K |
| 532 | 机头支架-1.sldprt | 63.00K |
| 533 | 机头支架-2.sldprt | 82.00K |
| 534 | 机头支架.sldprt | 63.00K |
| 535 | 油气桶-1.sldprt | 63.00K |
| 536 | 油气桶-2.sldprt | 147.50K |
| 537 | 油气桶.sldprt | 63.00K |
| 538 | 油气桶盖-1.sldprt | 63.00K |
| 539 | 油气桶盖-2.sldprt | 117.50K |
| 540 | 油气桶盖.sldprt | 63.00K |
| 541 | 空滤支架-1.sldprt | 63.00K |
| 542 | 空滤支架-2.sldprt | 84.50K |
| 543 | 空滤支架.sldprt | 63.00K |
| 544 | 起吊架-1.sldprt | 63.00K |
| 545 | 起吊架-2.sldprt | 63.00K |
| 546 | 起吊架-3.sldprt | 63.00K |
| 547 | 起吊架-4.sldprt | 83.00K |
| 548 | 起吊架-5.sldprt | 83.00K |
| 549 | 起吊架.sldprt | 63.00K |
| 550 | 起吊架连接板-1.sldprt | 63.00K |
| 551 | 起吊架连接板-2.sldprt | 63.00K |
| 552 | 起吊架连接板-3.sldprt | 63.00K |
| 553 | 起吊架连接板-4.sldprt | 74.00K |
| 554 | 起吊架连接板-5.sldprt | 74.00K |
| 555 | 起吊架连接板.sldprt | 63.00K |
| 556 | 车桥-1.sldprt | 63.00K |
| 557 | 车桥-2.sldprt | 63.00K |
| 558 | 车桥-3.sldprt | 63.00K |
| 559 | 车桥-4.sldprt | 111.00K |
| 560 | 车桥-5.sldprt | 111.00K |
| 561 | 车桥.sldprt | 63.00K |
| 562 | 软管弯头-1.sldprt | 63.00K |
| 563 | 软管弯头-2.sldprt | 70.50K |
| 564 | 软管弯头.sldprt | 63.00K |
| 565 | 连接罩-1.sldprt | 63.00K |
| 566 | 连接罩-2.sldprt | 115.50K |
| 567 | 连接罩.sldprt | 63.00K |
| 568 | 31111-0105000后轴.DWG | 315.96K |
| 569 | 31111-0105000后轴.SLDASM | 693.50K |
| 570 | 31111-0105000后轴.x_t | 2.12M |
| 571 | 31111-0105001板.sldprt | 63.50K |
| 572 | 31111-0105002板.sldprt | 59.50K |
| 573 | 31111-0105003板.sldprt | 60.00K |
| 574 | _______.sldprt | 63.00K |
| 575 | ________.sldprt | 65.00K |
| 576 | ________10.sldprt | 142.00K |
| 577 | _________.sldprt | 733.50K |
| 578 | __________3.sldprt | 77.00K |
| 579 | __________4.sldprt | 60.50K |
| 580 | __________5.sldprt | 60.50K |
| 581 | __________6.sldprt | 60.50K |
| 582 | __________7.sldprt | 60.50K |
| 583 | __________8.sldprt | 60.50K |
| 584 | __________9.sldprt | 60.50K |
| 585 | ___________0.sldprt | 75.00K |
| 586 | _______.sldprt | 58.50K |
| 587 | ________1.sldprt | 58.50K |
| 588 | ________2.sldprt | 75.00K |
| 589 | __扷_____.sldprt | 121.00K |
| 590 | 支架.sldasm | 53.00K |
此图纸下载需要3200金币
立即下载
发布者
150****1420
创作: 5
粉丝: 0
加入时间：2025-06-07
模型信息
图纸格式：sldasm,sldprt,x_t,slddrw,pdf,dwg,dxf,stp
文件大小：101.76M
所需金币：3200
上传时间：2025-06-07 21:41:28
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2011
标签
图纸简介

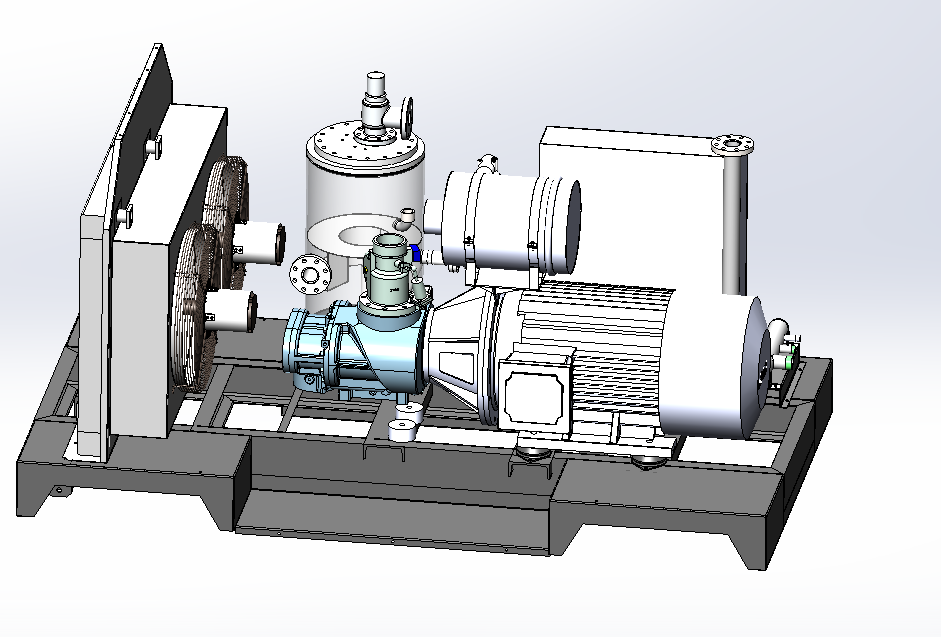

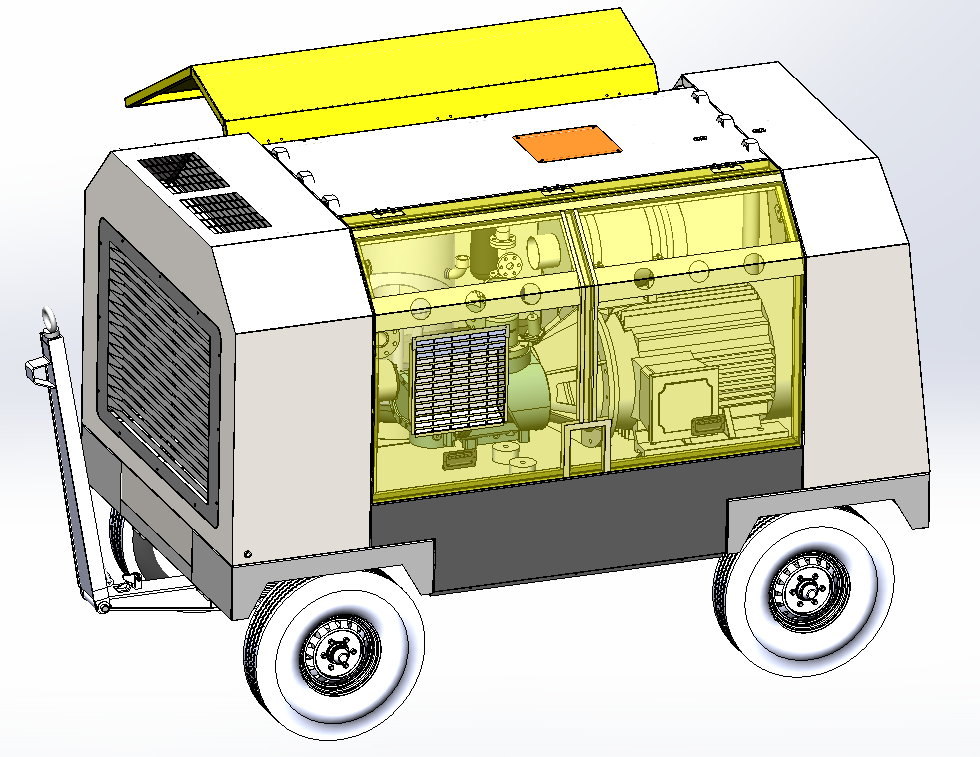

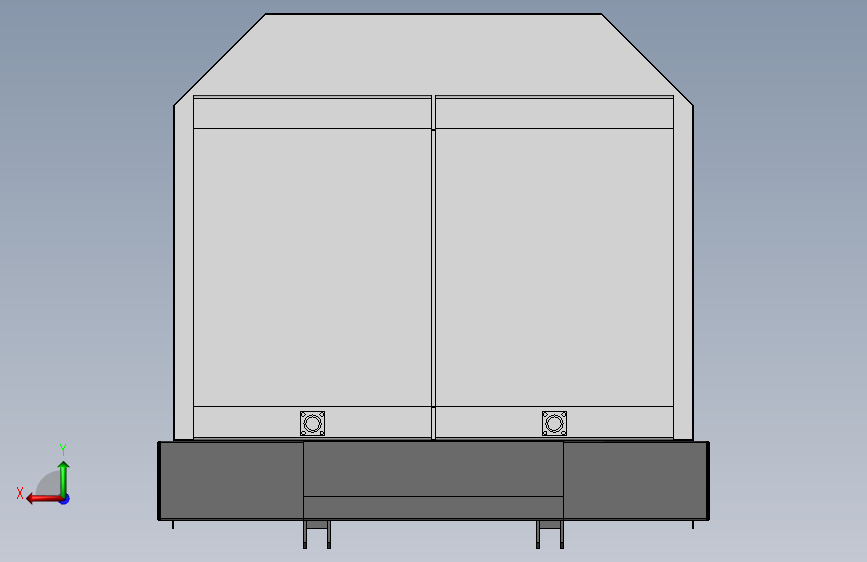

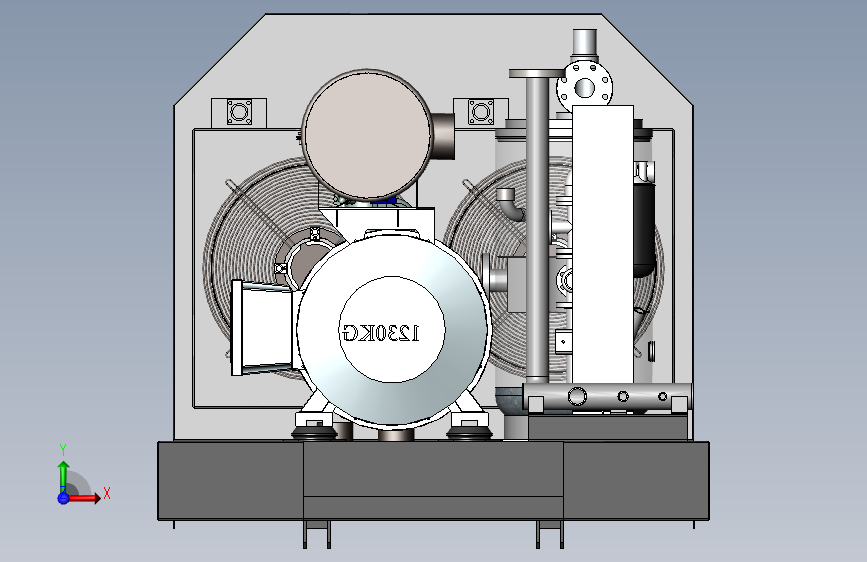

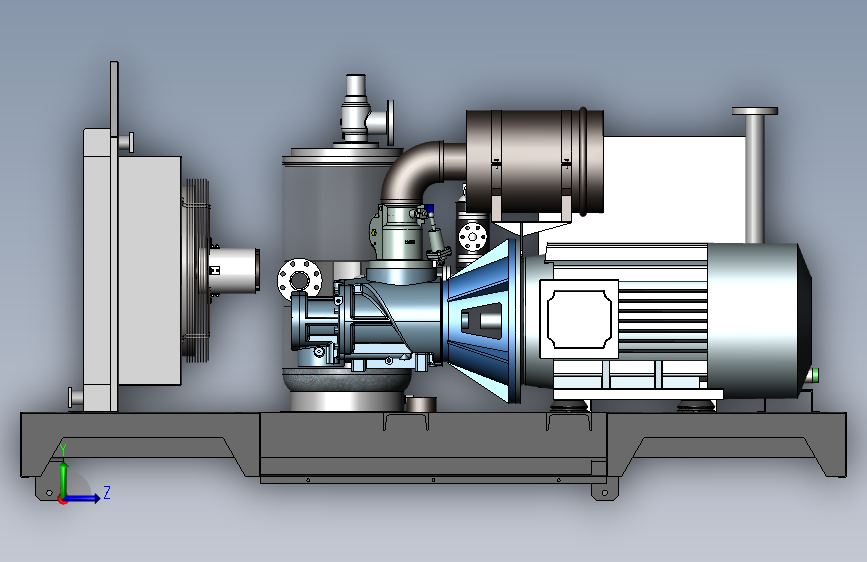

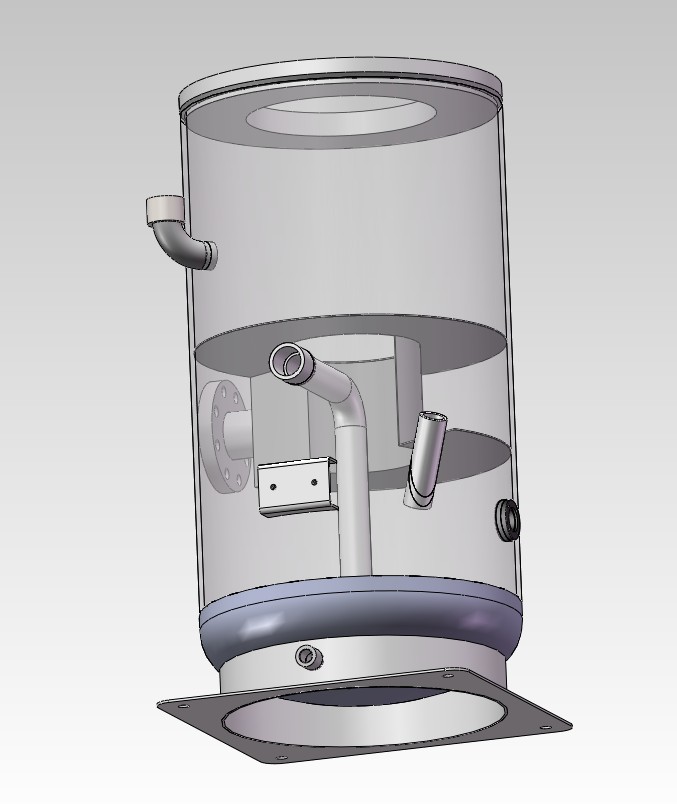

电机驱动式 可移动螺式式空压机 整机3D图参考，功率185KW，压力17公斤，电机为三相异步电机，主机为双螺杆式主机，内部含机架，压力油气桶，管路，前后桥，2D工程图只有部分管路和油气桶有。供各位空压机设计师参考。
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.png)
0.png)
0_0_364.png)
0.png)
0_0_364.png)
0.png)
0.png)
QQ在线客服
官方QQ群
