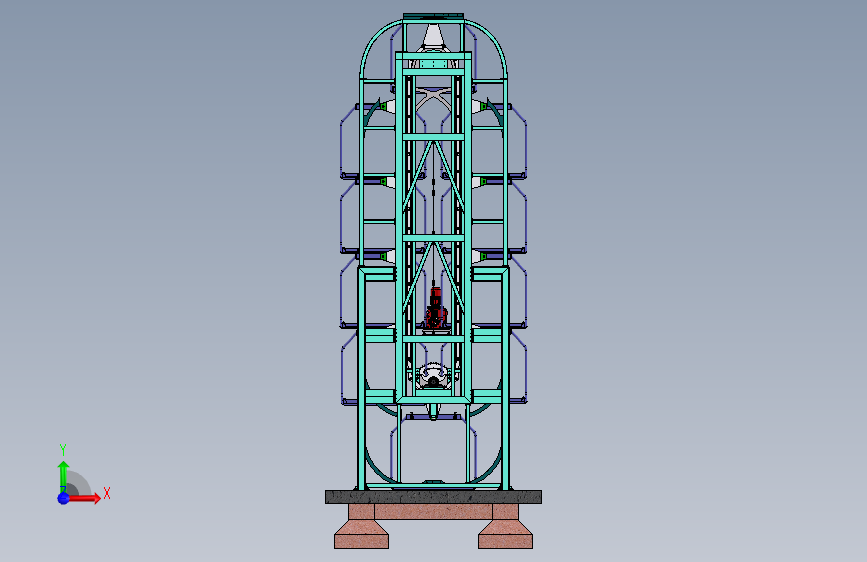

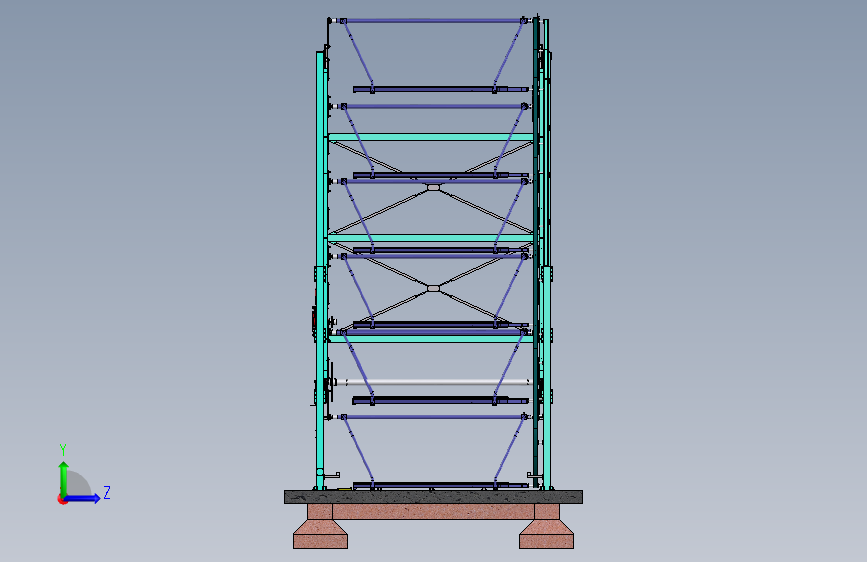

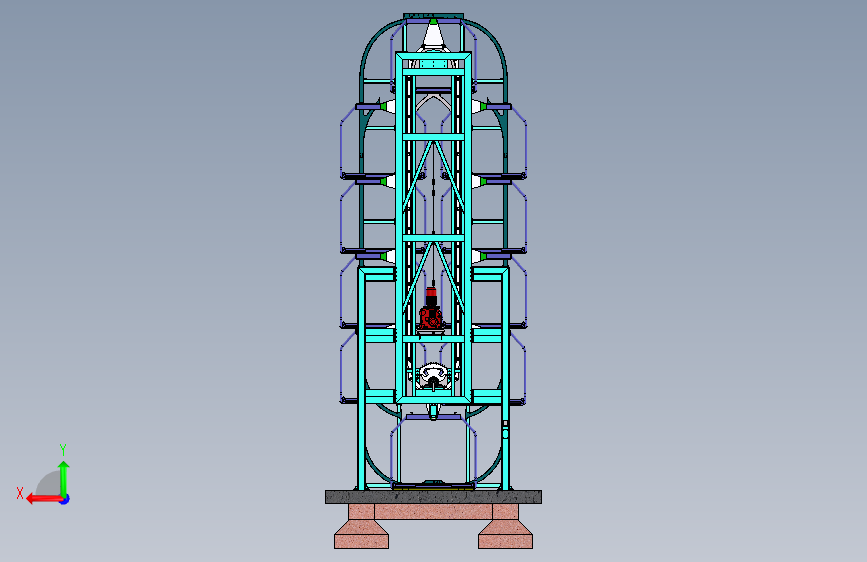

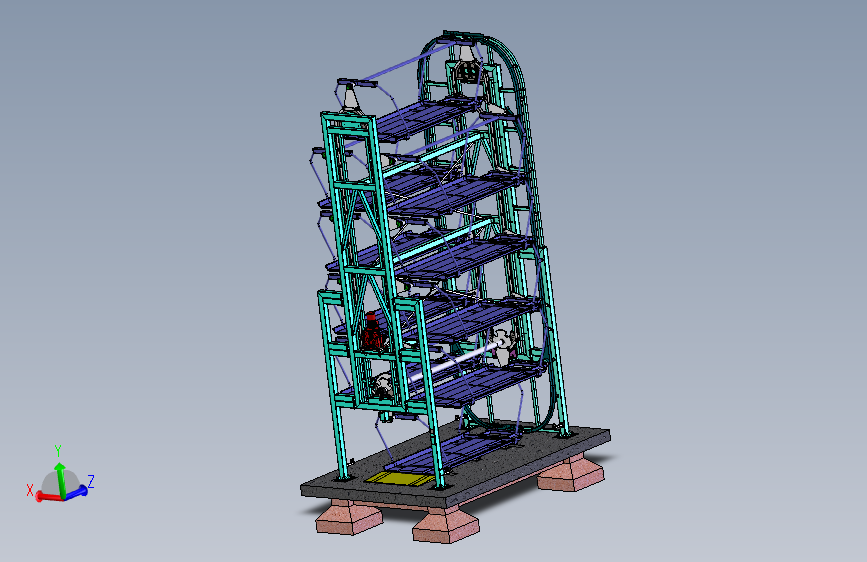

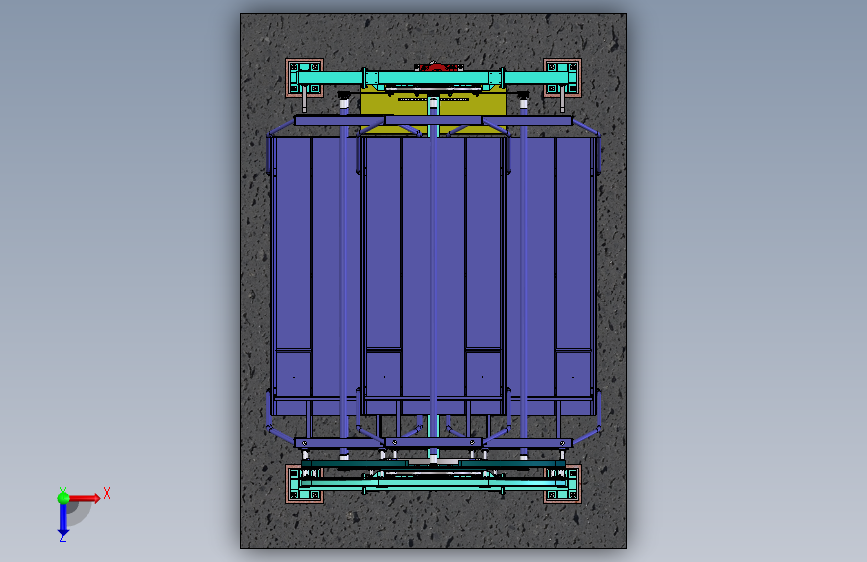

特种链提升机-垂直提升-垂直循环机械立体停车设备（ID:2269121）
0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17499517999020.zip | 47.32M |
| 2 | TSE6B2编码器.SLDPRT | 182.00K |
| 3 | TSGB71-85开槽锥端紧定螺钉M4×6.SLDPRT | 221.50K |
| 4 | TSGB882-88销轴B型25×75.SLDPRT | 246.00K |
| 5 | TSGB893．1-86孔用弹性挡圈A型100.SLDPRT | 82.92K |
| 6 | TSGB894．1-86轴用弹性挡圈A型25.SLDPRT | 89.03K |
| 7 | TSGB／T1096-2003普通平键A型32×140.SLDPRT | 231.50K |
| 8 | TSGB／T1096-2003普通平键A型32×160.SLDPRT | 227.00K |
| 9 | TSGB／T276-94深沟球轴承6005-2Z.SLDPRT | 624.06K |
| 10 | TSGB／T276-94深沟球轴承6407.SLDPRT | 624.40K |
| 11 | TSGB／T37-1988T形槽用螺栓M30×1000.SLDPRT | 93.15K |
| 12 | TSGB／T41-20001型六角螺母C级M12.SLDPRT | 235.50K |
| 13 | TSGB／T41-20001型六角螺母C级M20.SLDPRT | 301.00K |
| 14 | TSGB／T41-20001型六角螺母C级M30.SLDPRT | 218.00K |
| 15 | TSGB／T5781-2000六角头螺栓全螺纹C级M14×50.SLDPRT | 211.64K |
| 16 | TSGB／T5781-2000六角头螺栓全螺纹C级M16×120.SLDPRT | 452.50K |
| 17 | TSGB／T5781-2000六角头螺栓全螺纹C级M16×75.SLDPRT | 447.50K |
| 18 | TSGB／T5781-2000六角头螺栓全螺纹C级M20×100.SLDPRT | 449.00K |
| 19 | TSGB／T5781-2000六角头螺栓全螺纹C级M20×120.SLDPRT | 452.50K |
| 20 | TSGB／T5781-2000六角头螺栓全螺纹C级M20×40.SLDPRT | 365.50K |
| 21 | TSGB／T5781-2000六角头螺栓全螺纹C级M20×75.SLDPRT | 465.50K |
| 22 | TSGB／T5781-2000六角头螺栓全螺纹C级M30×240.SLDPRT | 464.50K |
| 23 | TSGB／T5781-2000六角头螺栓全螺纹C级M36×120.SLDPRT | 435.00K |
| 24 | TSGB／T70．1-2000内六角圆柱头螺钉M10×16.SLDPRT | 240.50K |
| 25 | TSGB／T70．1-2000内六角圆柱头螺钉M10×20.SLDPRT | 241.50K |
| 26 | TSGB／T70．1-2000内六角圆柱头螺钉M10×25.SLDPRT | 124.92K |
| 27 | TSGB／T70．1-2000内六角圆柱头螺钉M10×30.SLDPRT | 123.75K |
| 28 | TSGB／T70．1-2000内六角圆柱头螺钉M10×40.SLDPRT | 112.96K |
| 29 | TSGB／T70．1-2000内六角圆柱头螺钉M12×30.SLDPRT | 263.50K |
| 30 | TSGB／T70．1-2000内六角圆柱头螺钉M12×35.SLDPRT | 115.40K |
| 31 | TSGB／T70．1-2000内六角圆柱头螺钉M12×50.SLDPRT | 241.50K |
| 32 | TSGB／T70．1-2000内六角圆柱头螺钉M16×70.SLDPRT | 240.50K |
| 33 | TSGB／T70．1-2000内六角圆柱头螺钉M16×80.SLDPRT | 236.00K |
| 34 | TSGB／T70．1-2000内六角圆柱头螺钉M30×90.SLDPRT | 243.50K |
| 35 | TSGB／T70．1-2000内六角圆柱头螺钉M6×12.SLDPRT | 245.50K |
| 36 | TSGB／T70．3-2000内六角沉头螺钉M8×16.SLDPRT | 173.43K |
| 37 | TSGB／T77-2000内六角平端紧定螺钉M16×25.SLDPRT | 232.50K |
| 38 | TSGB／T77-2000内六角平端紧定螺钉M16×50.SLDPRT | 234.50K |
| 39 | TSGB／T77-2000内六角平端紧定螺钉M20×40.SLDPRT | 235.50K |
| 40 | TSGB／T91-2000开口销A型5×45.SLDPRT | 104.71K |
| 41 | TSGB／T91-2000开口销B型5×32.SLDPRT | 223.50K |
| 42 | TSGB／T93-1987标准型弹性垫圈装配10×2．6.SLDPRT | 99.86K |
| 43 | TSGB／T93-1987标准型弹性垫圈装配12×3．1.SLDPRT | 101.84K |
| 44 | TSGB／T93-1987标准型弹性垫圈装配14×3．6.SLDPRT | 93.31K |
| 45 | TSGB／T93-1987标准型弹性垫圈装配20×5.SLDPRT | 181.50K |
| 46 | TSGB／T93-1987标准型弹性垫圈装配27×6．8.SLDPRT | 99.87K |
| 47 | TSGB／T93-1987标准型弹性垫圈装配30×7．5.SLDPRT | 176.50K |
| 48 | TSGB／T93-1987标准型弹性垫圈装配36×9.SLDPRT | 179.50K |
| 49 | TSGB／T93-1987标准型弹性垫圈装配6×1．6.SLDPRT | 182.50K |
| 50 | TSGB／T9458-19882型六角开槽螺母细牙A级和B级M27×2.SLDPRT | 270.88K |
| 51 | TSGB／T97．2-1985平垫圈倒角型A级10×2.SLDPRT | 67.94K |
| 52 | TSGB／T97．2-1985平垫圈倒角型A级12×2．5.SLDPRT | 69.78K |
| 53 | TSGB／T97．2-1985平垫圈倒角型A级14×2．5.SLDPRT | 70.10K |
| 54 | TSGB／T97．2-1985平垫圈倒角型A级16×3.SLDPRT | 153.50K |
| 55 | TSGB／T97．2-1985平垫圈倒角型A级20×3.SLDPRT | 154.50K |
| 56 | TSGB／T97．2-1985平垫圈倒角型A级30×4.SLDPRT | 290.50K |
| 57 | TSGB／T97．2-1985平垫圈倒角型A级36×5.SLDPRT | 153.00K |
| 58 | TSGB／T97．2-1985平垫圈倒角型A级6×1．6.SLDPRT | 149.00K |
| 59 | TSK127DV160M-BMG-ASEW电机.SLDASM | 424.00K |
| 60 | TSK37～157_127.step_1.sldprt | 797.50K |
| 61 | TSPCX6HX-B01设备名牌.SLDPRT | 756.50K |
| 62 | TSPCX6HX-G00钢结构框架总装.SLDASM | 933.32K |
| 63 | TSPCX6HX-G02.01.01连接底板.SLDPRT | 68.56K |
| 64 | TSPCX6HX-G02.01.02圆连接板.SLDPRT | 83.60K |
| 65 | TSPCX6HX-G02.01后左立柱.SLDASM | 389.50K |
| 66 | TSPCX6HX-G02.02后右立柱.SLDASM | 346.00K |
| 67 | TSPCX6HX-G02.03.01后框架中连接板.SLDPRT | 68.54K |
| 68 | TSPCX6HX-G02.03.02后框架连接板1.SLDPRT | 70.41K |
| 69 | TSPCX6HX-G02.03后中框架.SLDASM | 307.35K |
| 70 | TSPCX6HX-G02.04.01w轨道框架主体.SLDPRT | 187.00K |
| 71 | TSPCX6HX-G02.04.02轨道架连接板1.SLDPRT | 70.68K |
| 72 | TSPCX6HX-G02.04.03轨道架连接板2.SLDPRT | 66.33K |
| 73 | TSPCX6HX-G02.04.04w轨道架连接方形管.SLDPRT | 321.00K |
| 74 | TSPCX6HX-G02.04后左轨道架.SLDASM | 280.00K |
| 75 | TSPCX6HX-G02.05后右轨道架.SLDASM | 255.00K |
| 76 | TSPCX6HX-G02.06.01弯方形管.SLDPRT | 177.08K |
| 77 | TSPCX6HX-G02.06.02w顶部轨道架方形管1.SLDPRT | 193.00K |
| 78 | TSPCX6HX-G02.06.03w顶部轨道架方形管2.SLDPRT | 186.50K |
| 79 | TSPCX6HX-G02.06.04顶部轨道架连接板.SLDPRT | 67.49K |
| 80 | TSPCX6HX-G02.06顶部轨道架.SLDASM | 333.50K |
| 81 | TSPCX6HX-G02.07.01w后底横梁主体.SLDPRT | 375.00K |
| 82 | TSPCX6HX-G02.07.02后底横梁连接板.SLDPRT | 67.38K |
| 83 | TSPCX6HX-G02.07后底横梁.SLDASM | 210.50K |
| 84 | TSPCX6HX-G02.08.01后中立柱主体.SLDPRT | 63.64K |
| 85 | TSPCX6HX-G02.08.02后中立柱连接板.SLDPRT | 71.18K |
| 86 | TSPCX6HX-G02.08后中立柱.SLDASM | 81.32K |
| 87 | TSPCX6HX-G02后框架.SLDASM | 799.90K |
| 88 | TSPCX6HX-G03.01w纵梁主体.SLDPRT | 185.50K |
| 89 | TSPCX6HX-G03.02纵梁端板.SLDPRT | 74.22K |
| 90 | TSPCX6HX-G03.03拉杆安装块.SLDPRT | 70.90K |
| 91 | TSPCX6HX-G03上下纵梁.SLDASM | 184.00K |
| 92 | TSPCX6HX-G04中纵梁.SLDASM | 192.00K |
| 93 | TSPCX6HX-G05拉筋连接板.SLDPRT | 77.31K |
| 94 | TSPCX6HX-G06拉筋板.SLDPRT | 67.91K |
| 95 | TSPCX6HX-J00基础总图.SLDASM | 657.00K |
| 96 | TSPCX6HX-J01.01座板.SLDPRT | 65.16K |
| 97 | TSPCX6HX-J01预埋件.SLDASM | 111.94K |
| 98 | TSPCX6HX-J02压板.SLDPRT | 64.92K |
| 99 | TSPCX6HX-J03垫板.SLDPRT | 51.32K |
| 100 | TSPCX6HX-S00车台总装.SLDASM | 1.03M |
| 101 | TSPCX6HX-S01.01左车板.SLDPRT | 159.15K |
| 102 | TSPCX6HX-S01.02右车板.SLDPRT | 207.35K |
| 103 | TSPCX6HX-S01.03.01圆形固定板.SLDPRT | 81.30K |
| 104 | TSPCX6HX-S01.03.02w阻车框封板.SLDPRT | 48.98K |
| 105 | TSPCX6HX-S01.03.03阻车框矩形管1.SLDPRT | 103.78K |
| 106 | TSPCX6HX-S01.03.04阻车框矩形管2.SLDPRT | 72.11K |
| 107 | TSPCX6HX-S01.03.05w阻车框矩形管3.SLDPRT | 116.37K |
| 108 | TSPCX6HX-S01.03阻车框.SLDASM | 134.26K |
| 109 | TSPCX6HX-S01.04车台角钢.SLDPRT | 80.10K |
| 110 | TSPCX6HX-S01.05.01支撑梁主体.SLDPRT | 73.19K |
| 111 | TSPCX6HX-S01.05.02支撑梁筋板.SLDPRT | 53.10K |
| 112 | TSPCX6HX-S01.05.03支撑梁连接板.SLDPRT | 72.75K |
| 113 | TSPCX6HX-S01.05.04支撑板.SLDPRT | 53.39K |
| 114 | TSPCX6HX-S01.05支撑梁.SLDASM | 85.94K |
| 115 | TSPCX6HX-S01.06车台前封板1.SLDPRT | 52.24K |
| 116 | TSPCX6HX-S01.07车台前封板2.SLDPRT | 57.80K |
| 117 | TSPCX6HX-S01.08车台中间支撑.SLDPRT | 83.89K |
| 118 | TSPCX6HX-S01.09w车台前支撑.SLDPRT | 63.09K |
| 119 | TSPCX6HX-S01.10w封口板.SLDPRT | 47.59K |
| 120 | TSPCX6HX-S01车台板.SLDASM | 218.99K |
| 121 | TSPCX6HX-S02.01折弯管1.SLDPRT | 111.72K |
| 122 | TSPCX6HX-S02.02悬吊架连接板1.SLDPRT | 72.52K |
| 123 | TSPCX6HX-S02.03悬吊架连接板2.SLDPRT | 74.11K |
| 124 | TSPCX6HX-S02.04悬吊架封板.SLDPRT | 61.40K |
| 125 | TSPCX6HX-S02悬吊架1.SLDASM | 94.63K |
| 126 | TSPCX6HX-S03.01折弯管2.SLDPRT | 104.47K |
| 127 | TSPCX6HX-S03悬吊架2.SLDASM | 94.88K |
| 128 | TSPCX6HX-S04.01.01方形管1.SLDPRT | 81.32K |
| 129 | TSPCX6HX-S04.01.02端板.SLDPRT | 71.22K |
| 130 | TSPCX6HX-S04.01悬吊横梁1.SLDASM | 72.86K |
| 131 | TSPCX6HX-S04.02.01悬吊架连接板.SLDPRT | 75.23K |
| 132 | TSPCX6HX-S04.02悬吊横梁2.SLDASM | 91.47K |
| 133 | TSPCX6HX-S04.03.01圆管.SLDPRT | 175.09K |
| 134 | TSPCX6HX-S04.03.02轴头.SLDPRT | 183.69K |
| 135 | TSPCX6HX-S04.03轴.SLDASM | 148.44K |
| 136 | TSPCX6HX-S04悬吊轴架.SLDASM | 174.19K |
| 137 | TSPCX6HX-S05.01.01防摆轮轴.SLDPRT | 158.23K |
| 138 | TSPCX6HX-S05.01.02防摆轮固定板.SLDPRT | 118.28K |
| 139 | TSPCX6HX-S05.01防摆轮轴架.SLDASM | 108.54K |
| 140 | TSPCX6HX-S05.02防摆尼龙轮.SLDPRT | 115.82K |
| 141 | TSPCX6HX-S05防摆轮.SLDASM | 381.30K |
| 142 | TSPCX6HX-S06缓冲垫.SLDPRT | 76.31K |
| 143 | TSPCX6HX-Z01.01.01轴头1.SLDPRT | 191.62K |
| 144 | TSPCX6HX-Z01.01.02轴头2.SLDPRT | 222.53K |
| 145 | TSPCX6HX-Z01.01.03主轴管.SLDPRT | 182.86K |
| 146 | TSPCX6HX-Z01.01主轴.SLDASM | 262.00K |
| 147 | TSPCX6HX-Z01.02.01拨盘体.SLDPRT | 148.63K |
| 148 | TSPCX6HX-Z01.02.02拨盘毂.SLDPRT | 176.27K |
| 149 | TSPCX6HX-Z01.02拨盘.SLDASM | 213.50K |
| 150 | TSPCX6HX-Z01.03轮盘.SLDPRT | 1.15M |
| 151 | TSPCX6HX-Z01.04主轴挡板.SLDPRT | 71.46K |
| 152 | TSPCX6HX-Z01主轴组装.SLDASM | 852.00K |
| 153 | TSPCX6HX-Z02.01.01提升链导轮.SLDPRT | 167.37K |
| 154 | TSPCX6HX-Z02.01.02导轮轴1.SLDPRT | 209.04K |
| 155 | TSPCX6HX-Z02.01.03导轮轴套.SLDPRT | 76.00K |
| 156 | TSPCX6HX-Z02.01导轮1组装.SLDASM | 593.15K |
| 157 | TSPCX6HX-Z02.02链板.SLDPRT | 78.27K |
| 158 | TSPCX6HX-Z02.03三角链板.SLDPRT | 112.41K |
| 159 | TSPCX6HX-Z02.04.01导轮轴2.SLDPRT | 192.98K |
| 160 | TSPCX6HX-Z02.04导轮2组装.SLDASM | 555.99K |
| 161 | TSPCX6HX-Z02.05梯形板.SLDPRT | 69.75K |
| 162 | TSPCX6HX-Z02提升链组装.SLDASM | 1.99M |
| 163 | TSPCX6HX-Z03.01.01中部轨道底板.SLDPRT | 41.42K |
| 164 | TSPCX6HX-Z03.01.02中部轨道立板.SLDPRT | 45.36K |
| 165 | TSPCX6HX-Z03.01.03轨道连接板.SLDPRT | 66.06K |
| 166 | TSPCX6HX-Z03.01中部轨道.SLDASM | 63.69K |
| 167 | TSPCX6HX-Z03.02.01左上轨道底板.SLDPRT | 175.04K |
| 168 | TSPCX6HX-Z03.02.02左上轨道立板1.SLDPRT | 79.66K |
| 169 | TSPCX6HX-Z03.02.03左上轨道立板2.SLDPRT | 85.01K |
| 170 | TSPCX6HX-Z03.02.04左上轨道立板3.SLDPRT | 73.09K |
| 171 | TSPCX6HX-Z03.02左上轨道.SLDASM | 163.17K |
| 172 | TSPCX6HX-Z03.03.01右上轨道底板.SLDPRT | 127.90K |
| 173 | TSPCX6HX-Z03.03.02连接角钢.SLDPRT | 109.52K |
| 174 | TSPCX6HX-Z03.03右上轨道.SLDASM | 143.50K |
| 175 | TSPCX6HX-Z03.04.01左下轨道底板.SLDPRT | 115.67K |
| 176 | TSPCX6HX-Z03.04.02左下轨道立板1.SLDPRT | 65.70K |
| 177 | TSPCX6HX-Z03.04.03左下轨道立板2.SLDPRT | 78.42K |
| 178 | TSPCX6HX-Z03.04.04左下轨道立板3.SLDPRT | 66.74K |
| 179 | TSPCX6HX-Z03.04.05左下轨道连接板.SLDPRT | 82.50K |
| 180 | TSPCX6HX-Z03.04左下轨道.SLDASM | 142.79K |
| 181 | TSPCX6HX-Z03.05.01右下轨道底板.SLDPRT | 144.30K |
| 182 | TSPCX6HX-Z03.05右下轨道.SLDASM | 145.74K |
| 183 | TSPCX6HX-Z03.06.01法兰支撑轴1.SLDPRT | 100.19K |
| 184 | TSPCX6HX-Z03.06.02法兰板.SLDPRT | 89.96K |
| 185 | TSPCX6HX-Z03.06连接法兰1.SLDASM | 130.96K |
| 186 | TSPCX6HX-Z03.07.01法兰支撑轴2.SLDPRT | 98.86K |
| 187 | TSPCX6HX-Z03.07连接法兰2.SLDASM | 128.91K |
| 188 | TSPCX6HX-Z03.08.01法兰支撑轴3.SLDPRT | 99.58K |
| 189 | TSPCX6HX-Z03.08连接法兰3.SLDASM | 133.44K |
| 190 | TSPCX6HX-Z03轨道组装.SLDASM | 630.22K |
| 191 | TSPCX6HX-Z04.01电机底板.SLDPRT | 87.93K |
| 192 | TSPCX6HX-Z04.02电机链轮.SLDPRT | 320.28K |
| 193 | TSPCX6HX-Z04电机组装.SLDASM | 480.32K |
| 194 | TSPCX6HX-Z05.01.01调节轮座底板.SLDPRT | 82.72K |
| 195 | TSPCX6HX-Z05.01.02调节轮座轴.SLDPRT | 116.61K |
| 196 | TSPCX6HX-Z05.01调节轮座.SLDASM | 167.00K |
| 197 | TSPCX6HX-Z05前后限位轮组.SLDASM | 459.50K |
| 198 | TSPCX6HX-Z06.01半月盘撑板.SLDPRT | 253.50K |
| 199 | TSPCX6HX-Z06.02半月盘外缘.SLDPRT | 182.50K |
| 200 | TSPCX6HX-Z06.03半月盘下缘.SLDPRT | 60.55K |
| 201 | TSPCX6HX-Z06.04支撑方钢1.SLDPRT | 83.42K |
| 202 | TSPCX6HX-Z06.05支撑方钢2.SLDPRT | 75.12K |
| 203 | TSPCX6HX-Z06.06支撑方钢3.SLDPRT | 75.52K |
| 204 | TSPCX6HX-Z06.07支撑方钢4.SLDPRT | 58.04K |
| 205 | TSPCX6HX-Z06.08支撑方钢5.SLDPRT | 136.50K |
| 206 | TSPCX6HX-Z06半月盘.SLDASM | 316.00K |
| 207 | TSPCX6HX-Z07.01定位盘底板.SLDPRT | 66.65K |
| 208 | TSPCX6HX-Z07.02定位盘贴板.SLDPRT | 90.02K |
| 209 | TSPCX6HX-Z07半圆定位盘.SLDASM | 179.05K |
| 210 | TSPCX6HX-Z08.01X型轨道底板.SLDPRT | 444.50K |
| 211 | TSPCX6HX-Z08.02X型轨道立板1.SLDPRT | 95.62K |
| 212 | TSPCX6HX-Z08.03X型轨道立板2.SLDPRT | 119.54K |
| 213 | TSPCX6HX-Z08.04X型轨道立板3.SLDPRT | 84.35K |
| 214 | TSPCX6HX-Z08.05X型轨道连接板.SLDPRT | 70.69K |
| 215 | TSPCX6HX-Z08.06wX型轨道支撑方管.SLDPRT | 172.50K |
| 216 | TSPCX6HX-Z08X型轨道.SLDASM | 303.00K |
| 217 | TSPCX6HX-Z09.01.01支架固定板.SLDPRT | 78.51K |
| 218 | TSPCX6HX-Z09.01.02支架遮雨板.SLDPRT | 77.58K |
| 219 | TSPCX6HX-Z09.01编码器支架.SLDASM | 59.40K |
| 220 | TSPCX6HX-Z09.02编码器连接轴.SLDPRT | 188.49K |
| 221 | TSPCX6HX-Z09编码器组合.SLDASM | 200.50K |
| 222 | TSPCX6HX-Z10警灯支架.SLDPRT | 179.52K |
| 223 | TSPCX6HX-Z11.01.01超长光电架方管.SLDPRT | 236.50K |
| 224 | TSPCX6HX-Z11.01.02光电支架连接板.SLDPRT | 63.17K |
| 225 | TSPCX6HX-Z11.01超长光电架.SLDASM | 158.00K |
| 226 | TSPCX6HX-Z11.02.01光电安装座下板.SLDPRT | 82.22K |
| 227 | TSPCX6HX-Z11.02.02光电安装座上板.SLDPRT | 62.18K |
| 228 | TSPCX6HX-Z11.02光电安装座.SLDASM | 71.69K |
| 229 | TSPCX6HX-Z11光电检测装配.SLDASM | 250.00K |
| 230 | TSPCX6HX-Z12调节板.SLDPRT | 87.58K |
| 231 | TSPCX6HX-Z13.01.01安装架角铁.SLDPRT | 256.00K |
| 232 | TSPCX6HX-Z13.01.02w安装架连接板.SLDPRT | 135.50K |
| 233 | TSPCX6HX-Z13.01车板滑轨安装架.SLDASM | 229.00K |
| 234 | TSPCX6HX-Z13.02滚动轴.SLDPRT | 153.72K |
| 235 | TSPCX6HX-Z13.03轴套.SLDPRT | 86.61K |
| 236 | TSPCX6HX-Z13车板滑轨.SLDASM | 529.50K |
| 237 | TSPCX6HX-Z14.01斜坡弯板.SLDPRT | 154.00K |
| 238 | TSPCX6HX-Z14.02支撑板.SLDPRT | 59.01K |
| 239 | TSPCX6HX-Z14.03斜坡固定板.SLDPRT | 64.31K |
| 240 | TSPCX6HX-Z14上车斜坡板.SLDASM | 192.00K |
| 241 | TSPCX6HX-Z16接近开关安装板.SLDPRT | 197.00K |
| 242 | TSTSJ.01.01前立柱主体.SLDPRT | 215.00K |
| 243 | TSTSJ.01.02立柱底板.SLDPRT | 69.12K |
| 244 | TSTSJ.01.03侧向连接板.SLDPRT | 79.48K |
| 245 | TSTSJ.01.04立柱筋板.SLDPRT | 55.92K |
| 246 | TSTSJ.01.05顶部方形管.SLDPRT | 79.58K |
| 247 | TSTSJ.01.06w方形管1.SLDPRT | 200.50K |
| 248 | TSTSJ.01.07光电支架固定板.SLDPRT | 64.47K |
| 249 | TSTSJ.01左前立柱.SLDASM | 329.50K |
| 250 | TSTSJ.02.01.01.01上固定板.SLDPRT | 85.15K |
| 251 | TSTSJ.02.01.01.02上板组底板.SLDPRT | 69.29K |
| 252 | TSTSJ.02.01.01.03上板组筋板.SLDPRT | 56.72K |
| 253 | TSTSJ.02.01.01上固定板组.SLDASM | 84.10K |
| 254 | TSTSJ.02.01.02.01下固定板.SLDPRT | 66.95K |
| 255 | TSTSJ.02.01.02.02下板组底板.SLDPRT | 72.51K |
| 256 | TSTSJ.02.01.02.03下板组筋板.SLDPRT | 54.32K |
| 257 | TSTSJ.02.01.02下固定板组.SLDASM | 79.57K |
| 258 | TSTSJ.02.01.03中间连接板.SLDPRT | 67.13K |
| 259 | TSTSJ.02.01.04w封板.SLDPRT | 47.47K |
| 260 | TSTSJ.02.01.05w方形管1.SLDPRT | 67.14K |
| 261 | TSTSJ.02.01.06w方形管2.SLDPRT | 75.02K |
| 262 | TSTSJ.02.01.07w方形管3.SLDPRT | 188.50K |
| 263 | TSTSJ.02.01.08方形管4.SLDPRT | 86.46K |
| 264 | TSTSJ.02.01.09矩形管.SLDPRT | 92.25K |
| 265 | TSTSJ.02.01.10w方形管5.SLDPRT | 73.57K |
| 266 | TSTSJ.02.01.11方形管6.SLDPRT | 82.38K |
| 267 | TSTSJ.02.01.12轴承座底板.SLDPRT | 70.71K |
| 268 | TSTSJ.02.01.13轴承座压板.SLDPRT | 66.98K |
| 269 | TSTSJ.02.01.14编码器支架固定板.SLDPRT | 66.00K |
| 270 | TSTSJ.02.01中框架主体.SLDASM | 274.30K |
| 271 | TSTSJ.02.02导轮安装底板.SLDPRT | 73.61K |
| 272 | TSTSJ.02.03w封板2.SLDPRT | 50.45K |
| 273 | TSTSJ.02.04w封板3.SLDPRT | 50.75K |
| 274 | TSTSJ.02.05w框架方形管1.SLDPRT | 67.96K |
| 275 | TSTSJ.02.06w框架方形管2.SLDPRT | 61.54K |
| 276 | TSTSJ.02.07w框架方形管3.SLDPRT | 61.60K |
| 277 | TSTSJ.02.08矩形钢1.SLDPRT | 55.30K |
| 278 | TSTSJ.02.09w矩形钢2.SLDPRT | 55.28K |
| 279 | TSTSJ.02.10月牙板.SLDPRT | 75.89K |
| 280 | TSTSJ.02.11电机安装板.SLDPRT | 70.44K |
| 281 | TSTSJ.02.12电机板筋板.SLDPRT | 55.90K |
| 282 | TSTSJ.02.13框架筋板.SLDPRT | 55.14K |
| 283 | TSTSJ.02.14螺纹顶板.SLDPRT | 64.77K |
| 284 | TSTSJ.02.15雨棚连接板.SLDPRT | 70.96K |
| 285 | TSTSJ.02.16警灯架固定板.SLDPRT | 68.34K |
| 286 | TSTSJ.02前中框架.SLDASM | 302.18K |
| 287 | TSTSJ.03.01操作器固定板.SLDPRT | 63.65K |
| 288 | TSTSJ.03右前立柱.SLDASM | 363.50K |
| 289 | TSTSJ前框架.SLDASM | 478.66K |
| 290 | TSUU型花篮螺栓335.SLDPRT | 825.50K |
| 291 | TS减速机.SLDPRT | 653.00K |
| 292 | TS基础混凝土柱子.SLDPRT | 518.50K |
| 293 | TS大标牌.SLDPRT | 145.50K |
| 294 | TS带凸台圆形座外球面轴承UCFC210.SLDPRT | 428.51K |
| 295 | TS带立式座轴承UCP322.SLDPRT | 830.50K |
| 296 | TS接近开关组.SLDASM | 201.50K |
| 297 | TS混凝土地面.SLDPRT | 547.50K |
| 298 | TS混凝土结构.SLDASM | 548.50K |
| 299 | TS特种链提升机-垂直提升-垂直循环机械立体停车设备.SLDASM | 3.54M |
| 300 | TS电机.SLDPRT | 4.93M |
| 301 | TS膨胀螺栓M10x110.SLDPRT | 225.00K |
| 302 | TS近接开关.SLDPRT | 356.50K |
| 303 | TS键轴.SLDPRT | 232.50K |
此图纸下载需要38金币
立即下载
发布者
风之韵
创作: 634
粉丝: 20
加入时间：2024-01-17
模型信息
图纸格式：sldprt,sldasm
文件大小：48.46M
所需金币：38
上传时间：2025-06-15 09:43:28
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2016
标签
特种链
提升机
垂直提升
循环机械
立体停车
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.jpg)
0.png)
0.png)
0.png)
0.png)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0_0_364.png)
0.jpg)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
QQ在线客服
官方QQ群
