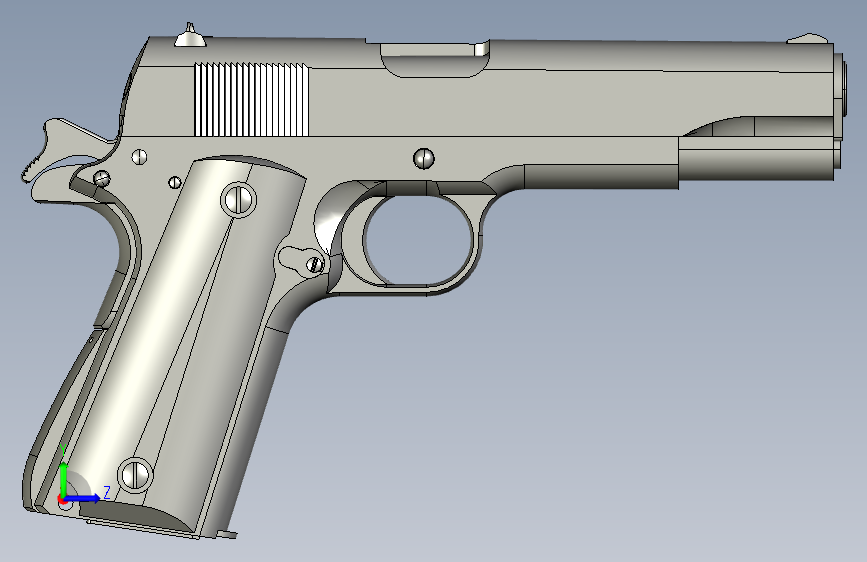

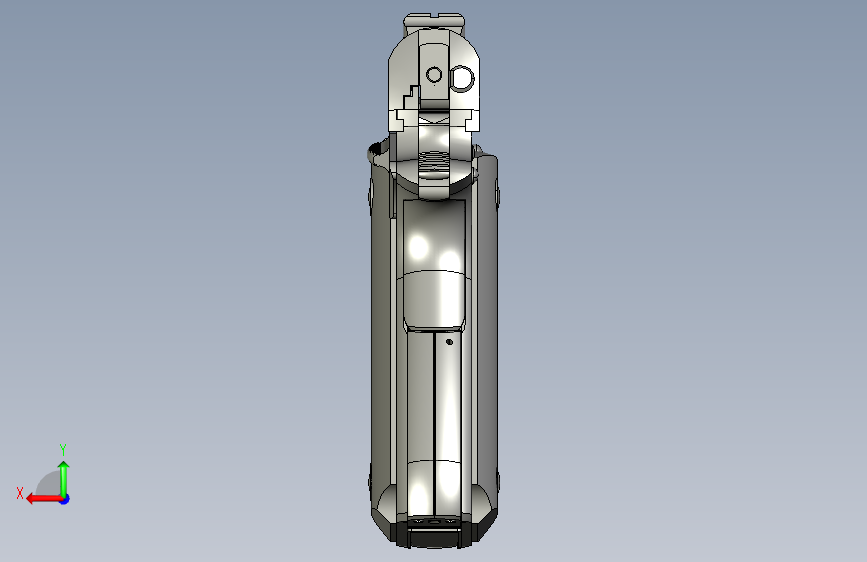

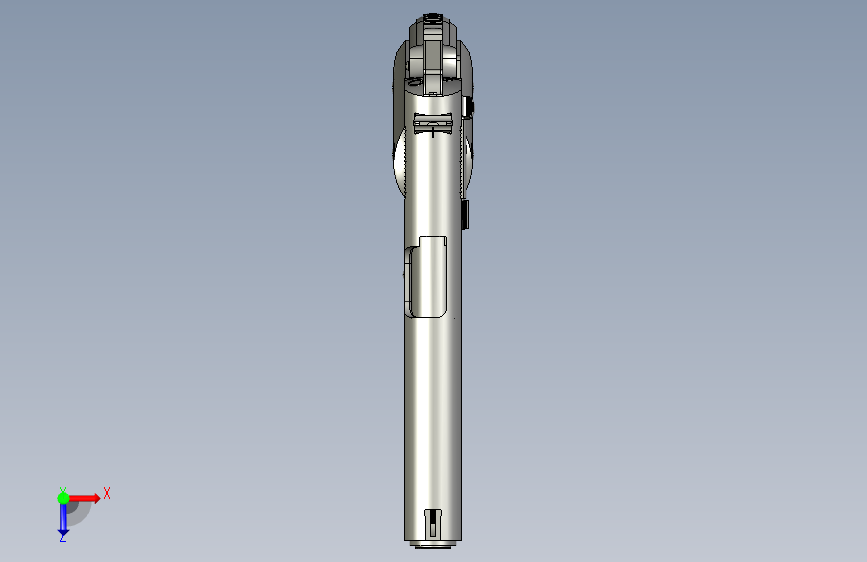

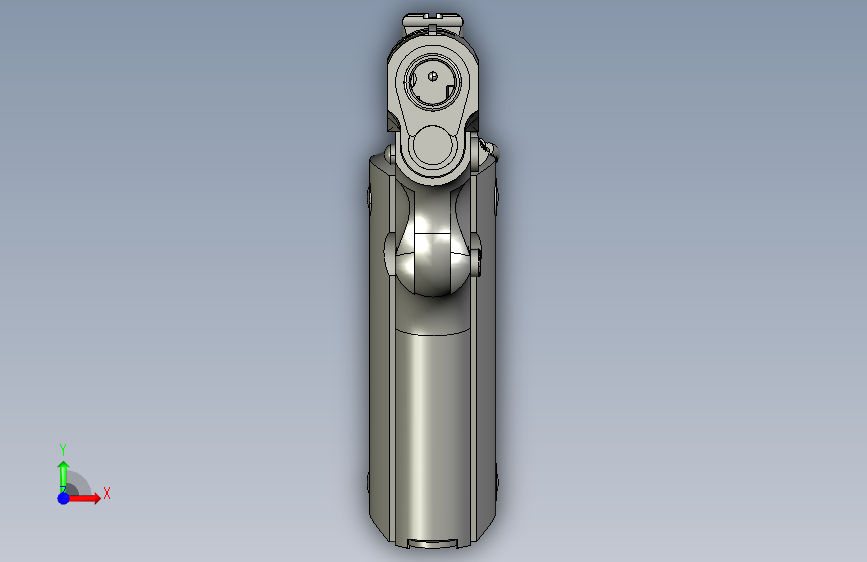

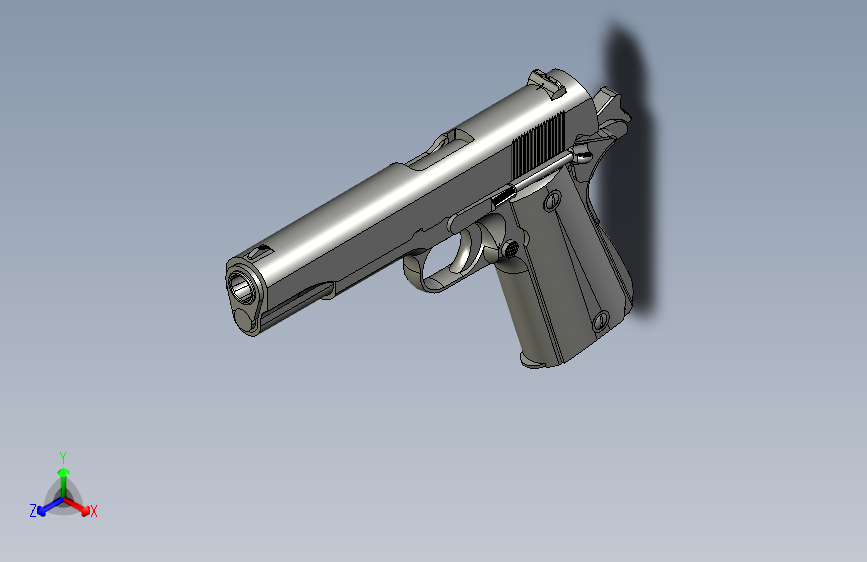

0593-m1911-a1 重制版（ID:2303887）

机械设备 / 非标机械 / 0593-m1911-a1 重制版

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17506387957759.zip	11.34M
2	m1911-a1_redux_assembly_asm.stp	6.80M
3	zongzhuangtu.stp	6.23M
4	barrel.prt.1	939.17K
5	base-magazine.prt.1	183.64K
6	bow-trigger.prt.1	428.36K
7	bushing-barrel.prt.1	203.19K
8	bushing-stock-screw.prt.1	235.30K
9	cap_mainspring.prt.1	108.26K
10	catch-magazine.prt.1	405.41K
11	disconnector.prt.1	248.12K
12	ejector.prt.1	233.05K
13	extractor.prt.1	395.24K
14	follower-magazine.prt.1	342.42K
15	guide-recoil-spring.prt.1	222.42K
16	hammer.prt.1	491.82K
17	housing-mainspring.prt.1	432.83K
18	link-barrel.prt.1	205.97K
19	lock-magazine-catch.prt.1	229.22K
20	lock-safety.prt.1	452.82K
21	m1911-a1_redux_assembly.asm.1	331.44K
22	magazine-assy-m1911a1-pistol.asm.1	87.13K
23	mainspring.prt.1	759.68K
24	pad-trigger.prt.1	185.06K
25	pin-barrel-link.prt.1	101.47K
26	pin-ejector.prt.1	95.44K
27	pin-firing.prt.1	154.61K
28	pin-hammer-strut.prt.1	92.63K
29	pin-hammer.prt.1	77.51K
30	pin-magazine-base.prt.1	95.48K
31	pin-mainspring-cap.prt.1	79.45K
32	pin-mainspring-housing.prt.1	114.41K
33	pin-retainer-mainspring-housing.prt.1	119.50K
34	pin-sear.prt.1	78.97K
35	plug-recoil-spring.prt.1	234.86K
36	plunger-safety-lock.prt.1	98.65K
37	plunger-slide-stop.prt.1	104.05K
38	receiver_3point0.prt.1	1.54M
39	safety-grip.prt.1	284.84K
40	screw-stock.prt.1	142.07K
41	sear-.prt.1	283.90K
42	sight-front.prt.1	210.64K
43	sight-rear.prt.1	230.93K
44	slide.prt.1	1.15M
45	spring-firing-pin.prt.1	692.09K
46	spring-magazine-catch.prt.1	606.64K
47	spring-plunger.prt.1	499.85K

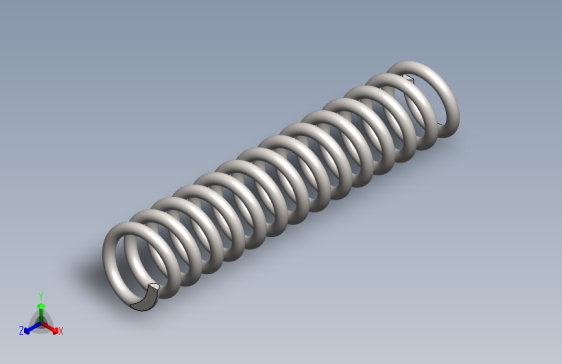

48	spring-recoil.prt.1	602.98K
49	spring-sear.prt.1	244.59K
50	stock-lh-plastic.prt.1	279.06K
51	stock-rh-plastic.prt.1	428.86K
52	stop-firing-pin.prt.1	197.75K
53	stop-slide.prt.1	272.47K
54	strut-hammer.prt.1	176.76K
55	trigger-assembly.asm.1	72.45K
56	tube-magazine.prt.1	626.84K
57	tube-plunger.prt.1	161.92K
