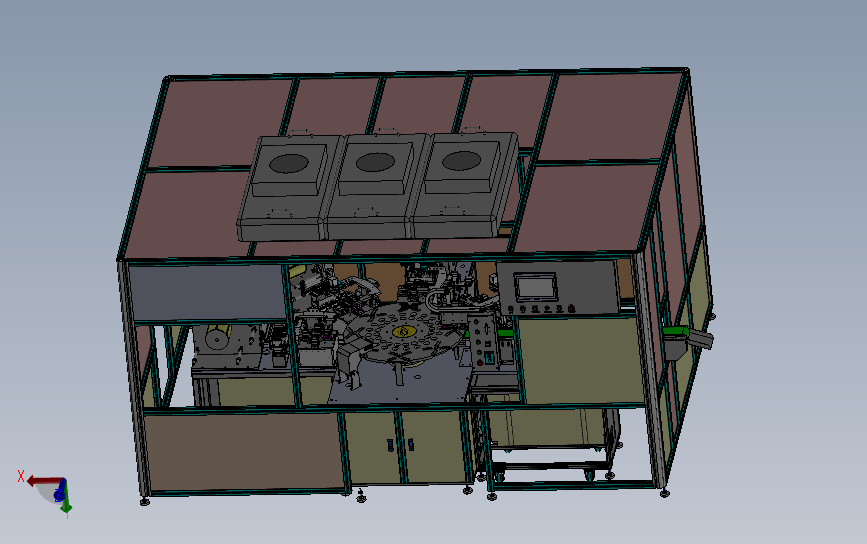

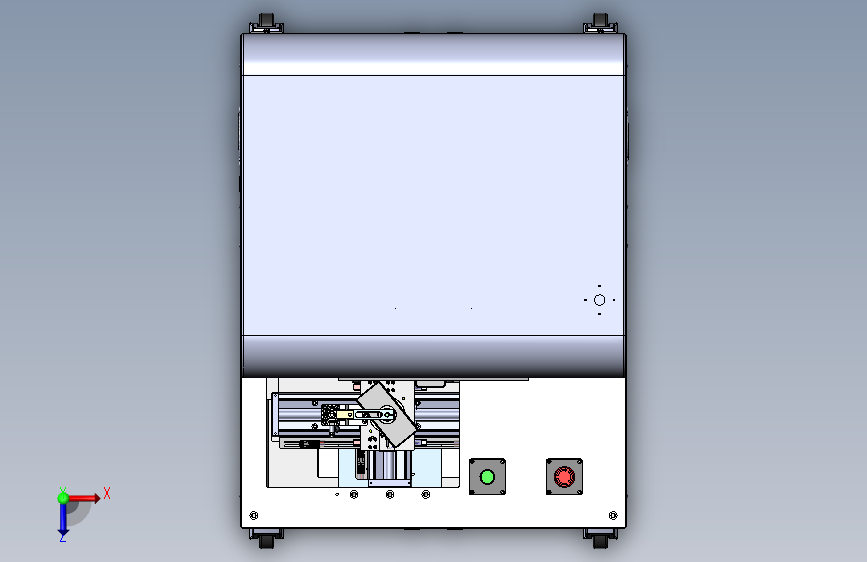

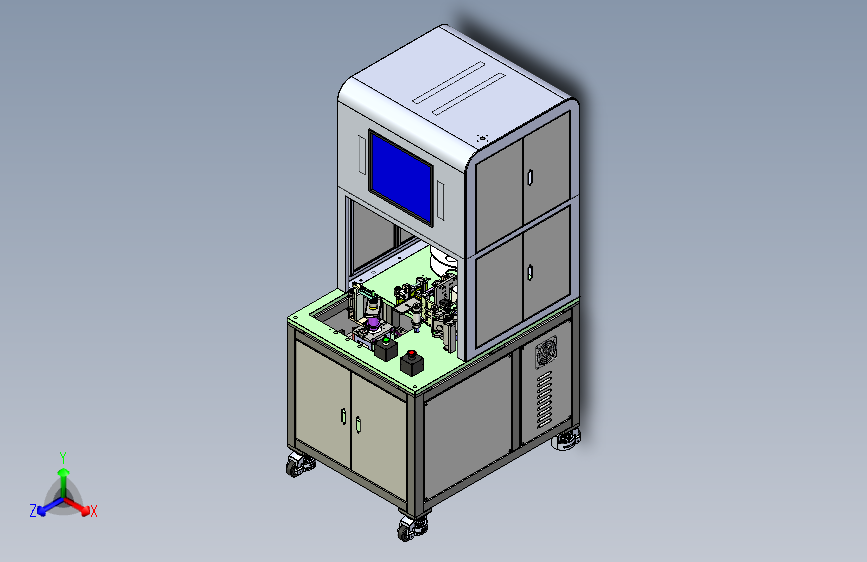

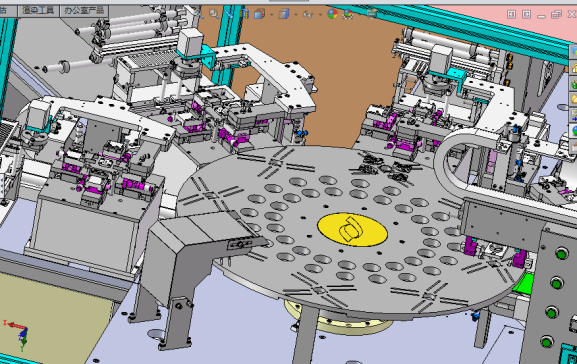

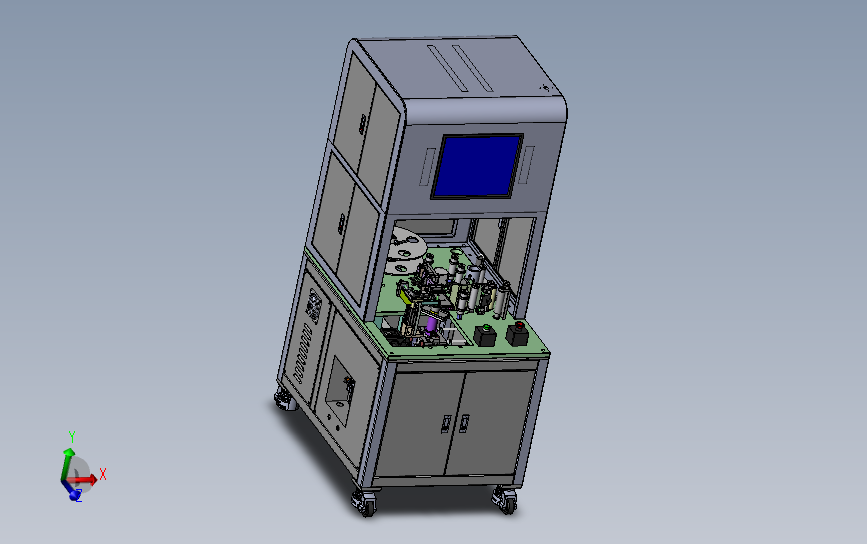

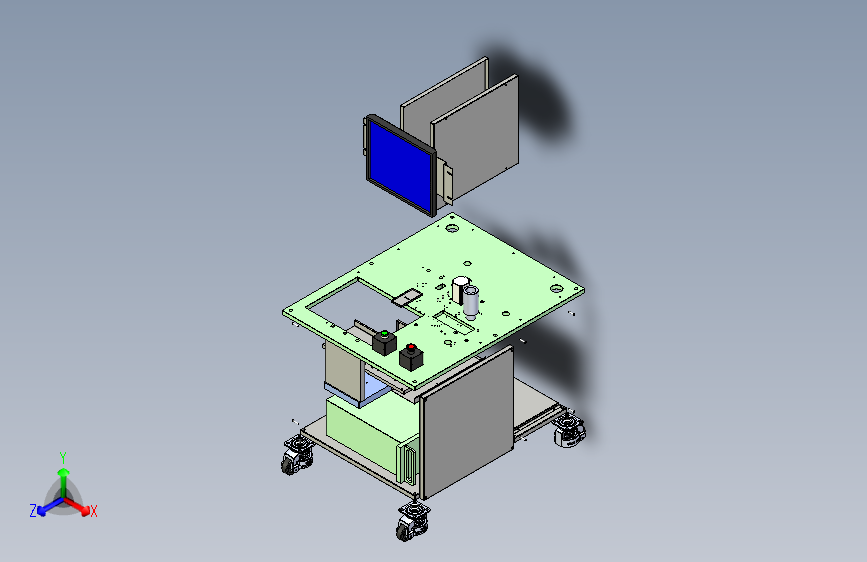

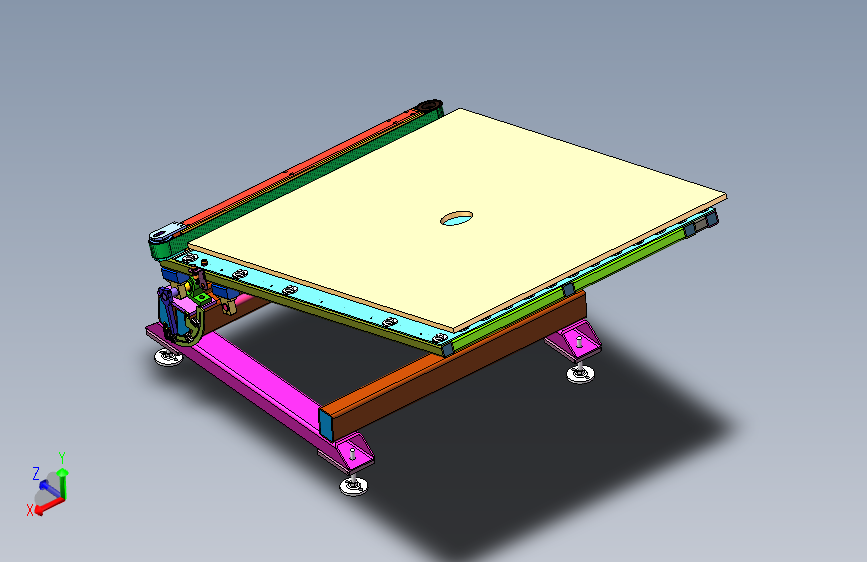

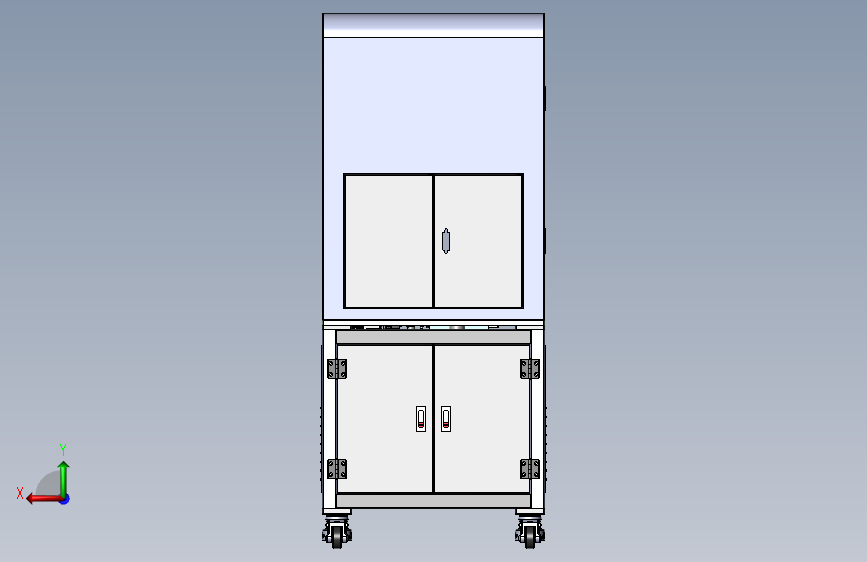

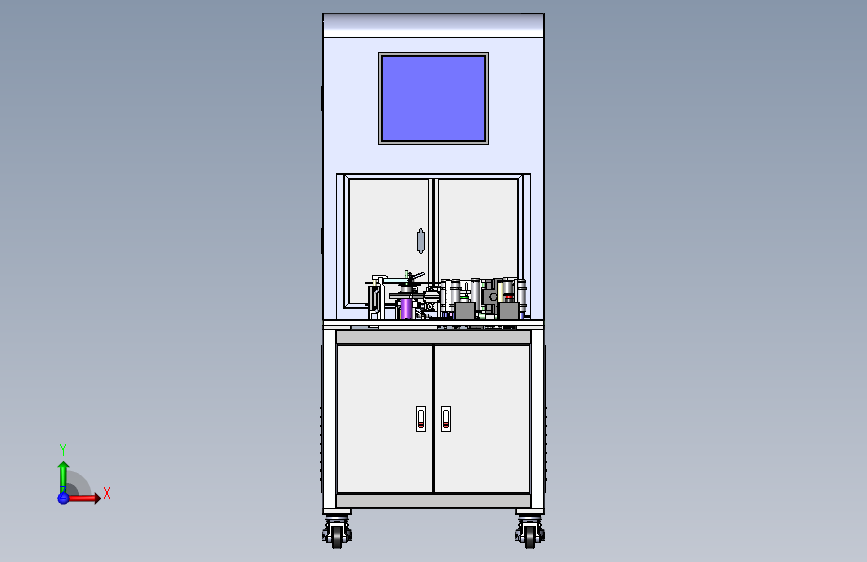

全自动iphone贴膜机 3（ID:2322017）
0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17510014758052.rar | 97.51M |
| 2 | I1-CHELIC旋转夹持缸SCR25x20-SD2.SLDPRT | 316.76K |
| 3 | I1-KEST电缆保护链18x37.SLDPRT | 469.33K |
| 4 | I1-不锈钢气缸SDA20x75-C-SA2.SLDPRT | 161.44K |
| 5 | I1-双轴气缸TD16x10-SD2.SLDPRT | 314.62K |
| 6 | I1-治具气缸JD20-30-B-SD2.sldprt | 307.08K |
| 7 | I1-直线模组KK8610C-440A1-F0.sldprt | 478.63K |
| 8 | I1-线性滑轨MGN12C2R170Z0C.SLDPRT | 126.23K |
| 9 | I1-线性滑轨MGN9C2R95Z0C.SLDPRT | 122.58K |
| 10 | I17显示屏（acer）.SLDPRT | 346.50K |
| 11 | I2-CHELIC旋转夹持缸SCR25x20-SD2.SLDPRT | 286.91K |
| 12 | I2-KEST电缆保护链18x37.SLDPRT | 133.19K |
| 13 | I2-不锈钢气缸SDA20x75-C-SA2.SLDPRT | 106.31K |
| 14 | I2-双轴气缸TD16x10-SD2.SLDPRT | 213.33K |
| 15 | I2-治具气缸JD20-30-B-SD2.sldprt | 148.52K |
| 16 | I2-直线模组KK8610C-440A1-F0.sldprt | 179.01K |
| 17 | I2-线性滑轨MGN12C2R170Z0C.SLDPRT | 105.02K |
| 18 | I2-线性滑轨MGN9C2R95Z0C.SLDPRT | 114.27K |
| 19 | I3-KEST电缆保护链18x37.SLDPRT | 115.02K |
| 20 | I4-KEST电缆保护链18x37.SLDPRT | 106.66K |
| 21 | IAPO-0026-01-01Sensor调节杆.SLDPRT | 79.61K |
| 22 | IAPO-0026-01-02Sensor调节支架.SLDPRT | 132.22K |
| 23 | IAPO-0026-01-03Sensor固定导杆2.SLDPRT | 81.86K |
| 24 | IAPO-0026-01-04Sensor连接块.SLDPRT | 165.74K |
| 25 | IAPO-0026-01-05摆杆.SLDPRT | 128.25K |
| 26 | IAPO-0026-01-06包胶轮.SLDPRT | 120.82K |
| 27 | IAPO-0026-01-07被压板.SLDPRT | 141.78K |
| 28 | IAPO-0026-01-08剥料板.SLDPRT | 149.75K |
| 29 | IAPO-0026-01-09剥料板连接块.SLDPRT | 167.13K |
| 30 | IAPO-0026-01-10剥料气缸安装座.SLDPRT | 102.06K |
| 31 | IAPO-0026-01-11剥料气缸连接块.SLDPRT | 113.10K |
| 32 | IAPO-0026-01-12传感器固定块.SLDPRT | 137.46K |
| 33 | IAPO-0026-01-13挡环2.SLDPRT | 140.99K |
| 34 | IAPO-0026-01-14挡块.SLDPRT | 124.78K |
| 35 | IAPO-0026-01-15挡料固定块.SLDPRT | 110.81K |
| 36 | IAPO-0026-01-16挡料环.SLDPRT | 100.50K |
| 37 | IAPO-0026-01-17挡料块右.SLDPRT | 117.60K |
| 38 | IAPO-0026-01-18挡料块左.SLDPRT | 113.78K |
| 39 | IAPO-0026-01-19导杆.SLDPRT | 79.95K |
| 40 | IAPO-0026-01-20导杆115mm.SLDPRT | 71.63K |
| 41 | IAPO-0026-01-21法兰.SLDPRT | 124.02K |
| 42 | IAPO-0026-01-22导杆122mm.SLDPRT | 74.42K |
| 43 | IAPO-0026-01-23导向吸嘴.SLDPRT | 161.30K |
| 44 | IAPO-0026-01-24导向吸嘴盖.SLDPRT | 117.93K |
| 45 | IAPO-0026-01-25导向吸嘴支架.SLDPRT | 84.37K |
| 46 | IAPO-0026-01-26顶紧螺帽.SLDPRT | 104.41K |
| 47 | IAPO-0026-01-27惰轮摆臂.SLDPRT | 100.72K |
| 48 | IAPO-0026-01-28惰轮摆臂2.SLDPRT | 102.83K |
| 49 | IAPO-0026-01-29惰轮轴.SLDPRT | 128.88K |
| 50 | IAPO-0026-01-30惰轮轴套.SLDPRT | 117.25K |
| 51 | IAPO-0026-01-31防退轴.SLDPRT | 102.74K |
| 52 | IAPO-0026-01-32放料轴.SLDPRT | 124.75K |
| 53 | IAPO-0026-01-33浮动接头M8.SLDPRT | 137.80K |
| 54 | IAPO-0026-01-34固定块.SLDPRT | 81.73K |
| 55 | IAPO-0026-01-35固定座.SLDPRT | 123.64K |
| 56 | IAPO-0026-01-36滚花螺母.SLDPRT | 90.89K |
| 57 | IAPO-0026-01-37滚花螺母M12.SLDPRT | 122.45K |
| 58 | IAPO-0026-01-38滚轮轴1.SLDPRT | 101.86K |
| 59 | IAPO-0026-01-39滚轮轴2.SLDPRT | 94.94K |
| 60 | IAPO-0026-01-40滚筒.SLDPRT | 108.27K |
| 61 | IAPO-0026-01-41缓冲器固定块1.SLDPRT | 98.26K |
| 62 | IAPO-0026-01-42缓冲器固定块2.SLDPRT | 96.88K |
| 63 | IAPO-0026-01-43夹紧丝.SLDPRT | 92.29K |
| 64 | IAPO-0026-01-44开关安装盒.SLDPRT | 107.36K |
| 65 | IAPO-0026-01-45轴套.SLDPRT | 111.51K |
| 66 | IAPO-0026-01-46拉杆.SLDPRT | 131.69K |
| 67 | IAPO-0026-01-47连接板.SLDPRT | 92.72K |
| 68 | IAPO-0026-01-48料带压紧气缸安装板.SLDPRT | 93.83K |
| 69 | IAPO-0026-01-49料盘.SLDPRT | 115.08K |
| 70 | IAPO-0026-01-50摩擦轮.SLDPRT | 110.01K |
| 71 | IAPO-0026-01-51摩擦轴.SLDPRT | 125.60K |
| 72 | IAPO-0026-01-52平键.SLDPRT | 72.35K |
| 73 | IAPO-0026-01-53气缸固定块.SLDPRT | 113.21K |
| 74 | IAPO-0026-01-54牵引压轮轴环.SLDPRT | 112.37K |
| 75 | IAPO-0026-01-55牵引轴.SLDPRT | 121.51K |
| 76 | IAPO-0026-01-56牵引轴支撑条.SLDPRT | 92.42K |
| 77 | IAPO-0026-01-57驱动轮连接块.SLDPRT | 117.87K |
| 78 | IAPO-0026-01-58取料连接板.SLDPRT | 142.10K |
| 79 | IAPO-0026-01-59收料胶套.SLDPRT | 133.76K |
| 80 | IAPO-0026-01-60收料轮挡料盘.SLDPRT | 71.82K |
| 81 | IAPO-0026-01-61收料轴.SLDPRT | 91.92K |
| 82 | IAPO-0026-01-62收料组件摩擦片.SLDPRT | 76.61K |
| 83 | IAPO-0026-01-63收料组件摩擦片优力胶.SLDPRT | 82.78K |
| 84 | IAPO-0026-01-64贴标部分底板.SLDPRT | 647.41K |
| 85 | IAPO-0026-01-65贴头连接板.SLDPRT | 156.23K |
| 86 | IAPO-0026-01-66吸料缓冲块.SLDPRT | 85.42K |
| 87 | IAPO-0026-01-67吸料气缸连接块.SLDPRT | 93.63K |
| 88 | IAPO-0026-01-68吸嘴.SLDPRT | 110.55K |
| 89 | IAPO-0026-01-69吸嘴盖.SLDPRT | 103.86K |
| 90 | IAPO-0026-01-70吸嘴座.SLDPRT | 111.75K |
| 91 | IAPO-0026-01-71压带轮轴端挡环.SLDPRT | 133.00K |
| 92 | IAPO-0026-01-72吸嘴座连接块.SLDPRT | 116.16K |
| 93 | IAPO-0026-01-73压带轮杆.SLDPRT | 101.10K |
| 94 | IAPO-0026-01-74压带轮滚筒.SLDPRT | 115.28K |
| 95 | IAPO-0026-01-75压带线轨垫高块.sldprt | 106.00K |
| 96 | IAPO-0026-01-76压料支架.SLDPRT | 128.63K |
| 97 | IAPO-0026-01-77压轮连接块.SLDPRT | 158.64K |
| 98 | IAPO-0026-01-78优力胶压块.SLDPRT | 82.25K |
| 99 | IAPO-0026-01-79支架.SLDPRT | 144.24K |
| 100 | IAPO-0026-01-80轴端挡环.SLDPRT | 125.40K |
| 101 | IAPO-0026-01-81浮动接头M6.SLDPRT | 112.47K |
| 102 | IAPO-0026-02-01BAND治具.SLDPRT | 106.46K |
| 103 | IAPO-0026-02-02传感器固定片.SLDPRT | 113.97K |
| 104 | IAPO-0026-02-03XY平台连接块.SLDPRT | 178.10K |
| 105 | IAPO-0026-02-04XY平台马达模组安装板.SLDPRT | 148.61K |
| 106 | IAPO-0026-02-05XY平台马达模组安装顶板.SLDPRT | 180.52K |
| 107 | IAPO-0026-02-06XY平台马达模组安装立板.SLDPRT | 196.77K |
| 108 | IAPO-0026-02-07X轴托链安装片.SLDPRT | 114.23K |
| 109 | IAPO-0026-02-08X轴线槽.SLDPRT | 126.45K |
| 110 | IAPO-0026-02-09Y轴托链钣金片.SLDPRT | 134.33K |
| 111 | IAPO-0026-02-10Y轴线槽.SLDPRT | 128.50K |
| 112 | IAPO-0026-02-11槽口感应器安装条KK86-440.SLDPRT | 117.57K |
| 113 | IAPO-0026-02-12传感器锁紧片.SLDPRT | 89.17K |
| 114 | IAPO-0026-02-13底座.SLDPRT | 152.97K |
| 115 | IAPO-0026-02-14底座2.SLDPRT | 83.66K |
| 116 | IAPO-0026-02-15底座带避位孔.SLDPRT | 102.63K |
| 117 | IAPO-0026-02-16放置气缸定位槽.SLDPRT | 103.50K |
| 118 | IAPO-0026-02-17浮动挡块.SLDPRT | 90.43K |
| 119 | IAPO-0026-02-18浮动挡块2.SLDPRT | 69.89K |
| 120 | IAPO-0026-02-19联轴器750w.SLDPRT | 163.05K |
| 121 | IAPO-0026-02-20联轴器Φ8-Φ8.SLDPRT | 178.09K |
| 122 | IAPO-0026-02-21马达安装板右.SLDPRT | 216.17K |
| 123 | IAPO-0026-02-22马达锁紧片松下200W.SLDPRT | 102.19K |
| 124 | IAPO-0026-02-23压杆抱紧块.SLDPRT | 182.40K |
| 125 | IAPO-0026-02-24压紧气缸安装板.SLDPRT | 179.06K |
| 126 | IAPO-0026-02-25压料轴承座.SLDPRT | 126.42K |
| 127 | IAPO-0026-02-26压头柱.SLDPRT | 104.54K |
| 128 | IAPO-0026-02-27优力胶压头.SLDPRT | 126.05K |
| 129 | IAPO-0026-02-28张紧螺钉块松下200W.SLDPRT | 98.73K |
| 130 | IAPO-0026-02-29转接轴KK86.SLDPRT | 107.82K |
| 131 | IAPO-0026-02-30传感器感应片.SLDPRT | 111.38K |
| 132 | IAPO-0026-02-31传感器感应片02.SLDPRT | 84.04K |
| 133 | IBAND旋转模组.sldasm | 1.74M |
| 134 | IBAND旋转部分.SLDASM | 3.16M |
| 135 | IBAND模型.SLDPRT | 277.86K |
| 136 | ICHELIC不锈钢气缸SDA20x75-C-SA2.SLDASM | 173.03K |
| 137 | ICHELIC双轴气缸TD16x10-SD2.SLDASM | 168.68K |
| 138 | ICHELIC旋转夹持缸SCR25x20-SD2.SLDASM | 222.65K |
| 139 | ICHELIC治具气缸JD20-30-B-SD2.SLDASM | 231.04K |
| 140 | ICHELIC直立接头SQC6-M5.SLDPRT | 71.76K |
| 141 | ICHELIC调速接头QSC6-01.SLDPRT | 96.61K |
| 142 | ICHELIC调速接头QSC6-M5.SLDPRT | 92.20K |
| 143 | IC型扣环孔用RTWS24.SLDPRT | 81.33K |
| 144 | IC型扣环轴用STWN8.SLDPRT | 81.84K |
| 145 | IC型扣环轴用STWS12.SLDPRT | 79.69K |
| 146 | IFOOTMESTER脚轮GD-100F.SLDPRT | 4.82M |
| 147 | IHIWIN伺服电机FRAC1K2022.SLDPRT | 284.23K |
| 148 | IHIWIN伺服电机FRAC1K7522.SLDPRT | 315.13K |
| 149 | IHIWIN伺服电机FRC1K4022.SLDPRT | 301.18K |
| 150 | IKEST电缆保护链18x3712节反面安装.SLDASM | 289.97K |
| 151 | IKEYENCE超小型数字激光传感器LV-H37解码器LV-21A.SLDPRT | 170.35K |
| 152 | IL型接头SQL8-02.SLDPRT | 202.00K |
| 153 | INSK小径滚珠轴承628ZZ.SLDPRT | 290.71K |
| 154 | INSK小径滚珠轴承696ZZ.SLDPRT | 278.16K |
| 155 | INSK小径滚珠轴承698ZZ.SLDPRT | 266.78K |
| 156 | INSK深沟滚珠轴承6901ZZ.SLDPRT | 257.28K |
| 157 | INSK深沟滚珠轴承6902ZZNR.SLDPRT | 328.39K |
| 158 | INSK深沟滚珠轴承6903ZZ.SLDPRT | 275.79K |
| 159 | IOMRON传感器EE-SX672.SLDPRT | 538.39K |
| 160 | IOMRON传感器EE-SX674.SLDPRT | 216.99K |
| 161 | iphone贴膜机.STEP | 62.80M |
| 162 | IX轴马达组件.sldasm | 546.64K |
| 163 | I上机架.SLDASM | 565.66K |
| 164 | I上机架侧门钣金（右门）.SLDPRT | 431.00K |
| 165 | I上机架侧门钣金（左门）.SLDPRT | 411.50K |
| 166 | I上机架右门钣金组件.SLDASM | 113.18K |
| 167 | I上机架后门钣金.SLDPRT | 425.00K |
| 168 | I上机架后门钣金组件.SLDASM | 115.58K |
| 169 | I上机架后门钣金（左门）.SLDPRT | 408.50K |
| 170 | I上机架框架.sldasm | 523.69K |
| 171 | I上机罩.SLDPRT | 1.60M |
| 172 | I下机架前侧封板.SLDPRT | 282.50K |
| 173 | I下机架前底封板.SLDPRT | 291.50K |
| 174 | I下机架前门组件.SLDASM | 141.63K |
| 175 | I下机架前门钣金.SLDPRT | 187.63K |
| 176 | I下机架后底封板.SLDPRT | 363.00K |
| 177 | I下机架后门组件.SLDASM | 172.26K |
| 178 | I下机架后门钣金.SLDPRT | 199.33K |
| 179 | I下机架封板带风窗孔.SLDPRT | 606.50K |
| 180 | I下机架封板电缆锁头.SLDPRT | 424.00K |
| 181 | I下机架带风扇封板组件.SLDASM | 886.85K |
| 182 | I下机架方通焊接图.SLDASM | 774.50K |
| 183 | I下机架模组.SLDASM | 4.32M |
| 184 | I产品运动X轴组件.sldasm | 847.21K |
| 185 | I产品运动Y轴组件.sldasm | 703.25K |
| 186 | I传感器组件.SLDASM | 316.81K |
| 187 | I光纤检测组件.SLDASM | 269.35K |
| 188 | I内六角圆头螺栓M5x30.SLDPRT | 275.50K |
| 189 | I内六角圆柱头螺钉M3x8附带平垫、弹垫.SLDPRT | 115.97K |
| 190 | I内六角圆柱头螺钉M4x20附带平垫、弹垫.SLDPRT | 103.61K |
| 191 | I内六角螺栓M4x25附带平垫、弹垫.SLDPRT | 137.98K |
| 192 | I内六角螺栓M5x15附带平垫、弹垫.SLDPRT | 154.29K |
| 193 | I内六角螺栓M5x20附带平垫、弹垫.SLDPRT | 149.34K |
| 194 | I内六角螺栓M5x30附带平垫、弹垫.SLDPRT | 143.29K |
| 195 | I内六角螺栓M5x35附带平垫、弹垫.SLDPRT | 157.11K |
| 196 | I内六角螺栓M6x25附带平垫、弹垫.SLDPRT | 143.39K |
| 197 | I内六角螺栓M6x30附带平垫、弹垫.SLDPRT | 143.99K |
| 198 | I剥料气缸油压缓冲器组件.sldasm | 148.01K |
| 199 | I剥料组件.SLDASM | 615.00K |
| 200 | I压头组件.sldasm | 351.18K |
| 201 | I压带滚轮组件.sldasm | 331.10K |
| 202 | I压带组件.SLDASM | 1.12M |
| 203 | I同步带轮22-T5-16-AF孔径10带链槽B3.SLDPRT | 297.60K |
| 204 | I同步带轮22-T5-16-BF孔径14带链槽B5.SLDPRT | 428.64K |
| 205 | I吸标头组件.SLDASM | 473.04K |
| 206 | I固定把手CLDM5-12-M.SLDPRT | 260.09K |
| 207 | I大底板垫块.SLDPRT | 198.50K |
| 208 | I大底板垫块2.SLDPRT | 182.00K |
| 209 | I导向吸嘴组件.sldasm | 153.09K |
| 210 | I工控机（IPC-360）.SLDPRT | 327.50K |
| 211 | I平键KEG3-10.SLDPRT | 67.62K |
| 212 | I弹簧线径1.0外径10长50.SLDPRT | 944.33K |
| 213 | I弹簧线径1.1外径10长25.SLDPRT | 968.06K |
| 214 | I弹簧线径1.2外径16长30.SLDPRT | 1.16M |
| 215 | I弹簧线径1.9外径20长30.SLDPRT | 683.68K |
| 216 | I急停開關LA42J-11DC24VR开孔Φ22.2深圳道雅.SLDPRT | 472.68K |
| 217 | I惰轮组件.sldasm | 275.09K |
| 218 | I惰轮组件2.sldasm | 277.10K |
| 219 | I手推阀残压排气阀MBV-02-B.SLDPRT | 532.00K |
| 220 | I拉伸弹簧线径1.2外径12长60.SLDPRT | 209.74K |
| 221 | I摩擦轮惰轮组件.SLDASM | 659.39K |
| 222 | I收料轮组件.SLDASM | 1.45M |
| 223 | I放料盘组件.sldasm | 1.08M |
| 224 | I料带压紧组件.sldasm | 220.59K |
| 225 | I方通50x50x4L600.SLDPRT | 183.00K |
| 226 | I方通50x50x4L700.SLDPRT | 181.50K |
| 227 | I方通50x50x4L863.SLDPRT | 172.50K |
| 228 | I方通50x50x4L870.SLDPRT | 180.50K |
| 229 | I旋转压头组件.sldasm | 588.16K |
| 230 | I显示器固定板.SLDPRT | 377.50K |
| 231 | I显示器固定焊接架.SLDPRT | 247.00K |
| 232 | I机架封板安装块.SLDPRT | 176.50K |
| 233 | I杆端螺母NT-02.SLDPRT | 83.02K |
| 234 | I模组感应器组件KK8610C-440A1-F0.SLDASM | 223.72K |
| 235 | I油压缓冲器SAC-1008N.SLDPRT | 203.90K |
| 236 | I滚珠轴承组件HBT10.SLDPRT | 121.22K |
| 237 | I滚筒组件2.sldasm | 295.24K |
| 238 | I滚筒组件3.sldasm | 266.31K |
| 239 | I焊接折边.SLDPRT | 250.50K |
| 240 | I焊接折边2.SLDPRT | 205.00K |
| 241 | I牵引轴压轮组件.sldasm | 447.32K |
| 242 | I牵引轴组件.sldasm | 658.04K |
| 243 | I电控元件安装板.SLDPRT | 272.00K |
| 244 | I电控元件安装板2.SLDPRT | 327.00K |
| 245 | I皮带4-9^贴标部分.sldprt | 57.16K |
| 246 | I皮带5-10^贴标部分.sldprt | 49.85K |
| 247 | I空气调理组合NFC-200-01-BG-H.SLDPRT | 1.53M |
| 248 | I空气调理组合模组NFC-200-01-BG-H.SLDASM | 1.22M |
| 249 | I空气过滤组合安装板组件.SLDASM | 1.16M |
| 250 | I精密U型螺帽FUNT15M15x1.0.SLDPRT | 125.52K |
| 251 | I绿色按钮.SLDPRT | 180.51K |
| 252 | I脚轮安装板.SLDPRT | 218.50K |
| 253 | I蝶形铰链HHPBSN8.SLDPRT | 103.09K |
| 254 | I贴标部分.SLDASM | 5.87M |
| 255 | I配电板3.SLDPRT | 414.50K |
| 256 | I镜向上机架侧门钣金（右门）.SLDPRT | 262.50K |
| 257 | I镜向上机架右门钣金组件.SLDASM | 219.50K |
| 258 | I镜向上机架右门钣金组件1.SLDASM | 218.00K |
| 259 | I镜向门拉手.SLDPRT | 337.50K |
| 260 | I门拉手.SLDPRT | 196.33K |
| 261 | I韩国SUNGIL联轴器SRBA-32CΦ8-Φ14.SLDPRT | 333.42K |
| 262 | I风扇组件.SLDPRT | 1.04M |
| 263 | I高扭矩同步带轮HTPA25S5M100-A-N12.SLDPRT | 314.72K |
| 264 | I高扭矩同步带轮HTPA25S5M100-B-N14.SLDPRT | 317.87K |
| 265 | “zongzhuangtu”FC.SLDASM | 13.16M |
| 266 | 三维二维代画选型计算分析AA001.jpg | 232.85K |
| 267 | 三维二维代画选型计算分析AA008.jpg | 230.69K |
| 268 | 三维二维代画（手机淘宝）STP如何打开sw文件重命名.docx | 1.53M |
| 269 | 使用说明-模型.txt | 1.15K |
| 270 | 机械代画、模型、插件、外挂；全天在线.url | 191B |
此图纸下载需要1金币
立即下载
发布者
代画 计算 说明书 看头像
创作: 35913
粉丝: 289
加入时间：2023-05-02
模型信息
图纸格式：sldprt,sldasm,step
文件大小：99.85M
所需金币：1
上传时间：2025-06-27 13:18:39
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2018
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.png)
0.png)
0.png)
0_0_364.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
QQ在线客服
官方QQ群
