AGV叉车（ID:2415498）

机械设备 / 工程机械 / AGV叉车

©非原创

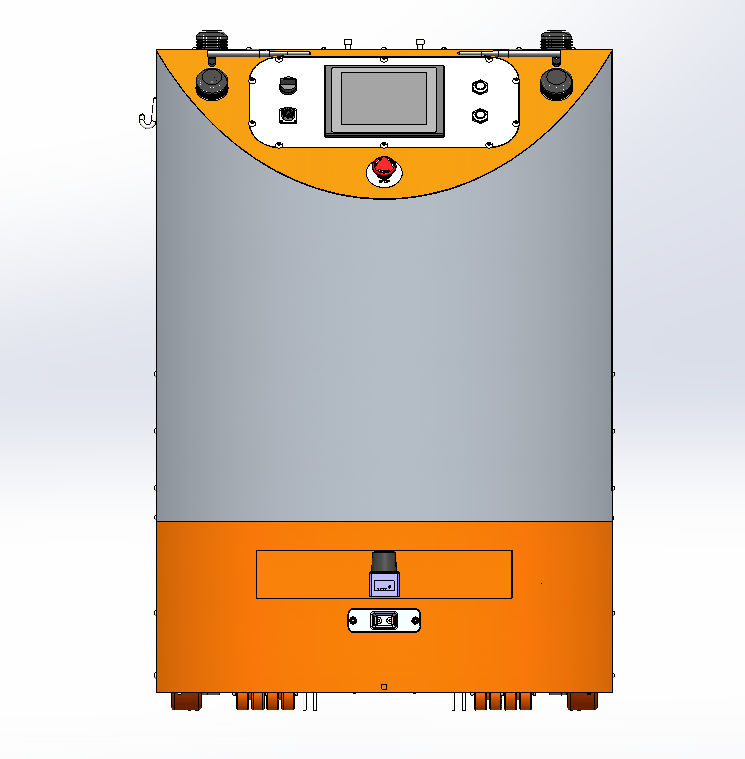

平面图

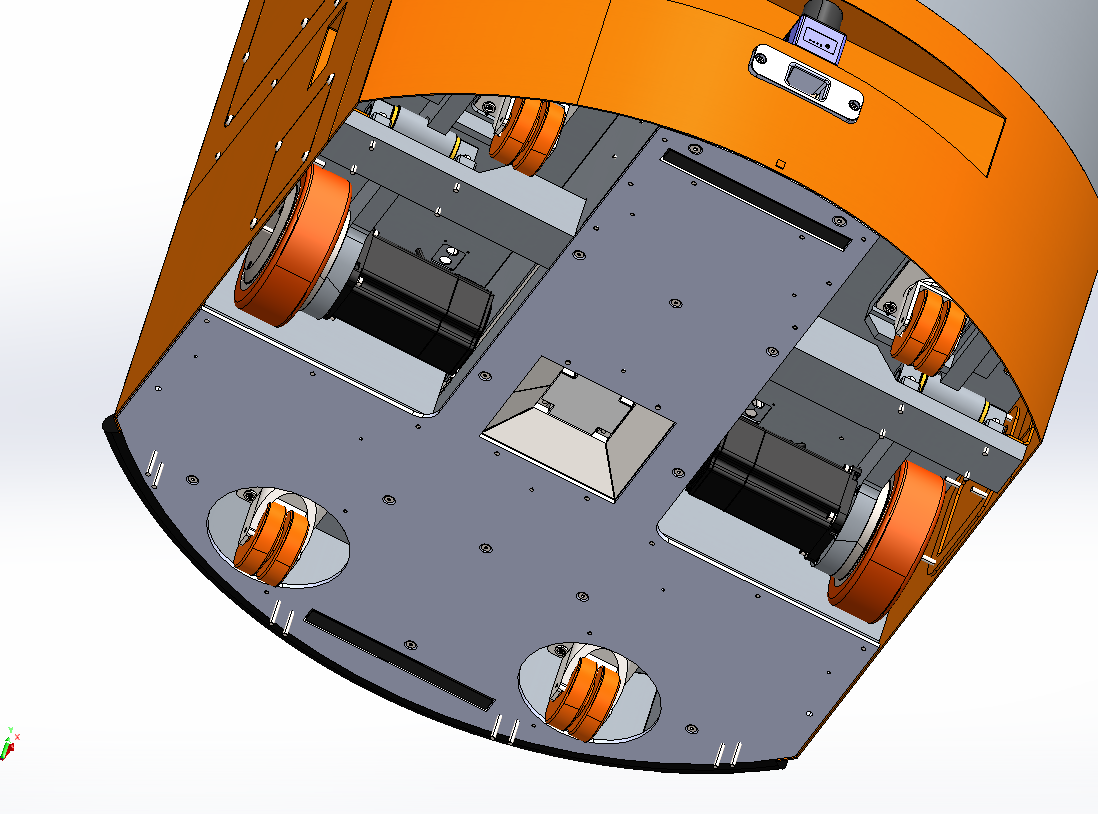

3D视图

文件列表

#	文件名称	文件大小
1	17532553432669.zip	85.42M
2	3寸万向脚轮01.SLDPRT	182.52K
3	3寸万向脚轮02.SLDPRT	126.13K
4	3寸万向脚轮03.SLDPRT	111.28K
5	3寸万向脚轮屹上.SLDASM	219.49K
6	48V40AH磷酸铁锂电池.SLDPRT	103.92K
7	7寸WEINVIEW人机界面.SLDPRT	162.71K
8	AGV音乐报警器.SLDPRT	193.93K
9	Aries三维尺寸模型图3D.SLDASM	581.71K
10	ASSEM1.sldprt	112.24K
11	DBH--DN-13-01自动充电接头绝缘件.SLDPRT	282.71K
12	DBH--DN-13-02充电座弹片.SLDPRT	149.27K
13	DBH--DN-13-03充电座弹片固定板.SLDPRT	124.83K
14	DBH--DN-13充电插座.SLDASM	1.43M
15	DBH-DH01-02-01-01支架焊接件01.SLDPRT	218.68K
16	DBH-DH01-02-01-02支架焊接件02.SLDPRT	138.57K
17	DBH-DH01-02-01-03支架焊接件03.SLDPRT	126.34K
18	DBH-DH01-02-01-04支架焊接件04.SLDPRT	76.02K
19	DBH-DH01-02-01支架焊接件.SLDASM	157.85K
20	DBH-DH01-02-02转轴.SLDPRT	111.18K
21	DBH-DH01-02左驱动轮组件.SLDASM	1.37M
22	DBH-DH01-03-01-01支架焊接件01.SLDPRT	223.73K
23	DBH-DH01-03-01-02支架焊接件02.SLDPRT	125.47K
24	DBH-DH01-03-01支架焊接件.SLDASM	148.64K
25	DBH-DH01-03右驱动轮组件.SLDASM	1.61M
26	DBH-DH01-04-01前轮安装板.SLDPRT	183.70K
27	DBH-DH01-04-02光轴.SLDPRT	104.71K
28	DBH-DH01-04-03支座.SLDPRT	152.01K
29	DBH-DH01-04-04轴承座.SLDPRT	154.44K
30	DBH-DH01-04前万向轮组件.SLDASM	503.60K
31	DBH-DH01-05-01-01焊接件01.SLDPRT	398.17K
32	DBH-DH01-05-01-02焊接件02.SLDPRT	713.15K
33	DBH-DH01-05-01后轮护罩焊接件.SLDASM	184.29K
34	DBH-DH01-05-06电机线夹板.SLDPRT	132.29K
35	DBH-DH01-05电池组件.SLDASM	321.58K
36	DBH-DH01-07-01-01底座焊接件1.SLDPRT	171.87K
37	DBH-DH01-07-01-02底座焊接件2.SLDPRT	138.11K
38	DBH-DH01-07-01-03底座焊接件3.SLDPRT	121.69K
39	DBH-DH01-07-01-04底座焊接件4.SLDPRT	139.55K
40	DBH-DH01-07-01底座焊接件.SLDASM	153.44K
41	DBH-DH01-07-02底板.SLDPRT	1.70M
42	DBH-DH01-07-04前轮罩壳.SLDPRT	1.32M
43	DBH-DH01-07-10支架.SLDPRT	180.29K
44	DBH-DH01-07底座组件.SLDASM	566.27K
45	DBH-DH01-08-01-01外壳前端焊接件1.SLDPRT	433.75K
46	DBH-DH01-08-01-04外壳前端焊接件4.SLDPRT	104.60K
47	DBH-DH01-08-01-08空气开关支架.SLDPRT	206.32K
48	DBH-DH01-08-01-09固定支架.SLDPRT	172.37K
49	DBH-DH01-08-01-10焊接块.SLDPRT	95.78K
50	DBH-DH01-08-01外壳前端焊接件.SLDASM	228.96K
51	DBH-DH01-08-02-01外壳后端焊接件1.SLDPRT	196.85K
52	DBH-DH01-08-02-02外壳后端焊接件2.SLDPRT	102.49K
53	DBH-DH01-08-02-03外壳后端焊接件3.SLDPRT	65.64K
54	DBH-DH01-08-02外壳后端焊接件.SLDASM	147.78K
55	DBH-DH01-08-03-01空气开关支架.SLDPRT	127.20K
56	DBH-DH01-08-03空气开关组件.SLDASM	247.76K
57	DBH-DH01-08外壳组件.SLDASM	1.05M
58	DBH-DJB-00电机控制器装配体.SLDPRT	2.63M
59	FRID固定件.SLDPRT	105.16K
60	FRID安装支架.SLDPRT	261.57K
61	GBT13681-1992焊接六角螺母.sldprt	369.75K
62	GBT6170-20001型六角螺母.sldprt	370.52K
63	GBT70.1-2000内六角圆柱头螺钉.sldprt	1.86M
64	GBT70.2-2000内六角平圆头螺钉.sldprt	578.29K
65	GBT70.3-2000内六角沉头螺钉.sldprt	974.07K
66	GBT848-2002小垫圈A级.sldprt	117.27K
67	GBT859-1987轻型弹簧垫圈.sldprt	174.90K
68	gbt93-1987标准型弹簧垫圈.sldprt	188.05K
69	gbt97.1-2002平垫圈a级.sldprt	141.37K
70	hexnutsstyle1-gradesabgb.SLDPRT	183.28K
71	Imported.sldprt	142.79K
72	Imported_2.sldprt	130.31K
73	JY-L8900FRID站点传感器）.SLDPRT	368.08K
74	RFID安装支架焊件.SLDASM	151.57K
75	RFID钣金件.SLDPRT	104.20K
76	SMH80S-0075-30AAK-3LKH步科伺服电机.SLDPRT	963.33K
77	TD-30A10接线排.sldprt	2.51M
78	YL-2526E安全触边开关.SLDPRT	78.84K
79	zongzhuangtu.SLDASM	20.83M
80	_X2_87BA9489_X0__X2_FF1A_X0__X2_5E735934_X0_-M2.0x6.0.sldprt	46.02K
81	_X2_87BA9489_X0__X2_FF1A_X0__X2_5E735934_X0_-M2.0x6.0_2.sldprt	46.40K
82	_X2_87BA9489_X0__X2_FF1A_X0__X2_76D85934_X0_-M2.5x5.0.sldprt	48.55K
83	_X2_87BA9489_X0__X2_FF1A_X0__X2_76D85934_X0_-M2.5x5.0_2.sldprt	48.77K
84	_X2_87BA9489_X0__X2_FF1A_X0__X2_76D85934_X0_-M2.5x5.0_3.sldprt	48.85K
85	_X2_87BA9489_X0__X2_FF1A_X0__X2_76D85934_X0_-M2.5x5.0_4.sldprt	49.09K
86	___.sldprt	103.71K
87	____.sldasm	32.72K
88	上壳后端焊接件.SLDPRT	124.77K
89	上外壳前端焊接件.SLDPRT	431.64K
90	上外壳总装配体.SLDASM	2.54M
91	上外壳焊件.SLDASM	367.61K
92	上盖侧板焊件.SLDPRT	184.02K
93	上盖侧板盖板.SLDPRT	189.85K
94	上盖料框焊件.SLDASM	116.01K
95	上盖料框焊件.SLDPRT	174.67K
96	上盖料框焊件1.SLDPRT	173.56K
97	上盖盖板.SLDPRT	330.09K
98	上盖盖板焊件.SLDPRT	197.90K
99	上盖盖板焊件1.SLDPRT	190.33K
100	停止按钮22mm.SLDPRT	136.03K
101	充电插座垫块.SLDPRT	86.84K
102	六轴陀螺仪WT61C485.SLDPRT	168.75K
103	前万向轮加强筋.SLDPRT	169.55K
104	前轮安装板焊件.SLDASM	93.37K
105	前轮罩壳焊件.SLDASM	210.89K
106	压缩弹簧1.4X14X20.SLDPRT	1.28M
107	双向磁导AGV控制器V1.0.SLDPRT	7.43M
108	后电池仓钣金.SLDPRT	120.67K
109	后磁条传感器安装支架.SLDPRT	309.26K
110	启动按钮22mm.SLDPRT	135.44K
111	外壳侧盖板.SLDPRT	129.18K
112	外壳加强筋.SLDPRT	116.36K
113	外壳焊件.SLDPRT	122.70K
114	外壳焊件1.SLDPRT	71.17K
115	外壳钣金件2.SLDPRT	105.27K
116	外挂料筒支架.SLDPRT	355.51K
117	外挂料筒支架1.SLDPRT	100.28K
118	外挂料筒支架2.SLDPRT	187.38K
119	外挂料筒焊件.SLDASM	121.50K
120	天线.SLDASM	104.78K
121	天线1.SLDPRT	118.38K
122	天线2.SLDPRT	91.66K
123	带肩无油衬套MPFZ20-30.SLDPRT	176.76K
124	底板组件.sldasm	3.21M
125	急停开关指示牌.sldprt	164.27K
126	手动控制插座.SLDPRT	235.47K
127	手动自动开关.SLDPRT	3.18M
128	报警指示灯500224V.sldprt	980.42K
129	报警灯支架.sldprt	233.40K
130	挂钩.SLDPRT	136.48K
131	料框圆盘.SLDPRT	141.06K
132	料框焊件1.SLDPRT	112.21K
133	施耐德1P25A空气开关.SLDPRT	359.81K
134	施耐德急停开关XB2-BS542C（22mm旋转复位1常闭）.sldprt	334.21K
135	机器人安装支架焊件.SLDPRT	2.32M
136	步科伺服驱动器FD133-CD-000.SLDPRT	412.22K
137	电气导轨35×7×80.SLDPRT	135.16K
138	电池支架.SLDPRT	387.56K
139	电池箱.SLDPRT	243.33K
140	直流变压器48V转24V15A.SLDPRT	335.86K
141	磁条传感器短款.SLDPRT	1.14M
142	组合式接线端子排.SLDPRT	3.00M
143	行走减速机驱动轮ZYX-160-80-19-50-14.3.SLDPRT	1005.04K
144	路由器.SLDPRT	175.89K
145	陀螺仪固定支架.SLDPRT	251.61K
146	零件1.SLDPRT	43.81K
147	面板.SLDPRT	273.77K
148	面板组件.SLDASM	1.12M
