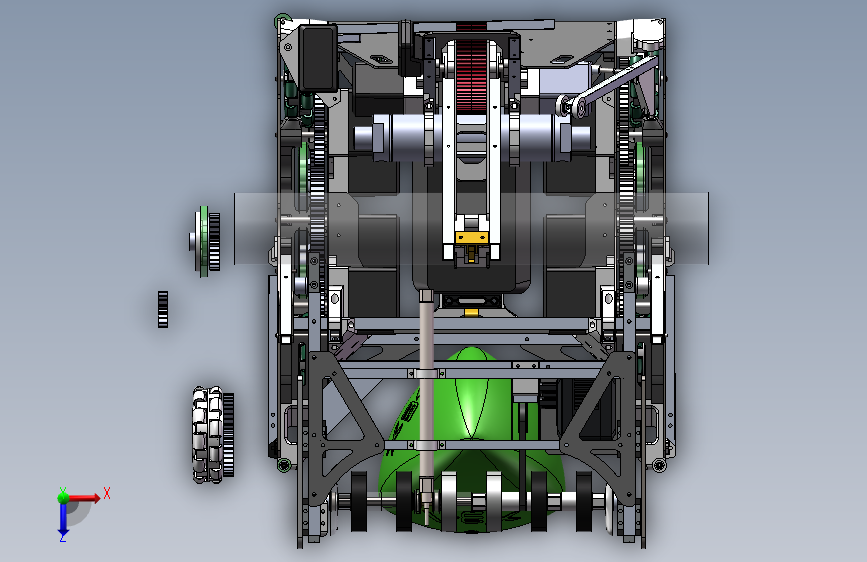

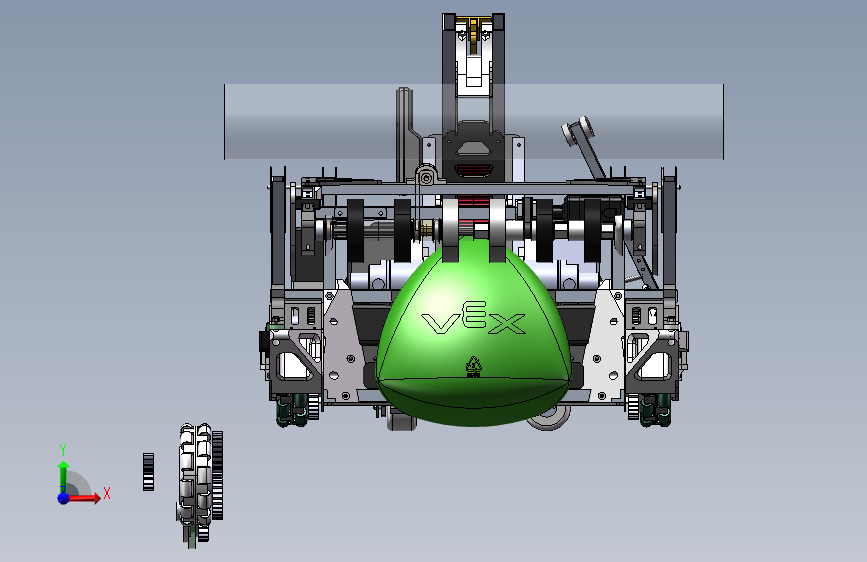

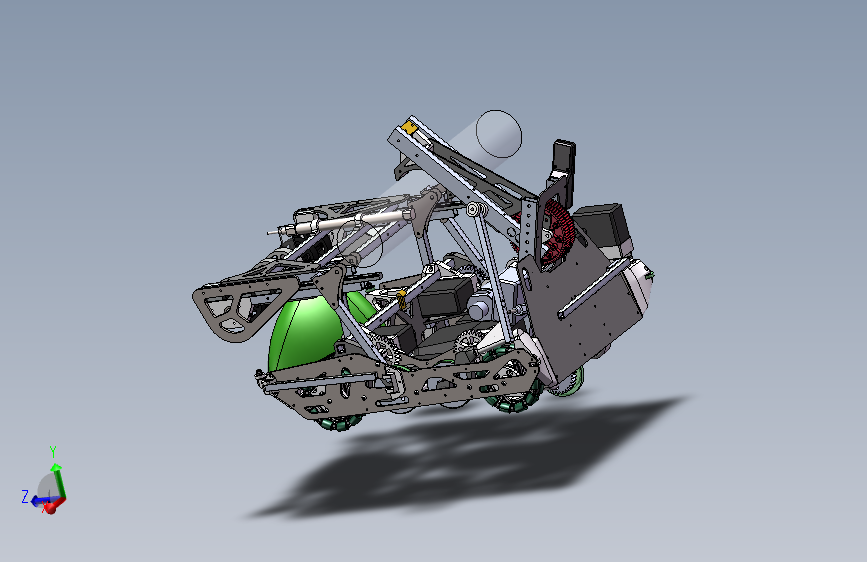

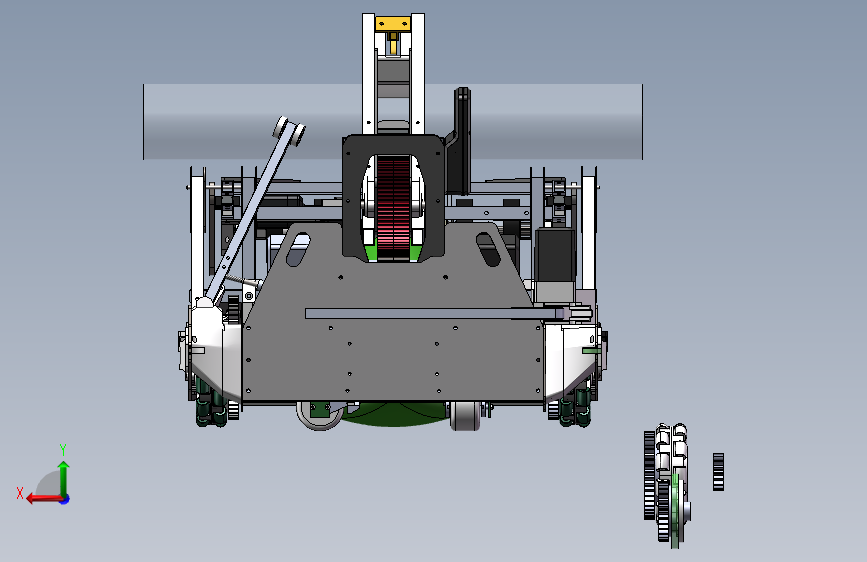

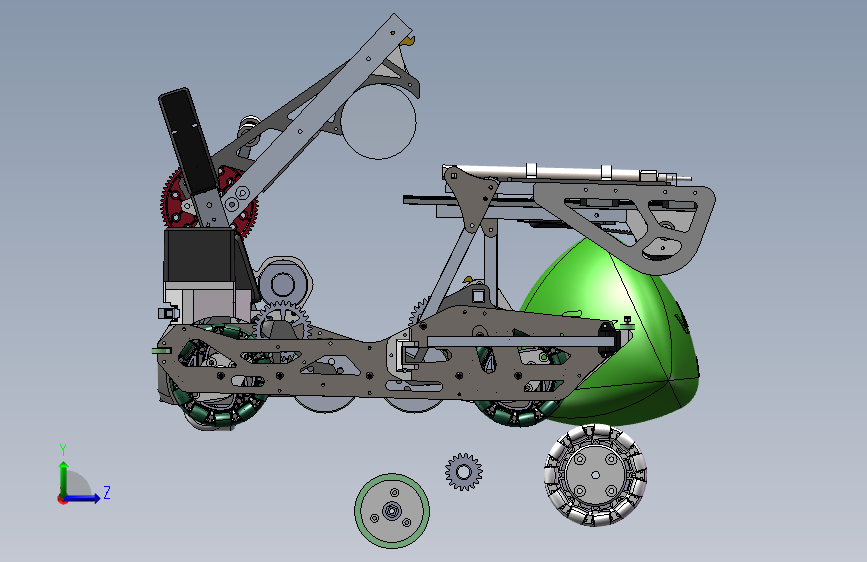

88w底盘；5.5进气；22w C级；11w匹配负载；1活塞翼；1可伸缩进气，2023-2024 VEX U XJTU 15寸机器人最终版本。（ID:2623193）
0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17577720148089.zip | 675.44M |
| 2 | 23-24XJTU15in.STEP | 158.03M |
| 3 | 0808_1mm_bottom.SLDPRT | 107.01K |
| 4 | 0808_1mm_bottom2.SLDPRT | 117.00K |
| 5 | 0808_1mm_bottomwing.SLDPRT | 107.98K |
| 6 | 0808_1mm_frontSide.SLDPRT | 98.88K |
| 7 | 0808_1mm_intakeplug.SLDPRT | 81.02K |
| 8 | 1.2mm_45t_innerboard.SLDPRT | 416.30K |
| 9 | 1.2mm_45t_outerboard.SLDPRT | 293.53K |
| 10 | 1010_1mm_Backword.SLDPRT | 93.69K |
| 11 | 1010_1mm_Long.SLDPRT | 111.34K |
| 12 | 1010_1mm_Longbottom.SLDPRT | 87.68K |
| 13 | 1010_1mm_Oblique.SLDPRT | 110.73K |
| 14 | 1010_1mm_Short.SLDPRT | 95.47K |
| 15 | 1010_1mm_Short_back.SLDPRT | 149.95K |
| 16 | 1010_1mm_Stand.SLDPRT | 118.59K |
| 17 | 1020_1mm_hang_R.SLDPRT | 141.95K |
| 18 | 1020_1mm_root_R.SLDPRT | 161.94K |
| 19 | 13T_M1.2_30.SLDPRT | 280.07K |
| 20 | 18T_M1.5_6.SLDPRT | 391.96K |
| 21 | 18T_M1.5_8.SLDPRT | 402.73K |
| 22 | 18T_M1.5_8_新的改成薄版本.SLDPRT | 484.59K |
| 23 | 1mm_intake_outerstuckboard.SLDPRT | 96.11K |
| 24 | 1mm_intake_stuckboard.SLDPRT | 90.50K |
| 25 | 1mm_strikerboard.SLDPRT | 99.20K |
| 26 | 1mm_strikerboardcap.SLDPRT | 101.73K |
| 27 | 2mm_bottomobli.SLDPRT | 160.58K |
| 28 | 2mm_gyro_base.SLDPRT | 90.26K |
| 29 | 2mm_hangboard.SLDPRT | 210.83K |
| 30 | 2mm_hanghorr.SLDPRT | 111.03K |
| 31 | 2mm_strengthboard.SLDPRT | 76.37K |
| 32 | 30T_M1.5_10_etc.SLDPRT | 612.66K |
| 33 | 30T_M1.5_6_etc.SLDPRT | 453.81K |
| 34 | 30T_M1.5_8.SLDPRT | 638.66K |
| 35 | 30T_M1.5_8_tpuwheelconnecter.SLDPRT | 622.18K |
| 36 | 3mm_bearingshaft.SLDPRT | 97.57K |
| 37 | 3mm_bottomboard.SLDPRT | 85.83K |
| 38 | 3mm_bottom_strenthen.SLDPRT | 155.34K |
| 39 | 3mm_bottom_strenthen_addahole.SLDPRT | 150.39K |
| 40 | 3mm_hangrootconnect.SLDPRT | 116.38K |
| 41 | 3mm_horrboard.SLDPRT | 109.49K |
| 42 | 3mm_intakeshaft.SLDPRT | 78.78K |
| 43 | 3mm_strikerboard.SLDPRT | 98.10K |
| 44 | 3mm_triboard.SLDPRT | 93.51K |
| 45 | 3mm_wingshaft.SLDPRT | 79.43K |
| 46 | 3XM3_2motor_cap.SLDPRT | 3.47M |
| 47 | 3XM3_coremotor_cap.SLDPRT | 2.20M |
| 48 | 3XM3_motor_cap.SLDPRT | 2.38M |
| 49 | 3_12_4_PU.SLDPRT | 94.69K |
| 50 | 45frame.SLDPRT | 44.66K |
| 51 | 45T_M1.5_6.SLDPRT | 1.04M |
| 52 | 45T_M1.5_6_改了轮子版本.SLDPRT | 518.30K |
| 53 | airtankbase.SLDPRT | 157.10K |
| 54 | bird.SLDPRT | 131.20K |
| 55 | birdhouse.SLDPRT | 91.47K |
| 56 | bottomcap.SLDPRT | 634.16K |
| 57 | bottomcylindarcore.SLDPRT | 145.97K |
| 58 | bottomprotslide.SLDPRT | 96.81K |
| 59 | bottomwingbearing.SLDPRT | 119.60K |
| 60 | bottom_connect_cube.SLDPRT | 123.40K |
| 61 | bottom_slide.SLDPRT | 495.05K |
| 62 | cap1.SLDPRT | 108.57K |
| 63 | cap_改轮子.SLDPRT | 136.13K |
| 64 | Chassis.SLDASM | 256.98M |
| 65 | flattri.SLDPRT | 48.00K |
| 66 | frame.SLDPRT | 90.09K |
| 67 | frontnod.SLDPRT | 280.97K |
| 68 | Front_slidecube.SLDPRT | 556.18K |
| 69 | H6_HEXshaft.SLDPRT | 59.74K |
| 70 | hang.SLDPRT | 85.82K |
| 71 | hang_bearingstuck.SLDPRT | 185.36K |
| 72 | hang_click.SLDPRT | 239.01K |
| 73 | intake_m2.5_standard_motor_cap.SLDPRT | 4.21M |
| 74 | koushao改.SLDPRT | 173.18K |
| 75 | mainboard_bottomplate.SLDPRT | 428.74K |
| 76 | mainboard_frontplate.SLDPRT | 232.28K |
| 77 | middlecap.SLDPRT | 55.75K |
| 78 | mm_front_POMboard.SLDPRT | 240.06K |
| 79 | obliboard_stren.SLDPRT | 64.60K |
| 80 | oblihigh.SLDPRT | 145.01K |
| 81 | obli_connect1.SLDPRT | 191.02K |
| 82 | outer_bottomconnect.SLDPRT | 411.31K |
| 83 | outer_Sidecore.SLDPRT | 399.01K |
| 84 | sideshaftcore.SLDPRT | 212.56K |
| 85 | spacer.SLDPRT | 164.64K |
| 86 | specialbottom_slide.SLDPRT | 511.91K |
| 87 | standard_motor_cap.SLDPRT | 4.47M |
| 88 | standard_motor_cap_chassis.SLDPRT | 4.14M |
| 89 | strikerstucter.SLDPRT | 233.04K |
| 90 | tailcore.SLDPRT | 222.28K |
| 91 | TPU_Wheel_60_8_15_P32.SLDPRT | 143.33K |
| 92 | triball.SLDPRT | 6.20M |
| 93 | tube.SLDPRT | 46.45K |
| 94 | wheelbearingcap.SLDPRT | 152.81K |
| 95 | wheelcap.SLDPRT | 148.46K |
| 96 | wheel_frame.SLDPRT | 99.33K |
| 97 | wingaircylbearing.SLDPRT | 185.40K |
| 98 | xjyintake_m2.5_standard_motor_cap.SLDPRT | 4.24M |
| 99 | xjyspecialbottom_slide.SLDPRT | 618.28K |
| 100 | XYposition_F405.step | 21.25M |
| 101 | _new3XM3_2motor_cap.SLDPRT | 5.96M |
| 102 | 新聚氨酯轮子盖子.SLDPRT | 106.32K |
| 103 | 镜向0808_1mm_bottomwing.SLDPRT | 108.08K |
| 104 | 镜向0808_1mm_frontSide.SLDPRT | 102.08K |
| 105 | 镜向1010_1mm_Oblique.SLDPRT | 112.70K |
| 106 | 镜向1010_1mm_Stand.SLDPRT | 114.06K |
| 107 | 镜向1020_1mm_hang_R.SLDPRT | 129.12K |
| 108 | 镜向1020_1mm_root_R.SLDPRT | 156.88K |
| 109 | 镜向18T_M1.5_6.SLDPRT | 485.49K |
| 110 | 镜向18T_M1.5_8.SLDPRT | 506.55K |
| 111 | 镜向1mm_45t_innerboard.SLDPRT | 461.91K |
| 112 | 镜向1mm_45t_outerboard.SLDPRT | 338.94K |
| 113 | 镜向1mm_hangboard.SLDPRT | 208.37K |
| 114 | 镜向1mm_intake_outerstuckboard.SLDPRT | 100.55K |
| 115 | 镜向1mm_intake_stuckboard.SLDPRT | 100.33K |
| 116 | 镜向30T_M1.5_10_etc.SLDPRT | 774.56K |
| 117 | 镜向30T_M1.5_6_etc.SLDPRT | 800.42K |
| 118 | 镜向30T_M1.5_8.SLDPRT | 697.88K |
| 119 | 镜向30T_M1.5_8_etc.SLDPRT | 699.80K |
| 120 | 镜向3mm_bottomboard.SLDPRT | 91.29K |
| 121 | 镜向3mm_horrboard.SLDPRT | 116.27K |
| 122 | 镜向3mm_intakeshaft.SLDPRT | 78.84K |
| 123 | 镜向3mm_strengthboard.SLDPRT | 86.53K |
| 124 | 镜向3mm_triboard.SLDPRT | 100.20K |
| 125 | 镜向3mm_wingshaft.SLDPRT | 80.94K |
| 126 | 镜向3XM3_motor_cap.SLDPRT | 1.22M |
| 127 | 镜向3_12_4TPUbearing.SLDPRT | 88.10K |
| 128 | 镜向3_12_4_PU.SLDPRT | 89.22K |
| 129 | 镜向45T_M1.5_6.SLDPRT | 1019.11K |
| 130 | 镜向airtankbase.SLDPRT | 158.91K |
| 131 | 镜向bottomcap.SLDPRT | 725.60K |
| 132 | 镜向bottom_connect_cube.SLDPRT | 155.78K |
| 133 | 镜向bottom_slide.SLDPRT | 502.13K |
| 134 | 镜向cap1.SLDPRT | 104.69K |
| 135 | 镜向frontnod.SLDPRT | 182.70K |
| 136 | 镜向Front_slidecube.SLDPRT | 450.13K |
| 137 | 镜向hang_bearingstuck.SLDPRT | 172.27K |
| 138 | 镜向middlecap.SLDPRT | 77.39K |
| 139 | 镜向outer_bottomconnect.SLDPRT | 291.08K |
| 140 | 镜向outer_Sidecore.SLDPRT | 325.90K |
| 141 | 镜向sideshaftcore.SLDPRT | 160.62K |
| 142 | 镜向standard_motor_cap.SLDPRT | 1.35M |
| 143 | 镜向standard_motor_cap_chassis.SLDPRT | 1.24M |
| 144 | 镜向tailcore.SLDPRT | 205.37K |
| 145 | 镜向TPU_Wheel_60_8_15_P32.SLDPRT | 130.48K |
| 146 | 镜向wheelbearingcap.SLDPRT | 170.46K |
| 147 | 镜向wheelcap.SLDPRT | 173.09K |
| 148 | 镜向wingaircylbearing.SLDPRT | 136.60K |
| 149 | 镜向_new3XM3_2motor_cap.SLDPRT | 4.07M |
| 150 | 零件3.SLDPRT | 37.81K |
| 151 | 3.25260mmTravelOmni-DirectionalAnti-StaticWheel276-80261.step | 3.79M |
| 152 | 8v-AirTank-SJTUVEX.SLDPRT | 117.25K |
| 153 | 10_10_6_M3_angle.SLDPRT | 88.14K |
| 154 | 40_6_6_M3_bar.SLDPRT | 108.89K |
| 155 | 镜向10_10_6_M3_angle.SLDPRT | 92.12K |
| 156 | 镜向40_6_6_M3_bar.SLDPRT | 113.58K |
| 157 | 3_15_4_PU_bearing.SLDPRT | 91.15K |
| 158 | 3_8_4_grove_bearing.SLDPRT | 68.69K |
| 159 | 4_18_5_PU_bearing.SLDPRT | 82.66K |
| 160 | 5_10_4_flange_bearing.SLDPRT | 115.91K |
| 161 | 法兰轴承8-14-3.2-0.8.SLDPRT | 100.13K |
| 162 | 深沟球轴承6-13-5.SLDPRT | 125.38K |
| 163 | 镜向3_8_4_grove_bearing.SLDPRT | 51.72K |
| 164 | 镜向4_18_5_PU_bearing.SLDPRT | 60.62K |
| 165 | 镜向5_10_4_flange_bearing.SLDPRT | 88.30K |
| 166 | 12t_syn.SLDPRT | 856.98K |
| 167 | 24t_syn.SLDPRT | 691.37K |
| 168 | striker_spacer.SLDPRT | 47.25K |
| 169 | 1-MetalShaftInserts-SJTUVEX.sldprt | 101.63K |
| 170 | 1-PlasticShaftInserts-SJTUVEX.sldprt | 95.11K |
| 171 | 镜向1-MetalShaftInserts-SJTUVEX.SLDPRT | 143.32K |
| 172 | 镜向1-PlasticShaftInserts-SJTUVEX.SLDPRT | 132.83K |
| 173 | 1-12THighStrengthMetalPinion-SJTUVEX.sldprt | 235.34K |
| 174 | 0808_1_intakefree.SLDPRT | 51.86K |
| 175 | 1015_1mm_free_squarebeam.SLDPRT | 85.45K |
| 176 | 1015_1mm_root_squarebeam.SLDPRT | 110.21K |
| 177 | 1015_free.SLDPRT | 98.97K |
| 178 | 1015_root.SLDPRT | 130.11K |
| 179 | 3mm_intake_board.SLDPRT | 135.60K |
| 180 | 3mm_strenboard.SLDPRT | 47.40K |
| 181 | intake.SLDASM | 1.06M |
| 182 | intake_slide.SLDPRT | 78.50K |
| 183 | MGN9C.SLDPRT | 178.22K |
| 184 | MGN9_9x6.5mm.SLDPRT | 172.12K |
| 185 | MGN9_9x6.5mm_150mm.SLDPRT | 166.32K |
| 186 | 镜向1015_free.SLDPRT | 98.21K |
| 187 | 镜向1015_root.SLDPRT | 129.78K |
| 188 | 镜向intake_slide.SLDPRT | 145.40K |
| 189 | 镜向MGN9_9x6.5mm.SLDPRT | 153.00K |
| 190 | 1-1x1AluminumAngle-SJTUVEX.SLDPRT | 10.72M |
| 191 | 1-1x1AluminumAngle1x3x1-SJTUVEX.SLDPRT | 22.72M |
| 192 | 1-36THighStrengthGear-SJTUVEX.sldprt | 1.03M |
| 193 | 1-60TGear-SJTUVEX.sldprt | 564.29K |
| 194 | 1-FlatBearing-SJTUVEX.sldprt | 199.88K |
| 195 | 2-OD2’‘StraightFlexWheel.SLDPRT | 274.75K |
| 196 | 3-KShapeHexagonNuts-SJTUVEX.SLDPRT | 665.16K |
| 197 | 3-NylonSpacers-SJTUVEX.SLDPRT | 287.26K |
| 198 | 3-PlainWashers-SJTUVEX.SLDPRT | 517.82K |
| 199 | 3-RoundHeadHexagonScrews-SJTUVEX.SLDPRT | 891.54K |
| 200 | M4螺柱_10mm.SLDPRT | 67.84K |
| 201 | M4螺柱_25mm.SLDPRT | 58.94K |
| 202 | V5SmartMotor5.5W276-4842.SLDPRT | 593.85K |
| 203 | V5SmartMotor5.5W276-4842.step | 688.25K |
| 204 | 吸取前护板.SLDPRT | 260.73K |
| 205 | 吸取加强方铝.SLDPRT | 73.06K |
| 206 | 吸取护板.SLDPRT | 113.71K |
| 207 | 气瓶架.SLDPRT | 174.80K |
| 208 | 粗轴特殊轴承快.SLDPRT | 243.81K |
| 209 | 装配体1.SLDASM | 14.80M |
| 210 | 镜向2-OD2’‘StraightFlexWheel.SLDPRT | 431.91K |
| 211 | 1.2mm_strenthen_bracket.SLDPRT | 140.15K |
| 212 | 1.2mm_synbase.SLDPRT | 157.95K |
| 213 | 1010_free_V3.SLDPRT | 100.88K |
| 214 | 1010_root_V3.SLDPRT | 125.08K |
| 215 | 1010_strenthen2_V3.SLDPRT | 99.74K |
| 216 | 1010_strenthen3_V3.SLDPRT | 86.13K |
| 217 | 1010_strenthen_V3.SLDPRT | 97.19K |
| 218 | 10_15_4_flange.SLDPRT | 72.40K |
| 219 | 10_16_6轴止动环.SLDPRT | 111.29K |
| 220 | 2mm_电机固定.SLDPRT | 98.89K |
| 221 | 3mm_strenthenboard2.SLDPRT | 91.93K |
| 222 | 3mm_topboard.SLDPRT | 139.49K |
| 223 | 502粘住的气缸座.SLDPRT | 90.07K |
| 224 | CDJ2B_10_base.SLDPRT | 121.91K |
| 225 | CDJ2B_10_head.SLDPRT | 74.33K |
| 226 | coilspring.SLDPRT | 61.82K |
| 227 | cyl_connect.SLDPRT | 84.24K |
| 228 | intake_bearing.SLDPRT | 128.17K |
| 229 | intake_slide_V3.SLDPRT | 154.68K |
| 230 | intake_V4.SLDASM | 3.05M |
| 231 | syn.SLDPRT | 835.40K |
| 232 | 副轴承座.SLDPRT | 203.35K |
| 233 | 同步带电机辅助打印件.SLDPRT | 70.64K |
| 234 | 外侧轴肩.SLDPRT | 85.15K |
| 235 | 气缸头基座-公.SLDPRT | 136.89K |
| 236 | 气缸头基座-母.SLDPRT | 123.95K |
| 237 | 滑块连接座1.SLDPRT | 84.10K |
| 238 | 轴肩1V2.SLDPRT | 301.13K |
| 239 | 轴肩2.SLDPRT | 362.32K |
| 240 | 镜向1010_free_V3.SLDPRT | 97.33K |
| 241 | 镜向1010_root_V3.SLDPRT | 119.54K |
| 242 | 镜向intake_bearing.SLDPRT | 113.15K |
| 243 | 镜向副轴承座.SLDPRT | 189.54K |
| 244 | 8v-TwowaySolenoidValve-SJTUVEX.SLDPRT | 385.28K |
| 245 | M3_Lock.SLDPRT | 300.98K |
| 246 | 镜向M3_Lock.SLDPRT | 357.10K |
| 247 | 1-3.25Omni-DirectionalWheel-SJTUVEX.SLDPRT | 16.86M |
| 248 | 镜向1-3.25Omni-DirectionalWheel-SJTUVEX.SLDPRT | 36.38M |
| 249 | 3XM3_motor_cap.STEP | 2.79M |
| 250 | M3_R.SLDPRT | 765.47K |
| 251 | 镜向M3_R.SLDPRT | 220.39K |
| 252 | 1-V5InertialSensor-SJTUVEX.SLDPRT | 682.01K |
| 253 | D5mm_M3_100mm_shaft.SLDPRT | 206.81K |
| 254 | D5mm_M3_40mm_shaft.SLDPRT | 208.98K |
| 255 | D5mm_M3_55mm_ALshaft.SLDPRT | 209.03K |
| 256 | D6mm_M4_80mm_shaft.SLDPRT | 85.93K |
| 257 | H5_M3_45mm_hexshaft.SLDPRT | 68.68K |
| 258 | M3_25mm_hexshaft.SLDPRT | 71.73K |
| 259 | 镜向D5mm_M3_40mm_shaft.SLDPRT | 94.75K |
| 260 | 镜向D5mm_M3_55mm_ALshaft.SLDPRT | 92.04K |
| 261 | 镜向M3_45mm_hexshaft.SLDPRT | 62.88K |
| 262 | 1-HighStrengthShaft-SJTUVEX.SLDPRT | 282.45K |
| 263 | 1-Shaft-SJTUVEX.SLDPRT | 124.27K |
| 264 | 8s-CJ2D_Z-SJTUVEX.SLDASM | 301.02K |
| 265 | 8s-CJ2D_ZPistonRod-SJTUVEX.SLDPRT | 343.27K |
| 266 | 8s-CJ2D_ZTube-SJTUVEX.SLDPRT | 1.34M |
| 267 | 1-V5BatteryClip-SJTUVEX.SLDPRT | 767.99K |
| 268 | 1-V5RobotBattery-SJTUVEX.SLDPRT | 9.86M |
| 269 | 1-V5RobotBrain-SJTUVEX.SLDPRT | 51.34M |
| 270 | 1-V5RobotBrainMountingFlangeShort-SJTUVEX.sldprt | 745.33K |
| 271 | 1-V5RobotRadio-SJTUVEX.SLDPRT | 4.49M |
| 272 | 1-V5SmartMotor-SJTUVEX.SLDPRT | 97.48M |
| 273 | 镜向1-V5SmartMotor-SJTUVEX.SLDPRT | 280.32K |
| 274 | 横向定位轮.SLDASM | 5.08M |
| 275 | 下限位.SLDPRT | 130.14K |
| 276 | 单边轮板.SLDPRT | 181.68K |
| 277 | 单边轮板2.SLDPRT | 242.60K |
| 278 | 外螺纹圆柱销_M4_25_4.8.SLDPRT | 37.84K |
| 279 | 定位轮_38.SLDPRT | 116.25K |
| 280 | 尼龙垫柱_2.7_4_2.SLDPRT | 59.29K |
| 281 | 扁平头螺丝M2_3.SLDPRT | 69.59K |
| 282 | 滑块.SLDPRT | 82.78K |
| 283 | 滑轨_MGN5C-1R-40mm.SLDPRT | 84.82K |
| 284 | 热螺母_M2.5_3.5_5.SLDPRT | 53.33K |
| 285 | 热螺母_M4_5_4.SLDPRT | 59.79K |
| 286 | 磁编码器.SLDPRT | 55.78K |
| 287 | 纵向定位轮.SLDASM | 971.02K |
| 288 | 轮组固定块.SLDPRT | 220.31K |
| 289 | 轴承_5_8_2.5.SLDPRT | 67.25K |
| 290 | 3-NylonHexagonNuts-SJTUVEX.SLDPRT | 552.29K |
| 291 | 3-PlasticHexagonNuts-SJTUVEX.SLDPRT | 141.76K |
| 292 | 3-CapHeadHexagonScrews-SJTUVEX.SLDPRT | 658.14K |
| 293 | koushao改.STEP | 108.04K |
此图纸下载需要60金币
立即下载
发布者
生动的花生
创作: 25223
粉丝: 162
加入时间：2021-12-22
模型信息
图纸格式：step,sldprt,sldasm
文件大小：691.65M
所需金币：60
上传时间：2025-09-13 22:07:11
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2023
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
作者其它图纸 查看更多
0.png)
0.png)
0.png)
0_0_364.png)
0.png)
0.png)
0.png)
0.png)
0.jpg)
0.jpg)
0.png)
0.png)
0.jpg)
0.jpg)
0.jpg)
0.png)
0.png)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
QQ在线客服
官方QQ群
