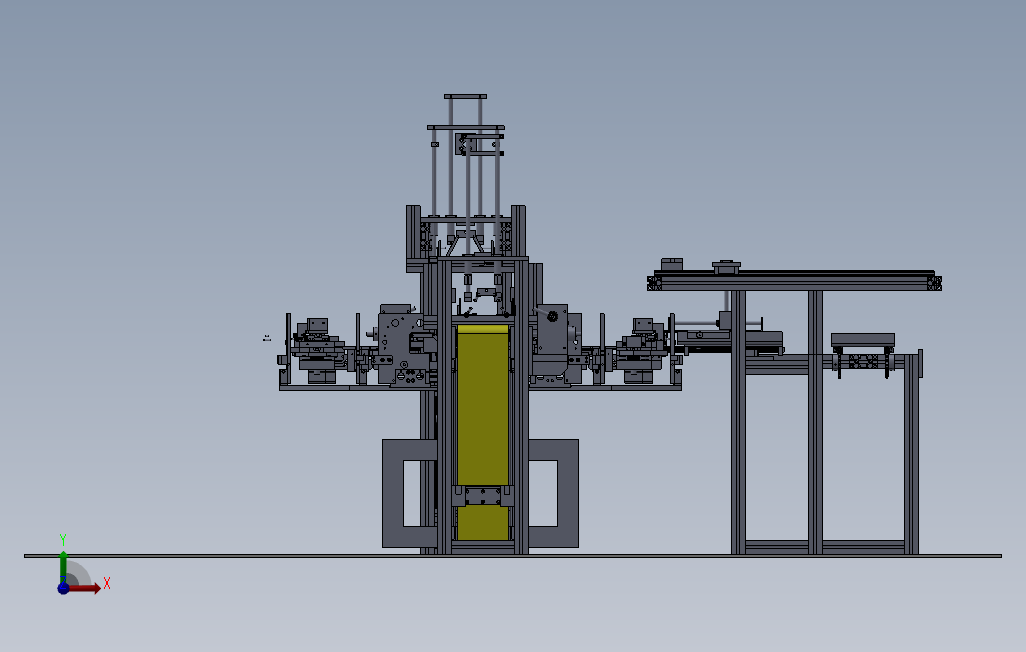

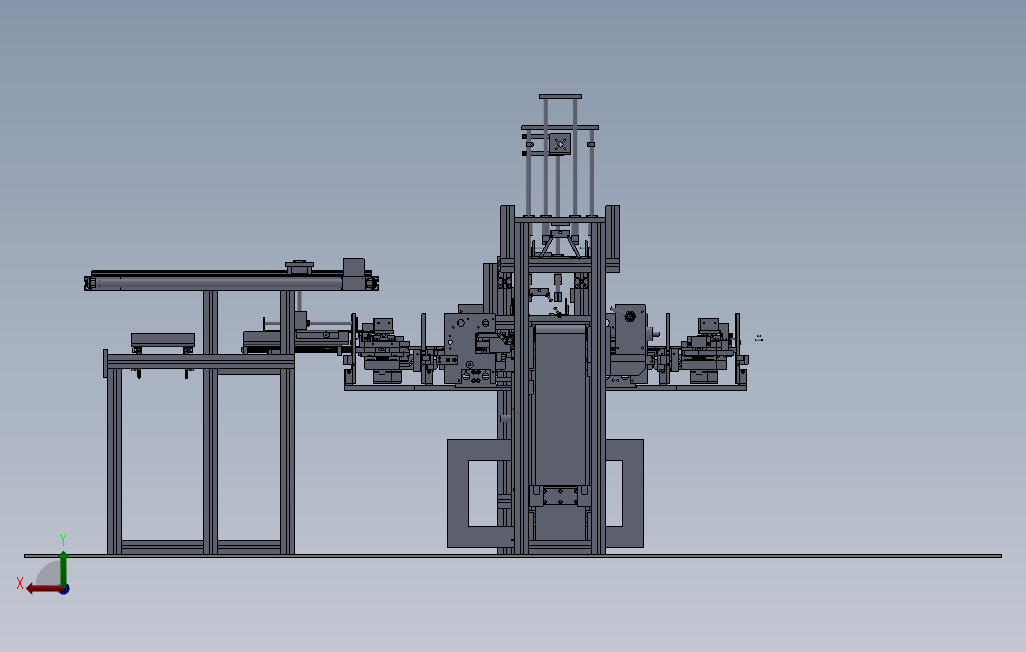

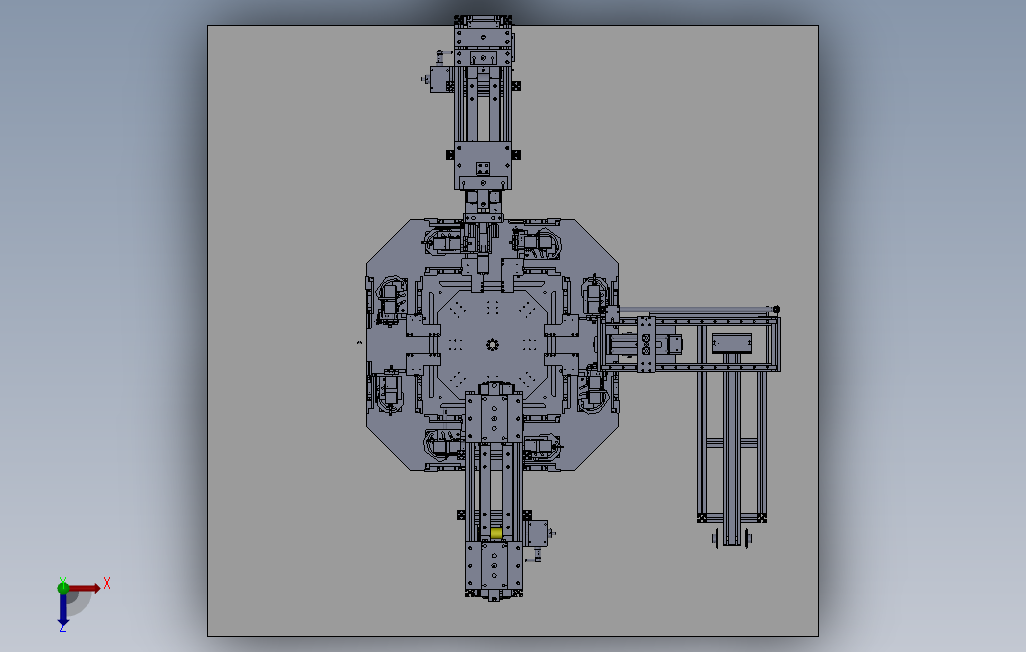

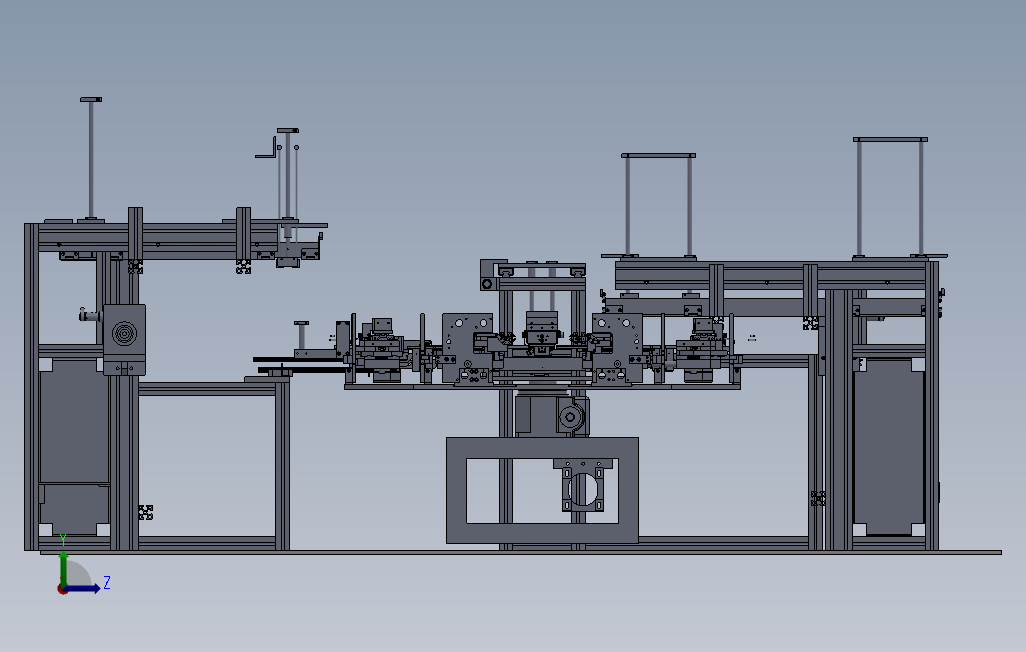

全自动跳绳包装机模型（ID:266731）
4.png)
3.png)
1.png)
0.png)
2.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 4mm_ball_jonit.SLDPRT | 194.50K |
| 2 | 6060-1000.SLDPRT | 1.05M |
| 3 | 6060-850.SLDPRT | 979.00K |
| 4 | backplane.SLDPRT | 173.00K |
| 5 | bag_bear_holder.SLDPRT | 284.00K |
| 6 | bag_col.SLDPRT | 122.00K |
| 7 | bag_correct_l.SLDPRT | 237.50K |
| 8 | bag_correct_r.SLDPRT | 234.00K |
| 9 | bag_couplig1.SLDPRT | 144.50K |
| 10 | bag_coupling.SLDPRT | 154.00K |
| 11 | bag_move.SLDPRT | 281.50K |
| 12 | bag_newcam2.SLDPRT | 202.50K |
| 13 | bag_press.SLDPRT | 191.50K |
| 14 | bag_rod-12-200.SLDPRT | 63.00K |
| 15 | bag_roller.SLDPRT | 155.50K |
| 16 | bag_uplane.SLDPRT | 240.00K |
| 17 | bag_uplane1.SLDPRT | 421.00K |
| 18 | bag_vac_base.SLDPRT | 232.50K |
| 19 | bag_vac_base_mr.SLDPRT | 215.50K |
| 20 | bag_wench.SLDPRT | 184.00K |
| 21 | BAG_xaxis.SLDPRT | 260.00K |
| 22 | bag铝构件4040-160.SLDPRT | 118.00K |
| 23 | bear6200.SLDPRT | 96.00K |
| 24 | bearing488.SLDPRT | 86.50K |
| 25 | BEARING7003.SLDPRT | 121.50K |
| 26 | bearing_bk509.SLDPRT | 83.50K |
| 27 | bearing_shaft.SLDPRT | 82.00K |
| 28 | BELT-FIX.SLDPRT | 115.00K |
| 29 | BELT_STR.SLDPRT | 133.50K |
| 30 | block.SLDPRT | 64.00K |
| 31 | block2.SLDPRT | 98.50K |
| 32 | CAM-HEAD-LOCK.SLDPRT | 262.50K |
| 33 | CAM-HEAD.SLDPRT | 202.00K |
| 34 | CAM1TRACK.SLDPRT | 389.00K |
| 35 | CAMPIN.SLDPRT | 67.50K |
| 36 | campin1.SLDPRT | 59.50K |
| 37 | camsft_19mm.SLDPRT | 71.50K |
| 38 | CAMSFT_32MM.SLDPRT | 84.50K |
| 39 | CAMSFT_6MM.SLDPRT | 71.00K |
| 40 | CAMSFT_7MM.SLDPRT | 70.00K |
| 41 | CAMSFT_9MM.SLDPRT | 70.50K |
| 42 | CAMTABLE1.SLDPRT | 226.00K |
| 43 | CAMTABLE2.SLDPRT | 204.00K |
| 44 | camtrack2.SLDPRT | 177.50K |
| 45 | CAM_BLOCK_SIDE.SLDPRT | 422.50K |
| 46 | CAM_BLOCK_SIDE_FRONT.SLDPRT | 361.00K |
| 47 | cam_clamp.SLDPRT | 111.00K |
| 48 | cam_limited.SLDPRT | 93.50K |
| 49 | CAM_mgn9_hold.SLDPRT | 167.50K |
| 50 | CAM_mgn9_hold_cut.SLDPRT | 144.00K |
| 51 | CAM_OPEN.SLDPRT | 353.00K |
| 52 | cam_pass1.SLDPRT | 580.50K |
| 53 | cam_pass2.SLDPRT | 639.00K |
| 54 | CAM_SUPPORT.SLDPRT | 214.50K |
| 55 | CAM_UPDN.SLDPRT | 325.00K |
| 56 | CAM_UPDN_mr.SLDPRT | 340.00K |
| 57 | CF10.SLDPRT | 107.50K |
| 58 | CHAIN_40SS.SLDPRT | 101.00K |
| 59 | chain_40ssa.SLDPRT | 162.50K |
| 60 | clamp_disc.SLDPRT | 73.50K |
| 61 | d15_shaft.SLDPRT | 143.00K |
| 62 | D6-130.SLDPRT | 80.50K |
| 63 | D6-140.SLDPRT | 80.50K |
| 64 | door1.SLDPRT | 186.00K |
| 65 | door2.SLDPRT | 111.50K |
| 66 | door3.SLDPRT | 124.50K |
| 67 | EGH15-280.SLDPRT | 131.50K |
| 68 | EGH15CA.SLDPRT | 221.50K |
| 69 | EGH20CA-200.SLDPRT | 202.00K |
| 70 | EGH20CA-700.SLDPRT | 158.50K |
| 71 | EGHBLOCK.SLDPRT | 211.50K |
| 72 | filparm1.SLDPRT | 67.00K |
| 73 | filparm2.SLDPRT | 68.00K |
| 74 | filparm3.SLDPRT | 125.00K |
| 75 | filparm4.SLDPRT | 74.00K |
| 76 | friction1.SLDPRT | 467.00K |
| 77 | friction2.SLDPRT | 84.50K |
| 78 | f_ring.SLDPRT | 80.50K |
| 79 | gearfix.SLDPRT | 192.00K |
| 80 | gearfix1.SLDPRT | 112.00K |
| 81 | INDEX80DT.SLDPRT | 734.50K |
| 82 | inside plant.SLDPRT | 503.00K |
| 83 | LB HOLDER.SLDPRT | 109.50K |
| 84 | LB HOLDER1.SLDPRT | 98.00K |
| 85 | lift.SLDPRT | 207.00K |
| 86 | lm10luu.SLDPRT | 97.00K |
| 87 | LM12LUU_BLOCK.SLDPRT | 121.00K |
| 88 | lmk12luu.SLDPRT | 123.50K |
| 89 | LMS20.SLDPRT | 117.00K |
| 90 | LMS20dummy.SLDPRT | 216.00K |
| 91 | lockit.SLDPRT | 237.50K |
| 92 | lock_guide.SLDPRT | 111.50K |
| 93 | main_table.SLDPRT | 435.00K |
| 94 | mgn9_block.SLDPRT | 225.00K |
| 95 | mgn9_guide.SLDPRT | 138.50K |
| 96 | mgn9_guide_115.SLDPRT | 127.50K |
| 97 | nrv050.SLDPRT | 202.50K |
| 98 | NUTS.SLDPRT | 463.00K |
| 99 | PAPER-BLOCK.SLDPRT | 198.00K |
| 100 | PAPER-COL5.SLDPRT | 174.00K |
| 101 | paper-hc.SLDPRT | 156.00K |
| 102 | PAPER-PUNCH.SLDPRT | 253.50K |
| 103 | paper-stem1.SLDPRT | 125.00K |
| 104 | paper_aux_col.SLDPRT | 57.00K |
| 105 | paper_benpin.SLDPRT | 56.50K |
| 106 | paper_block.SLDPRT | 169.00K |
| 107 | PAPER_COL4.SLDPRT | 97.00K |
| 108 | paper_col5.SLDPRT | 99.50K |
| 109 | paper_fcol.SLDPRT | 102.50K |
| 110 | paper_feed.SLDPRT | 347.00K |
| 111 | paper_move.SLDPRT | 209.00K |
| 112 | paper_move1.SLDPRT | 209.50K |
| 113 | paper_pin.SLDPRT | 56.00K |
| 114 | paper_press1.SLDPRT | 212.50K |
| 115 | paper_press2.SLDPRT | 262.50K |
| 116 | paper_stop.SLDPRT | 110.50K |
| 117 | paper_uplane2.SLDPRT | 231.50K |
| 118 | paper_uplane3.SLDPRT | 140.00K |
| 119 | paper_vacpick_l.SLDPRT | 127.50K |
| 120 | paper_vacpick_r.SLDPRT | 131.50K |
| 121 | PAPER铝构件4080-700.SLDPRT | 254.00K |
| 122 | PULLY.SLDPRT | 480.50K |
| 123 | pullydn.SLDPRT | 367.50K |
| 124 | pullyup.SLDPRT | 413.50K |
| 125 | PUSH-MAG.SLDPRT | 109.00K |
| 126 | push_arm.SLDPRT | 156.00K |
| 127 | push_bar.SLDPRT | 129.50K |
| 128 | push_base.SLDPRT | 130.00K |
| 129 | push_block.SLDPRT | 277.50K |
| 130 | push_cover.SLDPRT | 178.50K |
| 131 | push_cyccorp.SLDPRT | 125.00K |
| 132 | push_cyl_hold.SLDPRT | 100.00K |
| 133 | push_head_cover.SLDPRT | 82.50K |
| 134 | PUSH_MOTORFLAT.SLDPRT | 157.50K |
| 135 | push_plane.SLDPRT | 145.00K |
| 136 | push_pumb.SLDPRT | 95.50K |
| 137 | push_rod.SLDPRT | 97.00K |
| 138 | push_slot_circuit.SLDPRT | 119.50K |
| 139 | push_slot_mid.SLDPRT | 127.00K |
| 140 | push_up_cover.SLDPRT | 106.50K |
| 141 | push_wash.SLDPRT | 266.00K |
| 142 | push_xaxis.SLDPRT | 236.50K |
| 143 | PUSH铝构件4040-534.SLDPRT | 117.00K |
| 144 | RMS20X50_Body.sldprt | 239.00K |
| 145 | RMS20X50_FCV.sldprt | 201.00K |
| 146 | RMS20X50_Nut.sldprt | 106.00K |
| 147 | RMS20X50_Piston.sldprt | 107.00K |
| 148 | RMS20X700_0__Barrel.sldprt | 94.50K |
| 149 | RMS_20X700_03_.sldasm | 283.50K |
| 150 | RMS_20X700_0__dummy.sldprt | 59.00K |
| 151 | rod12_200.SLDPRT | 83.00K |
| 152 | rotarytable.SLDPRT | 594.50K |
| 153 | 重复_shaft.SLDPRT | 138.00K |
| 154 | SHD20A.SLDPRT | 216.00K |
| 155 | side bag.SLDPRT | 136.00K |
| 156 | side bag1.SLDPRT | 140.50K |
| 157 | sideguard.SLDPRT | 193.50K |
| 158 | staples1.SLDPRT | 178.00K |
| 159 | staples2.SLDPRT | 85.00K |
| 160 | staples3.SLDPRT | 77.50K |
| 161 | staples4.SLDPRT | 115.50K |
| 162 | staples6.SLDPRT | 188.50K |
| 163 | staples_uplane1.SLDPRT | 320.50K |
| 164 | 重复_support.SLDPRT | 253.00K |
| 165 | 重复_table.SLDPRT | 166.00K |
| 166 | tang.SLDPRT | 116.50K |
| 167 | track.SLDASM | 358.00K |
| 168 | track1.SLDPRT | 229.00K |
| 169 | track3.SLDPRT | 136.50K |
| 170 | track4.SLDPRT | 254.00K |
| 171 | track5.SLDPRT | 165.00K |
| 172 | track6.SLDPRT | 133.00K |
| 173 | track_arm.SLDPRT | 67.00K |
| 174 | traqck2.SLDPRT | 165.50K |
| 175 | T_BELT.SLDPRT | 138.00K |
| 176 | wire1.SLDPRT | 139.00K |
| 177 | wire2.SLDPRT | 164.00K |
| 178 | 全自动跳绳包装机模型.SLDASM | 4.17M |
| 179 | 胶袋运输带.SLDPRT | 191.50K |
| 180 | 装配体bag.SLDASM | 2.21M |
| 181 | 装配体CAM.SLDASM | 1.31M |
| 182 | 装配体CAM_mr.SLDASM | 1.16M |
| 183 | 装配体chain.SLDASM | 117.50K |
| 184 | 装配体chain_mr.SLDASM | 121.50K |
| 185 | 装配体paper.SLDASM | 2.45M |
| 186 | 装配体push.SLDASM | 1.48M |
| 187 | 装配体staples.SLDASM | 234.50K |
| 188 | 铝构件4040-150.SLDPRT | 119.00K |
| 189 | 重复_铝构件4040-160.SLDPRT | 118.50K |
| 190 | 铝构件4040-165.SLDPRT | 118.00K |
| 191 | 铝构件4040-170.SLDPRT | 117.00K |
| 192 | 铝构件4040-200.SLDPRT | 118.00K |
| 193 | 铝构件4040-210.SLDPRT | 118.50K |
| 194 | 铝构件4040-250.SLDPRT | 117.00K |
| 195 | 铝构件4040-260.SLDPRT | 118.50K |
| 196 | 铝构件4040-340.SLDPRT | 119.00K |
| 197 | 铝构件4040-350.SLDPRT | 118.50K |
| 198 | 铝构件4040-440.SLDPRT | 118.00K |
| 199 | 铝构件4040-490.SLDPRT | 118.00K |
| 200 | 铝构件4040-500.SLDPRT | 119.00K |
| 201 | 铝构件4040-571.SLDPRT | 117.00K |
| 202 | 铝构件4040-650.SLDPRT | 117.00K |
| 203 | 铝构件4040-760.SLDPRT | 117.00K |
| 204 | 铝构件4040-77.SLDPRT | 118.00K |
| 205 | 铝构件4040-840.SLDPRT | 118.00K |
| 206 | 铝构件4040_234.SLDPRT | 117.00K |
| 207 | 铝构件4080-420.SLDPRT | 188.50K |
| 208 | 铝构件4080-500.SLDPRT | 193.50K |
| 209 | 铝构件4080-760.SLDPRT | 188.50K |
| 210 | 铝构件4080-900.SLDPRT | 288.00K |
| 211 | 铝构件4080-956.SLDPRT | 338.50K |
| 212 | 零件base.SLDPRT | 61.00K |
| 213 | 零件chian20t.SLDPRT | 496.50K |
| 214 | 零件roatry1.SLDPRT | 243.50K |
| 215 | 零件rotary2.SLDPRT | 245.00K |
此图纸下载需要20金币
立即下载
发布者
每逢大事有静气
创作: 30395
粉丝: 437
加入时间：2022-08-18
模型信息
图纸格式：sldprt,sldasm
文件大小：24.78M
所需金币：20
上传时间：2022-05-21 22:43:08
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2012
标签
全自动跳绳包装机
图纸简介
这台设备主要是满足跳绳的全自动包装，采用分割器的转盘式结构，结合凸轮机构实现高效率，节约成本的设计理念，设计结构完善，利用了多种机械结构原理，很有学习的价值，模型建立时绘制了较多细节，比较详细。solidworks 2016 版本。欢迎朋友下载。
