布利赫曼工程发酵罐 G4 70L（ID:2677609）

机械设备 / 非标机械 / 布利赫曼工程发酵罐 G4 70L

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	1.5inButterfly.ipt	273.50K
2	1.5inButterflyCollar.ipt	270.00K
3	1.5inTri-clamp.ipt	227.00K
4	1.5inTri-clampBarbed1in.ipt	271.50K
5	1.5inTri-clampButterflyValve.iam	226.50K
6	1.5inTri-clampButterflyValve.ipt	285.00K
7	1.5inTri-clampCap.ipt	208.00K
8	1.5inTri-clampClamp.ipt	1.44M
9	1.5inTri-clampElbow.iam	143.50K
10	1.5inTri-clampThermometer.ipt	901.50K
11	10-000018228.ipt	255.00K
12	10-000018230.ipt	217.50K
13	10-000018231.ipt	247.50K
14	17589533782393.zip	22.07M
15	1inTCGasket.ipt	225.00K
16	1inTri-clamp.ipt	223.50K
17	1inTri-clampElbow.iam	144.00K
18	1inTri-clampOblongElbow.iam	115.50K
19	4inTri-clampCapwith1.5Ferrule.ipt	264.50K
20	FermenatorG4.iam	1.13M

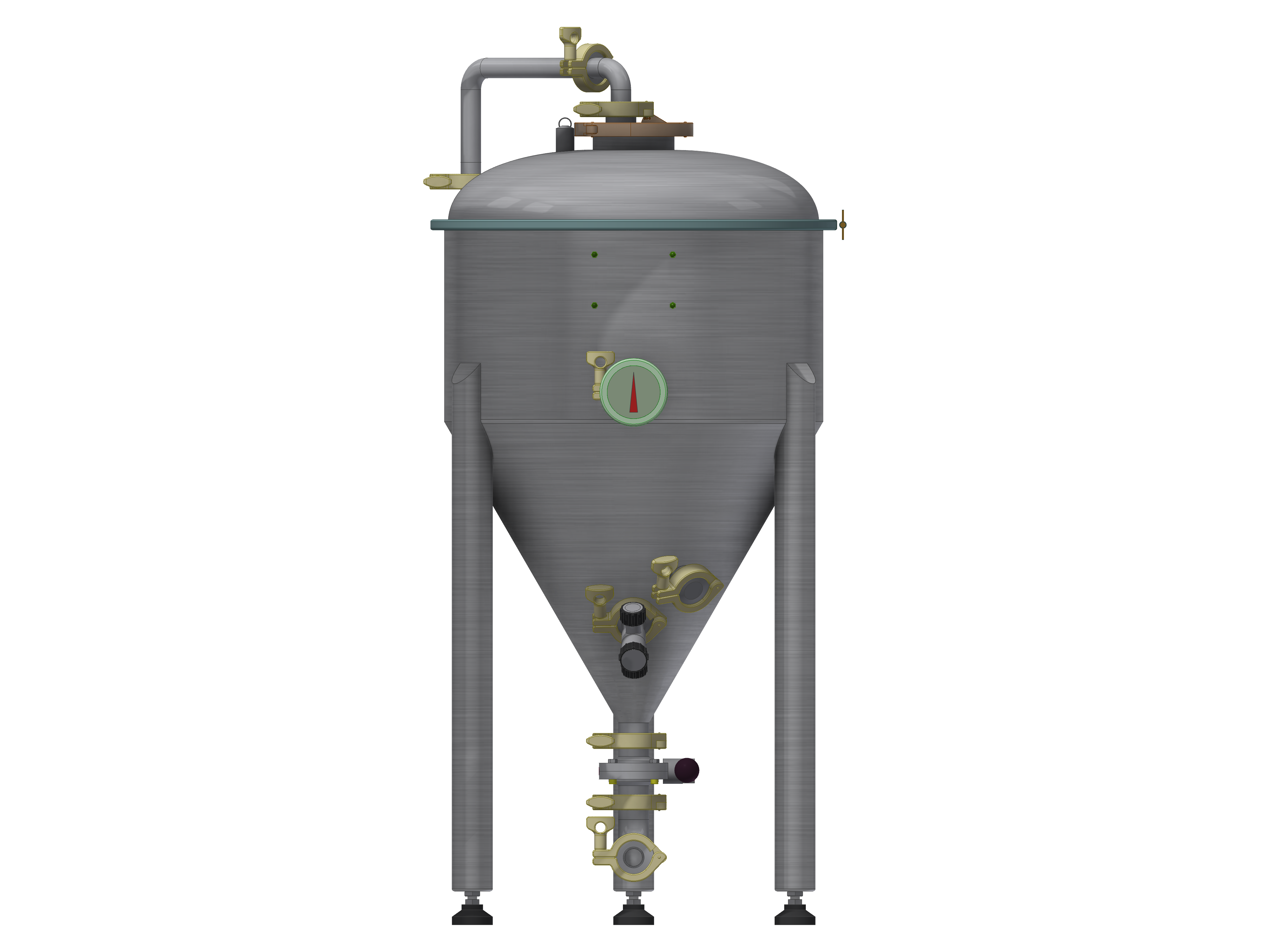

21	FermenatorG4.png	1.82M
22	FermenatorG4.stp	5.13M
23	FermenatorG4Body.ipt	423.00K
24	FermenatorG4CasterBase.ipt	251.00K
25	FermenatorG4Clamp.ipt	309.00K
26	FermenatorG4Foot.ipt	226.00K

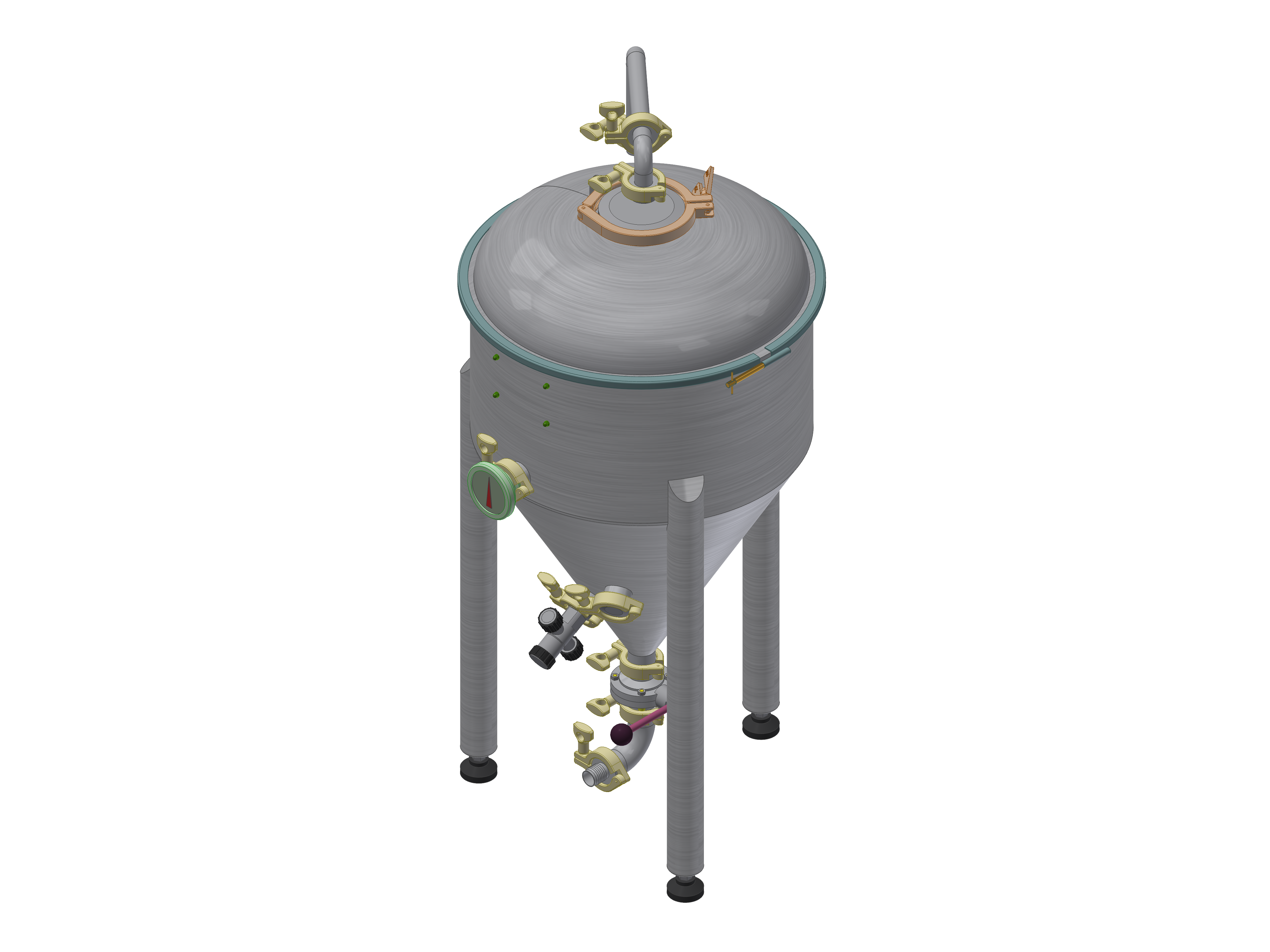

27	FermenatorG4ISO.png	1.89M
28	FermenatorG4Lid.ipt	401.50K
29	FermenatorG4PRV.ipt	208.50K
30	FermenatorG4SamplingValve.ipt	600.00K

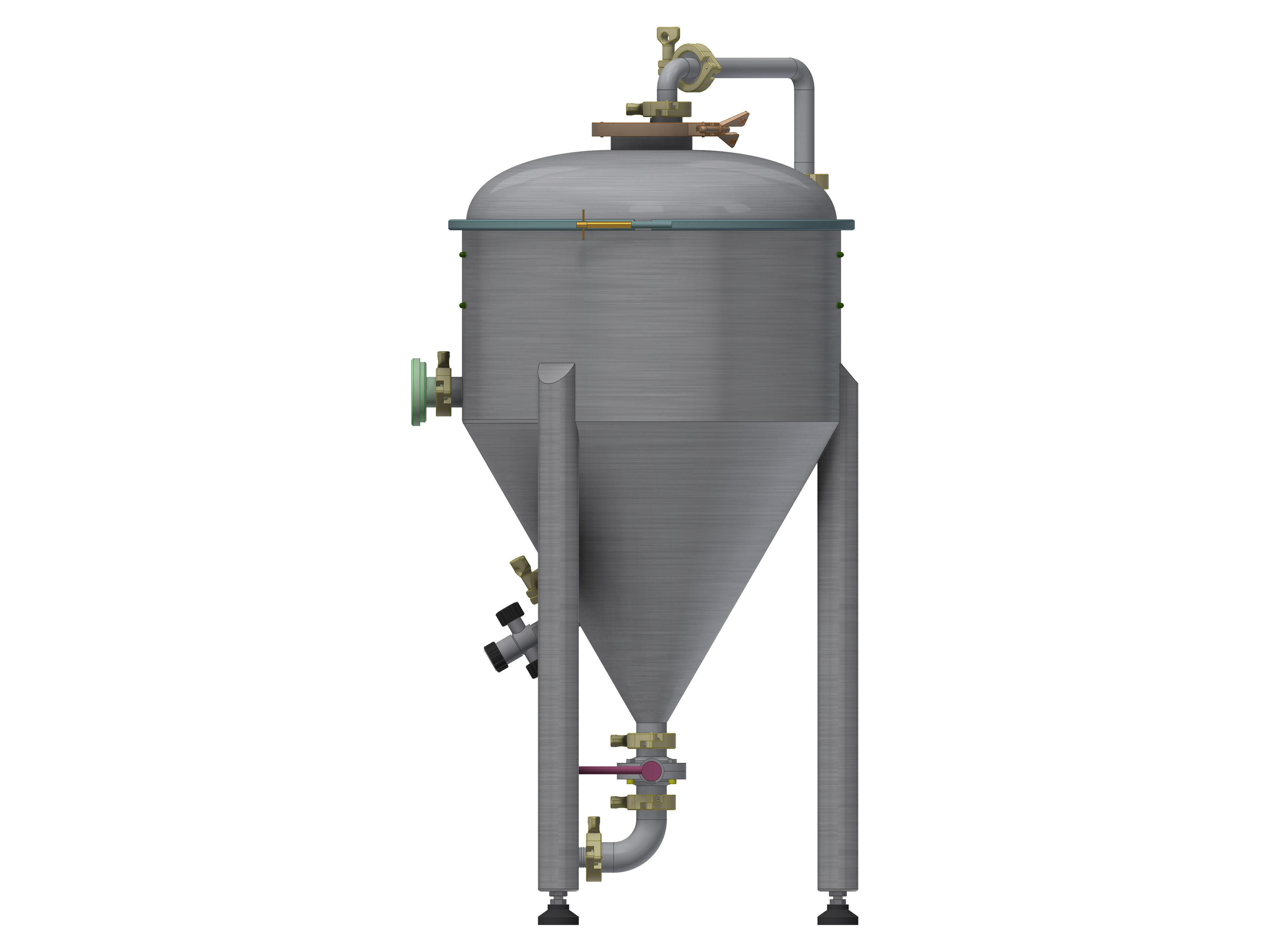

31	FermenatorG4Side.png	1.77M
32	NUT-M12-1.75-THIN.ipt	218.50K
33	NUT-M6-1.ipt	297.00K
34	NUTCAPM4x0_7.ipt	414.50K
35	SHCS-M6-1X25.ipt	140.00K
36	SS.jpeg	3.80K
37	TC1.5Clamp.ipt	1.06M
