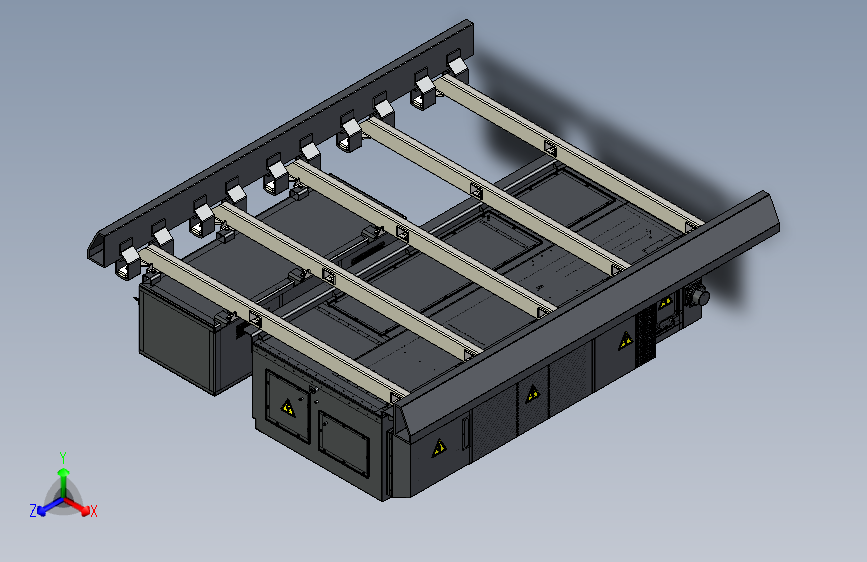

大都会地铁地铁下框架支持（ID:2687772）

机械设备 / 非标机械 / 大都会地铁地铁下框架支持

©非原创

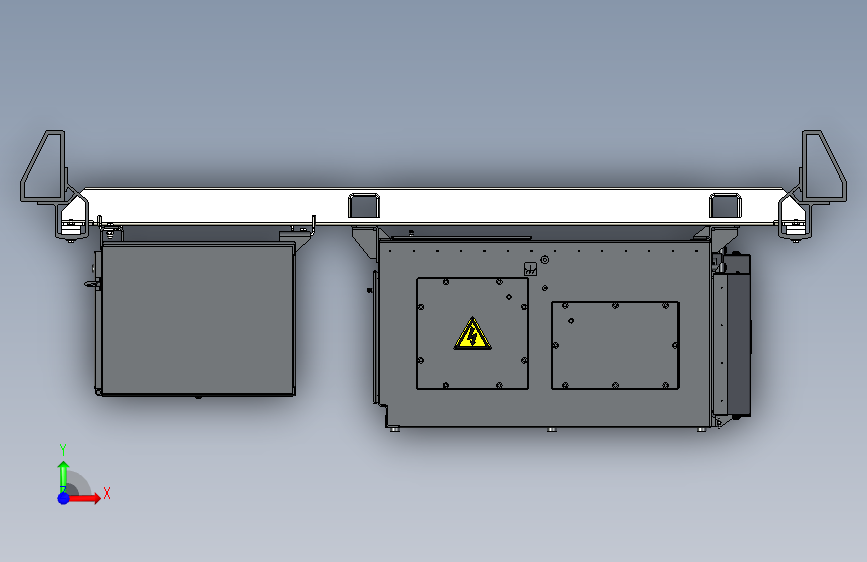

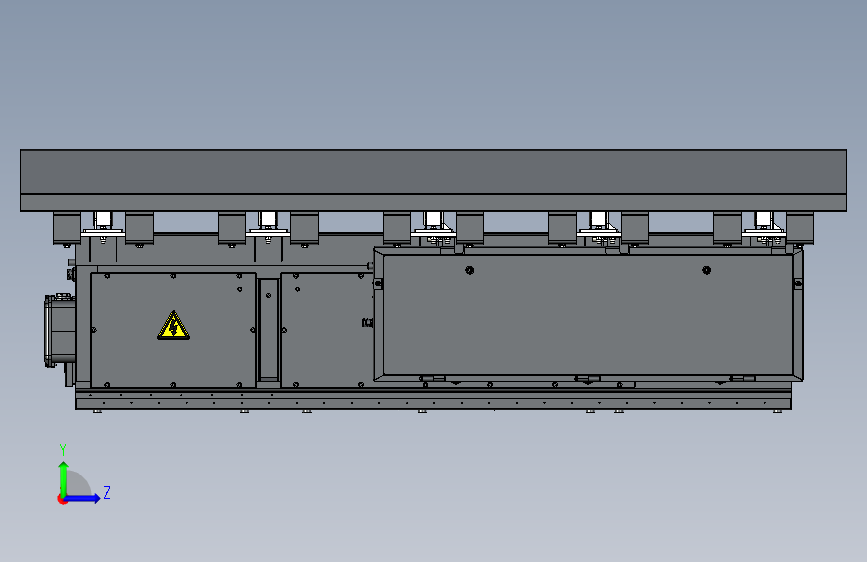

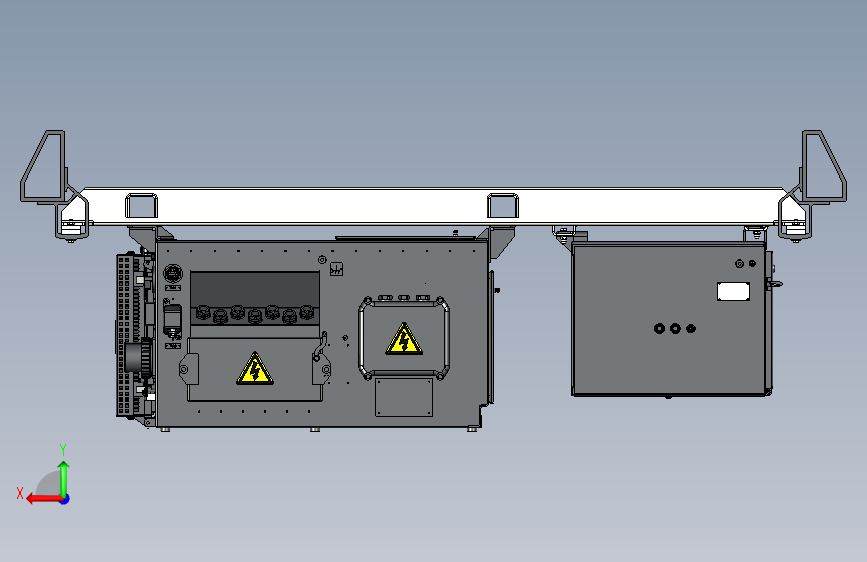

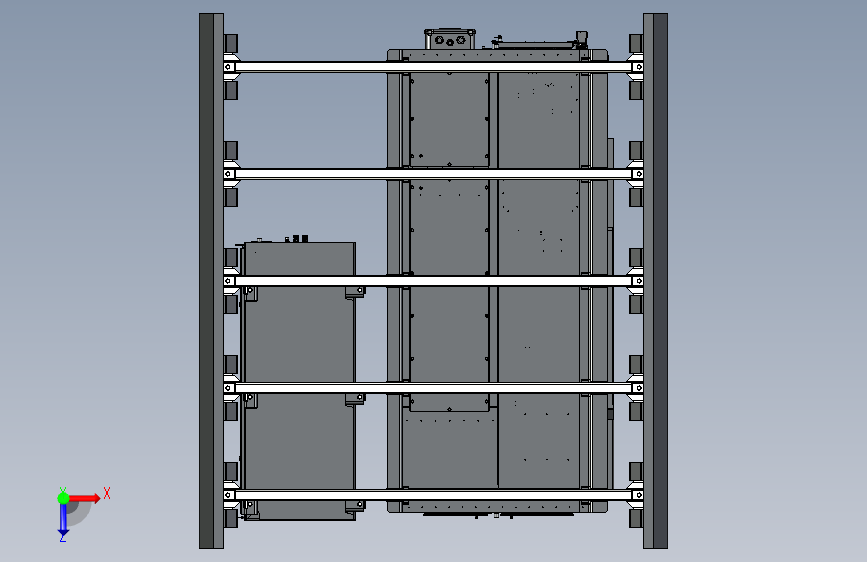

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17591625356070.zip	140.95M
2	Assembly_1.JPG	208.36K

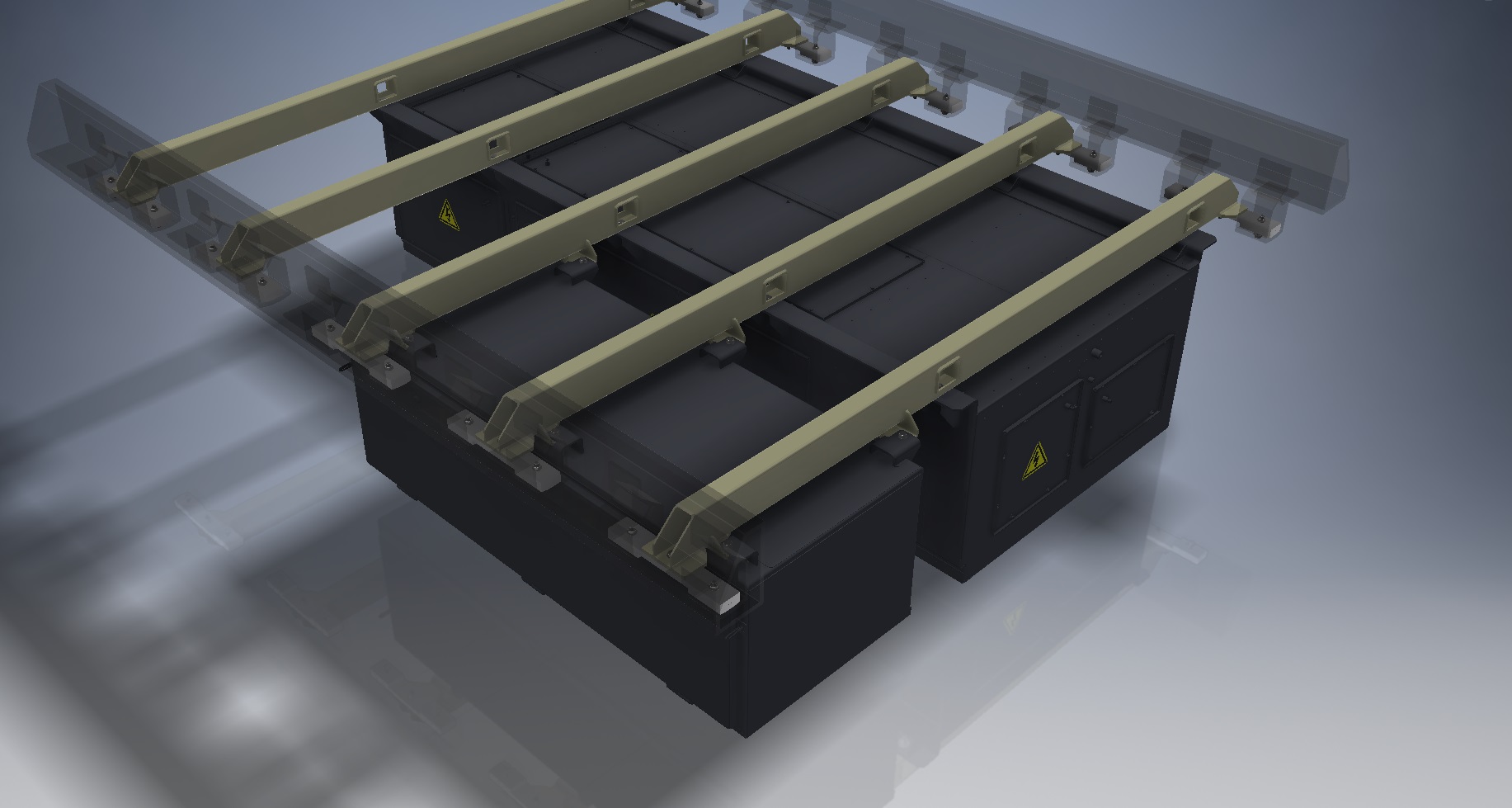

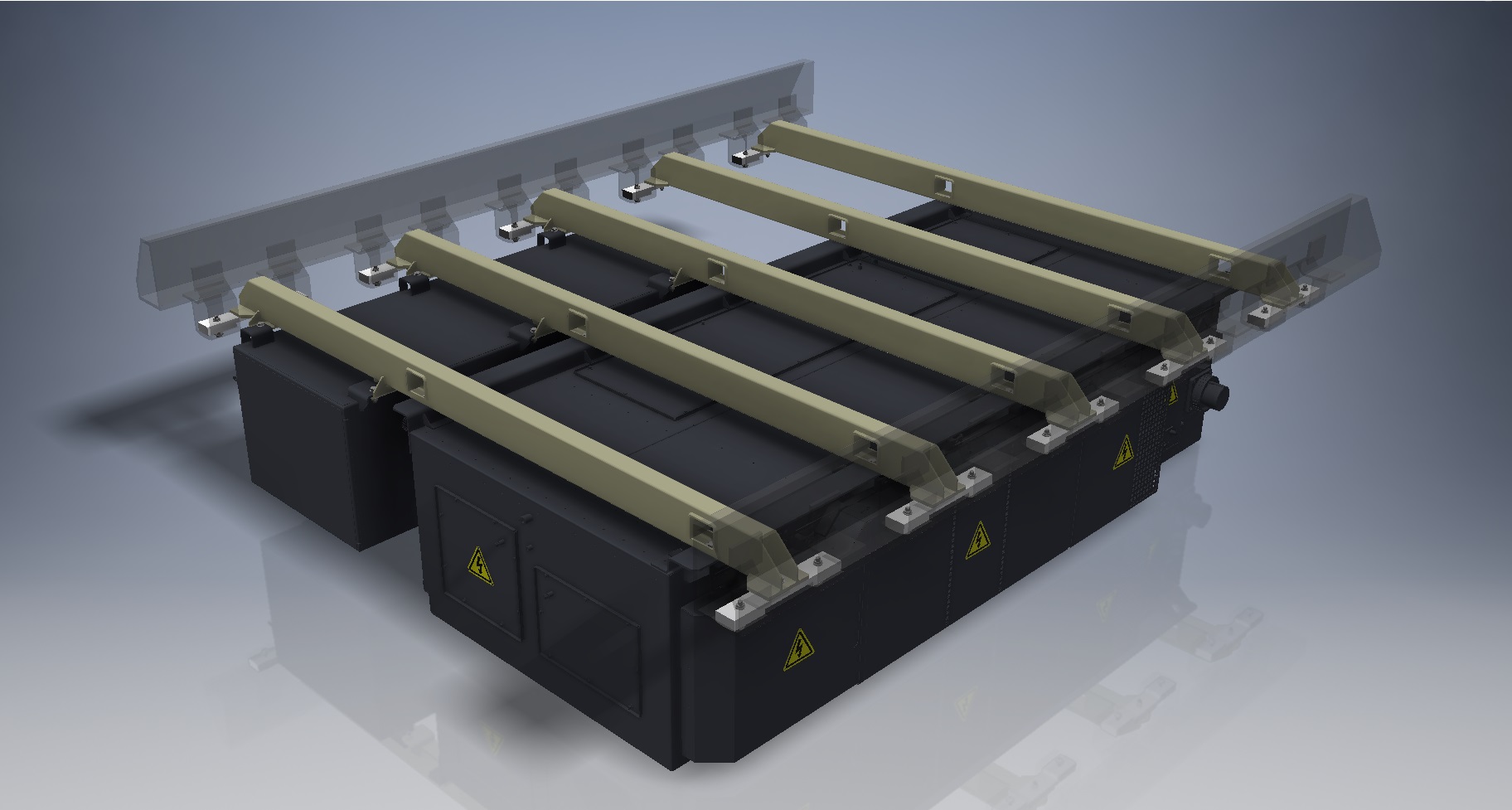

3	Assembly_2.JPG	210.93K
4	Assembly_3a.JPG	392.26K
5	FEADisplacement.JPG	178.26K

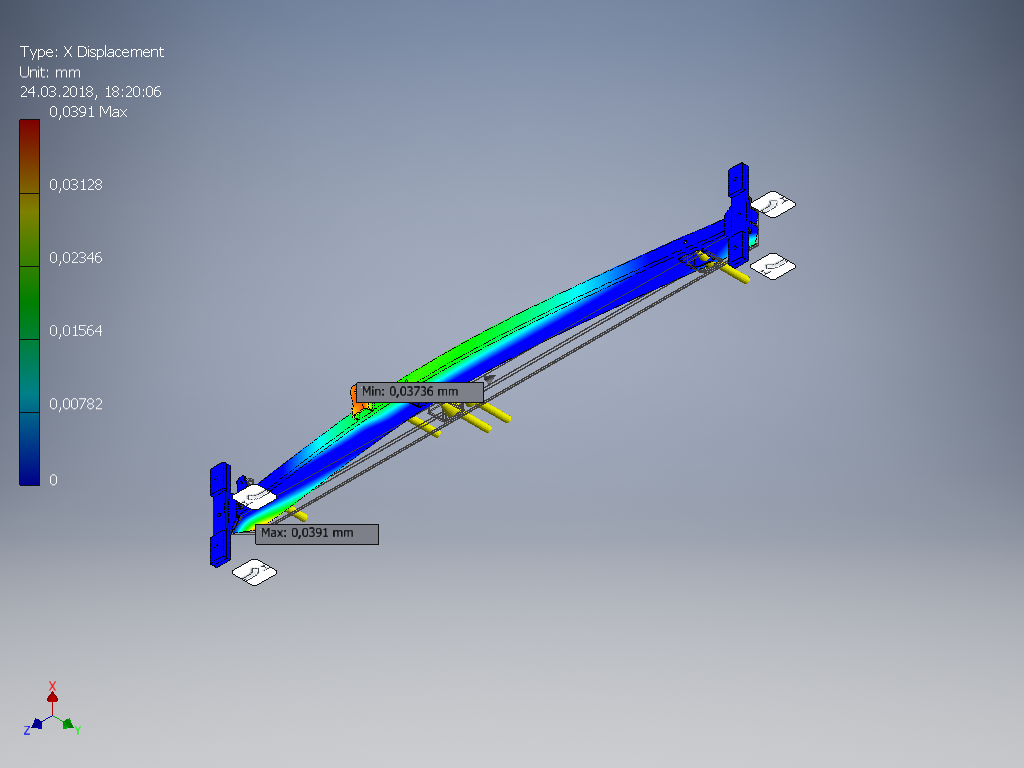

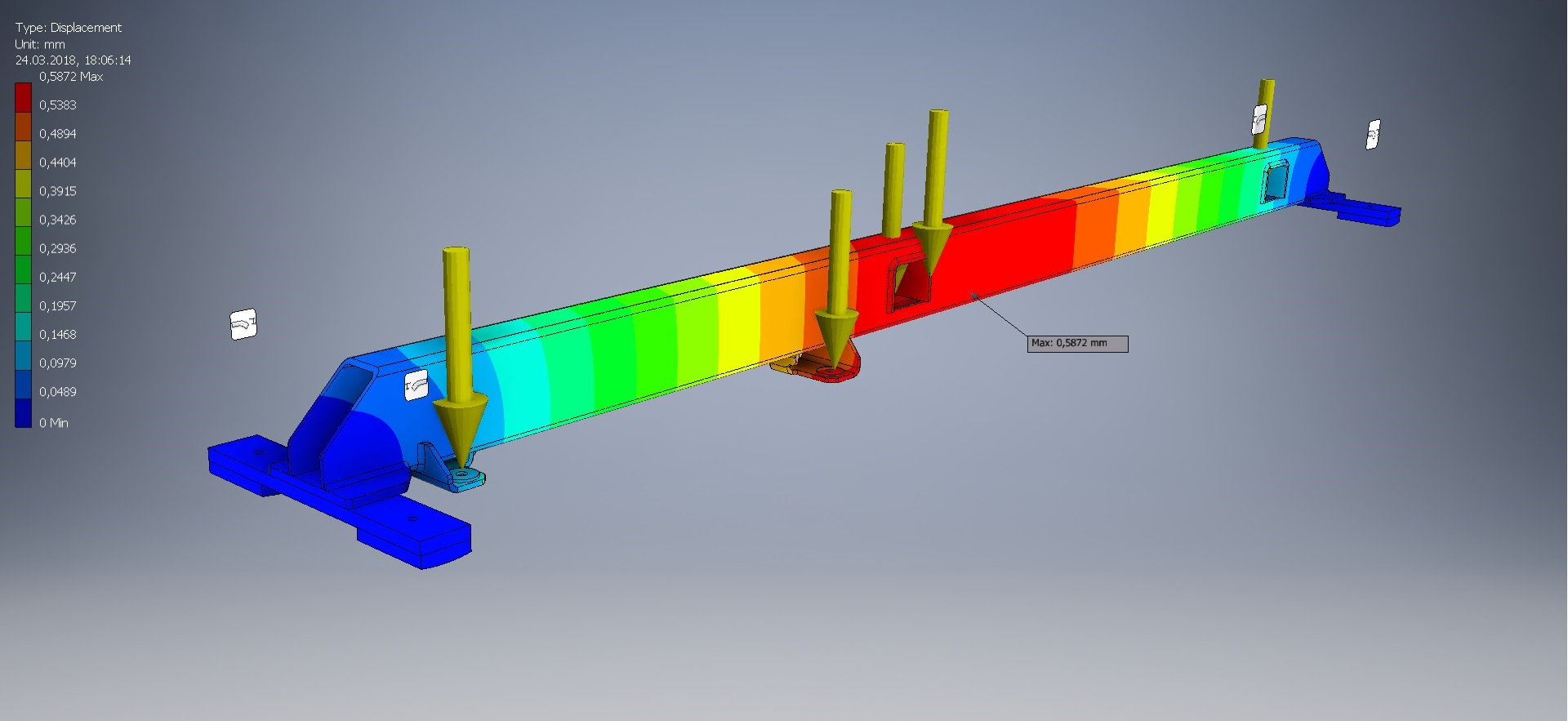

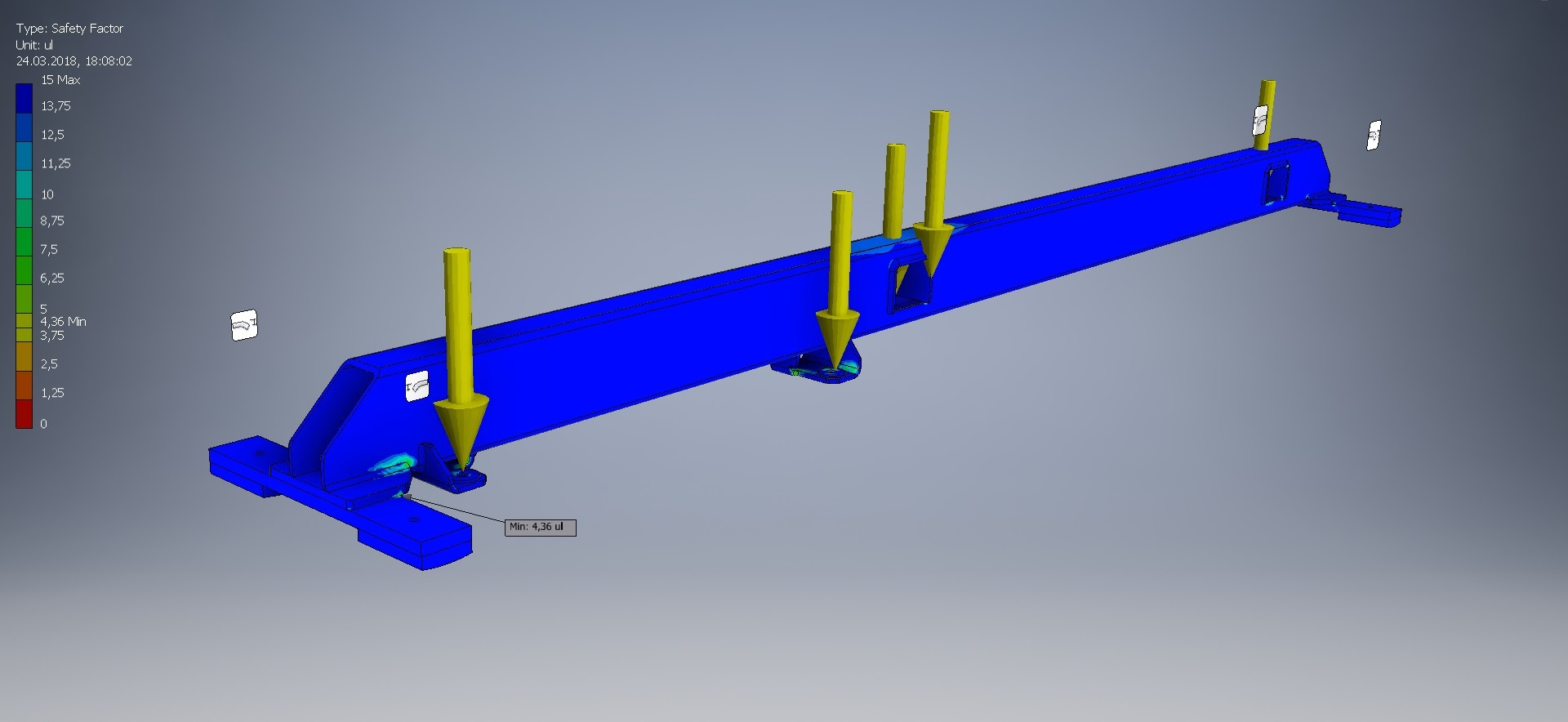

6	FEAFoS.JPG	154.35K

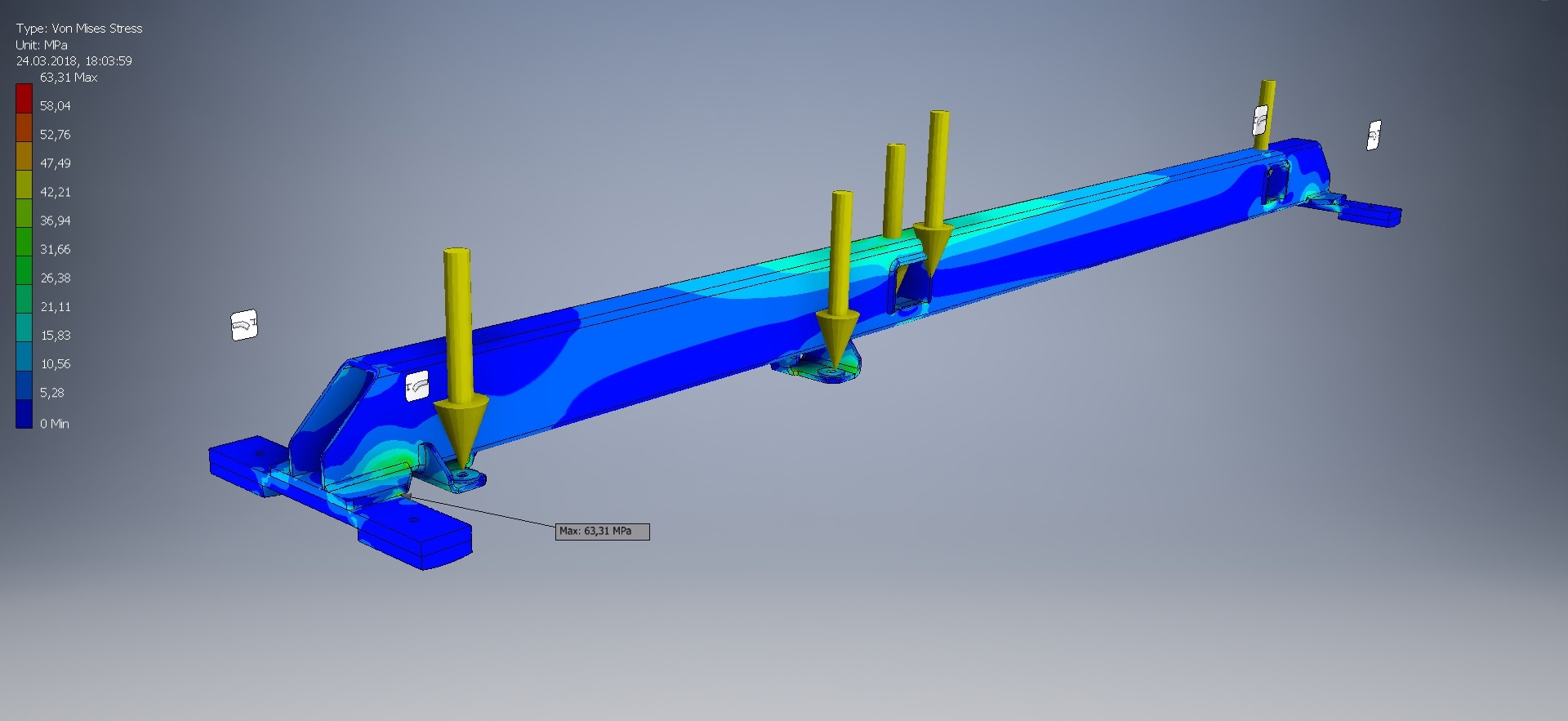

7	FEAVonMisesStress.JPG	178.97K
8	StressAnalysisReportSummery.txt	769B
9	SupportBeamA.stl	136.02K
10	SupportBeamA.stp	340.30K

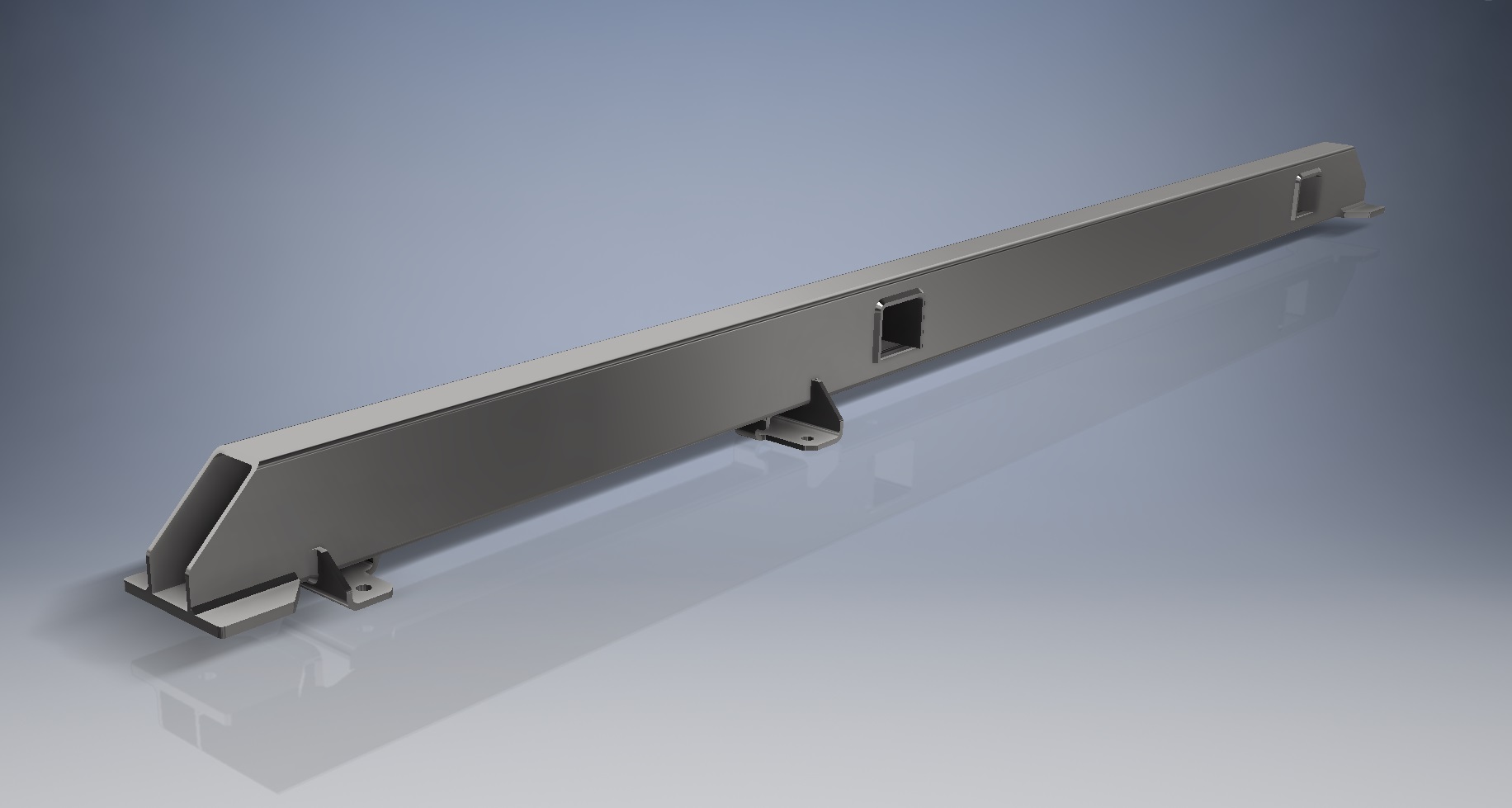

11	SupportBeamA_1.JPG	115.18K
12	SupportBeamB.stl	94.22K
13	SupportBeamB.stp	215.94K
14	SupportBeamsAssembly.stp	110.04M
15	SupportoftheMetropolisMetro24.03.2018.7z	28.70M
16	StressAnalysisReportSupportoftheMetropolisMetro24.03.2018.html	47.61K
17	Autodesk_Logo_Black.png	4.79K
18	minus.png	167B
19	plus.png	172B

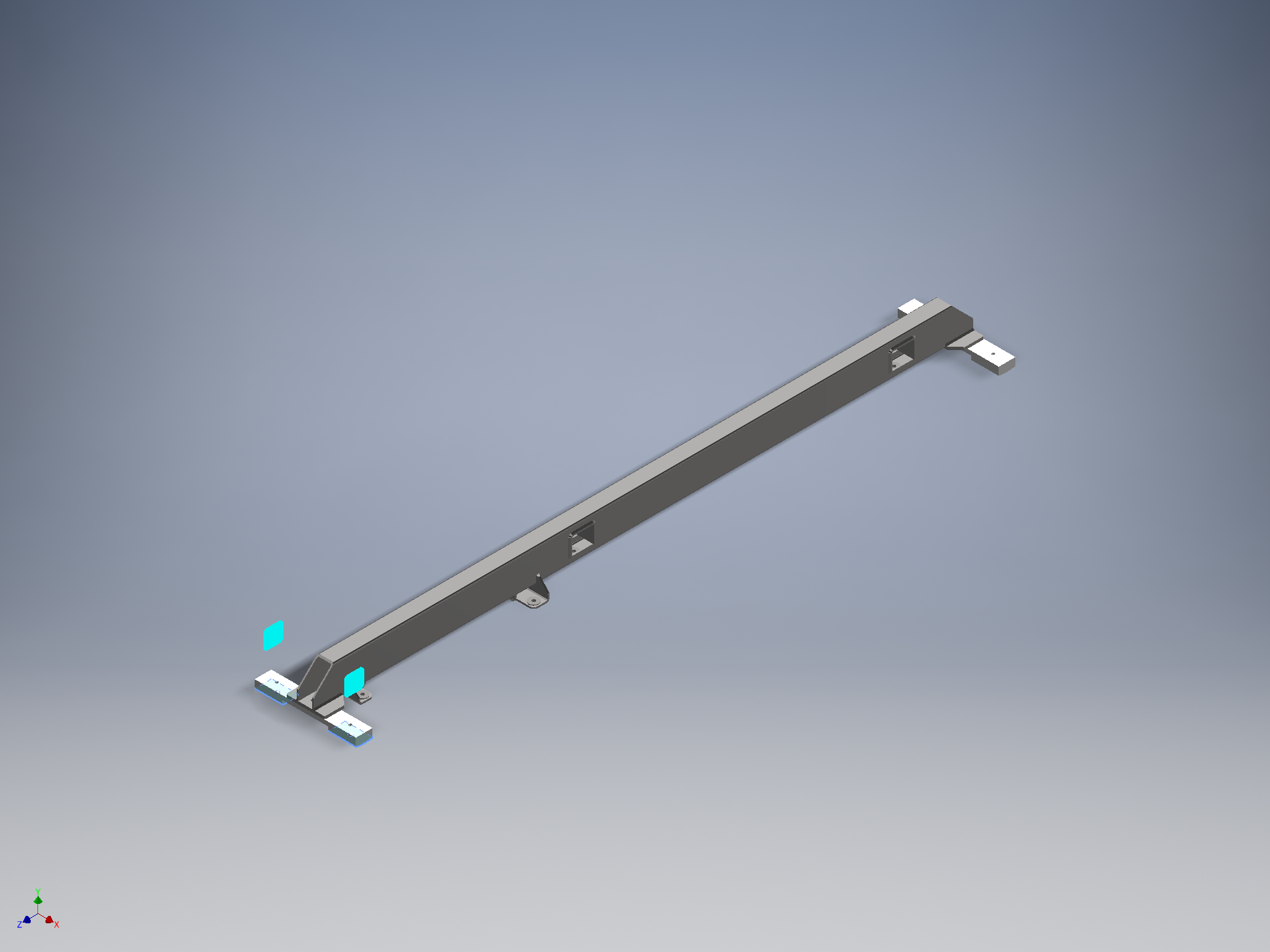

20	Constraint_0_0.png	1.31M

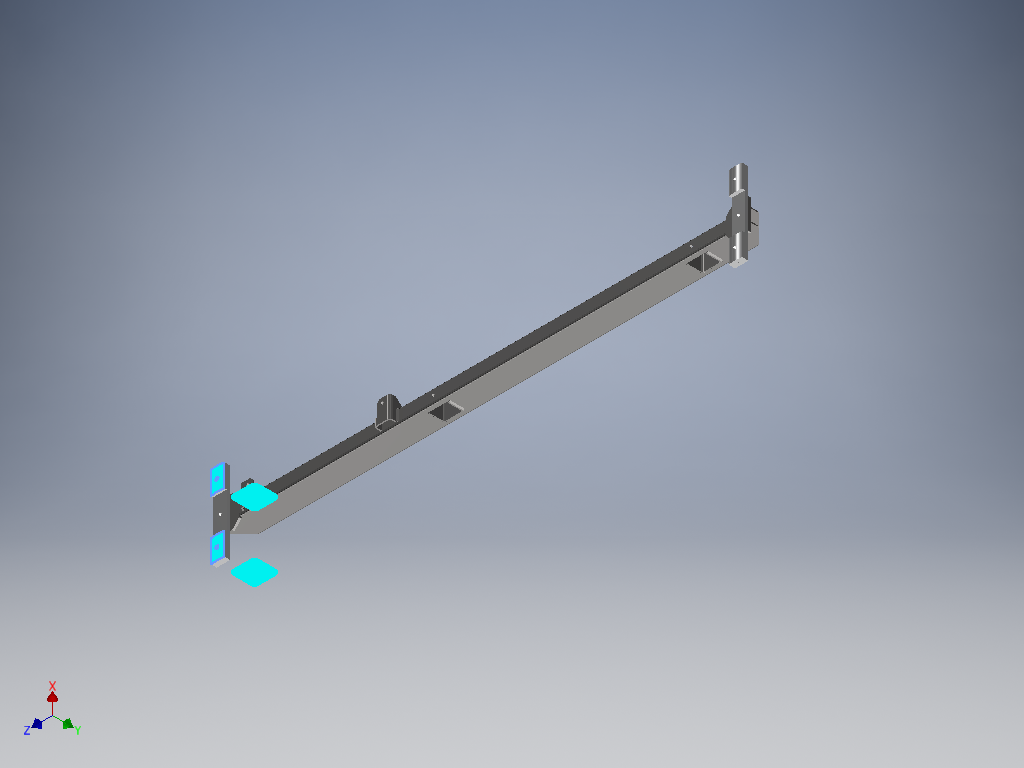

21	Constraint_0_0_rev.png	440.37K
22	Constraint_0_1.png	1.31M

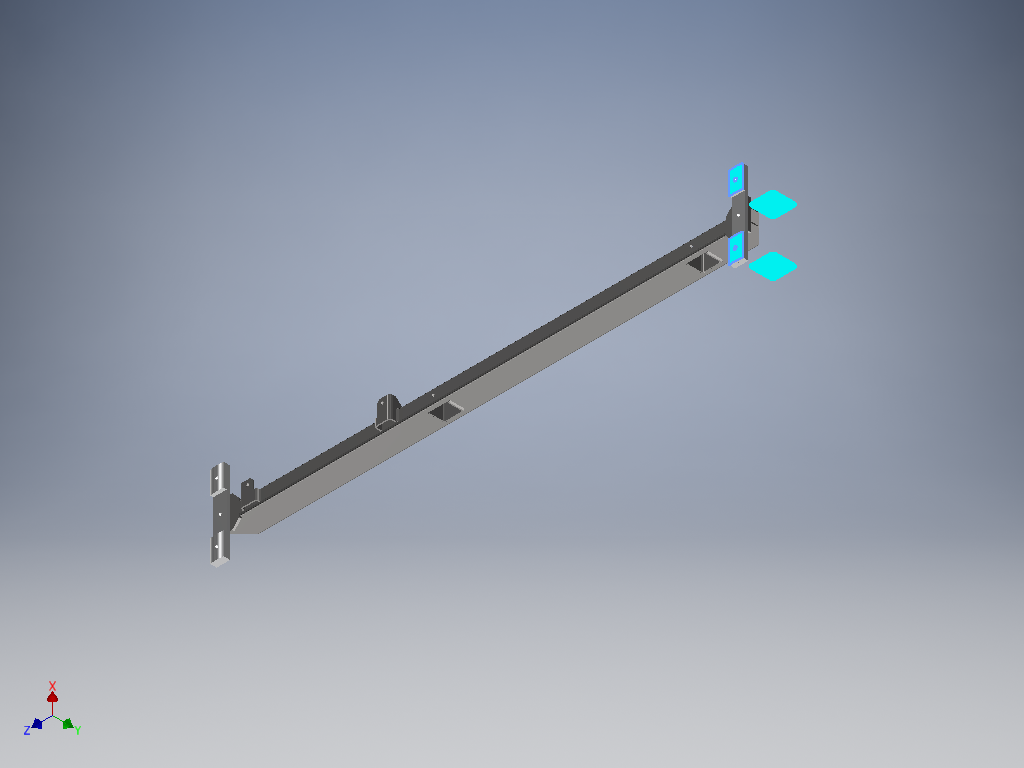

23	Constraint_0_1_rev.png	440.43K

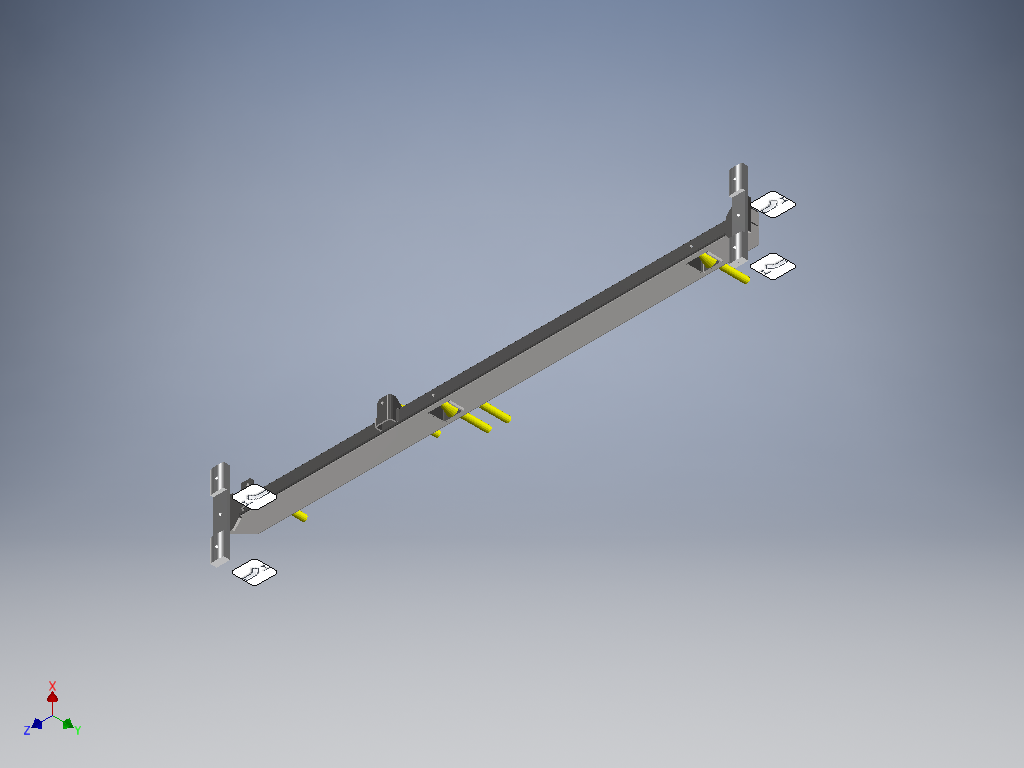

24	Load_0_2.png	1.32M
25	Load_0_2_rev.png	442.73K
26	Load_0_3.png	1.32M

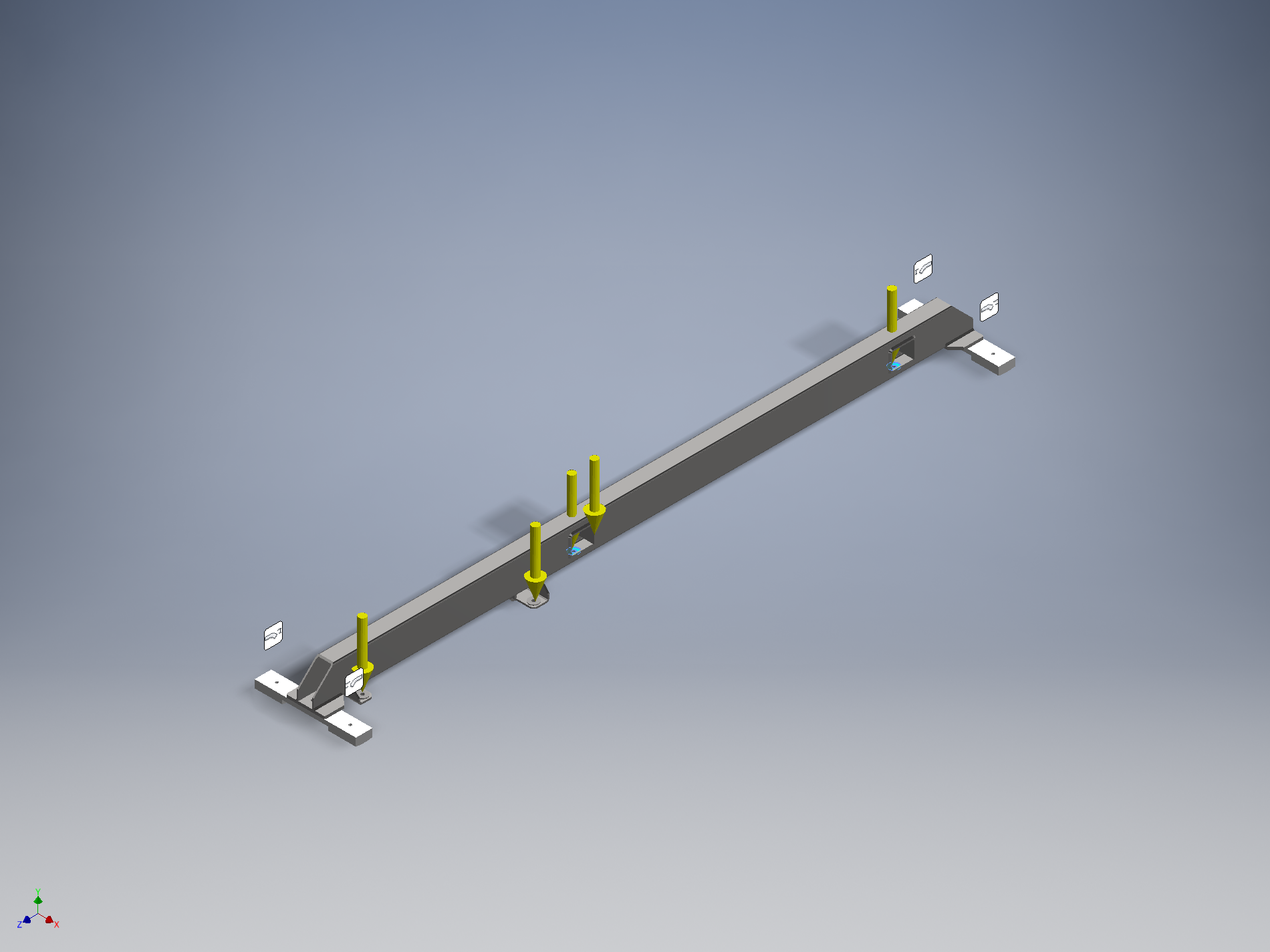

27	Load_0_3_rev.png	442.74K
28	Load_0_4.png	1.32M
29	Load_0_4_rev.png	442.66K
30	Result_0_1.png	1.34M
31	Result_0_10.png	469.08K

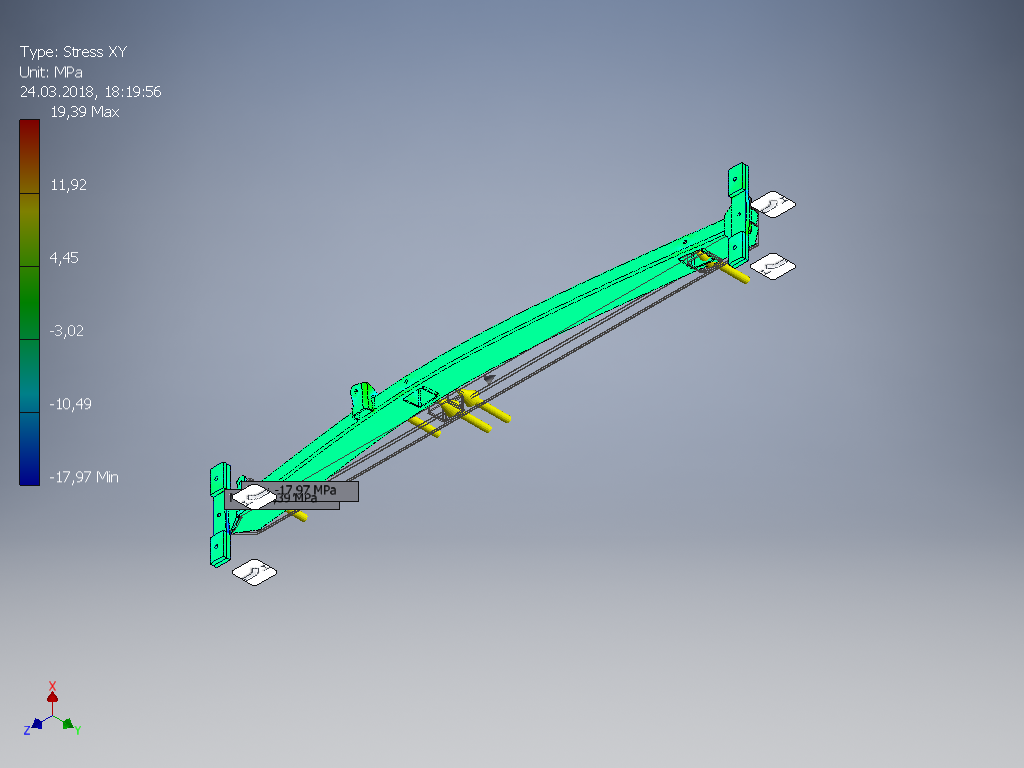

32	Result_0_10_rev.png	447.39K
33	Result_0_11.png	470.60K
34	Result_0_11_rev.png	447.41K
35	Result_0_12.png	472.72K

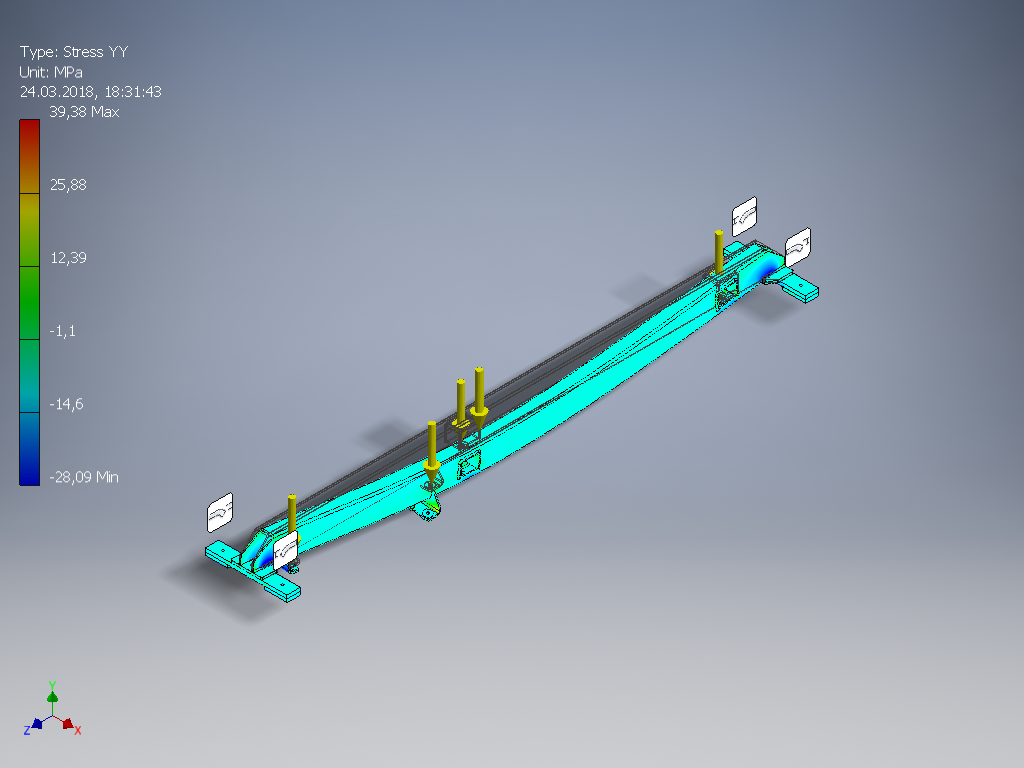

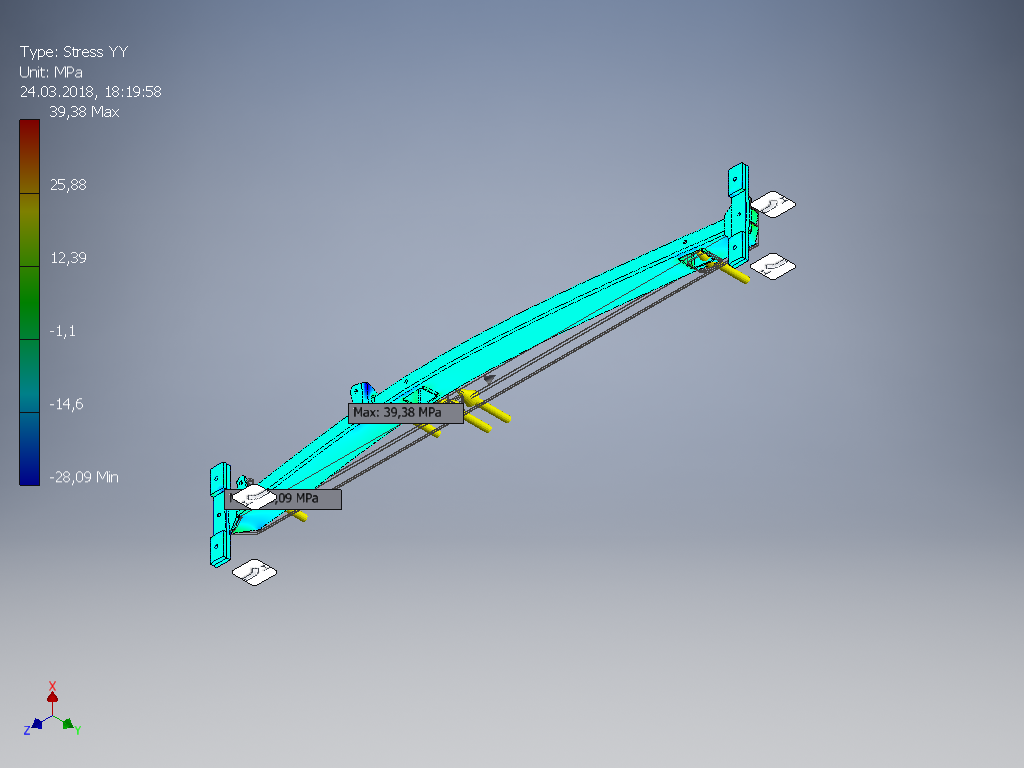

36	Result_0_12_rev.png	448.72K

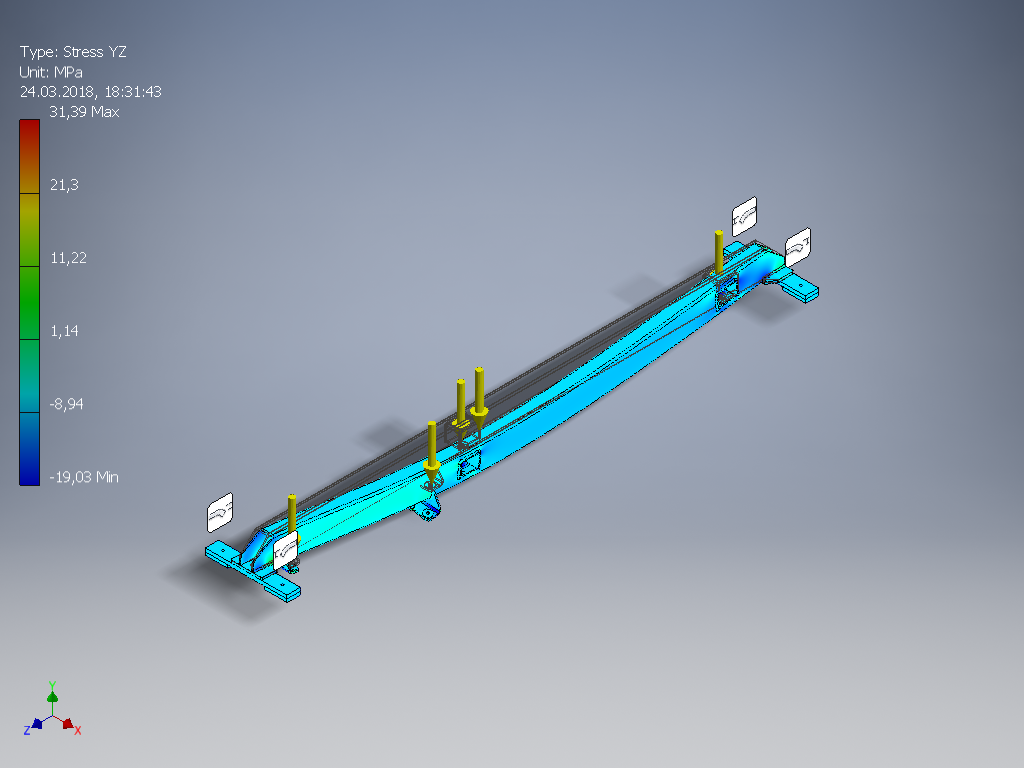

37	Result_0_13.png	474.33K
38	Result_0_13_rev.png	449.93K

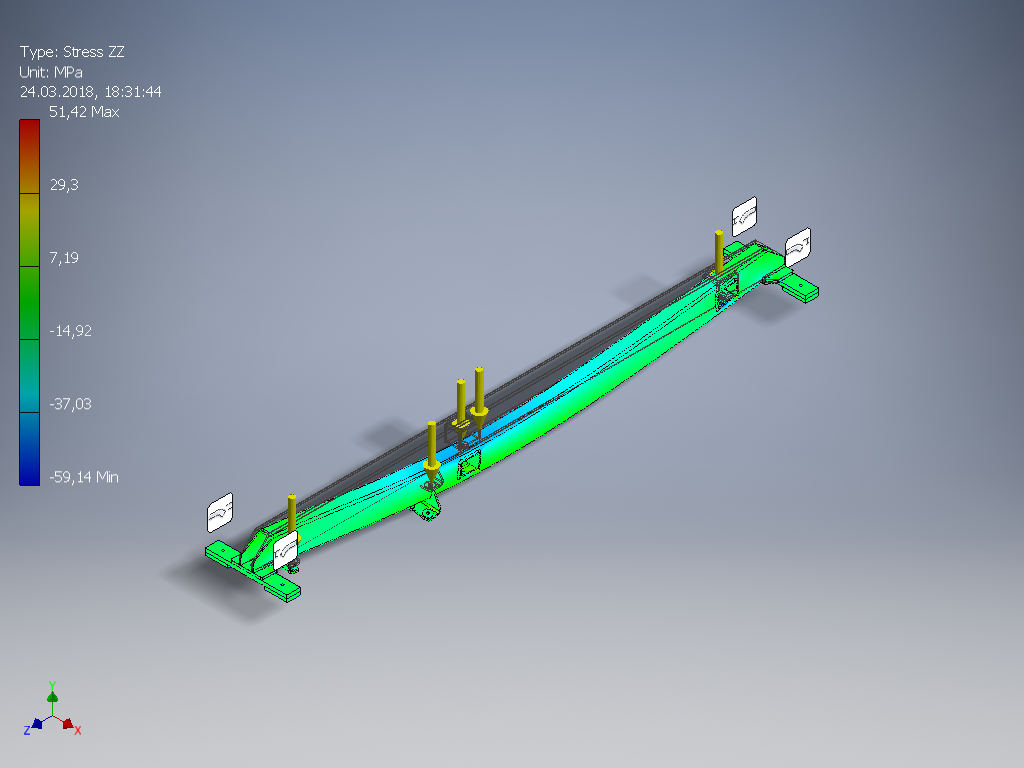

39	Result_0_14.png	480.71K
40	Result_0_14_rev.png	457.17K
41	Result_0_1_rev.png	439.70K
42	Result_0_2.png	1.37M

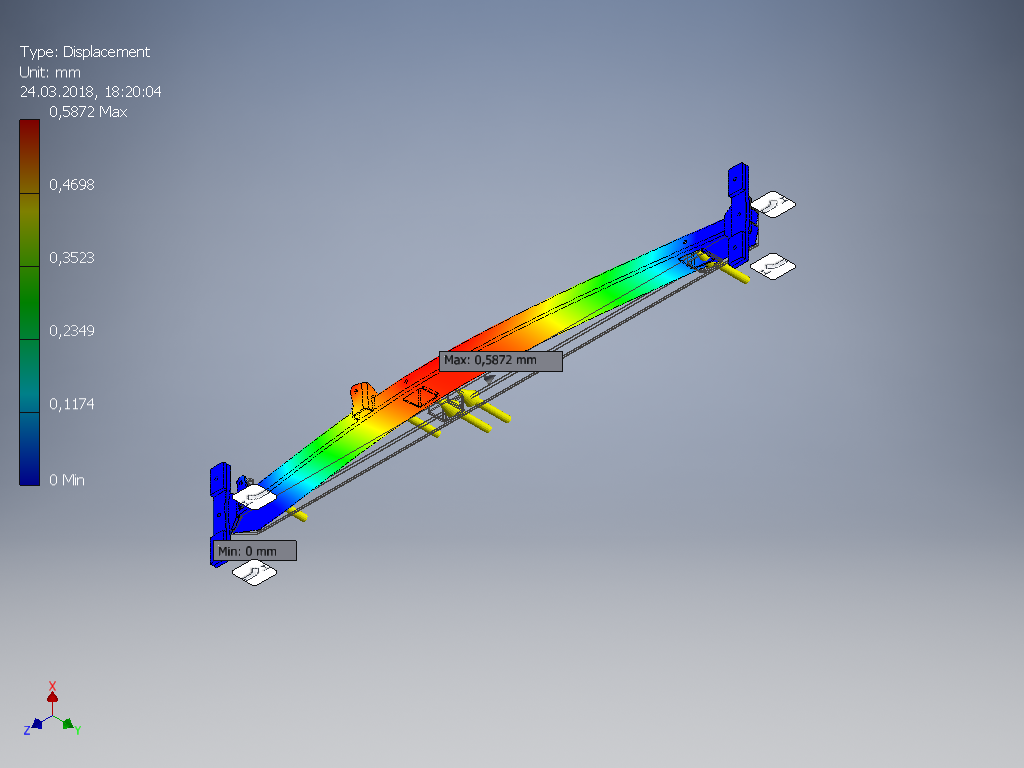

43	Result_0_2_rev.png	455.03K

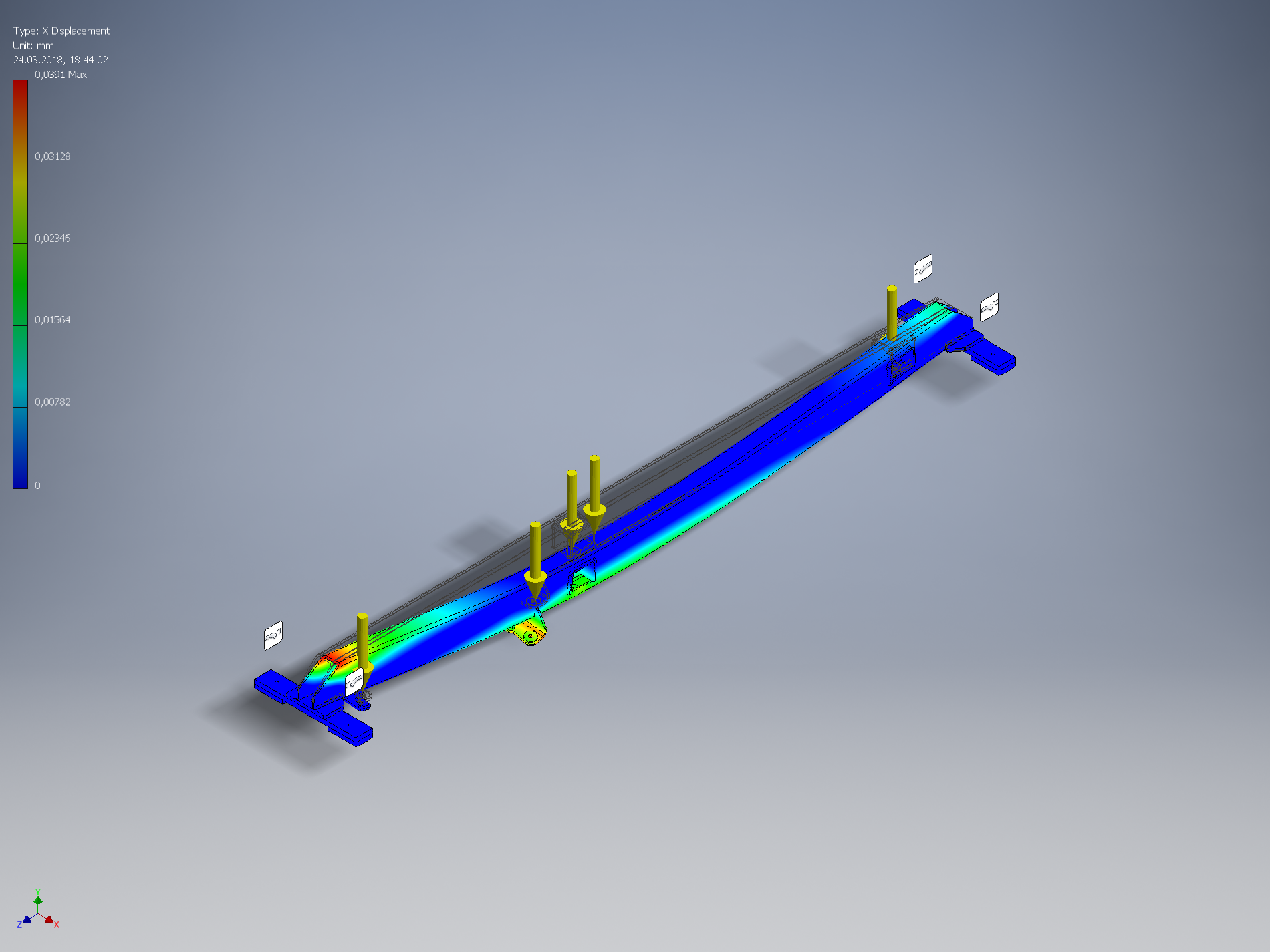

44	Result_0_3.png	1.37M
45	Result_0_3_rev.png	453.09K

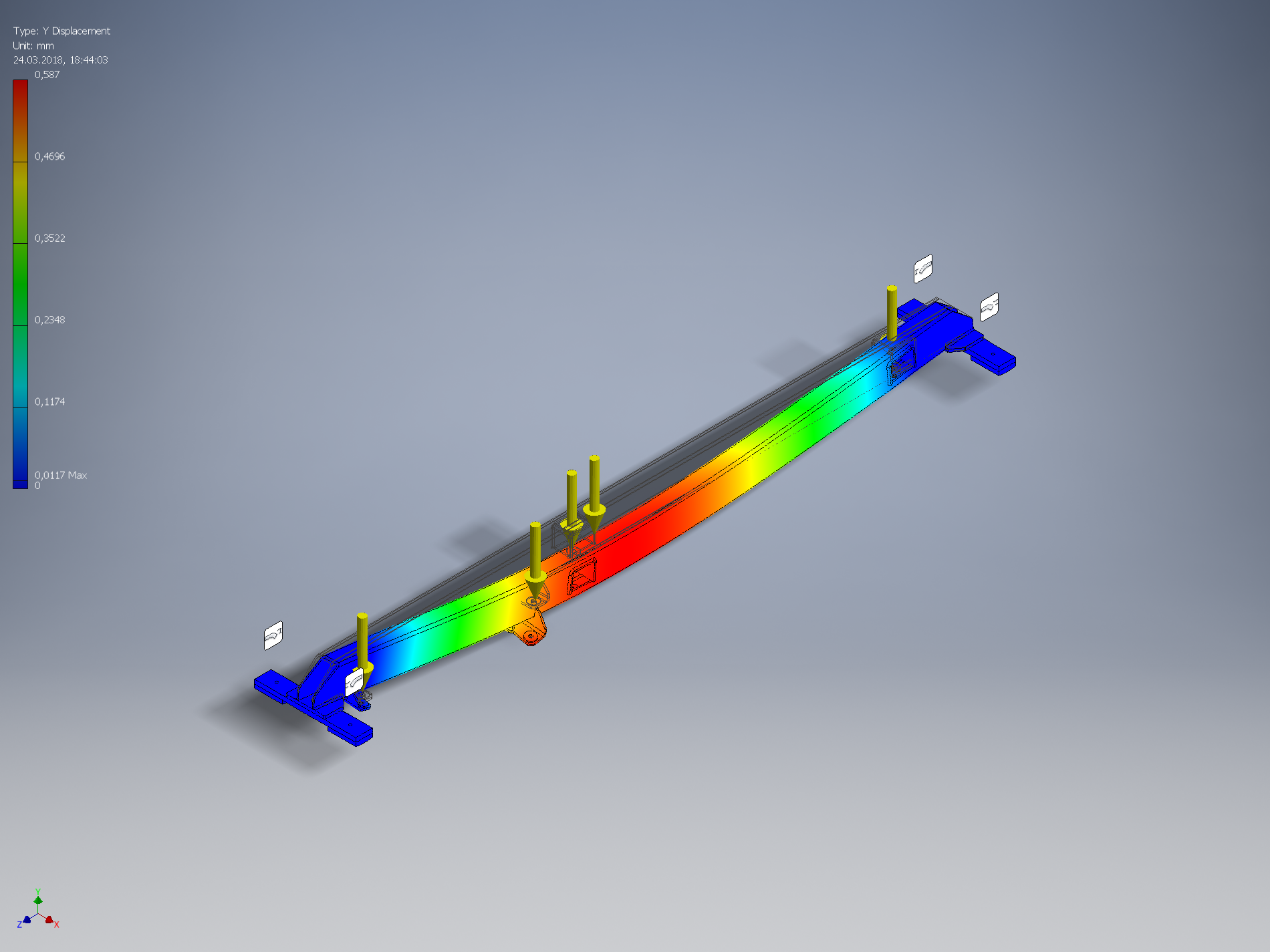

46	Result_0_4.png	1.37M

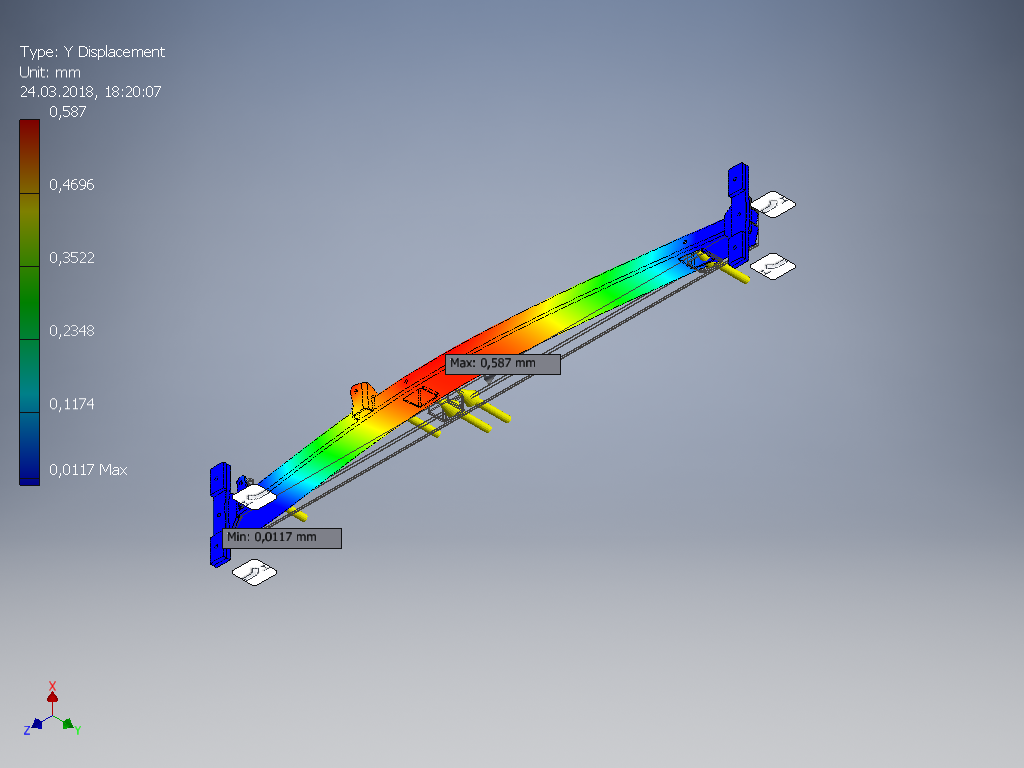

47	Result_0_4_rev.png	454.68K

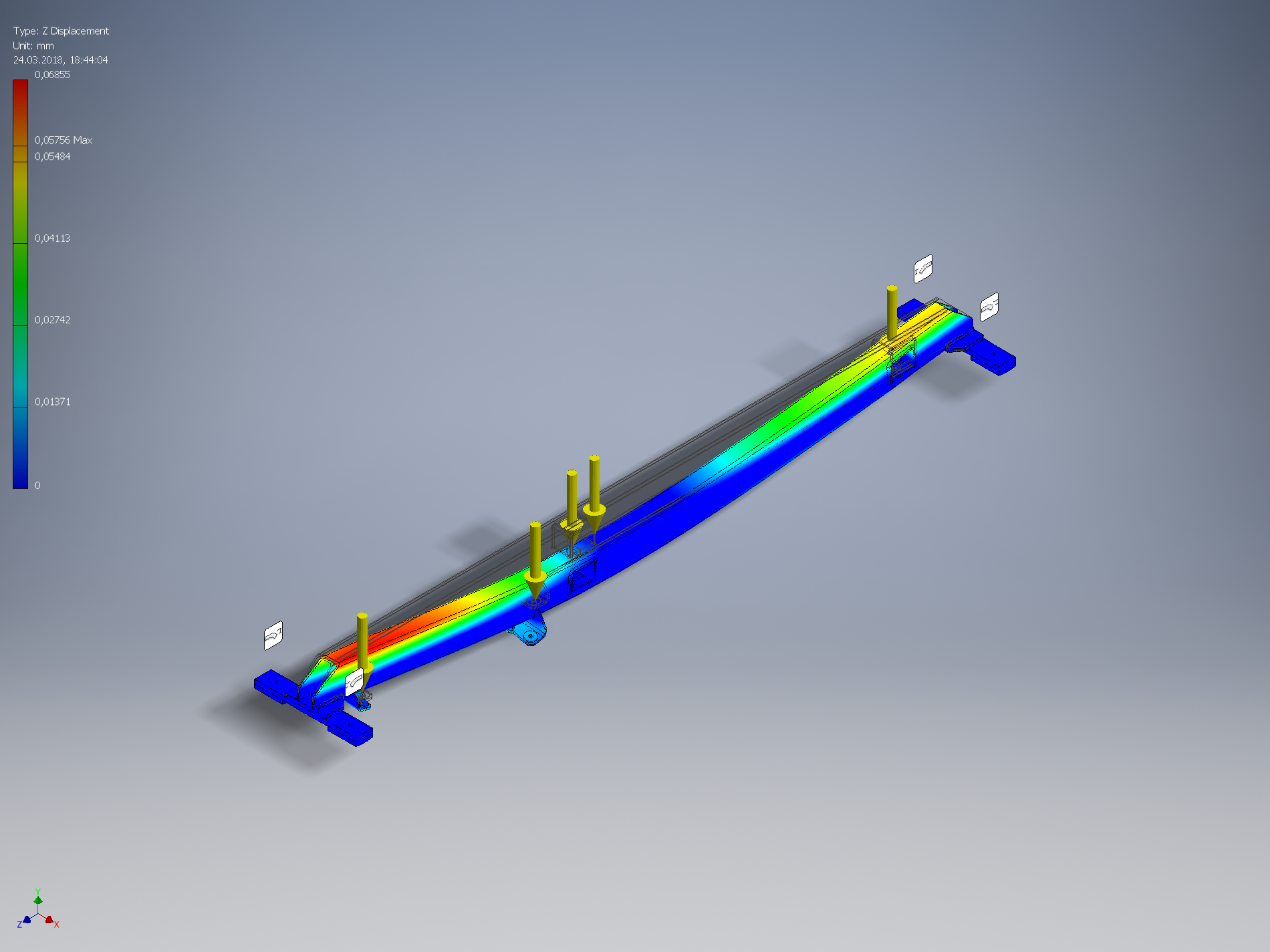

48	Result_0_5.png	1.38M

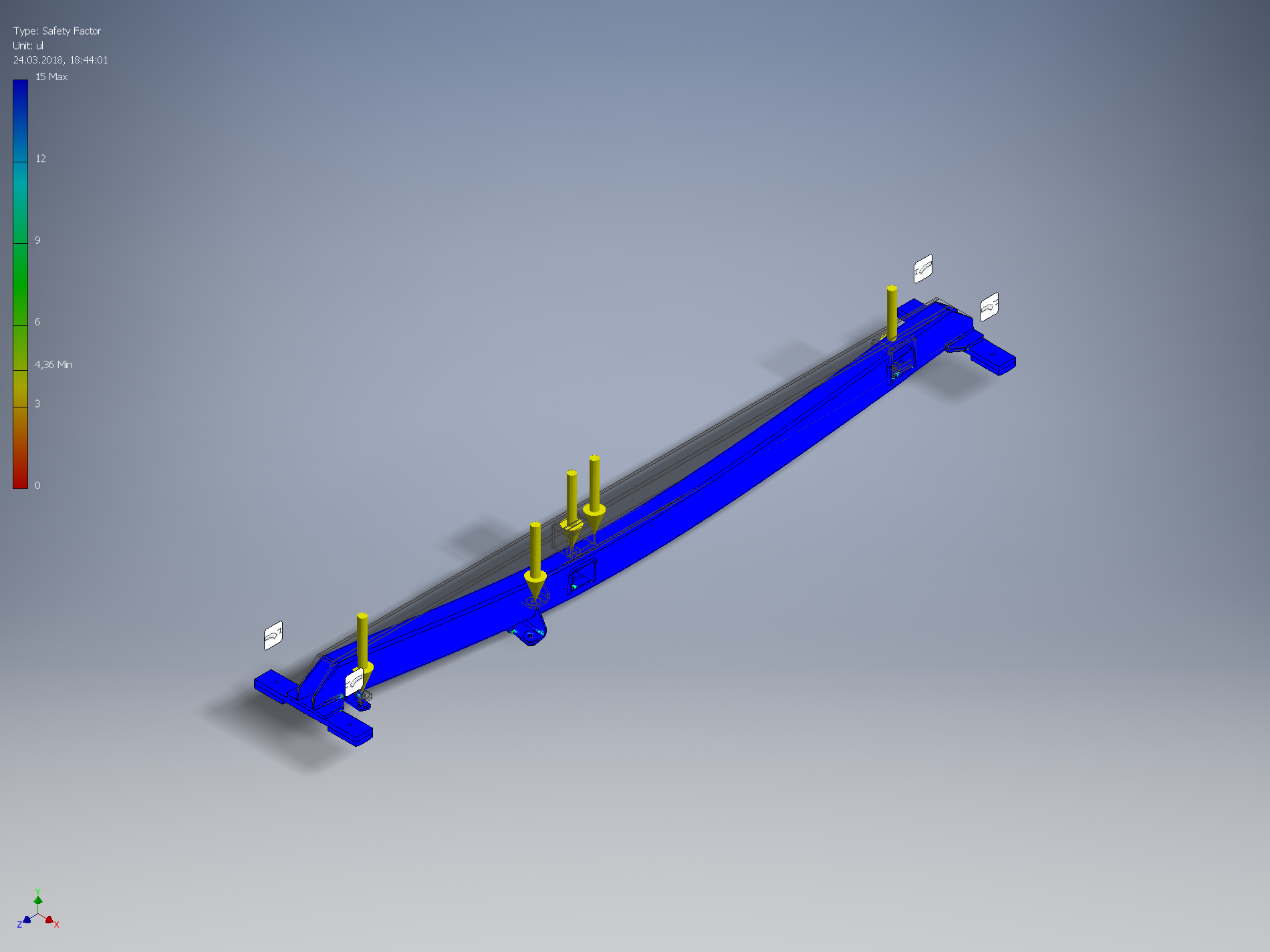

49	Result_0_57.png	1.32M

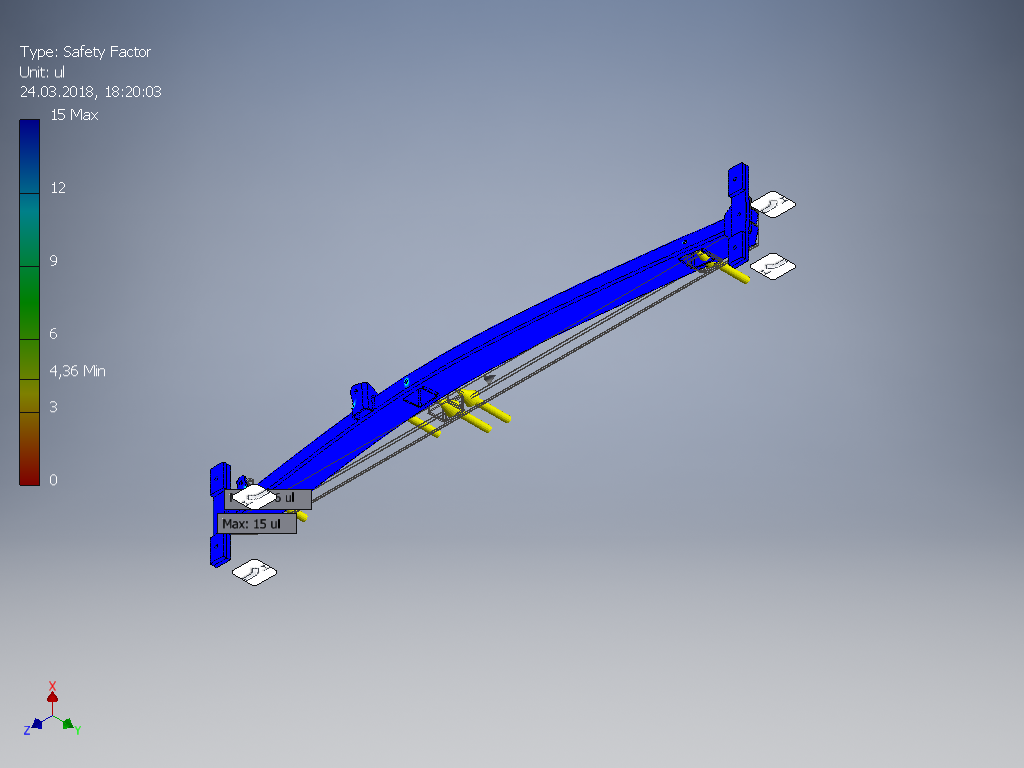

50	Result_0_57_rev.png	435.44K

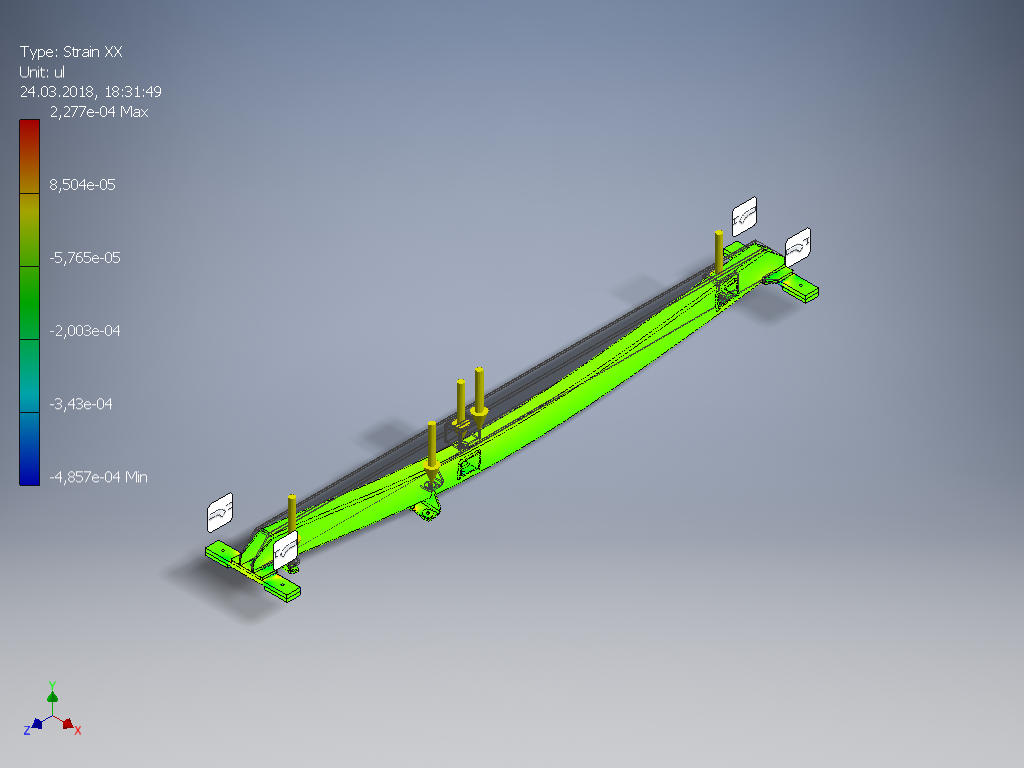

51	Result_0_58.png	474.69K

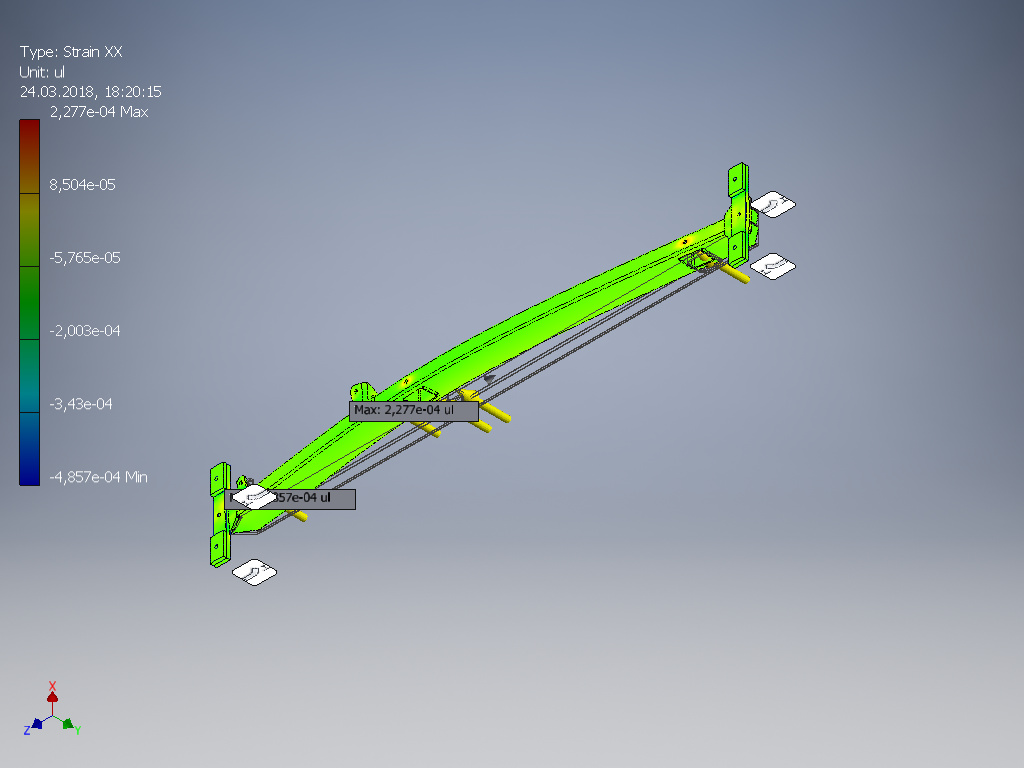

52	Result_0_58_rev.png	450.71K
53	Result_0_59.png	467.23K

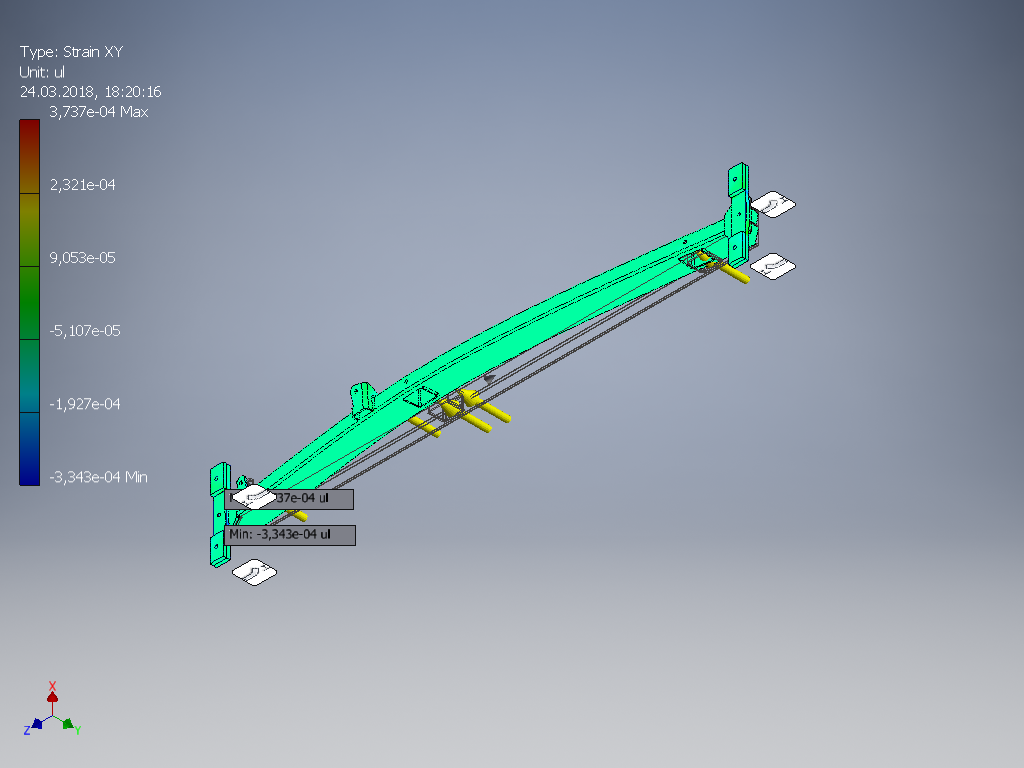

54	Result_0_59_rev.png	444.83K
55	Result_0_5_rev.png	453.69K
56	Result_0_6.png	1.34M
57	Result_0_60.png	469.92K

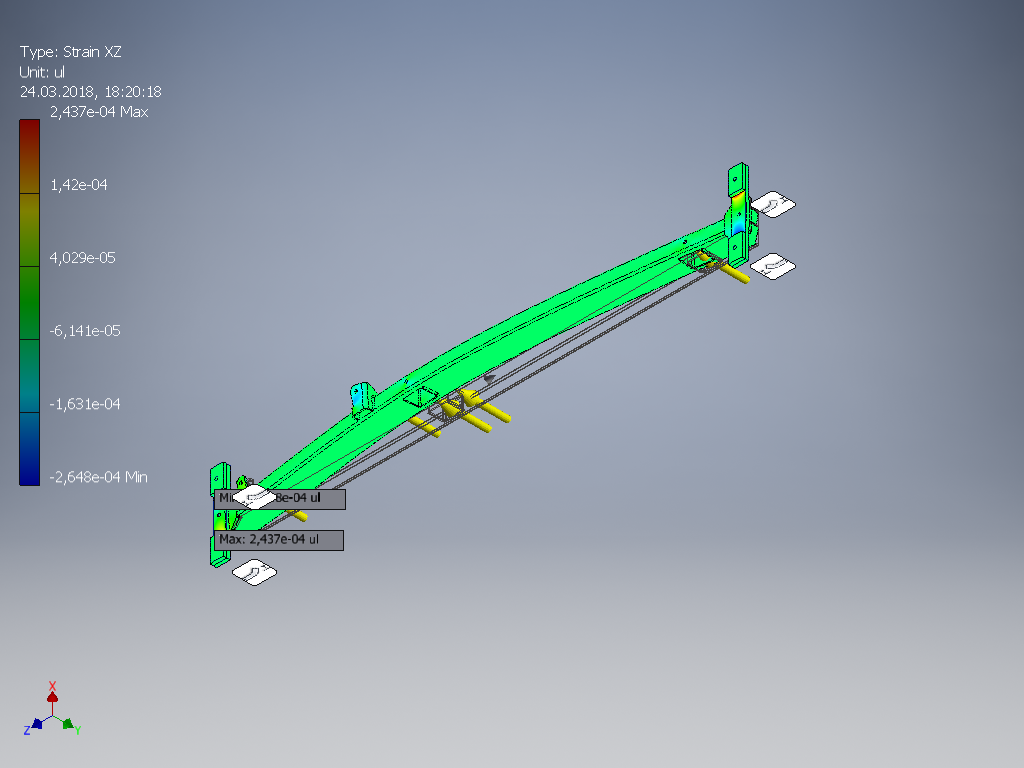

58	Result_0_60_rev.png	446.92K

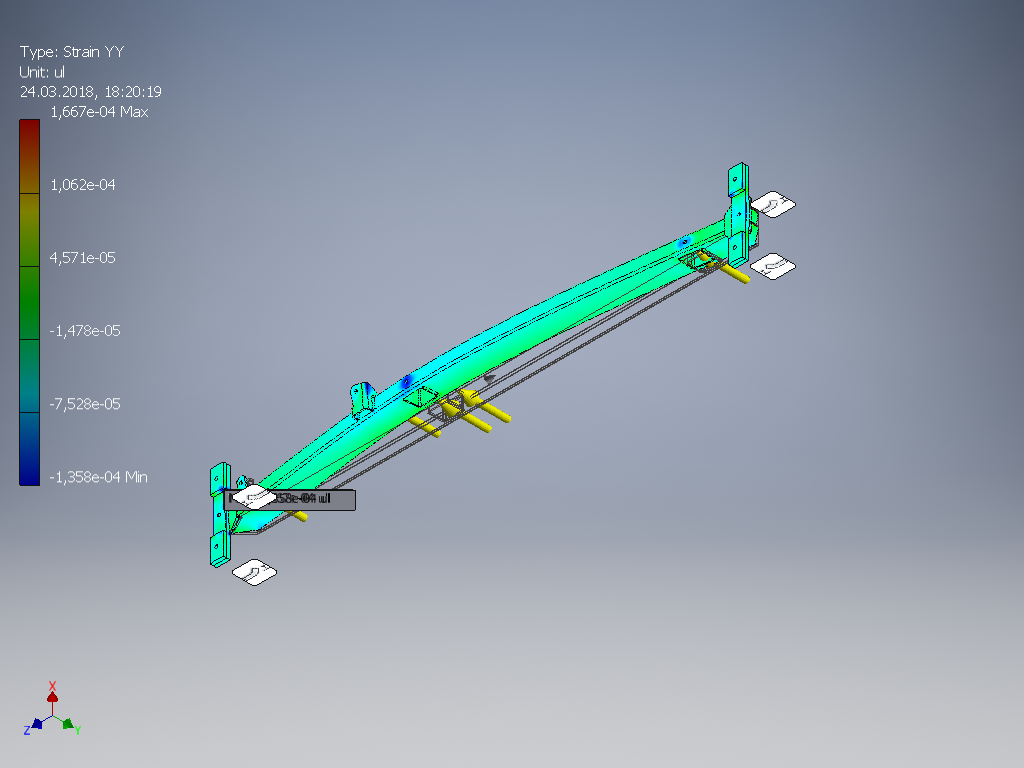

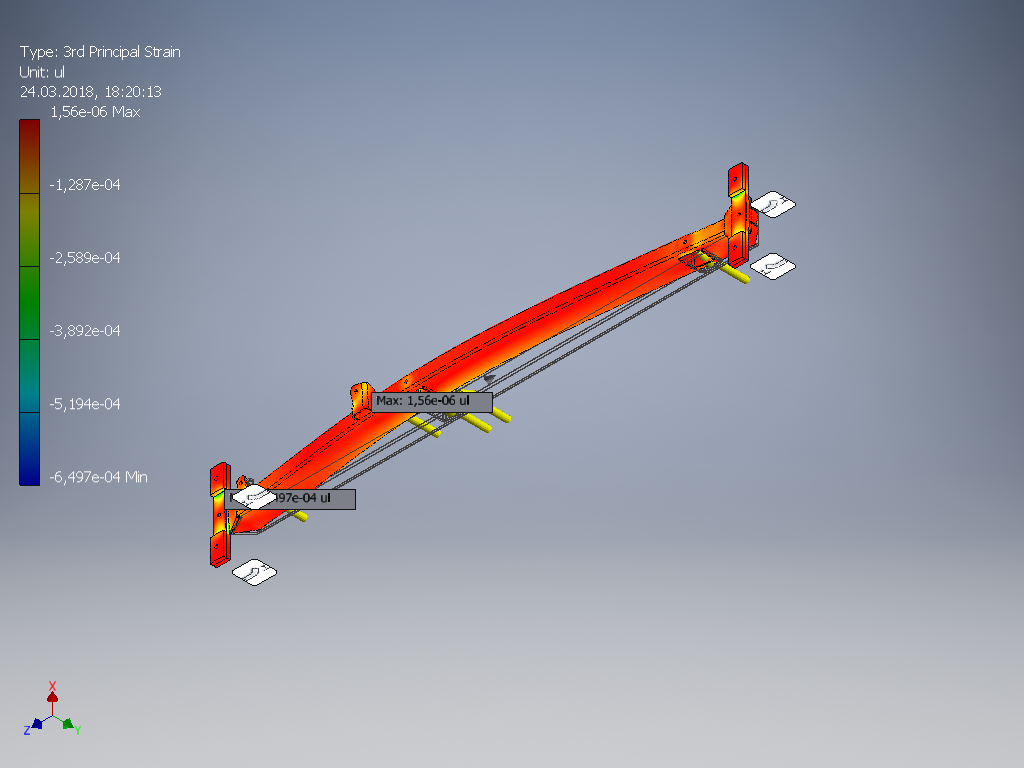

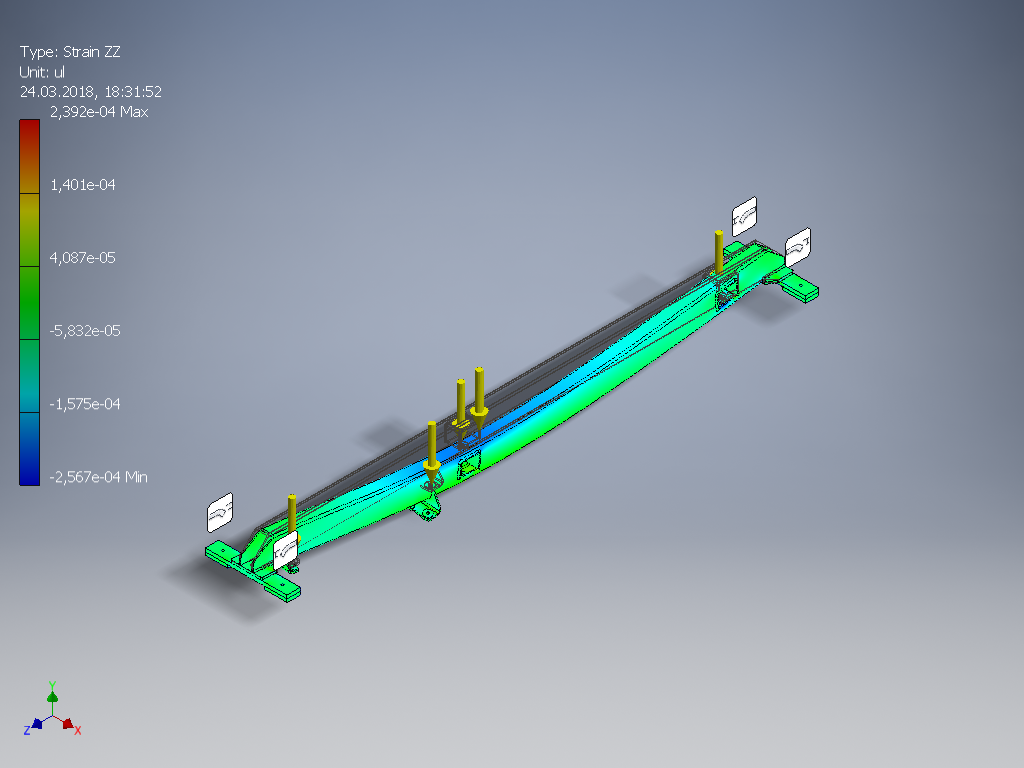

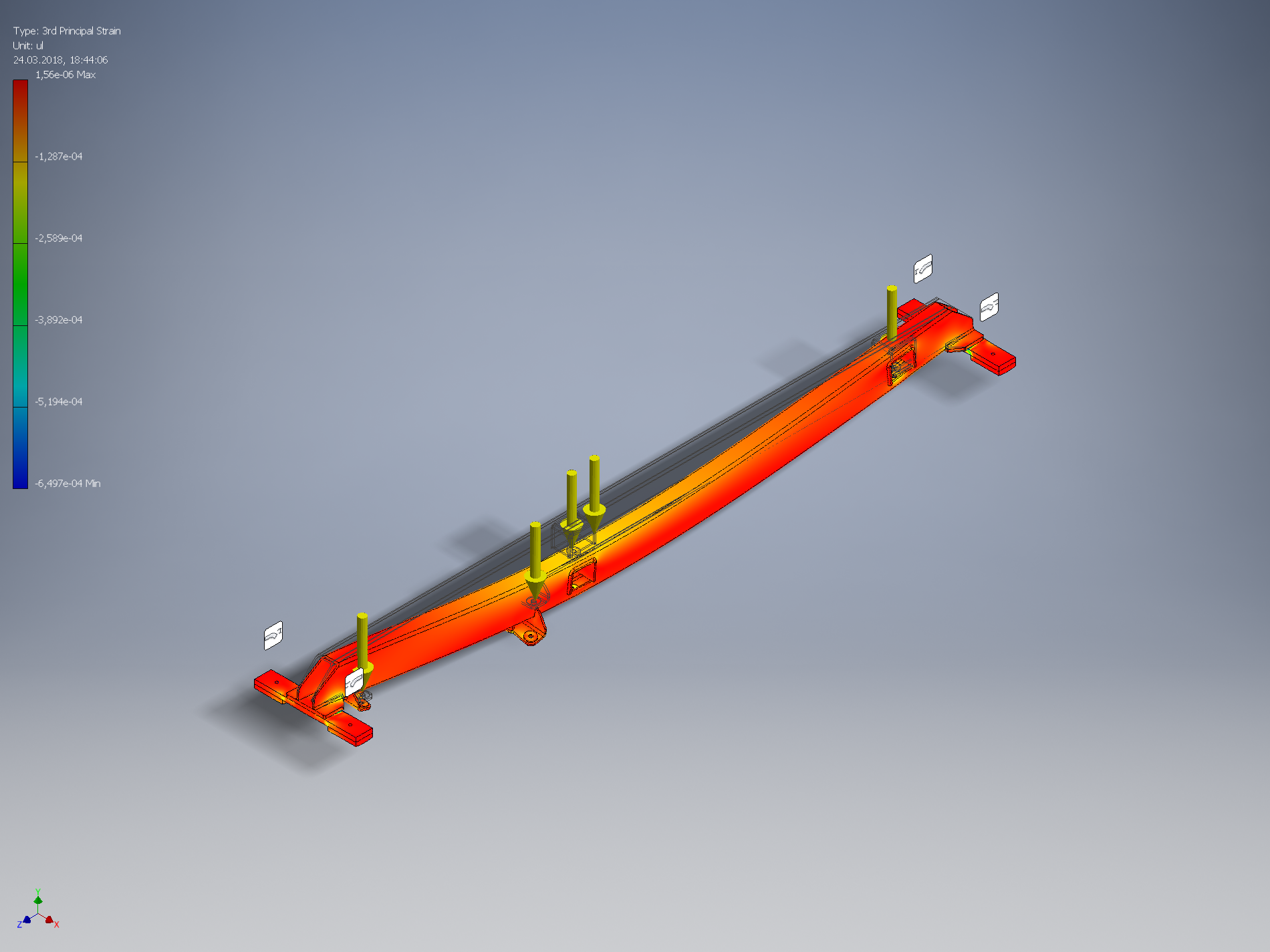

59	Result_0_61.png	480.60K
