2.5万吨年1,3-丙二醇项目初步设计（ID:2690463）
0.png)
0.png)
0.png)
0.png)
0.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17592337283452.zip | 349.46M |
| 2 | 1-可行性研究报告-炉火醇清.docx | 3.14M |
| 3 | 2-初步设计说明书.docx | 6.41M |
| 4 | 3-1反应器设计说明书.docx | 8.21M |
| 5 | 3-2塔设备设计说明书.docx | 5.49M |
| 6 | 3-3换热器设计说明书.docx | 11.80M |
| 7 | 4-能量集成与换热网络设计.docx | 1.98M |
| 8 | 5-安全预评价报告.docx | 3.51M |
| 9 | 6-环境影响评价报告.docx | 1.79M |
| 10 | 7-经济分析报告.docx | 1.97M |
| 11 | 8-创新性说明书.docx | 3.67M |
| 12 | 9-中国绿色低碳发展要求评估报告.docx | 1.50M |
| 13 | 附录1-物料平衡书.docx | 1.55M |
| 14 | 附录10-基于分诊制的化工过程故障诊断方法.docx | 2.23M |
| 15 | 附录2-能量平衡书.docx | 1.64M |
| 16 | 附录3-设备选型一览表.docx | 1.44M |
| 17 | 附录4-MSDS一览表.docx | 1.46M |
| 18 | 附录5-公用工程供应协议及方案.docx | 1.41M |
| 19 | 附录6-HAZOP分析报告说明书.docx | 1.44M |

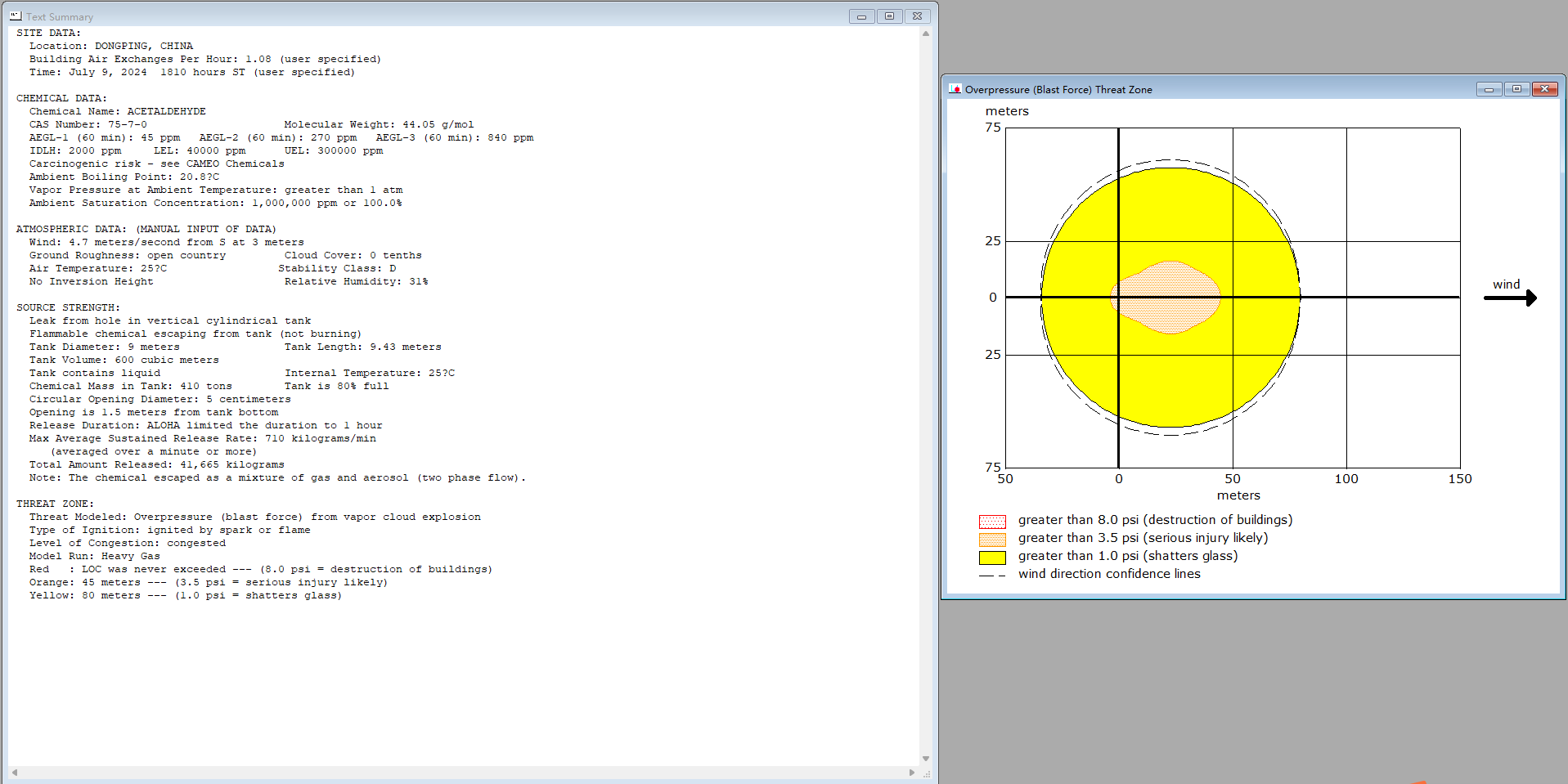

| 20 | 附录7-Risksystem环境风险评价.docx | 4.92M |
| 21 | 附录8-ALOHA评估报告.docx | 2.70M |
| 22 | 附录9-动态控制模拟说明书.docx | 1.86M |
| 23 | 1-动力学验证.bkp | 410.49K |
| 24 | 2-反应动力学说明书.docx | 2.72M |
| 25 | 1-丙烯醛水合加氢合成13-丙二醇工艺新技术开发研究_唐勇.pdf | 15.63M |
| 26 | 2-酸性树脂催化剂上丙烯醛水合动力学研究_俞峰松.pdf | 181.39K |
| 27 | 3-丙烯醛水合加氢制13-丙二醇_徐泽辉.pdf | 259.14K |
| 28 | 4-ChemieIngenieurTechnik-July1991-Arntz-KinetischeUntersuchungzurHydratisierungvonAcrolein.pdf | 320.99K |
| 29 | 5-不同丙烯醛合成工艺的分析及比较研究_杨靖丰.pdf | 4.25M |
| 30 | 5-丙烯醛水合加氢反应动力学.pdf | 0B |
| 31 | 6-IntraparticleDiffusionin3-Hydroxypropanal-Zhu-hofmann-AIChEJ.-计算-工艺参数.pdf | 773.71K |
| 32 | 7-酸性催化剂（HZSM-5和aspen-40）下甘油脱水制丙烯醛动力学.pdf | 1.23M |
| 33 | 1-原始工艺流股（不含节能技术、换热网络优化）.bkp | 2.24M |
| 34 | 2-改进工艺流股（含节能技术，不含换热网络优化）.bkp | 2.73M |
| 35 | 3-全流程模拟（含节能技术、含换热网络优化）.bkp | 2.64M |
| 36 | 全流程运行无警告无错误视频.mp4 | 34.47M |
| 37 | 1-原始工艺流股（不含节能技术、换热网络）.bmp | 418.92K |
| 38 | 2-改进工艺流股（含节能技术，不含换热网络）.bmp | 478.22K |

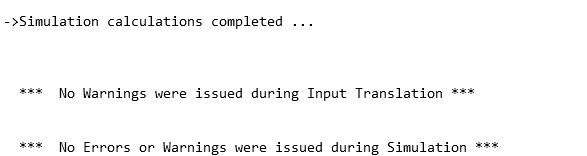

| 39 | 3-全流程模拟（含节能技术、换热网络）.bmp | 357.76K |
| 40 | 1-对列管长度和床层直径组合灵敏度分析.bkp | 1023.74K |
| 41 | 2-优化结果.bkp | 287.92K |
| 42 | Origin图集.docx | 609.90K |
| 43 | 列管长度、床层直径对副产物质量分率的影响.opju | 90.01K |
| 44 | 列管长度、床层直径对目标产物质量分率的影响.opju | 93.62K |
| 45 | 根据优化目标进行筛选.xlsx | 13.56K |
| 46 | 满足优化目标下，列管长度、床层直径取值区间.opju | 51.26K |
| 47 | 满足优化目标的列管长度与床层直径组合与停留时间的关系图.opju | 52.30K |
| 48 | 灵敏度分析数据导出.xlsx | 118.12K |
| 49 | 反应压力确定.bkp | 301.64K |
| 50 | 反应温度确定.bkp | 360.33K |
| 51 | 冷却水用量计算.bkp | 187.46K |
| 52 | 1-DSTWU.bkp | 285.67K |
| 53 | 2-设计规定.bkp | 347.44K |
| 54 | 3-总塔板数优化.bkp | 555.78K |
| 55 | 4-回流比优化.bkp | 540.78K |
| 56 | 5-进料板位置优化.bkp | 556.05K |
| 57 | 6-设计规范计算值.bkp | 360.87K |
| 58 | 7-最终优化结果.bkp | 355.05K |
| 59 | 1-无热泵精馏.bkp | 328.53K |
| 60 | 2-热泵精馏.bkp | 535.14K |
| 61 | 1-无差压热耦合.bkp | 462.08K |
| 62 | 2-差压热耦合.bkp | 565.40K |

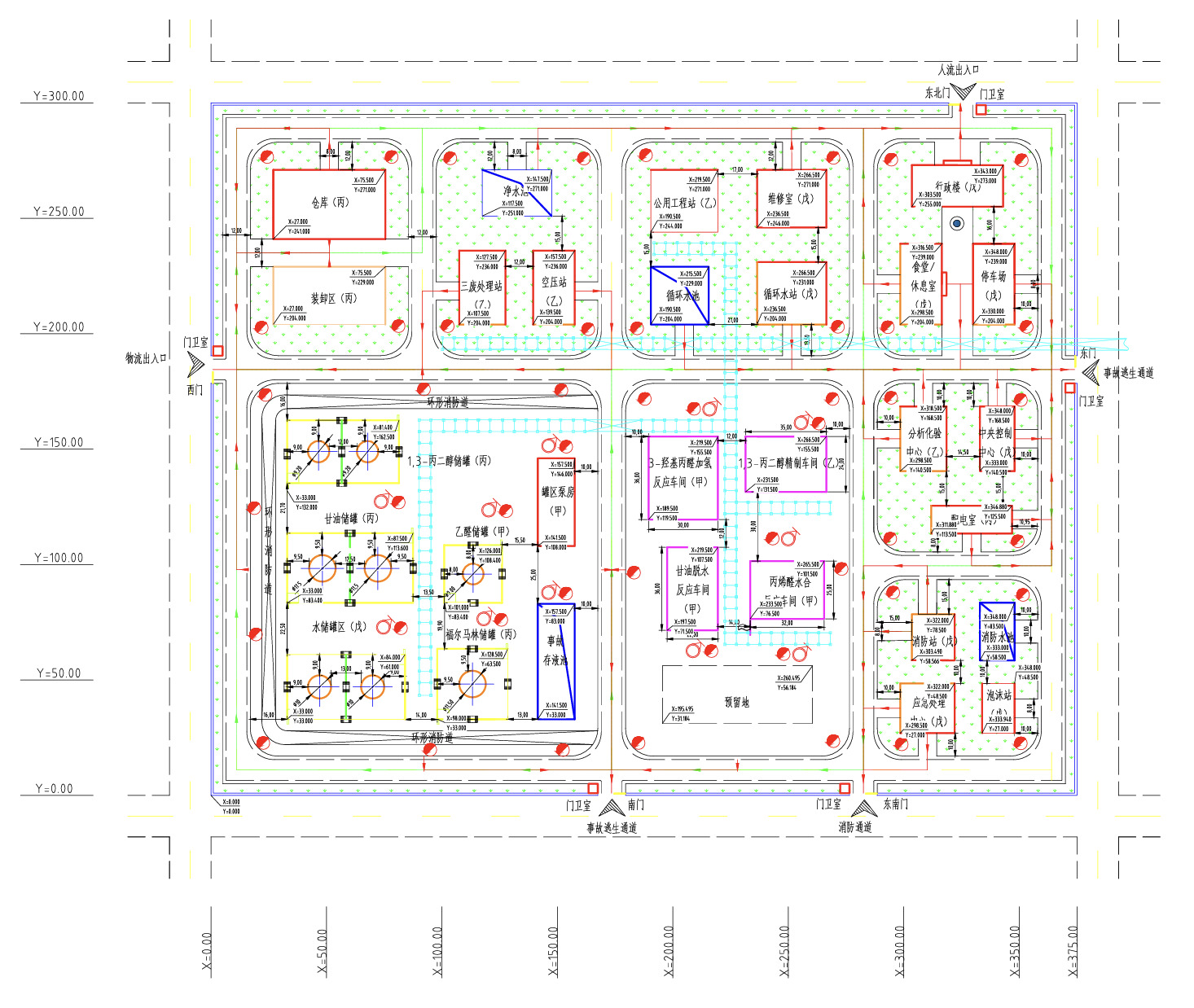

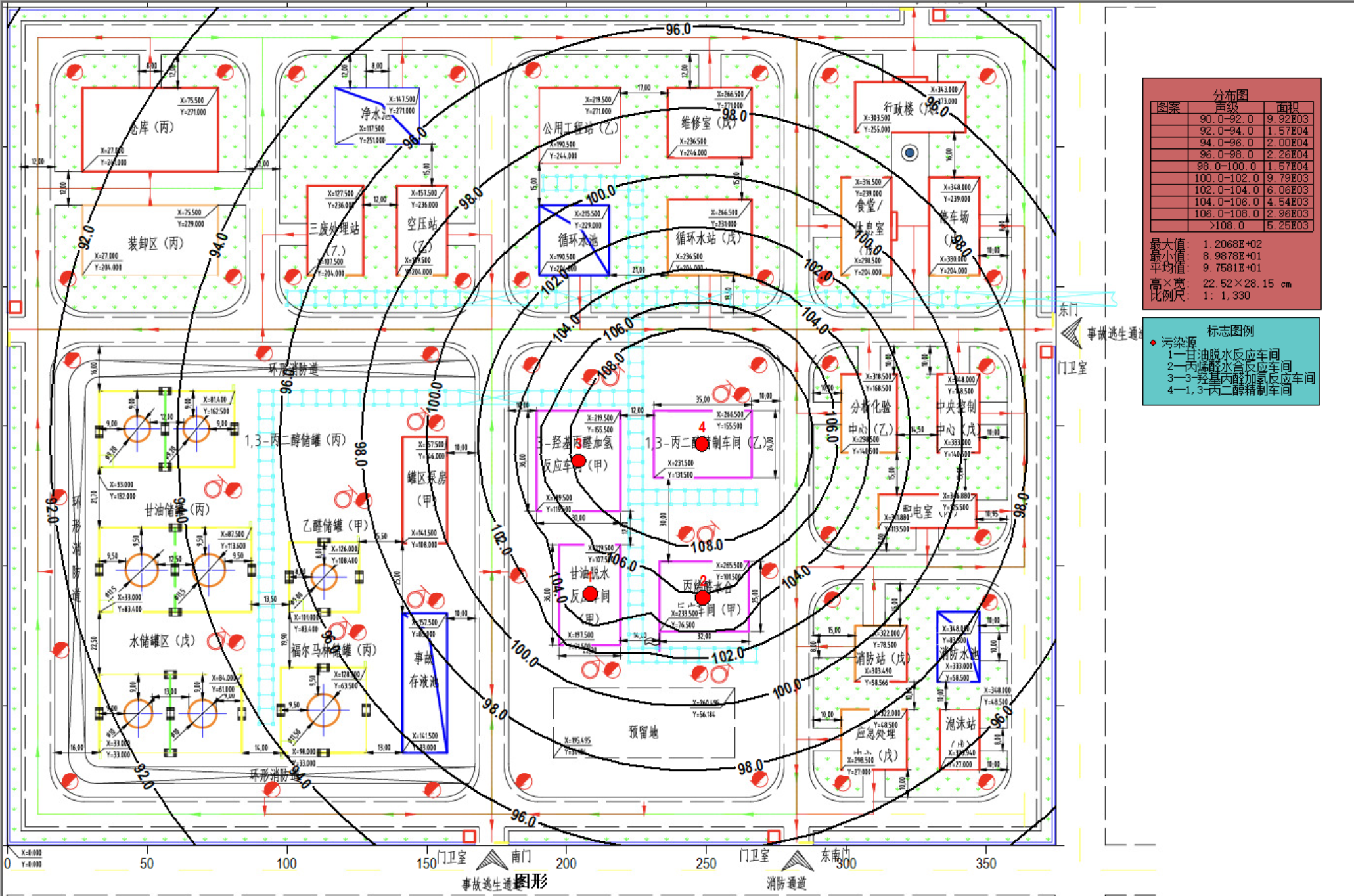

| 63 | 厂区总平面布置图.pdf | 365.28K |
| 64 | 噪声预测.ein | 15.02K |
| 65 | 噪声预测数据.xls | 35.50K |
| 66 | 噪声预测结果.png | 2.60M |
| 67 | 背景图.BIF | 144B |
| 68 | 背景图.jpg | 538.55K |
| 69 | 说明.txt | 670B |

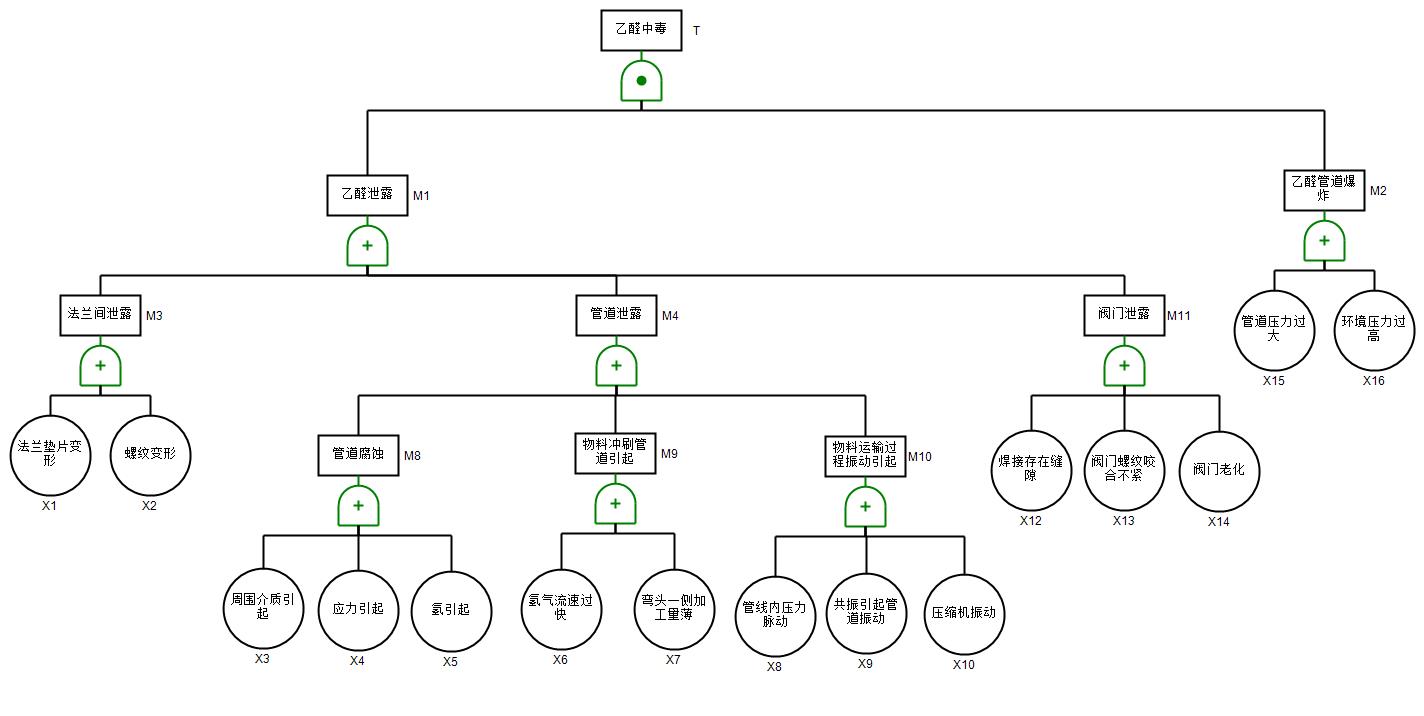

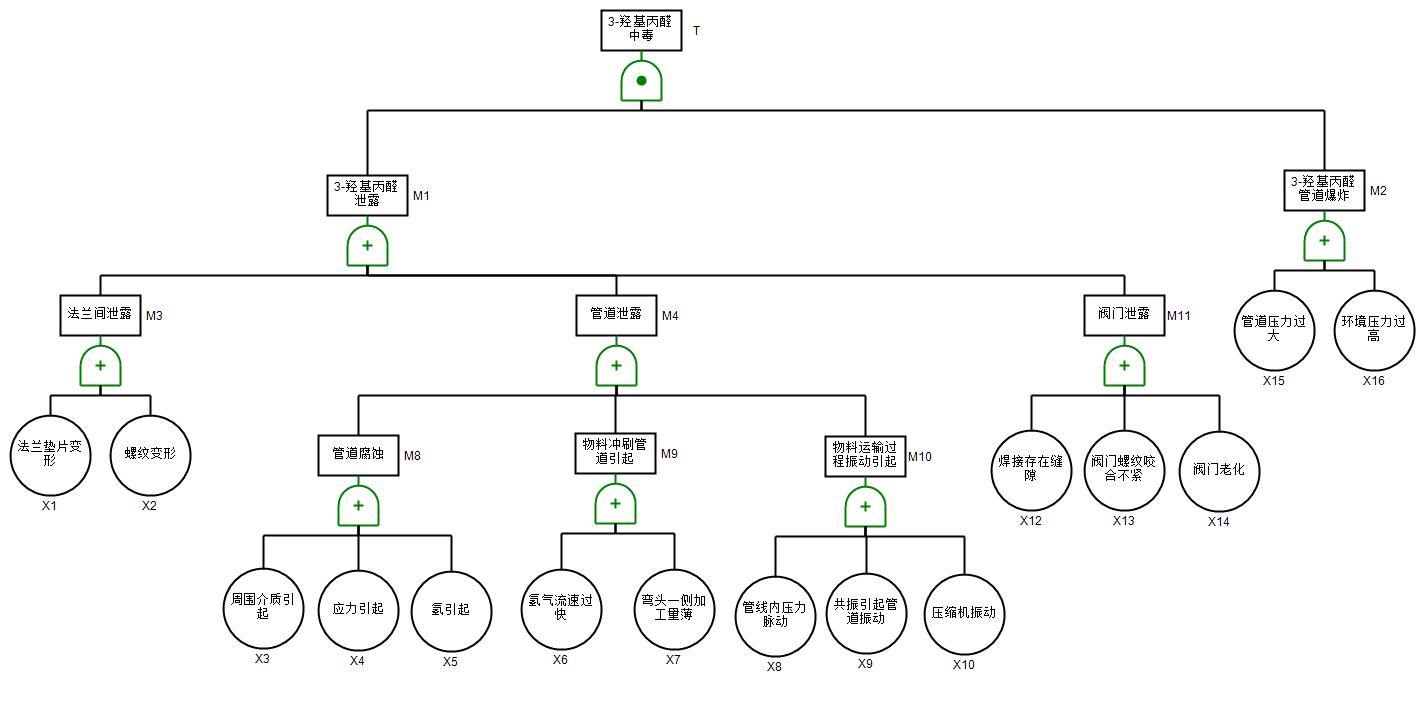

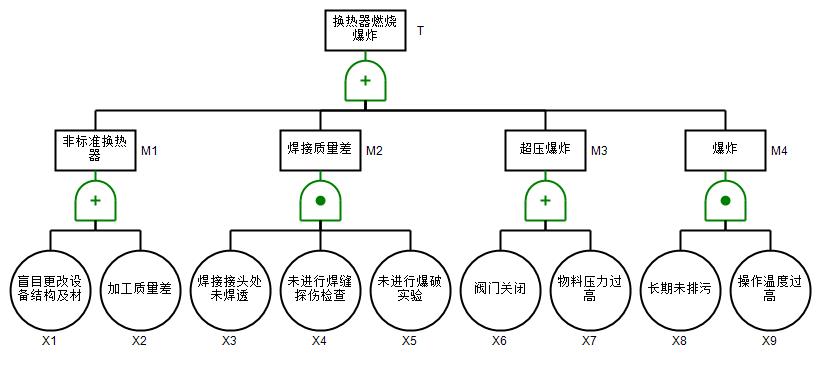

| 70 | 3-羟基丙醛中毒.ffta | 13.96K |
| 71 | 3-羟基丙醛中毒.jpg | 77.09K |
| 72 | 乙醛中毒.ffta | 13.92K |
| 73 | 乙醛中毒.jpg | 76.23K |
| 74 | 换热器燃烧爆炸.ffta | 9.53K |
| 75 | 换热器燃烧爆炸.jpg | 38.04K |
| 76 | 福尔马林中毒.ffta | 13.95K |
| 77 | 福尔马林中毒.jpg | 76.70K |

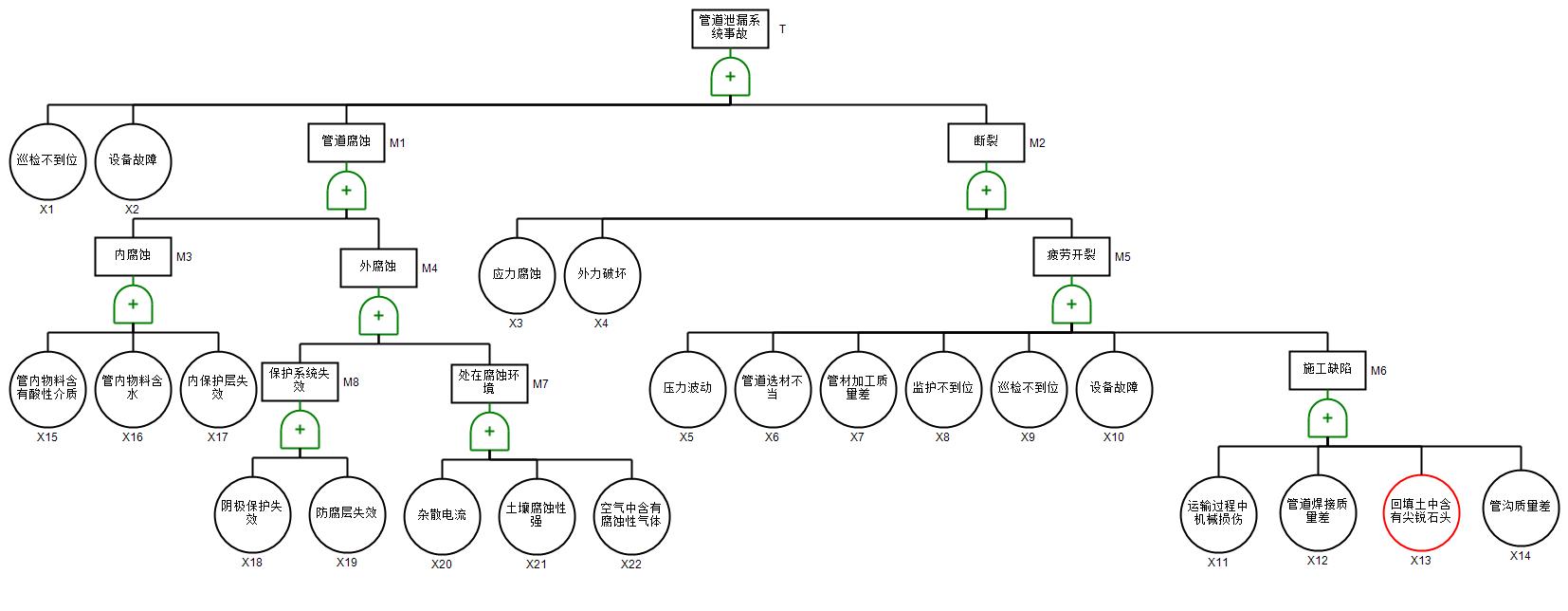

| 78 | 管道泄露系统事故.ffta | 14.36K |
| 79 | 管道泄露系统事故.jpg | 91.15K |

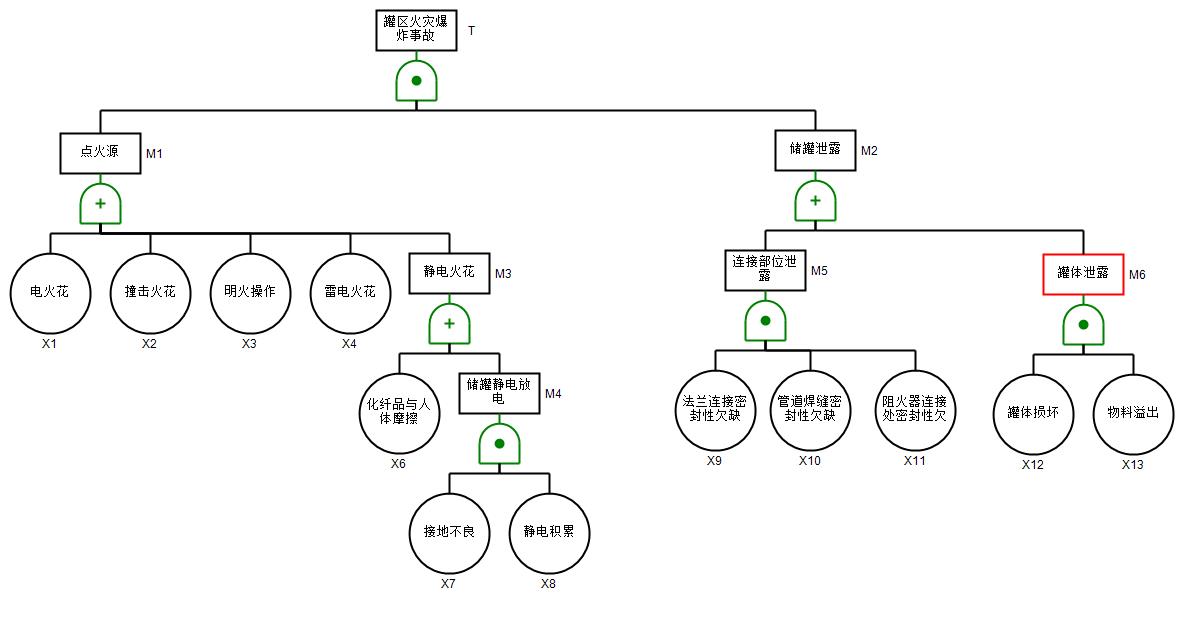

| 80 | 罐区火灾爆炸事故.ffta | 11.29K |
| 81 | 罐区火灾爆炸事故.jpg | 57.43K |
| 82 | 13-丙二醇典型泄漏事故模拟.rsm | 523B |
| 83 | 13-丙二醇在大气中的扩散预测.rsm | 511B |
| 84 | 13-丙二醇池火事故模型预测.rsm | 208B |
| 85 | 13-丙二醇沸腾液体扩展蒸汽爆炸火球BLEVE模型预测.rsm | 220B |
| 86 | 13-丙二醇液体泄漏量计算.rsm | 116B |
| 87 | 13-丙二醇蒸气云爆炸模型预测（TNT当量法）.rsm | 175B |
| 88 | 说明.txt | 685B |
| 89 | 1-动态控制模拟说明书.docx | 1.86M |
| 90 | 1-动态控制模拟说明书.pdf | 1.06M |
| 91 | T0402动态模拟.dynf | 440.13K |
| 92 | 6-设计规范计算结果dyn.his | 987B |
| 93 | 6-设计规范计算结果dyn.rep | 0B |
| 94 | snpA0000.snp | 1.60M |
| 95 | snpA0001.snp | 1.60M |
| 96 | 0-基于分诊制的化工过程故障诊断方法.docx | 2.23M |
| 97 | output.svg | 129.01K |
| 98 | result1.csv | 13.44K |
| 99 | 1.入口流量波动5.xlsx | 31.40K |
| 100 | 2.入口流量波动-5.xlsx | 33.14K |
| 101 | 3.入口流量波动10.xlsx | 31.70K |
| 102 | 4.入口流量波动-10.xlsx | 33.90K |
| 103 | 1.入口流量波动40.xlsx | 32.82K |
| 104 | 2.入口流量波动-40.xlsx | 35.35K |
| 105 | 3.入口流量波动50.xlsx | 32.89K |
| 106 | 4.入口流量波动-50.xlsx | 35.67K |
| 107 | 5.入口流量波动60.xlsx | 32.77K |
| 108 | 6.入口流量波动-60.xlsx | 35.52K |
| 109 | 1.冷凝器负荷降低-15.xlsx | 54.02K |
| 110 | 2.冷凝器负荷降低-25.xlsx | 53.96K |
| 111 | 3.冷凝器负荷降低-35.xlsx | 55.05K |
| 112 | 1.再沸器负荷降低-30.xlsx | 58.47K |
| 113 | 2.再沸器负荷降低-40.xlsx | 59.57K |
| 114 | 3.再沸器负荷降低-50.xlsx | 59.71K |
| 115 | 1.塔顶采出降低-40.xlsx | 54.77K |
| 116 | 2.塔顶采出降低-50.xlsx | 54.60K |
| 117 | 3.塔顶采出降低-60.xlsx | 53.31K |
| 118 | 1.塔釜采出降低-40.xlsx | 54.07K |
| 119 | 2.塔釜采出降低-50.xlsx | 53.97K |
| 120 | 3.塔釜采出降低-60.xlsx | 54.07K |
| 121 | 0-能量集成与换热网络设计.docx | 1.98M |
| 122 | 0-能量集成与换热网络设计.pdf | 1.06M |
| 123 | 1-原始工艺流股（不含节能技术、换热网络）.bkp | 2.24M |
| 124 | 2-原始换热网络.hch | 837.78K |
| 125 | 3-改进工艺流股（含节能技术，不含换热网络）.bkp | 2.73M |
| 126 | 4-改进换热网络.hch | 752.55K |
| 127 | 5-换热网络优化过程.hch | 12.85M |
| 128 | 6-全流程模拟（含节能技术、含换热网络优化）.bkp | 2.64M |
| 129 | 7-最终换热网络.hch | 670.66K |
| 130 | E0201.fx3 | 26.05K |
| 131 | E0201计算书.pdf | 424.29K |
| 132 | E0206.fx3 | 26.05K |
| 133 | E0206计算书.pdf | 268.75K |
| 134 | R0201.fx3 | 26.05K |
| 135 | R0201计算书.pdf | 473.47K |
| 136 | T0202.cn2 | 32.58K |
| 137 | 1-DSTWU.bkp | 285.67K |
| 138 | 2-设计规定.bkp | 347.44K |
| 139 | 3-总塔板数优化.bkp | 555.78K |
| 140 | 4-回流比优化.bkp | 540.78K |
| 141 | 5-进料板位置优化.bkp | 556.05K |
| 142 | 6-设计规范计算值.bkp | 360.87K |
| 143 | 7-最终优化结果.bkp | 355.05K |
| 144 | 《RaschigSuperPak501fromDEwTM》.pdf | 620.00K |
| 145 | 《StructuredPackingsEnergy-efficientinnovativeandprofitable》.pdf | 3.69M |
| 146 | interactive.bkp | 580.93K |
| 147 | rating.bkp | 592.36K |

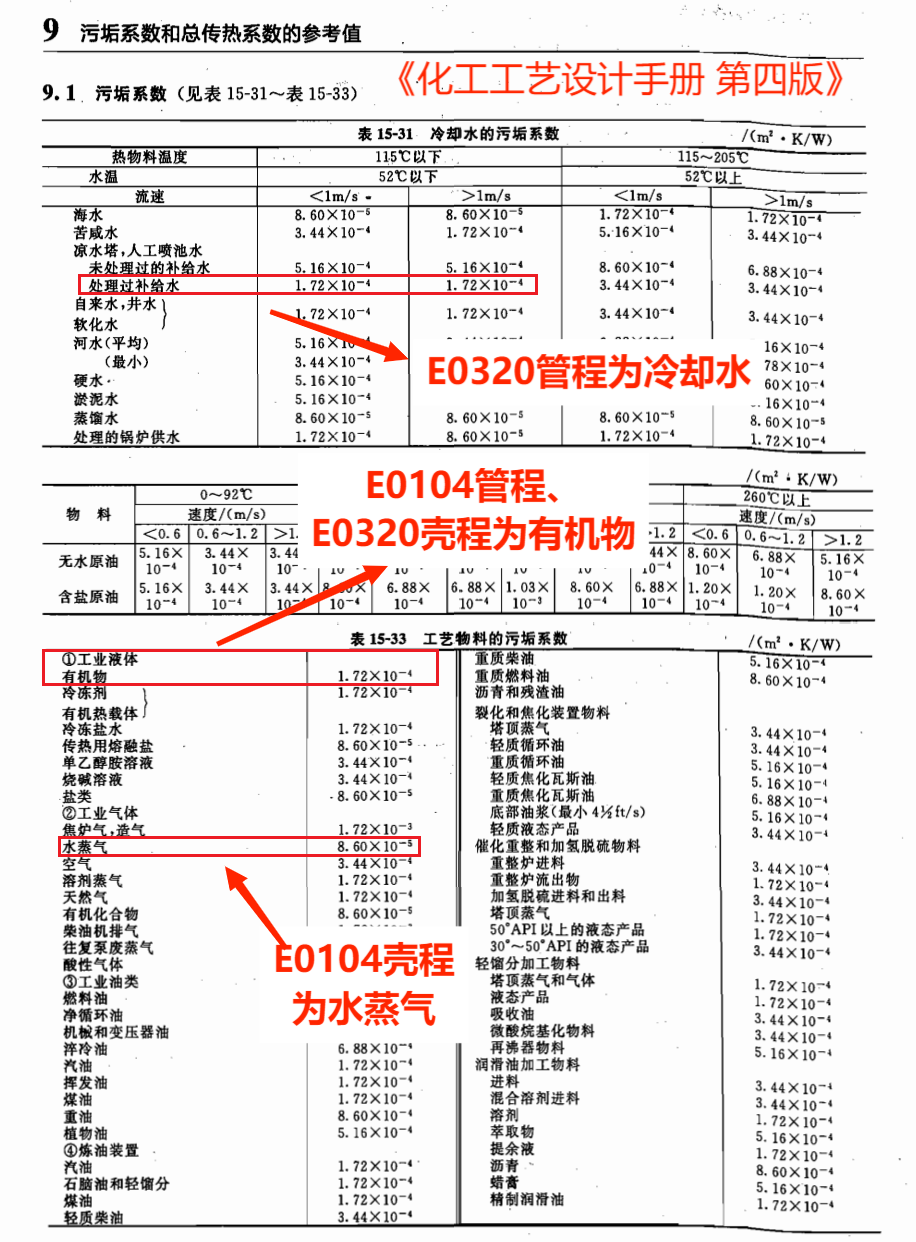

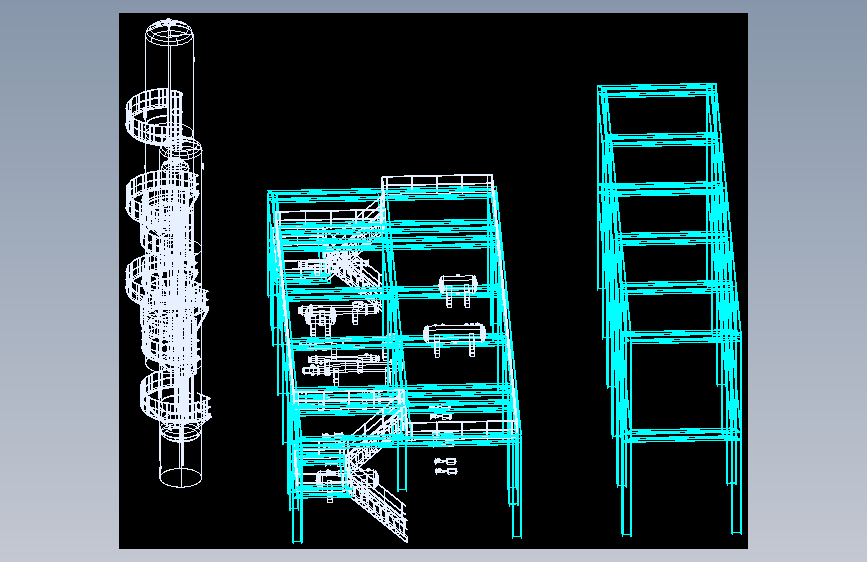

| 148 | 污垢热阻来源.png | 419.67K |
| 149 | E0201.EDR | 252.83K |
| 150 | E0201换热面积校核.bkp | 256.33K |
| 151 | E0206.EDR | 279.19K |
| 152 | E0206换热面积校核.bkp | 248.89K |
| 153 | 反应器设计文字说明.docx | 2.22M |
| 154 | 1-对列管长度和床层直径组合灵敏度分析.bkp | 1023.74K |
| 155 | 2-优化结果.bkp | 287.92K |
| 156 | Origin图集.docx | 609.90K |
| 157 | 列管长度、床层直径对副产物质量分率的影响.opju | 90.01K |
| 158 | 列管长度、床层直径对目标产物质量分率的影响.opju | 93.62K |
| 159 | 根据优化目标进行筛选.xlsx | 13.56K |
| 160 | 满足优化目标下，列管长度、床层直径取值区间.opju | 51.26K |
| 161 | 满足优化目标的列管长度与床层直径组合与停留时间的关系图.opju | 52.30K |
| 162 | 灵敏度分析数据导出.xlsx | 118.12K |
| 163 | 反应压力确定.bkp | 301.64K |
| 164 | 反应温度确定.bkp | 360.33K |
| 165 | 冷却水用量计算.bkp | 187.46K |
| 166 | 丙烯醛水合反应车间三维布置-2004.dwg | 10.83M |
| 167 | 丙烯醛水合反应车间三维布置-2007.dwg | 9.74M |

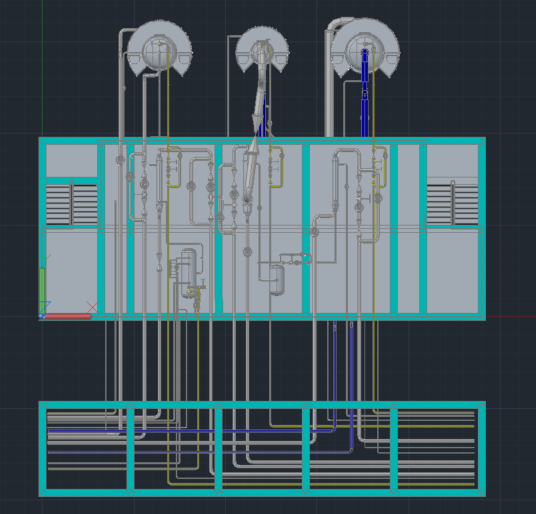

| 168 | 俯视图.png | 40.05K |
| 169 | 左视图.png | 27.06K |

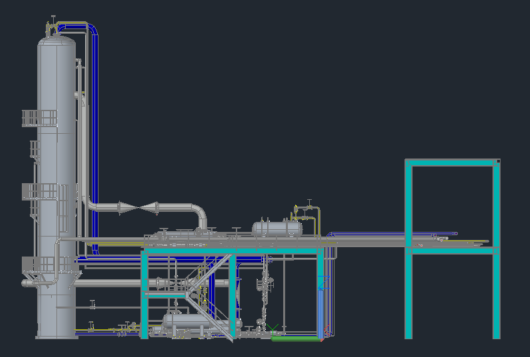

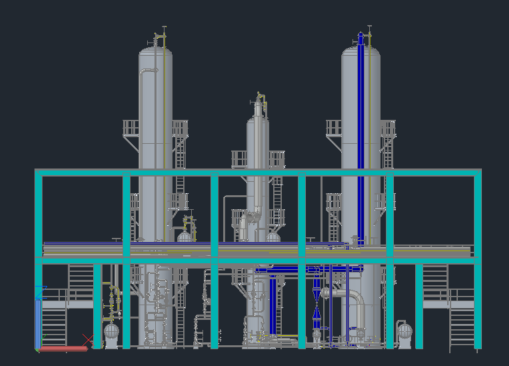

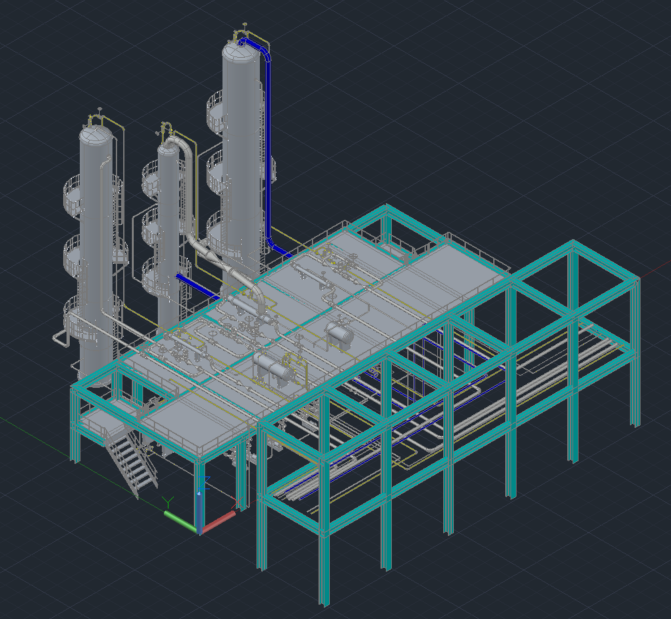

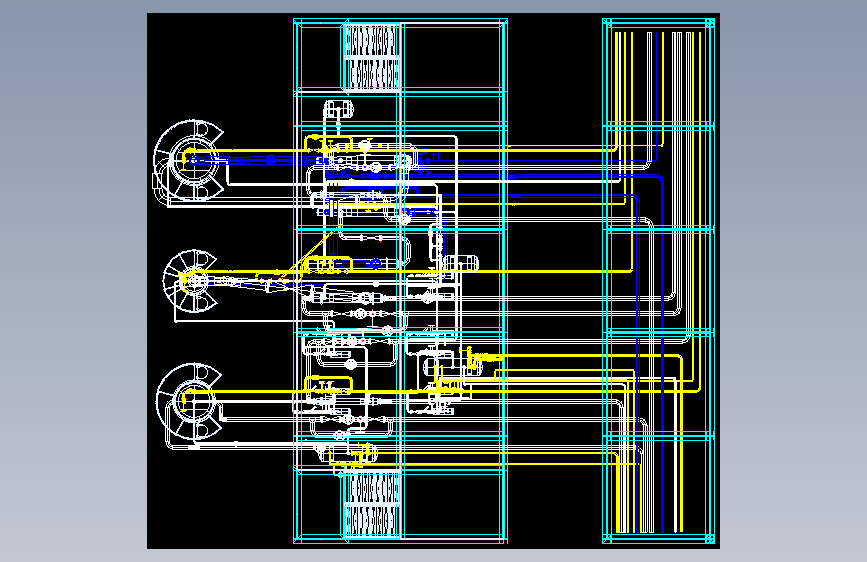

| 170 | 正视图.png | 45.63K |
| 171 | 轴视图.png | 330.59K |
| 172 | 丙烯醛水合反应车间三维配管-2004.dwg | 32.97M |
| 173 | 丙烯醛水合反应车间三维配管-2007.dwg | 29.42M |
| 174 | 俯视图.png | 80.53K |
| 175 | 左视图.png | 44.87K |
| 176 | 正视图.png | 60.05K |
| 177 | 轴视图.png | 384.86K |
| 178 | CWR-0201-200-L1B.dwg | 159.96K |
| 179 | CWR-0202-200-L1B-1.dwg | 147.86K |
| 180 | CWR-0202-200-L1B-2.dwg | 169.06K |
| 181 | CWR-0203-200-L1B-C.dwg | 181.84K |
| 182 | CWR-0204-200-L1B.dwg | 187.70K |
| 183 | CWS-0201-200-L1B-1.dwg | 172.81K |
| 184 | CWS-0201-200-L1B-2.dwg | 172.51K |
| 185 | CWS-0201-200-L1B-3.dwg | 118.95K |
| 186 | CWS-0201-200-L1B-4.dwg | 141.70K |
| 187 | CWS-0202-200-L1B-1.dwg | 189.73K |
| 188 | CWS-0202-200-L1B-2.dwg | 194.23K |
| 189 | CWS-0202-200-L1B-3.dwg | 146.83K |
| 190 | CWS-0203-200-L1B-1.dwg | 199.95K |
| 191 | CWS-0203-200-L1B-2.dwg | 193.76K |
| 192 | CWS-0203-200-L1B-3.dwg | 119.42K |
| 193 | CWS-0204-200-L1B-1.dwg | 227.94K |
| 194 | CWS-0204-200-L1B-2.dwg | 190.83K |
| 195 | FV-0201-100-H1E-1.dwg | 253.31K |
| 196 | FV-0201-100-H1E-2.dwg | 176.06K |
| 197 | FV-0201-100-H1E-3.dwg | 117.13K |
| 198 | FV-0201-100-H1E-4.dwg | 135.14K |
| 199 | FV-0201-100-H1E-5.dwg | 145.52K |
| 200 | FV-0201-100-H1E-6.dwg | 141.38K |
| 201 | FV-0202-100-H1E-1.dwg | 148.14K |
| 202 | FV-0202-100-H1E-2.dwg | 141.10K |
| 203 | FV-0202-100-H1E-3.dwg | 168.46K |
| 204 | FV-0202-100-H1E-4.dwg | 114.07K |
| 205 | FV-0202-100-H1E-5.dwg | 172.82K |
| 206 | FV-0202-100-H1E-6.dwg | 153.74K |
| 207 | FV-0202-100-H1E-7.dwg | 123.82K |
| 208 | FV-0203-100-H1E-1.dwg | 143.73K |
| 209 | FV-0203-100-H1E-2.dwg | 143.39K |
| 210 | FV-0203-100-H1E-3.dwg | 170.88K |
| 211 | FV-0203-100-H1E-4.dwg | 182.45K |
| 212 | FV-0203-100-H1E-5.dwg | 198.45K |
| 213 | FV-0204-100-H1E-1.dwg | 238.29K |
| 214 | FV-0204-100-H1E-2.dwg | 172.69K |
| 215 | FV-0204-100-H1E-3.dwg | 154.27K |
| 216 | FV-0204-100-H1E-4.dwg | 119.20K |
| 217 | FV-0205-100-H1E-1.dwg | 179.05K |
| 218 | FV-0205-100-H1E-2.dwg | 169.35K |
| 219 | FV-0205-100-H1E-3.dwg | 115.62K |
| 220 | FV-0205-100-H1E-4.dwg | 149.77K |
| 221 | FV-0205-100-H1E-5.dwg | 139.54K |
| 222 | FV-0205-100-H1E-6.dwg | 165.18K |
| 223 | LS-0201-150-N1B-H-1.dwg | 143.36K |
| 224 | LS-0201-150-N1B-H-2.dwg | 153.56K |
| 225 | LS-0201-150-N1B-H-3.dwg | 135.63K |
| 226 | LS-0201-150-N1B-H-4.dwg | 152.65K |
| 227 | LS-0201-150-N1B-H-5.dwg | 117.19K |
| 228 | LS-0201-150-N1B-H-6.dwg | 107.19K |
| 229 | LS-0201-150-N1B-H-7.dwg | 145.11K |
| 230 | MS-0201-150-P1B-H-1.dwg | 143.42K |
| 231 | MS-0201-150-P1B-H-2.dwg | 150.37K |
| 232 | MS-0201-150-P1B-H-3.dwg | 139.57K |
| 233 | MS-0201-150-P1B-H-4.dwg | 153.78K |
| 234 | MS-0201-150-P1B-H-5.dwg | 116.72K |
| 235 | MS-0201-150-P1B-H-6.dwg | 111.31K |
| 236 | MS-0201-150-P1B-H-7.dwg | 144.73K |
| 237 | N-0201-50-H1B-1-1.dwg | 105.59K |
| 238 | N-0201-50-H1B-1-2.dwg | 187.71K |
| 239 | N-0201-50-H1B-1-3.dwg | 168.21K |
| 240 | N-0201-50-H1B-1-4.dwg | 114.94K |
| 241 | N-0201-50-H1B-2.dwg | 104.75K |
| 242 | N-0202-50-H1B-1-1.dwg | 191.38K |
| 243 | N-0202-50-H1B-1-2.dwg | 205.57K |
| 244 | N-0202-50-H1B-2.dwg | 78.95K |
| 245 | N-0202-50-H1B-3.dwg | 79.39K |
| 246 | N-0202-50-H1B-4.dwg | 96.39K |
| 247 | N-0202-50-H1B-5.dwg | 149.17K |
| 248 | N-0202-50-H1B-6.dwg | 78.83K |
| 249 | N-0202-50-H1B-7.dwg | 78.08K |
| 250 | PG-0201-500-H1E-H.dwg | 165.59K |
| 251 | PG-0202-400-H1E-H.dwg | 165.65K |
| 252 | PG-0203-400-H1E-H.dwg | 165.58K |
| 253 | PG-0204-500-H1E-H.dwg | 165.65K |
| 254 | PGL-0201-200-H1E-H.dwg | 165.71K |
| 255 | PL-0113-80-H1E.dwg | 165.65K |
| 256 | PL-0202-80-H1E.dwg | 165.68K |
| 257 | PL-0203-80-H1E-H-1.dwg | 165.58K |
| 258 | PL-0203-80-H1E-H-2.dwg | 165.52K |
| 259 | PL-0203-80-H1E-H-3.dwg | 165.65K |
| 260 | PL-0204-80-H1E-H-1.dwg | 165.77K |
| 261 | PL-0204-80-H1E-H-2.dwg | 165.65K |
| 262 | PL-0204-80-H1E-H-3.dwg | 165.55K |
| 263 | PL-0204-80-H1E-H-4.dwg | 168.61K |
| 264 | PL-0204-80-H1E-H-5.dwg | 165.46K |
| 265 | PL-0205-80-H1E-1.dwg | 165.46K |
| 266 | PL-0205-80-H1E-2.dwg | 165.68K |
| 267 | PL-0205-80-H1E-3.dwg | 165.49K |
| 268 | PL-0206-80-H1E-1.dwg | 165.78K |
| 269 | PL-0206-80-H1E-2.dwg | 165.62K |
| 270 | PL-0206-80-H1E-3.dwg | 165.55K |
| 271 | PL-0206-80-H1E-4.dwg | 165.68K |
| 272 | PL-0207-80-H1E-1.dwg | 165.96K |
| 273 | PL-0207-80-H1E-2.dwg | 165.71K |
| 274 | PL-0207-80-H1E-3.dwg | 165.99K |
| 275 | PL-0207-80-H1E-4.dwg | 165.87K |
| 276 | PL-0207-80-H1E-5.dwg | 166.18K |
| 277 | PL-0208-80-H1E.dwg | 165.68K |
| 278 | PL-0209-80-H1E-1.dwg | 165.62K |
| 279 | PL-0209-80-H1E-2.dwg | 165.68K |
| 280 | PL-0209-80-H1E-3.dwg | 165.58K |
| 281 | PL-0209-80-H1E-4.dwg | 165.65K |
| 282 | PL-0210-80-H1E-1.dwg | 165.52K |
| 283 | PL-0210-80-H1E-2.dwg | 165.65K |
| 284 | PL-0211-80-H1E-1.dwg | 165.74K |
| 285 | PL-0211-80-H1E-2.dwg | 165.71K |
| 286 | PL-0211-80-H1E-3.dwg | 165.71K |
| 287 | PL-0211-80-H1E-4.dwg | 165.65K |
| 288 | PL-0211-80-H1E-5.dwg | 165.55K |
| 289 | PL-0211-80-H1E-6-1.dwg | 165.65K |
| 290 | PL-0211-80-H1E-6-2.dwg | 165.71K |
| 291 | PL-0211-80-H1E-6-3.dwg | 165.55K |
| 292 | PL-0211-80-H1E-6-4.dwg | 165.61K |
| 293 | PL-0211-80-H1E-7.dwg | 165.65K |
| 294 | PL-0211-80-H1E-8.dwg | 165.58K |
| 295 | PL-0212-80-H1E.dwg | 165.65K |
| 296 | PL-0213-80-H1E.dwg | 165.62K |
| 297 | PL-0214-80-H1E-1.dwg | 165.58K |
| 298 | PL-0214-80-H1E-2.dwg | 165.71K |
| 299 | PL-0214-80-H1E-3.dwg | 165.52K |
| 300 | PL-0214-80-H1E-4.dwg | 165.71K |
| 301 | PL-0215-100-H1E-H-1-1.dwg | 165.49K |
| 302 | PL-0215-100-H1E-H-1-2.dwg | 165.84K |
| 303 | PL-0215-100-H1E-H-2.dwg | 165.68K |
| 304 | PL-0215-100-H1E-H-3.dwg | 165.62K |
| 305 | PL-0216-80-H1E-1.dwg | 165.55K |
| 306 | PL-0216-80-H1E-2.dwg | 166.02K |
| 307 | PL-0216-80-H1E-3.dwg | 165.87K |
| 308 | PL-0216-80-H1E-4.dwg | 165.55K |
| 309 | PL-0217-80-H1E.dwg | 165.90K |
| 310 | PL-0218-80-H1E-1.dwg | 165.93K |
| 311 | PL-0218-80-H1E-2.dwg | 165.75K |
| 312 | PL-0218-80-H1E-3.dwg | 165.52K |
| 313 | PL-0218-80-H1E-4.dwg | 165.71K |
| 314 | PL-0218-80-H1E-5.dwg | 165.81K |
| 315 | PL-0218-80-H1E-6.dwg | 165.71K |
| 316 | PL-0218-80-H1E-7.dwg | 165.59K |
| 317 | PL-0219-80-H1E-1.dwg | 165.77K |
| 318 | PL-0219-80-H1E-2.dwg | 166.00K |
| 319 | PL-0219-80-H1E-3.dwg | 165.87K |
| 320 | PL-0219-80-H1E-4.dwg | 165.65K |
| 321 | PL-0219-80-H1E-5.dwg | 165.58K |
| 322 | PL-0220-80-H1E-1.dwg | 165.65K |
| 323 | PL-0220-80-H1E-2.dwg | 165.49K |
| 324 | PL-0220-80-H1E-3.dwg | 165.74K |
| 325 | PL-0221-80-H1E-1-1.dwg | 165.65K |
| 326 | PL-0221-80-H1E-1-2.dwg | 165.99K |
| 327 | PL-0221-80-H1E-1-3.dwg | 165.96K |
| 328 | PL-0221-80-H1E-2.dwg | 166.09K |
| 329 | PL-0222-80-H1E-1.dwg | 165.84K |
| 330 | PL-0222-80-H1E-2.dwg | 165.81K |
| 331 | PL-0222-80-H1E-3.dwg | 165.99K |
| 332 | PL-0222-80-H1E-4.dwg | 165.90K |
| 333 | PL-0223-80-H1E.dwg | 165.93K |
| 334 | PL-0224-150-H1E-H-1.dwg | 165.83K |
| 335 | PL-0224-150-H1E-H-2.dwg | 165.93K |
| 336 | PL-0224-150-H1E-H-3.dwg | 165.49K |
| 337 | PL-0225-15-H1E-1.dwg | 165.87K |
| 338 | PL-0225-15-H1E-2.dwg | 165.84K |
| 339 | PL-0225-15-H1E-3-1.dwg | 166.06K |
| 340 | PL-0225-15-H1E-3-2.dwg | 165.77K |
| 341 | PL-0225-15-H1E-3-3.dwg | 165.74K |
| 342 | PL-0225-15-H1E-4.dwg | 165.90K |
| 343 | PL-0225-15-H1E-5.dwg | 165.78K |
| 344 | PL-0225-15-H1E-6.dwg | 165.99K |
| 345 | PL-0225-15-H1E-7.dwg | 166.02K |
| 346 | PL-0225-15-H1E-8.dwg | 166.02K |
| 347 | PL-0226-50-H1B.dwg | 165.96K |
| 348 | PL-0227-50-H1B.dwg | 165.84K |
| 349 | PL-0228-80-H1E.dwg | 165.90K |
| 350 | PL-0229-100-H1E-H.dwg | 165.96K |
| 351 | SC-0201-50-N1B-H-1-1.dwg | 165.84K |
| 352 | SC-0201-50-N1B-H-1-2.dwg | 165.99K |
| 353 | SC-0201-50-N1B-H-1-3.dwg | 166.15K |
| 354 | SC-0201-50-N1B-H-1-4.dwg | 166.21K |
| 355 | SC-0201-50-N1B-H-2.dwg | 166.21K |
| 356 | SC-0201-50-N1B-H-3.dwg | 166.28K |
| 357 | SC-0201-50-N1B-H-4.dwg | 165.90K |
| 358 | SC-0201-50-N1B-H-5.dwg | 165.93K |
| 359 | SC-0201-50-N1B-H-6.dwg | 166.06K |
| 360 | SC-0201-50-N1B-H-7.dwg | 165.90K |
| 361 | SC-0202-50-P1B-H-1-1.dwg | 165.84K |
| 362 | SC-0202-50-P1B-H-1-2.dwg | 166.06K |
| 363 | SC-0202-50-P1B-H-1-3.dwg | 165.87K |
| 364 | SC-0202-50-P1B-H-2.dwg | 166.25K |
| 365 | SC-0202-50-P1B-H-3.dwg | 165.90K |
| 366 | SC-0202-50-P1B-H-4.dwg | 166.00K |
| 367 | SC-0202-50-P1B-H-5.dwg | 165.87K |
| 368 | SC-0202-50-P1B-H-6.dwg | 165.84K |
| 369 | SC-0202-50-P1B-H-7.dwg | 166.25K |
| 370 | 年产2.5万吨13-丙二醇项目.opexxmh | 332.00K |
| 371 | 年产2.5万吨13-丙二醇项目.pdf | 327.74K |
| 372 | 说明.txt | 673B |
| 373 | 说明.txt | 683B |
| 374 | 乙醛储罐泄露BLEVE模拟.alo | 4.73K |

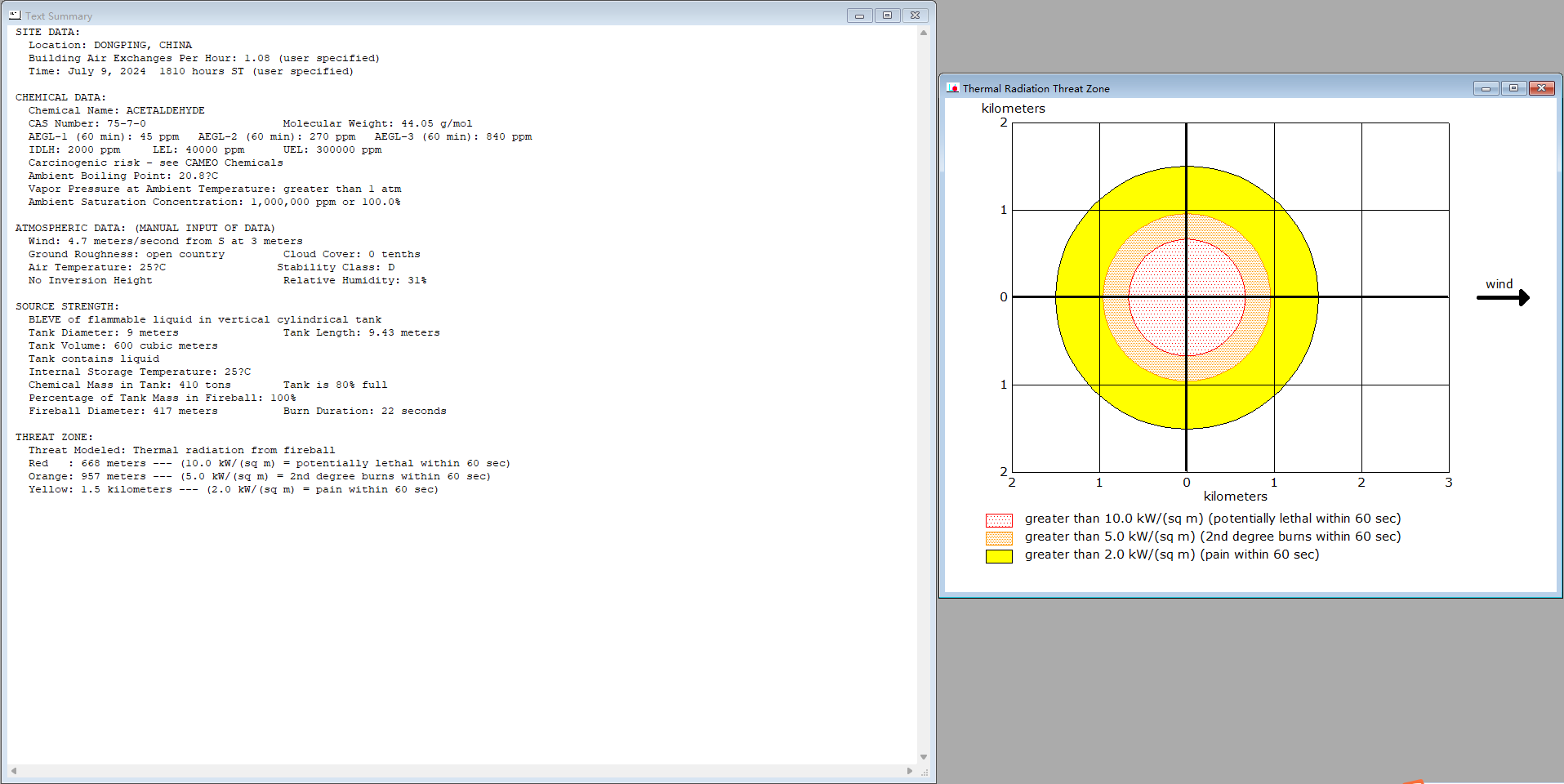

| 375 | 乙醛储罐泄露BLEVE模拟.png | 113.19K |
| 376 | 乙醛储罐泄露中毒模拟.alo | 4.73K |

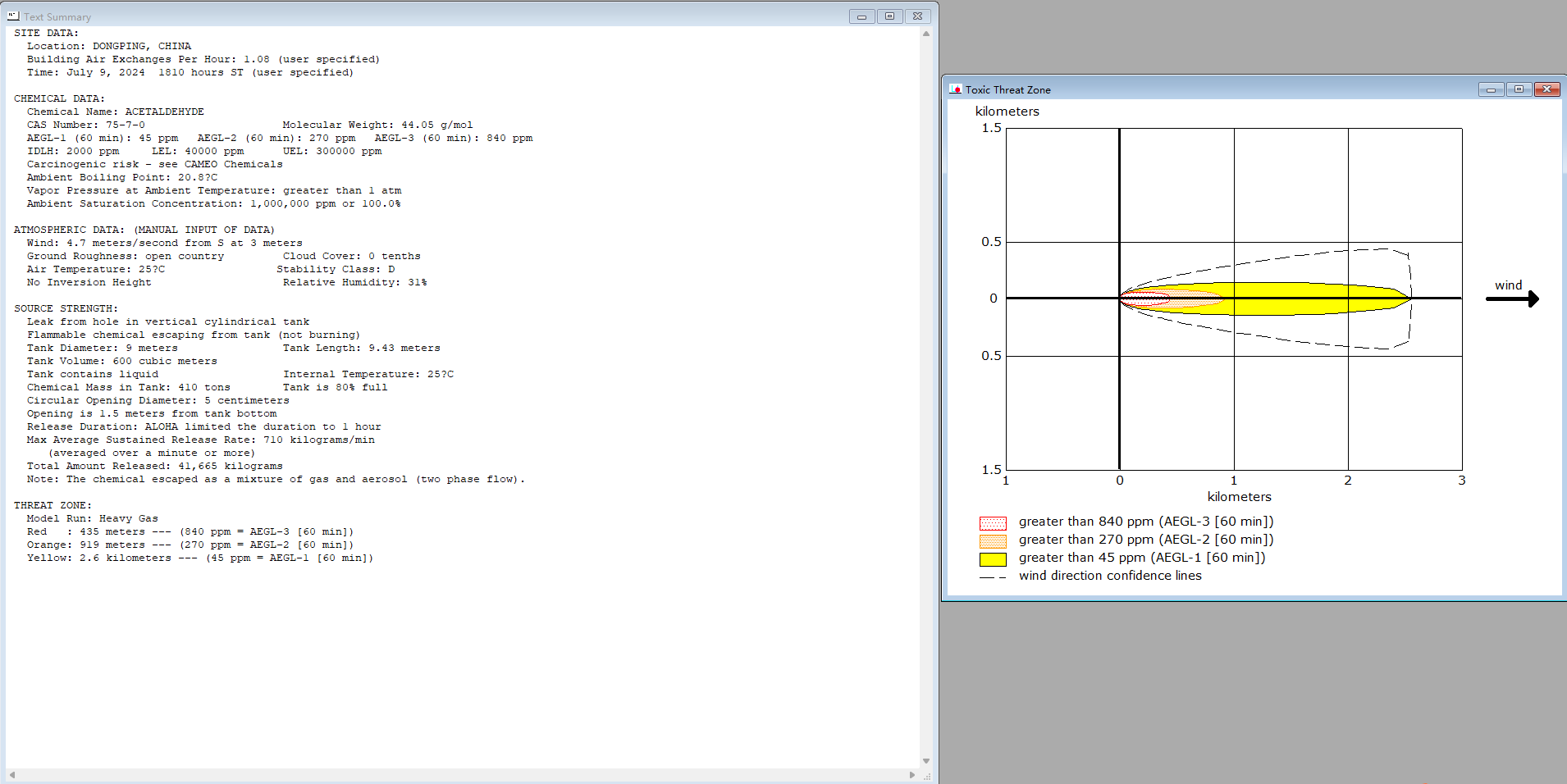

| 377 | 乙醛储罐泄露中毒模拟.png | 109.30K |
| 378 | 乙醛储罐泄露喷射火模拟.alo | 4.73K |

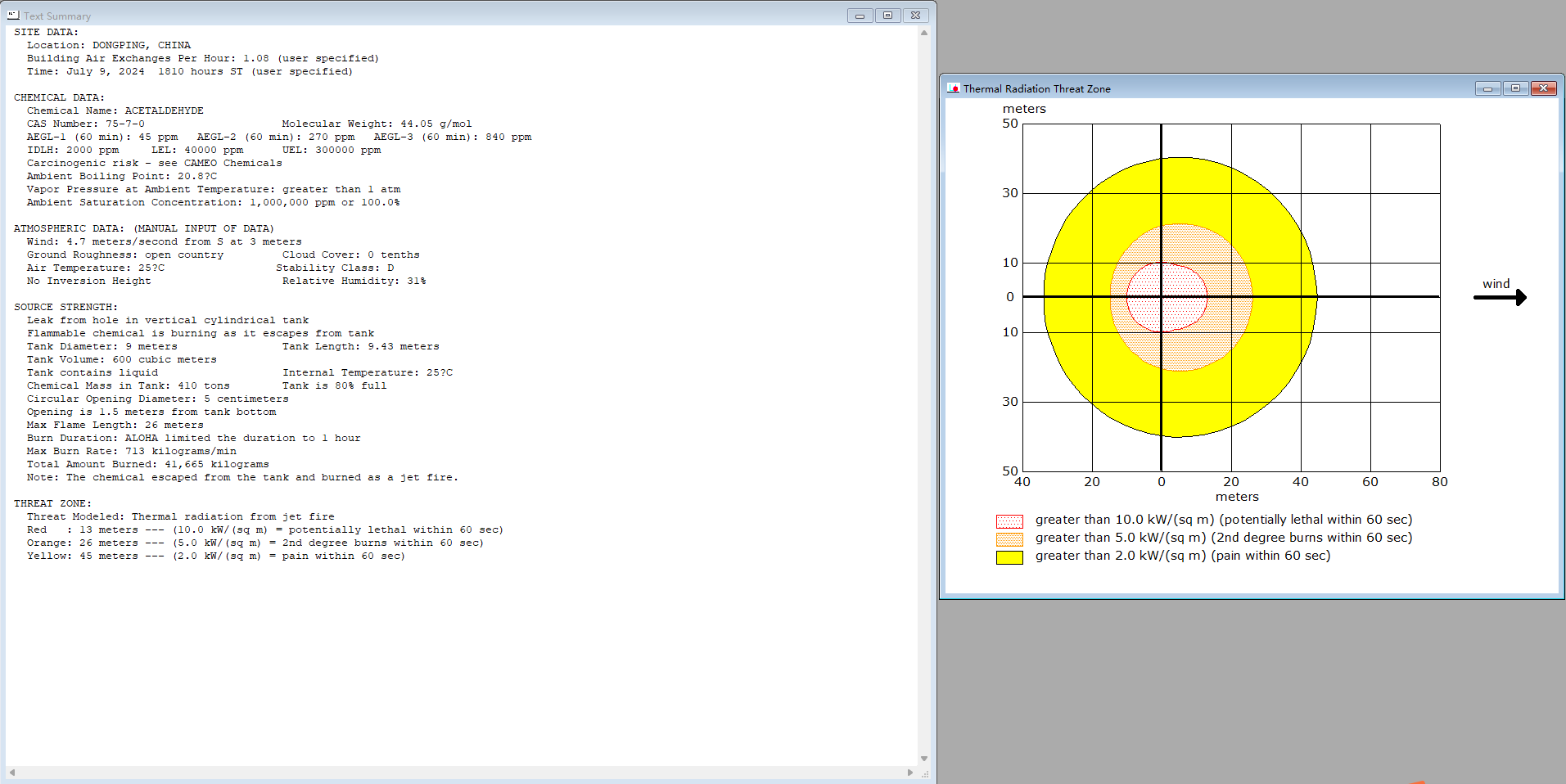

| 379 | 乙醛储罐泄露喷射火模拟.png | 122.45K |
| 380 | 乙醛储罐泄露易燃区模拟.alo | 4.73K |

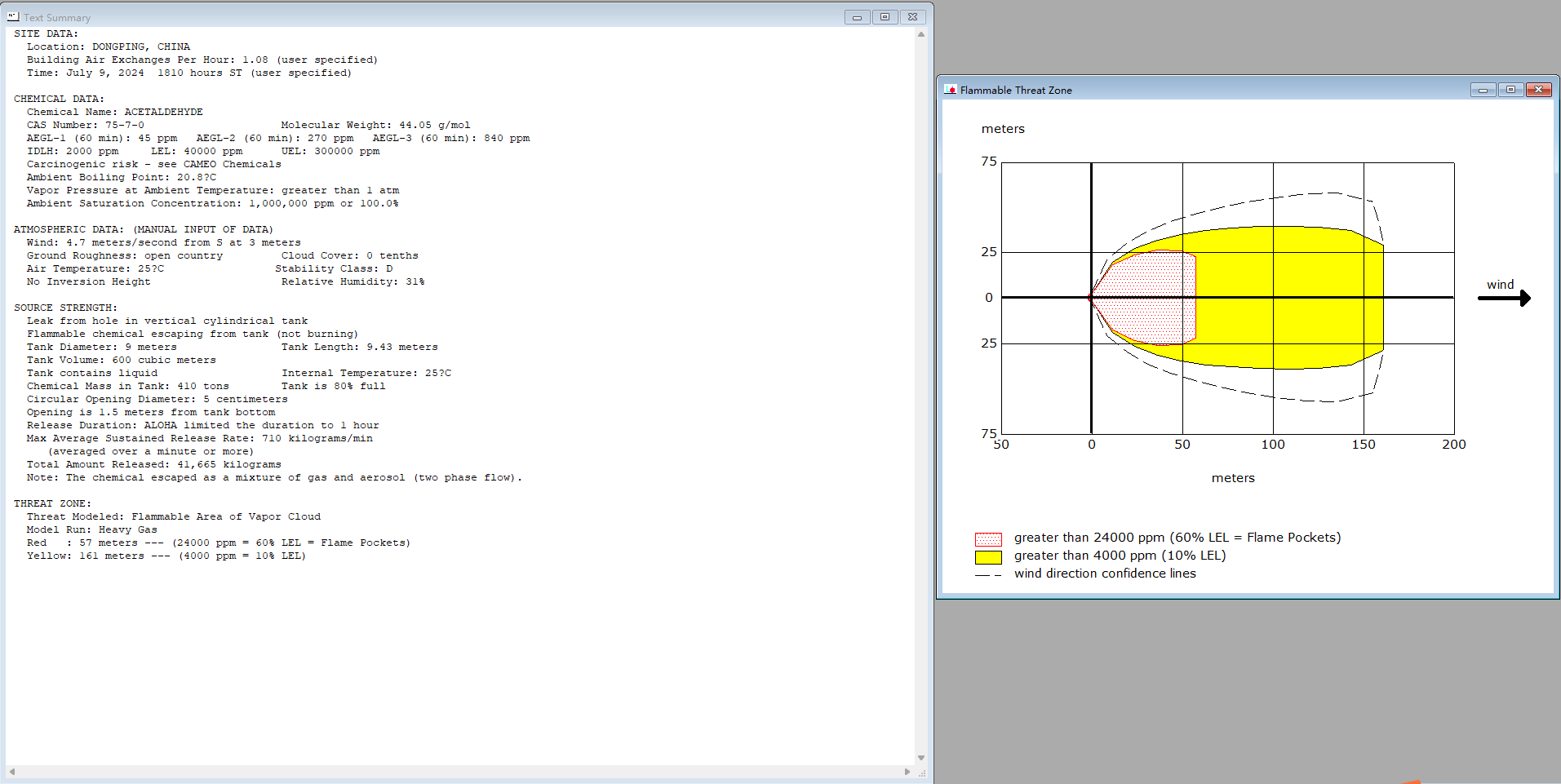

| 381 | 乙醛储罐泄露易燃区模拟.png | 110.25K |
| 382 | 乙醛储罐泄露蒸汽云爆炸模拟.alo | 4.73K |
| 383 | 乙醛储罐泄露蒸汽云爆炸模拟.png | 125.98K |
| 384 | 甘油储罐泄露中毒模拟.alo | 4.73K |

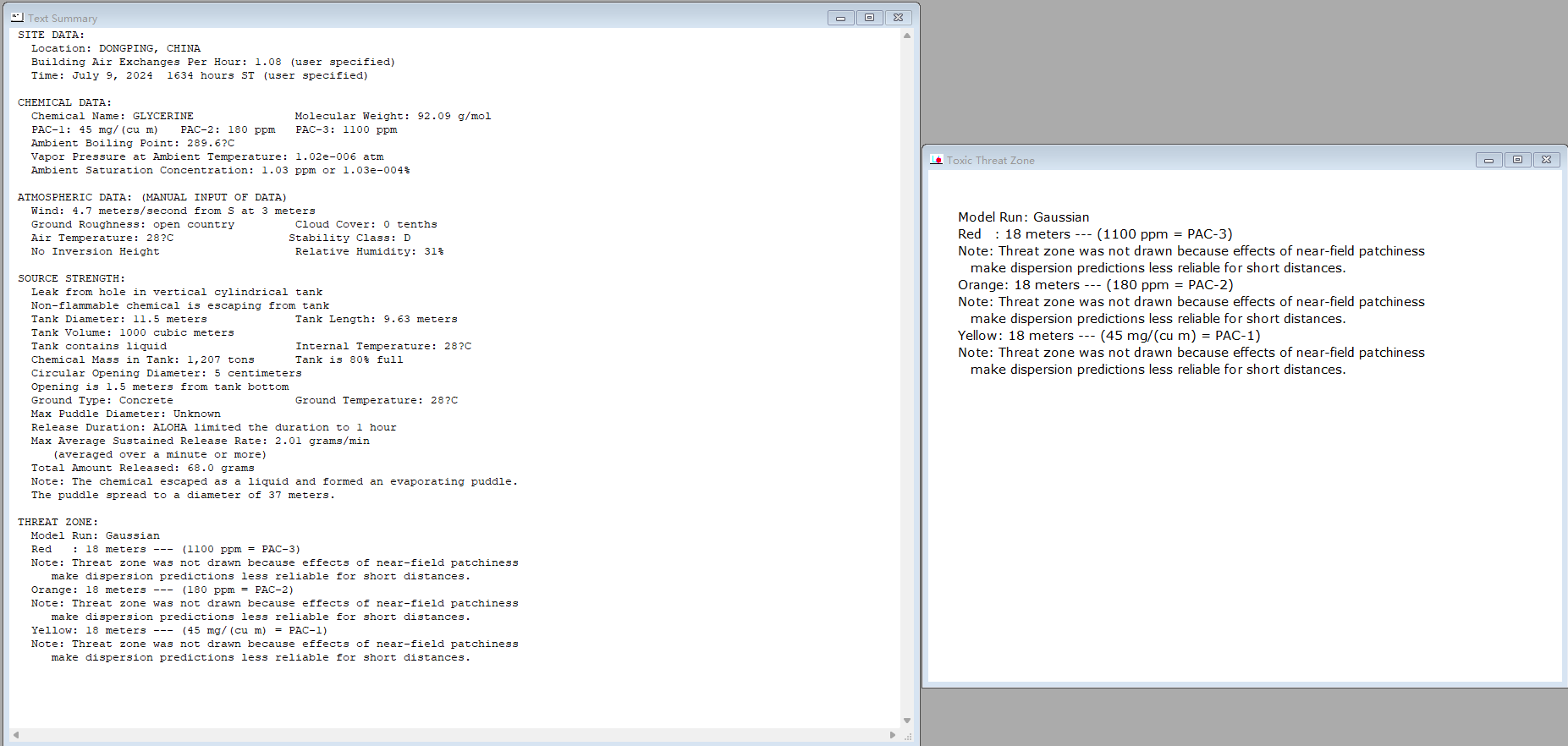

| 385 | 甘油储罐泄露中毒模拟.png | 134.49K |
| 386 | 福尔马林储罐泄露BLEVE模拟.alo | 4.73K |

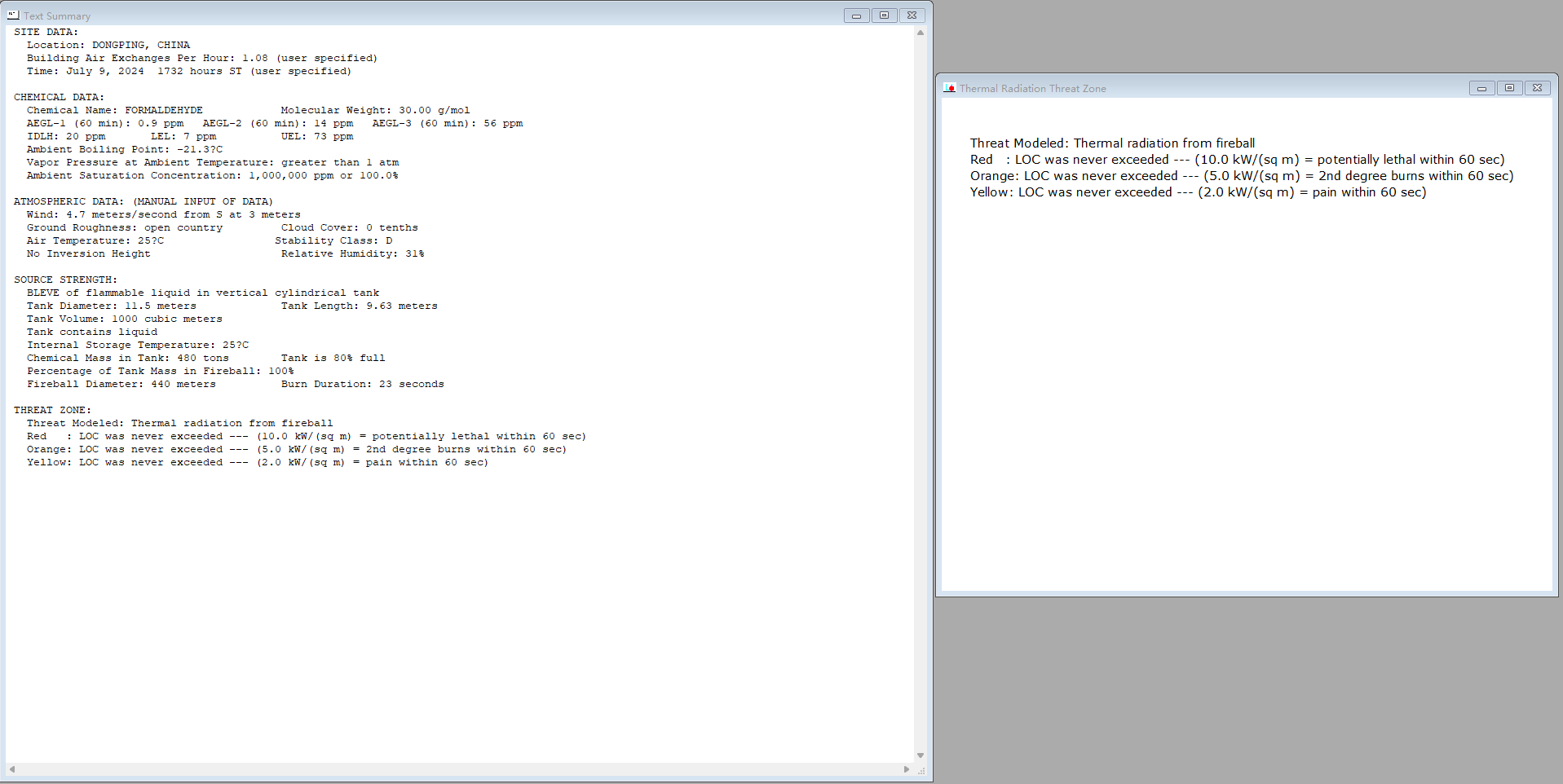

| 387 | 福尔马林储罐泄露BLEVE模拟.png | 94.04K |
| 388 | 福尔马林储罐泄露中毒模拟.alo | 4.73K |

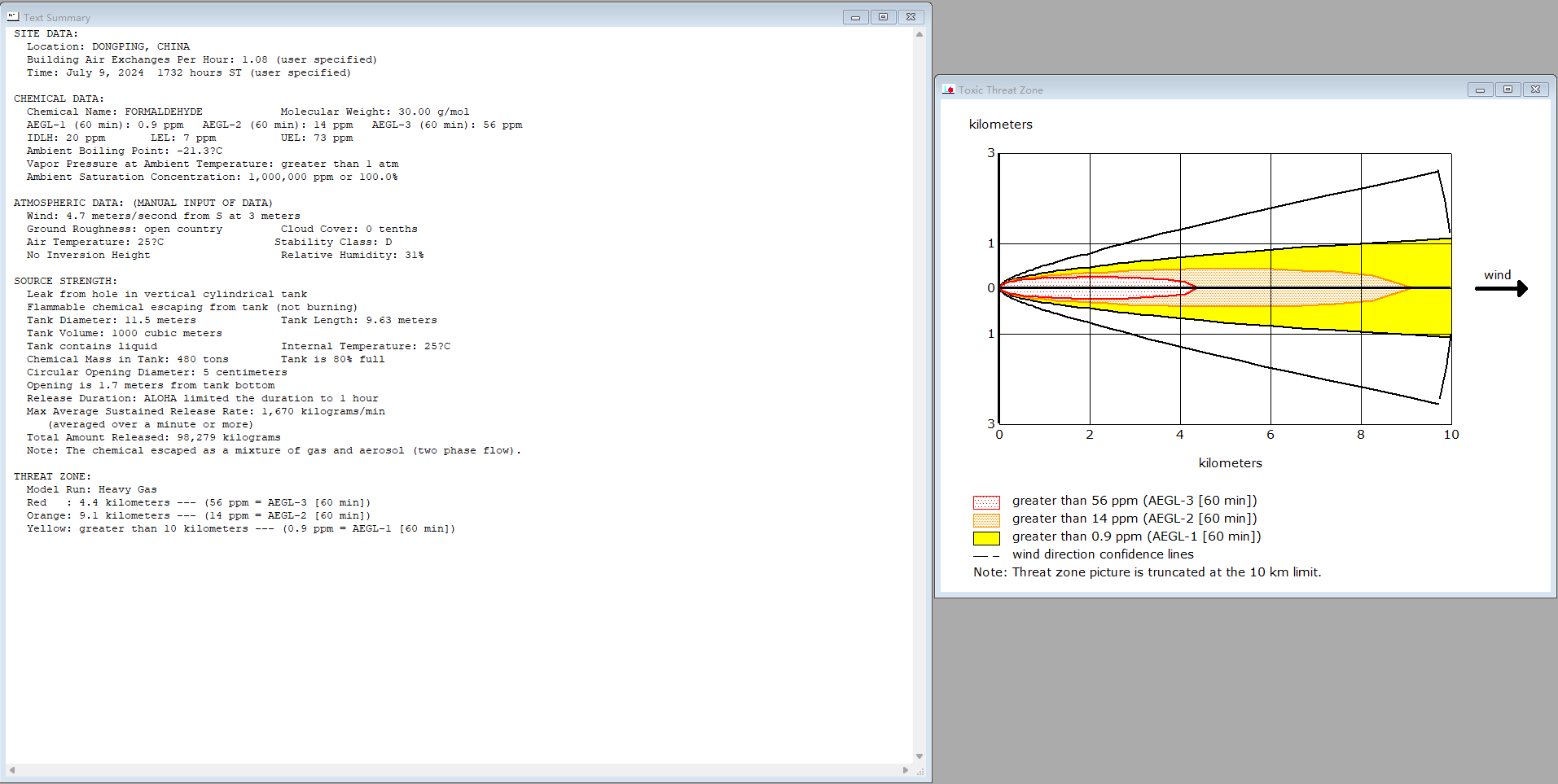

| 389 | 福尔马林储罐泄露中毒模拟.png | 113.01K |
| 390 | 福尔马林储罐泄露喷射火模拟.alo | 4.73K |

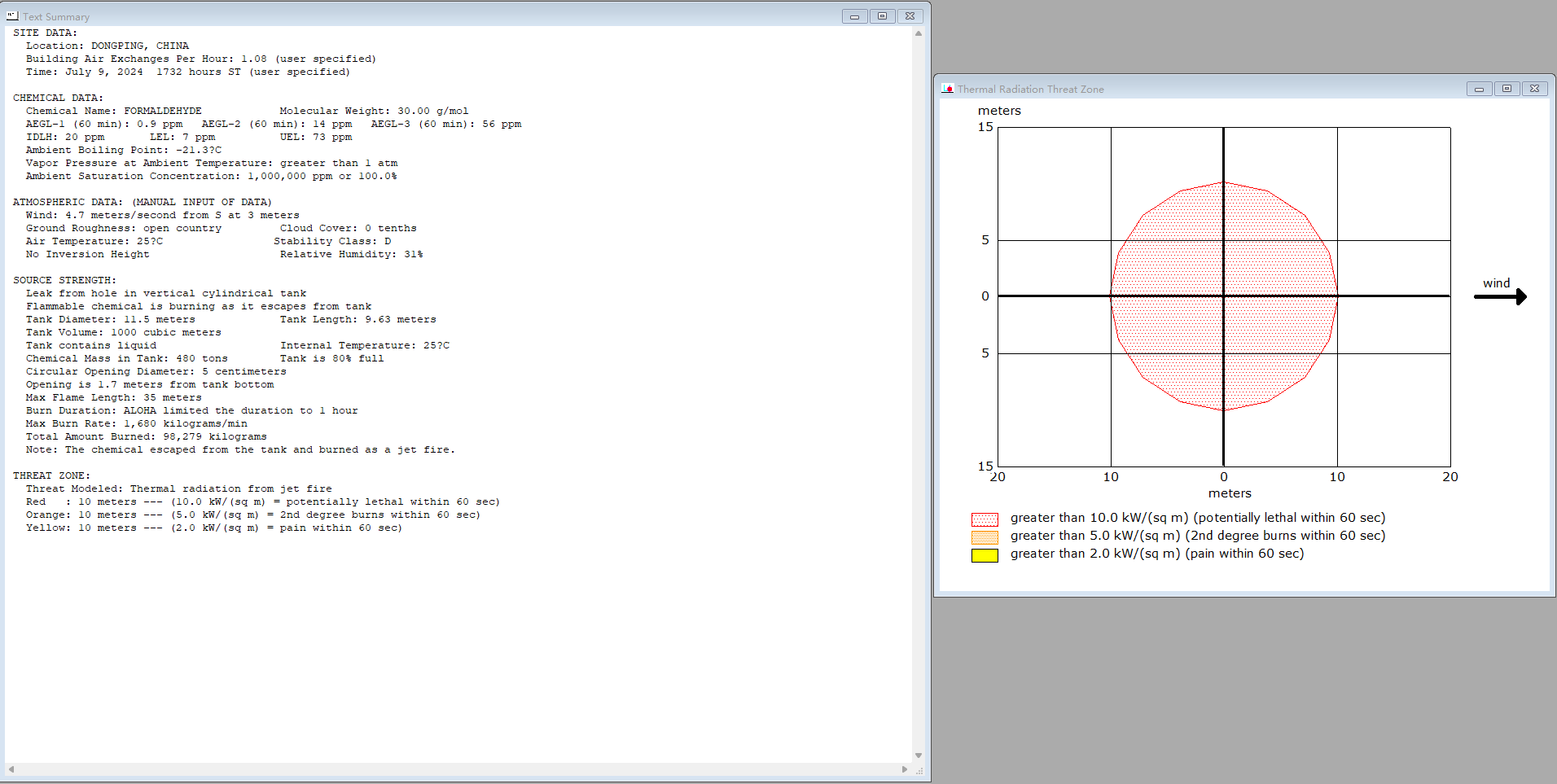

| 391 | 福尔马林储罐泄露喷射火模拟.png | 110.01K |
| 392 | 福尔马林储罐泄露易燃区模拟.alo | 4.73K |

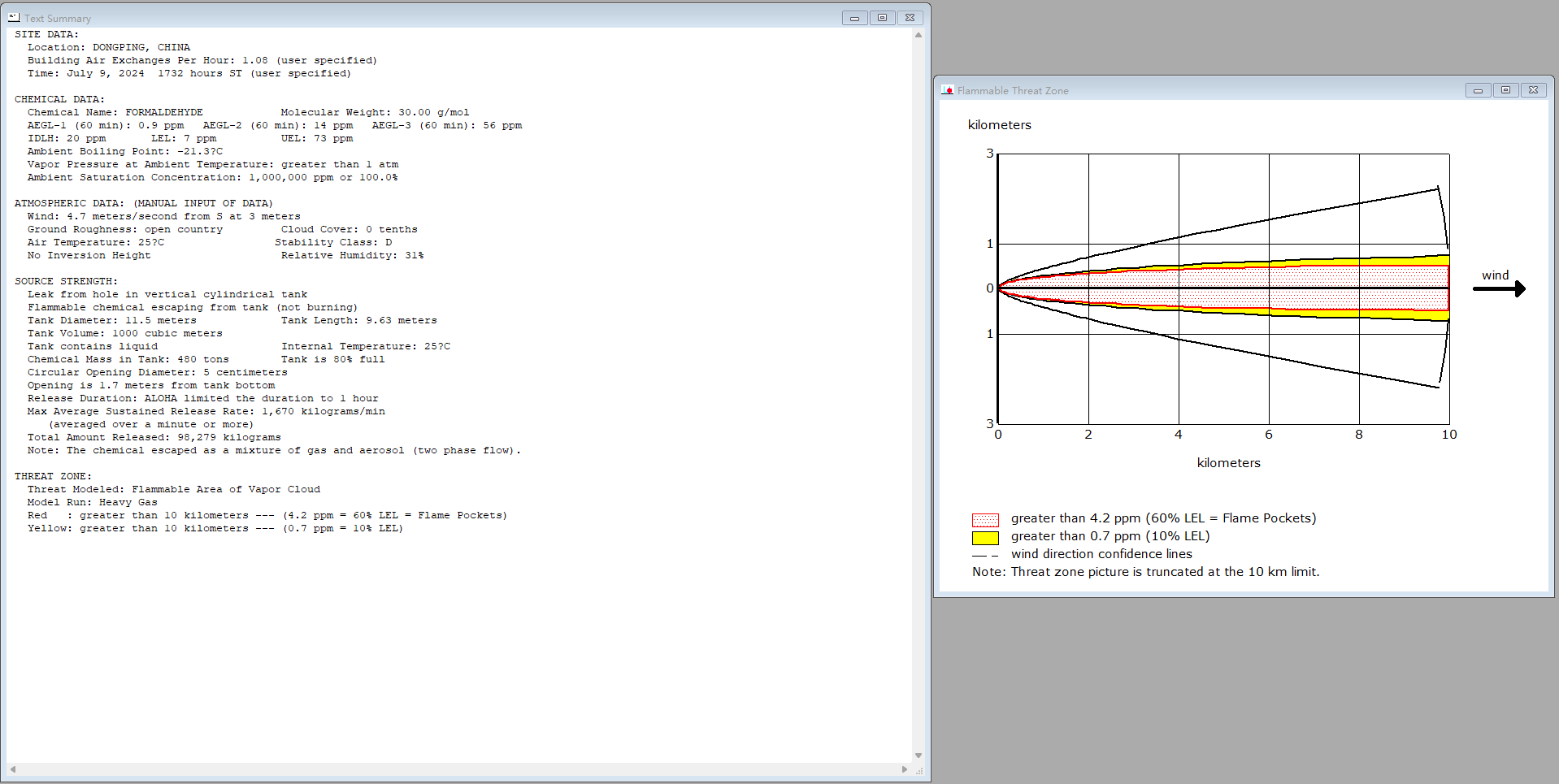

| 393 | 福尔马林储罐泄露易燃区模拟.png | 106.71K |
| 394 | 福尔马林储罐泄露蒸汽云爆炸模拟.alo | 4.73K |

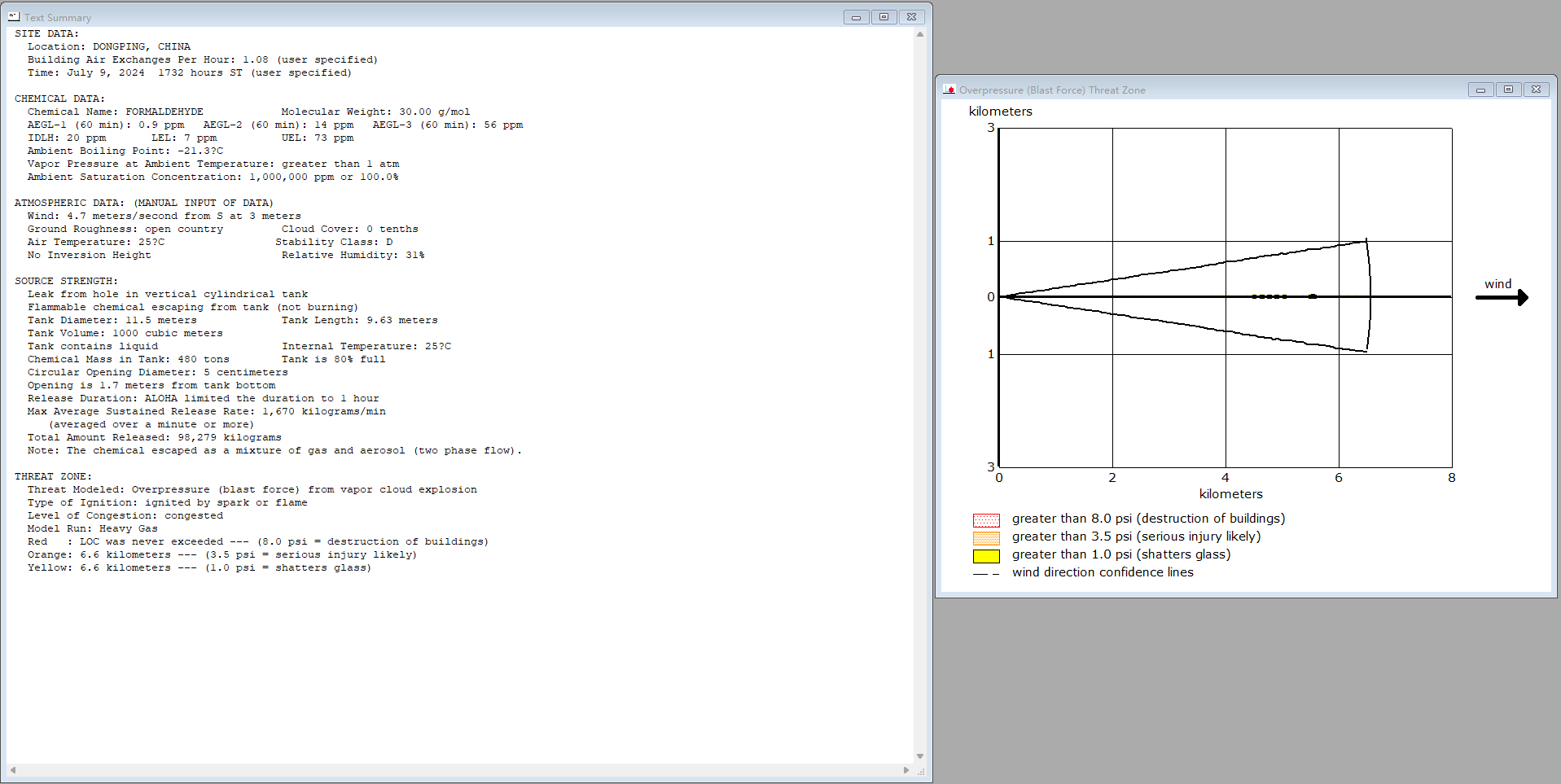

| 395 | 福尔马林储罐泄露蒸汽云爆炸模拟.png | 113.87K |
| 396 | PFD工艺物料流程图.pdf | 3.39M |
| 397 | PFD工艺物料流程图2004.dwg | 2.59M |
| 398 | PFD工艺物料流程图2007.dwg | 2.78M |
| 399 | PID管道及仪表流程图.pdf | 5.12M |
| 400 | PID管道及仪表流程图（2004）.dwg | 1.54M |
| 401 | PID管道及仪表流程图（2007）.dwg | 1.53M |
| 402 | 厂区总平面布置图-2004.dwg | 504.59K |
| 403 | 厂区总平面布置图-2007.dwg | 513.78K |
| 404 | 厂区总平面布置图.pdf | 365.28K |
| 405 | R0201反应器工艺条件图-2004.dwg | 392.03K |
| 406 | R0201反应器工艺条件图-2007.dwg | 417.44K |
| 407 | R0201反应器工艺条件图.pdf | 952.13K |
| 408 | T0202塔工艺条件图-2004.dwg | 106.15K |
| 409 | T0202塔工艺条件图-2007.dwg | 125.66K |
| 410 | T0202塔工艺条件图.pdf | 57.44K |
| 411 | E0201换热器工艺条件图-2004.dwg | 167.19K |
| 412 | E0201换热器工艺条件图-2007.dwg | 180.06K |
| 413 | E0201换热器工艺条件图.pdf | 62.90K |
| 414 | 丙烯醛水合反应车间平立面布置图-2004.dwg | 976.59K |
| 415 | 丙烯醛水合反应车间平立面布置图-2007.dwg | 920.59K |
| 416 | 丙烯醛水合反应车间平立面布置图.pdf | 1.03M |
| 417 | 丙烯醛水合反应车间三维布置-2004.dwg | 10.83M |
| 418 | 丙烯醛水合反应车间三维布置-2007.dwg | 9.74M |
| 419 | 丙烯醛水合反应车间三维配管-2004.dwg | 32.97M |
| 420 | 丙烯醛水合反应车间三维配管-2007.dwg | 29.42M |
| 421 | CWR-0201-200-L1B.dwg | 159.96K |
| 422 | CWR-0202-200-L1B-1.dwg | 147.86K |
| 423 | CWR-0202-200-L1B-2.dwg | 169.06K |
| 424 | CWR-0203-200-L1B-C.dwg | 181.84K |
| 425 | CWR-0204-200-L1B.dwg | 187.70K |
| 426 | CWS-0201-200-L1B-1.dwg | 172.81K |
| 427 | CWS-0201-200-L1B-2.dwg | 172.51K |
| 428 | CWS-0201-200-L1B-3.dwg | 118.95K |
| 429 | CWS-0201-200-L1B-4.dwg | 141.70K |
| 430 | CWS-0202-200-L1B-1.dwg | 189.73K |
| 431 | CWS-0202-200-L1B-2.dwg | 194.23K |
| 432 | CWS-0202-200-L1B-3.dwg | 146.83K |
| 433 | CWS-0203-200-L1B-1.dwg | 199.95K |
| 434 | CWS-0203-200-L1B-2.dwg | 193.76K |
| 435 | CWS-0203-200-L1B-3.dwg | 119.42K |
| 436 | CWS-0204-200-L1B-1.dwg | 227.94K |
| 437 | CWS-0204-200-L1B-2.dwg | 190.83K |
| 438 | FV-0201-100-H1E-1.dwg | 253.31K |
| 439 | FV-0201-100-H1E-2.dwg | 176.06K |
| 440 | FV-0201-100-H1E-3.dwg | 117.13K |
| 441 | FV-0201-100-H1E-4.dwg | 135.14K |
| 442 | FV-0201-100-H1E-5.dwg | 145.52K |
| 443 | FV-0201-100-H1E-6.dwg | 141.38K |
| 444 | FV-0202-100-H1E-1.dwg | 148.14K |
| 445 | FV-0202-100-H1E-2.dwg | 141.10K |
| 446 | FV-0202-100-H1E-3.dwg | 168.46K |
| 447 | FV-0202-100-H1E-4.dwg | 114.07K |
| 448 | FV-0202-100-H1E-5.dwg | 172.82K |
| 449 | FV-0202-100-H1E-6.dwg | 153.74K |
| 450 | FV-0202-100-H1E-7.dwg | 123.82K |
| 451 | FV-0203-100-H1E-1.dwg | 143.73K |
| 452 | FV-0203-100-H1E-2.dwg | 143.39K |
| 453 | FV-0203-100-H1E-3.dwg | 170.88K |
| 454 | FV-0203-100-H1E-4.dwg | 182.45K |
| 455 | FV-0203-100-H1E-5.dwg | 198.45K |
| 456 | FV-0204-100-H1E-1.dwg | 238.29K |
| 457 | FV-0204-100-H1E-2.dwg | 172.69K |
| 458 | FV-0204-100-H1E-3.dwg | 154.27K |
| 459 | FV-0204-100-H1E-4.dwg | 119.20K |
| 460 | FV-0205-100-H1E-1.dwg | 179.05K |
| 461 | FV-0205-100-H1E-2.dwg | 169.35K |
| 462 | FV-0205-100-H1E-3.dwg | 115.62K |
| 463 | FV-0205-100-H1E-4.dwg | 149.77K |
| 464 | FV-0205-100-H1E-5.dwg | 139.54K |
| 465 | FV-0205-100-H1E-6.dwg | 165.18K |
| 466 | LS-0201-150-N1B-H-1.dwg | 143.36K |
| 467 | LS-0201-150-N1B-H-2.dwg | 153.56K |
| 468 | LS-0201-150-N1B-H-3.dwg | 135.63K |
| 469 | LS-0201-150-N1B-H-4.dwg | 152.65K |
| 470 | LS-0201-150-N1B-H-5.dwg | 117.19K |
| 471 | LS-0201-150-N1B-H-6.dwg | 107.19K |
| 472 | LS-0201-150-N1B-H-7.dwg | 145.11K |
| 473 | MS-0201-150-P1B-H-1.dwg | 143.42K |
| 474 | MS-0201-150-P1B-H-2.dwg | 150.37K |
| 475 | MS-0201-150-P1B-H-3.dwg | 139.57K |
| 476 | MS-0201-150-P1B-H-4.dwg | 153.78K |
| 477 | MS-0201-150-P1B-H-5.dwg | 116.72K |
| 478 | MS-0201-150-P1B-H-6.dwg | 111.31K |
| 479 | MS-0201-150-P1B-H-7.dwg | 144.73K |
| 480 | N-0201-50-H1B-1-1.dwg | 105.59K |
| 481 | N-0201-50-H1B-1-2.dwg | 187.71K |
| 482 | N-0201-50-H1B-1-3.dwg | 168.21K |
| 483 | N-0201-50-H1B-1-4.dwg | 114.94K |
| 484 | N-0201-50-H1B-2.dwg | 104.75K |
| 485 | N-0202-50-H1B-1-1.dwg | 191.38K |
| 486 | N-0202-50-H1B-1-2.dwg | 205.57K |
| 487 | N-0202-50-H1B-2.dwg | 78.95K |
| 488 | N-0202-50-H1B-3.dwg | 79.39K |
| 489 | N-0202-50-H1B-4.dwg | 96.39K |
| 490 | N-0202-50-H1B-5.dwg | 149.17K |
| 491 | N-0202-50-H1B-6.dwg | 78.83K |
| 492 | N-0202-50-H1B-7.dwg | 78.08K |
| 493 | PG-0201-500-H1E-H.dwg | 165.59K |
| 494 | PG-0202-400-H1E-H.dwg | 165.65K |
| 495 | PG-0203-400-H1E-H.dwg | 165.58K |
| 496 | PG-0204-500-H1E-H.dwg | 165.65K |
| 497 | PGL-0201-200-H1E-H.dwg | 165.71K |
| 498 | PL-0113-80-H1E.dwg | 165.65K |
| 499 | PL-0202-80-H1E.dwg | 165.68K |
| 500 | PL-0203-80-H1E-H-1.dwg | 165.58K |
| 501 | PL-0203-80-H1E-H-2.dwg | 165.52K |
| 502 | PL-0203-80-H1E-H-3.dwg | 165.65K |
| 503 | PL-0204-80-H1E-H-1.dwg | 165.77K |
| 504 | PL-0204-80-H1E-H-2.dwg | 165.65K |
| 505 | PL-0204-80-H1E-H-3.dwg | 165.55K |
| 506 | PL-0204-80-H1E-H-4.dwg | 168.61K |
| 507 | PL-0204-80-H1E-H-5.dwg | 165.46K |
| 508 | PL-0205-80-H1E-1.dwg | 165.46K |
| 509 | PL-0205-80-H1E-2.dwg | 165.68K |
| 510 | PL-0205-80-H1E-3.dwg | 165.49K |
| 511 | PL-0206-80-H1E-1.dwg | 165.78K |
| 512 | PL-0206-80-H1E-2.dwg | 165.62K |
| 513 | PL-0206-80-H1E-3.dwg | 165.55K |
| 514 | PL-0206-80-H1E-4.dwg | 165.68K |
| 515 | PL-0207-80-H1E-1.dwg | 165.96K |
| 516 | PL-0207-80-H1E-2.dwg | 165.71K |
| 517 | PL-0207-80-H1E-3.dwg | 165.99K |
| 518 | PL-0207-80-H1E-4.dwg | 165.87K |
| 519 | PL-0207-80-H1E-5.dwg | 166.18K |
| 520 | PL-0208-80-H1E.dwg | 165.68K |
| 521 | PL-0209-80-H1E-1.dwg | 165.62K |
| 522 | PL-0209-80-H1E-2.dwg | 165.68K |
| 523 | PL-0209-80-H1E-3.dwg | 165.58K |
| 524 | PL-0209-80-H1E-4.dwg | 165.65K |
| 525 | PL-0210-80-H1E-1.dwg | 165.52K |
| 526 | PL-0210-80-H1E-2.dwg | 165.65K |
| 527 | PL-0211-80-H1E-1.dwg | 165.74K |
| 528 | PL-0211-80-H1E-2.dwg | 165.71K |
| 529 | PL-0211-80-H1E-3.dwg | 165.71K |
| 530 | PL-0211-80-H1E-4.dwg | 165.65K |
| 531 | PL-0211-80-H1E-5.dwg | 165.55K |
| 532 | PL-0211-80-H1E-6-1.dwg | 165.65K |
| 533 | PL-0211-80-H1E-6-2.dwg | 165.71K |
| 534 | PL-0211-80-H1E-6-3.dwg | 165.55K |
| 535 | PL-0211-80-H1E-6-4.dwg | 165.61K |
| 536 | PL-0211-80-H1E-7.dwg | 165.65K |
| 537 | PL-0211-80-H1E-8.dwg | 165.58K |
| 538 | PL-0212-80-H1E.dwg | 165.65K |
| 539 | PL-0213-80-H1E.dwg | 165.62K |
| 540 | PL-0214-80-H1E-1.dwg | 165.58K |
| 541 | PL-0214-80-H1E-2.dwg | 165.71K |
| 542 | PL-0214-80-H1E-3.dwg | 165.52K |
| 543 | PL-0214-80-H1E-4.dwg | 165.71K |
| 544 | PL-0215-100-H1E-H-1-1.dwg | 165.49K |
| 545 | PL-0215-100-H1E-H-1-2.dwg | 165.84K |
| 546 | PL-0215-100-H1E-H-2.dwg | 165.68K |
| 547 | PL-0215-100-H1E-H-3.dwg | 165.62K |
| 548 | PL-0216-80-H1E-1.dwg | 165.55K |
| 549 | PL-0216-80-H1E-2.dwg | 166.02K |
| 550 | PL-0216-80-H1E-3.dwg | 165.87K |
| 551 | PL-0216-80-H1E-4.dwg | 165.55K |
| 552 | PL-0217-80-H1E.dwg | 165.90K |
| 553 | PL-0218-80-H1E-1.dwg | 165.93K |
| 554 | PL-0218-80-H1E-2.dwg | 165.75K |
| 555 | PL-0218-80-H1E-3.dwg | 165.52K |
| 556 | PL-0218-80-H1E-4.dwg | 165.71K |
| 557 | PL-0218-80-H1E-5.dwg | 165.81K |
| 558 | PL-0218-80-H1E-6.dwg | 165.71K |
| 559 | PL-0218-80-H1E-7.dwg | 165.59K |
| 560 | PL-0219-80-H1E-1.dwg | 165.77K |
| 561 | PL-0219-80-H1E-2.dwg | 166.00K |
| 562 | PL-0219-80-H1E-3.dwg | 165.87K |
| 563 | PL-0219-80-H1E-4.dwg | 165.65K |
| 564 | PL-0219-80-H1E-5.dwg | 165.58K |
| 565 | PL-0220-80-H1E-1.dwg | 165.65K |
| 566 | PL-0220-80-H1E-2.dwg | 165.49K |
| 567 | PL-0220-80-H1E-3.dwg | 165.74K |
| 568 | PL-0221-80-H1E-1-1.dwg | 165.65K |
| 569 | PL-0221-80-H1E-1-2.dwg | 165.99K |
| 570 | PL-0221-80-H1E-1-3.dwg | 165.96K |
| 571 | PL-0221-80-H1E-2.dwg | 166.09K |
| 572 | PL-0222-80-H1E-1.dwg | 165.84K |
| 573 | PL-0222-80-H1E-2.dwg | 165.81K |
| 574 | PL-0222-80-H1E-3.dwg | 165.99K |
| 575 | PL-0222-80-H1E-4.dwg | 165.90K |
| 576 | PL-0223-80-H1E.dwg | 165.93K |
| 577 | PL-0224-150-H1E-H-1.dwg | 165.83K |
| 578 | PL-0224-150-H1E-H-2.dwg | 165.93K |
| 579 | PL-0224-150-H1E-H-3.dwg | 165.49K |
| 580 | PL-0225-15-H1E-1.dwg | 165.87K |
| 581 | PL-0225-15-H1E-2.dwg | 165.84K |
| 582 | PL-0225-15-H1E-3-1.dwg | 166.06K |
| 583 | PL-0225-15-H1E-3-2.dwg | 165.77K |
| 584 | PL-0225-15-H1E-3-3.dwg | 165.74K |
| 585 | PL-0225-15-H1E-4.dwg | 165.90K |
| 586 | PL-0225-15-H1E-5.dwg | 165.78K |
| 587 | PL-0225-15-H1E-6.dwg | 165.99K |
| 588 | PL-0225-15-H1E-7.dwg | 166.02K |
| 589 | PL-0225-15-H1E-8.dwg | 166.02K |
| 590 | PL-0226-50-H1B.dwg | 165.96K |
| 591 | PL-0227-50-H1B.dwg | 165.84K |
| 592 | PL-0228-80-H1E.dwg | 165.90K |
| 593 | PL-0229-100-H1E-H.dwg | 165.96K |
| 594 | SC-0201-50-N1B-H-1-1.dwg | 165.84K |
| 595 | SC-0201-50-N1B-H-1-2.dwg | 165.99K |
| 596 | SC-0201-50-N1B-H-1-3.dwg | 166.15K |
| 597 | SC-0201-50-N1B-H-1-4.dwg | 166.21K |
| 598 | SC-0201-50-N1B-H-2.dwg | 166.21K |
| 599 | SC-0201-50-N1B-H-3.dwg | 166.28K |
| 600 | SC-0201-50-N1B-H-4.dwg | 165.90K |
| 601 | SC-0201-50-N1B-H-5.dwg | 165.93K |
| 602 | SC-0201-50-N1B-H-6.dwg | 166.06K |
| 603 | SC-0201-50-N1B-H-7.dwg | 165.90K |
| 604 | SC-0202-50-P1B-H-1-1.dwg | 165.84K |
| 605 | SC-0202-50-P1B-H-1-2.dwg | 166.06K |
| 606 | SC-0202-50-P1B-H-1-3.dwg | 165.87K |
| 607 | SC-0202-50-P1B-H-2.dwg | 166.25K |
| 608 | SC-0202-50-P1B-H-3.dwg | 165.90K |
| 609 | SC-0202-50-P1B-H-4.dwg | 166.00K |
| 610 | SC-0202-50-P1B-H-5.dwg | 165.87K |
| 611 | SC-0202-50-P1B-H-6.dwg | 165.84K |
| 612 | SC-0202-50-P1B-H-7.dwg | 166.25K |
此图纸下载需要520金币
立即下载
发布者
静
创作: 9585
粉丝: 6
加入时间：2025-05-27
模型信息
图纸格式：pdf,dwg
文件大小：357.84M
所需金币：520
上传时间：2025-09-30 20:04:39
是否可编辑：可修改，包括参数
版本：AutoCAD 2004
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
作者其它图纸 查看更多
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
猜你喜欢
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
QQ在线客服
官方QQ群
