年产7.8万吨1，4丁二醇项目初步设计（ID:2697238）
0.png)
0.png)
0.png)
0.png)
0.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17594078381839.zip | 584.12M |
| 2 | 作品说明及文件索引.txt | 2.38K |
| 3 | 催化蒸馏在顺丁烯二酸二甲酯生产中的应用_郝兴仁.pdf | 32.05M |
| 4 | 马来酸二甲酯单级气相加氢生产γ-丁内酯和14-丁二醇动力学.pdf | 1.13M |
| 5 | DZH型顺丁烯二酸酐酯化树脂催化剂的开发.pdf | 209.15K |
| 6 | 抚顺石化研究院顺丁烯二酸二甲酯加氢催化剂工业应用.pdf | 1.61M |
| 7 | 马来酸二甲酯加氢制14-丁二醇催化剂的研究-袁胜华.pdf | 1.07M |
| 8 | 马来酸二甲酯加氢制1_4_丁二醇工艺研究-乔凯.pdf | 92.00K |
| 9 | 说明.txt | 598B |
| 10 | 附录4-1-HAZOP分析.pdf | 542.89K |
| 11 | 附录4-2-顺酐预酯化HAZOP分析.pdf | 497.21K |
| 12 | 【1】全流程模拟不含节能不含换热网络.bkp | 2.27M |
| 13 | 【2】全流程模拟含节能不含换热网络.bkp | 2.28M |
| 14 | 【3】全流程模拟含节能含换热网络.bkp | 2.37M |
| 15 | 【4】全流程模拟含节能含换热网络.apwz | 4.60M |
| 16 | 全流程模拟运行说明.txt | 748B |
| 17 | 全流程运行视频-醇英荟萃.mp4 | 35.26M |
| 18 | R0202反应器优化源文件.bkp | 185.60K |

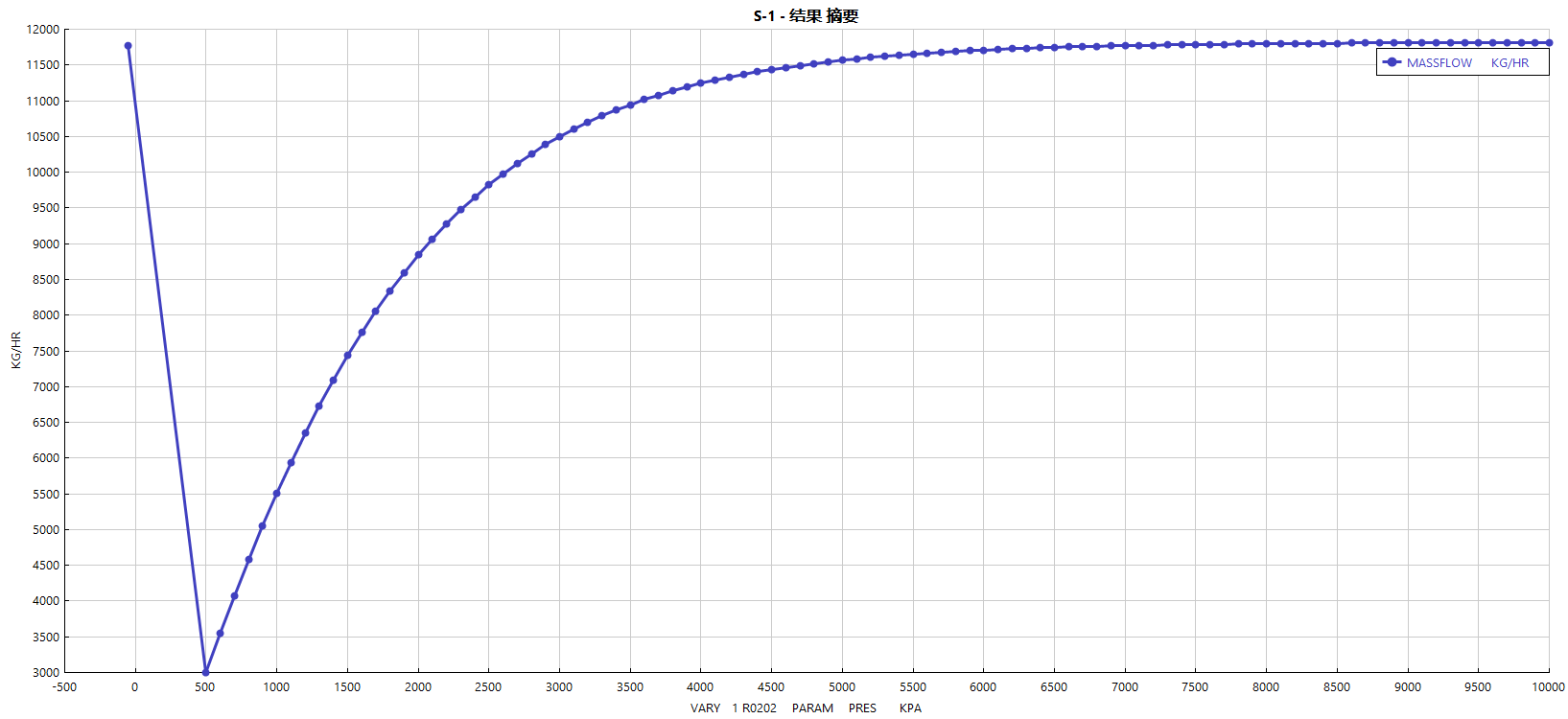

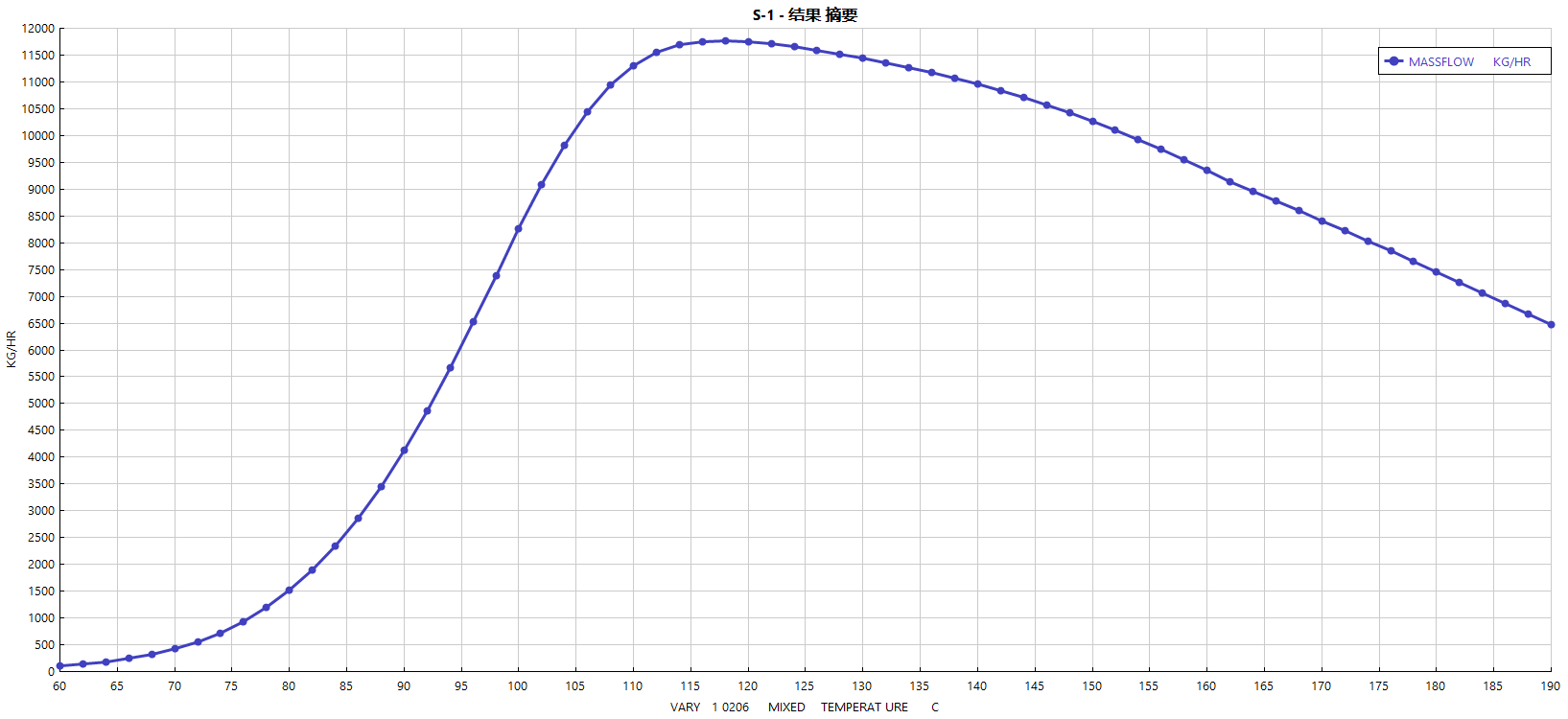

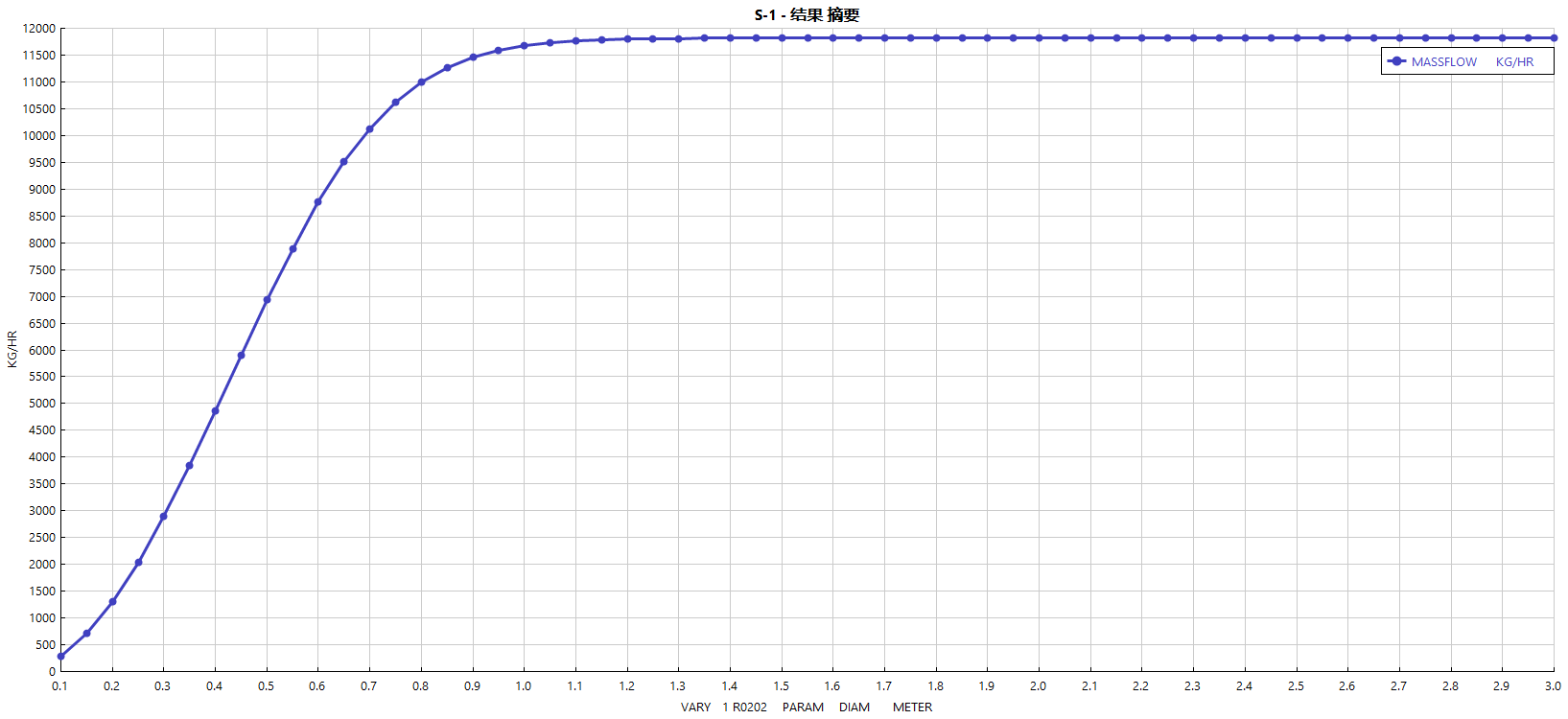

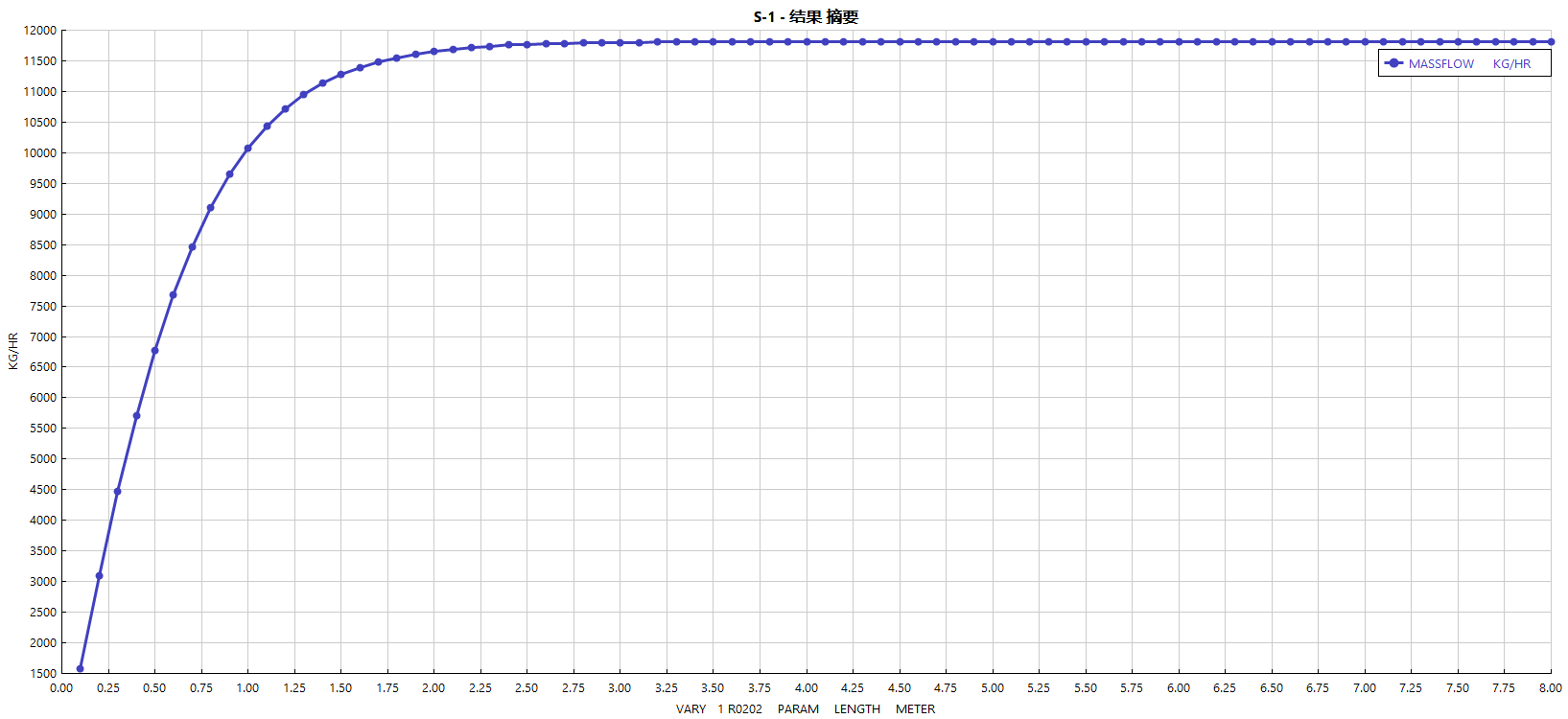

| 19 | 压力.png | 35.41K |
| 20 | 温度.png | 42.46K |
| 21 | 直径.png | 32.54K |
| 22 | 长度.png | 47.50K |
| 23 | T0102塔设备参数优化说明书.pdf | 730.52K |
| 24 | 【1】DSTWU.bkp | 134.79K |
| 25 | 【2】RR.bkp | 200.52K |
| 26 | 【3】NSTAGE.bkp | 268.64K |
| 27 | 【4】FSTAGE.bkp | 210.04K |
| 28 | 【5】RESULT.bkp | 181.83K |
| 29 | 塔内件设计与水力学校核.bkp | 349.02K |

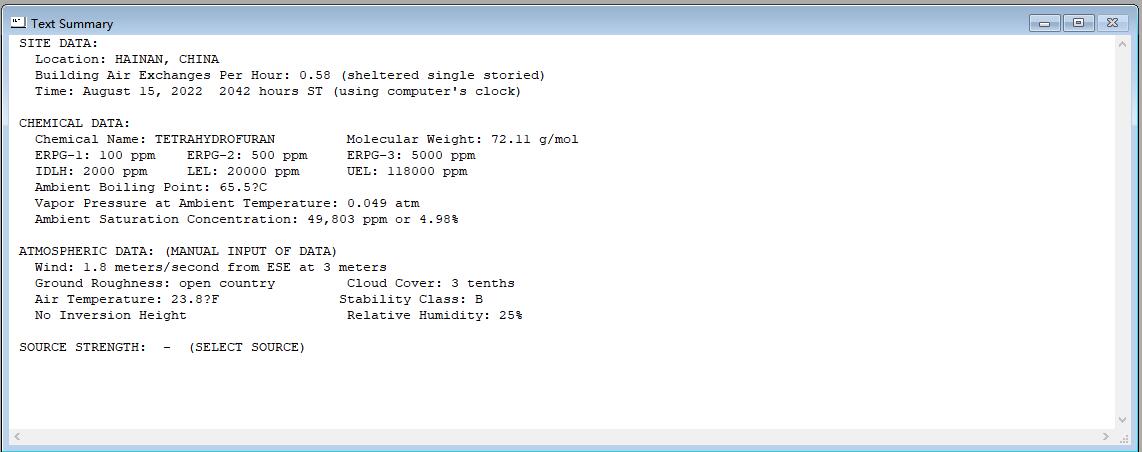

| 30 | 四氢呋喃-中毒事故.alo | 4.73K |

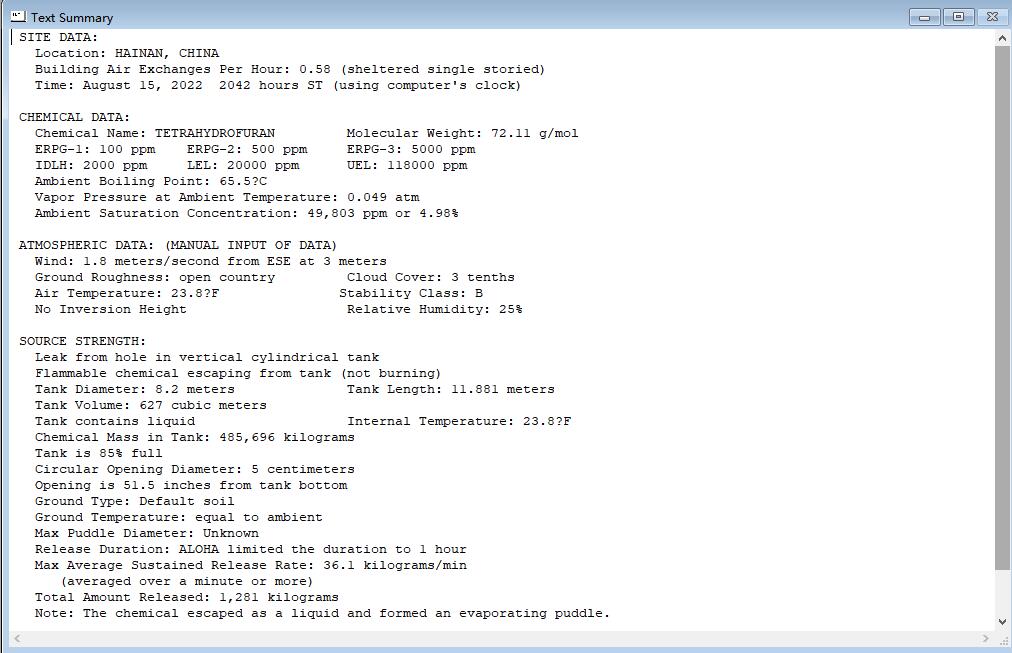

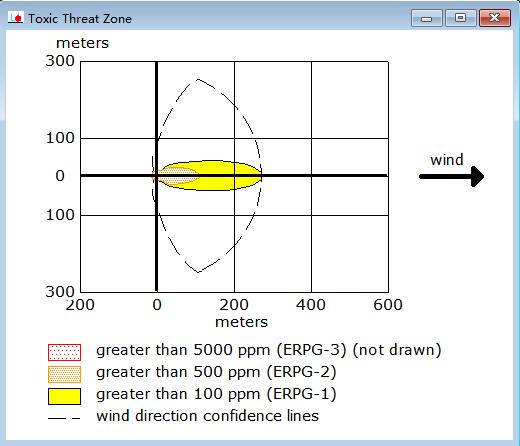

| 31 | 四氢呋喃中毒事故.txt | 1.68K |
| 32 | 四氢呋喃中毒事故1.jpg | 49.40K |
| 33 | 四氢呋喃中毒事故2.jpg | 91.38K |
| 34 | 四氢呋喃中毒事故模拟.jpg | 28.87K |

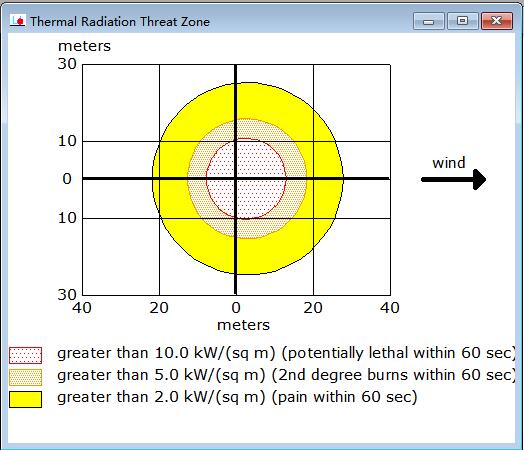

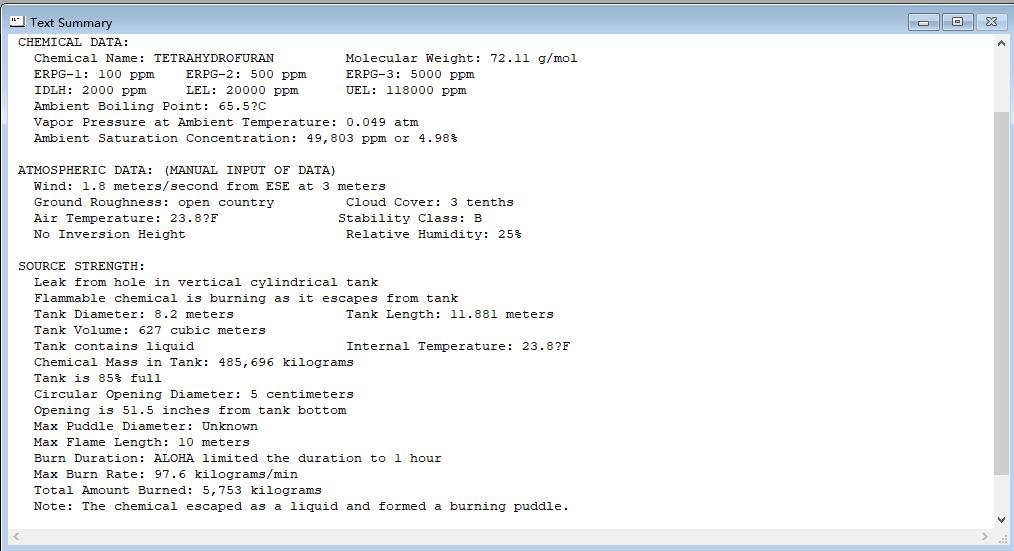

| 35 | 四氢呋喃-BLEVE事故模拟.alo | 4.73K |
| 36 | 四氢呋喃-BLEVE事故模拟.jpg | 38.33K |
| 37 | 四氢呋喃-BLEVE事故模拟.txt | 1.86K |
| 38 | 四氢呋喃-BLEVE事故模拟图.jpg | 67.33K |
| 39 | 四氢呋喃-池火事故事故模拟.alo | 4.73K |

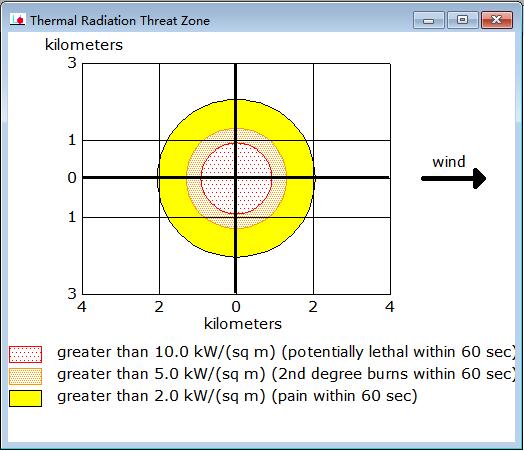

| 40 | 四氢呋喃-池火事故模拟.jpg | 35.94K |
| 41 | 四氢呋喃-池火事故模拟.txt | 1.24K |

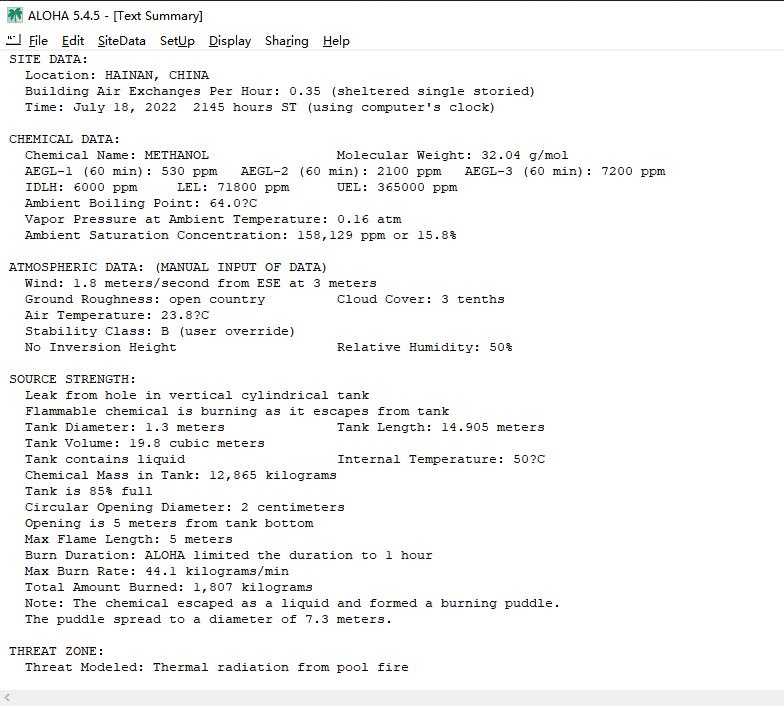

| 42 | 甲醇.alo | 4.73K |

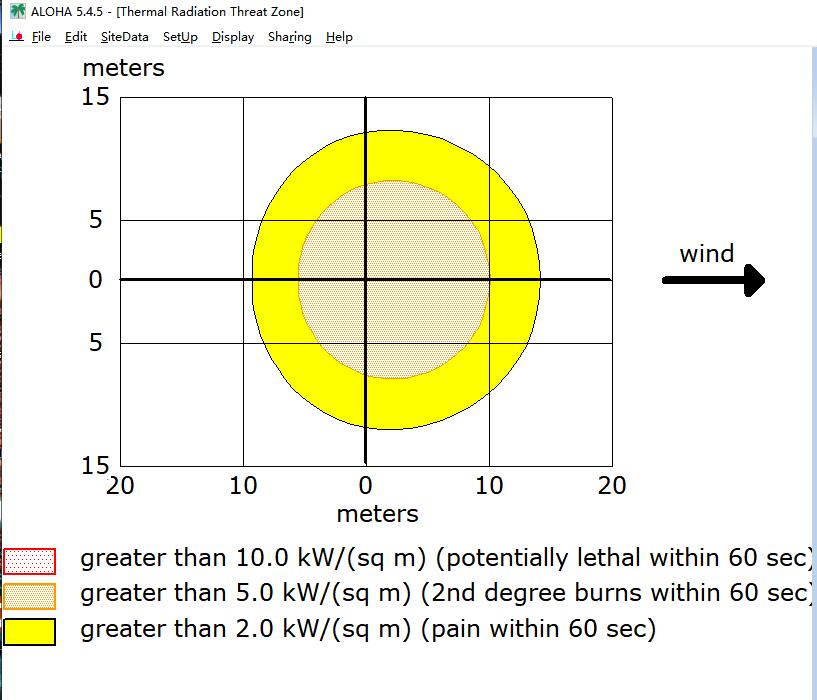

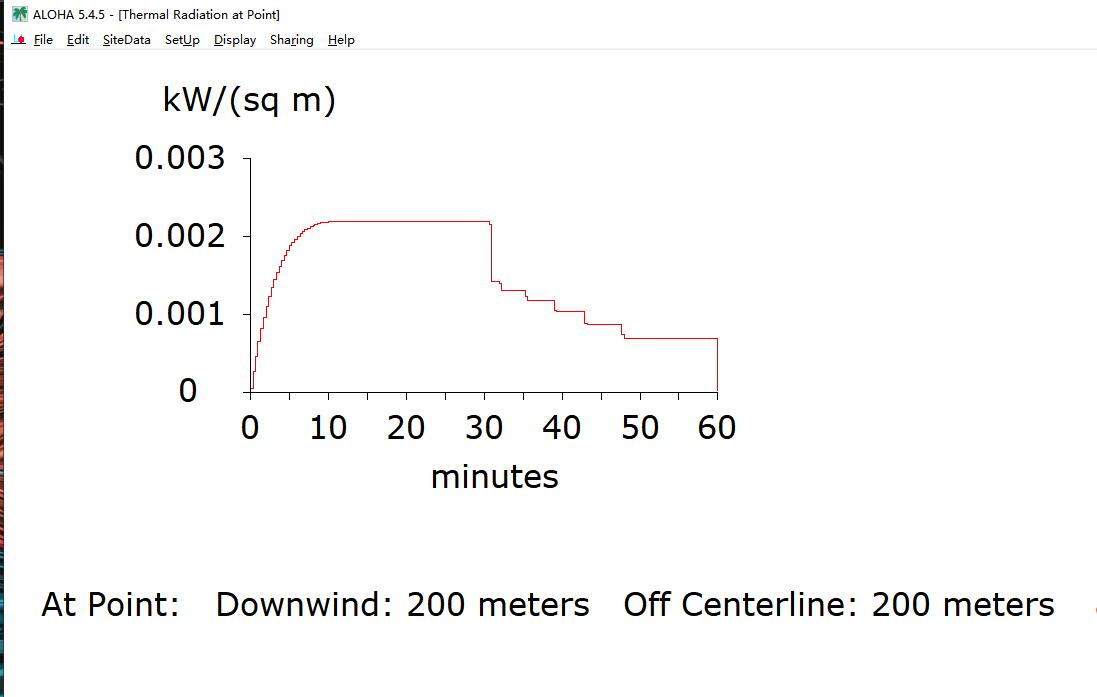

| 43 | 甲醇1.jpg | 68.74K |
| 44 | 甲醇2.jpg | 36.97K |
| 45 | 甲醇3.jpg | 63.58K |
| 46 | 1-噪声分析.ein | 21.84K |

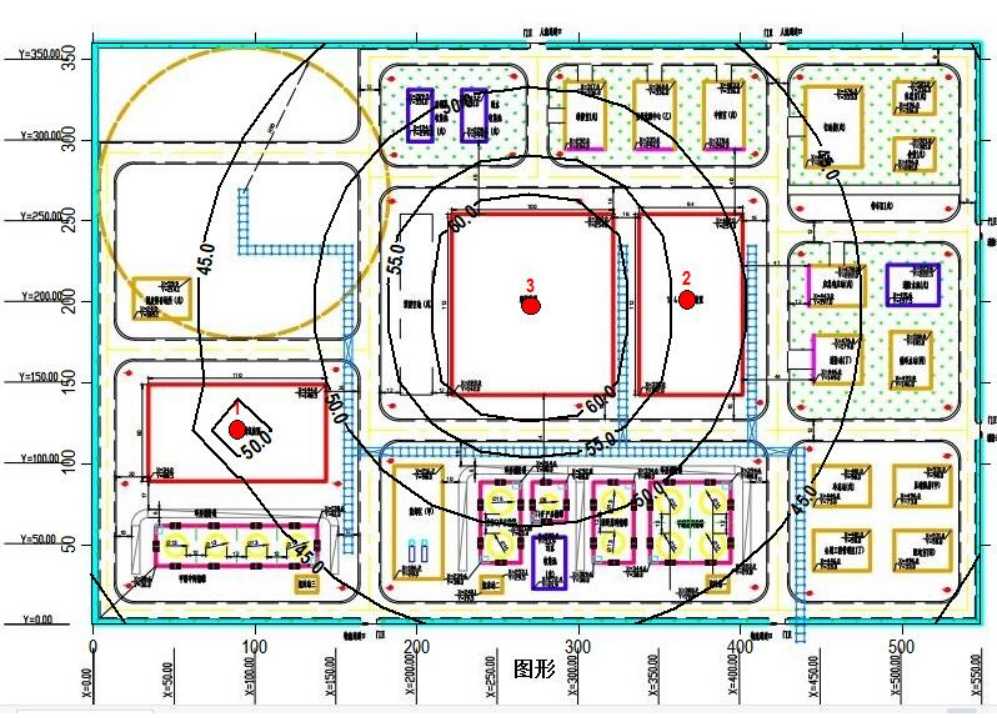

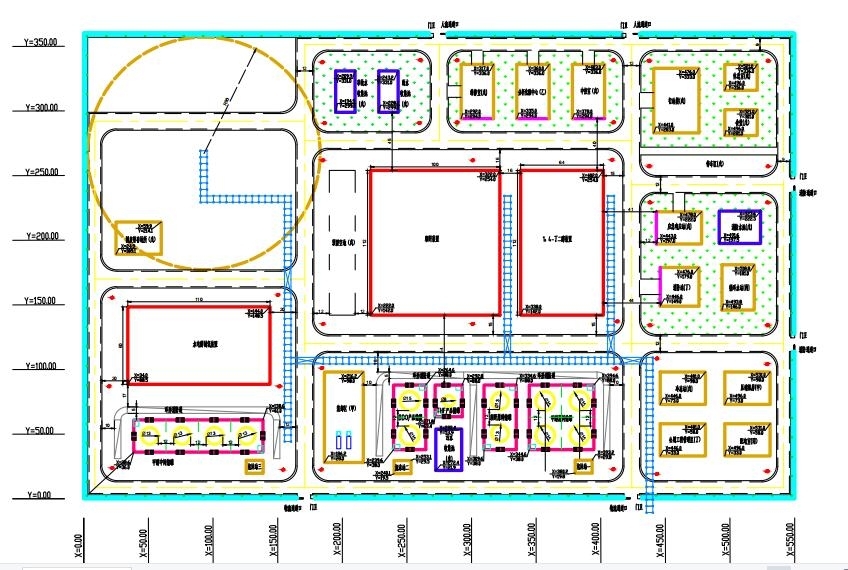

| 47 | 2-厂区图-无噪音模拟分析.jpg | 327.44K |
| 48 | 厂区噪音分析.EIP | 147.60K |
| 49 | 厂区噪音分析.jpg | 105.99K |
| 50 | 厂区噪音分析数据.xlsx | 28.29K |
| 51 | 噪音分析.txt | 566.64K |

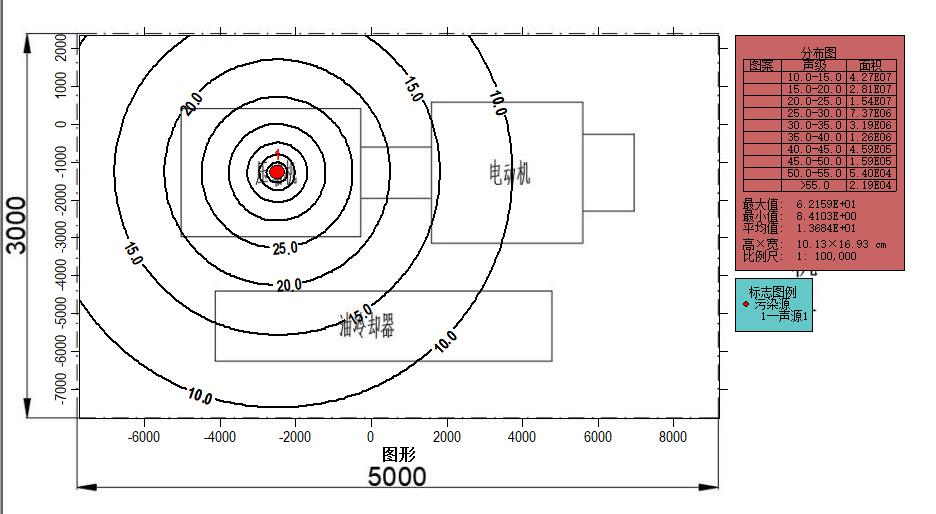

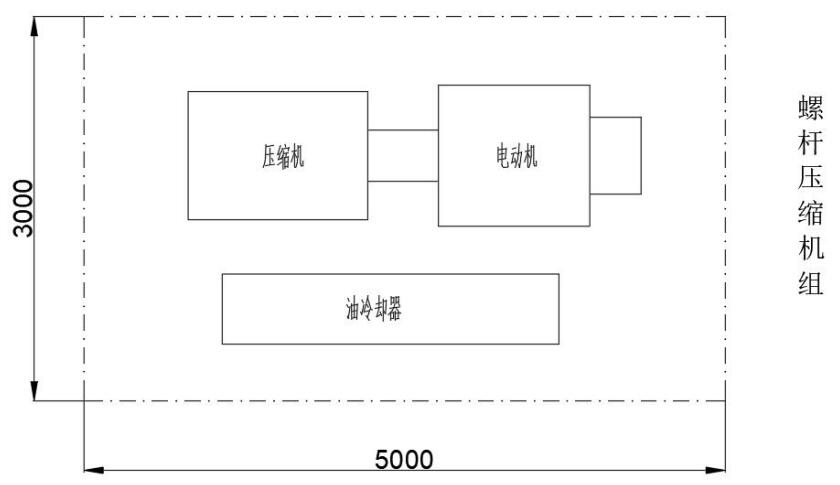

| 52 | 压缩机-噪音分析图.jpg | 59.73K |
| 53 | 压缩机-无噪音分析.jpg | 19.91K |
| 54 | 压缩机噪音分析.xlsx | 512.55K |
| 55 | 噪音分析.txt | 566.64K |
| 56 | 噪音终版.EIP | 147.60K |
| 57 | 螺杆式压缩机噪音分析.EIP | 147.60K |
| 58 | 11-Risksystem.docx | 783.62K |
| 59 | 11-Risksystem.pdf | 699.69K |
| 60 | j甲醇蒸汽云爆炸模型.rsm | 161B |
| 61 | 甲醇典型泄漏事故模拟.rsm | 501B |
| 62 | 甲醇典型泄漏事故模拟.rsp | 396.00K |
| 63 | 甲醇在大气中的扩散预测.rsm | 491B |
| 64 | 甲醇在大气中的扩散预测.rsp | 396.00K |
| 65 | 甲醇池火事故模型伤害范围.rsp | 396.00K |
| 66 | 甲醇池火事故模型预测.rsm | 193B |
| 67 | 甲醇沸腾液体扩展蒸汽爆炸（火球BLEVE）模型预测.rsm | 208B |
| 68 | 甲醇液体泄漏计算.rsm | 105B |
| 69 | 甲醇火球BLEVE模型绘图.rsp | 396.00K |
| 70 | 甲醇蒸汽云爆炸（TNT当量法）模型伤害范围.rsp | 396.00K |
| 71 | 0-说明.txt | 877B |

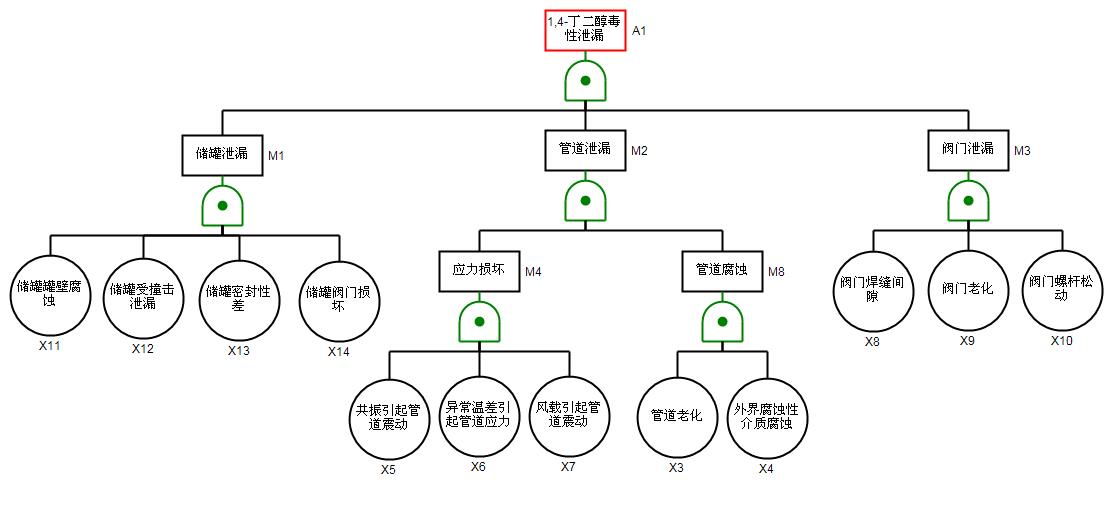

| 72 | 1-1，4-丁二醇毒性泄漏.ffta | 12.50K |
| 73 | 1-1，4-丁二醇毒性泄漏.jpg | 53.51K |
| 74 | 2-反应器的失稳引起燃烧爆炸.ffta | 28.44K |

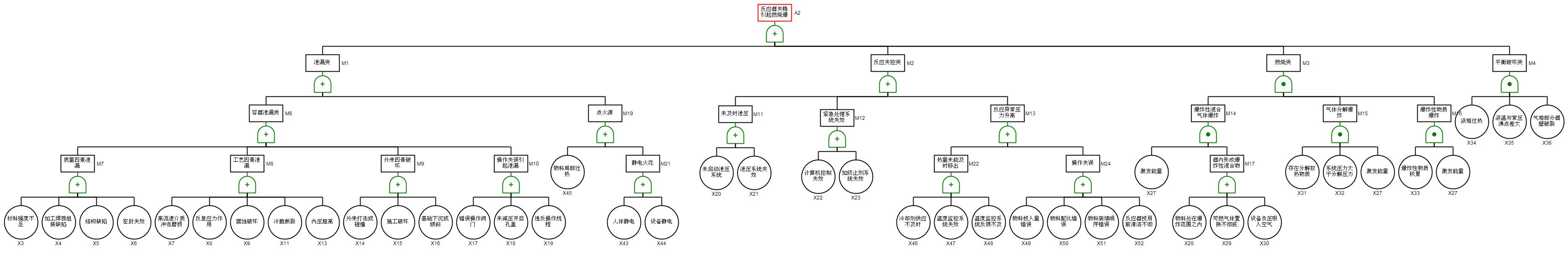

| 75 | 2-反应器的失稳引起燃烧爆炸.jpg | 194.36K |
| 76 | 3-管道系统的失效.ffta | 11.26K |

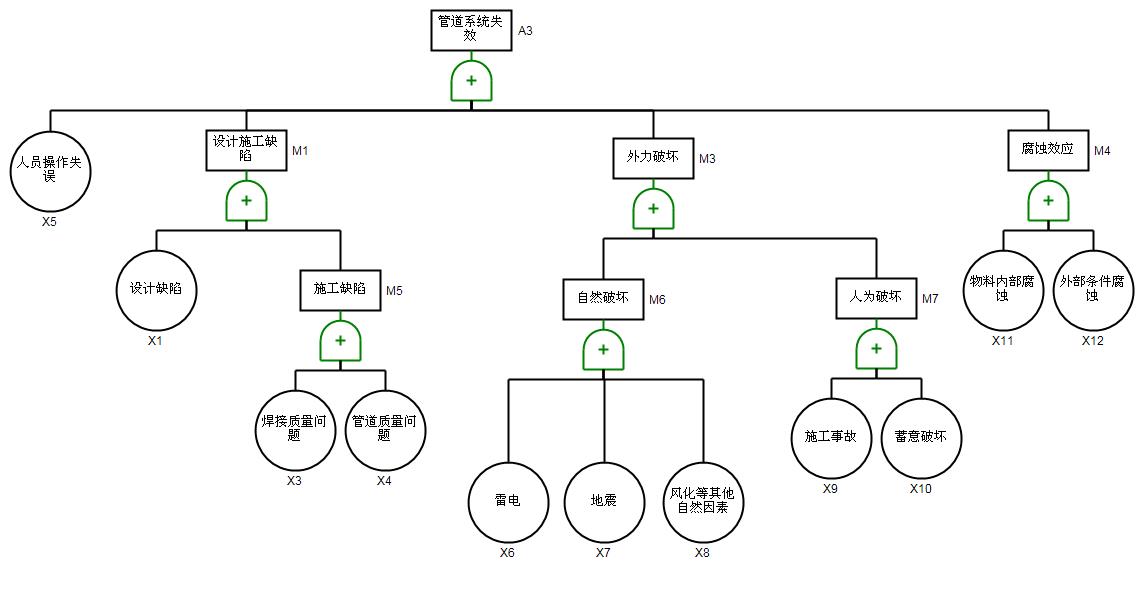

| 77 | 3-管道系统的失效.jpg | 53.51K |
| 78 | ReadMe.txt | 1.03K |
| 79 | ※【3】全流程-（设计）含节能设备不含换热网络.hch | 6.32M |
| 80 | 【1】全流程-不含节能设备不含换热网络.hch | 603.79K |
| 81 | 【2】全流程-（未设计）含节能设备不含换热网络.hch | 504.69K |
| 82 | 【4】全流程-含节能设备含换热网络（Aspen模拟导出）.hch | 571.39K |
| 83 | 能量集成与换热网络设计.pdf | 1.02M |
| 84 | 1-T0102详细设计（含水力学校核）.bkp | 349.02K |
| 85 | 2-T0102塔设备计算说明书.docx | 4.22M |
| 86 | 3-T0102塔设备计算说明书.pdf | 2.29M |
| 87 | 4-T0102塔设备条件图.pdf | 75.21K |
| 88 | 5-T0102塔设备装配图.pdf | 316.93K |
| 89 | 1-E0101.htri | 377.88K |
| 90 | 10-E0108设备装配图.pdf | 330.10K |
| 91 | 2-E0101设计结果导出.xls | 260.00K |
| 92 | 3-E0108.htri | 347.30K |
| 93 | 4-E0108设计结果导出.xls | 263.50K |
| 94 | 5-换热器计算说明书.docx | 6.51M |
| 95 | 6-换热器计算说明书.pdf | 4.47M |
| 96 | 7-E0101工艺条件图.pdf | 80.78K |
| 97 | 8-E0108工艺条件图.pdf | 82.15K |
| 98 | 9-E0101设备装配图.pdf | 249.66K |
| 99 | 换热器设计软件说明.txt | 985B |
| 100 | R0202反应器设计源文件.bkp | 208.96K |
| 101 | 1-R0202反应器设计说明书.docx | 5.12M |
| 102 | 2-R0202反应器设计说明书.pdf | 2.17M |
| 103 | 3-R0202工艺条件图.pdf | 76.77K |
| 104 | 4-R0202反应器设备装配图.pdf | 194.18K |
| 105 | 反应动力学说明.pdf | 847.29K |
| 106 | 马来酸二甲酯单级气相加氢生产γ-丁内酯和14-丁二醇动力学.pdf | 1.13M |
| 107 | 1-精制隔壁塔稳态.bkp | 830.85K |
| 108 | 2-精制隔壁塔动态.dynf | 1.86M |
| 109 | 01-PFD——2004版本.dwg | 1.53M |
| 110 | 01-PFD——2007版本.dwg | 1.63M |
| 111 | 02-PID——2004版本.dwg | 1.03M |
| 112 | 02-PID——2007版本.dwg | 998.66K |
| 113 | 03-车间设备布置-2004.dwg | 358.40K |
| 114 | 03-车间设备布置-2007.dwg | 364.66K |

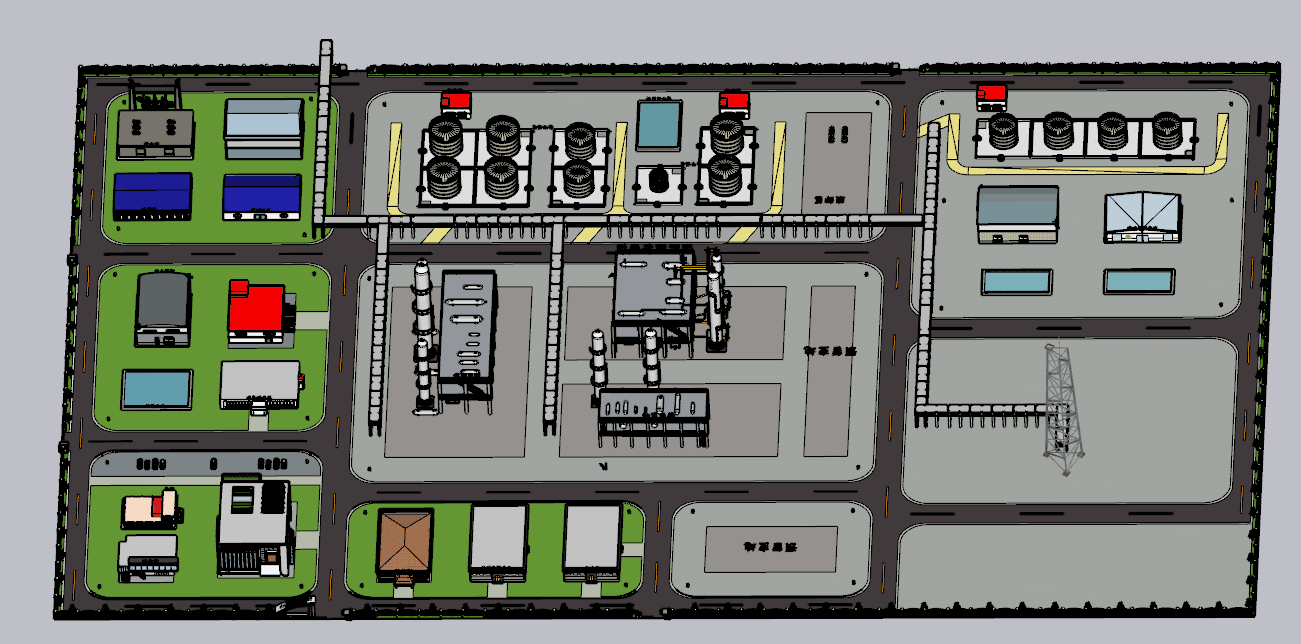

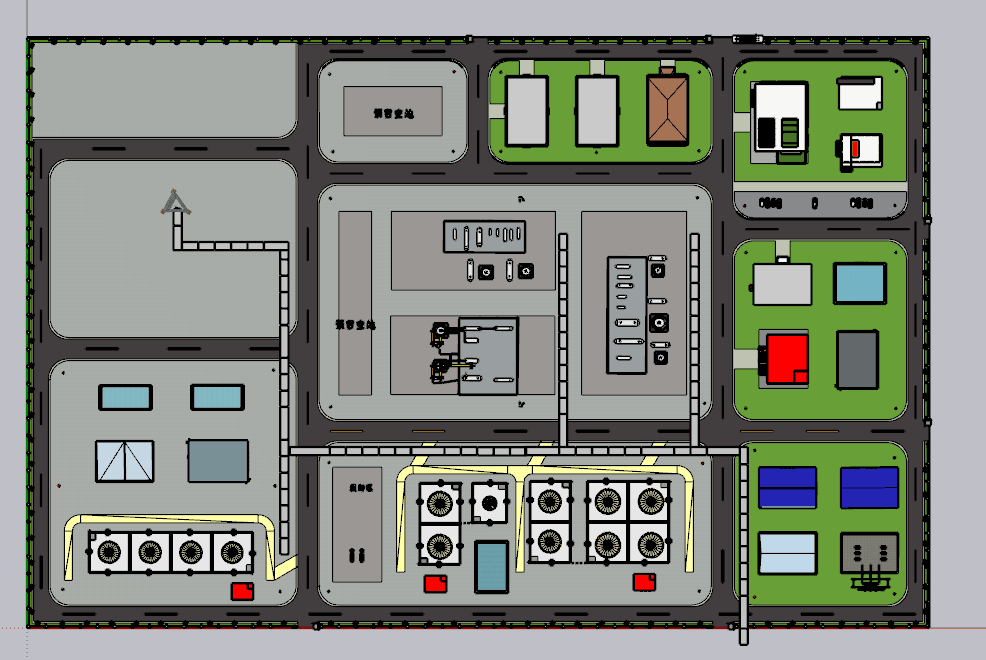

| 115 | 04-厂区总平面布置图-2004.dwg | 432.80K |
| 116 | 04-厂区总平面布置图-2007.dwg | 448.44K |
| 117 | R0202工艺条件图-2004.dwg | 80.35K |
| 118 | R0202工艺条件图-2007.dwg | 97.50K |
| 119 | T0102工艺条件图-2004.dwg | 72.26K |
| 120 | T0102工艺条件图-2007.dwg | 94.03K |
| 121 | E0101工艺条件图-2004.dwg | 76.29K |
| 122 | E0101工艺条件图-2007.dwg | 98.78K |
| 123 | E0108工艺条件图-2004.dwg | 75.92K |
| 124 | E0108工艺条件图-2007.dwg | 97.28K |
| 125 | R0202设备装配图-2004.dwg | 188.32K |
| 126 | R0202设备装配图-2007.dwg | 207.28K |
| 127 | T0102设备装配图-2004.dwg | 155.99K |
| 128 | T0102设备装配图-2007.dwg | 174.53K |
| 129 | E0101设备装配图-2004.dwg | 130.66K |
| 130 | E0101设备装配图-2007.dwg | 149.34K |
| 131 | E0108设备装配图-2004.dwg | 249.80K |
| 132 | E0108设备装配图-2007.dwg | 258.50K |

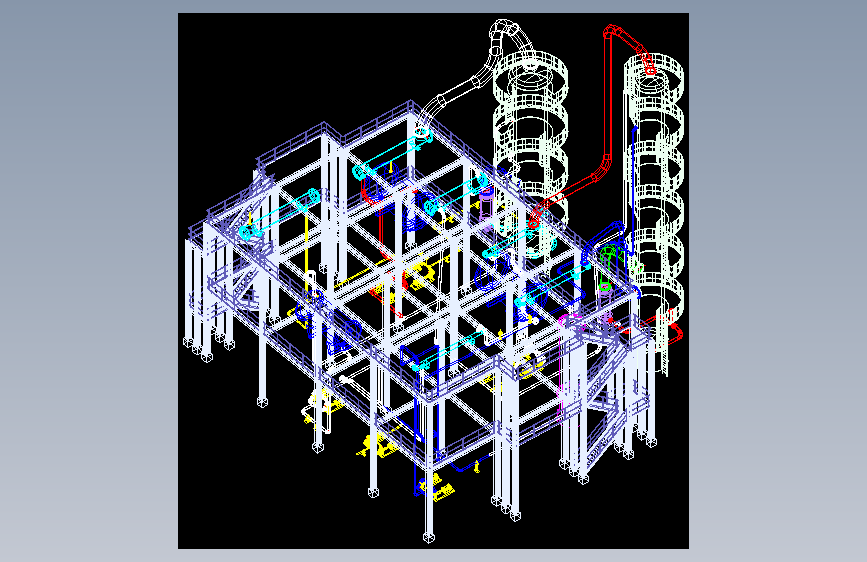

| 133 | 顺酐酯化车间-2004.dwg | 37.13M |
| 134 | 顺酐酯化车间-2007.dwg | 33.14M |

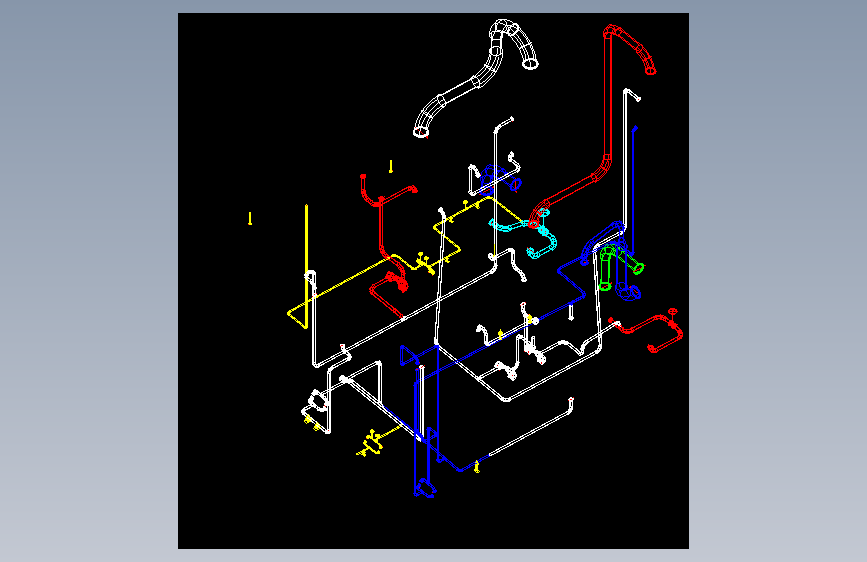

| 135 | 三维配管-2004.dwg | 37.08M |
| 136 | 三维配管-2007.dwg | 33.10M |
| 137 | 0106-2004版本.dwg | 138.49K |
| 138 | 0106-2007版本.dwg | 157.59K |
| 139 | 0110-2004版本.dwg | 134.58K |
| 140 | 0110-2007版本.dwg | 152.13K |
| 141 | 0140-2004版本.dwg | 149.55K |
| 142 | 0140-2007版本.dwg | 158.34K |
| 143 | DefaultConnectorsConfig.xml | 31.77K |
| 144 | Iso.dcf | 192.00K |
| 145 | IsoPart.xml | 1.94K |
| 146 | Metric_OrthoPart.xml | 2.57K |
| 147 | Metric_PipeBendDefaultValues.txt | 1.05K |
| 148 | Metric_PipingPart.xml | 15.89K |
| 149 | Misc.dcf | 100.00K |
| 150 | MiscPart.xml | 1.70K |
| 151 | Ortho.dcf | 176.00K |
| 152 | PIDTo3dClassMapping.xml | 1.05M |
| 153 | PIDToSpecClassMapping.xml | 1.08M |
| 154 | Piping.dcf | 2.07M |
| 155 | PIP_Metric_PnIdPart.xml | 132.45K |
| 156 | ProcessPower.dcf | 1.02M |
| 157 | Project.xml | 1.69K |
| 158 | Project.xml.lock | 0B |
| 159 | projSymbolStyle.dwg | 364.20K |
| 160 | BoltSizeMappings.xml | 1.71K |
| 161 | IsoSkeyAcadBlockMap.xml | 14.21K |
| 162 | IsoSymbolStyles.dwg | 241.72K |
| 163 | Plant3dIsoSymbols.dwg | 39.15K |
| 164 | PropertyTranslationMapping.xml | 462B |
| 165 | ClientConfig.isf | 857B |
| 166 | Iso.atr | 436B |
| 167 | Iso.dwt | 39.61K |
| 168 | IsoConfig.xml | 211.17K |
| 169 | IsoCreationLog.txt | 800B |
| 170 | PipelineReferenceMap.xml | 313B |
| 171 | PipelinesSettings.xml | 406B |
| 172 | ClientConfig.isf | 857B |
| 173 | Iso.atr | 436B |
| 174 | Iso.dwt | 39.36K |
| 175 | IsoConfig.xml | 210.99K |
| 176 | ClientConfig.isf | 857B |
| 177 | Iso.atr | 436B |
| 178 | Iso.dwt | 58.35K |
| 179 | IsoConfig.xml | 211.61K |
| 180 | IsoCreationLog.txt | 1.14K |
| 181 | PipelineReferenceMap.xml | 313B |
| 182 | PipelinesSettings.xml | 406B |
| 183 | 0106.pcf | 20.69K |
| 184 | 0110.pcf | 15.03K |
| 185 | 0140.pcf | 20.37K |
| 186 | 0106.dwg | 130.17K |
| 187 | 0110.dwg | 134.26K |
| 188 | 0140.dwg | 129.98K |
| 189 | ClientConfig.isf | 857B |
| 190 | Iso.atr | 436B |
| 191 | Iso.dwt | 44.31K |
| 192 | IsoConfig.xml | 211.18K |
| 193 | SampleIsoPreview.pcf | 11.22K |
| 194 | ClientConfig.isf | 857B |
| 195 | Iso.atr | 436B |
| 196 | Iso.dwt | 48.21K |
| 197 | IsoConfig.xml | 211.41K |
| 198 | ClientConfig.isf | 857B |
| 199 | Iso.atr | 382B |
| 200 | Iso.dwt | 122.64K |
| 201 | IsoConfig.xml | 220.68K |
| 202 | OrthoSymbolStyles.dwg | 36.52K |
| 203 | orthoTemp.dwt | 32.99K |
| 204 | Ortho-A1-ColorDependentPlotStyles.dwt | 66.65K |
| 205 | Ortho-A1-NamedPlotStyles.dwt | 67.33K |
| 206 | OrthoConfig.xml | 2.86K |
| 207 | 三维配管-2004.dwg | 37.08M |
| 208 | 三维配管-2007.dwg | 33.10M |
| 209 | 三维配管.dwg | 37.11M |
| 210 | 顺酐酯化车间-2004.dwg | 37.13M |
| 211 | 顺酐酯化车间-2007.dwg | 33.14M |
| 212 | 顺酐酯化车间.dwg | 43.54M |
| 213 | ControlValveList.xml | 2.88K |
| 214 | DocumentList.xml | 681B |
| 215 | EquipmentList.xml | 1.74K |
| 216 | InstrumentationIndex.xml | 2.85K |
| 217 | LineList.xml | 2.60K |
| 218 | LineSummaryList.xml | 2.19K |
| 219 | NozzleList.xml | 3.20K |
| 220 | SpecialtyItemsList.xml | 2.87K |
| 221 | ValveList.xml | 2.89K |
| 222 | zh-CN.xml | 11B |
| 223 | 100HC01.pspc | 1.51M |
| 224 | 100HC01.pspx | 9.39K |
| 225 | 100HS01.pspc | 1.51M |
| 226 | 100HS01.pspx | 9.42K |
| 227 | 10HC01.pspc | 1.94M |
| 228 | 10HC01.pspx | 9.99K |
| 229 | 10HS01.pspc | 1.95M |
| 230 | 10HS01.pspx | 10.01K |
| 231 | 160HC01.pspc | 1.50M |
| 232 | 160HC01.pspx | 9.39K |
| 233 | 160HS01.pspc | 1.50M |
| 234 | 160HS01.pspx | 9.42K |
| 235 | 16HC01.pspc | 1.84M |
| 236 | 16HC01.pspx | 9.77K |
| 237 | 16HS01.pspc | 1.83M |
| 238 | 16HS01.pspx | 9.80K |
| 239 | 1HC01.pspc | 1.53M |
| 240 | 1HC01.pspx | 9.41K |
| 241 | 1HS01.pspc | 1.53M |
| 242 | 1HS01.pspx | 9.42K |
| 243 | 250HC01.pspc | 1.50M |
| 244 | 250HC01.pspx | 9.39K |
| 245 | 250HS01.pspc | 1.50M |
| 246 | 250HS01.pspx | 9.42K |
| 247 | 25HC01.pspc | 1.54M |
| 248 | 25HC01.pspx | 9.63K |
| 249 | 25HS01.pspc | 1.54M |
| 250 | 25HS01.pspx | 9.65K |
| 251 | 2HC01.pspc | 1.53M |
| 252 | 2HC01.pspx | 9.39K |
| 253 | 2HS01.pspc | 1.53M |
| 254 | 2HS01.pspx | 9.42K |
| 255 | 320HC01.pspc | 1.50M |
| 256 | 320HC01.pspx | 9.39K |
| 257 | 320HS01.pspc | 1.50M |
| 258 | 320HS01.pspx | 9.42K |
| 259 | 400HC01.pspc | 1.50M |
| 260 | 400HC01.pspx | 9.39K |
| 261 | 400HS01.pspc | 1.50M |
| 262 | 400HS01.pspx | 9.42K |
| 263 | 40HC01.pspc | 1.81M |
| 264 | 40HC01.pspx | 9.64K |
| 265 | 40HS01.pspc | 1.82M |
| 266 | 40HS01.pspx | 9.66K |
| 267 | 64HC01.pspc | 1.51M |
| 268 | 64HC01.pspx | 9.39K |
| 269 | 64HS01.pspc | 1.51M |
| 270 | 64HS01.pspx | 9.42K |
| 271 | 6HC01.pspc | 1.57M |
| 272 | 6HC01.pspx | 7.30K |
| 273 | 6HS01.pspc | 1.57M |
| 274 | 6HS01.pspx | 9.87K |
| 275 | AWWAC110.pspc | 1.31M |
| 276 | AWWAC110.pspx | 6.55K |
| 277 | CS150.pspc | 831.00K |
| 278 | CS150.pspx | 6.54K |
| 279 | CS1500.pspc | 859.00K |
| 280 | CS1500.pspx | 6.68K |
| 281 | CS150Flanged.pspc | 385.00K |
| 282 | CS150Flanged.pspx | 3.96K |
| 283 | CS2500.pspc | 757.00K |
| 284 | CS2500.pspx | 6.63K |
| 285 | CS300.pspc | 846.00K |
| 286 | CS300.pspx | 6.63K |
| 287 | CS600.pspc | 903.00K |
| 288 | CS600.pspx | 6.51K |
| 289 | CS900.pspc | 766.00K |
| 290 | CS900.pspx | 6.22K |
| 291 | CustomPartsImperial.pspc | 1.68M |
| 292 | CustomPartsImperial.pspx | 8.80K |
| 293 | CustomPartsMetric.pspc | 1.32M |
| 294 | CustomPartsMetric.pspx | 8.83K |
| 295 | DIClass150.pspc | 307.00K |
| 296 | DIClass150.pspx | 2.86K |
| 297 | DIClass250.pspc | 485.00K |
| 298 | DIClass250.pspx | 3.71K |
| 299 | GroovedClass150.pspc | 578.00K |
| 300 | GroovedClass150.pspx | 4.40K |
| 301 | GroovedClass300.pspc | 327.00K |
| 302 | GroovedClass300.pspx | 3.79K |
| 303 | InstrumentationImperial.pspc | 155.00K |
| 304 | InstrumentationImperial.pspx | 2.73K |
| 305 | InstrumentationMetric.pspc | 188.00K |
| 306 | InstrumentationMetric.pspx | 2.73K |
| 307 | PipeSupportsSpec.pspc | 1.09M |
| 308 | PipeSupportsSpec.pspx | 3.07K |
| 309 | PlaceHolderImperial.pspc | 1.70M |
| 310 | PlaceHolderImperial.pspx | 8.80K |
| 311 | PlaceHolderMetric.pspc | 1.34M |
| 312 | PlaceHolderMetric.pspx | 8.83K |
| 313 | PN01CA1S01.pspc | 1.96M |
| 314 | PN01CA1S01.pspx | 4.69K |
| 315 | PN01CB2S01.pspc | 1.98M |
| 316 | PN01CB2S01.pspx | 4.72K |
| 317 | PN01CJ1S01.pspc | 1.61M |
| 318 | PN01CJ1S01.pspx | 3.74K |
| 319 | PN01CK1S01.pspc | 1.62M |
| 320 | PN01CK1S01.pspx | 3.74K |
| 321 | PN01CL1S01.pspc | 1.54M |
| 322 | PN01CL1S01.pspx | 3.83K |
| 323 | PN01CM1S01.pspc | 1.54M |
| 324 | PN01CM1S01.pspx | 3.83K |
| 325 | PN01CS1B01.pspc | 1.25M |
| 326 | PN01CS1B01.pspx | 3.17K |
| 327 | PN01CS1S01.pspc | 2.01M |
| 328 | PN01CS1S01.pspx | 4.49K |
| 329 | PN01SA0B01.pspc | 1.49M |
| 330 | PN01SA0B01.pspx | 3.65K |
| 331 | PN01SA0B02.pspc | 2.04M |
| 332 | PN01SA0B02.pspx | 4.54K |
| 333 | PN01SA0B03.pspc | 2.06M |
| 334 | PN01SA0B03.pspx | 4.54K |
| 335 | PN01SA0B05.pspc | 1.39M |
| 336 | PN01SA0B05.pspx | 3.55K |
| 337 | PN03CA1S01.pspc | 1.87M |
| 338 | PN03CA1S01.pspx | 4.49K |
| 339 | PN03CJ1S01.pspc | 1.58M |
| 340 | PN03CJ1S01.pspx | 3.81K |
| 341 | PN06CA1S01.pspc | 1.84M |
| 342 | PN06CA1S01.pspx | 4.59K |
| 343 | PN06CB2S01.pspc | 1.82M |
| 344 | PN06CB2S01.pspx | 4.54K |
| 345 | PN09CB1S01.pspc | 1.57M |
| 346 | PN09CB1S01.pspx | 3.83K |
| 347 | PN09SP1S01.pspc | 1.52M |
| 348 | PN09SP1S01.pspx | 4.06K |
| 349 | PN15CL1S01.pspc | 1.48M |
| 350 | PN15CL1S01.pspx | 3.81K |
| 351 | PN15CM1S01.pspc | 1.48M |
| 352 | PN15CM1S01.pspx | 3.81K |
| 353 | Sch40PVC.pspc | 214.00K |
| 354 | Sch40PVC.pspx | 3.77K |
| 355 | Sch80CPVC.pspc | 215.00K |
| 356 | Sch80CPVC.pspx | 3.68K |
| 357 | Sch80PVC.pspc | 218.00K |
| 358 | Sch80PVC.pspx | 3.73K |
| 359 | SS150.pspc | 819.00K |
| 360 | SS150.pspx | 6.43K |
| 361 | SS1500.pspc | 854.00K |
| 362 | SS1500.pspx | 6.85K |
| 363 | SS2500.pspc | 752.00K |
| 364 | SS2500.pspx | 6.74K |
| 365 | SS300.pspc | 787.00K |
| 366 | SS300.pspx | 6.49K |
| 367 | SS600.pspc | 829.00K |
| 368 | SS600.pspx | 6.67K |
| 369 | SS900.pspc | 691.00K |
| 370 | SS900.pspx | 6.16K |
| 371 | 1-预酯化反应器R0101校核.ra2 | 24.57K |
| 372 | 2-预酯化反应器R0101SW6强度校核.docx | 120.88K |
| 373 | 1-甲醇-预酯化产物换热器E0101校核.fe2 | 26.56K |
| 374 | 2-甲醇-预酯化产物换热器E0101SW6校核.docx | 525.37K |
| 375 | 3-生产废水冷却器E0108校核.fe2 | 26.56K |
| 376 | 4-生产废水冷却器E0108SW6校核.docx | 648.56K |
| 377 | 1-甲醇回收塔T0102校核.cn2 | 32.58K |
| 378 | 2-甲醇回收塔T0102SW6强度校核.docx | 257.61K |
| 379 | 厂区三维布置源文件.skp | 194.43M |
| 380 | 俯视图.png | 31.61K |
| 381 | 前俯视图.png | 76.10K |

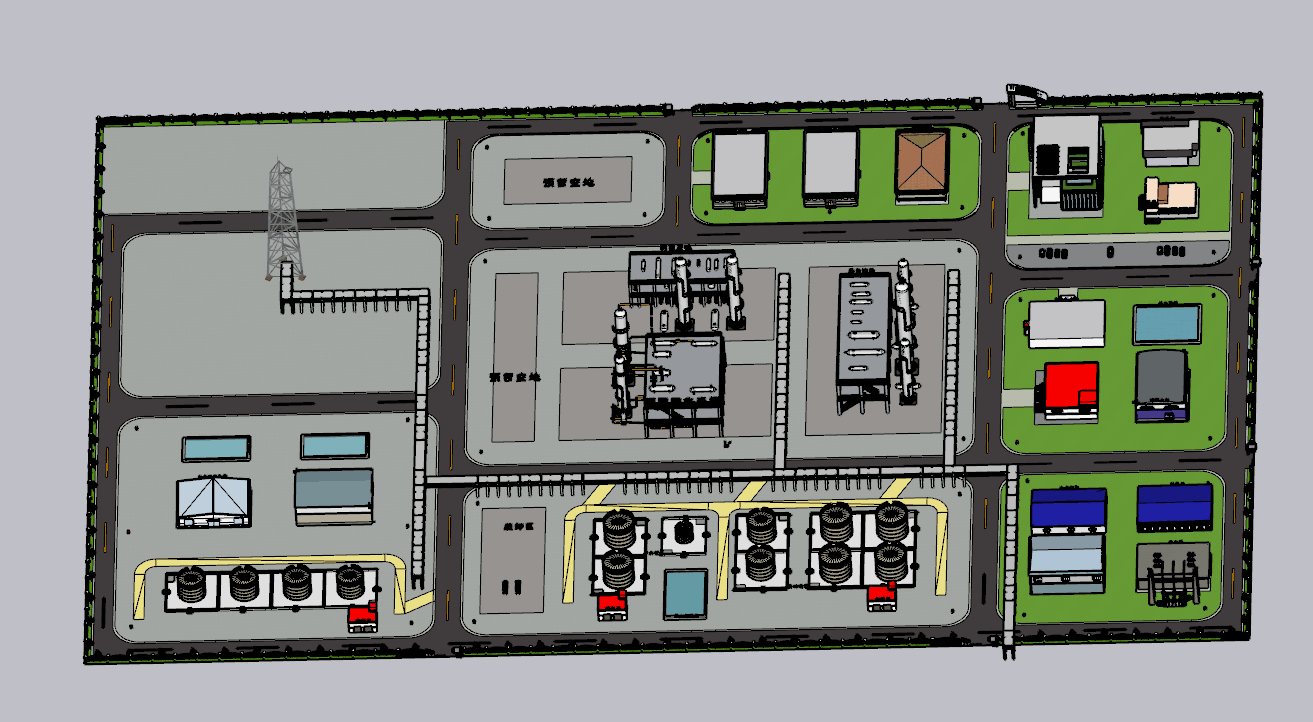

| 382 | 后俯视图.png | 85.29K |

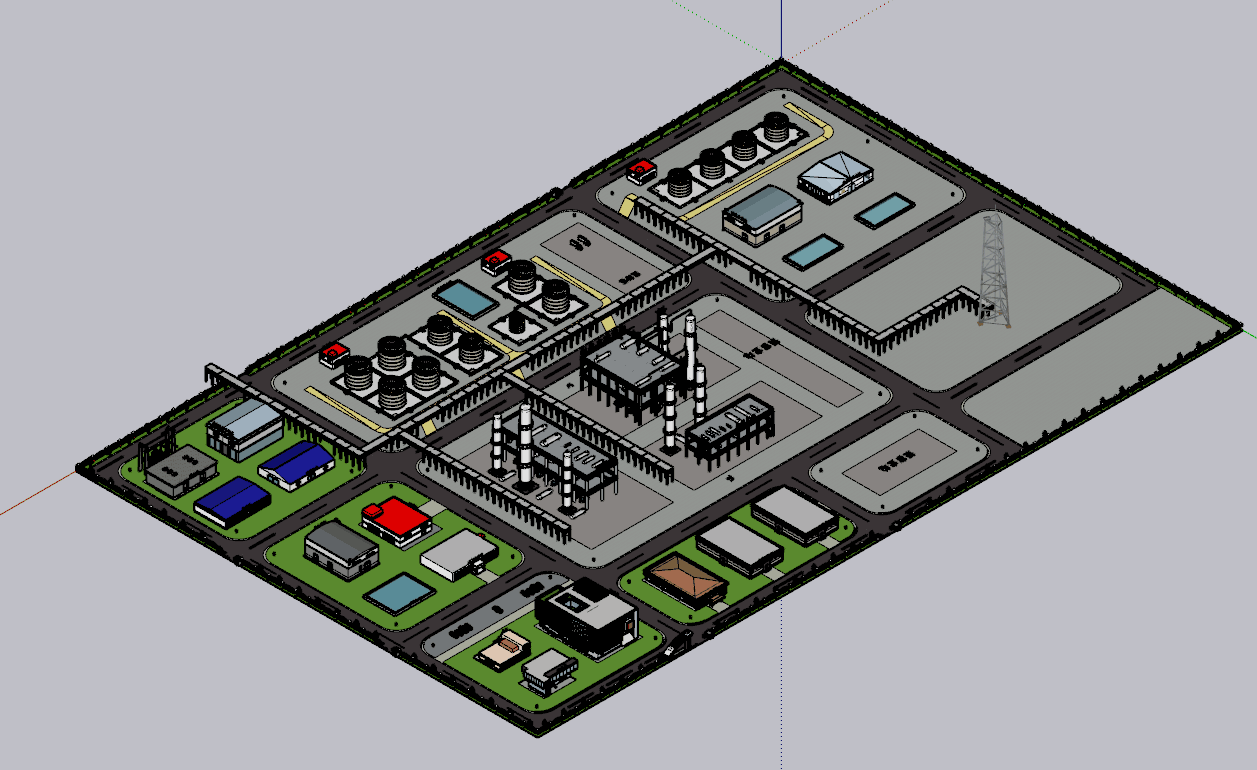

| 383 | 等轴图.png | 69.04K |
| 384 | 设计图纸集——彩色.pdf | 5.21M |
| 385 | 设计图纸集——黑白.pdf | 5.12M |
| 386 | PFD彩色.pdf | 1.92M |
| 387 | PFD黑白.pdf | 1.91M |
| 388 | PID彩色.pdf | 2.24M |
| 389 | PID黑白.pdf | 2.20M |
| 390 | 车间设备布置图——彩色.pdf | 835.94K |
| 391 | 车间设备布置图——黑白.pdf | 822.54K |
| 392 | 厂区总平面布置——彩色.pdf | 617.10K |
| 393 | 厂区总平面布置——黑白.pdf | 595.32K |
| 394 | E0101设备工艺条件图.pdf | 82.00K |
| 395 | E0108设备工艺条件图.pdf | 83.47K |
| 396 | R0202设备工艺条件图.pdf | 78.21K |
| 397 | T0102设备工艺条件图.pdf | 75.21K |
| 398 | E0101设备装配图——彩色.pdf | 252.52K |
| 399 | E0101设备装配图——黑白.pdf | 249.66K |
| 400 | E0108设备装配图——彩色.pdf | 333.17K |
| 401 | E0108设备装配图——黑白.pdf | 330.10K |
| 402 | R0202设备装配图——彩色.pdf | 198.00K |
| 403 | R0202设备装配图——黑白.pdf | 194.18K |
| 404 | T0102设备装配图——彩色.pdf | 322.32K |
| 405 | T0102设备装配图——黑白.pdf | 316.93K |
| 406 | 典型管道轴测图——彩色.pdf | 488.90K |
| 407 | 典型管道轴测图——黑白.pdf | 485.77K |
| 408 | 三维配管图.pdf | 2.21M |
| 409 | 顺酐酯化车间三维布置.pdf | 6.59M |
| 410 | 俯视图.png | 31.61K |
| 411 | 前俯视图.png | 76.10K |
| 412 | 后俯视图.png | 85.29K |
| 413 | 等轴图.png | 69.04K |
| 414 | 作品评分点索引.docx | 61.38K |
| 415 | 污垢热阻系数经验值来源.pdf | 84.80K |
| 416 | 0-项目摘要.doc | 4.69M |
| 417 | 1-可行性分析报告.doc | 5.52M |
| 418 | 2-初步设计说明书.doc | 10.09M |
| 419 | 3.1-塔设备计算说明书.doc | 5.39M |
| 420 | 3.2-换热器计算说明书.doc | 11.10M |
| 421 | 3.3-反应器设计说明书.doc | 7.18M |
| 422 | 4-创新性说明书.doc | 5.14M |
| 423 | 5-经济分析.doc | 3.86M |
| 424 | 6-能量集成与换热网络设计.doc | 3.86M |
| 425 | 7-环境影响评价报告.doc | 5.21M |
| 426 | 附录1-物料衡算计算书.doc | 4.30M |
| 427 | 附录2-能量衡算计算书.doc | 3.34M |
| 428 | 附录3-工艺设备一览表.doc | 3.45M |
| 429 | 附录5-MSDS信息表.doc | 3.53M |
| 430 | 附录6-公用工程供应协议及方案.doc | 3.05M |
| 431 | 附录7-绿色发展2025指标说明书.doc | 3.09M |
| 432 | 附录8-反应动力学说明.doc | 3.91M |
| 433 | 附录9-塔设备参数优化说明书.doc | 3.33M |
此图纸下载需要520金币
立即下载
发布者
静
创作: 10568
粉丝: 6
加入时间：2025-05-27
模型信息
图纸格式：pdf,dwg,skp
文件大小：598.14M
所需金币：520
上传时间：2025-10-02 20:40:05
是否可编辑：可修改，包括参数
版本：AutoCAD 2018
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
作者其它图纸 查看更多
0.png)
0.png)
0.png)
0.png)
猜你喜欢
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
QQ在线客服
官方QQ群
