重型车轮脚轮套件（ID:285534）

交通运输 / 车辆相关 / 重型车轮脚轮套件

©非原创

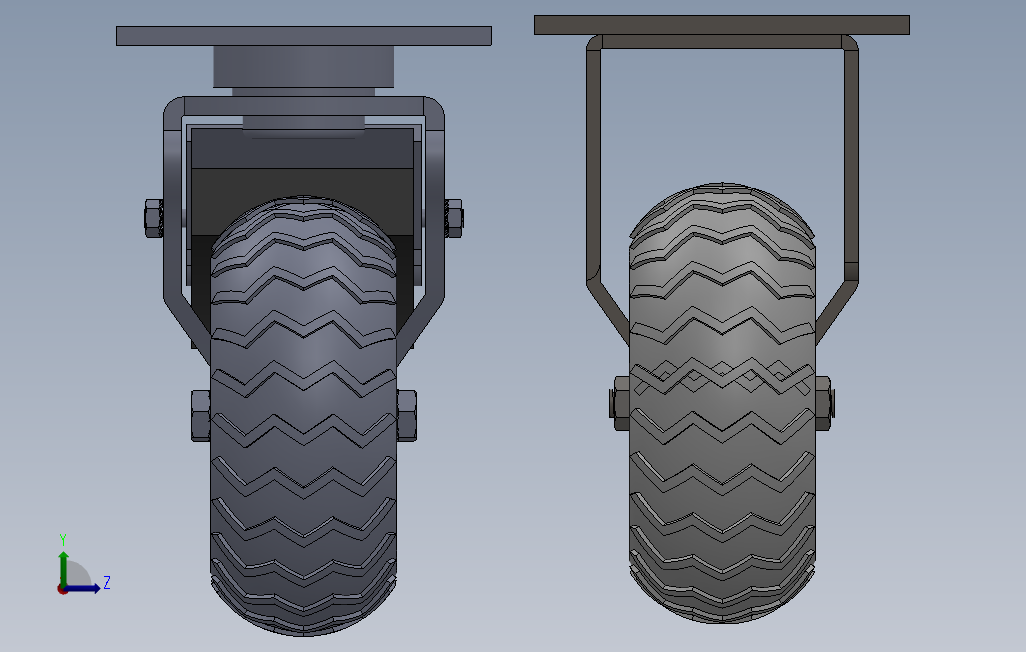

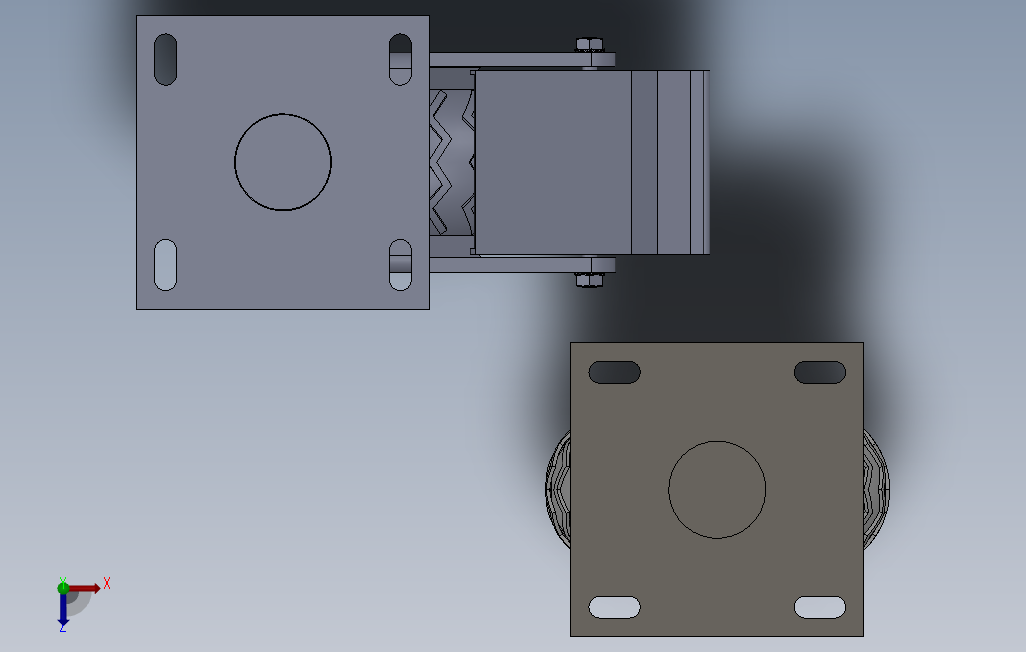

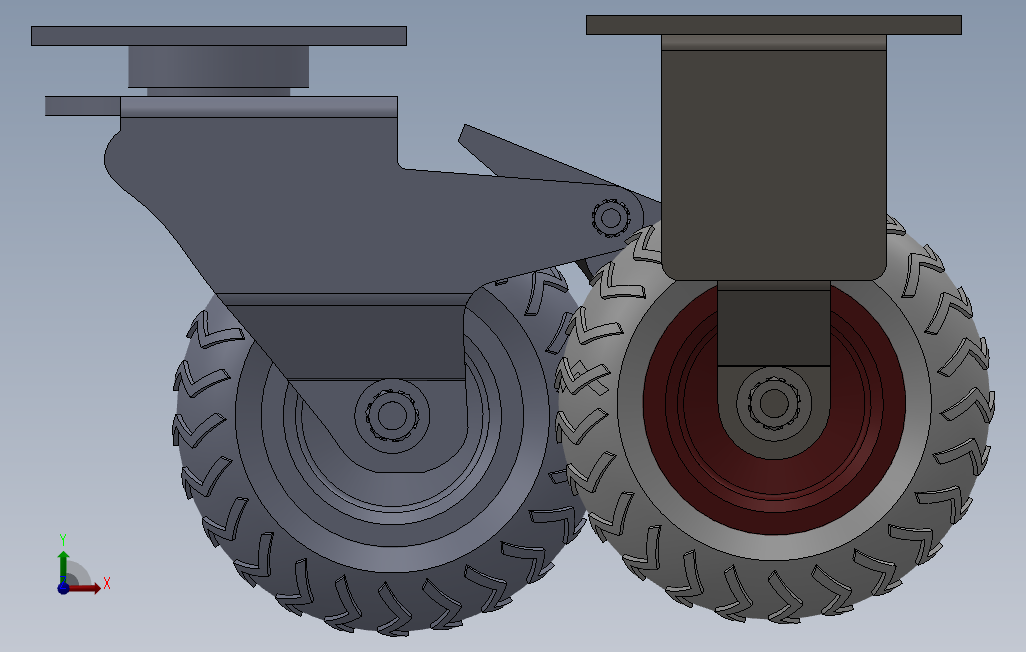

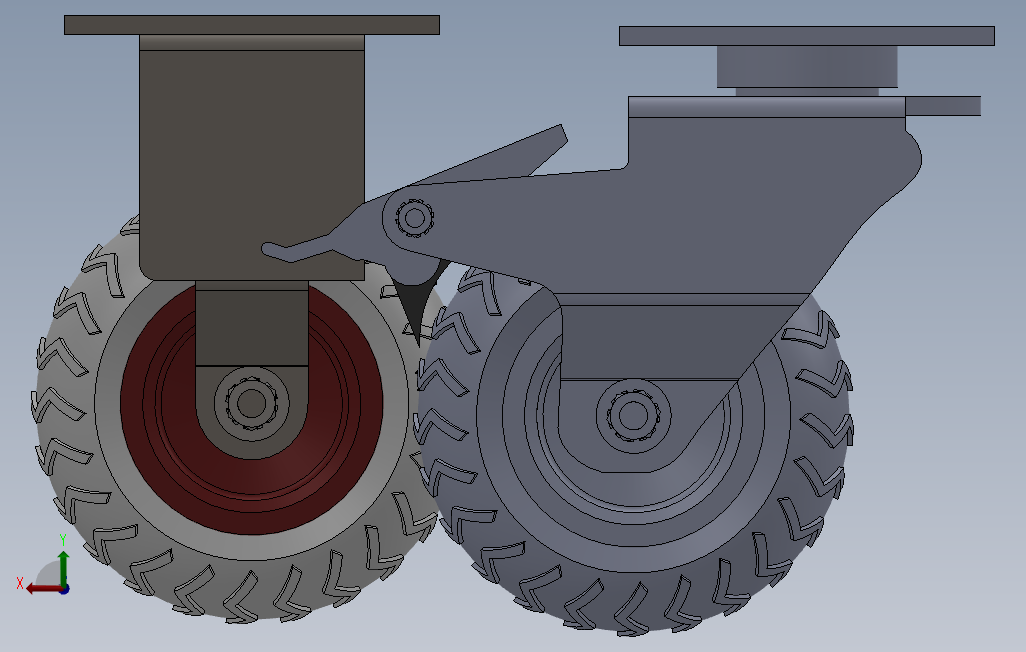

平面图

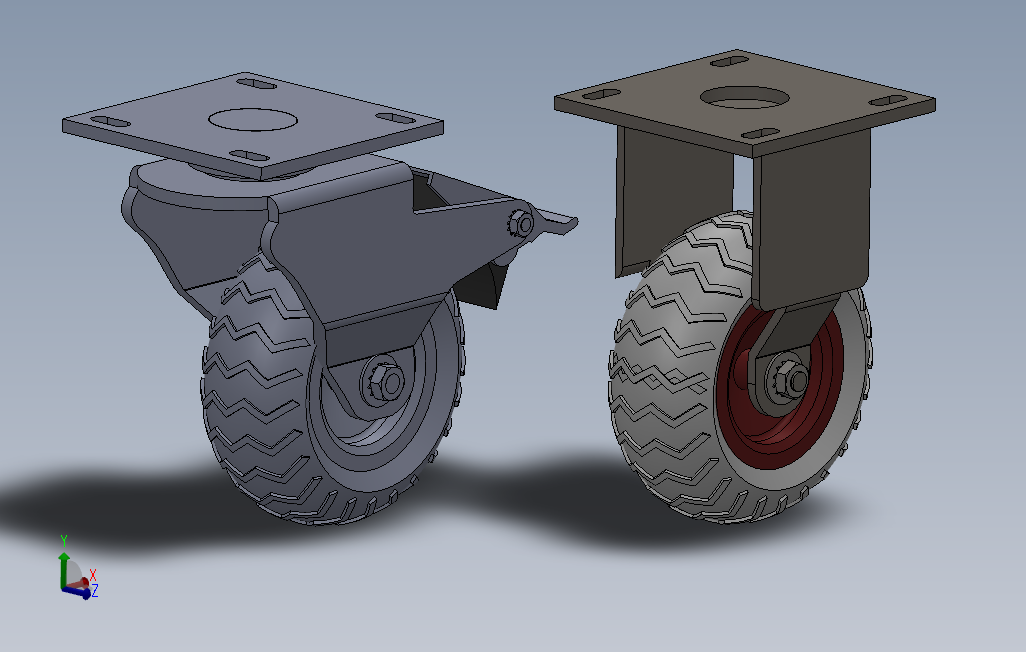

3D视图

文件列表

#	文件名称	文件大小
1	14-20 TOOTH LOCK WASHER.sldprt	113.50K
2	6655K250_PLASTIC THRUST BALL BEARING(6655K25).sldprt	79.50K
3	CASTER WELDED BODY.sldasm	49.50K
4	flat washer type b regular_ai(Regular FW 0.375)-1.sldprt	51.00K
5	flat washer type b regular_ai(Regular FW 0.375).sldprt	51.00K
6	FRONT WHEELCASTER BOD9WELDED)Y.sldasm	49.50K
7	machine screw nut hex_ai(MSHXNUT 0.250-20-D-C).sldprt	57.00K
8	machine screw nut hex_ai(MSHXNUT 0.375-16-D-C)-1.sldprt	57.00K
9	machine screw nut hex_ai(MSHXNUT 0.375-16-D-C).sldprt	57.00K
10	TOOTH LOCK WASHER-1.sldprt	113.50K
11	重复_TOOTH LOCK WASHER.sldprt	114.00K
12	WELDED TOP BASE.sldasm	49.50K
13	WHEEL CASTER WITH BRACKES(BALL BEARING HOUSE).sldprt	51.50K
14	WHEEL CASTER WITH BRACKES(BEARING PIN).sldprt	51.00K
15	WHEEL CASTER WITH BRACKES(BRACKET THREADED PIN).sldprt	71.00K
16	WHEEL CASTER WITH BRACKES(BRACKET).sldprt	83.50K
17	WHEEL CASTER WITH BRACKES(CASTER SHEET METAL BODY).sldprt	73.50K
18	WHEEL CASTER WITH BRACKES(FRONT WHEEL METAL BODY).sldprt	66.50K
19	WHEEL CASTER WITH BRACKES(RUBBER WHEEL)-1.sldprt	902.50K
20	WHEEL CASTER WITH BRACKES(RUBBER WHEEL).sldprt	902.50K
21	WHEEL CASTER WITH BRACKES(TOP PLATE_)-1.sldprt	57.50K
22	WHEEL CASTER WITH BRACKES(TOP PLATE_).sldprt	57.50K
23	WHEEL CASTER WITH BRACKES(WHEEL RING)-1.sldprt	53.50K
24	WHEEL CASTER WITH BRACKES(WHEEL RING).sldprt	53.50K
25	WHEEL CASTER WITH BRACKES(WHEEL THREADED PIN)-1.sldprt	73.50K
26	WHEEL CASTER WITH BRACKES(WHEEL THREADED PIN).sldprt	73.50K
27	装配体1.SLDASM	2.34M
28	重型车轮脚轮套件设计模型.SLDASM	3.56M
