缸塞即活塞（ID:330535）

交通运输 / 车辆相关 / 缸塞即活塞

©非原创

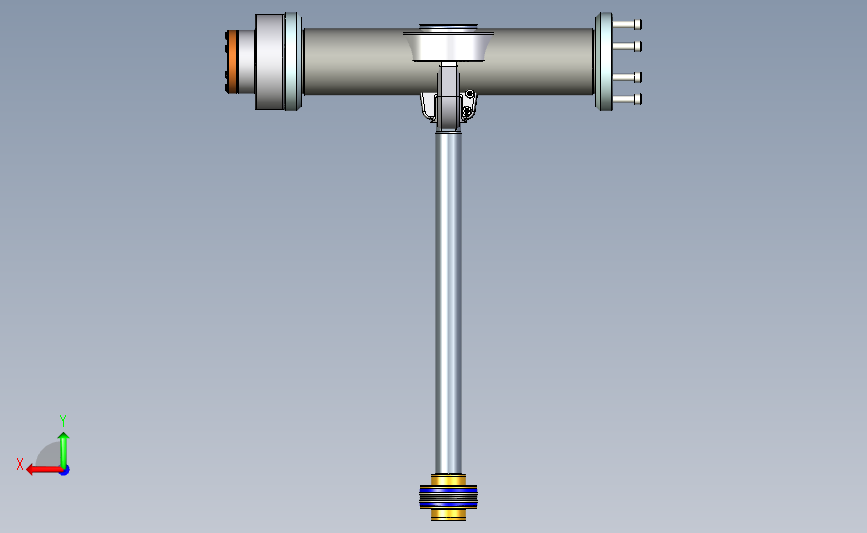

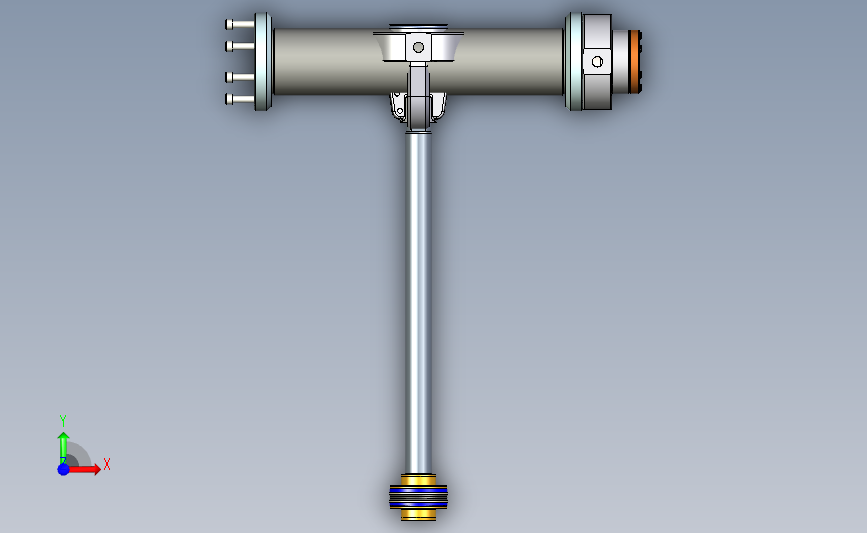

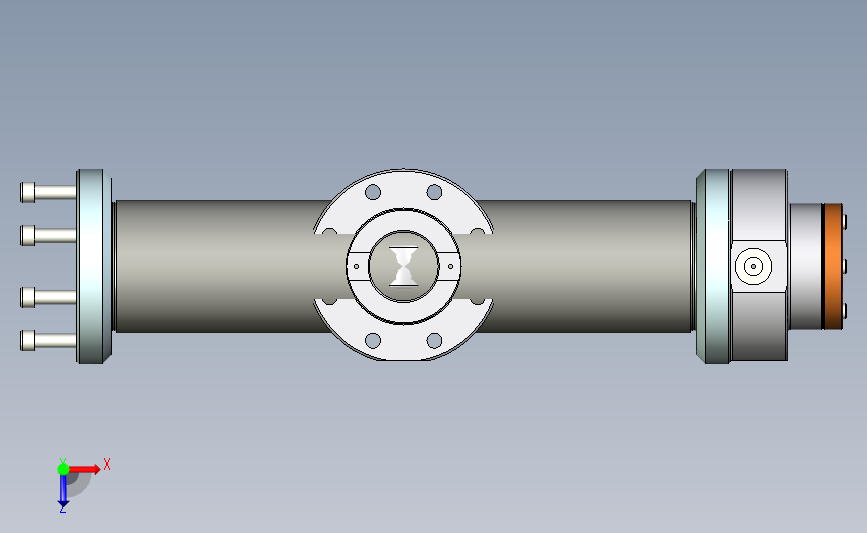

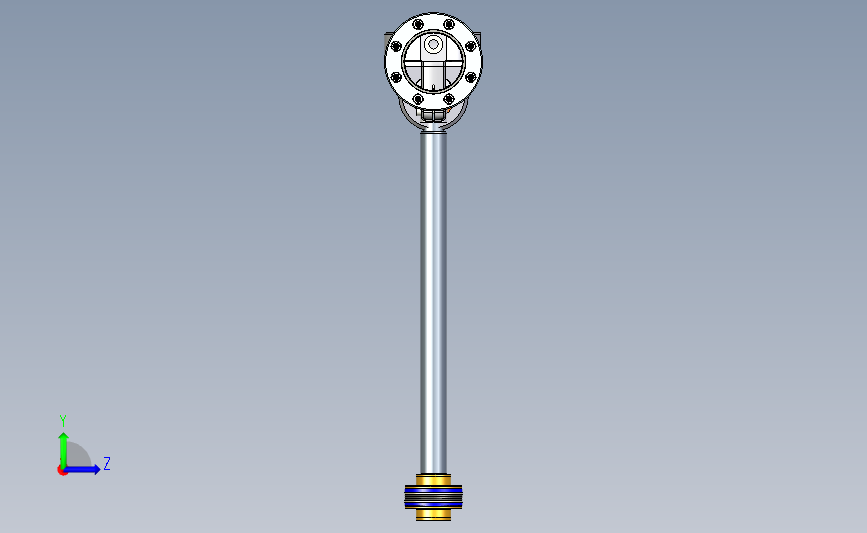

平面图

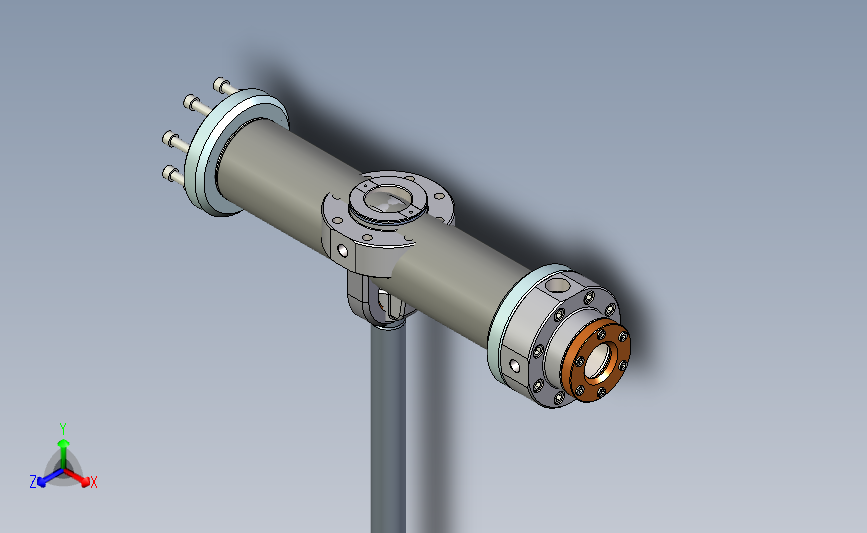

3D视图

文件列表

#	文件名称	文件大小
1	16629090606843.zip	1.02M
2	8 mm Ball.stp	3.92K
3	Bleed Screw -SA L2.stp	227.54K
4	Bleed Screw.stp	31.32K
5	Compress Spring1.stp	188.17K
6	Cushioning Screw - SA L2.stp	77.26K
7	Cushioning Screw Taper.stp	19.89K
8	Cushioning Screw.stp	31.98K
9	Cylinder Assembly.stp	1.22M
10	Cylinder Unit -SA L1.stp	909.03K
11	Cylinder.stp	17.40K
12	DIN 472 75x2.5.stp	19.44K
13	End Cap -SA L2.stp	251.64K
14	End Cap Fabrication_Welds.stp	43.12K
15	End Cap.stp	112.93K
16	Endcap Clevis.stp	39.26K
17	Flange Nut.stp	22.91K
18	Gland Follower -SA L2.stp	63.71K
19	Gland Follower Retainer.stp	30.73K
20	Gland Follower.stp	23.24K
21	Gland Housing.stp	135.28K
22	ISO 4026 M10 x 16.stp	18.34K
23	ISO 4032 M8.stp	21.71K
24	ISO 4762 M10 x 35.stp	19.44K
25	ISO 4762 M12 x 55.stp	19.65K
26	ISO 4762 M8 x 25.stp	19.52K
27	Locking Ring.stp	7.84K
28	Piston Shaft.stp	35.05K
29	Piston Unit- SA L1.stp	372.21K
30	Piston.stp	32.15K
31	Rod End GIHR-K 50 DO -SA L2.stp	242.99K
32	Rod End GIHR-K 50 DO.stp	174.50K
33	Seal.stp	11.29K
34	Spherical Bearing (Plain) GE50 UK-2RS - L2 SA.stp	22.67K
35	Spherical Bearing (Plain) GE50 UK-2RS Inner.stp	9.90K
36	Spherical Bearing (Plain) GE50 UK-2RS Outer.stp	9.92K
37	Turcon Stepseal RSK300450 O-Ring.stp	4.57K
38	Turcon Stepseal RSK300450.stp	15.46K
39	Wear Ring.stp	9.38K
40	WRM Scaper Seal - WAP100450.stp	10.48K
41	脴37x脴3 O-Ring.stp	5.73K
42	脴65x脴3 O-Ring.stp	4.50K
43	脴95x脴3 O-Ring.stp	4.50K
