IP65 带锁接线盒塑压包装箱接线箱（ID:338190）

电力仪表 / 钣金箱体 / IP65 带锁接线盒塑压包装箱接线箱

©非原创

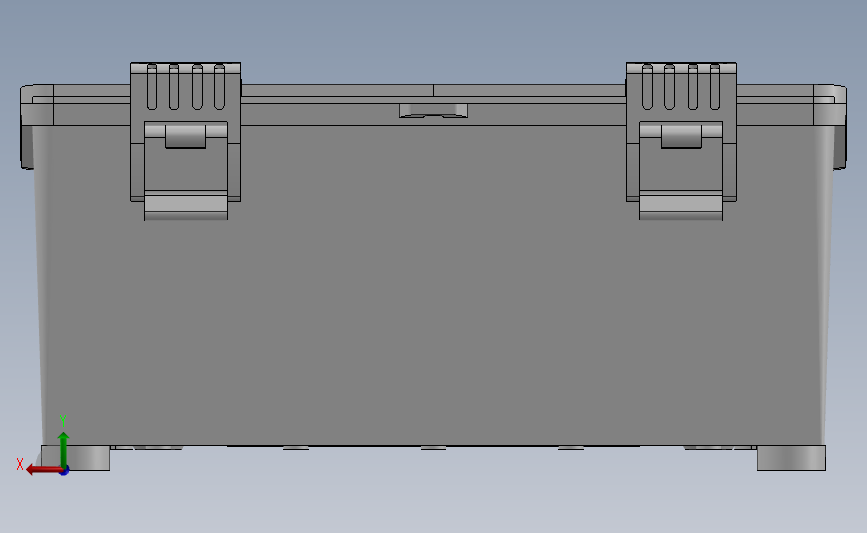

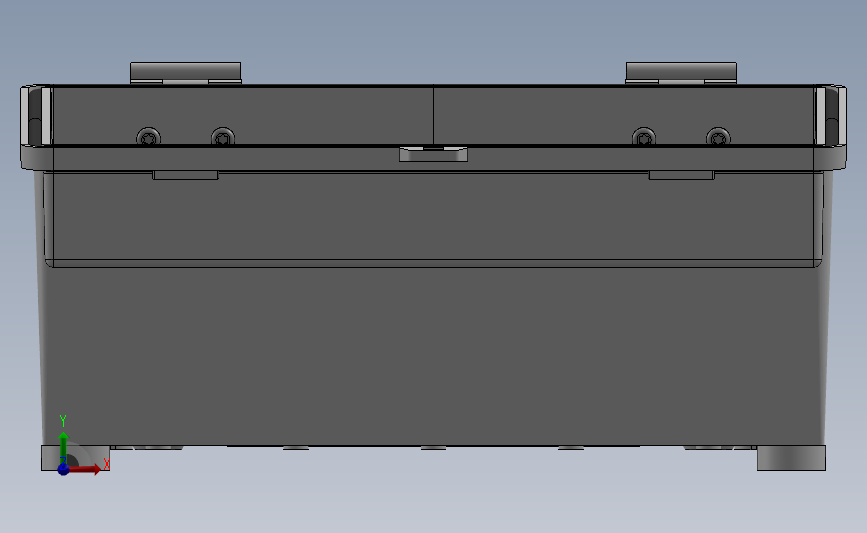

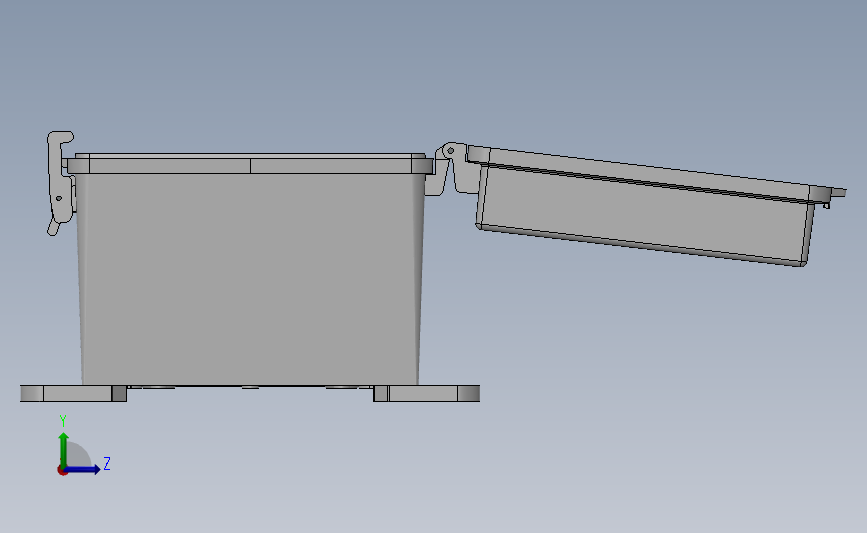

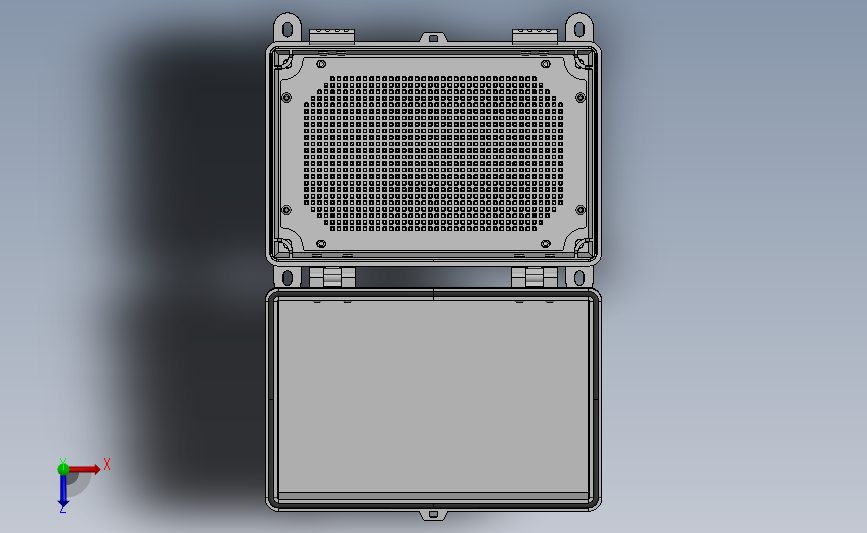

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16636590181033.zip	28.92M
2	Bottom Door Hinge, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	261.93K
3	Cover Door Hinge, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	271.62K
4	Cover, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	312.89K
5	Door Hinge Rod, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	62.96K
6	Door Hinge Subassy, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDASM	396.47K
7	Door Locking Bottom Hinge, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	163.32K
8	Door Locking Hinge Rod, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	60.59K
9	Door Locking Hinge, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	216.41K
10	Door Locking Latch Rod, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	61.49K
11	Door Locking Latch, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	93.71K
12	Enclosure, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	1.12M
13	IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDASM	1.53M
14	IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.STEP	13.87M
15	IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.x_b	6.27M
16	Locking Hinge Subassy, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDASM	432.63K
17	M5 x 12 mm Screw, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	445.13K
18	M5 x 8 mm Screw, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	405.30K
19	Mounting Bracket, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	201.78K
20	Mounting Plate, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	2.71M
21	O-ring, IP65 Junction Box with Lock, 300 mm x 200 mm x 170 mm.SLDPRT	115.25K
