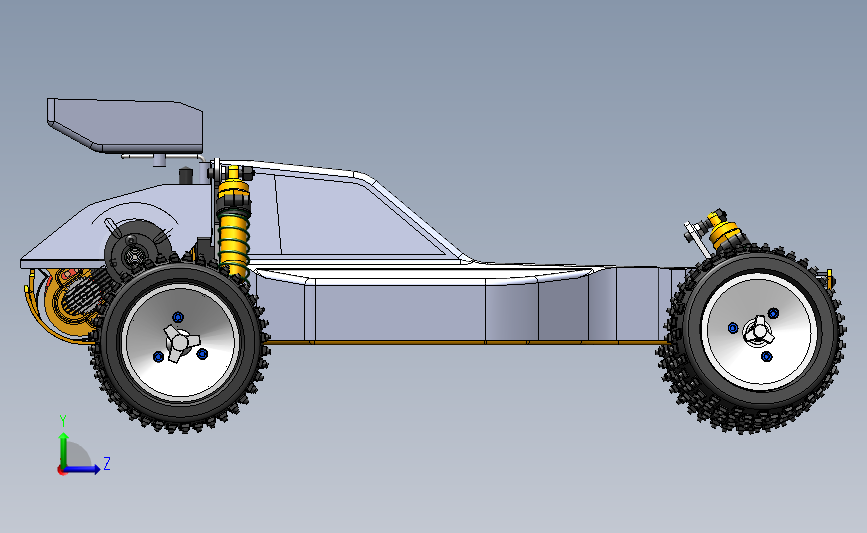

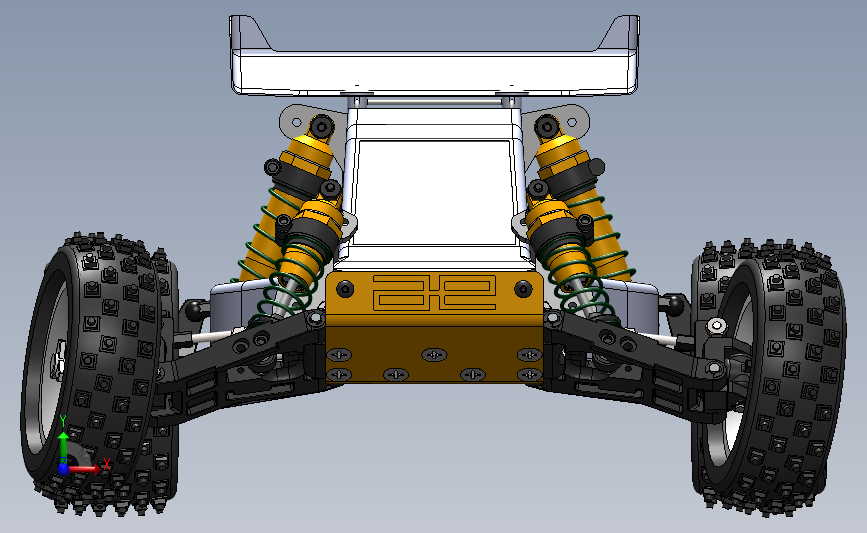

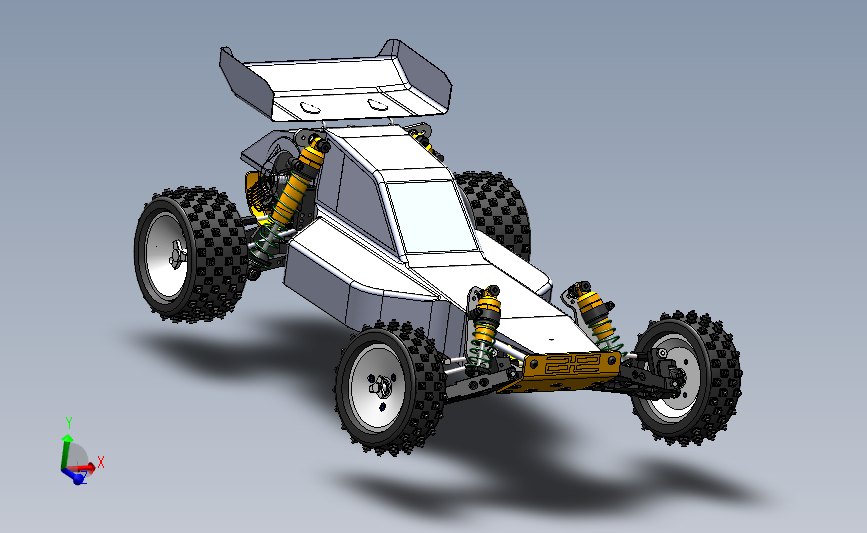

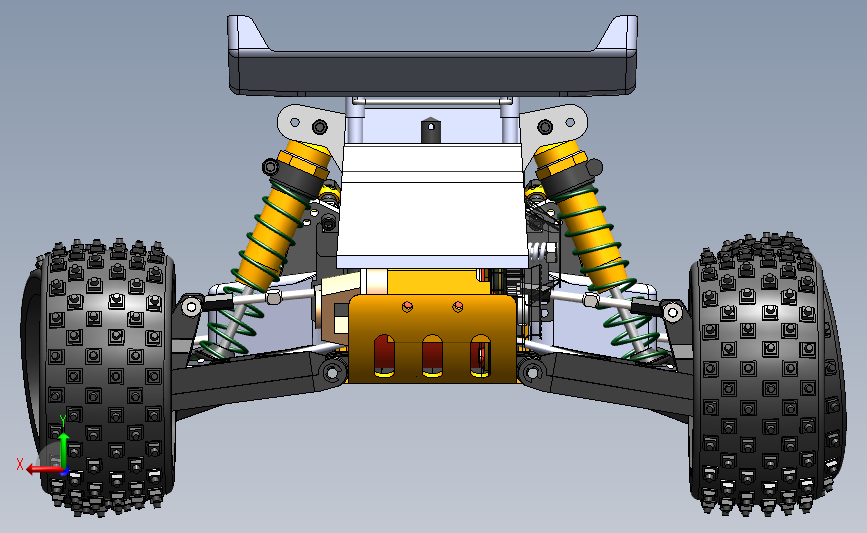

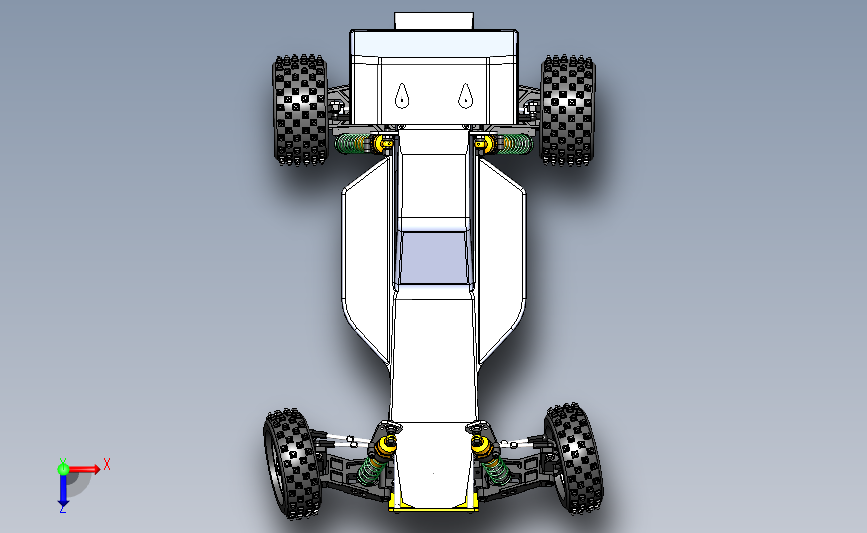

越野车带避震动力装置外星流程拉立车（ID:359017）
0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 16661061098561.zip | 160.99M |
| 2 | esc, novak T4.SLDPRT | 217.19K |
| 3 | RC10 FRONT TIRE - PROLINE - PART NUMBER UNKNOWN.SLDPRT | 192.87K |
| 4 | RC10 FRONT TIRE - TQ70 6870.SLDPRT | 5.14M |
| 5 | RC10 REAR TIRE - TQ20 6820.SLDPRT | 8.88M |
| 6 | RC10-5-40 NYLON LOCK NUT-6587 (MCMASTER 90631A006).SLDPRT | 378.17K |
| 7 | RC10-A ARM-REAR-6355.SLDPRT | 540.45K |
| 8 | RC10-ANTENNA MOUNT-6338.SLDPRT | 73.18K |
| 9 | RC10-AXLE-6220.SLDPRT | 114.68K |
| 10 | RC10-AXLE-REAR-6374.SLDPRT | 144.51K |
| 11 | RC10-BALL BEARING-DIFFERENTIAL-.09375.SLDPRT | 105.20K |
| 12 | RC10-BALL BEARING-DIFFERENTIAL-2mm.SLDPRT | 104.96K |
| 13 | RC10-BALL STUD-6270.SLDPRT | 120.55K |
| 14 | RC10-BALL STUD-6273.SLDPRT | 115.82K |
| 15 | RC10-BATTERY BAR-REEDY.SLDPRT | 155.92K |
| 16 | RC10-BATTERY CELL - SANYO 3600 Ni-MH.SLDPRT | 360.43K |
| 17 | RC10-BATTERY PACK.SLDASM | 296.56K |
| 18 | RC10-BATTERY STRAP - 6333.SLDPRT | 62.31K |
| 19 | RC10-BATTERY TRAY-6334.SLDPRT | 110.75K |
| 20 | RC10-BEARING-FLANGED-.25X.375X.125-8681.SLDPRT | 389.28K |
| 21 | RC10-BELL CRANK-MASTER-6255.SLDPRT | 186.24K |
| 22 | RC10-BELL CRANK-SLAVE-6255.SLDPRT | 108.78K |
| 23 | RC10-BLOCK (HUB) CARRIER-6213.SLDPRT | 523.49K |
| 24 | RC10-BODY POST-6330.SLDPRT | 65.51K |
| 25 | RC10-BODY-CUSTOM DESIGN.SLDPRT | 538.14K |
| 26 | RC10-BUSHING-BRONZE-.3125X.15625X.125-6597.SLDPRT | 126.52K |
| 27 | RC10-BUSHING-BRONZE-.3125X.1875X.125-6596.SLDPRT | 128.83K |
| 28 | RC10-BUSHING-BRONZE-.375X.1875X.125-6864.SLDPRT | 123.80K |
| 29 | RC10-BUSHING-BRONZE-.625X.375X.15625-6598.SLDPRT | 130.38K |
| 30 | RC10-C-CLIP - 6299 (MCMASTER 97431A240).SLDPRT | 111.36K |
| 31 | RC10-CHASSIS ASSEMBLY - GOLD PAN.SLDASM | 2.85M |
| 32 | RC10-CHASSIS-C STAMP.SLDPRT | 529.59K |
| 33 | RC10-CLUTCH DISK-6585.SLDPRT | 64.16K |
| 34 | RC10-CONE WASHER-.25-6388.SLDPRT | 88.58K |
| 35 | RC10-CONTROL ARM ASSEMBLY - FRONT.SLDASM | 562.22K |
| 36 | RC10-CONTROL ARM ASSEMBLY - REAR - LEFT.SLDASM | 876.69K |
| 37 | RC10-CONTROL ARM ASSEMBLY - REAR - RIGHT.SLDASM | 874.47K |
| 38 | RC10-DIFF BOLT THRUST COVER- 6575.SLDPRT | 91.42K |
| 39 | RC10-DIFF DRIVE RING-STEALTH TRANSMISSION-6579.SLDPRT | 114.33K |
| 40 | RC10-DIFF GEAR-STEALTH-6580.SLDPRT | 461.20K |
| 41 | RC10-DIFF THRUST SPRING-6582.SLDPRT | 241.46K |
| 42 | RC10-DIFF THRUST WASHER-STEALTH TRANSMISSION-6573.SLDPRT | 136.71K |
| 43 | RC10-DOG BONE-6370.SLDPRT | 106.45K |
| 44 | RC10-DRIVE GEAR ASSEMBLY-6571.SLDPRT | 273.48K |
| 45 | RC10-DUST COVER-TRANSMISSION GEARS-6608.SLDPRT | 716.86K |
| 46 | RC10-DUST SHIELD-FELT-6566.SLDPRT | 191.59K |
| 47 | RC10-FRONT CONTROL ARM (A-ARM) - 6206.SLDPRT | 685.83K |
| 48 | RC10-FRONT SUSPENSION MOUNTS - 6207.SLDPRT | 345.09K |
| 49 | RC10-FRONT WHEEL ASSEMBLY - 2.0.SLDASM | 2.31M |
| 50 | RC10-FRONT WHEEL ASSEMBLY -2.1.SLDASM | 717.16K |
| 51 | RC10-FRONT WHEEL-CENTER RING - 2.1.SLDPRT | 72.08K |
| 52 | RC10-FRONT WHEEL-INNER DISH - 2.0.SLDPRT | 102.01K |
| 53 | RC10-FRONT WHEEL-INNER DISH - 2.1.SLDPRT | 245.74K |
| 54 | RC10-FRONT WHEEL-OUTER DISH -2.0.SLDPRT | 504.32K |
| 55 | RC10-FRONT WHEEL-OUTER DISH -2.1.SLDPRT | 302.00K |
| 56 | RC10-GASKET FOR SHOCK CAP.SLDPRT | 60.83K |
| 57 | RC10-HINGE PIN-6223-6226-6227-6380-6381.SLDPRT | 171.94K |
| 58 | RC10-HUB ASSEMBLY - FRONT - LEFT.SLDASM | 238.92K |
| 59 | RC10-HUB ASSEMBLY - FRONT - RIGHT.SLDASM | 241.72K |
| 60 | RC10-HUB ASSEMBLY - REAR - LEFT.SLDASM | 954.75K |
| 61 | RC10-HUB ASSEMBLY - REAR - RIGHT.SLDASM | 959.93K |
| 62 | RC10-HUB CARRIER ASSEMBLY - FRONT - LEFT.SLDASM | 260.30K |
| 63 | RC10-HUB CARRIER ASSEMBLY - FRONT - RIGHT.SLDASM | 247.18K |
| 64 | RC10-HUB CARRIER-REAR-6366.SLDPRT | 195.86K |
| 65 | RC10-IDLER GEAR ASSEMBLY-6570.SLDPRT | 284.58K |
| 66 | RC10-INNER CLUTCH HUB-6583.SLDPRT | 92.95K |
| 67 | RC10-MAIN ASSEMBLY.SLDASM | 16.37M |
| 68 | RC10-MAIN ASSEMBLY.STEP | 68.18M |
| 69 | RC10-MOTOR MOUNT-6607.SLDPRT | 269.06K |
| 70 | RC10-MOTOR-TRINITY SPEED GEMS 2 - ORANGE.SLDPRT | 320.15K |
| 71 | RC10-NOSE BRACE TUBE-6320.SLDPRT | 73.40K |
| 72 | RC10-NOSE PLATE.SLDPRT | 279.39K |
| 73 | RC10-NUT(4-40_.25HEX)-6295.SLDPRT | 135.39K |
| 74 | RC10-NYLON NUT_4-40 (MCMASTER 94909A005).SLDPRT | 172.13K |
| 75 | RC10-NYLON NUT_8-32_.340 HEX-6296.SLDPRT | 72.96K |
| 76 | RC10-O-RING-6430.SLDPRT | 125.79K |
| 77 | RC10-OUTDRIVE-STEALTH TRANSMISSION-RH-6577.SLDPRT | 139.16K |
| 78 | RC10-OUTDRIVE-STEALTH TRANSMISSION-RH-6578.SLDPRT | 135.15K |
| 79 | RC10-OUTER CLUTCH HUB-6584.SLDPRT | 80.36K |
| 80 | RC10-PINION GEAR-MCMASTER 57655K18_14-1 2 Degree Pressure Angle Plastic Gear.SLDPRT | 716.19K |
| 81 | RC10-PLASTIC SHOCK SPACER-6467.SLDPRT | 60.48K |
| 82 | RC10-PLASTIC SHOCK WASHER 2-6467.SLDPRT | 60.86K |
| 83 | RC10-PLASTIC SHOCK WASHER-6467.SLDPRT | 59.63K |
| 84 | RC10-REAR BULKHEAD ASSEMBLY.SLDASM | 2.50M |
| 85 | RC10-REAR BULKHEAD-6323.SLDPRT | 358.56K |
| 86 | RC10-REAR SUSPENSION MOUNT(CASTOR BLOCK)-6360.SLDPRT | 328.41K |
| 87 | RC10-REAR WHEEL ASSEMBLY -2.0.SLDASM | 2.15M |
| 88 | RC10-REAR WHEEL-CENTER RING - 2.0.SLDPRT | 70.37K |
| 89 | RC10-REAR WHEEL-INNER DISH - 2.0.SLDPRT | 244.72K |
| 90 | RC10-REAR WHEEL-OUTER DISH -2.0.SLDPRT | 262.23K |
| 91 | RC10-REAR.JPG | 588.29K |
| 92 | RC10-RECIEVER-FUTABA FP-R112JE.SLDPRT | 84.91K |
| 93 | RC10-ROLL PIN-.09375-6375.SLDPRT | 57.56K |
| 94 | RC10-ROLL PIN-2mm-6572.SLDPRT | 57.75K |
| 95 | RC10-SCREW-2-56X.875- 6575 (MCMASTER 91251A826).SLDPRT | 1.01M |
| 96 | RC10-SCREW-4-40X.1875 - 6568 (MCMASTER 97763A319).SLDPRT | 470.38K |
| 97 | RC10-SCREW-4-40X.25 - 6288 (MCMASTER 97763A102).SLDPRT | 529.08K |
| 98 | RC10-SCREW-4-40X.3125 - 6932 (MCMASTER 91251A107).SLDPRT | 595.22K |
| 99 | RC10-SCREW-4-40X.375 - 6292 (MCMASTER 99926A104).SLDPRT | 522.98K |
| 100 | RC10-SCREW-4-40X.375-SHCS- 6860 (MCMASTER 98511A233).SLDPRT | 631.69K |
| 101 | RC10-SCREW-4-40X.5 - 6925 (MCMASTER 91251A110).SLDPRT | 1.10M |
| 102 | RC10-SCREW-4-40X.75 - 6927 (MCMASTER 91251A113).SLDPRT | 981.20K |
| 103 | RC10-SCREW-4-40X.75 - 6930 (MCMASTER 91251A113).SLDPRT | 487.37K |
| 104 | RC10-SCREW-4-40X1 - 6928 (MCMASTER 91251A115).SLDPRT | 2.26M |
| 105 | RC10-SCREW-8-32X.255- 6931 (MCMASTER 98070A156).SLDPRT | 349.89K |
| 106 | RC10-SCREW-8-32X.5- 6280 (MCMASTER 96640A350).SLDPRT | 727.12K |
| 107 | RC10-SCREW-8-32X.875- 6281 (MCMASTER 91099A468-SS).SLDPRT | 1022.26K |
| 108 | RC10-SERVO ARM (HORN).SLDPRT | 122.40K |
| 109 | RC10-SERVO MOUNT-6336.SLDPRT | 100.80K |
| 110 | RC10-SERVO SAVER ARM-6255.SLDPRT | 108.62K |
| 111 | RC10-SERVO-FUTABA FP-S148.SLDPRT | 220.01K |
| 112 | RC10-SET SCREW FOR SHAFT COLLAR-4-40X.125-6256 (MCMASTER 625691375A103).SLDPRT | 449.44K |
| 113 | RC10-SHAFT COLLAR-.125-6256.SLDPRT | 92.70K |
| 114 | RC10-SHOCK ASSEMBLY - FRONT.SLDASM | 1.32M |
| 115 | RC10-SHOCK ASSEMBLY - REAR.SLDASM | 1.39M |
| 116 | RC10-SHOCK BODY-.56-6455.SLDPRT | 130.89K |
| 117 | RC10-SHOCK BODY-1.32-6452.SLDPRT | 136.95K |
| 118 | RC10-SHOCK BUSHING-NYLON-6473.SLDPRT | 83.83K |
| 119 | RC10-SHOCK CAP-6463.SLDPRT | 117.03K |
| 120 | RC10-SHOCK COLLAR-LOWER-UNKOWN PART NUMBER.SLDPRT | 245.47K |
| 121 | RC10-SHOCK COLLAR-UPPER 2-UNKOWN PART NUMBER.SLDPRT | 71.79K |
| 122 | RC10-SHOCK COLLAR-UPPER-UNKOWN PART NUMBER.SLDPRT | 92.40K |
| 123 | RC10-SHOCK PISTON-6464.SLDPRT | 120.81K |
| 124 | RC10-SHOCK ROD END-BALL-6471.SLDPRT | 125.89K |
| 125 | RC10-SHOCK ROD END-PLASTIC-6471.SLDPRT | 134.63K |
| 126 | RC10-SHOCK SHAFT-FRONT.SLDPRT | 63.68K |
| 127 | RC10-SHOCK SHAFT-REAR.SLDPRT | 53.35K |
| 128 | RC10-SHOCK TOWER ASSEMBLY-FRONT.sldasm | 1.60M |
| 129 | RC10-SHOCK TOWER(STRUT)-FRONT-6231.SLDPRT | 154.75K |
| 130 | RC10-SHOCK TOWER(STRUT)-REAR-6378.SLDPRT | 134.41K |
| 131 | RC10-SNAP RING FOR SHOCKS - 99142A320.SLDPRT | 116.02K |
| 132 | RC10-SPACERS-STEALTH TRANSMISSION-6569.SLDPRT | 71.39K |
| 133 | RC10-SPRING-FRONT SHOCK-GREEN-6494.SLDPRT | 421.18K |
| 134 | RC10-SPRING-REAR SHOCK-GREEN-6480.SLDPRT | 488.85K |
| 135 | RC10-SPUR GEAR-81T-48P-6693.SLDPRT | 609.22K |
| 136 | RC10-STEALTH DIFFERENTIAL ASSEMBLY.sldasm | 1.43M |
| 137 | RC10-STEALTH TRANSMISSION ASSEMBLY.SLDASM | 4.56M |
| 138 | RC10-STEERING BLOCK-6221.SLDPRT | 268.82K |
| 139 | RC10-STEERING LINKAGE ASSEMBLY-6256.SLDASM | 335.44K |
| 140 | RC10-STEERING LINKAGE BAR 1-6256.SLDPRT | 74.94K |
| 141 | RC10-STEERING LINKAGE BAR 2-6256.SLDPRT | 71.55K |
| 142 | RC10-T NUT FOR DIFF - 6575.SLDPRT | 94.59K |
| 143 | RC10-THRUST BEARING - 6586(CLOSE TO MCMASTER 7806K53).SLDPRT | 371.82K |
| 144 | RC10-THUMB SCREW-UNKOWN MANUFACTURER.SLDPRT | 88.27K |
| 145 | RC10-TIE ROD ASSEMBLY.sldasm | 278.52K |
| 146 | RC10-TIE ROD END (BALL CUP)-6274.SLDPRT | 151.30K |
| 147 | RC10-TIE ROD-HANGAR 9-4-40.SLDPRT | 711.15K |
| 148 | RC10-TRANSMISSION BRACE-6325.SLDPRT | 86.28K |
| 149 | RC10-TRANSMISSION CASE-STEALTH-6565.SLDPRT | 1.97M |
| 150 | RC10-TRI WING NUT-UNKNOWN PART NUMBER.SLDPRT | 221.72K |
| 151 | RC10-WASHER-ALUMINUM-3323.SLDPRT | 60.81K |
| 152 | RC10-WASHER-ALUMINUM-6936.SLDPRT | 59.63K |
| 153 | RC10-WING ASSEMBLY.SLDASM | 400.47K |
| 154 | RC10-WING BUTTON-PART NUMBER UNKNOWN.SLDPRT | 126.42K |
| 155 | RC10-WING TUBE-6327.SLDPRT | 65.44K |
| 156 | RC10-WING WIRE-PART NUMBER UNKNOWN.SLDPRT | 72.11K |
| 157 | RC10-WING.SLDPRT | 182.17K |
此图纸下载需要70金币
立即下载
发布者
生动的花生
创作: 24425
粉丝: 149
加入时间：2021-12-22
模型信息
图纸格式：sldprt,sldasm,step
文件大小：164.86M
所需金币：70
上传时间：2022-10-18 23:18:53
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2019
