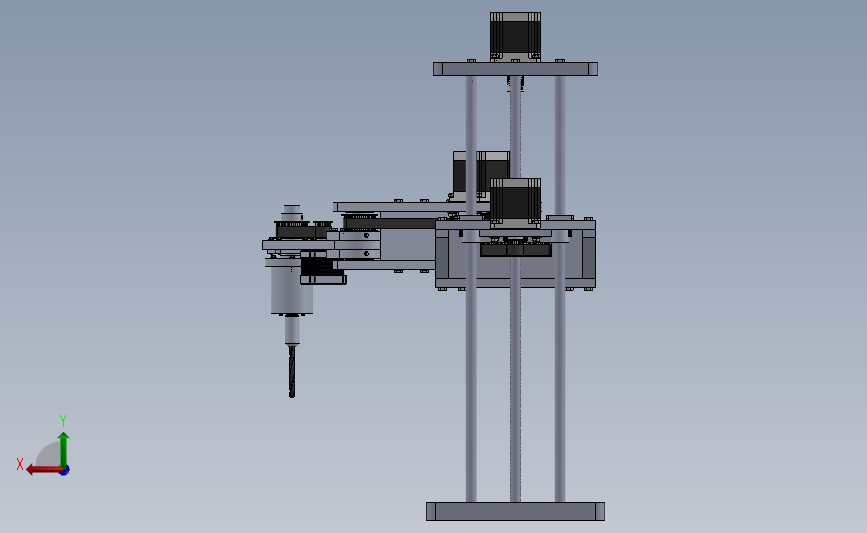

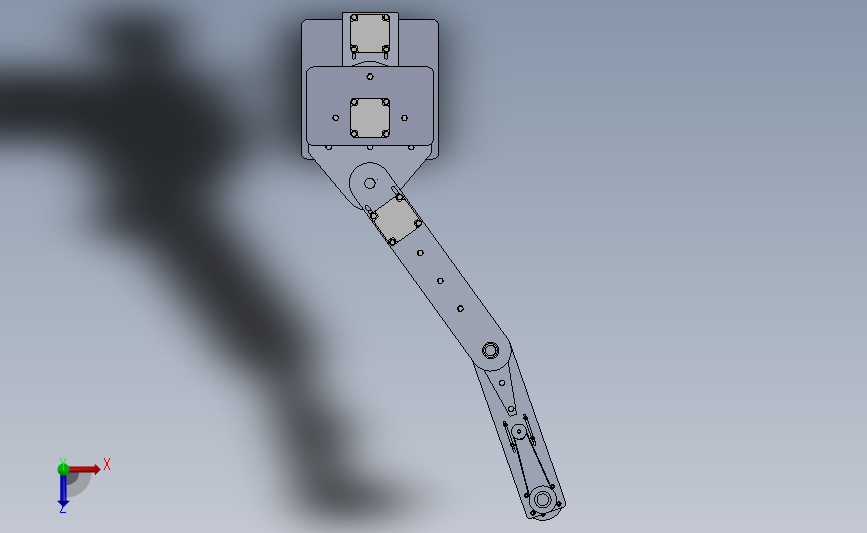

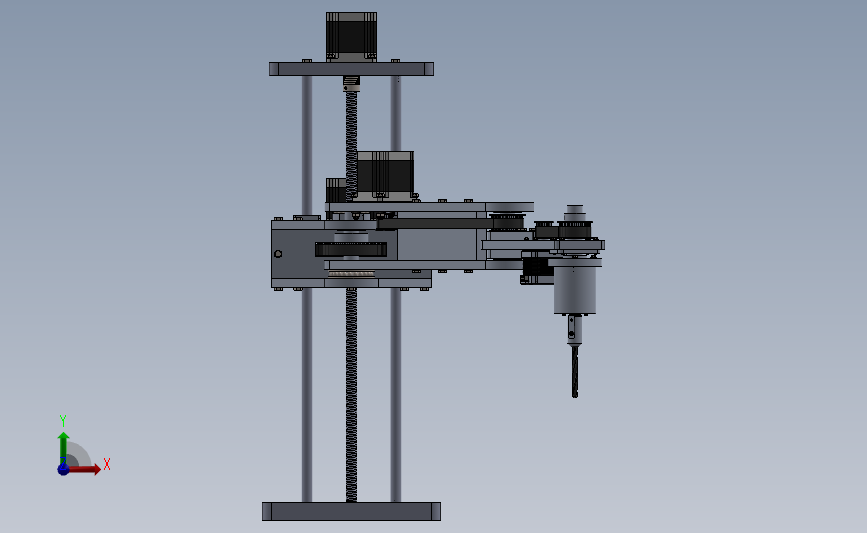

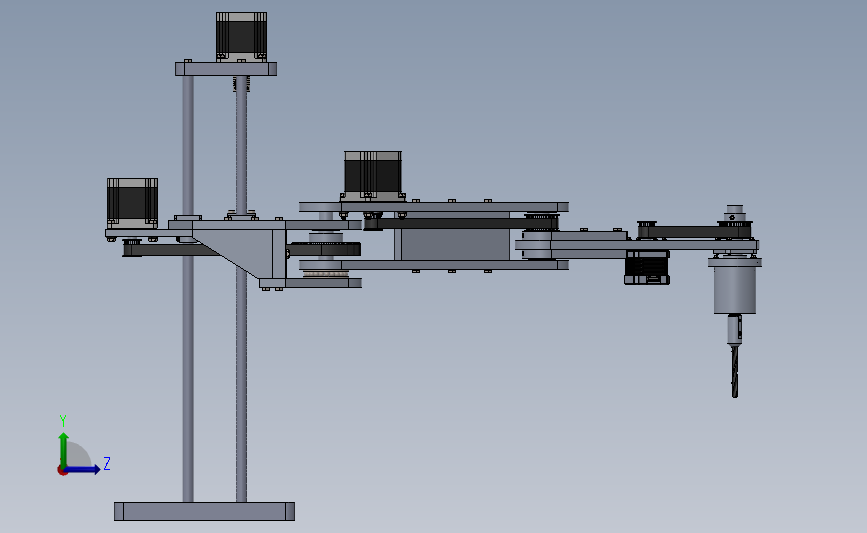

4自由度钻孔圆柱坐标机械臂(ID:363655)
# | 文件名称 | 文件大小 |
---|---|---|
1 | +必看说明+.txt | 144B |
2 | 1666663495107.zip | 22.29M |
3 | 【海量3D模型下载,三维模型免费下载】-开拔网.url | 129B |
4 | 17mm pulley.SLDPRT | 174.42K |
5 | 35mm pulley.SLDPRT | 205.65K |
6 | 77mm pulley.SLDPRT | 260.88K |
7 | Assem1.SLDASM | 7.21M |
8 | ball screw nut (the end) .SLDPRT | 92.60K |
9 | bearing holder (end effector).SLDPRT | 89.92K |
10 | bearing.SLDPRT | 426.26K |
11 | belt middel.SLDPRT | 63.55K |
12 | Belt2-1^Assem1.sldprt | 65.02K |
13 | Belt3-2^Assem1.sldprt | 67.31K |
14 | between upper and lower link 2 (the end) .SLDPRT | 86.32K |
15 | corner (the end__) .SLDPRT | 89.81K |
16 | crome rod (the end).SLDPRT | 46.99K |
17 | dc 555.SLDPRT | 227.83K |
18 | Dc motor house.SLDPRT | 81.97K |
19 | drill bit haha.SLDPRT | 258.38K |
20 | drill bit.SLDPRT | 287.97K |
21 | flexable coubling.SLDPRT | 1.17M |
22 | hex flange nut_am.sldprt | 229.77K |
23 | kopshaiah (the end) .SLDPRT | 79.34K |
24 | link 1 (the end) .SLDPRT | 181.22K |
25 | link 1 lower part (the end) .SLDPRT | 96.20K |
26 | link 1 upper part (the end) .SLDPRT | 102.68K |
27 | lower back holder (the end) .SLDPRT | 92.43K |
28 | lower base (the end).SLDPRT | 116.74K |
29 | lower end effector.SLDPRT | 68.83K |
30 | lower link 2 (the end) .SLDPRT | 103.92K |
31 | medium thrust bearing.SLDPRT | 534.22K |
32 | middel back holder (the end) .SLDPRT | 113.30K |
33 | nema 23 step motor.SLDPRT | 451.62K |
34 | new rod 1 (the end) .SLDPRT | 71.88K |
35 | new rod2 (the end) .SLDPRT | 72.93K |
36 | ring (the end) .SLDPRT | 78.94K |
37 | screw (the end) .SLDPRT | 2.56M |
38 | sliding bearing. (the end) SLDPRT.SLDPRT | 95.47K |
39 | small thrust bearing (the end) .SLDPRT | 372.47K |
40 | Step - Nema 17 - 17HS4401S - Usongshine.SLDPRT | 2.52M |
41 | stepper holder (the end ) .SLDPRT | 140.10K |
42 | THE end effector.SLDPRT | 99.44K |
43 | thrust bearing (the end) .SLDPRT | 464.02K |
44 | upper back holder (the end).SLDPRT | 155.42K |
45 | upper end-effector.SLDPRT | 50.79K |
46 | upper head (the end).SLDPRT | 145.71K |
47 | upper link 2 (the end) .SLDPRT | 126.51K |
48 | bottom.SLDPRT | 189.64K |
49 | cable guard.SLDPRT | 267.93K |
50 | nema23.SLDASM | 331.55K |
51 | preview.JPG | 225.76K |
52 | shaft.SLDPRT | 61.16K |
53 | top.SLDPRT | 156.93K |
54 | wire.SLDPRT | 80.99K |
55 | nema 23 step motor.IGS | 1.02M |
56 | nema 23 step motor.PNG | 288.71K |
57 | nema 23 step motor.SLDPRT | 425.00K |
58 | inside.sldprt | 88.97K |
59 | NEMA23.SLDASM | 167.83K |
60 | NEMA23.SLDPRT | 344.82K |
61 | NEMA23.STEP | 458.51K |
62 | Pin.SLDPRT | 61.72K |
63 | untitled.69.jpg | 299.59K |
64 | dc 555.JPG | 891.20K |
65 | dc 555.SLDPRT | 225.60K |
66 | dc 555.STEP | 221.29K |
此图纸下载需要7金币
立即下载
发布者
攘外必先安内。
创作: 75044
粉丝: 545
加入时间:2021-05-06
模型信息
图纸格式:sldprt,sldasm,igs,step
文件大小:22.83M
所需金币:7
上传时间:2022-10-25 10:05:19
是否可编辑:可修改,包括参数
版本:SOLIDWORKS 2018
