全自动车边机+上弹簧+相机检测3D数模图纸 Solidworks设计（ID:388603）

查找相似图纸

设备部件 / 工器具 / 全自动车边机+上弹簧+相机检测3D数模图纸 Solidworks设计

©非原创

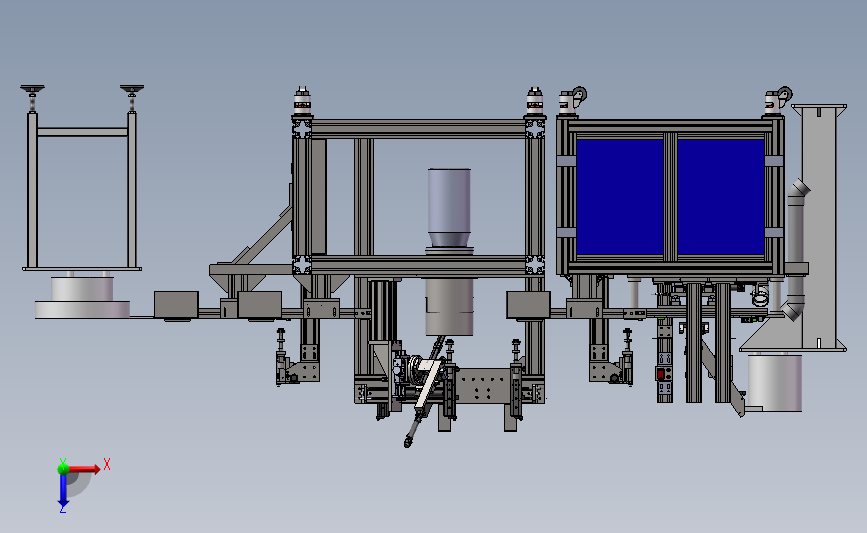

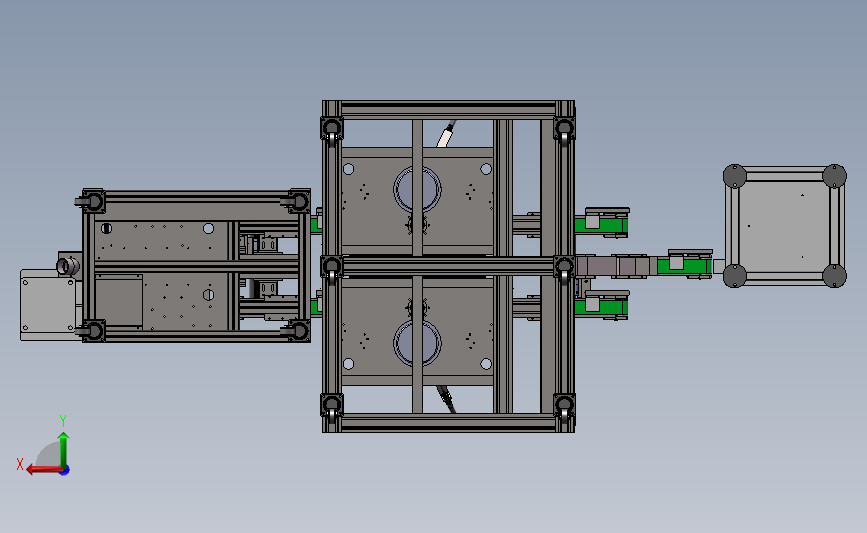

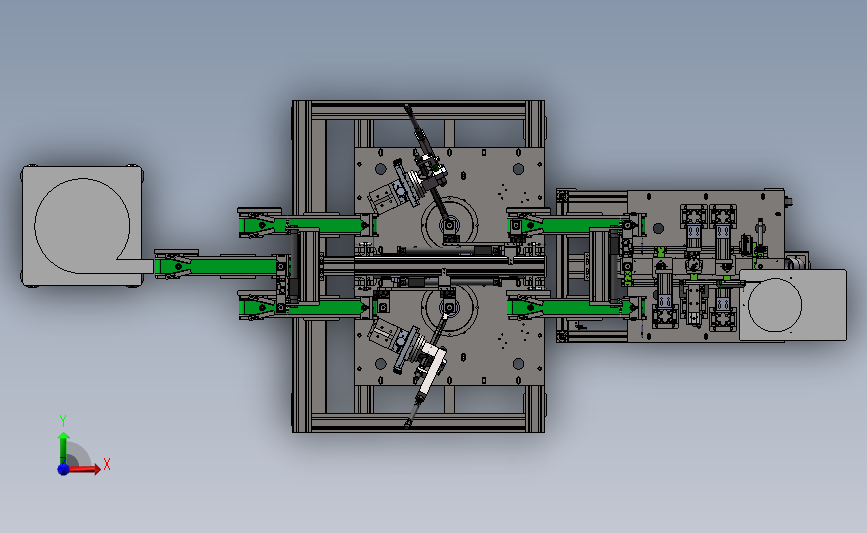

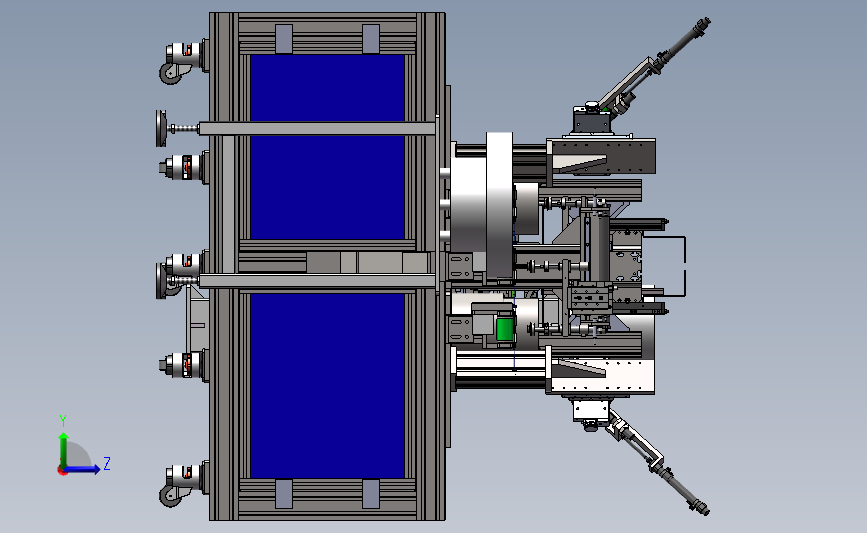

平面图

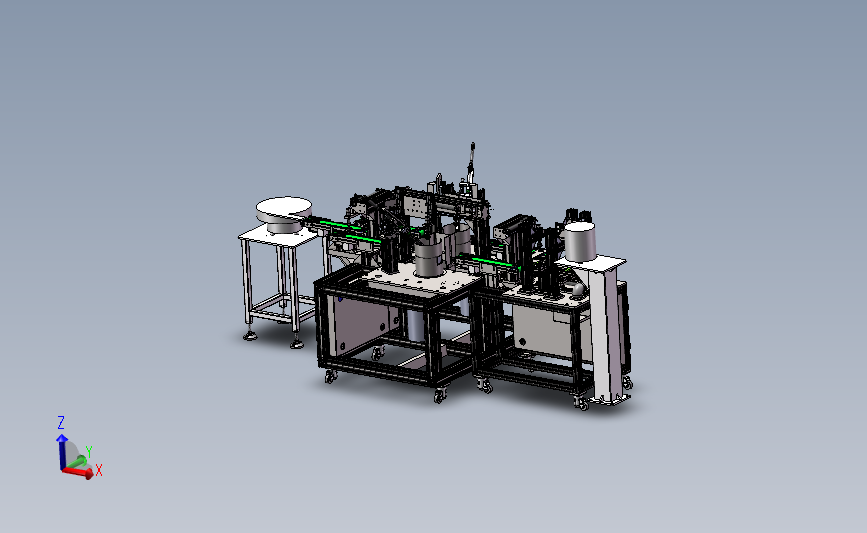

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	30-5（磁铁）.SLDPRT	54.43K
2	375×495×5铝塑门板.SLDPRT	42.06K
3	520×435×5铝塑门板.SLDPRT	43.59K
4	57HBP56AL4-TF8A.SLDPRT	86.21K
5	6201ZZ轴承.SLDPRT	90.86K
6	71810CD_P4.SLDASM	201.13K
7	8080-135.SLDPRT	48.53K
8	ABB11-G306-6060.SLDPRT	101.68K
9	ABB11-G408-8080.SLDPRT	91.18K
10	B6002ZZ.SLDPRT	127.81K
11	BCD检测及上簧.SLDASM	5.50M
12	BCD车边.SLDASM	5.52M
13	BET-CD80.SLDPRT	840.73K
14	BET-FT16X100-100R.SLDPRT	182.52K
15	BSYM25-410-F75-E35-B73-S12-P20-Q12-M20-N12.SLDASM	141.82K
16	CDJ2L16_75Z_M9B_A_0_1_0_.sldasm	121.59K
17	CDM2B20-125Z-M9N_0_0_0_.SLDASM	144.64K
18	CDQ2WA16-15DMZ-M9N_0_0_0__1.ASM.sldasm	142.98K
19	CY3B25-150_0_0_0_.SLDASM	98.03K
20	CY3B25-200_0_0_0_.SLDASM	93.49K
21	CY3B25-300_0_0_0_.SLDASM	88.50K
22	DZ-CB-CBZJ.006.SLDPRT	159.71K
23	DZ-CB-CBZJ.007.SLDPRT	208.74K
24	DZ-CB-CBZJ.008.SLDPRT	108.20K
25	DZ-CB-CBZJ.009.SLDPRT	211.92K
26	DZ-CB-SSX.001.SLDPRT	126.12K
27	DZ-CB-SSX.002.SLDPRT	117.45K
28	DZ-CB-SSX.003.SLDPRT	103.52K
29	DZ-CB-SSX.004.SLDPRT	124.19K
30	DZ-CB-SSX.005.SLDPRT	134.69K
31	DZ-CB-SSX.006.SLDPRT	134.62K
32	DZ-CB-SSX.007.SLDPRT	155.91K
33	DZ-CB-SSX.008.SLDPRT	82.51K
34	DZ-CB-SSX.009.SLDPRT	336.61K
35	DZ-CB-SSX.010.SLDPRT	140.48K
36	DZ-CB-SSX.011.SLDPRT	78.88K
37	DZ-CB-SSX.012.SLDPRT	95.01K
38	EG15_RAIL.sldprt	40.85K
39	EGH15SA-160.SLDASM	186.23K
40	EGH15SA_BLOCK.sldprt	217.92K
41	EX-11EAD.sldasm	75.35K
42	EX-11EAD_______.PRT.sldprt	34.90K
43	EX-11EAP_______.PRT.sldprt	31.07K
44	fd-r32eg.SLDPRT	68.04K
45	FWR15_30_A.sldprt	55.90K
46	GB／T5781-2000[六角头螺栓全螺纹C级M5×10].sldprt	186.37K
47	GB／T70.1-2008[内六角圆柱头螺钉M5×30].sldprt	150.23K
48	GB／T70.3-2008[内六角沉头螺钉M4×8].sldprt	130.84K
49	HGH15.sldprt	247.03K
50	HGH15CA-270.SLDASM	168.57K
51	HGH15CA-390.SLDASM	178.89K
52	HGH15CA-570.SLDASM	176.41K
53	HGH15_1.sldprt	246.44K
54	HGR15-270.SLDPRT	117.91K
55	HGR15.sldprt	122.24K
56	HGR15_1.sldprt	123.07K
57	HLB40.SLDPRT	145.06K
58	HR15.SLDASM	93.01K
59	JA5-25.SLDPRT	117.36K
60	LHMSW12.sldprt	137.60K
61	Mako_STEP.SLDPRT	3.34M
62	MC-8-3030-001.SLDPRT	65.53K
63	MC-8-3030-002.SLDPRT	66.41K
64	MC-8-3030-003.SLDPRT	65.97K
65	MC-8-3030-004.SLDPRT	67.29K
66	MC-8-3030-005.SLDPRT	67.73K
67	MC-8-3030-006.SLDPRT	66.64K
68	MC-8-4080-001.SLDPRT	52.36K
69	MC-8-4080-002.SLDPRT	47.32K
70	MC-8-4080-003.SLDPRT	45.58K
71	MC-8-4080-004.SLDPRT	45.64K
72	MC-8-50100-001.SLDPRT	58.69K
73	MC-8-5050W-001.SLDPRT	179.22K
74	MC-8-5050W-002.SLDPRT	181.45K
75	MC-8-5050W-003.SLDPRT	181.96K
76	MC-8-5050W-004.SLDPRT	176.10K
77	MC-8-5050W-005.SLDPRT	195.77K
78	MC-8-6060-001.SLDPRT	268.21K
79	MC-8-6060-002.SLDPRT	229.09K
80	MC-8-6060-003.SLDPRT	246.57K
81	MC-8-6060-004.SLDPRT	248.79K
82	MC-8-8080-001.SLDPRT	310.01K
83	MC-8-8080-002.SLDPRT	306.18K
84	MC-8-8080-003.SLDPRT	318.18K
85	MC-8-8080-004.SLDPRT	307.64K
86	MC-8-8080-005.SLDPRT	331.24K
87	MC4545-10万能系列合页.SLDPRT	44.08K
88	MCBAS8_20.sldprt	85.22K
89	MHF2-20D1-M9N_40_0_.SLDASM	109.96K
90	MXH10_40Z_M9N_0_0_0_.sldasm	152.17K
91	MXS12-100A_0_0_.SLDASM	168.45K
92	MXS12_75A_M9N_0_0_.sldasm	184.58K
93	MXS16-50A_0_0_.SLDASM	178.61K
94	PSPJD12_125_F12_B9_P10_N8_SC99.sldprt	90.51K
95	PTPA16P5M100_A_P8.sldasm	159.92K
96	PTPA28P5M150_B_N19.sldasm	23.92K
97	PTPA36P5M150_B_N19.sldasm	190.97K
98	RB1006_0_.SLDASM	115.61K
99	SC0802-P.SLDPRT	68.85K
100	SCS12_10.sldasm	99.76K
101	SJ2019012-ST001-001.SLDPRT	121.85K
102	SJ2019012-ST001-002.SLDPRT	116.89K
103	SJ2019012-ST001-003.SLDPRT	82.22K
104	SJ2019012-ST001-004.SLDPRT	110.93K
105	SJ2019012-ST001-005.SLDPRT	178.57K
106	SJ2019012-ST001-006.SLDPRT	125.26K
107	SJ2019012-ST001-007.SLDPRT	104.91K
108	SJ2019012-ST001-008.SLDPRT	106.55K
109	SJ2019012-ST001-009.SLDPRT	153.11K
110	SJ2019012-ST001-010.SLDPRT	150.49K
111	SJ2019012-ST001分料机构.SLDASM	1.06M
112	SJ2019012-ST002-001.SLDPRT	96.72K
113	SJ2019012-ST002-002.SLDPRT	116.44K
114	SJ2019012-ST002-003.SLDPRT	100.89K
115	SJ2019012-ST002-004.SLDPRT	74.38K
116	SJ2019012-ST002-005.SLDPRT	106.23K
117	SJ2019012-ST002-006.SLDPRT	191.66K
118	SJ2019012-ST002上下料机构.SLDASM	1.11M
119	SJ2019012-ST004-001.SLDPRT	337.68K
120	SJ2019012-ST004-002.SLDPRT	131.65K
121	SJ2019012-ST004-003.SLDPRT	214.65K
122	SJ2019012-ST004-004.SLDPRT	291.30K
123	SJ2019012-ST004-005.SLDPRT	169.12K
124	SJ2019012-ST004-006.SLDPRT	221.08K
125	SJ2019012-ST004型材架1.SLDASM	1.08M
126	SJ2019012-ST007-001.SLDPRT	175.62K
127	SJ2019012-ST007-002.SLDPRT	192.33K
128	SJ2019012-ST007-003.SLDPRT	143.62K
129	SJ2019012-ST007-004.SLDPRT	111.47K
130	SJ2019012-ST007-005.SLDPRT	87.66K
131	SJ2019012-ST007-006.SLDPRT	100.63K
132	SJ2019012-ST007-007.SLDPRT	94.38K
133	SJ2019012-ST007-008.SLDPRT	98.36K
134	SJ2019012-ST007-009.SLDPRT	78.10K
135	SJ2019012-ST007-010.SLDPRT	78.05K
136	SJ2019012-ST007-011.SLDPRT	66.00K
137	SJ2019012-ST007-012.SLDPRT	173.25K
138	SJ2019012-ST007-013.SLDPRT	66.81K
139	SJ2019012-ST007-014.SLDPRT	92.65K
140	SJ2019012-ST007-015.SLDPRT	90.04K
141	SJ2019012-ST007-016.SLDPRT	97.08K
142	SJ2019012-ST007夹持机构.SLDASM	1.07M
143	SJ2019012-ST008-001.SLDPRT	346.27K
144	SJ2019012-ST008-002.SLDPRT	145.94K
145	SJ2019012-ST008-003.SLDPRT	209.90K
146	SJ2019012-ST008-004.SLDPRT	324.48K
147	SJ2019012-ST008-005.SLDPRT	99.86K
148	SJ2019012-ST008型材架2.SLDASM	1.01M
149	SJ2019012-ST010-001.SLDPRT	112.99K
150	SJ2019012-ST010-002.SLDPRT	104.50K
151	SJ2019012-ST010-003.SLDPRT	117.30K
152	SJ2019012-ST010-004.SLDPRT	100.94K
153	SJ2019012-ST010-005.SLDPRT	120.37K
154	SJ2019012-ST010-006.SLDPRT	107.87K
155	SJ2019012-ST010-007.SLDPRT	99.13K
156	SJ2019012-ST010-008.SLDPRT	88.68K
157	SJ2019012-ST010-009.SLDPRT	108.85K
158	SJ2019012-ST010-010.SLDPRT	87.81K
159	SJ2019012-ST010-011.SLDPRT	136.26K
160	SJ2019012-ST010-012.SLDPRT	109.43K
161	SJ2019012-ST010-013.SLDPRT	81.62K
162	SJ2019012-ST010-014.SLDPRT	116.26K
163	SJ2019012-ST010-015.SLDPRT	108.83K
164	SJ2019012-ST010-016.SLDPRT	109.92K
165	SJ2019012-ST010弹簧下压机构.SLDASM	649.66K
166	SJ2019012-ST011-001.SLDPRT	90.65K
167	SJ2019012-ST011-002.SLDPRT	113.20K
168	SJ2019012-ST011-003.SLDPRT	108.66K
169	SJ2019012-ST011-004.SLDPRT	93.60K
170	SJ2019012-ST011-005.SLDPRT	70.29K
171	SJ2019012-ST011-006.SLDPRT	74.38K
172	SJ2019012-ST011-007.SLDPRT	86.04K
173	SJ2019012-ST011-008.SLDPRT	95.05K
174	SJ2019012-ST011-009.SLDPRT	66.28K
175	SJ2019012-ST011-010.SLDPRT	92.62K
176	SJ2019012-ST011弹簧上料机构.SLDASM	727.61K
177	SJ2019012-ST015-001.SLDPRT	82.00K
178	SJ2019012-ST015相机机构.SLDASM	2.01M
179	SJ2019012-ST019输送线.SLDASM	661.33K
180	SJ2019012-ST020-001.SLDPRT	128.71K
181	SJ2019012-ST020-002.SLDPRT	165.49K
182	SJ2019012-ST020-003.SLDPRT	110.82K
183	SJ2019012-ST020-004.SLDPRT	130.16K
184	SJ2019012-ST020-005.SLDPRT	91.14K
185	SJ2019012-ST020-006.SLDPRT	45.19K
186	SJ2019012-ST020-007.SLDPRT	79.88K
187	SJ2019012-ST020车边机构1.SLDASM	1.46M
188	SJ2019012-ST021-001.SLDPRT	81.45K
189	SJ2019012-ST021-002.SLDPRT	160.45K
190	SJ2019012-ST021-003.SLDPRT	129.02K
191	SJ2019012-ST021-004.SLDPRT	98.78K
192	SJ2019012-ST021-005.SLDPRT	80.97K
193	SJ2019012-ST021-006.SLDPRT	81.14K
194	SJ2019012-ST021-007.SLDPRT	166.61K
195	SJ2019012-ST021-008.SLDPRT	162.97K
196	SJ2019012-ST021-009.SLDPRT	118.41K
197	SJ2019012-ST021-010.SLDPRT	68.81K
198	SJ2019012-ST021主轴机构.SLDASM	703.48K
199	SJ2019012-ST023车边机构2.SLDASM	1.39M
200	Skin_Group1.sldprt	26.70K
201	Skin_Group2.sldprt	28.59K
202	Skin_Group3.sldprt	32.99K
203	Skin_Group4.sldprt	24.61K
204	Skin_Group6.sldprt	26.65K
205	Skin_Group7.sldprt	26.18K
206	Skin_Group8.sldprt	24.88K
207	SX-8-4080EGL-001MC-8-4080GA-001.SLDPRT	59.88K
208	SX-8-50100EB-001MC-8-50100-001.SLDPRT	96.57K
209	SX-8-80120E-001MC-8-80120-001.SLDPRT	359.25K
210	SX-8-80120E-002MC-8-80120-002.SLDPRT	297.14K
211	SX-8-8080E-001MC-8-8080-001.SLDPRT	366.43K
212	SX-8-8080E-002MC-8-8080-002.SLDPRT	392.31K
213	SX-8-8080E-003MC-8-8080-003.SLDPRT	357.29K
214	SX-8-8080E-004MC-8-8080-004.SLDPRT	379.69K
215	VX210AA0.SLDASM	110.50K
216	XL125H-75G.SLDPRT	1.78M
217	YEJ-80电机.SLDPRT	137.25K
218	Z_15GS_B.SLDASM	65.60K
219	Z_15GS_B_ACTUATOR.sldprt	25.57K
220	Z_15GS_B_BASE.sldprt	31.56K
221	_71810CD_P4_PART1.sldprt	29.10K
222	_71810CD_P4_PART2.sldprt	28.87K
223	_71810CD_P4_PART3.sldprt	25.26K
224	_BQ2_012_16_M9B_A_15.sldprt	55.23K
225	_BQ_2_M9B_CJ2_Z_13.sldprt	36.00K
226	_BSSS25_nr_1.sldprt	49.59K
227	_BSYM25-410-F75-E35-B73-S12-P20-Q12-M20-N12_b.sldprt	38.00K
228	_CDQ2WA16-15M-M9N_0__0__BODY.PRT.sldprt	48.74K
229	_CDQ2WA16-15MM9N_0__0__CYROD.PRT.sldprt	36.13K
230	_CJ2L16_75Z_M9B_A_1_0__BODY_2.sldprt	73.90K
231	_CJ2L16_75Z_ROD_4.sldprt	34.78K
232	_CJ2_Z_16_M9B_17.sldprt	33.86K
233	_CJ2_Z_CJ_L016C_11.sldprt	35.74K
234	_CM2-Z_D-M9N_BM5-02020_125.sldprt	64.42K
235	_CM2B20-125Z0_BODY.sldprt	37.88K
236	_CM2B20-125Z0_ROD.sldprt	29.72K
237	_CM2_SN-020B20.sldprt	82.80K
238	_CY3B25-1500_CT.sldprt	33.16K
239	_CY3B25-2000_CT.sldprt	34.08K
240	_CY3B25-3000_CT.sldprt	33.56K
241	_CY3B250_BODY.sldprt	30.88K
242	_CY3B250_BODY_1.sldprt	31.59K
243	_CY3B250_BODY_2.sldprt	32.81K
244	_CY3B_25SN-032B.sldprt	31.59K
245	_CY3B_25SN-032B_1.sldprt	30.79K
246	_CY3B_25SN-032B_2.sldprt	31.37K
247	_D_M9N_CQ2W_16_.PRT.8.sldprt	36.50K
248	_D_M9N_MXH_Z_6.sldprt	36.27K
249	_MHF2-20D1_Body0.sldprt	53.57K
250	_MHF2-20D1_Finger0.sldprt	39.45K
251	_MHF2_D-M9N.sldprt	36.04K
252	_MXH10_40Z_0__BODY_2.sldprt	160.52K
253	_MXH10_40Z_0__TABLE_4.sldprt	97.43K
254	_MXS-AS12_AOP-BM.sldprt	41.25K
255	_MXS-AS12_AOP-TM.sldprt	33.63K
256	_MXS-AS16_AOP-BM.sldprt	42.33K
257	_MXS-AS16_AOP-TM.sldprt	34.66K
258	_MXS-AT12_AOP.sldprt	51.98K
259	_MXS-AT16_AOP.sldprt	52.83K
260	_MXS12-1000_BODY.sldprt	65.00K
261	_MXS12-100A0_ROD.sldprt	62.62K
262	_MXS12_75A_0__ROD_4.sldprt	133.96K
263	_MXS12_75_0__BODY_2.sldprt	136.08K
264	_MXS16-500_BODY.sldprt	64.16K
265	_MXS16-50A0_ROD.sldprt	59.30K
266	_MXS_AS12_75A_AOP_TM_6.sldprt	48.93K
267	_MXS_AS12_AOP_BM_8.sldprt	64.50K
268	_MXS_AT12_AOP_10.sldprt	87.43K
269	_MXS_D_M9N_12__12.sldprt	38.09K
270	_NT-015A_CQ2_.PRT.6.sldprt	37.16K
271	_NT-02_CM220.sldprt	78.78K
272	_NTJ_015C_6.sldprt	45.83K
273	_PTPA16P5M100_A_P8_b_2.sldprt	202.56K
274	_PTPA28P5M150_B_N19_b_2.sldprt	246.83K
275	_PTPA36P5M150_B_N19_b_2.sldprt	296.05K
276	_RB10060_BODY.sldprt	31.82K
277	_RB10J.sldprt	36.07K
278	_SCS12_10b_2.sldprt	63.60K
279	_SET_SCREW4_3_4.sldprt	40.90K
280	_SET_SCREW6_5_4.sldprt	40.34K
281	_Slotted_head_cap_screw_ISO_4762___M4x12_4.sldprt	46.57K
282	_SNJ_016C_9.sldprt	54.89K
283	_VX210A0_BODY.sldprt	65.73K
284	_VX210A_COIL.sldprt	56.46K
285	下料弯管.SLDPRT	114.31K
286	下料弯管2.SLDPRT	119.99K
287	下料直管1.SLDPRT	62.40K
288	下料直管2.SLDPRT	62.57K
289	下料直管3.SLDPRT	74.87K
290	下料直角管.SLDPRT	168.09K
291	光源支架.SLDPRT	146.84K
292	刀.SLDPRT	51.56K
293	卡盘垫环.SLDPRT	61.20K
294	卡盘支承.SLDPRT	105.06K
295	大弹簧.SLDPRT	129.28K
296	大橡胶圈.SLDPRT	134.68K
297	夹头罩.SLDPRT	115.97K
298	小弹簧.SLDPRT	130.51K
299	小橡胶圈.SLDPRT	129.78K
300	弹簧振动盘.SLDPRT	197.05K
301	总装体.SLDASM	9.41M
302	总装体.STEP	59.39M
303	拖链支架.SLDPRT	117.43K
304	橡胶圈振动盘.SLDPRT	326.39K
305	直角支架50型5050.sldprt	92.36K
306	真空吸盘组件.SLDASM	435.52K
307	胶圈振动盘组件.SLDASM	146.98K
308	车刀组件.SLDASM	484.14K
309	车边电机组件.SLDASM	258.17K
310	车边驱动同步带.SLDPRT	67.47K
311	输送线平皮带（绿色）.SLDPRT	57.82K
312	输送线驱动同步带.SLDPRT	65.83K
313	铝塑板门.SLDASM	62.06K
314	铝塑板门2.SLDASM	59.43K
315	飞边废料滑道组件.SLDASM	98.11K
