SCARA四轴机械臂（ID:420764）

机械设备 / 非标机械 / SCARA四轴机械臂

©非原创

104

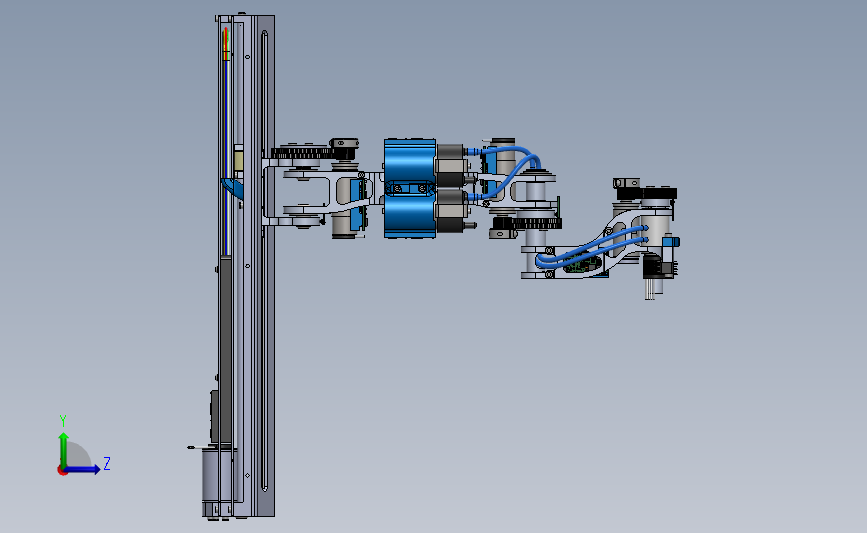

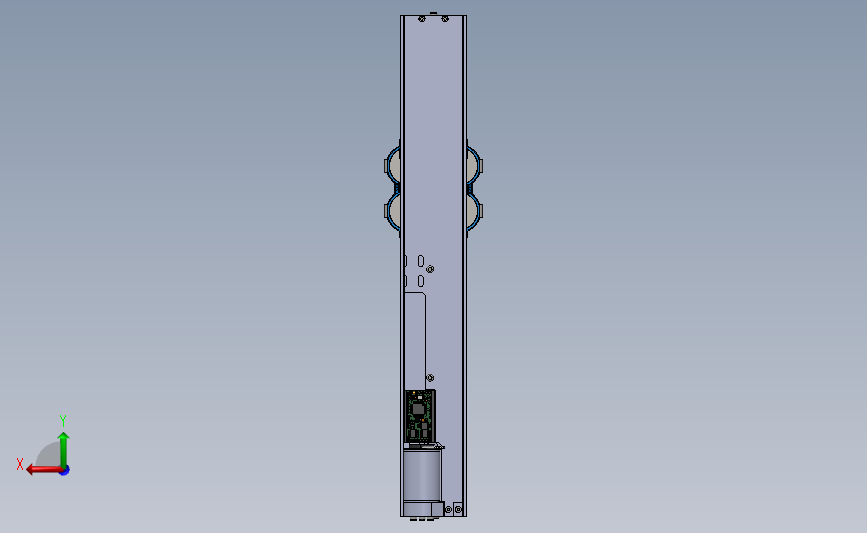

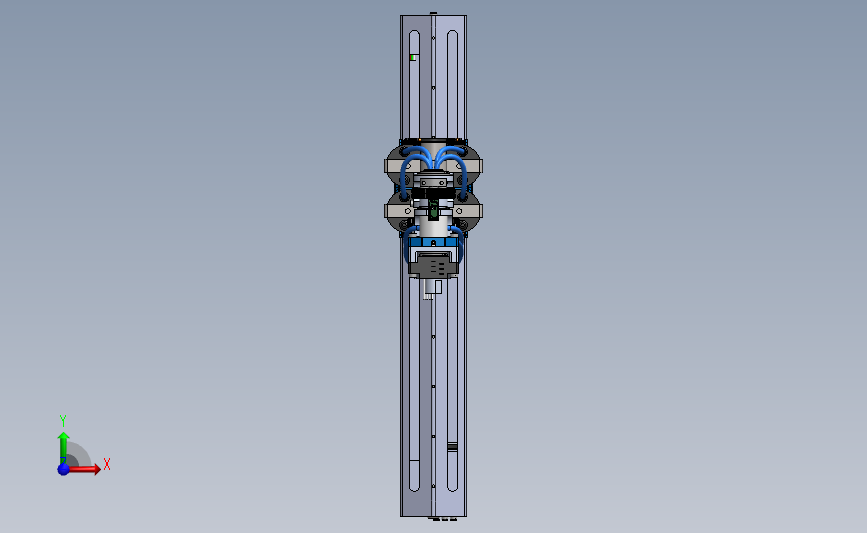

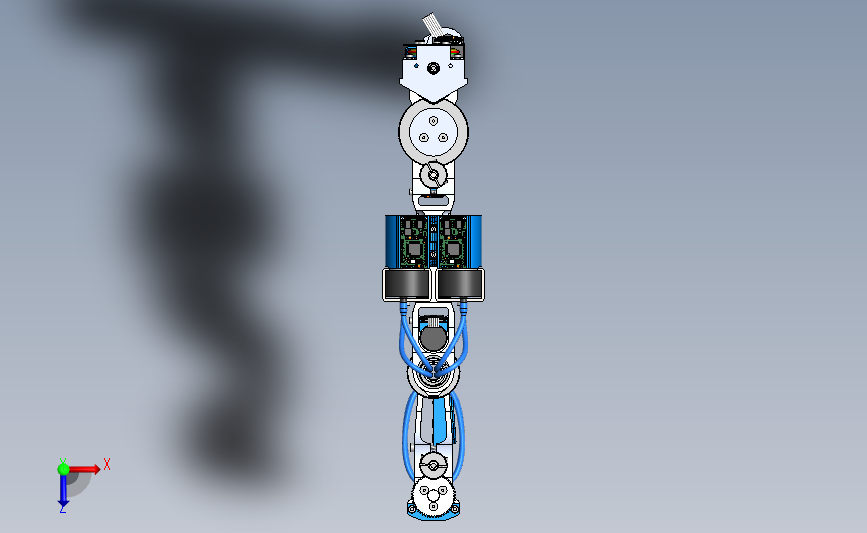

平面图

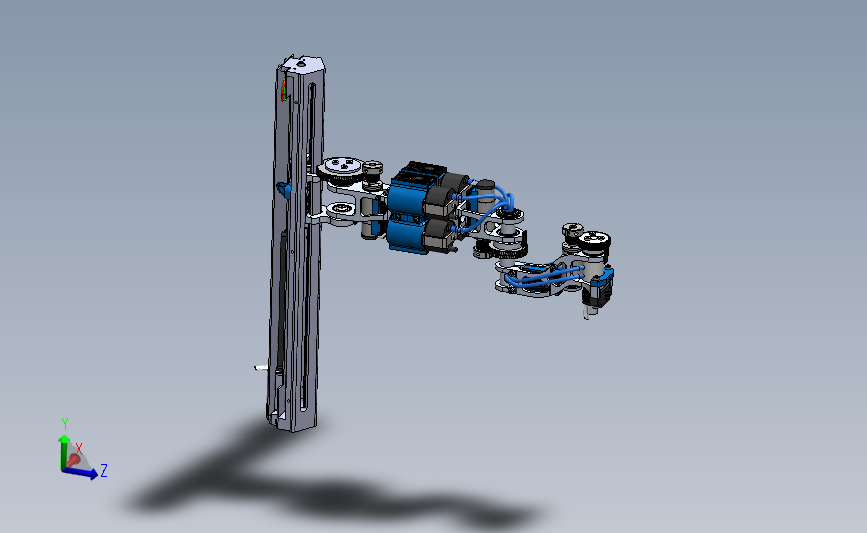

3D视图

文件列表

#	文件名称	文件大小
1	16715470404551.rar	42.44M
2	ASM_000015_Bras1.PNG	1.48M
3	ASM_000015_Bras2.PNG	1.06M
4	ASM_000015_Bras3.PNG	1.83M
5	ASM_BrasV2.STEP	41.07M
6	ASM_000016_Base-bras.SLDASM	1.72M
7	ASM_000017_Epaule.SLDASM	693.05K
8	ASM_000018_Arriere-bras.SLDASM	2.74M
9	ASM_000019_Avant-bras.SLDASM	2.59M
10	ASM_000033_Carte-capteur-Hall.SLDASM	85.24K
11	ASM_000044_Axe-prehenseur.SLDASM	458.96K
12	ECR_HEX_0.8D.SLDPRT	192.60K
13	GUP_ELA.SLDPRT	86.94K
14	OEM_Allegro_A1106_Capteur-Hall.SLDPRT	116.68K
15	OEM_AP_11.2003.0032_ORM0080-10.SLDPRT	99.69K
16	OEM_Bossard_BN1277-M2.5.SLDPRT	79.08K
17	OEM_Digikey_Resistance-0604.SLDPRT	47.36K
18	OEM_Faulhaber_1516-012-SR_15_-76__IE2-1024.SLDPRT	130.87K
19	OEM_Faulhaber_1524-012-SR_15-8_IE2.SLDPRT	167.46K
20	OEM_Faulhaber_2232-012-SR_IE2-1024.SLDPRT	140.68K
21	OEM_Gd-thomas_G02-4EB.SLDPRT	158.56K
22	OEM_Hiwin_MGN7CZ0HM.SLDPRT	421.57K
23	OEM_Hiwin_MGNR07R-285-C.SLDPRT	229.23K
24	OEM_Igus_JSRM_1413SG5x5.SLDPRT	84.26K
25	OEM_Igus_PTGSG-05x5-R-ES.SLDPRT	53.23K
26	OEM_Maedler_26101600.SLDPRT	222.24K
27	OEM_Maedler_29104200.SLDPRT	401.62K
28	OEM_Misumi_B604ZZ.SLDPRT	100.55K
29	OEM_Misumi_B674ZZ.SLDPRT	107.99K
30	OEM_Misumi_CIMR10-12-0.5.SLDPRT	53.53K
31	OEM_Misumi_CIMRS12-16-0.5.SLDPRT	39.73K
32	OEM_Misumi_CLBU6-9-1.3.SLDPRT	62.68K
33	OEM_Misumi_FL6700ZZ.SLDPRT	105.43K
34	OEM_Misumi_FL6701ZZ.SLDPRT	166.21K
35	OEM_Misumi_FL696ZZ.SLDPRT	95.69K
36	OEM_Misumi_GEABP0.5-50-3-B-7.SLDPRT	968.62K
37	OEM_Misumi_GEABP0.5-60-3-B-7.SLDPRT	377.76K
38	OEM_Misumi_GEABP0.5-80-3-B-8.SLDPRT	476.80K
39	OEM_Misumi_GEAHB0.5-20-8-3.SLDPRT	577.16K
40	OEM_Misumi_PSCSPJ5-6.SLDPRT	247.71K
41	OEM_Misumi_STWS10.SLDPRT	63.53K
42	OEM_Misumi_STWS12.SLDPRT	62.98K
43	OEM_Peromatic_MD6038_SlipRing.SLDPRT	169.13K
44	OEM_Peromatic_MD6043_BrushBlock.SLDPRT	152.99K
45	OEM_Supermagnete_S-02-02-N.SLDPRT	104.56K
46	PRT_000070_Axe-avant-bras.SLDPRT	164.57K
47	PRT_000072_Montant-bras.SLDPRT	379.34K
48	PRT_000081_Epaule.SLDPRT	239.79K
49	PRT_000083_Arriere-bras.SLDPRT	789.74K
50	PRT_000084_Carte-moteur.SLDPRT	3.51M
51	PRT_000143_Axe-main.SLDPRT	223.90K
52	PRT_000144_Avant-bras.SLDPRT	593.30K
53	PRT_000149_Carte-capteur-Hall.SLDPRT	646.76K
54	PRT_000171_Support-Carte.SLDPRT	117.68K
55	PRT_000172_Support-Carte-fixation.SLDPRT	202.29K
56	PRT_000173_Support-Carte.SLDPRT	112.11K
57	PRT_000179_Support-ecrou.SLDPRT	232.63K
58	PRT_000181_Axe-epaule.SLDPRT	94.54K
59	PRT_000182_Axe-epaule.SLDPRT	58.58K
60	PRT_000207_Cable-chaine.SLDPRT	111.90K
61	PRT_000208_Tole-Cable.SLDPRT	154.41K
62	PRT_000209_Tole-Cable-externe.SLDPRT	204.33K
63	PRT_000210_Guide-cableV2.SLDPRT	610.71K
64	PRT_000212_Meplat-Cable.SLDPRT	107.17K
65	PRT_000213_Tole-bras-externe-lat.SLDPRT	163.00K
66	PRT_000214_Tole-bras-externe-bas.SLDPRT	307.00K
67	PRT_000215_Tole-bras-externe-sup.SLDPRT	194.00K
68	PRT_000216_Tole-engrenage-ep.SLDPRT	59.24K
69	PRT_000310_Bague.SLDPRT	125.27K
70	PRT_000311_Antirotation.SLDPRT	92.62K
71	PRT_000370_Fixation-pompes.SLDPRT	1.38M
72	PRT_000371_Bague.SLDPRT	71.37K
73	PRT_000426_Tuyau-AR-bras.SLDPRT	953.63K
74	PRT_000427_Tuyau-AV-bras.SLDPRT	782.69K
75	VIS_CON_6PC.SLDPRT	246.33K
76	VIS_CYL_6PC.SLDPRT	179.77K
77	VIS_CYL_XB_6PC.SLDPRT	214.25K
78	VIS_PT_BB_TX.SLDPRT	151.36K
79	VIS_PT_CON_TX.SLDPRT	114.49K
