09月27日：风车、斯特林（ID:441284）

机械设备 / 非标机械 / 09月27日：风车、斯特林

©非原创

113

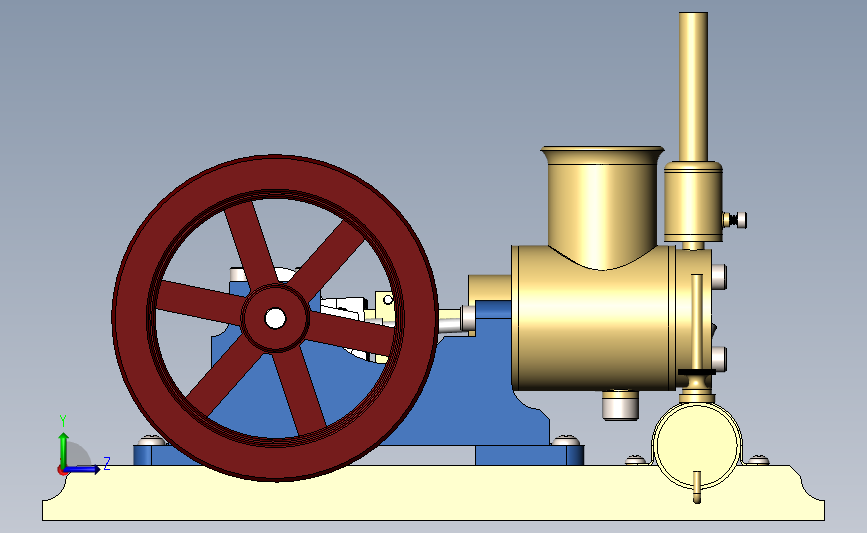

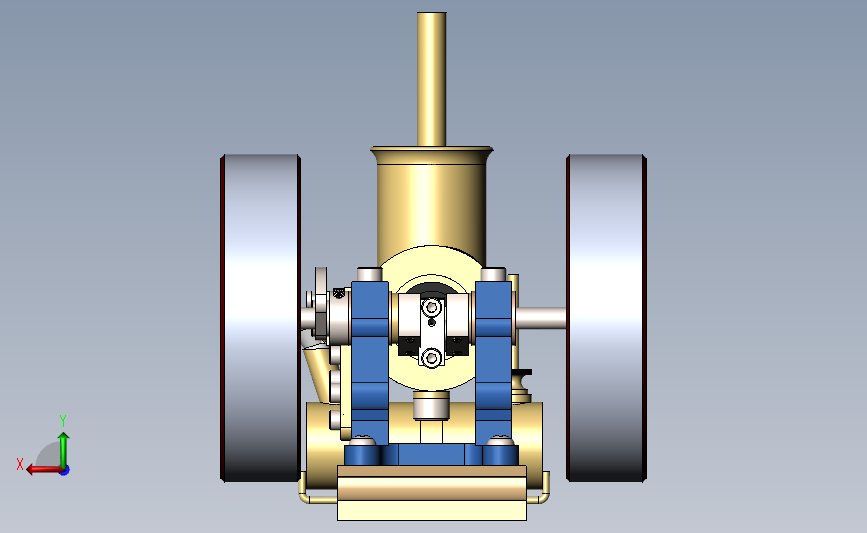

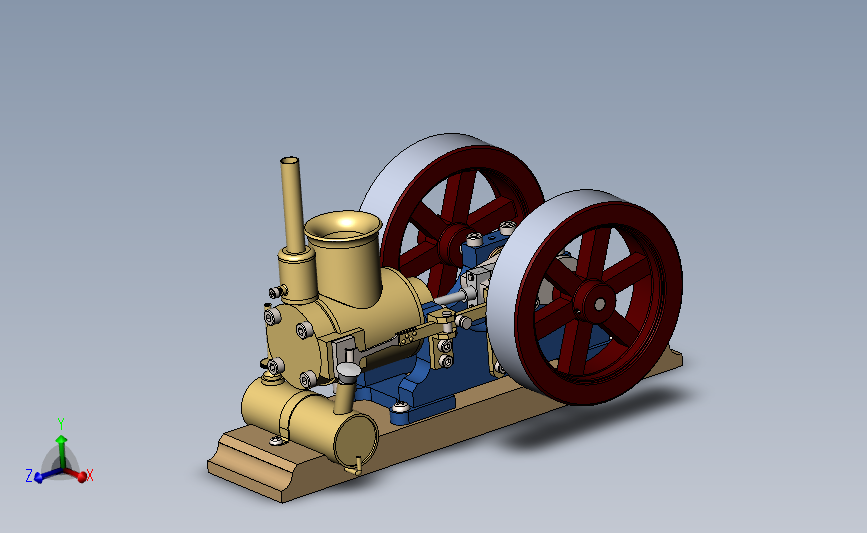

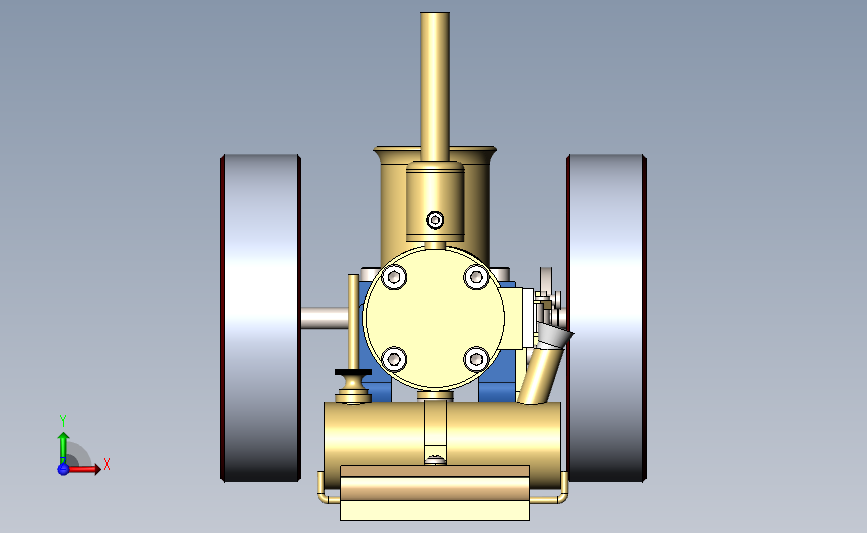

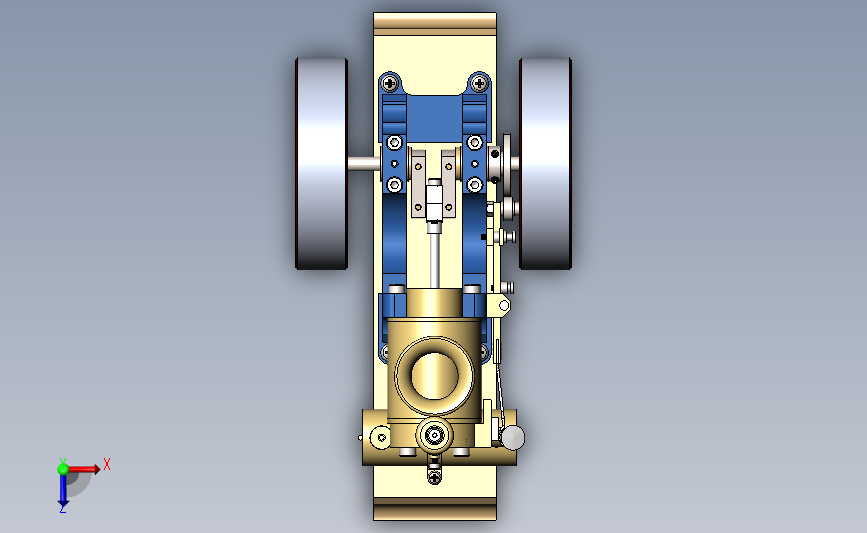

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16719013734233.rar	36.78M

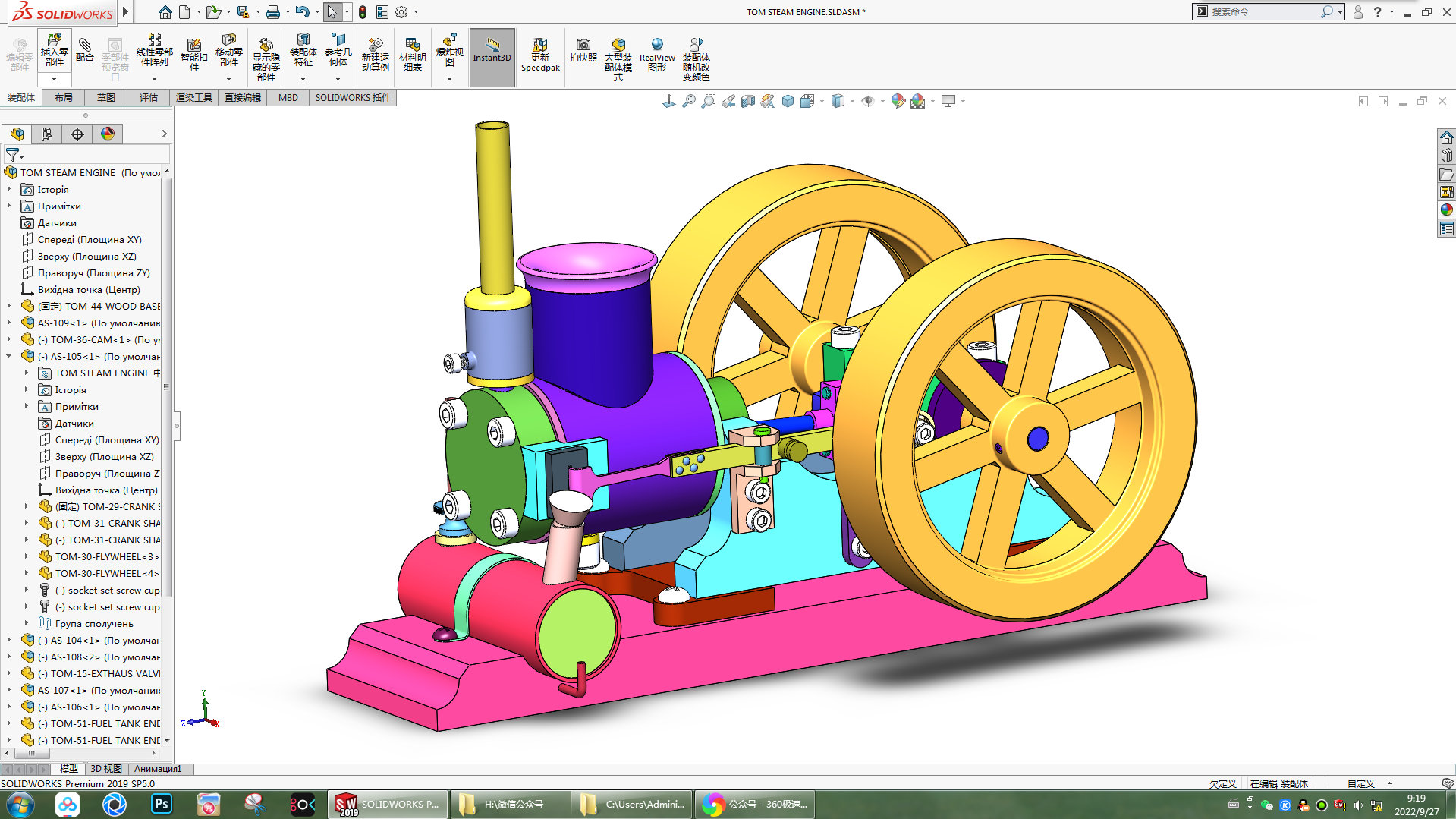

2	1.PNG	1.02M

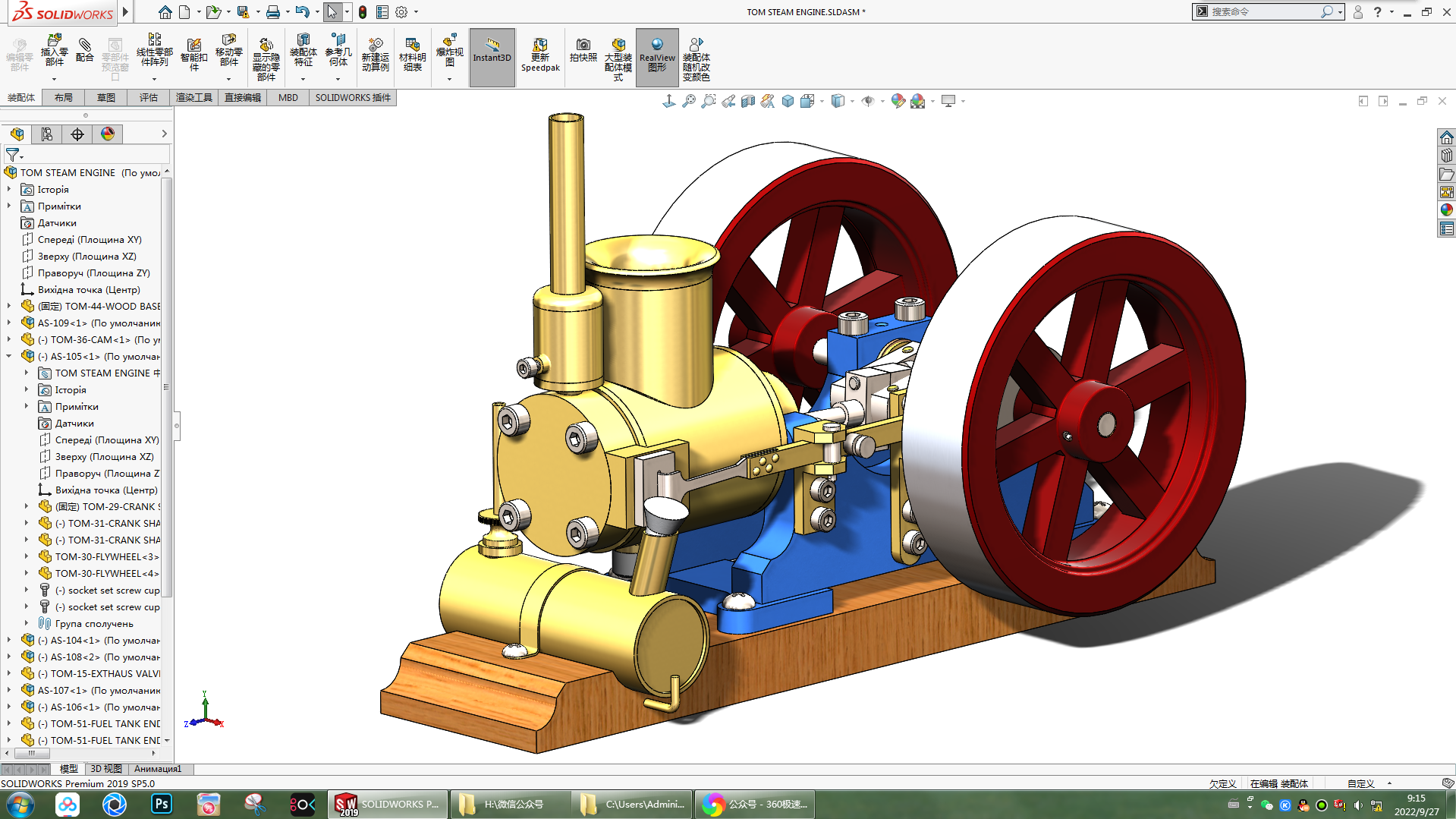

3	2.PNG	579.98K

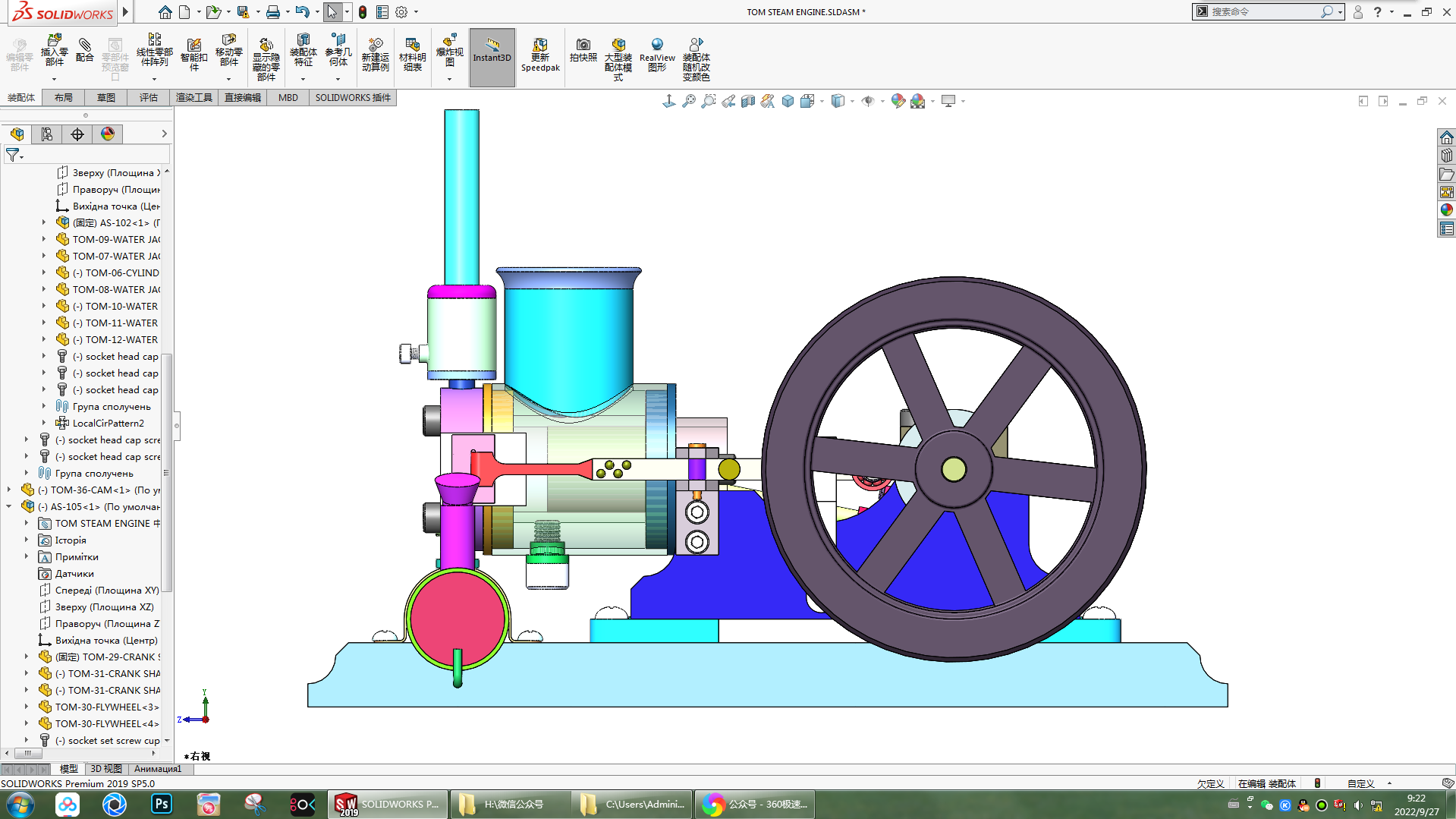

4	3.PNG	372.36K

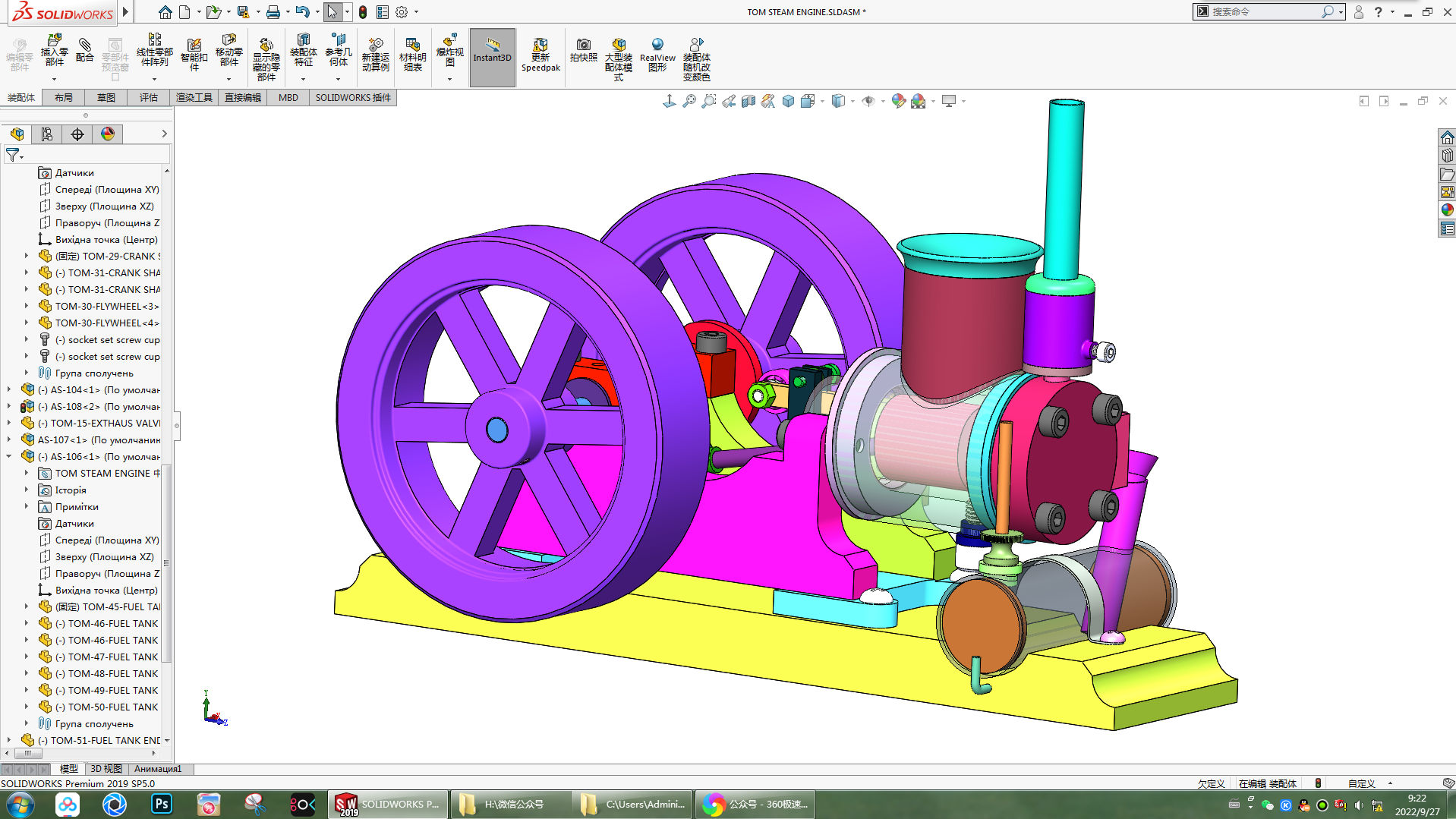

5	4.PNG	564.40K

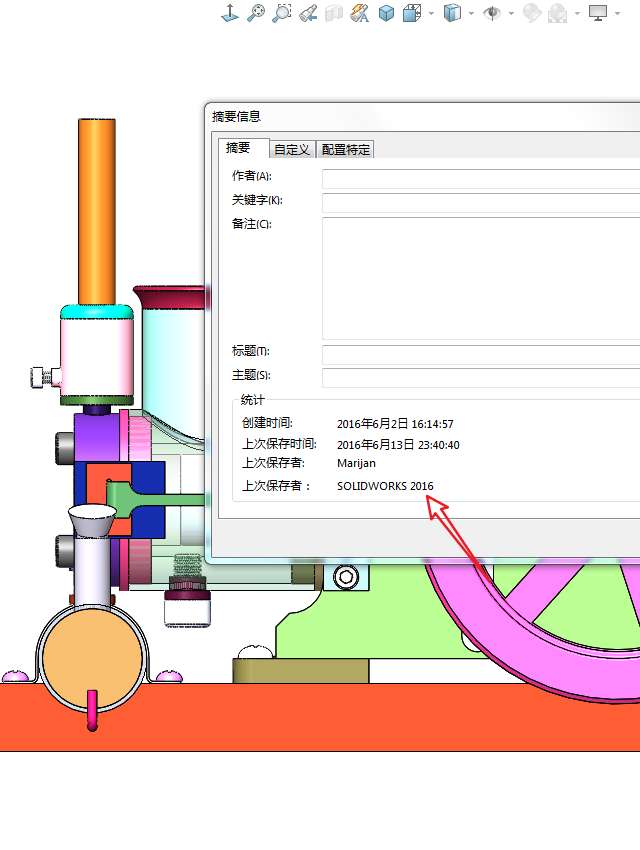

6	5.png	78.81K
7	斯特林引擎.zip	32.05M
8	TOMSTEAMENGINE.STEP	8.70M
9	TOMSTEAMENGINE.x_t	2.42M

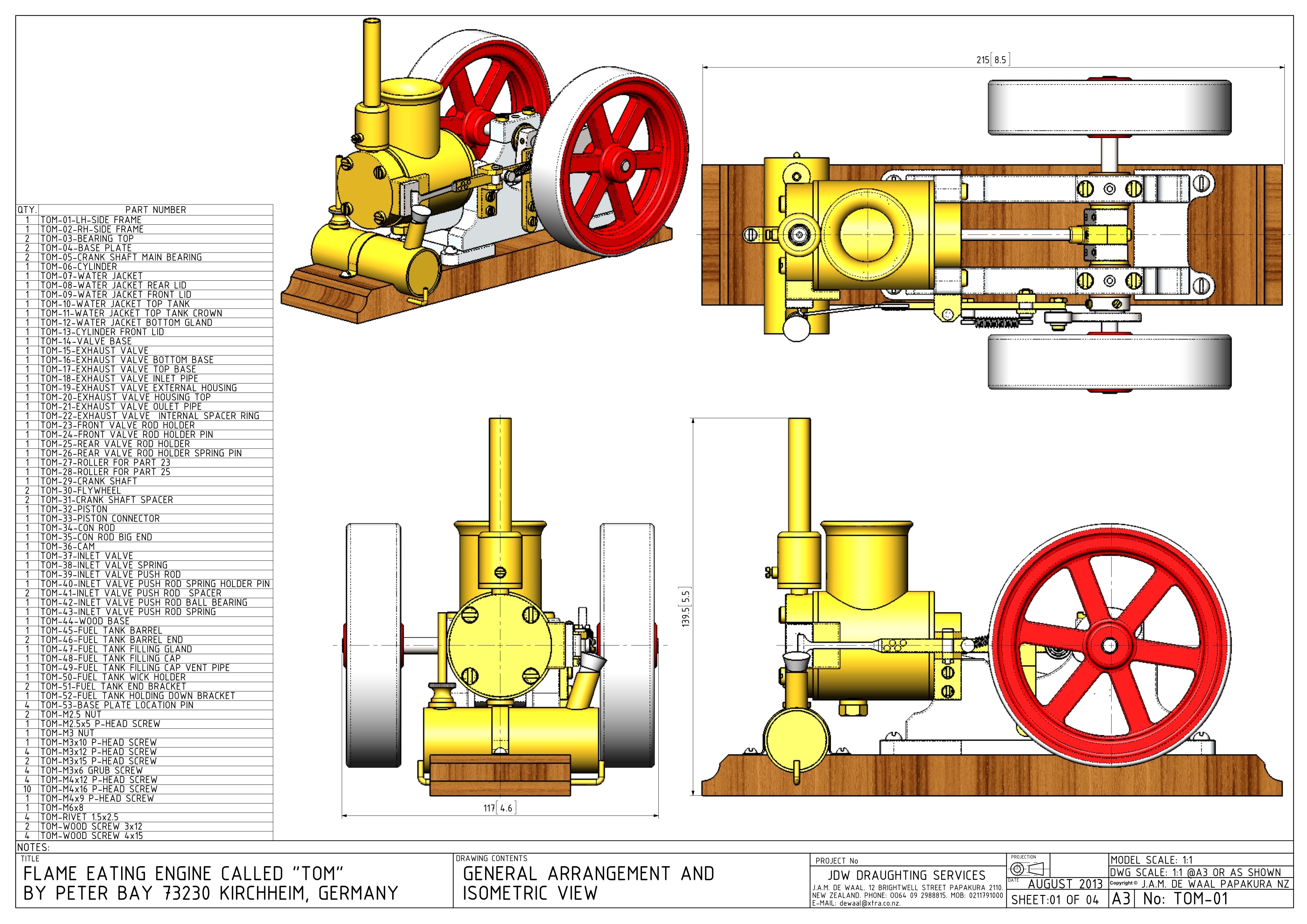

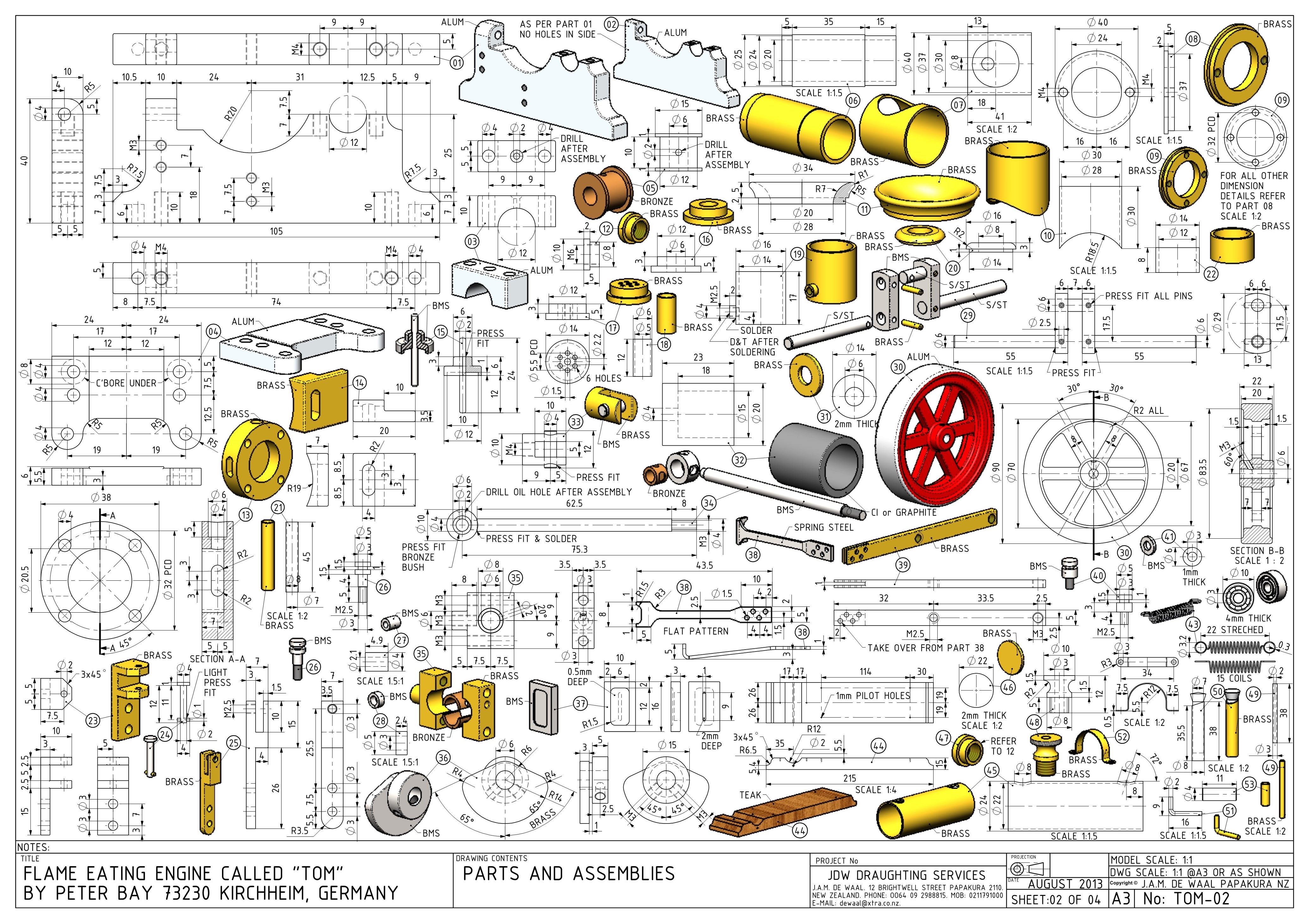

10	flame-eater-tom-peter-bay-05-02-04.pdf	3.97M
11	flame-eater-tom-peter-bay-05-02-04_0001.Png	1.75M

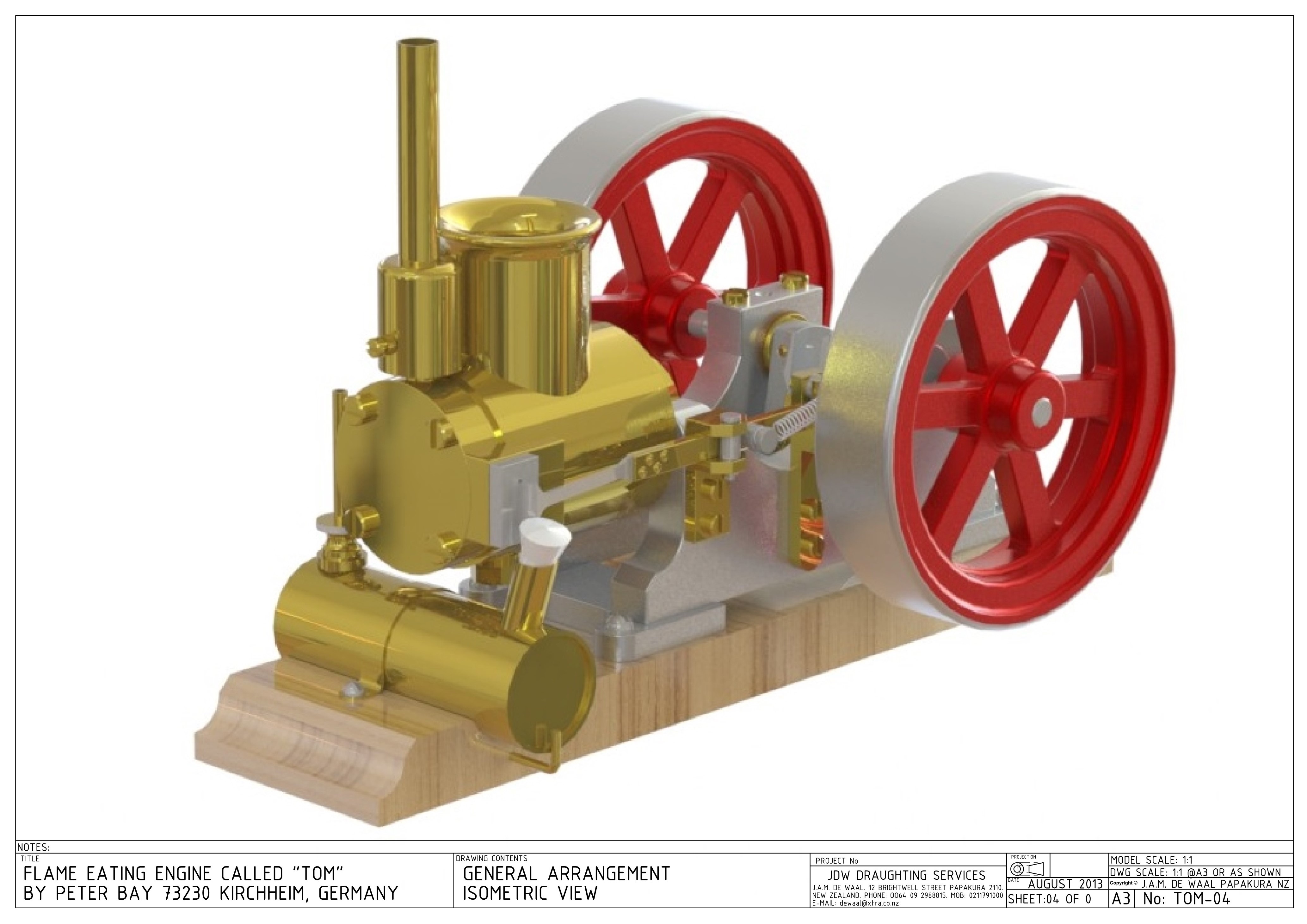

12	flame-eater-tom-peter-bay-05-02-04_0002.Png	2.36M

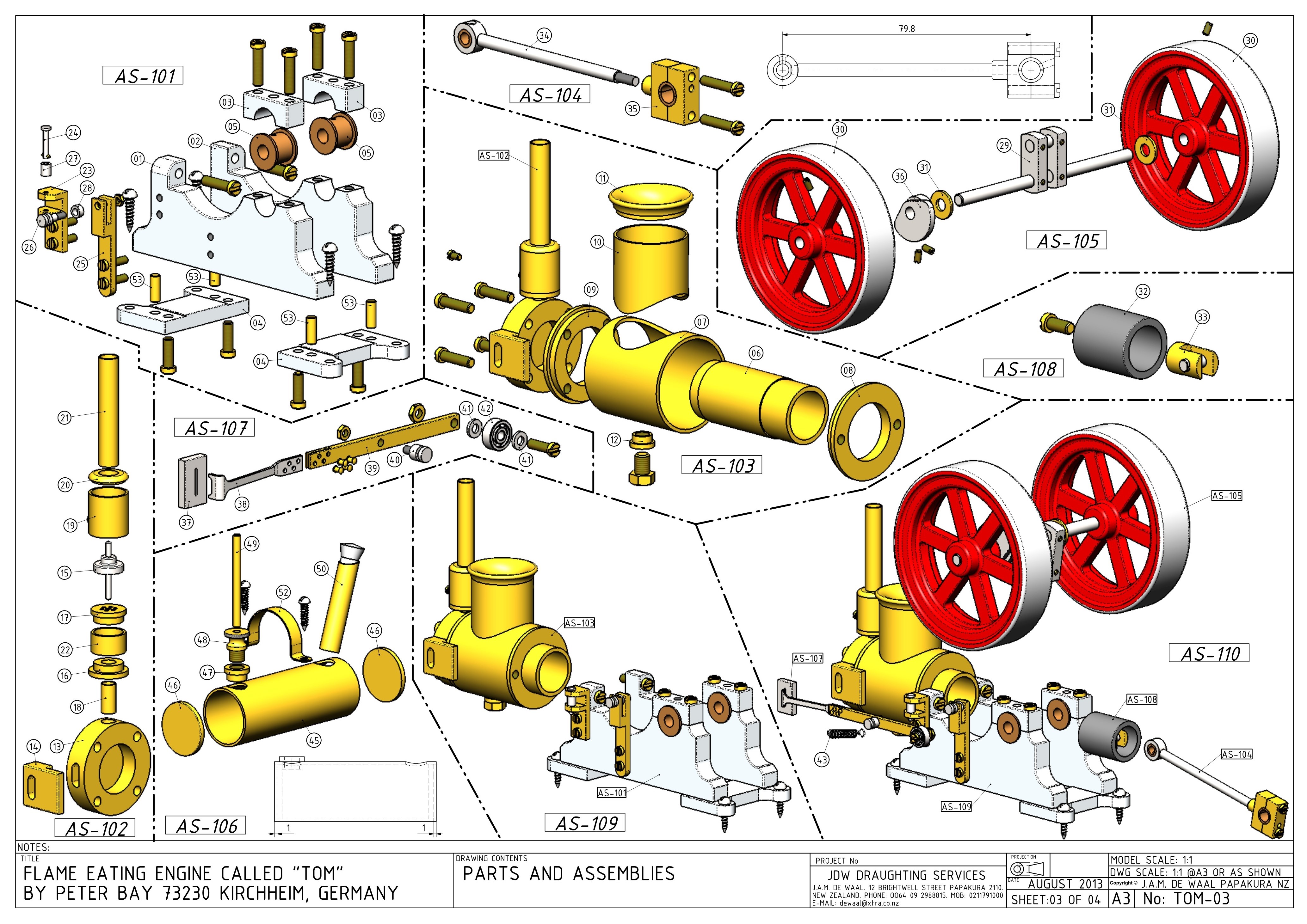

13	flame-eater-tom-peter-bay-05-02-04_0003.Png	1.70M
14	flame-eater-tom-peter-bay-05-02-04_0004.Png	847.31K
15	AS-101.SLDASM	638.76K
16	AS-102.SLDASM	182.19K
17	AS-103.SLDASM	459.35K
18	AS-104.SLDASM	463.36K
19	AS-105.SLDASM	365.73K
20	AS-106.SLDASM	335.63K
21	AS-107.SLDASM	804.76K
22	AS-108.SLDASM	92.79K
23	AS-109.SLDASM	884.14K
24	TOM-01-LH-SIDEFRAME.SLDPRT	192.32K
25	TOM-02-RH-SIDEFRAME.SLDPRT	140.37K
26	TOM-03-BEARINGTOP.SLDPRT	159.04K
27	TOM-04-BASEPLATE.SLDPRT	111.49K
28	TOM-05-CRANKSHAFTMAINBEARING.SLDPRT	142.47K
29	TOM-06-CYLINDER.SLDPRT	160.13K
30	TOM-07-WATERJACKET.SLDPRT	158.00K
31	TOM-08-WATERJACKETREARLID.SLDPRT	126.47K
32	TOM-09-WATERJACKETFRONTLID.SLDPRT	129.73K
33	TOM-10-WATERJACKETTOPTANK.SLDPRT	115.34K
34	TOM-11-WATERJACKETTOPTANKCROWN.SLDPRT	230.74K
35	TOM-12-WATERJACKETBOTTOMGLAND.SLDPRT	142.58K
36	TOM-13-CYLINDERFRONTLID.SLDPRT	149.24K
37	TOM-14-VALVEBASE.SLDPRT	151.48K
38	TOM-15-EXTHAUSVALVE.SLDPRT	171.82K
39	TOM-16-EXHAUSTVALVEBOTTOMBASE.SLDPRT	135.69K
40	TOM-17-EXHAUSTVALVETOPBASE.SLDPRT	165.08K
41	TOM-18-EXHAUSTVALVEINLETPIPE.SLDPRT	89.47K
42	TOM-19-EXHAUSTVALVEEXTERNALHOUSING.SLDPRT	161.54K
43	TOM-20-EXHAUSTVALVEHOUSINGTOP.SLDPRT	191.06K
44	TOM-21-EXHAUSTVALVEOULETPIPE.SLDPRT	69.06K
45	TOM-22-EXHAUSTVALVEINTERNALSPACERRING.SLDPRT	119.63K
46	TOM-23-FRONTVAVLERODHOLDER.SLDPRT	115.34K
47	TOM-24-FRONTVAVLERODHOLDERPIN.SLDPRT	87.72K
48	TOM-25-REARVALVERODHOLDER.SLDPRT	105.94K
49	TOM-26-REARVAVLERODHOLDERSPRINGPIN.SLDPRT	403.76K
50	TOM-27-ROLLERFORPART23.SLDPRT	134.19K
51	TOM-28-ROLLERFORPART25.SLDPRT	124.54K
52	TOM-29-CRANKSHAFT.SLDPRT	209.62K
53	TOM-30-FLYWHEEL.SLDPRT	329.26K
54	TOM-31-CRANKSHAFTSPACER.SLDPRT	109.47K
55	TOM-32-PISTON.SLDPRT	83.31K
56	TOM-33-PISTONCONNECTOR.SLDPRT	167.85K
57	TOM-34-CONROD.SLDPRT	447.62K
58	TOM-35-CONRODEND.SLDPRT	220.64K
59	TOM-36-CAM.SLDPRT	126.70K
60	TOM-37-INLETVALVE.SLDPRT	109.55K
61	TOM-38-INLETVALVESPRING.SLDPRT	167.24K
62	TOM-39-INLETVALVEPUSHROD.SLDPRT	128.42K
63	TOM-40-INLETVALVEPUSHRODSPRINGHOLDERPIN.SLDPRT	365.89K
64	TOM-41-INLETVALVEPUSHROSSPACER.SLDPRT	105.30K
65	TOM-44-WOODBASE.SLDPRT	224.69K
66	TOM-45-FUELTANKBARREL.SLDPRT	187.32K
67	TOM-46-FUELTANKBARRELEND.SLDPRT	81.21K
68	TOM-47-FUELTANKFILLINGGLAND.SLDPRT	140.63K
69	TOM-48-FUELTANKFILLINGCAP.SLDPRT	521.99K
70	TOM-49-FUELTANKFILLINGCAPVENTPIPE.SLDPRT	58.74K
71	TOM-50-FUELTANKWICKHOLDER.SLDPRT	99.02K
72	TOM-51-FUELTANKENDBRACKET.SLDPRT	111.93K
73	TOM-52-FUELTANKHOLDINGDOWNBRACKET.SLDPRT	137.44K
74	TOM-53-BASEPLATELOCTIONPIN.SLDPRT	87.16K
75	TOM-BASE.SLDASM	195.77K
76	TOM-M2.5NUT.SLDPRT	281.29K
77	TOM-M2.5x5.SLDPRT	420.73K
78	TOM-M3x12P-HEADSCREW.SLDPRT	298.89K
79	TOM-M3x15P-HEADSCREW.SLDPRT	258.78K
80	TOM-M3x6GRUBSCREW.SLDPRT	189.99K
81	TOM-M4x12P-HEADSCREW.SLDPRT	303.75K
82	TOM-M4x16P-HEADSCREW.SLDPRT	401.67K
83	TOM-M6x8.SLDPRT	224.44K
84	TOM-RIVER1.5x2.5.SLDPRT	175.60K
85	TOM-WOODSCREW3x12.SLDPRT	394.29K
86	TOM-WOODSCREW4x15.SLDPRT	216.41K
87	TOMSTEAMENGINE.SLDASM	2.67M
88	17.PNG	614.25K

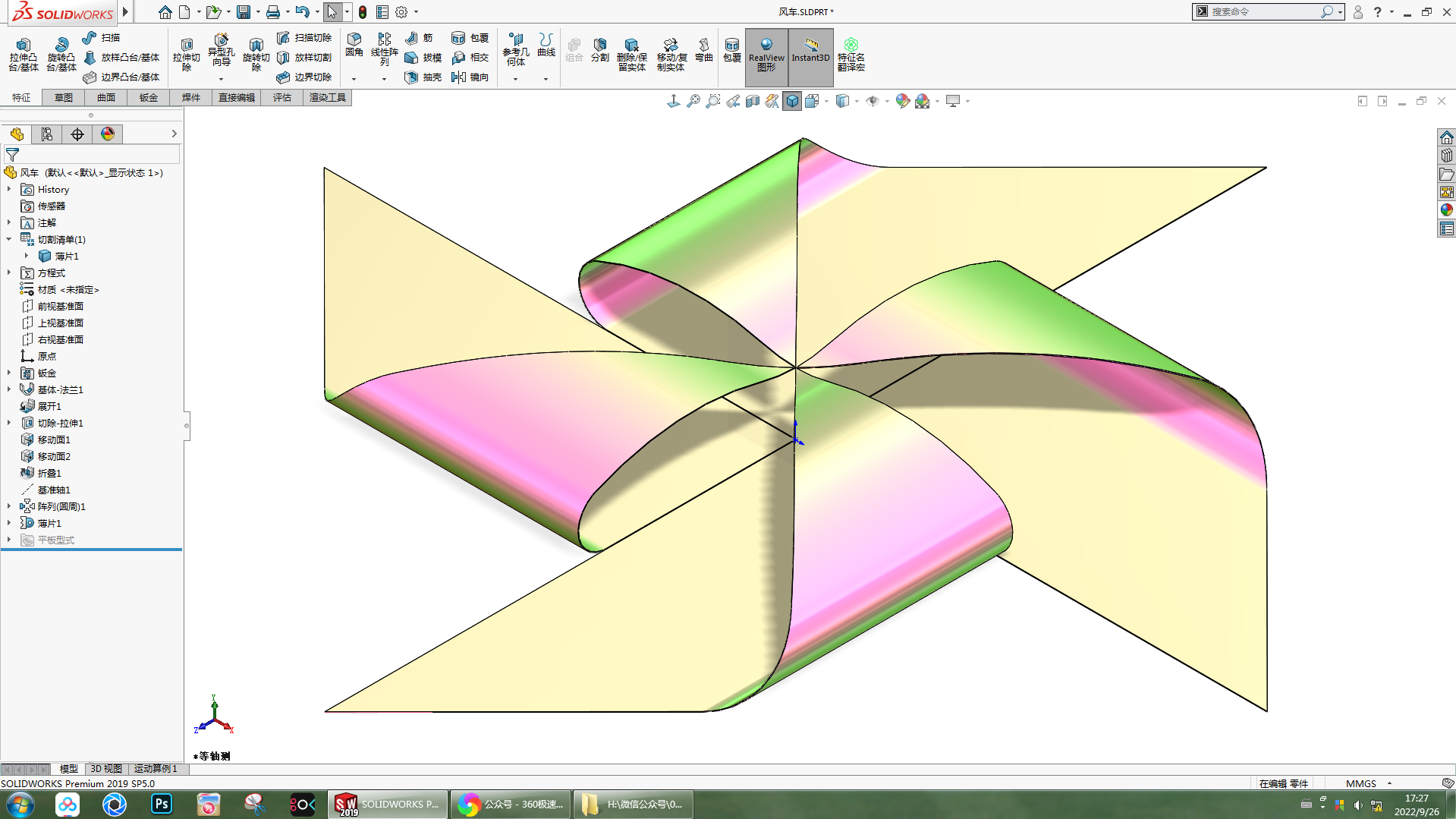

89	18.PNG	558.52K

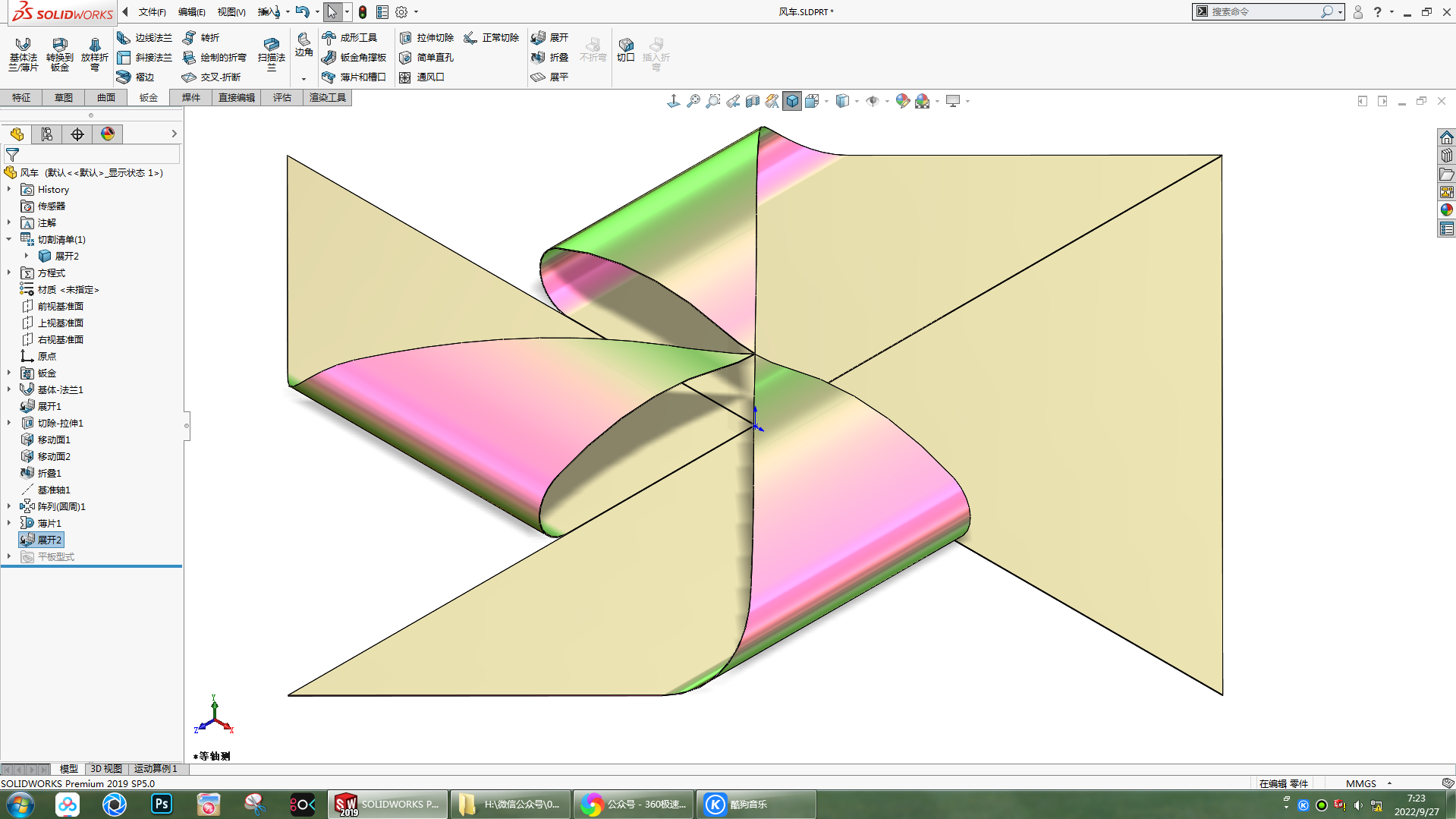

90	19.PNG	499.70K

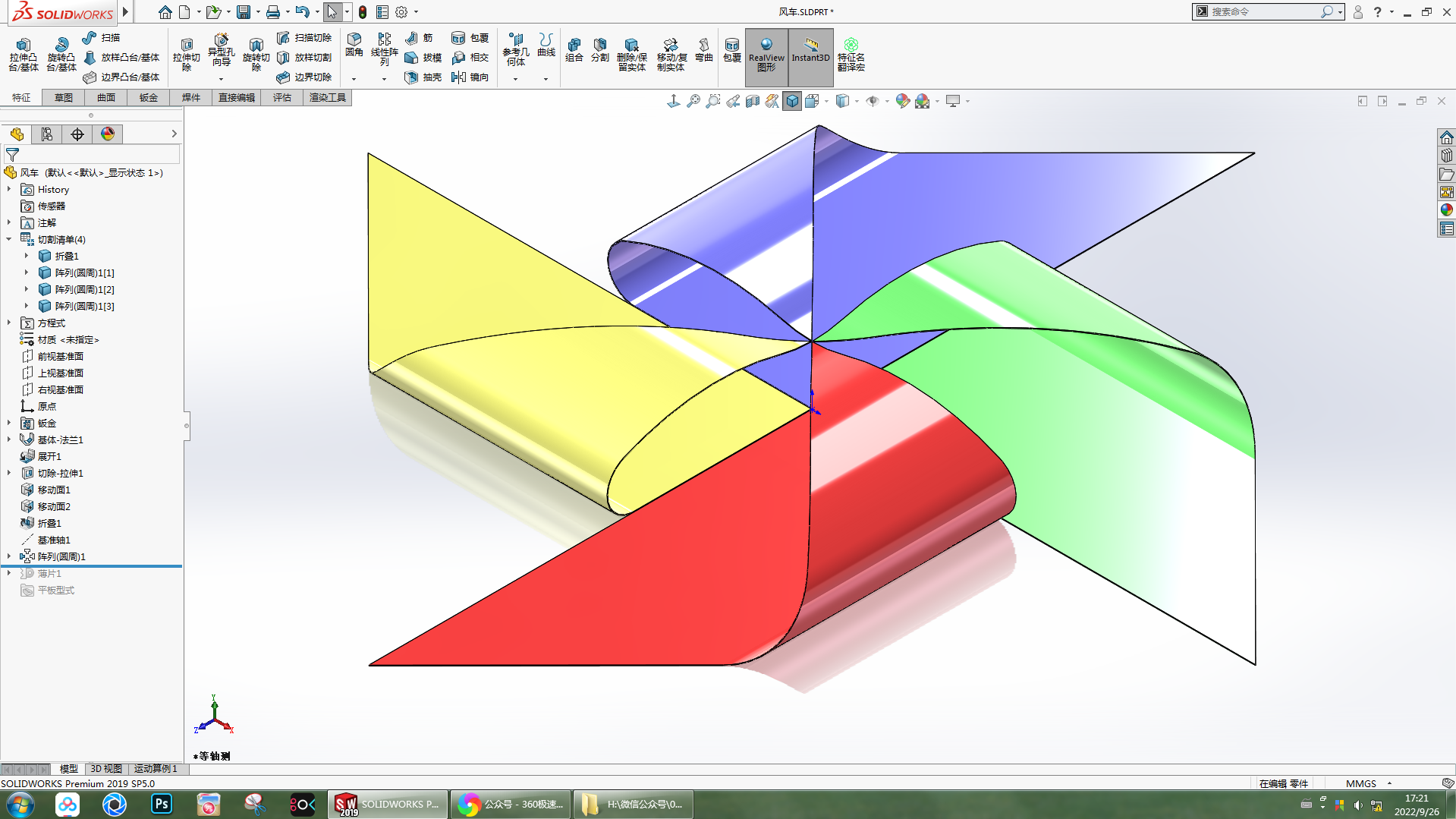

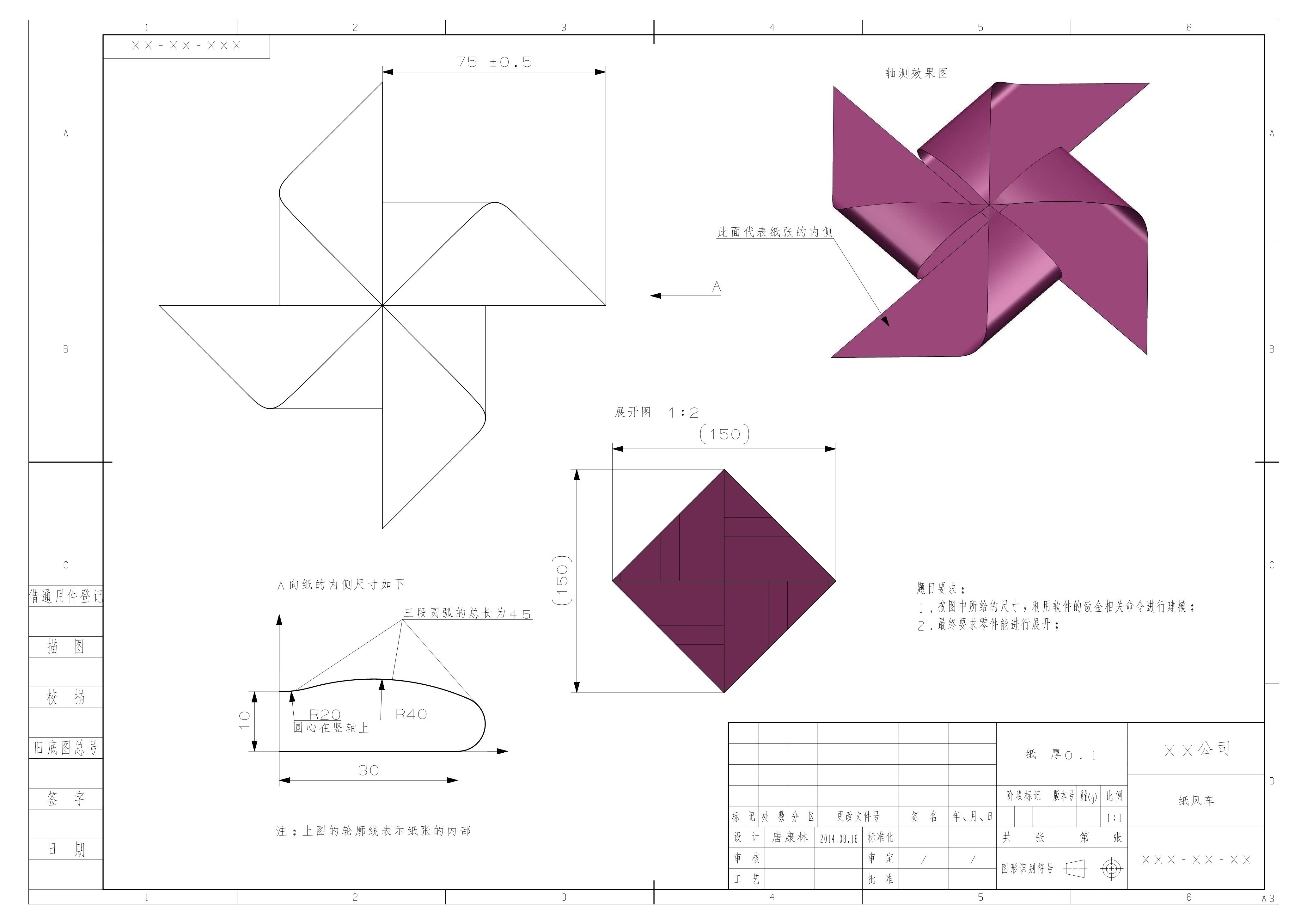

91	钣金练习纸风车）.Png	626.61K
92	风车.SLDPRT	278.08K
93	风车.STEP	292.31K
94	风车.x_t	162.79K
