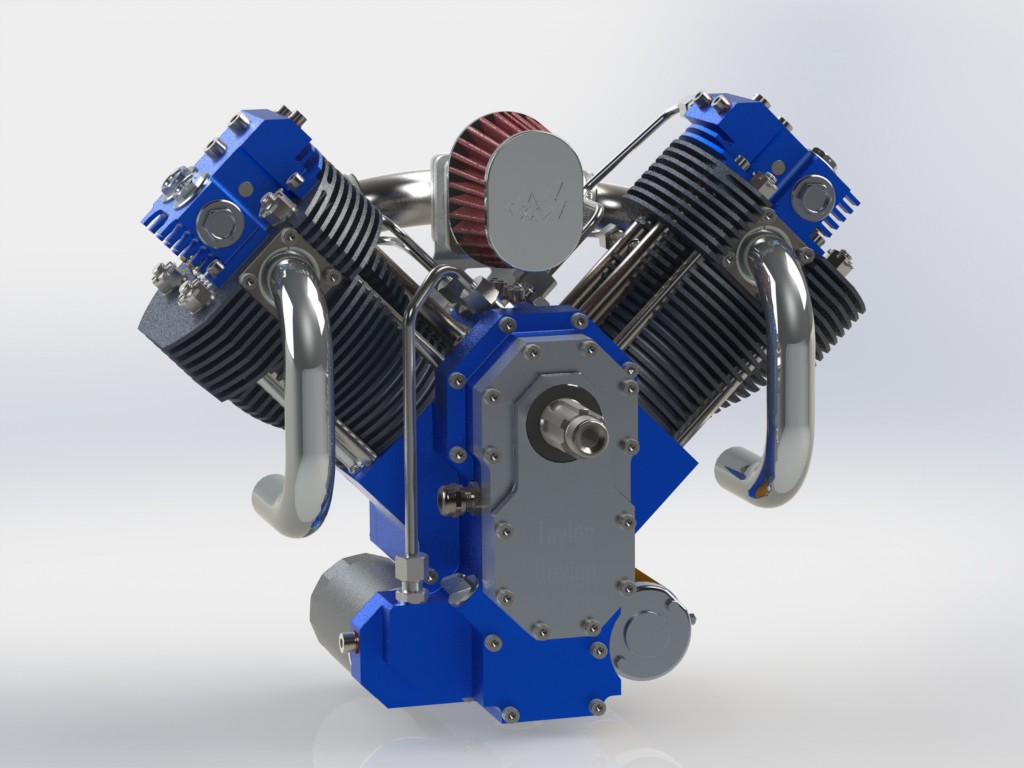

发动机 V型双缸（ID:475187）

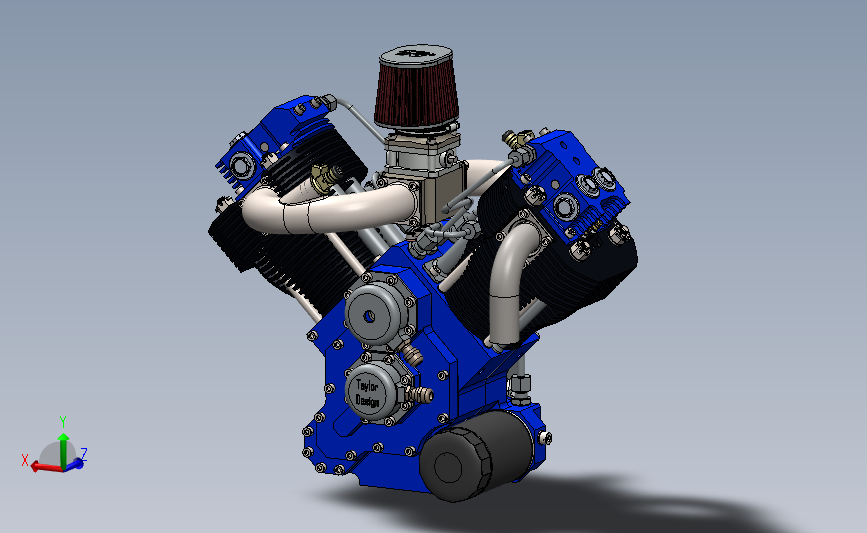

0.png)

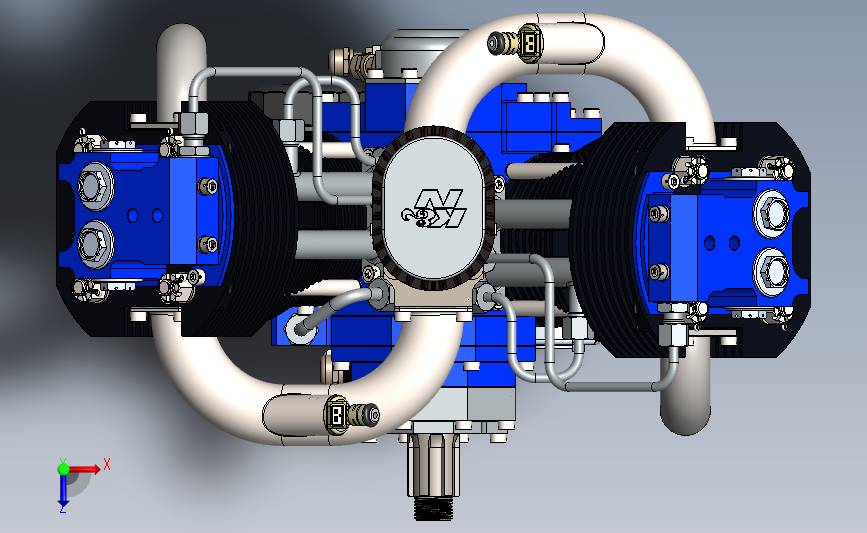

1.png)

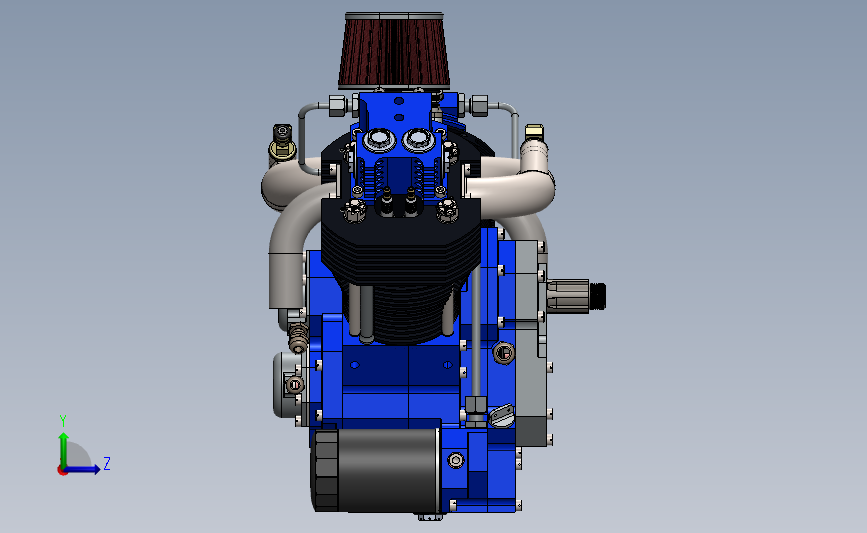

2.png)

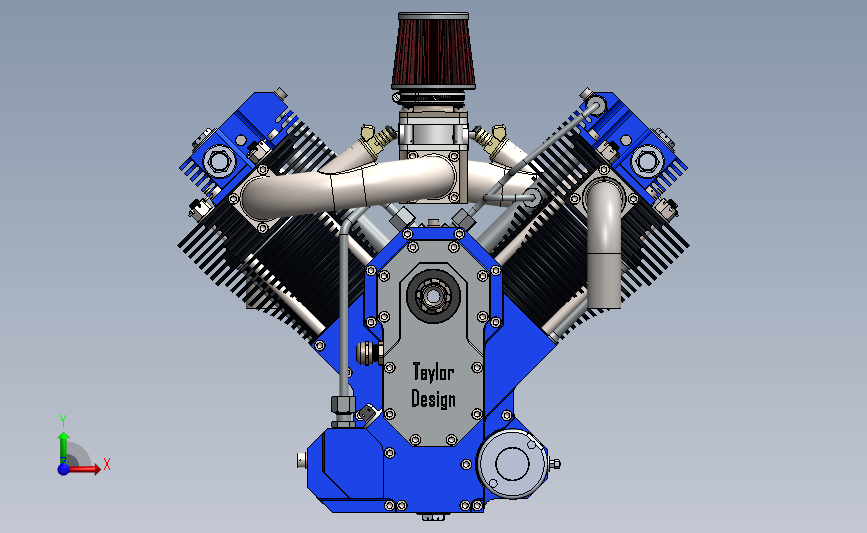

3.png)

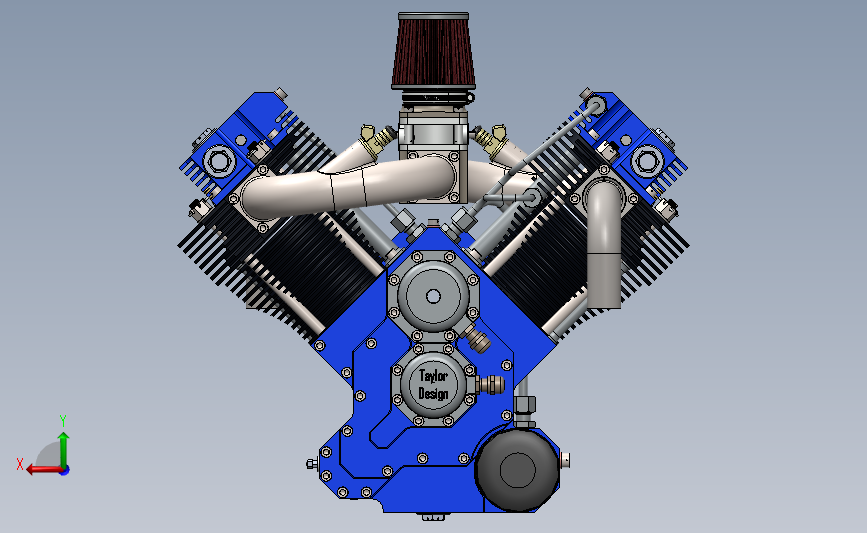

4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 16753468144378.zip | 147.78M |
| 2 | 137-A-001-MEngineAssembly.SLDASM | 18.07M |
| 3 | 137-A-002-MCrankShaftAssembly.SLDASM | 1.09M |
| 4 | 137-A-003-MFrontCaseAssembly.SLDASM | 1.98M |
| 5 | 137-A-004-MBackCaseAssembly.SLDASM | 2.11M |
| 6 | 137-A-005-MCamAssembly.SLDASM | 902.00K |
| 7 | 137-A-006-MCrankcaseFrontAssembly.SLDASM | 2.22M |
| 8 | 137-A-007-MCrankcaseBackAssembly.SLDASM | 1.63M |
| 9 | 137-A-008-MPistonAssembly.SLDASM | 1.02M |
| 10 | 137-A-009-MCylinderAssembly.SLDASM | 795.00K |
| 11 | 137-A-010-MPushrodInnerAssembly.SLDASM | 552.00K |
| 12 | 137-A-011-MPushrodOuterAssembly.SLDASM | 506.50K |
| 13 | 137-A-012-MCylinderHeadAssembly.SLDASM | 6.20M |
| 14 | 137-A-013-MGeneratorAssembly.SLDASM | 551.00K |
| 15 | 137-A-014-MMagnetDiscAssembly.SLDASM | 413.50K |
| 16 | 137-A-015-MExhaustAssembly.SLDASM | 609.50K |
| 17 | 137-A-016-MInletAssembly.SLDASM | 2.99M |
| 18 | 137-P-021-MCrankCaseFront.SLDPRT | 3.90M |
| 19 | 137-P-022-MCrankCaseBack.SLDPRT | 3.19M |
| 20 | 137-P-023-MFrontCase.SLDPRT | 1.39M |
| 21 | 137-P-024-MBackCase.SLDPRT | 1017.50K |
| 22 | 137-P-025-MFront.SLDPRT | 798.00K |
| 23 | 137-P-026-MCylinderOuter.SLDPRT | 1.19M |
| 24 | 137-P-027-MCylinderHead.SLDPRT | 2.13M |
| 25 | 137-P-028-MRockerHousing.SLDPRT | 1.19M |
| 26 | 137-P-029-MMidSectionforInlet.SLDPRT | 515.50K |
| 27 | 137-P-030-MFlangeforFilter.SLDPRT | 418.50K |
| 28 | 137-P-031-MPiston.SLDPRT | 884.00K |
| 29 | 137-P-032-MDrainforOil.SLDPRT | 255.50K |
| 30 | 137-P-033-MFillerCap.SLDPRT | 236.00K |
| 31 | 137-P-034-MIgnitionCover.SLDPRT | 426.00K |
| 32 | 137-P-035-MCoverforSolanoyd.SLDPRT | 571.50K |
| 33 | 137-P-036-MCover.SLDPRT | 402.50K |
| 34 | 137-P-037-MTubeforPushrod.SLDPRT | 293.00K |
| 35 | 137-P-038-MCrankShaftPart1.SLDPRT | 494.50K |
| 36 | 137-P-039-MCrankShaftPart2.SLDPRT | 347.50K |
| 37 | 137-P-040-MCylinderSleeve.SLDPRT | 287.00K |
| 38 | 137-P-041-MGuideforPushrods.SLDPRT | 733.50K |
| 39 | 137-P-042-MRocker.SLDPRT | 726.50K |
| 40 | 137-P-043-MAxleforRocker.SLDPRT | 365.00K |
| 41 | 137-P-044-MGidgionPin.SLDPRT | 278.00K |
| 42 | 137-P-045-MWasherforCrank.SLDPRT | 174.50K |
| 43 | 137-P-046-MConRod.SLDPRT | 303.50K |
| 44 | 137-P-047-MCamShaft.SLDPRT | 1.77M |
| 45 | 137-P-048-MScrewforOilPump.SLDPRT | 194.50K |
| 46 | 137-P-049-MScrewforOilFilter.SLDPRT | 246.50K |
| 47 | 137-P-050-MSpacerforGenerator.SLDPRT | 187.00K |
| 48 | 137-P-051-MRatchetforStarter1.SLDPRT | 357.50K |
| 49 | 137-P-052-MPlateforCamFollower.SLDPRT | 278.00K |
| 50 | 137-P-053-MEndUpperforPushrod.SLDPRT | 265.50K |
| 51 | 137-P-054-MValveInlet.SLDPRT | 184.00K |
| 52 | 137-P-055-MValveExhaust.SLDPRT | 176.00K |
| 53 | 137-P-056-MColletforValve.SLDPRT | 218.00K |
| 54 | 137-P-057-MTopforValve.SLDPRT | 234.00K |
| 55 | 137-P-058-MTubeforInlet.SLDPRT | 555.50K |
| 56 | 137-P-059-MPipeforExhaust.SLDPRT | 296.00K |
| 57 | 137-P-060-MClampforExhaust.SLDPRT | 378.00K |
| 58 | 137-P-061-MColletforExhaust.SLDPRT | 229.00K |
| 59 | 137-P-062-MTappet.SLDPRT | 215.50K |
| 60 | 137-P-063-MBallforTappet.SLDPRT | 212.00K |
| 61 | 137-P-064-MRodforSolanoyd.SLDPRT | 209.00K |
| 62 | 137-P-065-MPlateforSolanoyd.SLDPRT | 175.50K |
| 63 | 137-P-066-MGearMainDriving.SLDPRT | 1.24M |
| 64 | 137-P-067-MGearMainDriven.SLDPRT | 2.57M |
| 65 | 137-P-068-MGearIntermediateforOilPump.SLDPRT | 3.28M |
| 66 | 137-P-069-MGearLargeforOilPump.sldprt | 1.71M |
| 67 | 137-P-070-MGearDrivingforOilPump.SLDPRT | 2.92M |
| 68 | 137-P-071-MGearDrivenforOilPump.SLDPRT | 2.89M |
| 69 | 137-P-072-MGearStarterLarge.SLDPRT | 3.04M |
| 70 | 137-P-073-MGearStarterIntermediate.SLDPRT | 1.82M |
| 71 | 137-P-074-MGearStarter.SLDPRT | 1.63M |
| 72 | 137-P-075-MWasher.SLDPRT | 189.00K |
| 73 | 137-P-076-MScrewM6x45Special.SLDPRT | 1.47M |
| 74 | 137-P-077-MScrewM6x20Special.SLDPRT | 1.63M |
| 75 | 137-P-078-MStudM10.SLDPRT | 737.50K |
| 76 | 137-P-079-MPlateforOilPump.SLDPRT | 519.50K |
| 77 | 137-P-080-MBackingPlateforGenerator.SLDPRT | 1.08M |
| 78 | 137-P-081-MDiscforMagnets.SLDPRT | 618.00K |
| 79 | 137-P-082-MScrewforGenerator.SLDPRT | 228.00K |
| 80 | 137-P-083-MPistonRingA.SLDPRT | 138.50K |
| 81 | 137-P-084-MPistonRingB.SLDPRT | 123.50K |
| 82 | 137-P-085-MPistonRingC.SLDPRT | 559.00K |
| 83 | 137-P-086-MEndLowerforPushrod.SLDPRT | 263.50K |
| 84 | 137-P-087-MSliderforPushrod.SLDPRT | 243.50K |
| 85 | 137-P-088-MValveGuide.SLDPRT | 200.50K |
| 86 | 137-P-089-MFormerforSolanoydCoil.SLDPRT | 267.00K |
| 87 | 137-P-090-MOuterforGeneratorCoil.SLDPRT | 202.00K |
| 88 | 137-P-091-MGasketBase.SLDPRT | 357.50K |
| 89 | 137-P-092-MGasketCrankaseFront.SLDPRT | 309.50K |
| 90 | 137-P-093-MGasketCtankcaseBack.SLDPRT | 217.50K |
| 91 | 137-P-094-MGasketFront.SLDPRT | 236.00K |
| 92 | 137-P-095-MGasketPushrods.SLDPRT | 171.00K |
| 93 | 137-P-096-MGasketRockerCover.SLDPRT | 246.00K |
| 94 | 137-P-097-MGasketInlet.SLDPRT | 246.00K |
| 95 | 137-P-098-MGasketExhaust.SLDPRT | 181.50K |
| 96 | 137-P-099-MGasketCylinderHead.SLDPRT | 140.00K |
| 97 | BarforRocker.SLDPRT | 295.50K |
| 98 | BaseGasket.SLDPRT | 229.50K |
| 99 | Bearing30x72x19NJ306ECML.SLDPRT | 1.13M |
| 100 | BearingCrankFront.sldprt | 2.16M |
| 101 | BearingMainA.SLDPRT | 2.38M |
| 102 | BearingMainB.SLDPRT | 2.15M |
| 103 | BearingOutputBack.sldprt | 737.50K |
| 104 | BearingOutputFront.sldprt | 1.21M |
| 105 | bronzineplastiche.sldprt | 186.50K |
| 106 | CableGlandsMetal.SLDPRT | 1.59M |
| 107 | CamAssembly.SLDASM | 645.00K |
| 108 | CamFollowerPin.SLDPRT | 219.50K |
| 109 | CamNew.SLDPRT | 458.50K |
| 110 | Clamp.SLDPRT | 242.00K |
| 111 | Clip.SLDPRT | 1.36M |
| 112 | Collet.SLDPRT | 230.50K |
| 113 | ColletforValve.SLDPRT | 218.00K |
| 114 | corpofarfallatosfs30mmNOinj.sldprt | 320.50K |
| 115 | couverclefiltrekn.sldprt | 795.50K |
| 116 | Cover.SLDPRT | 420.00K |
| 117 | EngineVTwinAssem3.SLDASM | 4.41M |
| 118 | EngineVTwinBack.SLDPRT | 764.00K |
| 119 | EngineVTwinConRod.SLDPRT | 308.00K |
| 120 | EngineVTwinCrankAssy.SLDASM | 1.38M |
| 121 | EngineVTwinCrankCaseBack.SLDPRT | 2.96M |
| 122 | EngineVTwinCrankCaseFront.SLDPRT | 3.27M |
| 123 | EngineVTwinCrankshaft.SLDPRT | 458.50K |
| 124 | EngineVTwinCrankshaft2.SLDPRT | 335.50K |
| 125 | EngineVTwinCrankWasher.SLDPRT | 128.50K |
| 126 | EngineVTwinCylinder.SLDPRT | 1.27M |
| 127 | EngineVTwinCylinderAssy.SLDASM | 933.00K |
| 128 | EngineVTwinCylinderHead.SLDPRT | 1.67M |
| 129 | EngineVTwinEngine.SLDASM | 14.27M |
| 130 | EngineVTwinEngineTube2.SLDPRT | 209.50K |
| 131 | EngineVTwinEngineTube3.SLDPRT | 205.50K |
| 132 | EngineVTwinFront.SLDPRT | 1010.50K |
| 133 | EngineVTwinGidgionPin.SLDPRT | 278.00K |
| 134 | EngineVTwinPart5.SLDPRT | 777.50K |
| 135 | EngineVTwinPart6.SLDPRT | 289.50K |
| 136 | EngineVTwinPart8.SLDPRT | 723.50K |
| 137 | EngineVTwinPart9.SLDPRT | 336.00K |
| 138 | EngineVTwinPiston.SLDASM | 778.00K |
| 139 | EngineVTwinPiston.SLDPRT | 1.46M |
| 140 | EngineVTwinPushRodEnd.SLDPRT | 259.50K |
| 141 | EngineVTwinRockerHousing2.SLDPRT | 731.50K |
| 142 | EngineVTwinSleeve.SLDPRT | 276.50K |
| 143 | EngineVTwinStud.SLDPRT | 135.00K |
| 144 | EngineVTwinValve.SLDPRT | 175.50K |
| 145 | EngineVTwinValveLarge.SLDPRT | 184.00K |
| 146 | Engine_V_Twin.STEP | 41.23M |
| 147 | ExaustAssembly.SLDASM | 383.00K |
| 148 | farfalla.sldprt | 129.00K |
| 149 | filter.SLDPRT | 842.50K |
| 150 | filtrekn.SLDASM | 1.73M |
| 151 | Fittingumi_-_06_x_je_813_s.SLDPRT | 238.00K |
| 152 | Fittingumi_-_08_x_je_813_s.SLDPRT | 250.50K |
| 153 | Front.SLDPRT | 831.50K |
| 154 | GasketforExhaust.SLDPRT | 181.50K |
| 155 | Gear.sldprt | 3.56M |
| 156 | GearDrivenforOilPump.SLDPRT | 2.87M |
| 157 | GearDriving.SLDPRT | 1.90M |
| 158 | GearDrivingforOilPump.SLDPRT | 2.91M |
| 159 | GearDrivingforPump.SLDPRT | 1.99M |
| 160 | GearLarge.SLDPRT | 2.41M |
| 161 | GearOilPump.SLDPRT | 2.96M |
| 162 | GearOilPumpIntermediate.SLDPRT | 3.19M |
| 163 | GearStarterIntermediate.SLDPRT | 1.78M |
| 164 | GeneratorAssembly.SLDASM | 713.50K |
| 165 | GeneratorBackingPlate.SLDPRT | 443.00K |
| 166 | GeneratorCoil.SLDPRT | 203.00K |
| 167 | GeneratorCoilOuter.SLDPRT | 188.50K |
| 168 | GeneratorScrew.SLDPRT | 195.00K |
| 169 | HeadGasket.SLDPRT | 154.50K |
| 170 | hexscrewgradeab_iso.sldprt | 686.50K |
| 171 | hexthinnutchamferedgradeab_iso.sldprt | 831.00K |
| 172 | IgnitionCover.SLDPRT | 426.00K |
| 173 | IgusGFM-0809-12.SLDPRT | 152.50K |
| 174 | IgusGFM_1012_07.SLDPRT | 153.50K |
| 175 | IgusGFM_1012_09.SLDPRT | 232.50K |
| 176 | IgusGFM_1012_12.SLDPRT | 236.00K |
| 177 | IgusGFM_1012_17_1.SLDPRT | 148.50K |
| 178 | IgusXSM_1012_12_1.SLDPRT | 139.00K |
| 179 | injector.SLDPRT | 865.00K |
| 180 | InletAssembly.SLDASM | 1.20M |
| 181 | InletMid.SLDPRT | 518.50K |
| 182 | intakefilter.SLDPRT | 2.19M |
| 183 | IntakeTube.SLDPRT | 563.50K |
| 184 | internalcirclip_bsi.sldprt | 571.00K |
| 185 | kate1.SLDPRT | 349.00K |
| 186 | kate2.SLDPRT | 1.69M |
| 187 | Key10x8x12-R.SLDPRT | 113.50K |
| 188 | Key5x4x14.SLDPRT | 112.00K |
| 189 | klapp.SLDPRT | 125.50K |
| 190 | korpus.SLDPRT | 934.50K |
| 191 | LockingWasherM15MB_2_2_14b.SLDPRT | 237.00K |
| 192 | LockingWasherM25MB_5_2_14b.SLDPRT | 250.50K |
| 193 | LockingWasherM30MB_6_2_14b.SLDPRT | 247.00K |
| 194 | LockingWasherM35MB_7_2_14b.SLDPRT | 261.50K |
| 195 | LockingWasherM40MB_8_2_14b.SLDPRT | 258.00K |
| 196 | LockingWasherM50MB_10_2_14b.SLDPRT | 243.50K |
| 197 | LocknutM15x1KM_2_2_14b.SLDPRT | 497.00K |
| 198 | LocknutM25x1.5KM_5_2_14b.SLDPRT | 239.50K |
| 199 | LocknutM30x1.5KM_6_2_14b.SLDPRT | 234.50K |
| 200 | LocknutM35x1.5KM_7_2_14b.SLDPRT | 242.50K |
| 201 | LocknutM40x1.5KM_8_2_14b.SLDPRT | 233.00K |
| 202 | LocknutM50x1.5KM_10_2_14b.SLDPRT | 361.50K |
| 203 | M.SLDPRT | 604.50K |
| 204 | M6x35.SLDPRT | 913.00K |
| 205 | M6x45.SLDPRT | 894.00K |
| 206 | MagnetDisk.SLDASM | 316.50K |
| 207 | MagnetMisumiHXNH15_5.SLDPRT | 189.50K |
| 208 | needlerollerbearing_nm_iso.sldprt | 1.61M |
| 209 | needlerollerbearing_nrba_iso.sldprt | 897.00K |
| 210 | NutCastleM10DIN935.SLDPRT | 285.50K |
| 211 | NutCastleM8DIN935.SLDPRT | 285.50K |
| 212 | NutM6CastleThinDIN937.SLDPRT | 433.50K |
| 213 | O-Ring18x2.65.SLDPRT | 485.00K |
| 214 | O-RingforCover.SLDPRT | 449.00K |
| 215 | O-RingforRockers.SLDPRT | 474.00K |
| 216 | o-ringsseriesa_iso.sldprt | 780.00K |
| 217 | Oil-Seal-RSC-01001806-ComTech.sldprt | 262.00K |
| 218 | Oil-Seal-RSC-01202207-ComTech.sldprt | 249.00K |
| 219 | Oil-Seal-RSC-02203506-ComTech.sldprt | 266.50K |
| 220 | Oil-Seal-RTC-01802807-ComTech.sldprt | 284.00K |
| 221 | Oil-Seal-RTC-03205008-ComTech.sldprt | 250.50K |
| 222 | Oil-Seal-RTC-04505507-ComTech.sldprt | 281.50K |
| 223 | OilFilter.SLDASM | 2.49M |
| 224 | Pin1-5x15.SLDPRT | 162.50K |
| 225 | Pin2x6.SLDPRT | 217.00K |
| 226 | Pin3x10.SLDPRT | 220.00K |
| 227 | Pin6x16.SLDPRT | 223.00K |
| 228 | piolinofarfalla.sldprt | 194.00K |
| 229 | Pipe.SLDPRT | 296.00K |
| 230 | Pipe4.SLDPRT | 435.00K |
| 231 | plainwashernormalgradea_iso.sldprt | 389.00K |
| 232 | plainwashernormalgradec_iso.sldprt | 387.00K |
| 233 | PlateforCamFollower.SLDPRT | 276.50K |
| 234 | PlateforOilPump.SLDPRT | 598.00K |
| 235 | PushrodAssembly.SLDASM | 520.50K |
| 236 | PushrodEndLower.SLDPRT | 258.00K |
| 237 | RatchetforStarter1.SLDPRT | 336.50K |
| 238 | RodforSolanoyd.SLDPRT | 216.50K |
| 239 | ScrewM4Wirelocking.SLDPRT | 3.32M |
| 240 | ScrewM5Wirelocking.SLDPRT | 5.84M |
| 241 | ScrewM6Wirelocking.SLDPRT | 3.69M |
| 242 | ScrewM6x20special.SLDPRT | 1.71M |
| 243 | ScrewM6x45special.SLDPRT | 1.46M |
| 244 | ScrewM6x70.SLDPRT | 865.00K |
| 245 | ScrewM8Wirelocking.SLDPRT | 3.98M |
| 246 | singlecoilsquaresectionspringwasher_bsi.sldprt | 447.50K |
| 247 | SliderforPushrod.SLDPRT | 277.00K |
| 248 | SlottedPanHeadScrew_ISO_ISO1580-M3x6---6N.sldprt | 202.00K |
| 249 | SNGE17-400.00.SLDASM | 821.50K |
| 250 | SNGE17-401.00.SLDPRT | 695.50K |
| 251 | SNGE17-402.00.SLDPRT | 536.00K |
| 252 | SNGE17-403.00.SLDPRT | 498.00K |
| 253 | SNGE17-404.00.SLDPRT | 343.00K |
| 254 | SNGE17-405.00.SLDPRT | 294.00K |
| 255 | SNGE17-406.00.SLDPRT | 134.50K |
| 256 | SNGE17-407.00.SLDPRT | 263.50K |
| 257 | socketcountersunkheadscrew_iso.sldprt | 672.00K |
| 258 | socketheadcapscrew_iso.sldprt | 3.52M |
| 259 | socketheadcapscrew_isoM6x80.SLDPRT | 1.54M |
| 260 | SolanoydCoil.SLDPRT | 204.00K |
| 261 | SolanoydCoilFormer.SLDPRT | 253.50K |
| 262 | SolanoydCover.SLDPRT | 564.00K |
| 263 | SolanoydPlate.SLDPRT | 171.00K |
| 264 | SplitPinM10.SLDPRT | 272.50K |
| 265 | Spring Valve Outer.SLDPRT | 1.10M |
| 266 | SpringStarter.SLDPRT | 1.06M |
| 267 | SpringValveInner.SLDPRT | 1.40M |
| 268 | SpringValveOuter.SLDPRT | 1.10M |
| 269 | spurgear_isoStarter.SLDPRT | 2.98M |
| 270 | StarterMotor.SLDPRT | 523.50K |
| 271 | structurefiltrekn.sldprt | 192.00K |
| 272 | taperrollerbearing6_iso.sldprt | 1.33M |
| 273 | taperrollerbearing_iso.sldprt | 2.27M |
| 274 | TappetBall.SLDPRT | 210.00K |
| 275 | Tappetmain.SLDPRT | 215.50K |
| 276 | Throttle_body.SLDASM | 405.50K |
| 277 | tihend.SLDPRT | 162.50K |
| 278 | tissufiltrekn.sldprt | 1.83M |
| 279 | tissukn.sldprt | 1.02M |
| 280 | TopforValveSpring.SLDPRT | 234.00K |
| 281 | Tube6mmA.sldprt | 234.00K |
| 282 | Tube6mmB.sldprt | 214.00K |
| 283 | Tube8mm.sldprt | 210.00K |
| 284 | TubeforPushrodsAssembly.SLDASM | 521.00K |
| 285 | ValveGuide.SLDPRT | 208.00K |
| 286 | vedru.SLDPRT | 758.00K |
| 287 | võre.SLDPRT | 96.00K |
| 288 | WasherforBig-endBearings.SLDPRT | 128.50K |
| 289 | WasherM6Copper.SLDPRT | 282.50K |
| 290 | WasherM8Copper.SLDPRT | 326.50K |
| 291 | WasherPlainSS.sldprt | 525.50K |
| 292 | WireEnamelledCopper.SLDPRT | 264.50K |
| 293 | WireEnamelledCopperforCoil.SLDPRT | 204.00K |
| 294 | Стартер.SLDPRT | 520.00K |

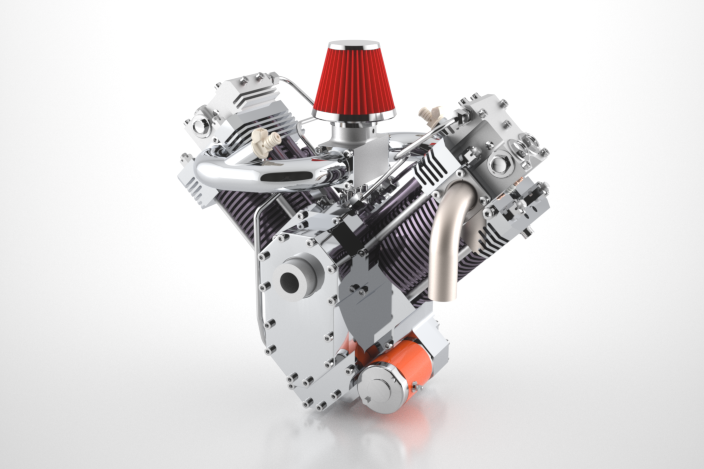

| 295 | 1sc250.png | 314.63K |
| 296 | EngineVTwinR02Render3.JPG | 103.59K |
此图纸下载需要15金币
立即下载
发布者
每逢大事有静气
创作: 30395
粉丝: 435
加入时间：2022-08-18
模型信息
图纸格式：sldasm,sldprt,step
文件大小：151.32M
所需金币：15
上传时间：2023-02-02 22:12:43
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2012
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.png)
0_0_364.png)
0.png)
0.png)
0.png)
0_0_364.png)
0.png)
0.png)
0_0_364.png)
0_0_364.png)
0.png)
0_0_364.png)
0_0_364.png)
0_0_364.png)
QQ在线客服
官方QQ群
