B10-3D打印机UG模型（ID:481021）

数码电器 / 其它电器 / B10-3D打印机UG模型

©非原创

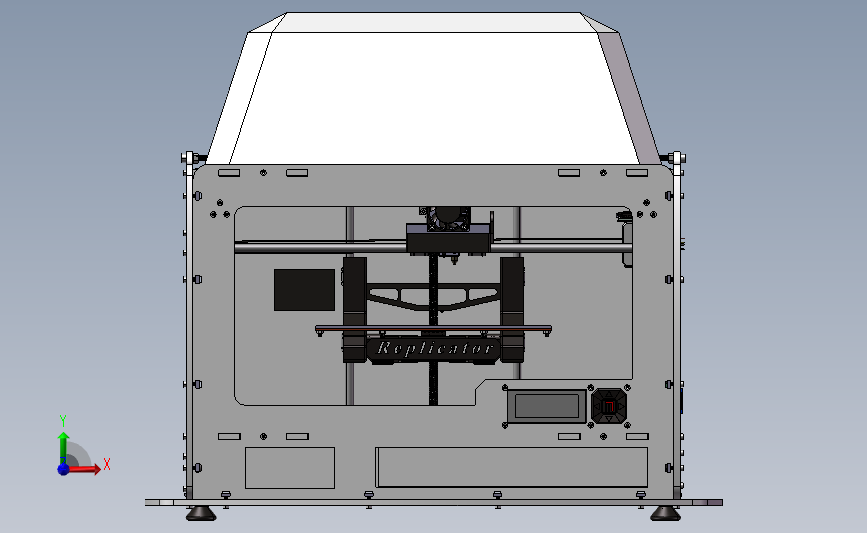

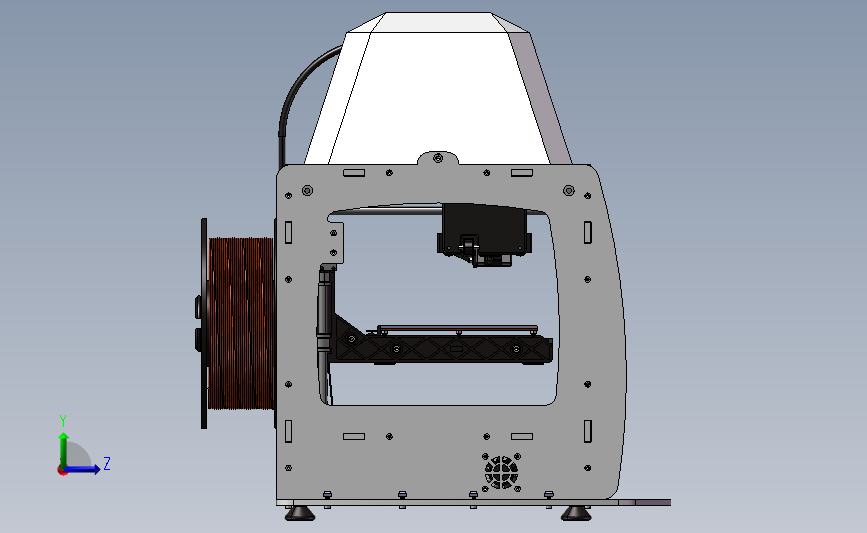

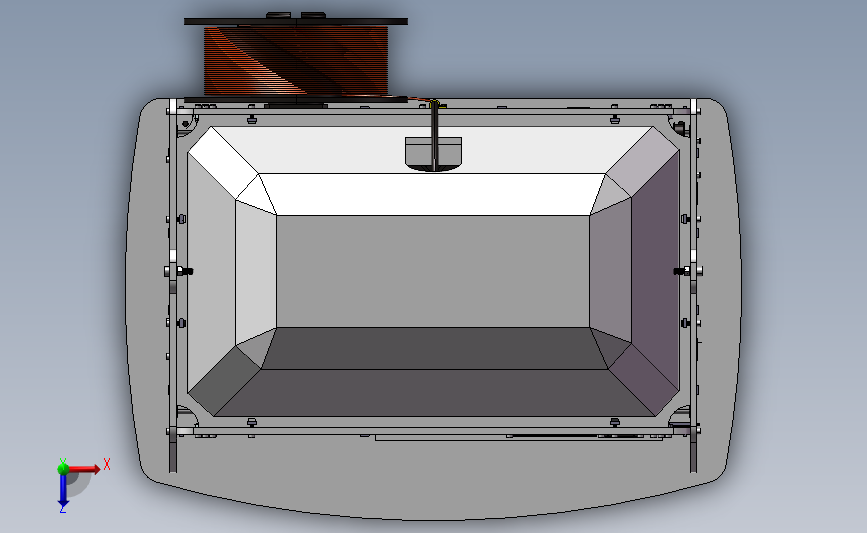

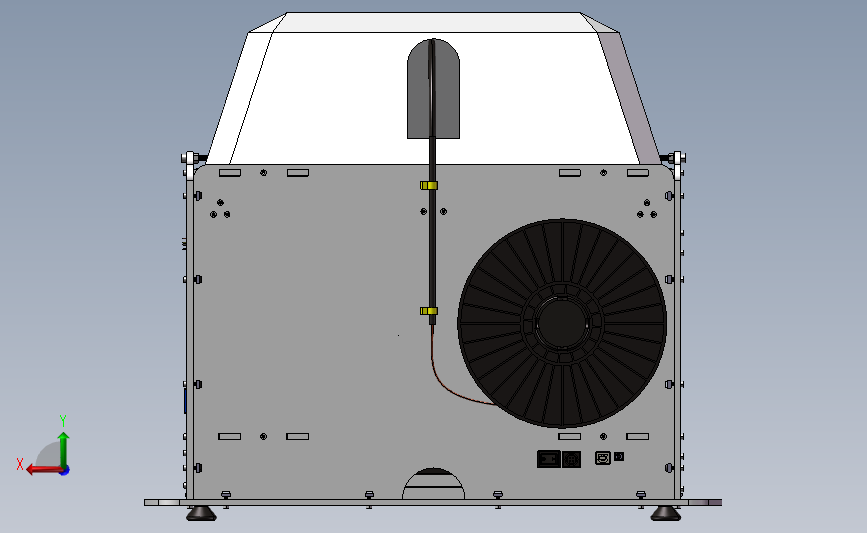

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16759043776204.rar	45.19M
2	3D_Printer_step.SLDASM	35.47M
3	3D_Printer_step.prt	434.00K
4	ACM2004A1_FGBW.prt	1.17M
5	Aluminum_Bar_Head.prt	127.50K
6	Arm_Holder_BedHeat.prt	352.00K
7	Arm_Holder_BedHeat_Mirror.prt	352.00K
8	Beam_Stopper_Switcher.prt	156.00K
9	Bed_Heat.prt	445.00K
10	Belt_Vertical.prt	97.00K
11	Belt_X.prt	97.00K
12	Belt_Y.prt	96.50K
13	Bottom_Printer.prt	213.00K
14	Brushless_DC_Fan.prt	388.50K
15	ClosedLinearBearing-LBCA-6-S.prt	772.00K
16	Flanged_Ball_Bearing_4.90.prt	93.50K
17	Front_plate.prt	1.30M
18	Front_plate_Rear.prt	413.50K
19	Head_Extruder.prt	267.00K
20	Heater_Default_AsMachined_.prt	227.50K
21	Heat_Sink.prt	442.00K
22	hexnutstyle2gradeab_iso_HexagonNutISO-4033-M5-W-S.prt	178.50K
23	hexthinnutchamferedgradeab_iso_HexagonThinNutISO-4035-M6-N.prt	124.00K
24	hexthinnutgradeb_iso_HexagonNutISO-4036-M3-N.prt	103.50K
25	hexthinnutgradeb_iso_HexagonNutISO-4036-M5-N.prt	102.50K
26	Hob_8mm.prt	104.00K
27	Hob_Screw_Motor.prt	271.00K
28	Holder_Shaft_Extruder.prt	455.00K
29	Holder_Shaft_Extruder_Mirror.prt	520.00K
30	Holder_Spools.prt	180.50K
31	Knob.prt	315.50K
32	Leg.prt	79.00K
33	Mech_Endstop.prt	540.00K

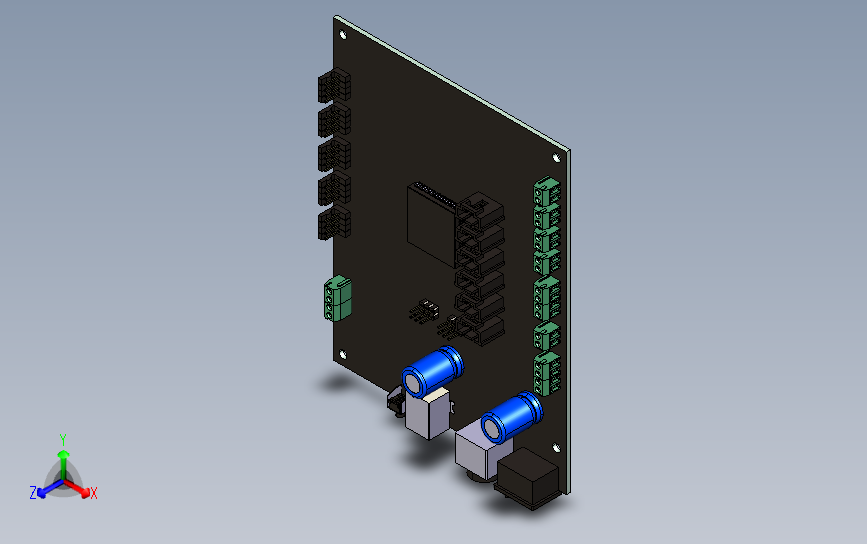

34	Mother_card_STEP.prt	7.21M
35	Part2^3D_Printer.prt	112.00K
36	plainwasher10669typenl_iso_ISO10669-3-N.prt	89.00K
37	plainwasher10673typesnl_iso_ISO10673-3.6-S.prt	89.00K
38	Plastic_Enclosure.prt	140.00K
39	Plastic_Head_exdruder.prt	214.00K
40	Plastic_Head_exdruder_Front.prt	184.00K
41	Plug_Screen.prt	1.04M
42	Plug_Stepper_Motor.prt	171.50K
43	prevailingtorquehexnut_am_AM-M3-S.prt	177.00K
44	Push_Filement_Extruder.prt	92.00K
45	richco_hurc-4-01-clip_4-01-6.4mmDia.prt	118.50K
46	Rubber_AntiVibration_Legs.prt	108.50K
47	Screw_Head_Extruder.prt	103.50K
48	Screw_Shaft.prt	2.23M
49	SD_Card.prt	439.00K
50	Serrated_Pulley_extruder.prt	640.00K
51	Shaft_5mm_450.prt	92.00K
52	Shaft_8mm_280.prt	92.00K
53	Shaft_8mm_400.prt	92.00K
54	Shaft_Horizontal_Displacement.prt	84.00K
55	Shaft_Vertical.prt	92.00K
56	Side_plate.prt	604.00K
57	Side_plate_Left.prt	489.50K
58	socketcountersunkheadscrew_am_B18.3.5M-3x0.5x10SocketFCHS--10S.prt	253.50K
59	socketcountersunkheadscrew_am_B18.3.5M-3x0.5x30SocketFCHS--30S.prt	616.00K
60	socketcountersunkheadscrew_iso_ISO10642-M3x16---16S.prt	348.00K
61	socketheadcapscrew_am_B18.3.1M-3x0.5x50HexSHCS--18SHX.prt	423.50K
62	socketheadcapscrew_iso_ISO4762M3x10---10N.prt	117.00K
63	socketheadcapscrew_iso_ISO4762M3x10---10S.prt	280.50K
64	socketheadcapscrew_iso_ISO4762M3x12---12S.prt	307.50K
65	socketheadcapscrew_iso_ISO4762M3x16---16S.prt	377.50K
66	socketheadcapscrew_iso_ISO4762M3x20---20S.prt	453.00K
67	socketheadcapscrew_iso_ISO4762M3x25---18S.prt	438.00K
68	socketheadcapscrew_iso_ISO4762M3x6---6S.prt	204.00K
69	socketheadcapscrew_iso_ISO4762M4x16---16S.prt	308.50K
70	socketheadcapscrew_iso_ISO4762M5x30---22S.prt	369.00K
71	socketsetscrewflatpoint_iso_ISO4026-M2x3-S.prt	164.50K
72	Spool.prt	1.55M
73	Spring.prt	298.50K
74	Standoffs_10.prt	89.00K
75	Standoffs_3.6X6.5x15.5.prt	88.50K
76	Standoffs_L15.prt	88.50K
77	Standoffs_L24.prt	88.50K
78	Standoffs_motherCard.prt	111.50K
79	Stepper_ScrewShaft.prt	79.50K
80	Stepping_Motor_17HD4001-20N.prt	1.33M
81	Stepping_Motor_17HD4063-01N.prt	1.34M
82	Support_bed.prt	676.00K
83	Support_Extruder.prt	294.50K
84	Support_HeadExtruder.prt	126.50K
85	Timing_Pulley_10.prt	313.00K
86	Timing_Pulley_10_Horizontal.prt	292.00K
87	Top_Plate.prt	290.50K
88	Top_Plate_Down.prt	306.50K
89	Tunnel_Filament.prt	98.50K
90	T_Nut.prt	98.50K
