3 轴 CNC雕刻机（ID:507986）

机械设备 / 机加工设备 / 3 轴 CNC雕刻机

©非原创

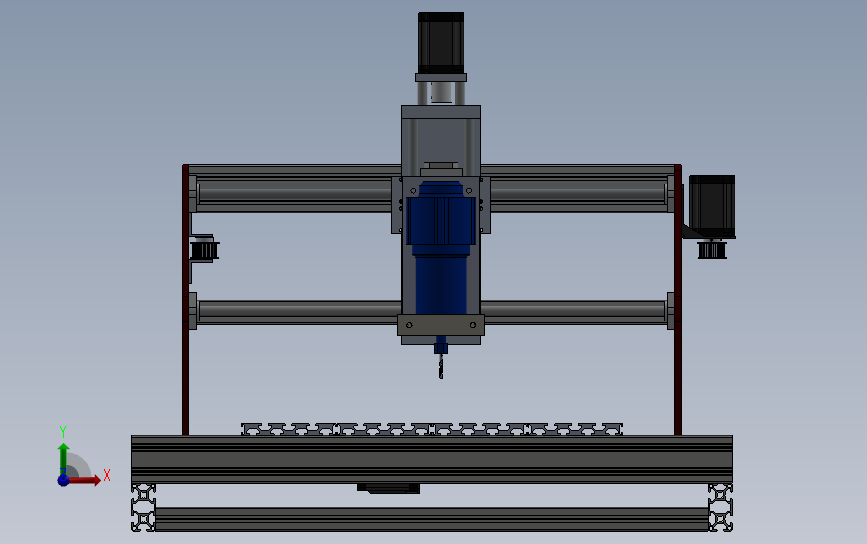

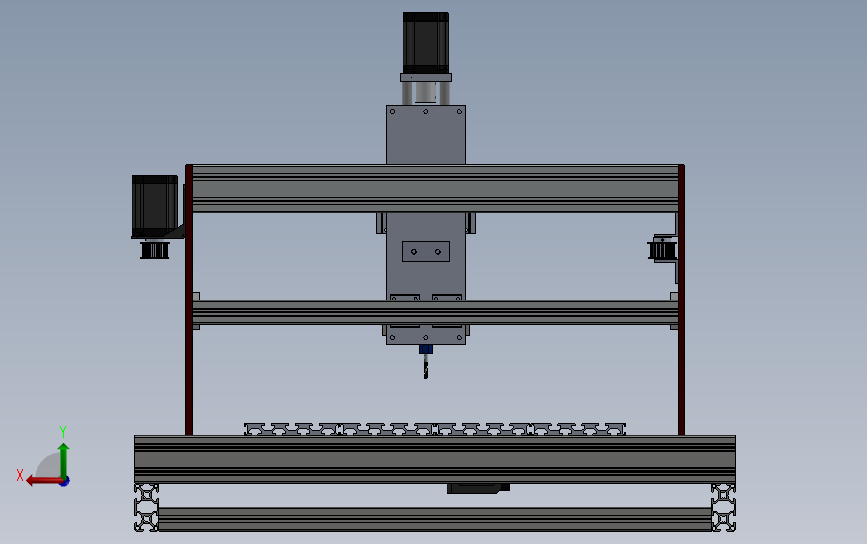

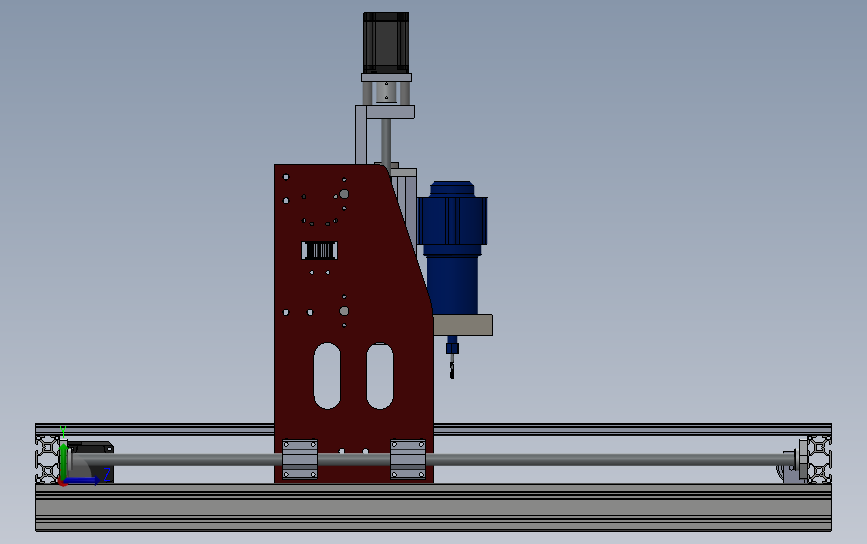

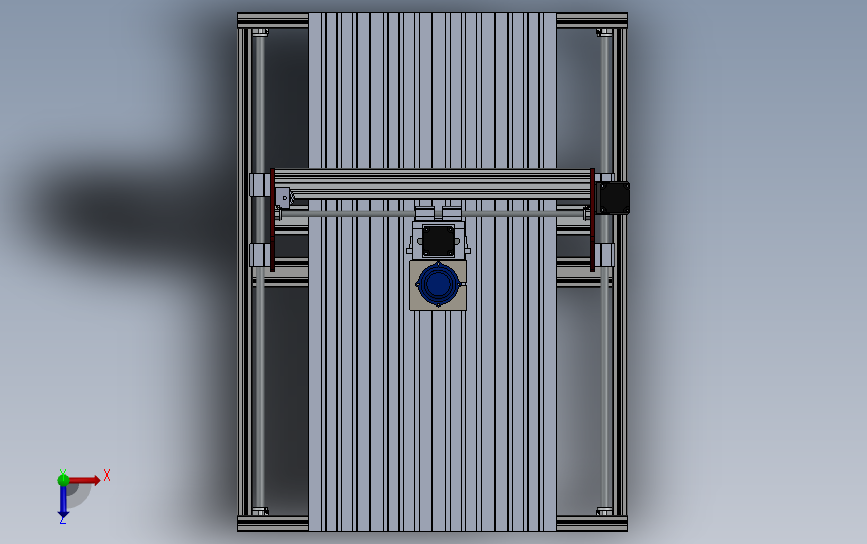

平面图

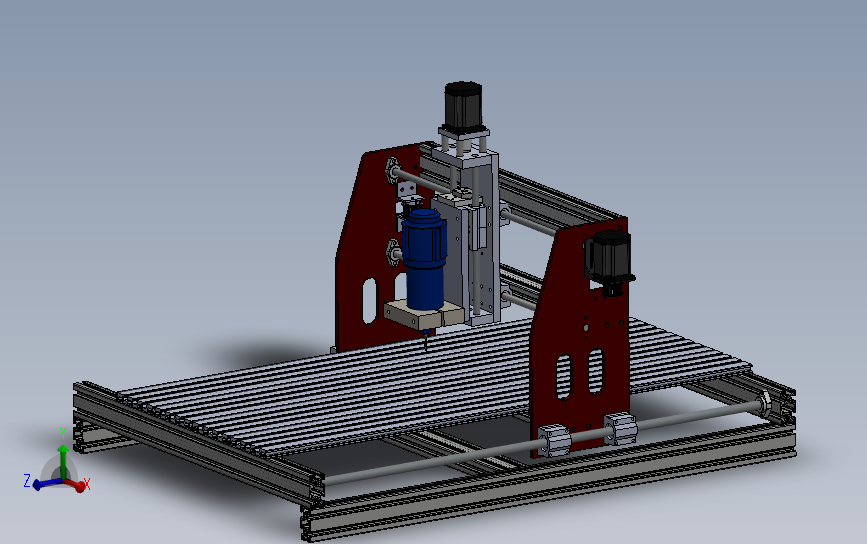

3D视图

文件列表

#	文件名称	文件大小
1	16778507034417.zip	32.70M

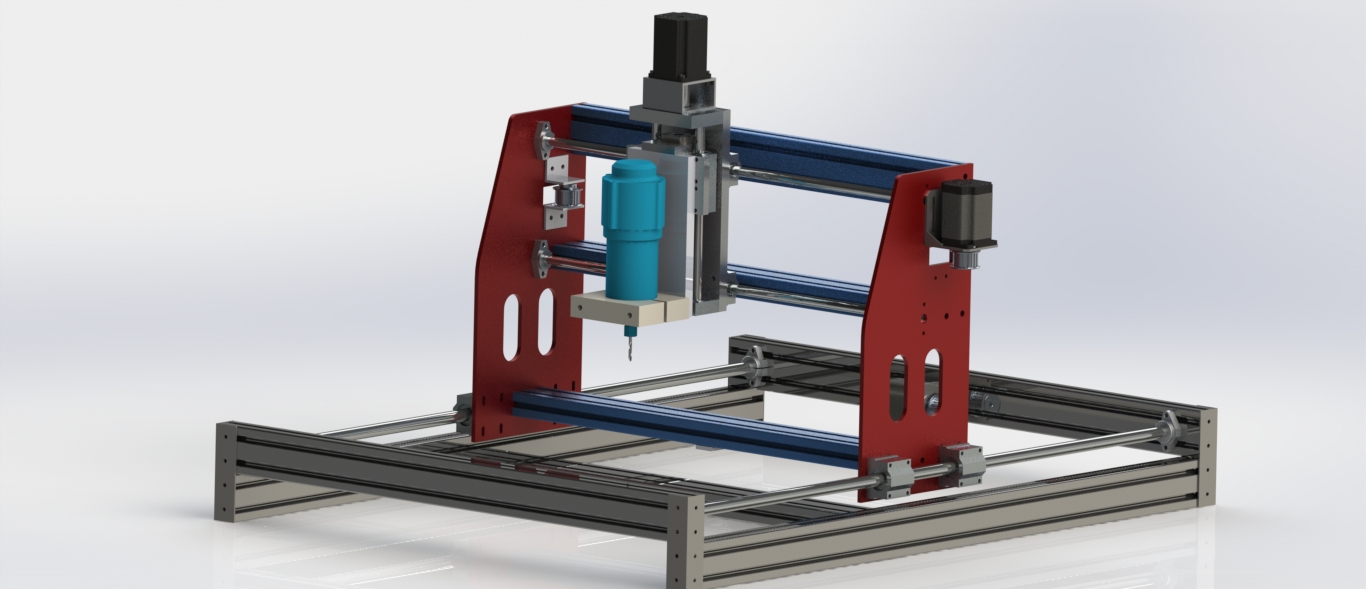

2	1.JPG	342.20K

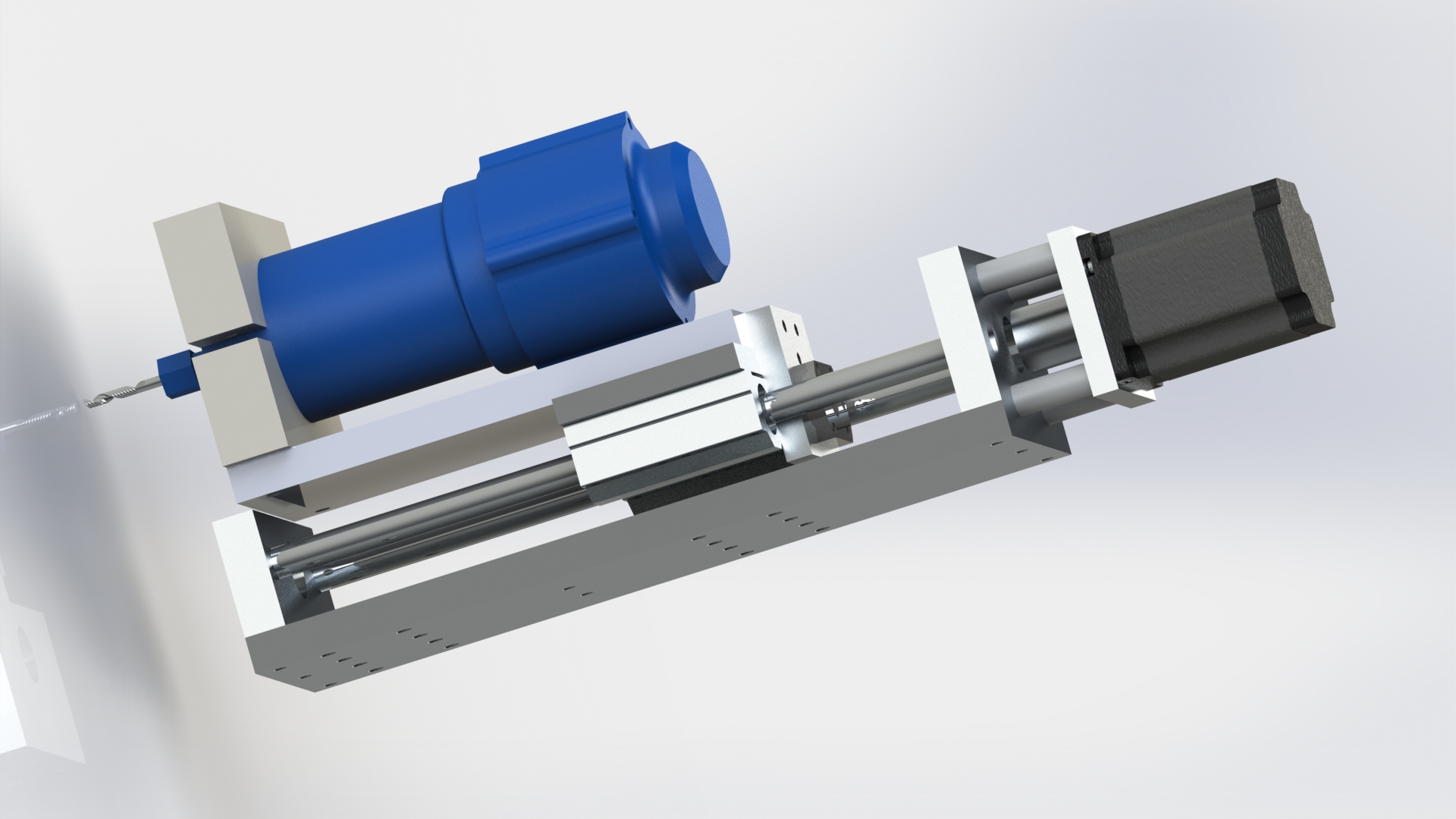

3	10.JPG	693.24K
4	11.JPG	864.90K

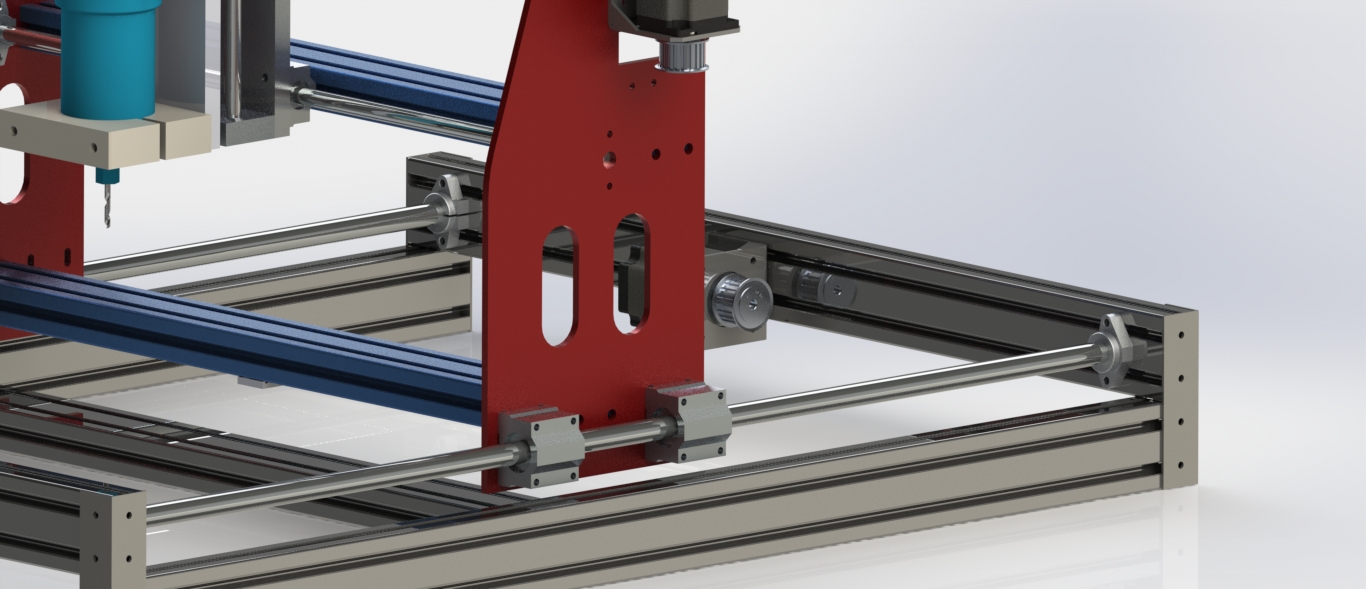

5	2.JPG	410.61K

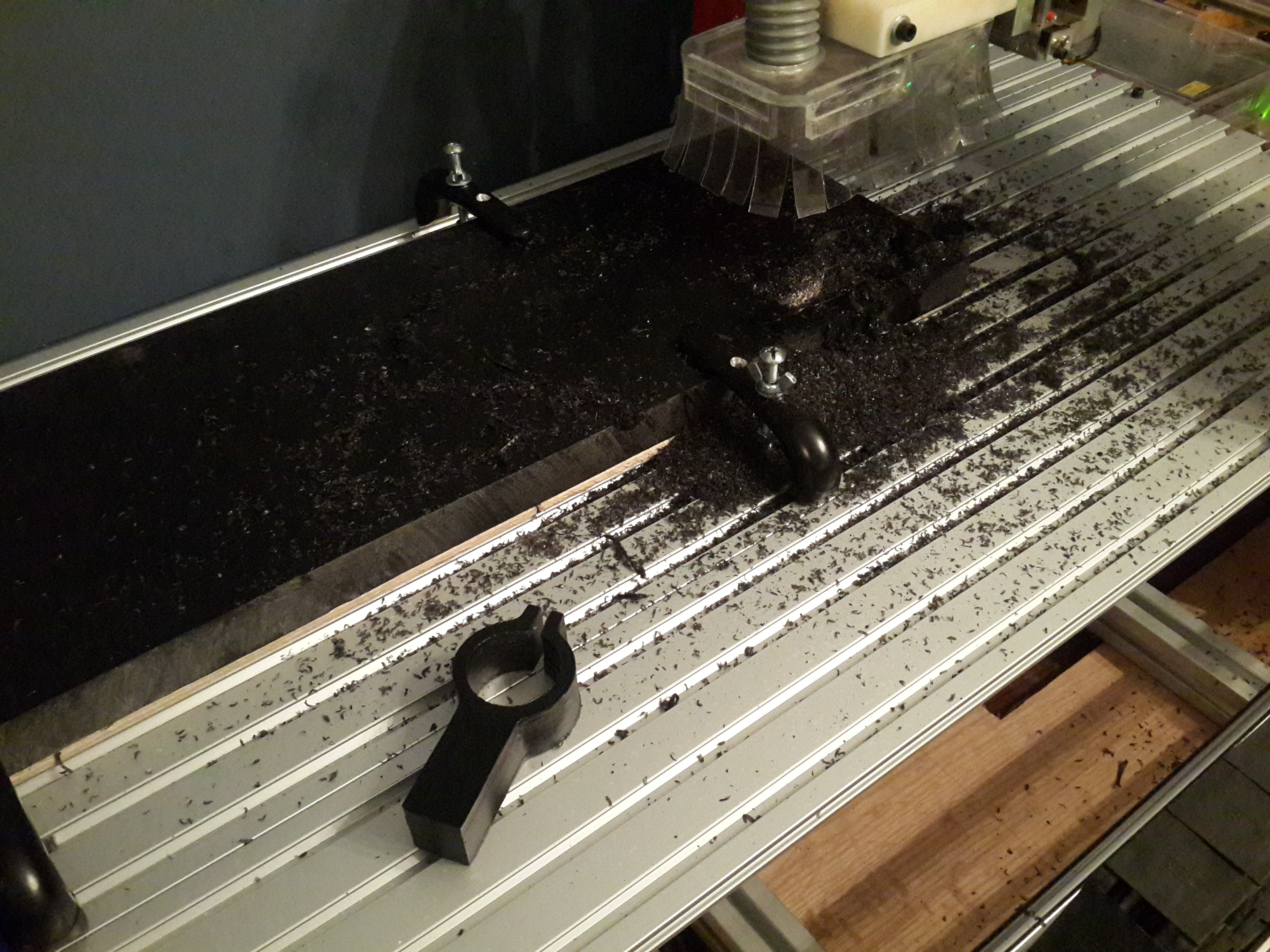

6	20160420_194020.jpg	4.62M

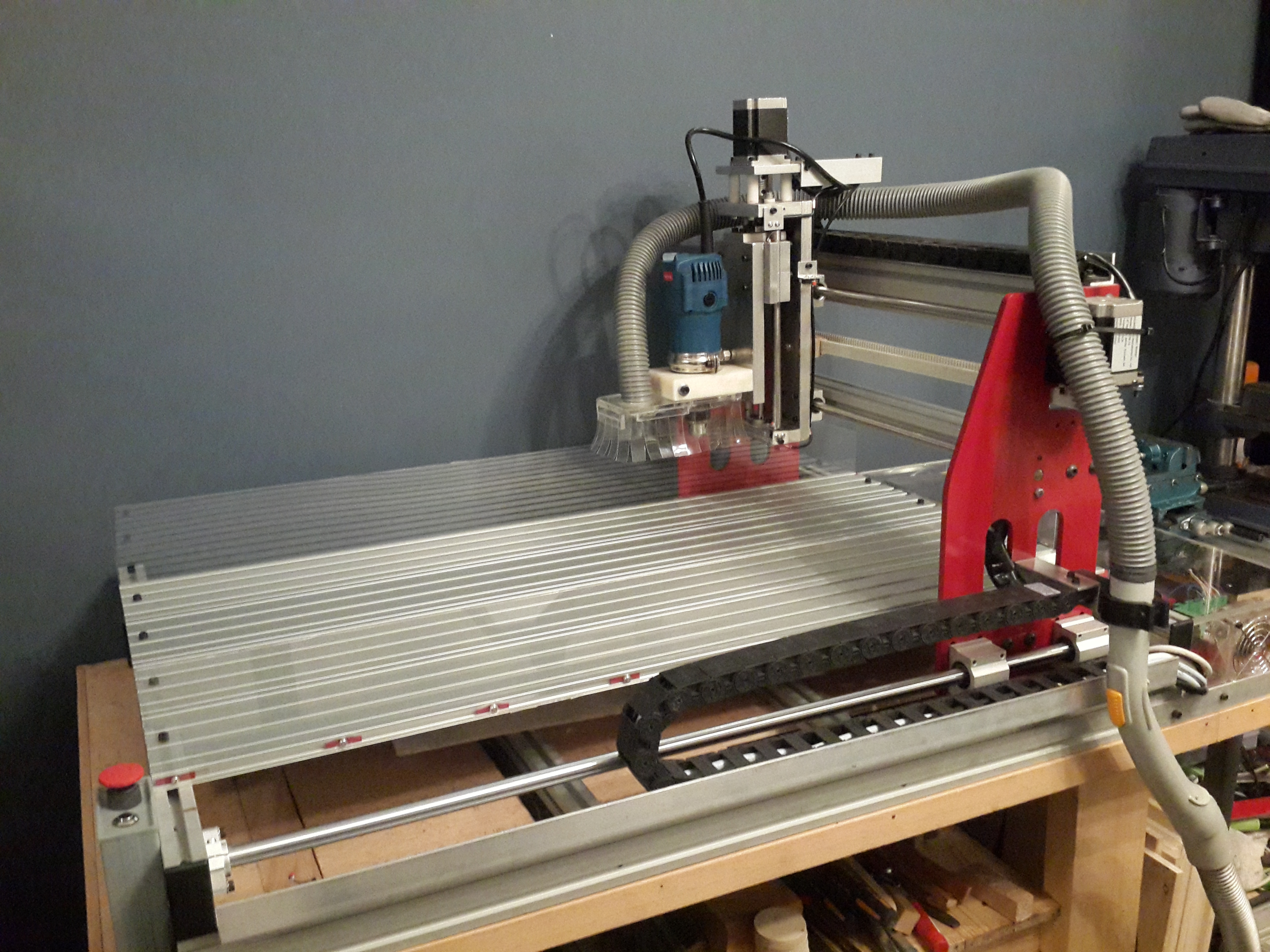

7	20160501_185515.jpg	4.21M

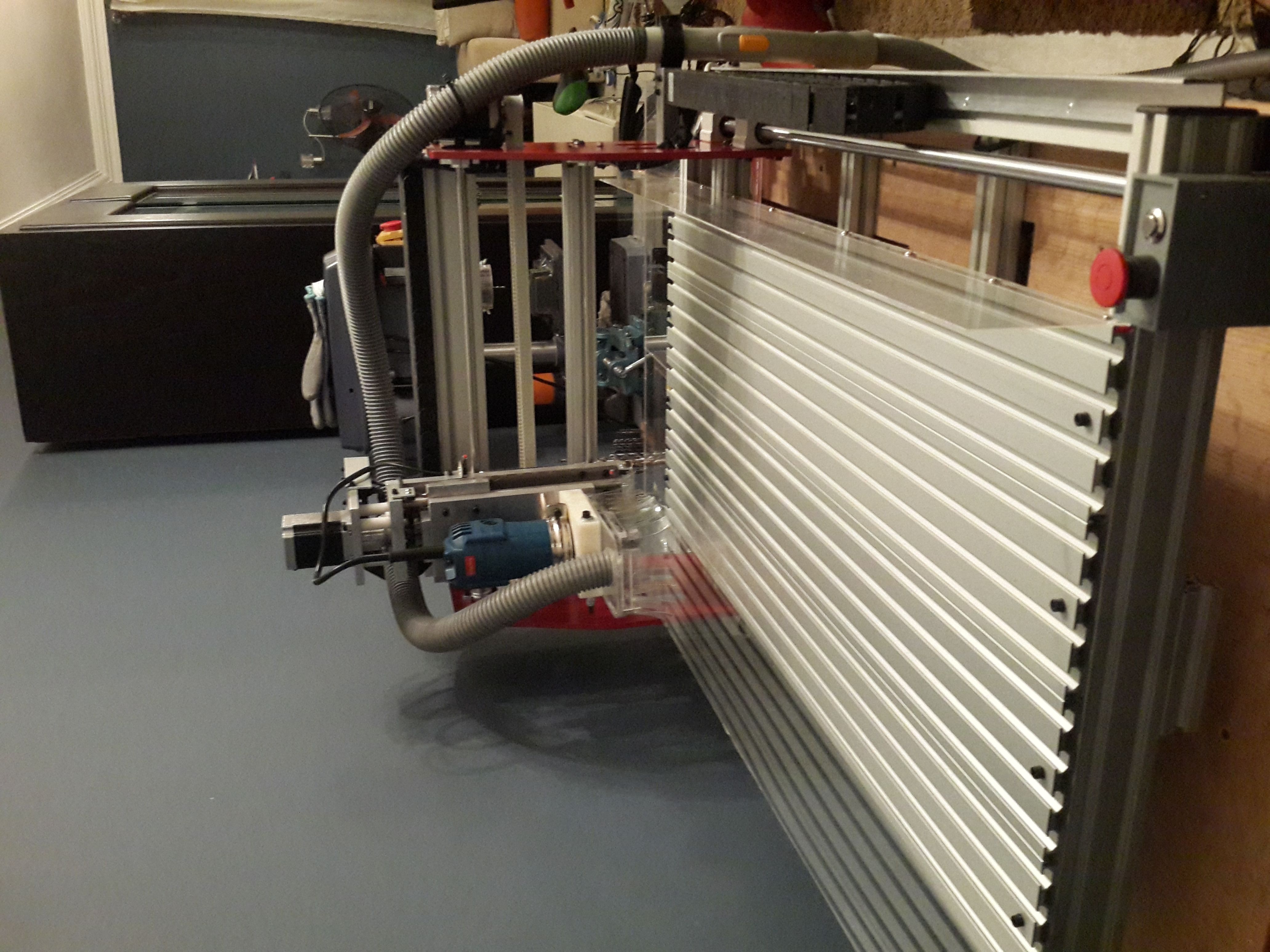

8	20160501_185600.jpg	3.96M
9	20T5-6.3516mm.SLDPRT	541.41K
10	20T5-6.3516mm_Bearing.SLDPRT	600.98K

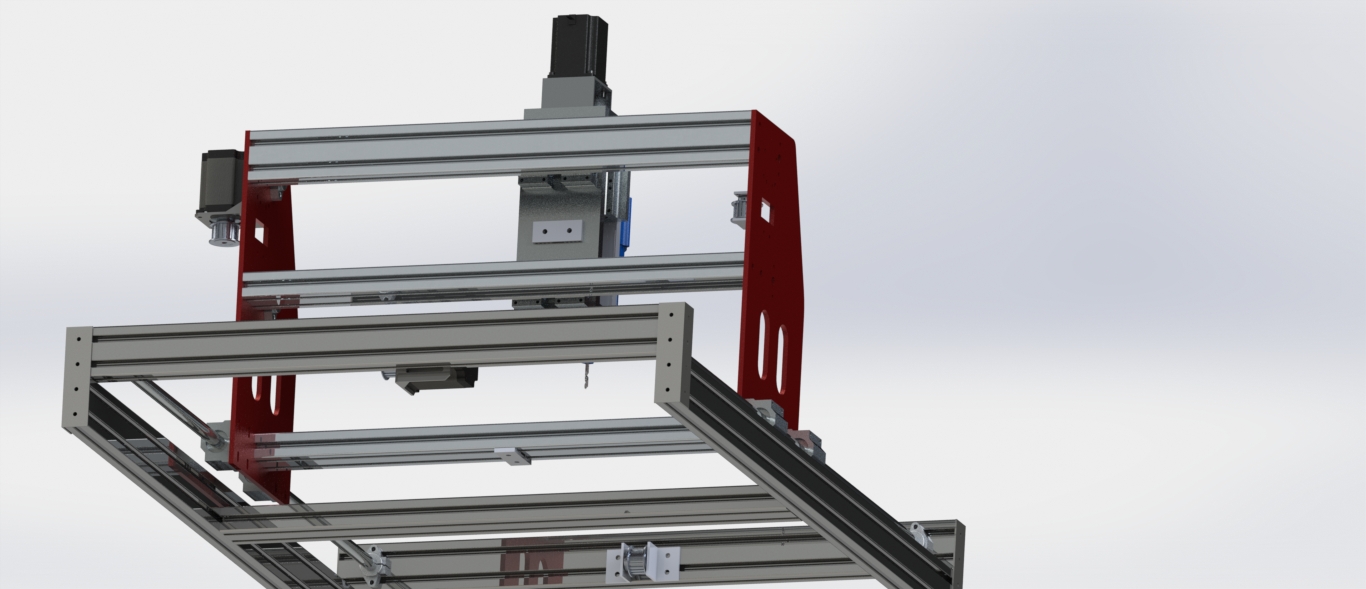

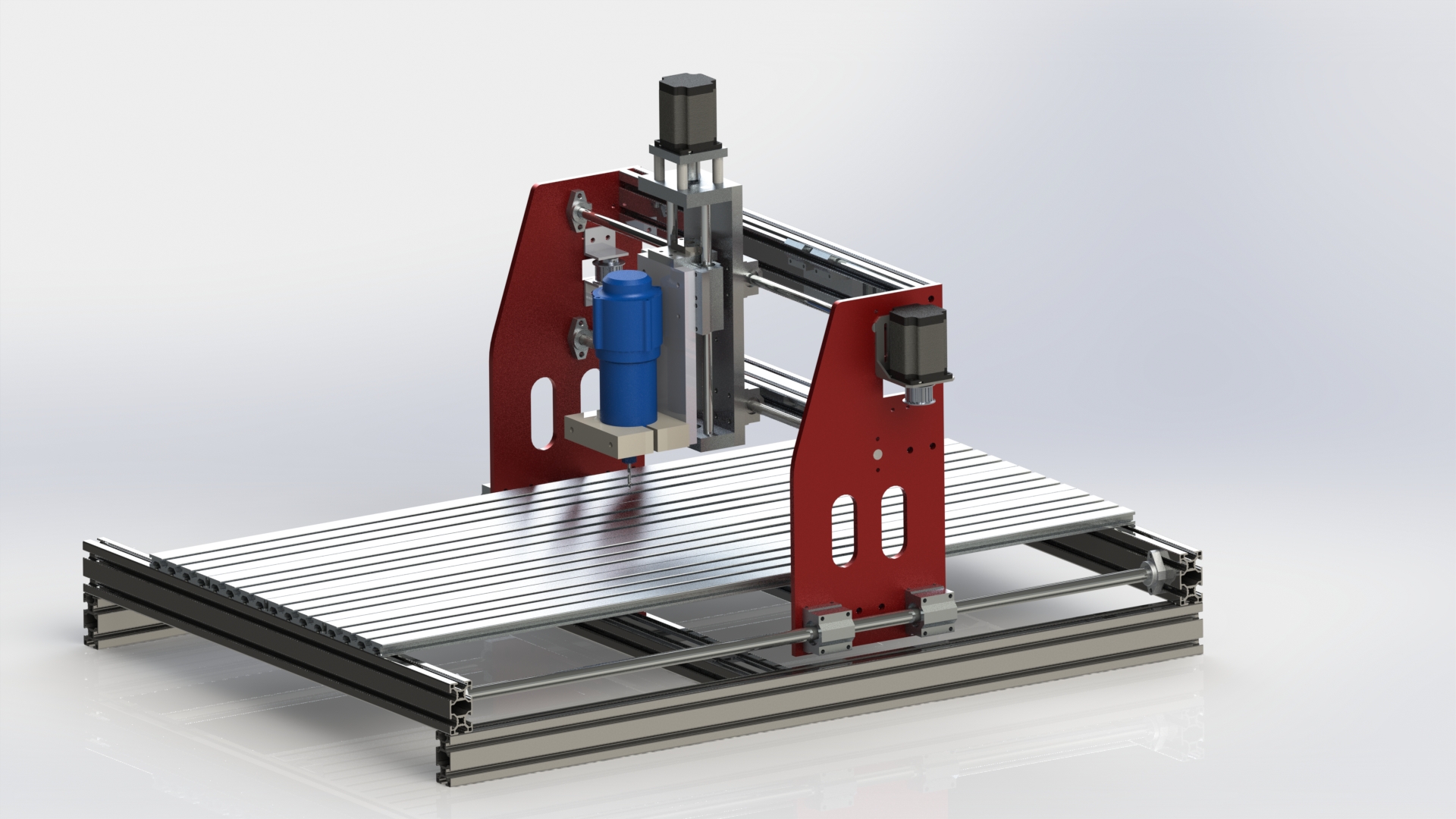

11	3.JPG	325.86K

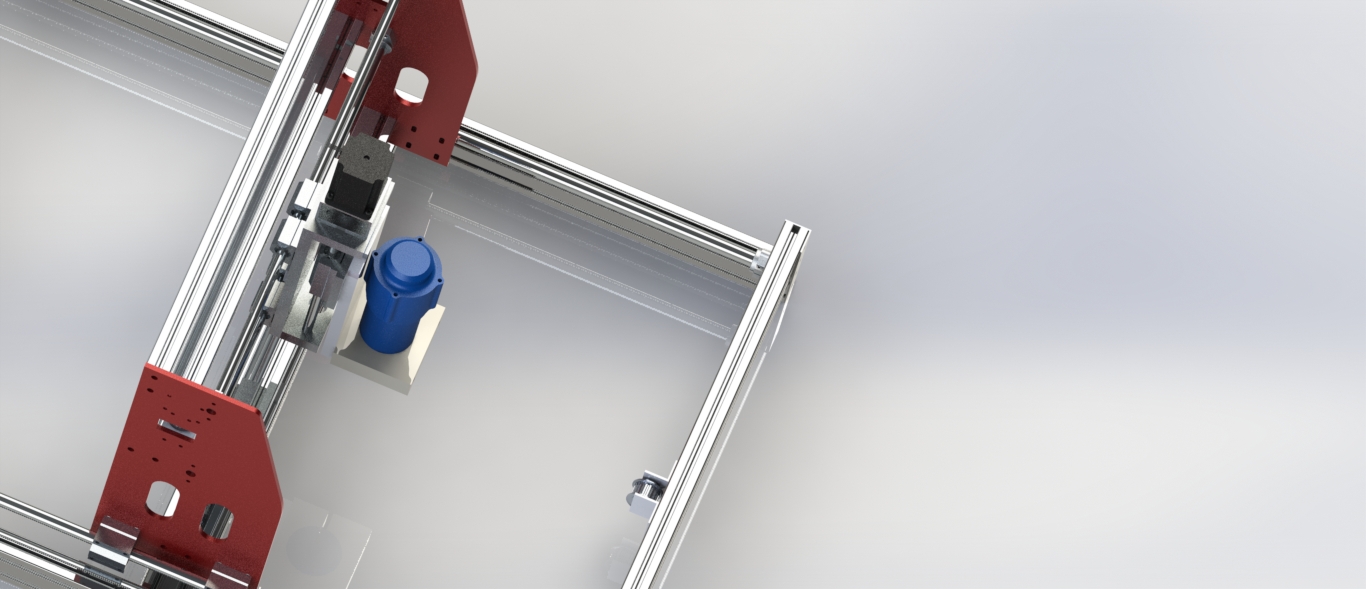

12	4.JPG	346.34K

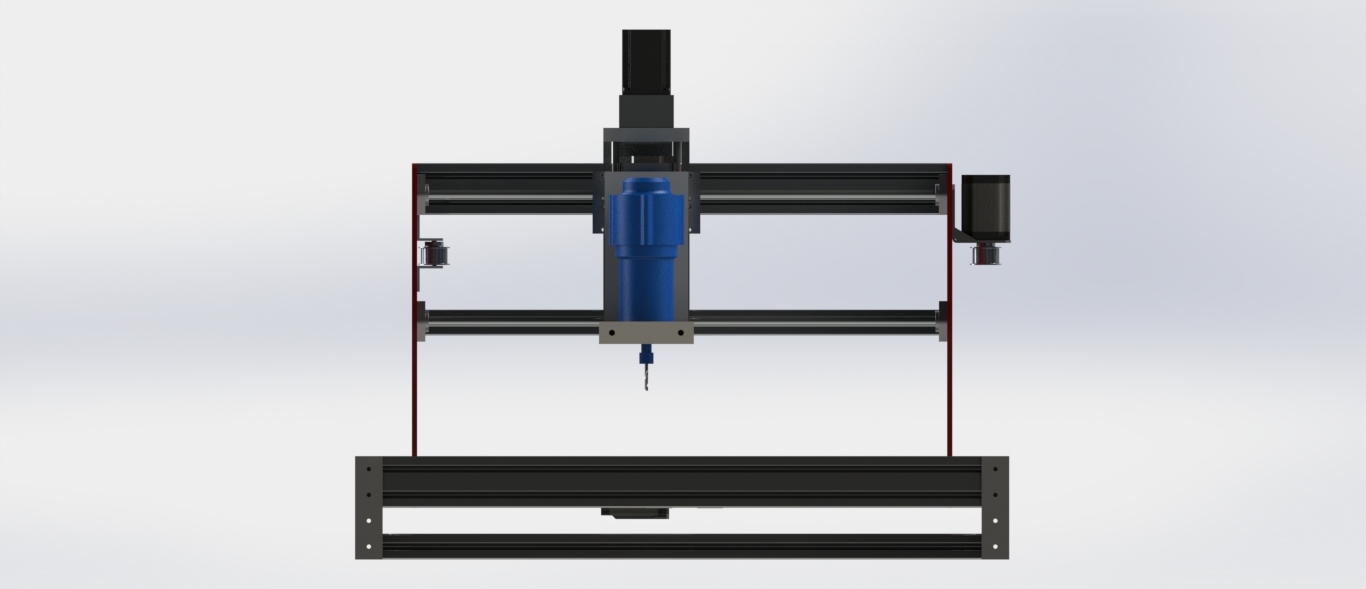

13	5.JPG	246.22K

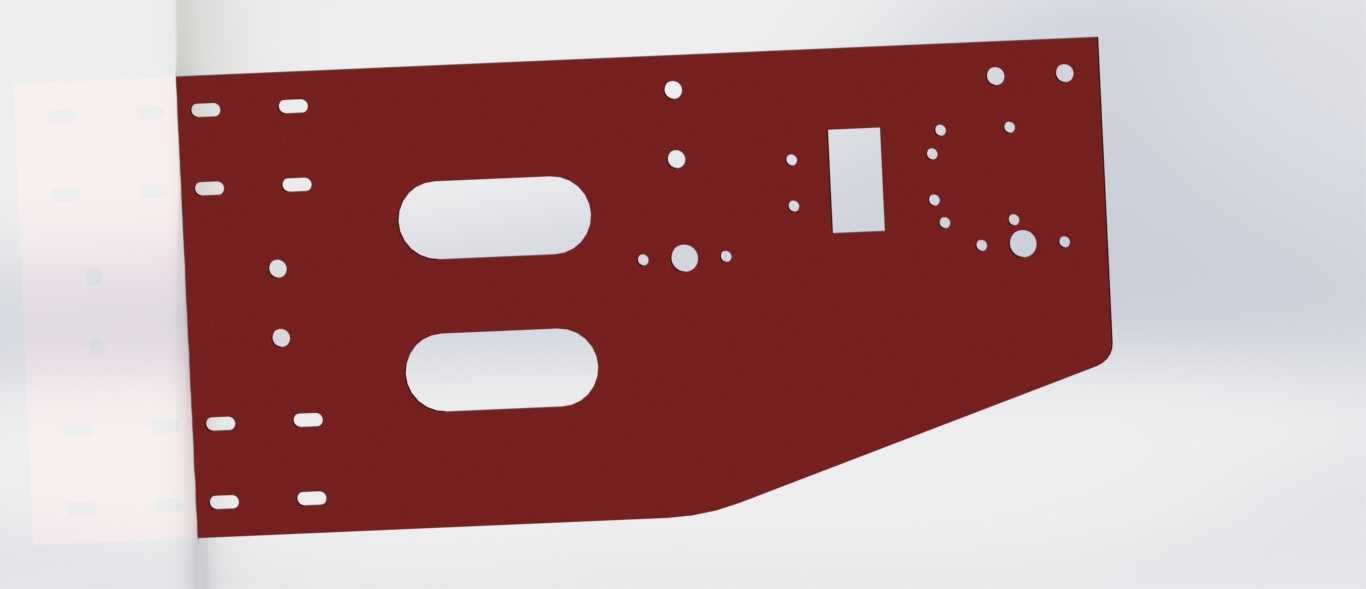

14	6.JPG	304.46K

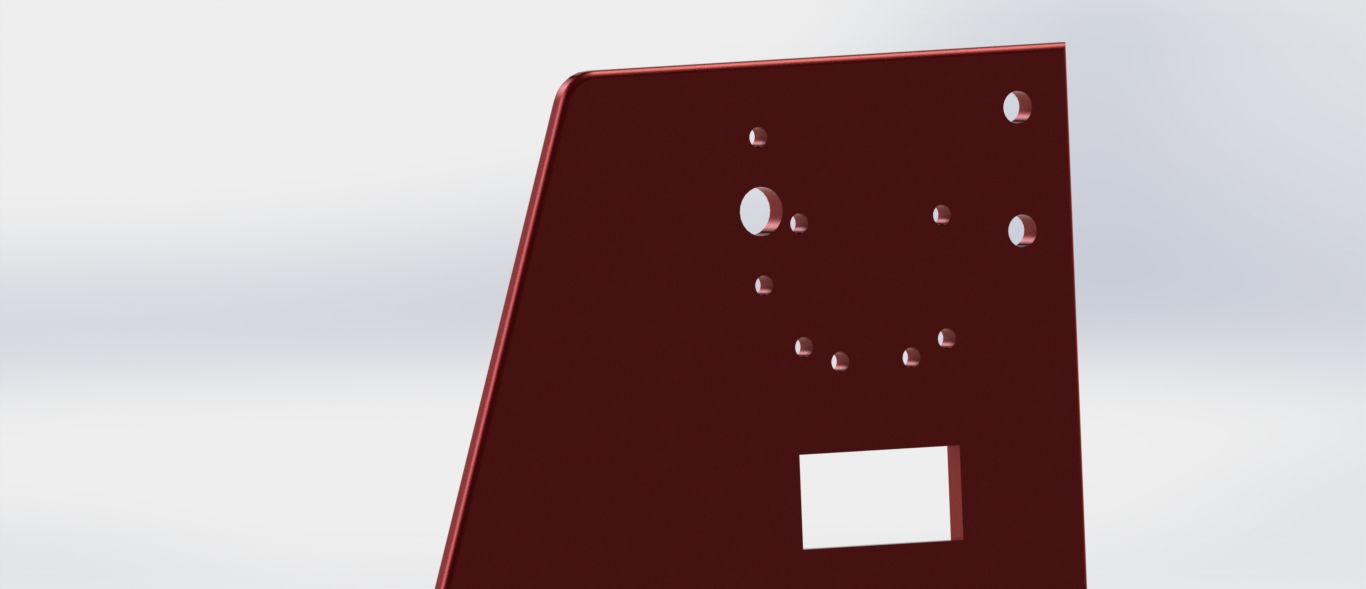

15	7.JPG	261.84K

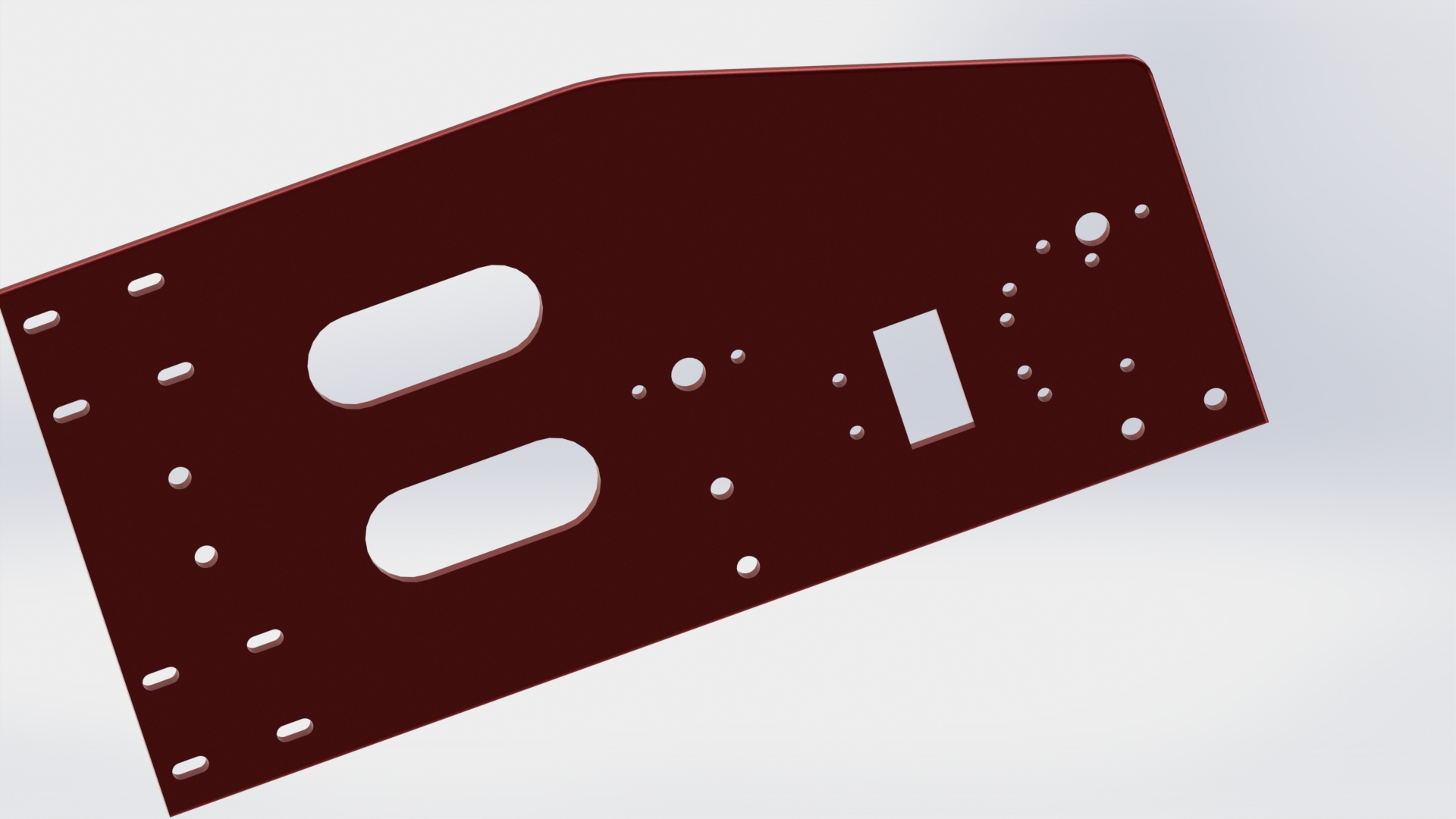

16	8.JPG	740.77K

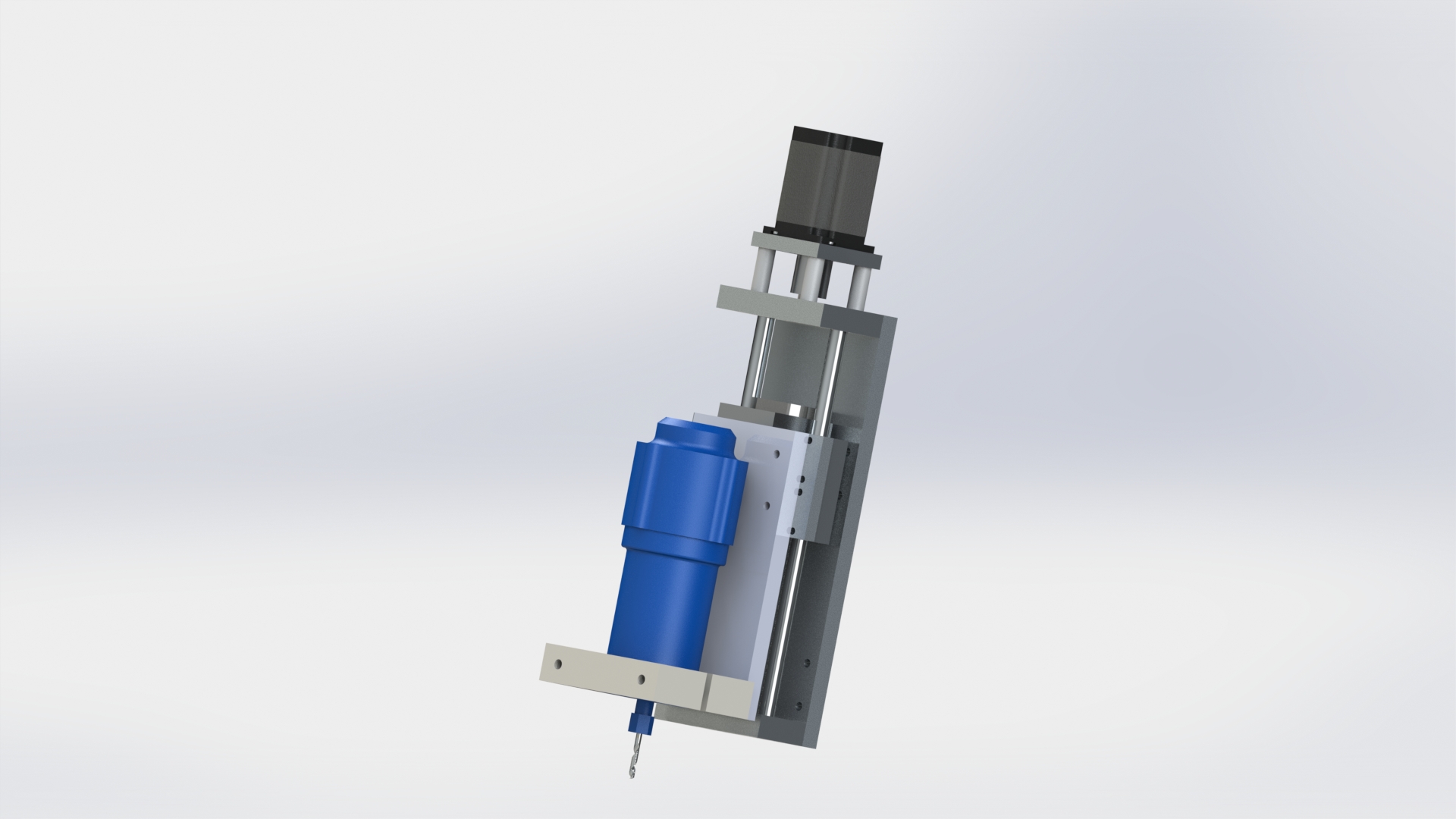

17	9.JPG	563.34K
18	AB_CNC.SLDASM	1.33M
19	back_plate.SLDPRT	110.55K
20	ballnut.SLDPRT	118.24K
21	ballnut_and_plate_x_axis.SLDASM	131.72K
22	ballnut_plate.SLDPRT	108.75K
23	ballnut_plate_x_axis.SLDPRT	82.86K
24	ballnut_plate_y_axis.SLDPRT	123.47K
25	ballnut_SFU_1605.SLDPRT	105.33K
26	ballnut_y_axis.SLDASM	124.51K
27	ballnut_y_axis.SLDPRT	124.47K
28	ballscrew_z_axis.SLDPRT	1017.95K
29	bearing_12_28_8.SLDPRT	102.12K
30	bearing_22_10_8.SLDPRT	104.56K
31	bearing_22_10_8_floating_end_support.SLDPRT	72.26K
32	bearing_26_10_8.SLDPRT	102.03K
33	Bearing_6x15mm.SLDPRT	85.06K
34	bearing_pedestal_22mm.SLDPRT	98.91K
35	Belt_clip.SLDPRT	95.61K
36	Belt_test.SLDPRT	45.95K
37	BS.SLDPRT	56.47K
38	coupler_6.35_10.SLDPRT	108.31K
39	delrin_stepper_support_y_axis.SLDPRT	71.31K
40	endmill4mm.SLDPRT	449.71K
41	ISO4029-M3x6-N.sldprt	391.00K
42	ISO4029-M3x8-N.sldprt	390.00K
43	kress_holder.SLDPRT	124.02K
44	kress_spindle.SLDPRT	122.23K
45	Linear_10mm.SLDPRT	53.98K
46	Linear_16mm.SLDPRT	54.58K
47	linear_bearing_housing_10.SLDPRT	117.57K
48	linear_bearing_housing_12.JPG	61.84K
49	linear_bearing_housing_12.SLDPRT	136.41K
50	linear_bearing_housing_16.SLDPRT	123.26K
51	linear_bearing_housing_sc16_uu.SLDPRT	98.16K
52	linear_bearing_housing_sc20_uu.SLDPRT	112.30K
53	linear_bearing_housing_scvuu.SLDPRT	119.52K
54	Linear_end_support_10.SLDPRT	66.56K
55	Linear_end_support_16.SLDPRT	83.57K
56	Linear_end_support_16_new.SLDPRT	64.72K
57	Nema23HS8.SLDPRT	389.38K
58	nema23mount.SLDPRT	131.76K
59	Pipe.SLDPRT	68.98K
60	plyta_a4_dab.SLDPRT	251.40K
61	profil20_20_400.SLDPRT	260.23K
62	profil_40_160L_350.SLDPRT	336.23K
63	profil_40_160L_350_bearing.SLDPRT	439.92K
64	profil_40_80L_600_long.SLDPRT	249.71K
65	profil_40_80L_600_long_hole.SLDPRT	347.33K
66	Pulley_Support.SLDASM	208.79K
67	rail_16_419.SLDPRT	58.45K
68	screwM10x30.SLDPRT	83.56K
69	screwM4x10.SLDPRT	132.43K
70	screwM5x15.SLDPRT	132.97K
71	screwM5x20.SLDPRT	131.45K
72	screwM5x25.SLDPRT	133.36K
73	screwM5x30.SLDPRT	131.36K
74	screwM6x40.SLDPRT	131.03K
75	screwM7x60sockethead.SLDPRT	96.75K
76	screwM8x40sockethead.SLDPRT	128.95K
77	Shaft.SLDPRT	58.91K
78	shaft_20_519.SLDPRT	58.17K
79	shaft_support.SLDASM	94.82K
80	shaft_support.SLDPRT	120.69K
81	Shaft_Support_Down.SLDPRT	76.11K
82	shaft_support_floating_end.SLDASM	73.51K
83	shaft_support_floating_end.SLDPRT	108.19K
84	Shaft_Support_up.SLDPRT	73.59K
85	shaft_z_axis.SLDPRT	59.69K
86	SHF12-ShaftendSupport.SLDPRT	161.83K
87	SHF16-ShaftendSupport.SLDPRT	180.79K
88	SHF16_shaft_support.SLDPRT	83.57K
89	SHF20_shaft_support.SLDPRT	85.90K
90	spindle.SLDPRT	136.83K
91	Spindle_Blade.SLDPRT	52.63K
92	spindle_mount_2.SLDPRT	79.08K
93	stepper_mount.SLDPRT	109.13K
94	stepper_nema_23.SLDPRT	163.16K
95	stepper_with_mount.SLDASM	155.31K
96	Support.SLDPRT	68.79K
97	support_plate.SLDPRT	109.34K
98	T-Slot_30x60x100.SLDPRT	267.08K
99	T-Slot_30x60x1000.SLDPRT	262.61K
100	T-Slot_30x60x615.SLDPRT	280.41K
101	T-Slot_30x60x695.SLDPRT	269.42K
102	T-Slot_30x60x750.SLDPRT	269.25K
103	Thumbs.db	127.50K
104	T_slot-table.SLDPRT	155.76K
105	Y-Side.SLDPRT	153.49K
106	z_axis_only.SLDASM	539.41K
107	z_Steper_mount.SLDPRT	86.69K
